Hightop Mini Excavator 1 Ton With Imported Components HT10B Description
The HIGHTOP HT10B 1 Ton Mini Excavator is a compact crawler excavator designed for customers who require reliable performance, stable operation, and professional component configuration in small-scale excavation projects. With a 1000kg operating weight, compact structure, and imported core components, HT10B provides an efficient solution for landscaping, agriculture, residential construction, municipal maintenance, and narrow-space excavation applications.
Different from ordinary small excavators that mainly focus on basic functions, the HT10B emphasizes component quality and long-term operating reliability. The machine adopts key components from internationally recognized suppliers, including a Japanese hydraulic main pump, Italian main valve, swing motor, and travel motor, helping improve hydraulic response, operation stability, and service durability during continuous work.
The HT10B 1 ton mini excavator is powered by a reliable KOOP 192F engine with 8.2kW power output, providing stable power for digging, trenching, soil handling, and small construction tasks. Optional engine configurations such as Briggs & Stratton and Yanmar are available to meet different market requirements and emission standards.
To improve working stability, HT10B adopts a reinforced structure with a rear counterweight design, helping balance the machine during excavation operations. The hydraulic pipeline uses high-quality Continental AG hydraulic hoses, reducing the risk of leakage and improving reliability in different working environments.
With a compact width of approximately 930mm, a maximum digging depth of around 1650mm, and flexible working functions, HT10B can access narrow areas such as gardens, farms, alleys, and small construction sites. For customers searching for a 1 ton mini excavator for sale, HT10B offers a practical combination of compact size, professional components, and dependable performance.
HIGHTOP provides a complete range of mini excavators and compact construction equipment solutions, helping customers select suitable machines according to project requirements and working conditions.
Mini Excavator 1 Ton With Imported Components HT10B Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Transport Length | 2225 | Overall Width | 930 |
| Upper Width | 840 | Overall Height (Cab Top) | 2200 |
| Standard Track Shoe Width | 180 | Track Gauge | 750 |
| Dozer Blade Ground Clearance | 110 | Dozer Blade Digging Depth | 200 |
| Rear Tail Swing Radius | 810 | Track Length on Ground | 890 |
| Track Overall Length | 1235 | Max Digging Height | 2605 |
| Max Dumping Height | 1750 | Max Digging Depth | 1745 |
| Max Digging Reach | 2915 | Min Swing Radius | 1415 |
| Max Height at Min Swing Radius | 2060 | Operating Weight | 800kg |
| Bucket Capacity | 0.02m³ | Working Equipment Type | Backhoe |
| Gradeability | 30° | Engine | Kepu / Briggs & Stratton |
| Main Control Valve | Beifang |

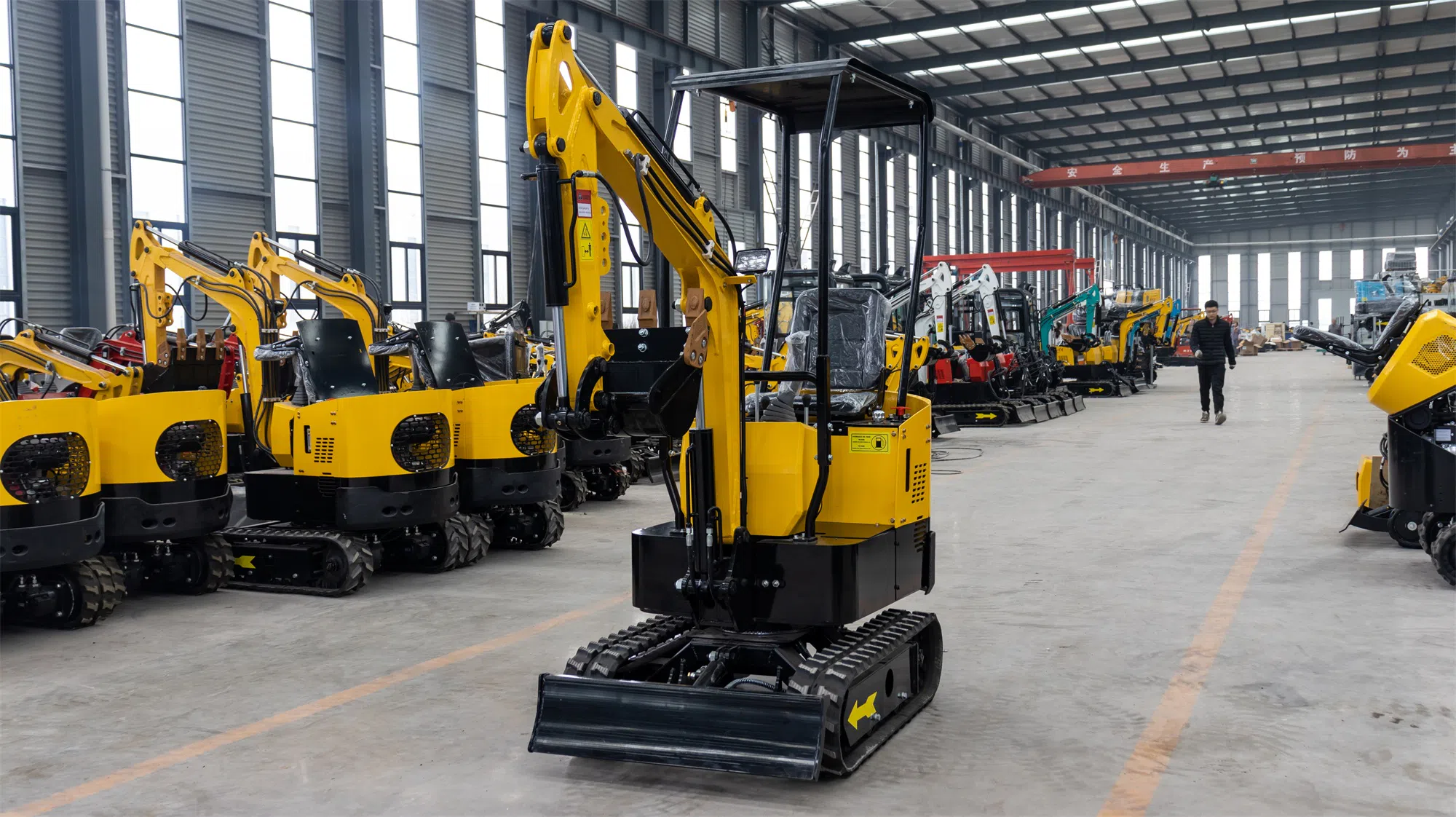

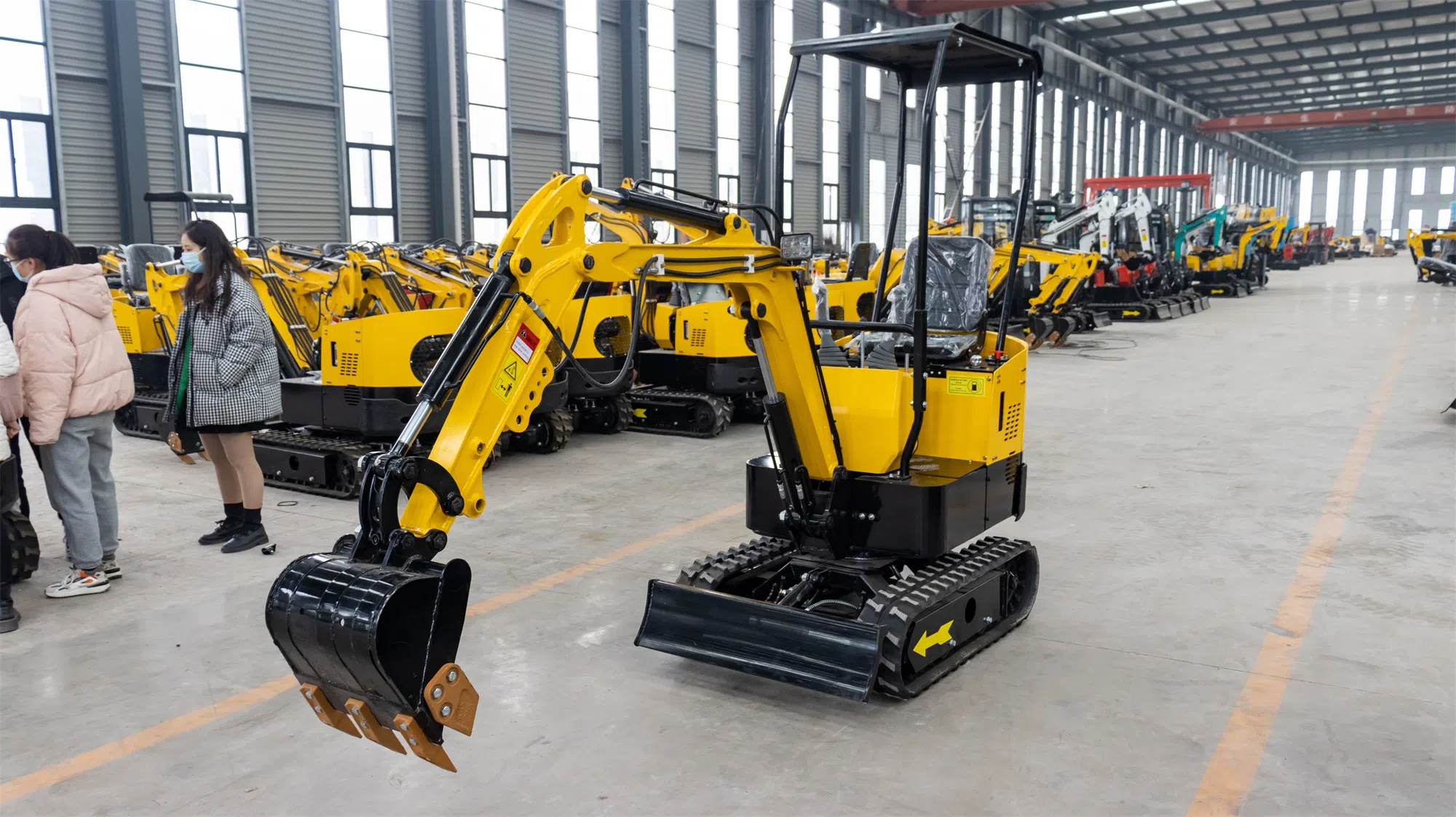

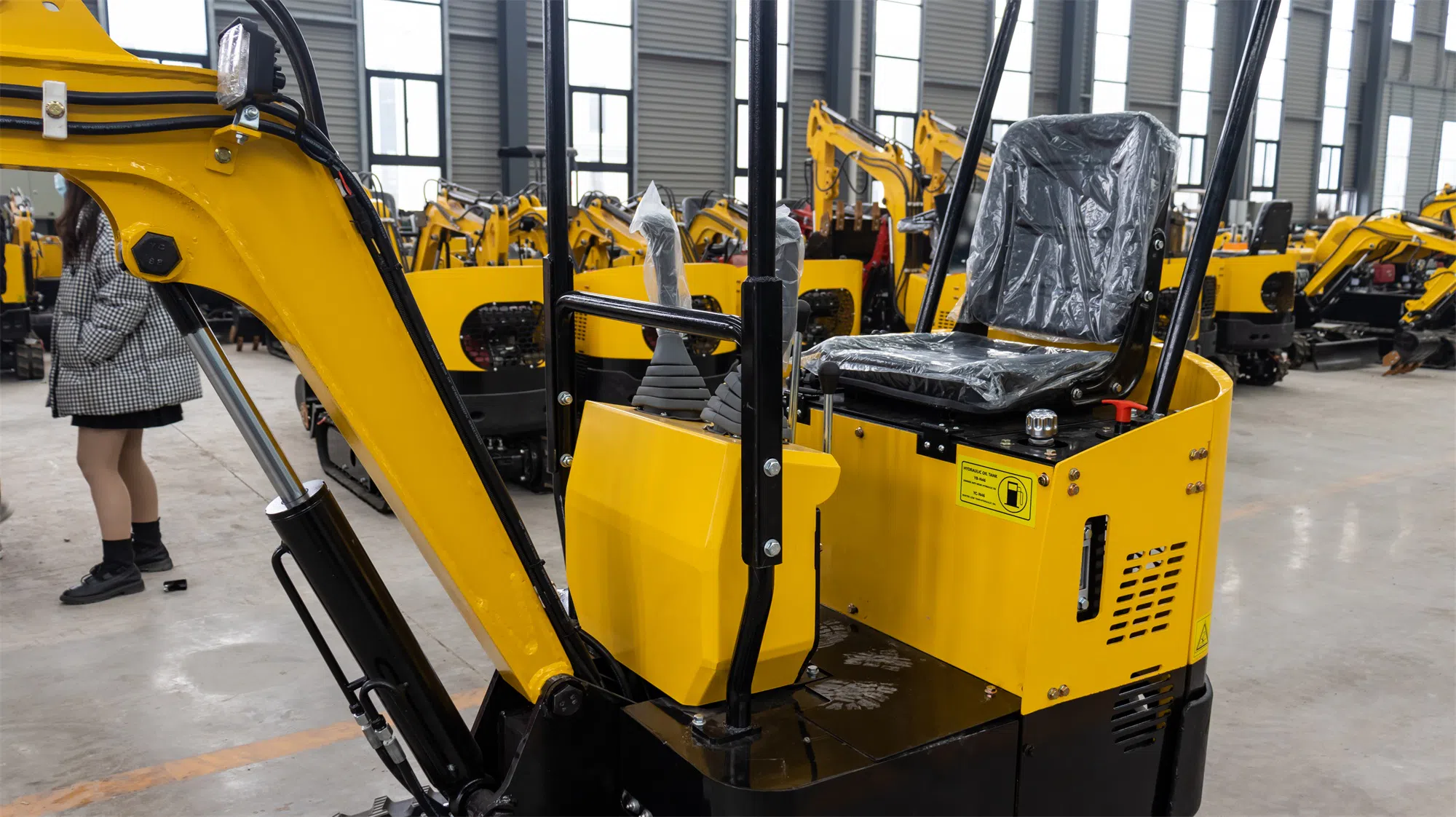

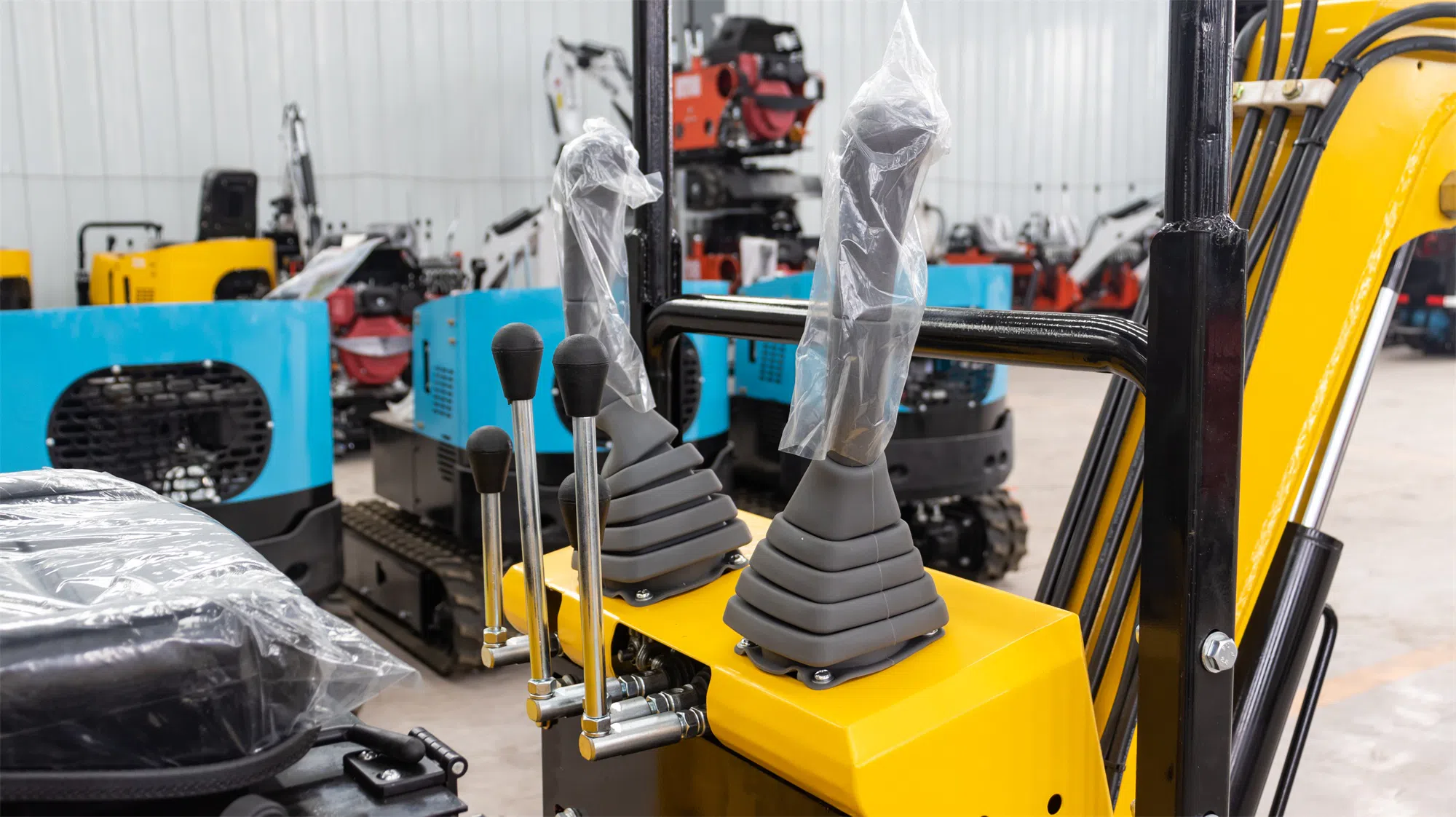

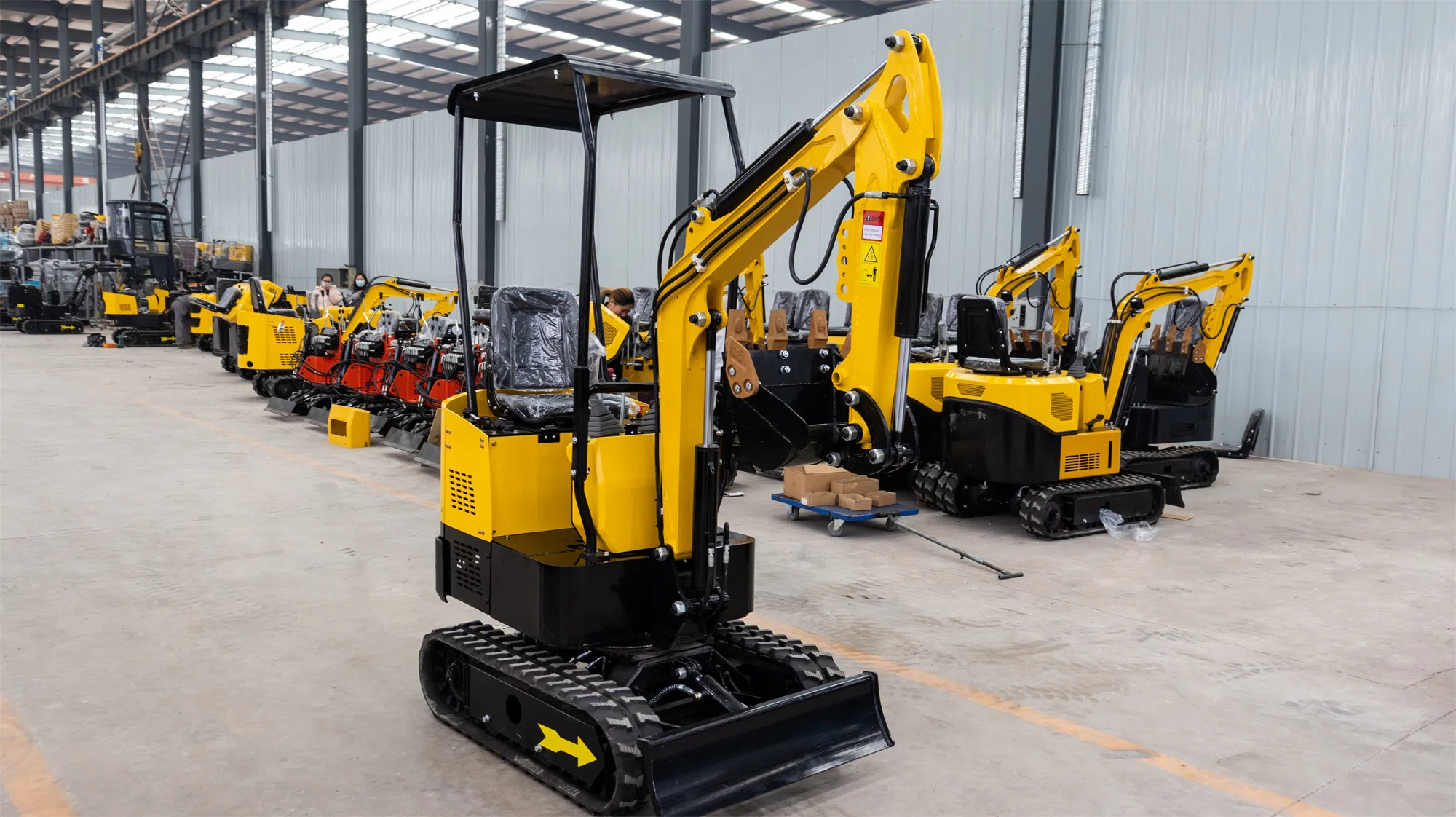

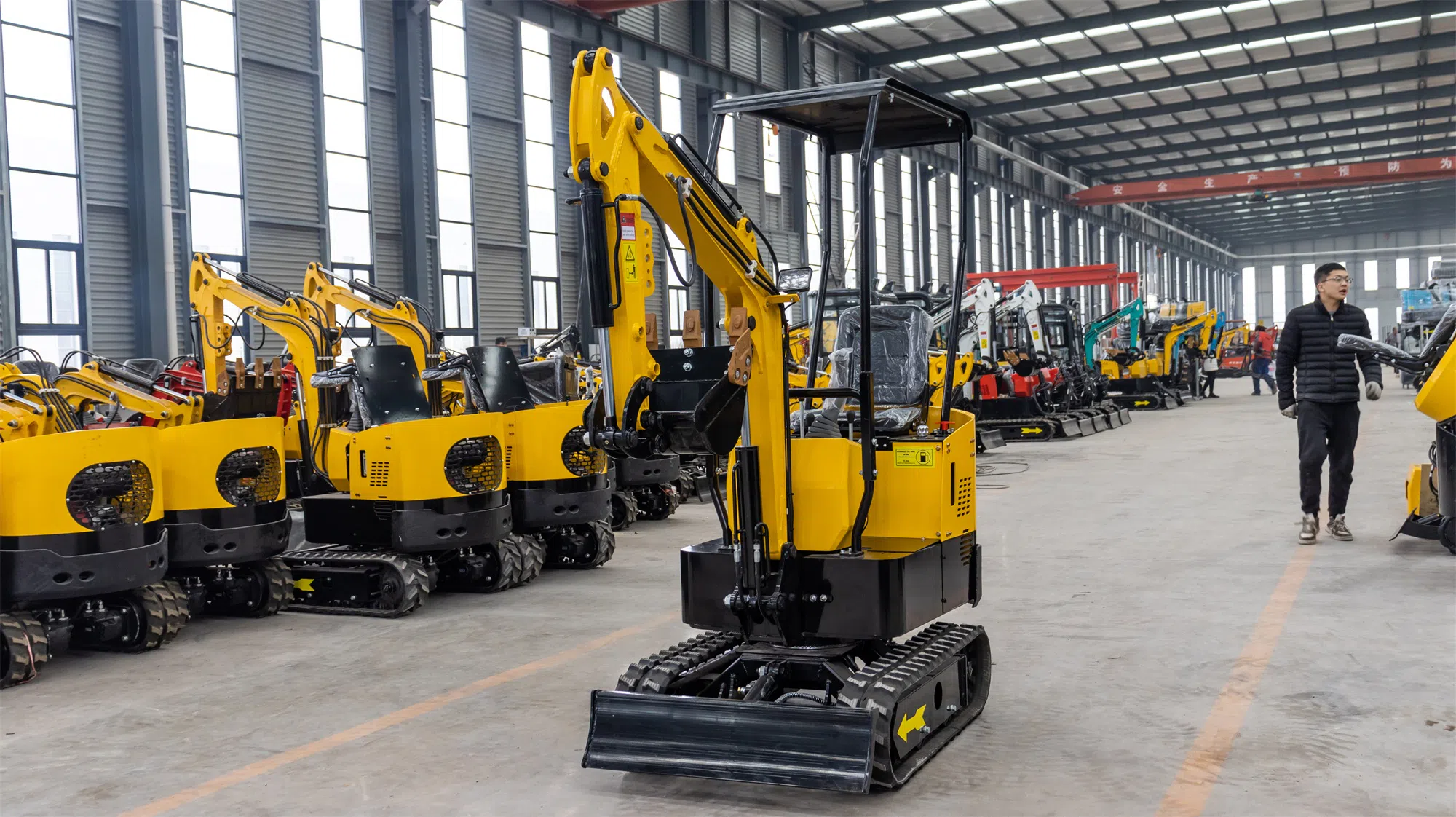

Hightop HT10B Mini Excavator 1 Ton With Imported Components Images
Mini Excavator 1 Ton With Imported Components HT10B Applications
The HT10B 1 ton mini excavator is designed for customers who need compact equipment with professional performance.
In landscaping projects, HT10B can be used for garden renovation, tree planting preparation, soil movement, and outdoor maintenance work.
For agricultural applications, the machine is suitable for orchard management, irrigation trenching, greenhouse construction, and farmland improvement.
In residential construction and municipal projects, HT10B can complete drainage installation, cable trenching, pipeline excavation, and small foundation preparation.
Its compact crawler design allows the machine to work effectively in narrow spaces, including small yards, farm roads, alleys, and restricted construction areas.
HIGHTOP Service Support
Mini Excavator 1 Ton Frequently Asked Questions
1. What makes HT10B different from other 1 ton mini excavators?
The main difference of HT10B is its professional component configuration, including imported hydraulic components and high-quality hydraulic systems, which improve reliability and operating stability.
2. What engine does HT10B use?
HT10B uses a KOOP 192F engine as standard configuration and supports optional Briggs & Stratton and Yanmar engines.
3. What is the maximum digging depth of HT10B?
The HT10B 1 ton mini excavator provides a maximum digging depth of approximately 1650mm.
4. Is HT10B suitable for narrow spaces?
Yes. The compact crawler structure and approximately 930mm width allow HT10B to operate in gardens, farms, residential areas, and other limited-access locations.
5. Can HT10B use different attachments?
Yes. HT10B supports various attachments such as buckets, hydraulic breakers, augers, and grapples to meet different working requirements.
