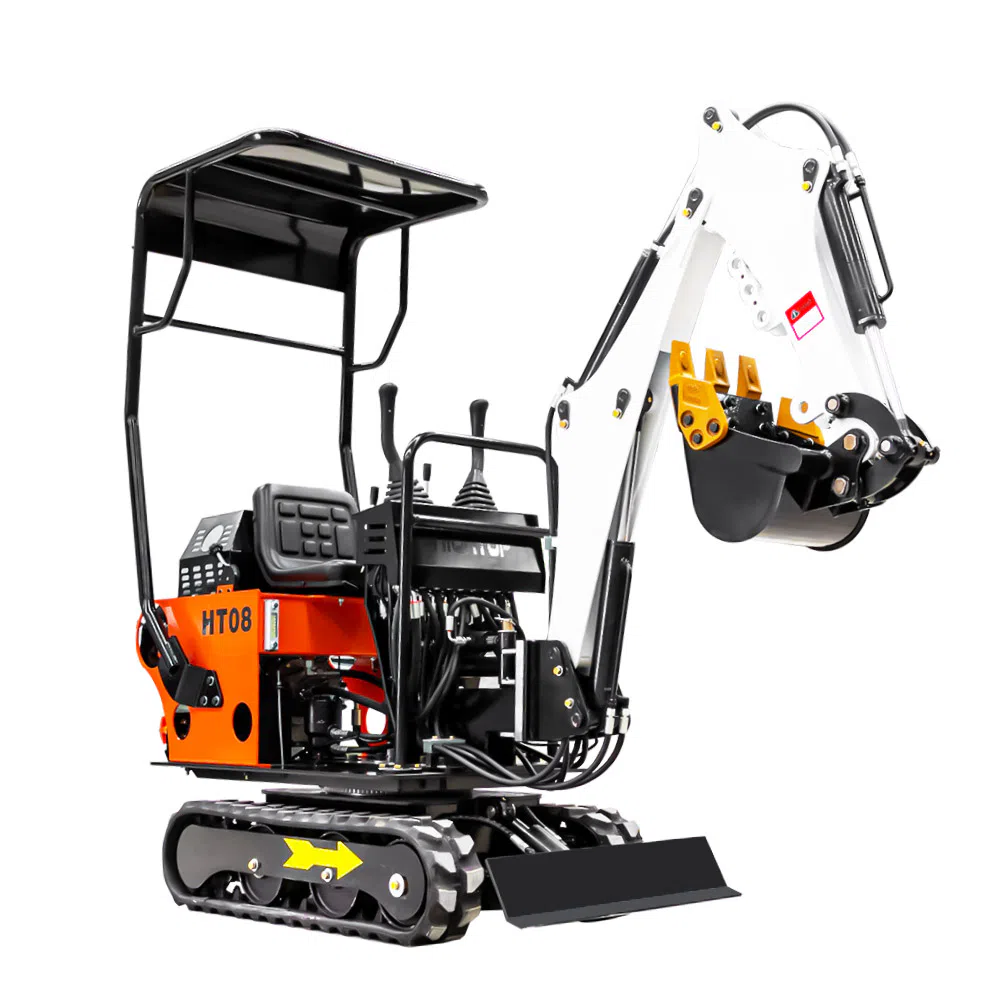

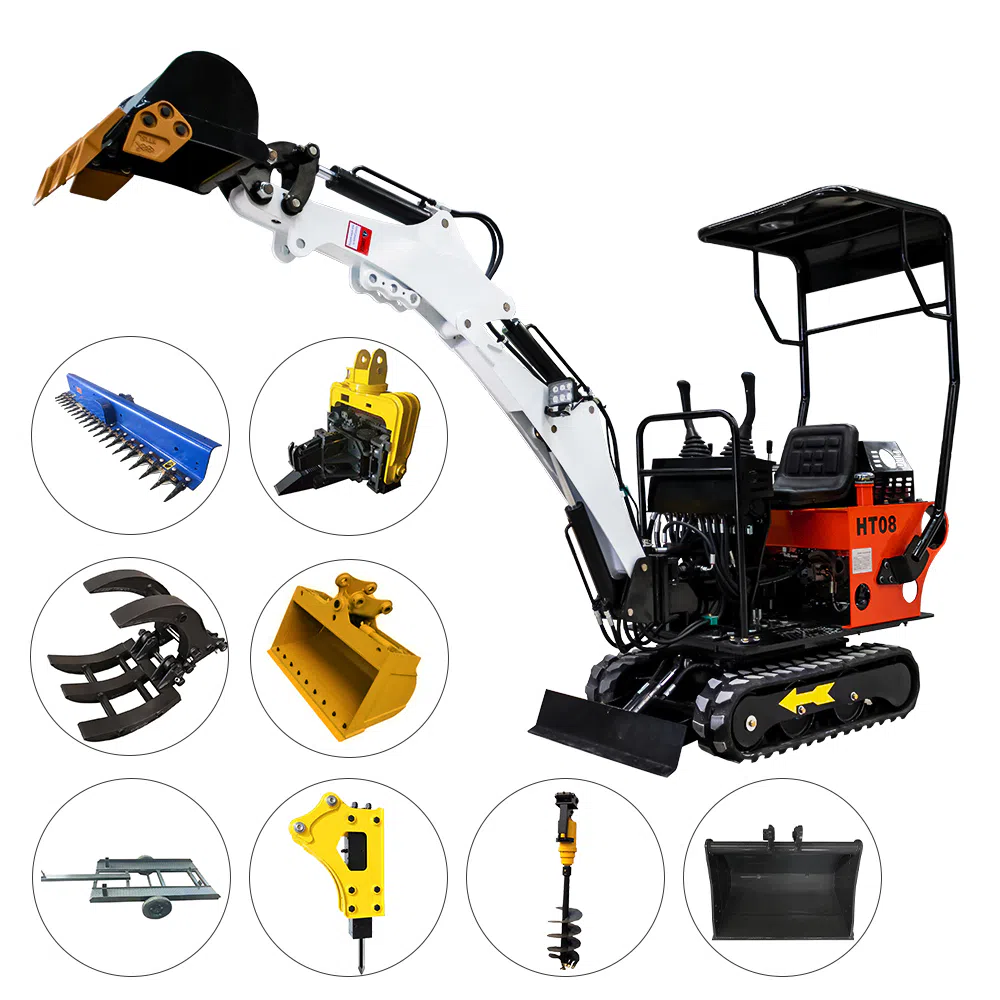

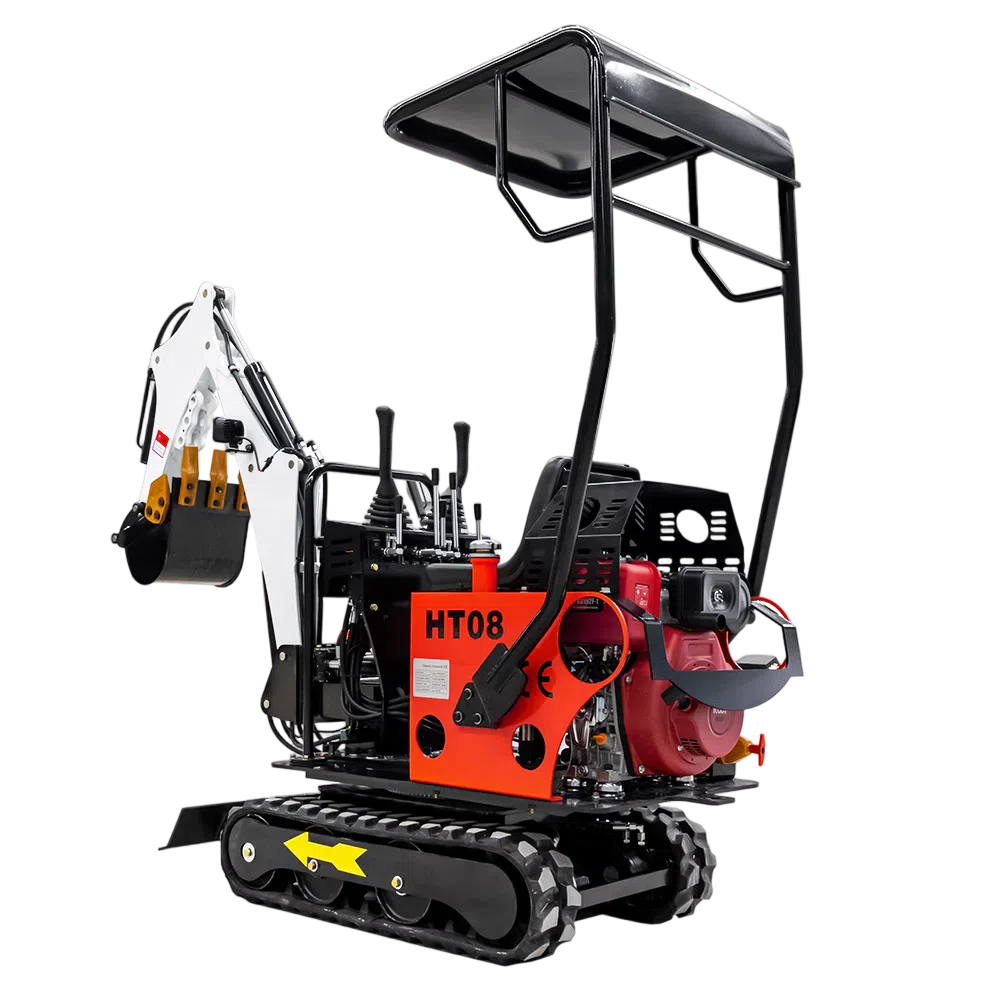

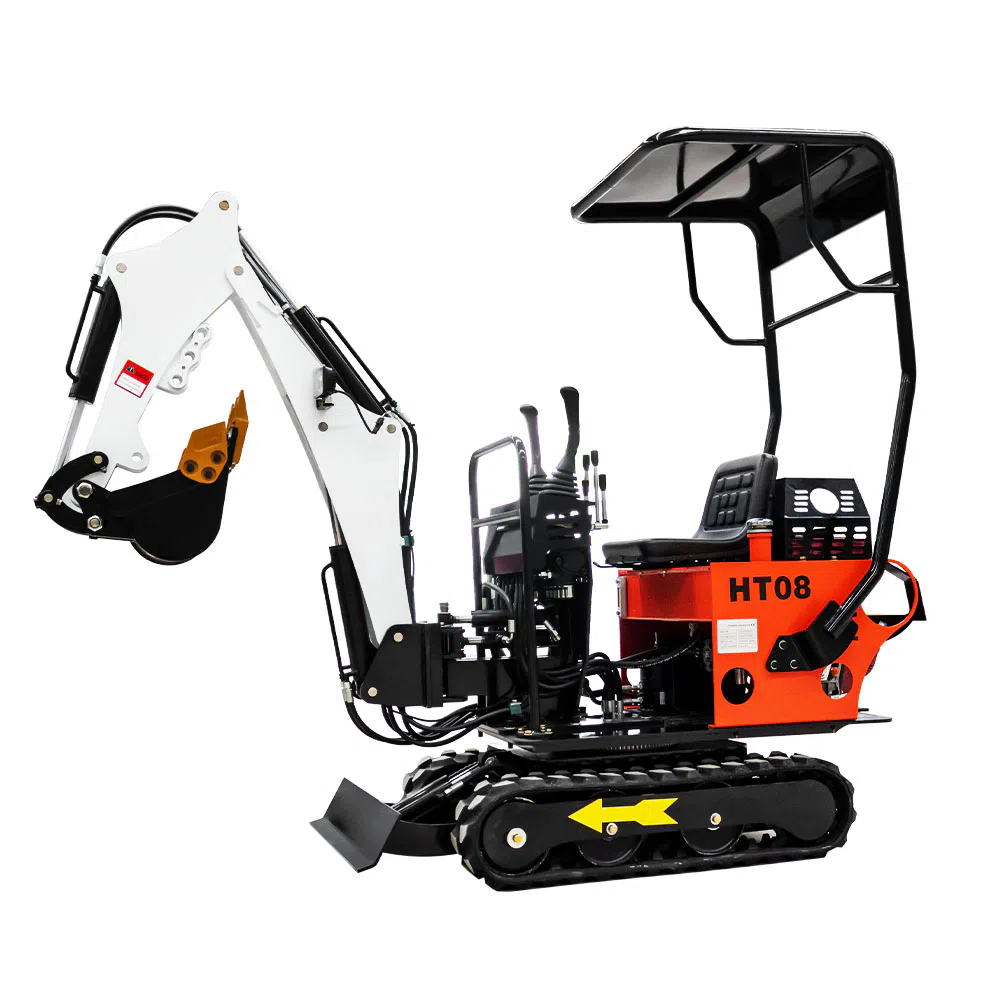

HT08 0.8T Mini Excavator is a compact and efficient micro excavator designed for small-scale construction, landscaping, agricultural work, and narrow-space operations. Powered by a reliable 12HP Changchai 192 engine, it delivers strong digging performance with a maximum digging force of 7.5kN while maintaining excellent flexibility and stability. With its compact 720–780mm adjustable width, 650kg lightweight design, and 30° gradeability, the HT08 can easily access tight working areas where larger excavators cannot operate. The integrated boom cylinder design, reinforced structural components, and advanced surface treatment process ensure enhanced durability, longer service life, and reliable performance in various working conditions.

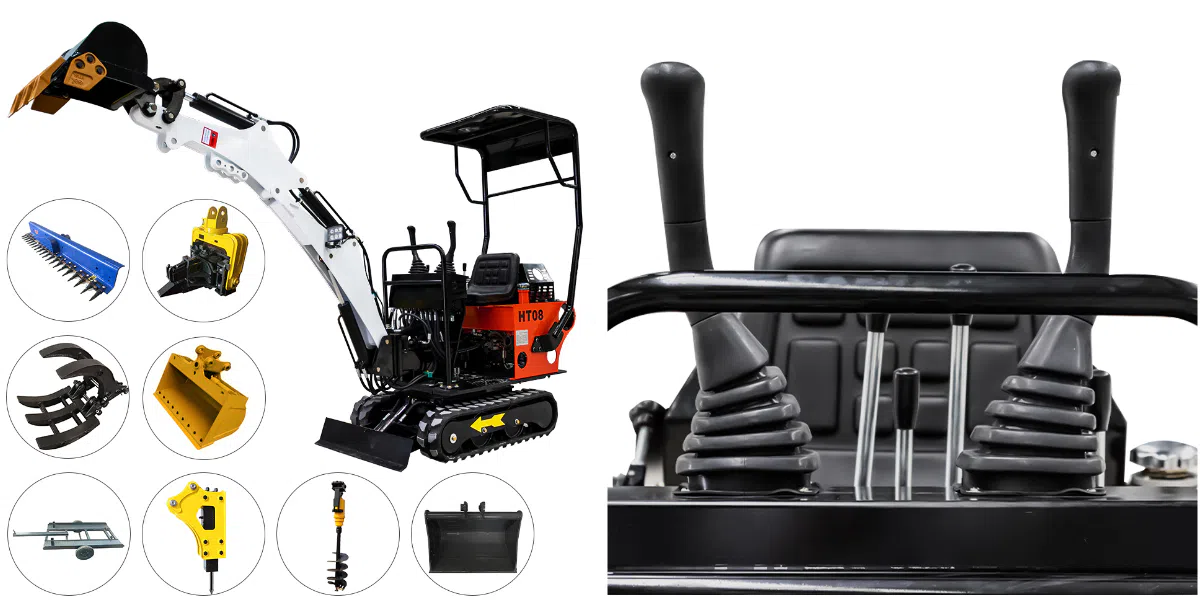

Key Features
1.Unique big arm structure design

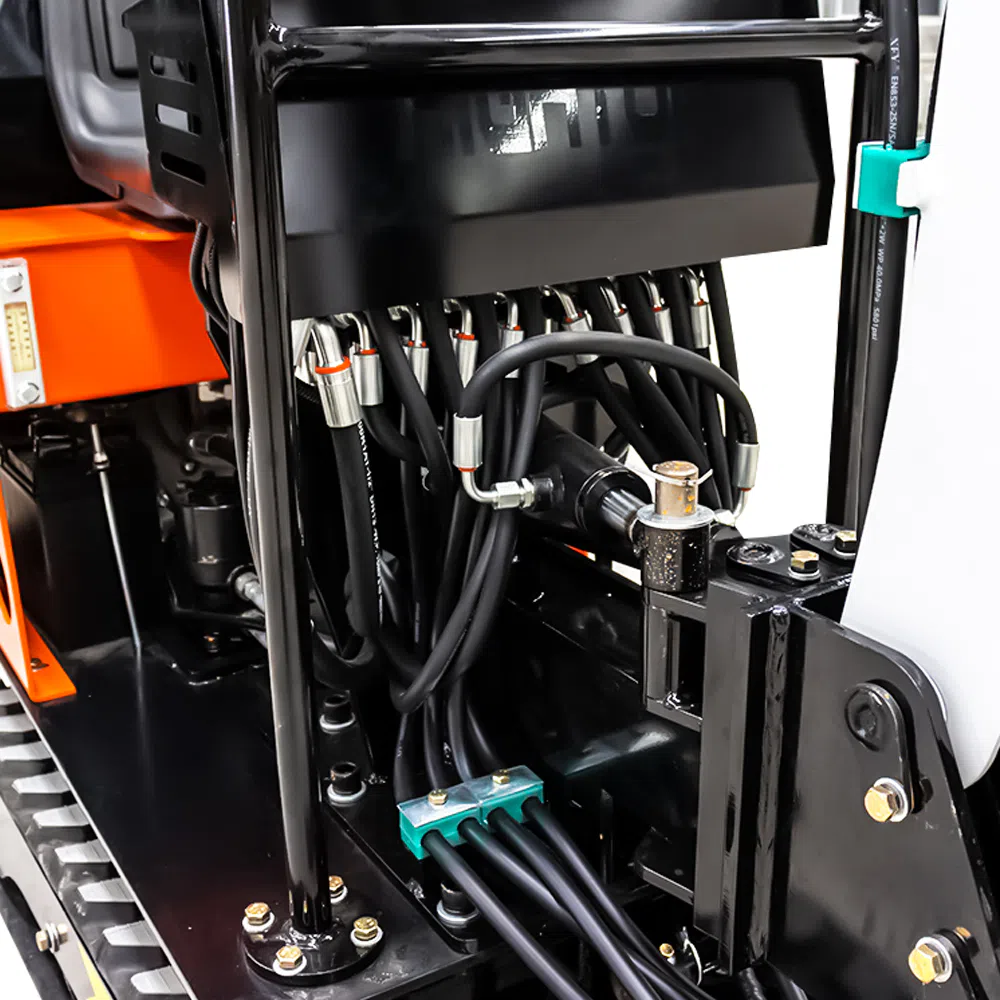

2.The operation front pipeline is clear.
The protective cover protects the pipeline from being destroyed.
3.The boom cylinder adopts the well-known brand
The cylinder is designed integrated, which is more advanced than the welding technology.

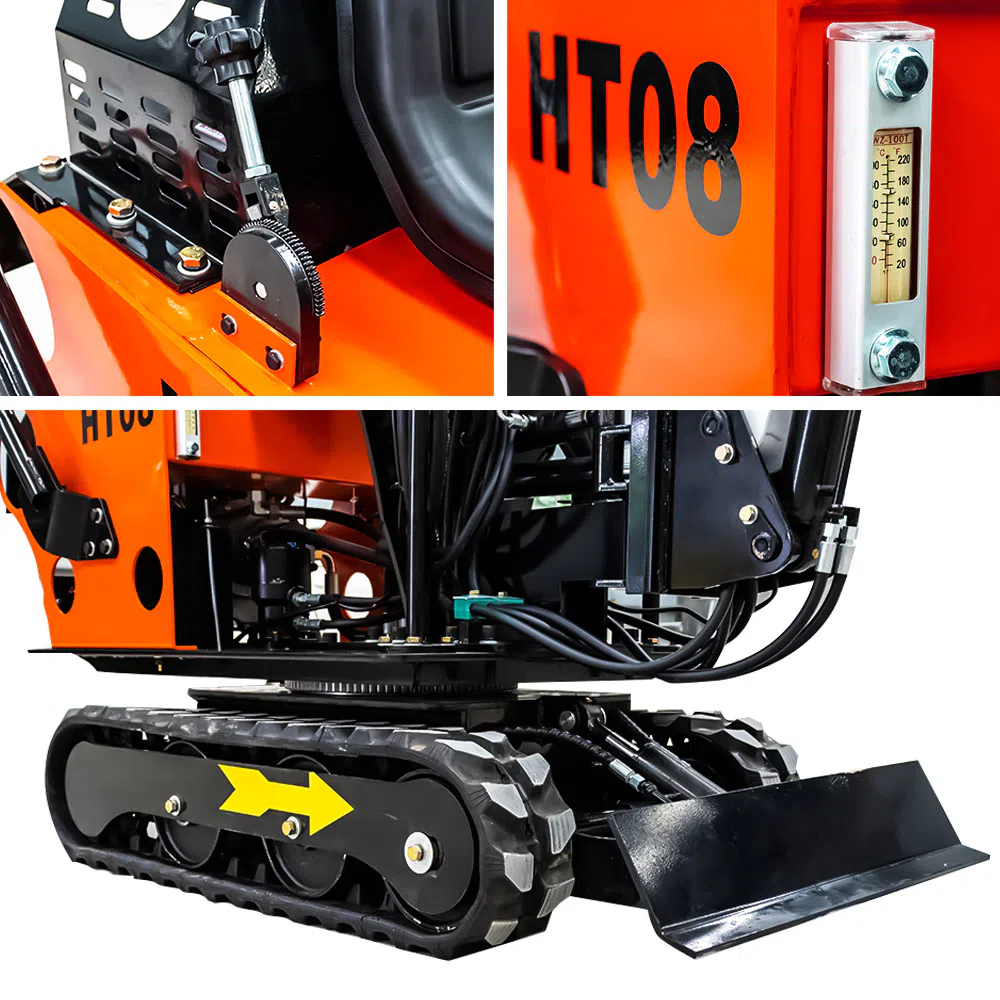

4.All structural parts are finely processed.
All structural parts are finely processed.
Shot blasting, pickling, and baking finish process are adopted.
The surface has high gloss and high paint adhesion.
HT08 0.8T Mini Excavator Parameter
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Transport Length | 1967 | Overall Width | 700 |
| Upper Width | 795 | Overall Height (Cab Top) | 2025 |
| Standard Track Shoe Width | 150 | Track Gauge | 550 |
| Dozer Blade Ground Clearance | 105 | Dozer Blade Digging Depth | 110 |
| Rear Tail Swing Radius | 862 | Track Length on Ground | 865 |
| Track Overall Length | 1135 | Max Digging Height | 2405 |
| Max Dumping Height | 1670 | Max Digging Depth | 1130 |
| Max Digging Reach | 2300 | Min Swing Radius | 1105 |
| Max Height at Min Swing Radius | 1786 | Operating Weight | 700kg |
| Bucket Capacity | 0.02m³ | Working Equipment Type | Backhoe |
| Gradeability | 30° | Engine | Kepu / Briggs & Stratton |
| Main Control Valve | Tengfei |
Product Images
