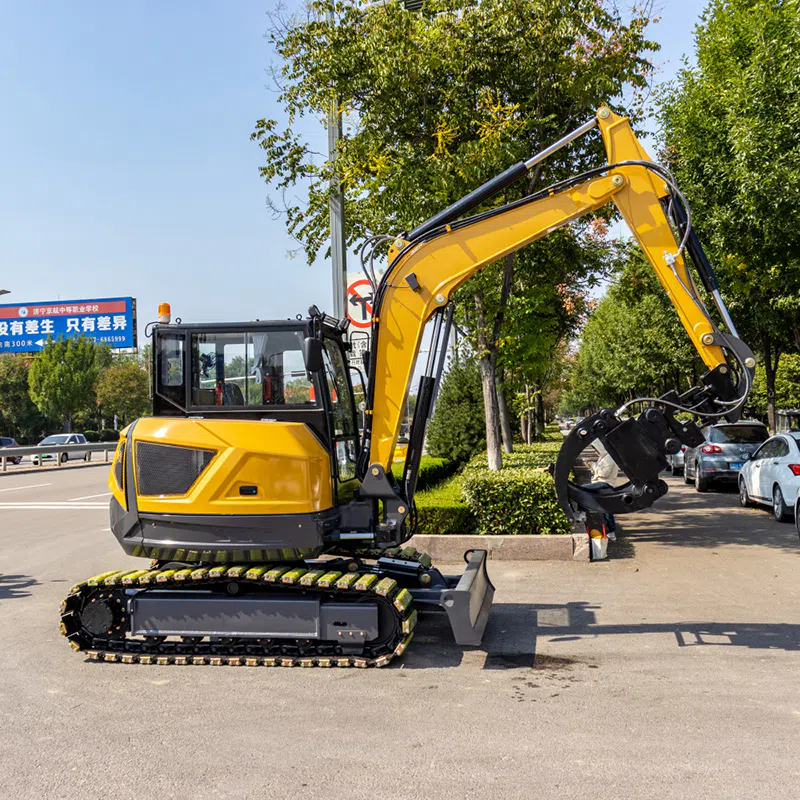

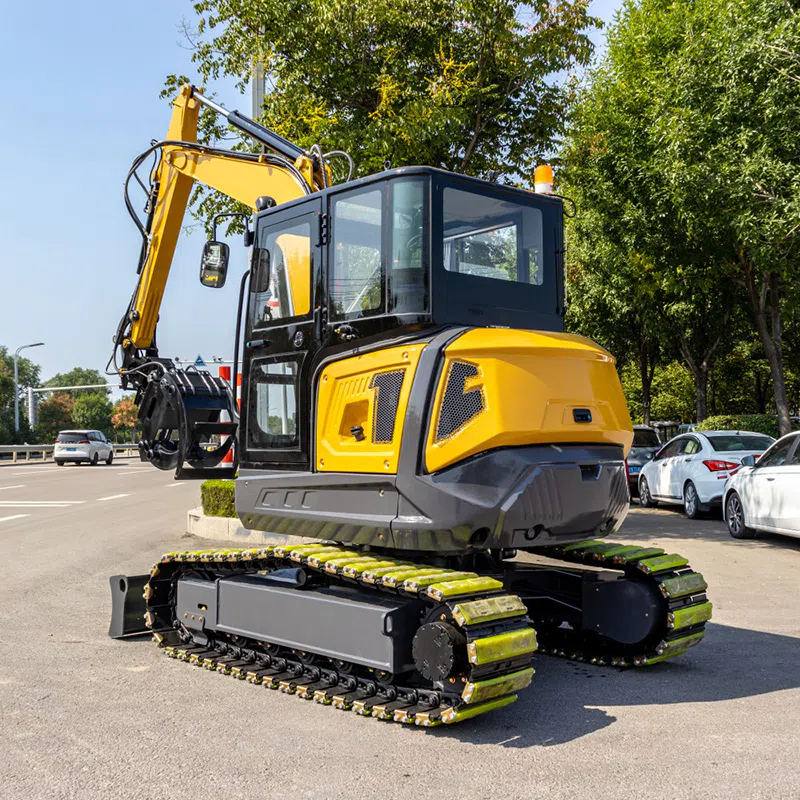

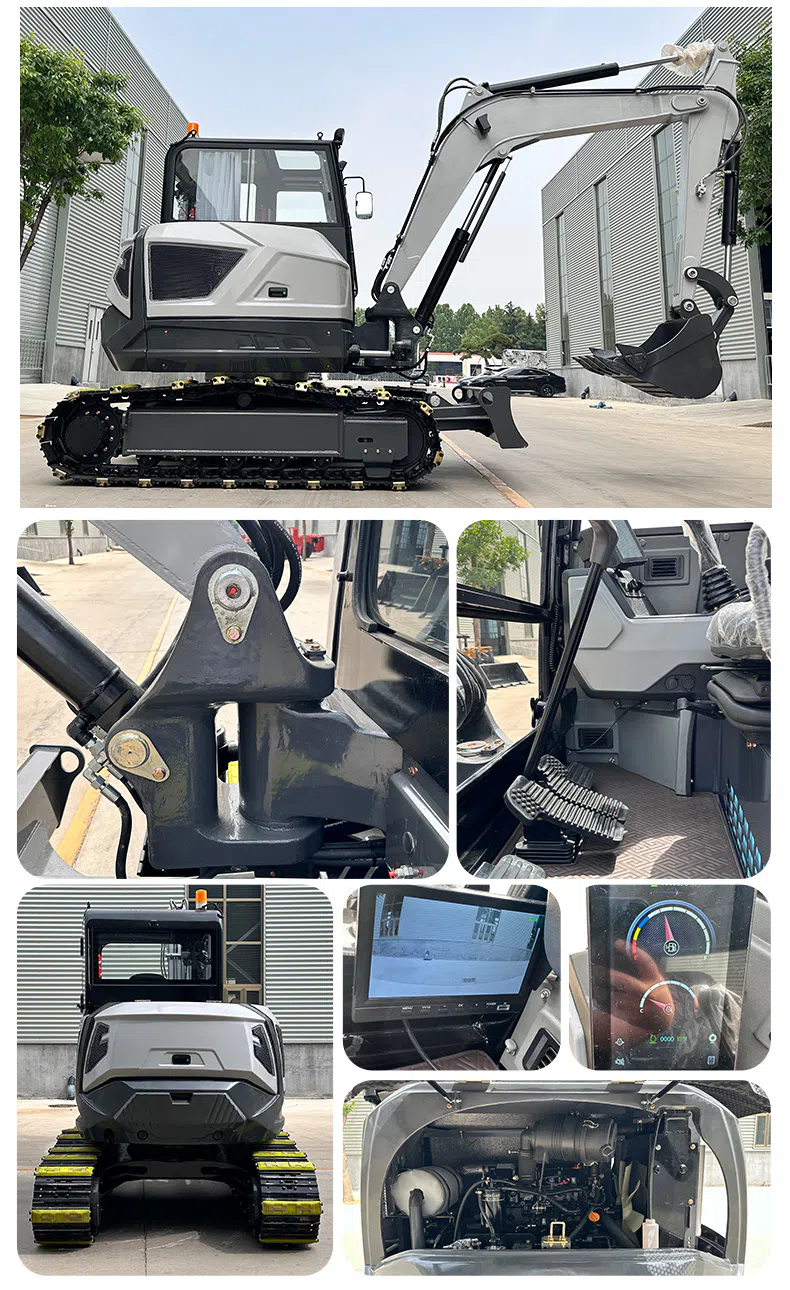

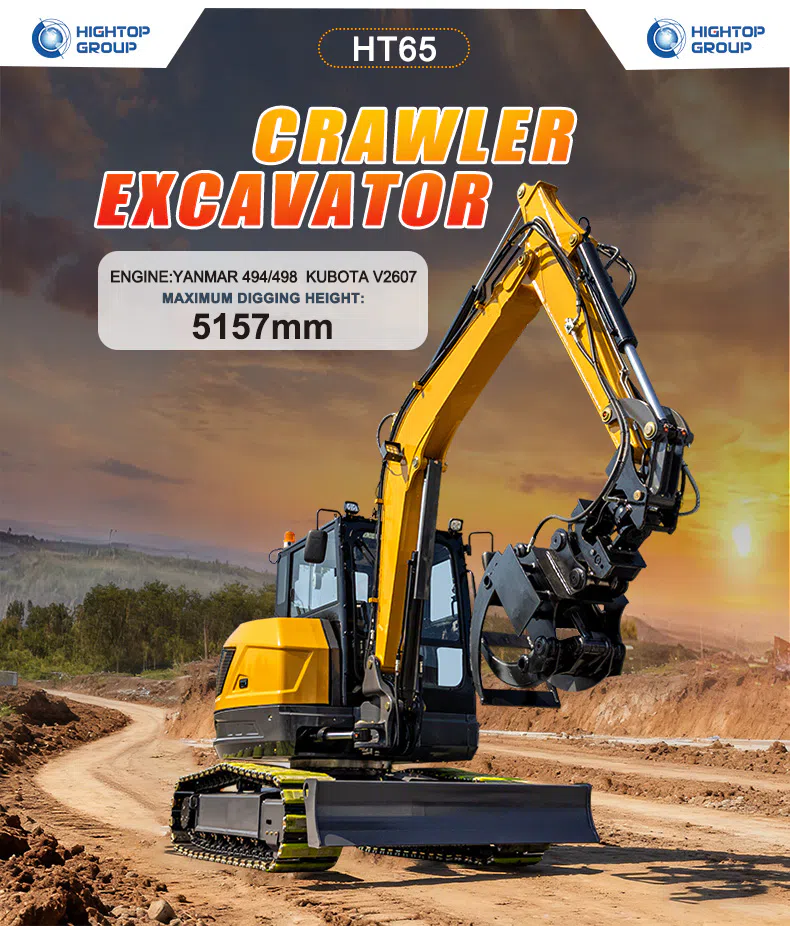

The HT65 Crawler Excavator is a powerful 6.5-ton compact excavator designed for construction, municipal projects, landscaping, and earthmoving applications. Equipped with a reliable Yanmar/Kubota engine, advanced hydraulic system, and stable crawler structure, it delivers excellent digging performance, precise control, and strong adaptability on various terrains. With compact dimensions, flexible operation, and multi-functional capabilities, the HT65 is ideal for both confined spaces and demanding job sites.

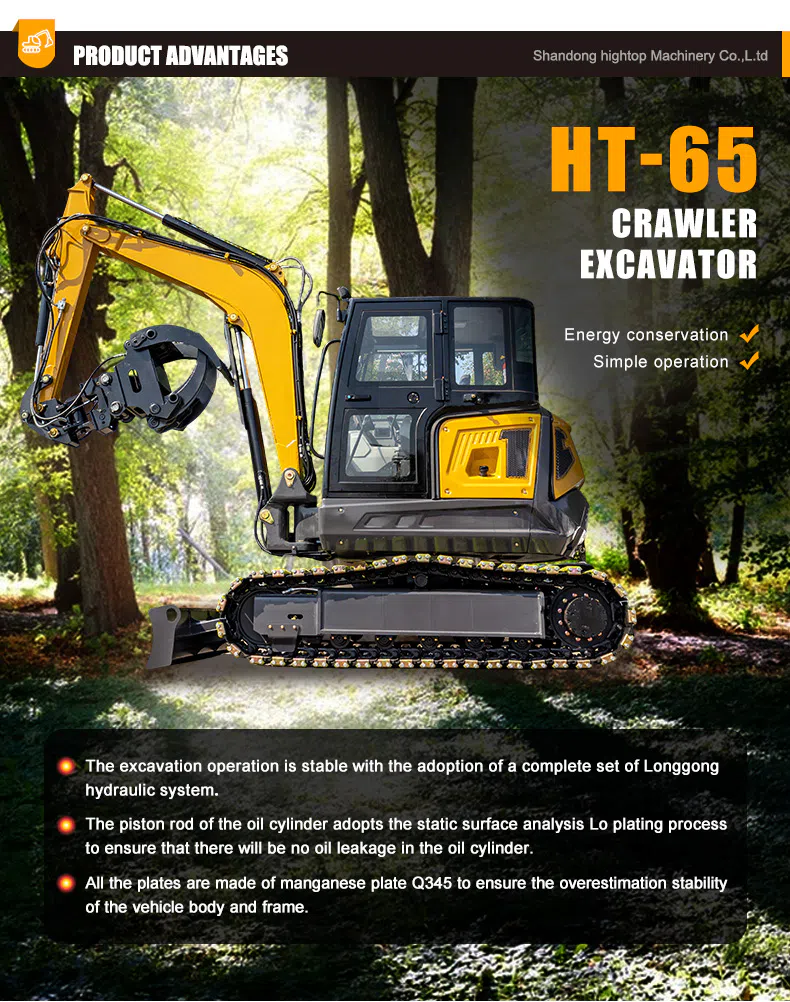

HT65 Crawler Excavator Instruction
6.5-Ton Excavator: 10 Key Product Advantages
1. Exceptional Maneuverability in Confined Spaces: With an overall width of just 2000mm and a body width of 1780mm, paired with compact dimensions of 5834mm × 2570mm, it effortlessly navigates narrow urban alleys, indoor renovation sites, and small factory renovations—overcoming the limitations of larger equipment that “can't enter or turn.”

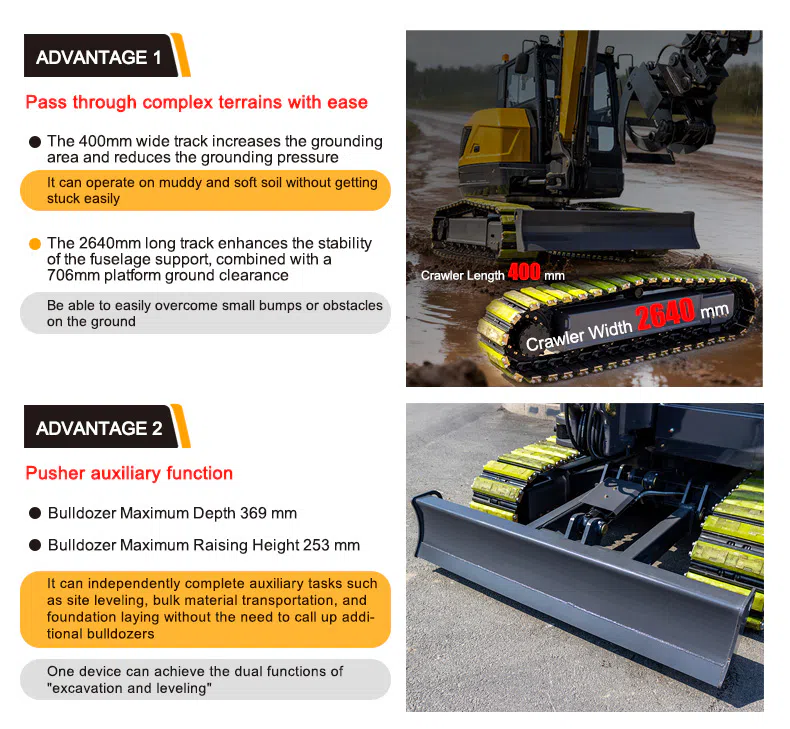

2. Superior Traverse Capability on Complex Terrain: 400mm-wide tracks increase ground contact area and reduce ground pressure, enabling operation on muddy or soft ground without getting stuck. The 2640mm-long tracks enhance body support stability, while the 706mm platform ground clearance allows easy navigation over minor ground protrusions or obstacles.
3. Comprehensive Coverage: A maximum digging height of 5157mm accommodates foundation excavation for mid-rise buildings and truck loading. Maximum digging depth of 3071mm suits small-to-medium foundation pits and pipeline trenches. Maximum digging radius of 5251mm expands operational coverage, reducing machine repositioning.

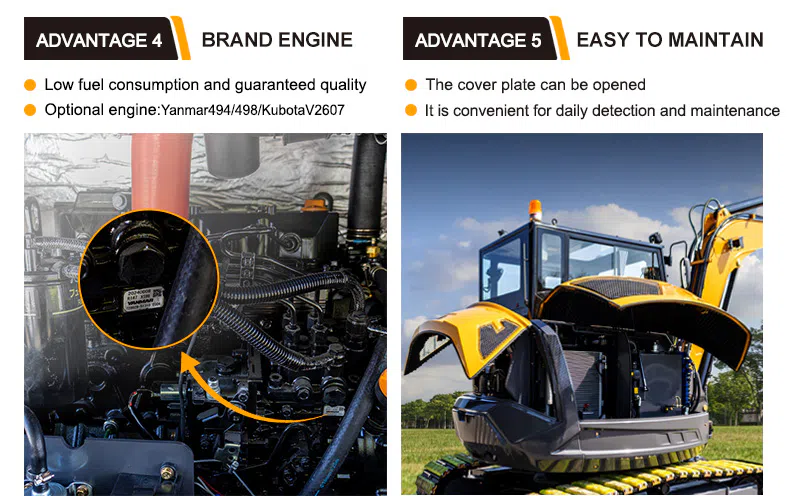

4. Reliable and Adaptable Power: Equipped with the YANMAR 494 engine—a proven, stable powerhouse in the industry—it delivers output perfectly matched to the 6.5-ton machine weight. This engine features low fuel consumption and minimal downtime, with readily available maintenance parts that reduce long-term operating costs.
5. Optimized Efficiency Design: A rotation speed of 12 rpm outpaces most competitors in its class, enabling rapid bucket direction adjustments and minimizing wait times. The 0.23m³ bucket capacity aligns with the machine's power, enabling efficient “dig-unload” cycles that prevent power wastage or overload operations.
6. Seamless Transition Between Travel and Work Modes: Dual travel speeds of 2.2/4.2 km/h offer precision at low speeds for detailed excavation and incline work, while high speed facilitates quick relocation between job sites—saving time compared to single-speed models.

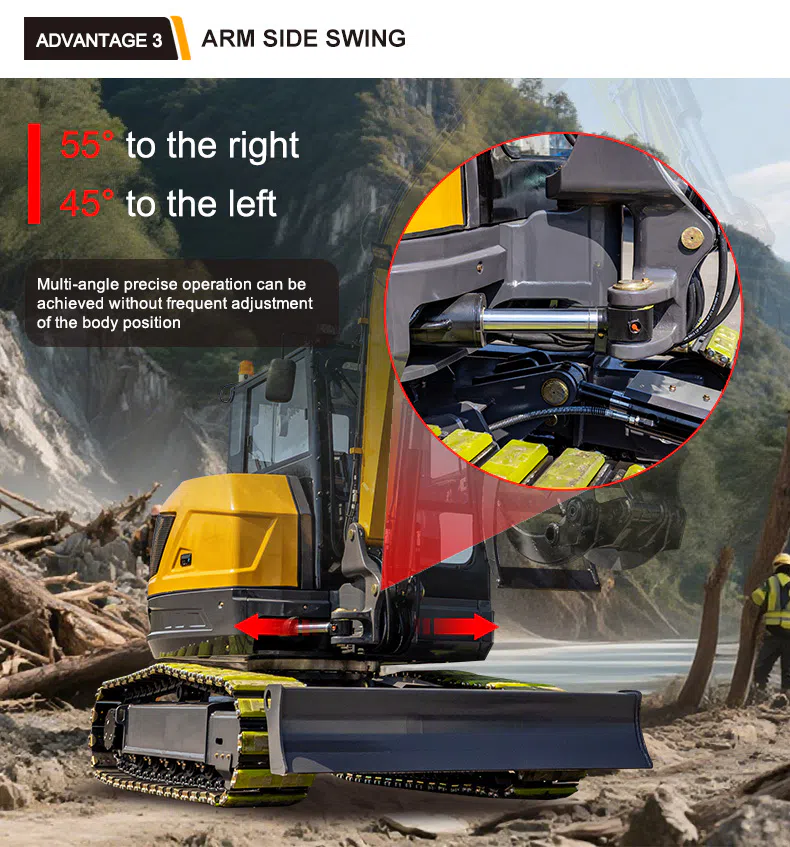

7. Outstanding Side-Digging Adaptability: Supports 45° left and 55° right swing angles. For tasks like slope trimming or trench sidewall excavation, precise multi-angle operation is achievable without frequent machine repositioning—ideal for side-access construction during municipal pipeline laying.
8. Practical bulldozer auxiliary function: With a maximum cutting depth of 369mm and maximum lift height of 253mm, the dozer blade independently handles site leveling, bulk material pushing, and foundation bedding. Eliminating the need for separate bulldozers, this single machine delivers dual “digging + grading” capabilities, boosting equipment utilization.

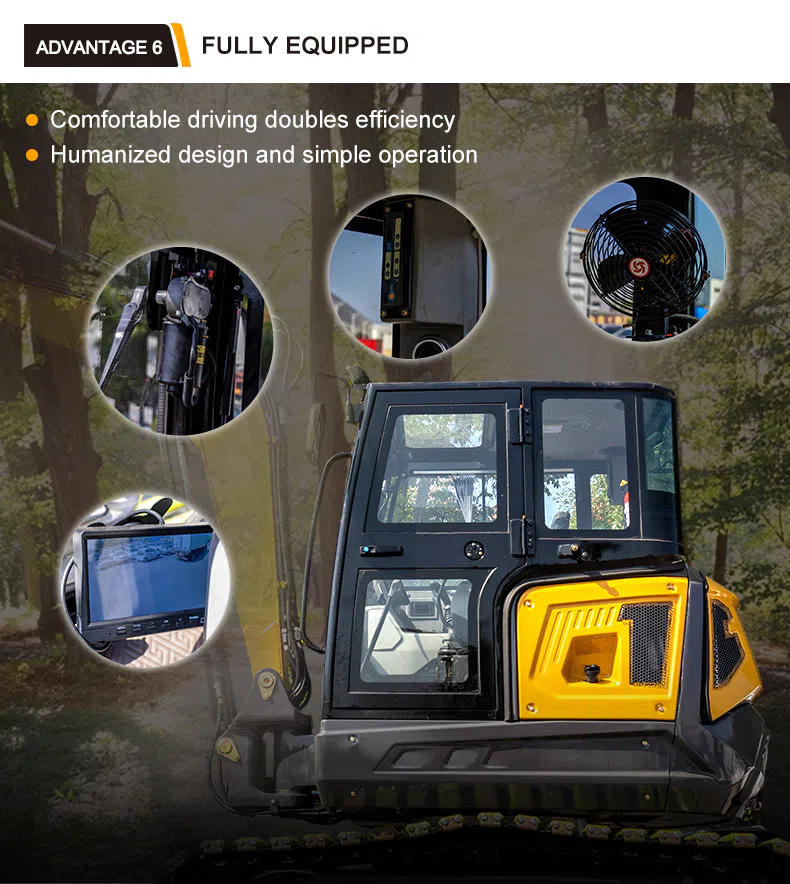

9. Excellent Operator Visibility and Safety: The 2570mm machine height combined with an ergonomically designed cab layout provides the operator with an unobstructed view of the bucket, dozer blade, and surrounding environment. The 6500kg weight and stable track support structure minimize machine sway during operation, ensuring safe operation.
10. Low Transportation and Relocation Costs: With a total length of 5834mm and a curb weight of 6500kg, it fits most small-to-medium flatbed transporters. Cross-site transfers can be completed without special transport permits, saving transportation costs compared to heavier models. This makes it particularly suitable for construction teams handling multiple projects or dispersed operations.

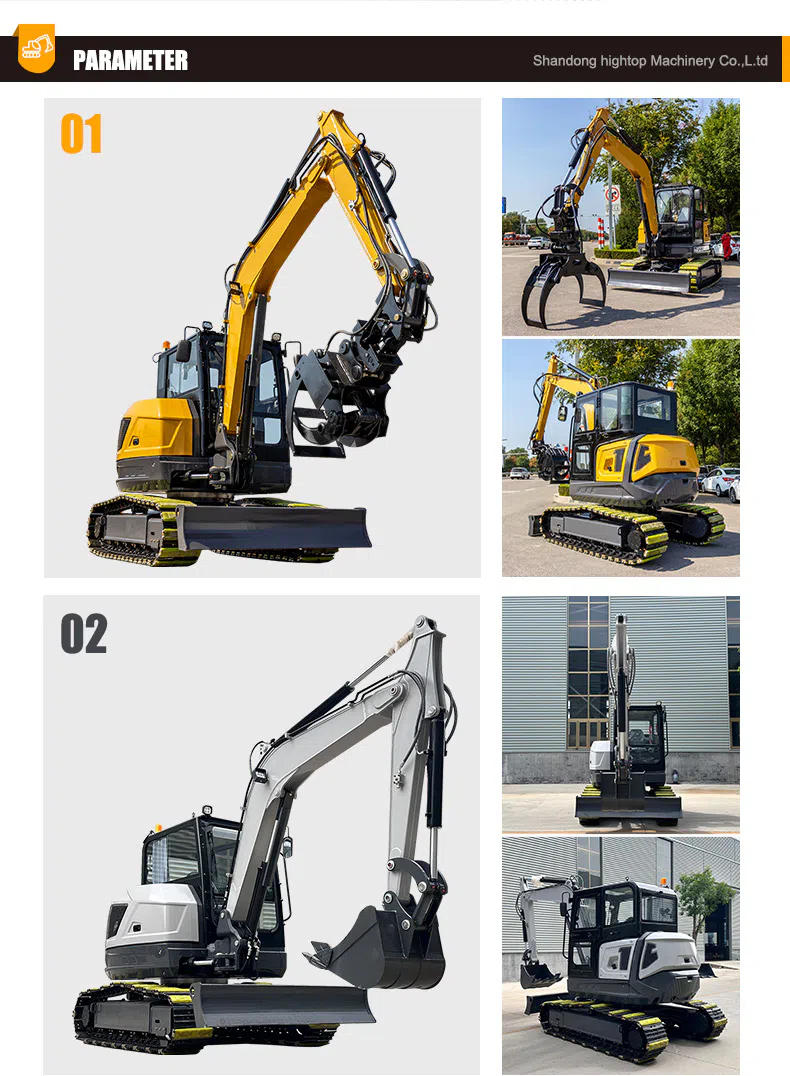

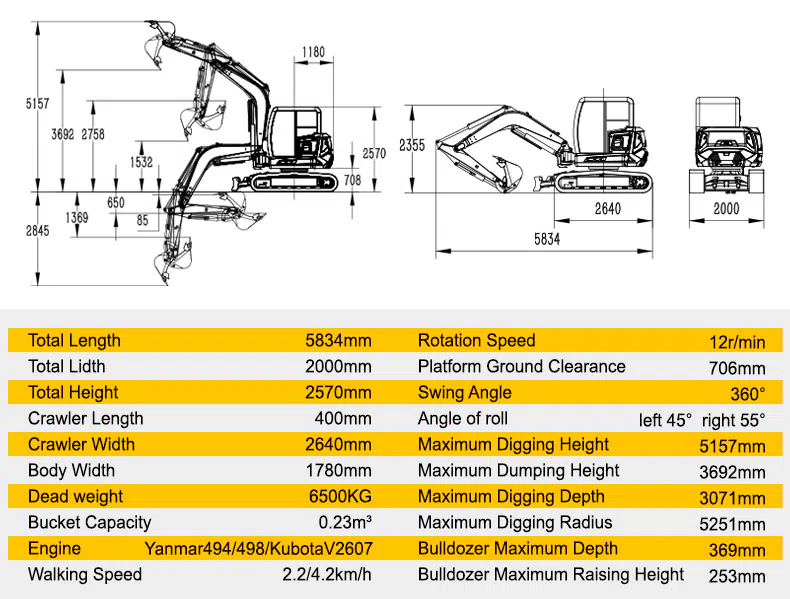

HT65 Crawler Excavator Parameter
| Model | HT65 |
| Total Length | 5834mm |
| Total width | 2000mm |
| Total Height | 2570mm |
| Crawler Length | 400mm |
| Crawler Width | 2640mm |
| Body Width | 1780mm |
| Dead weight | 6500KG |
| Engine | Yanmar494/Yanmar498/KubotaV2607 |
| Engine power | 36.6KW |
| Bucket Capacity | 0.23m³ |
| Walking Speed | 2.2km/h,4.2km/h |
| Rotation Speed | 12r/min |
| Platform Ground Clearance | 706mm |
| Swing Angle | 360° |
| Angle of roll | Left 45°, right 55 |
| Maximum Digging Height | 5157mm |
| Maximum Dumping Height | 3692mm |
| Maximum Digging Depth | 3071mm |
| Maximum Digging Radius | 5251mm |
| Bulldozer Maximum Depth | 369mm |
| Bulldozer Maximum Raising Height | 253mm |
| Diesel tank capacity | 30L |
| Hydraulic mailbox capacity | 41L |

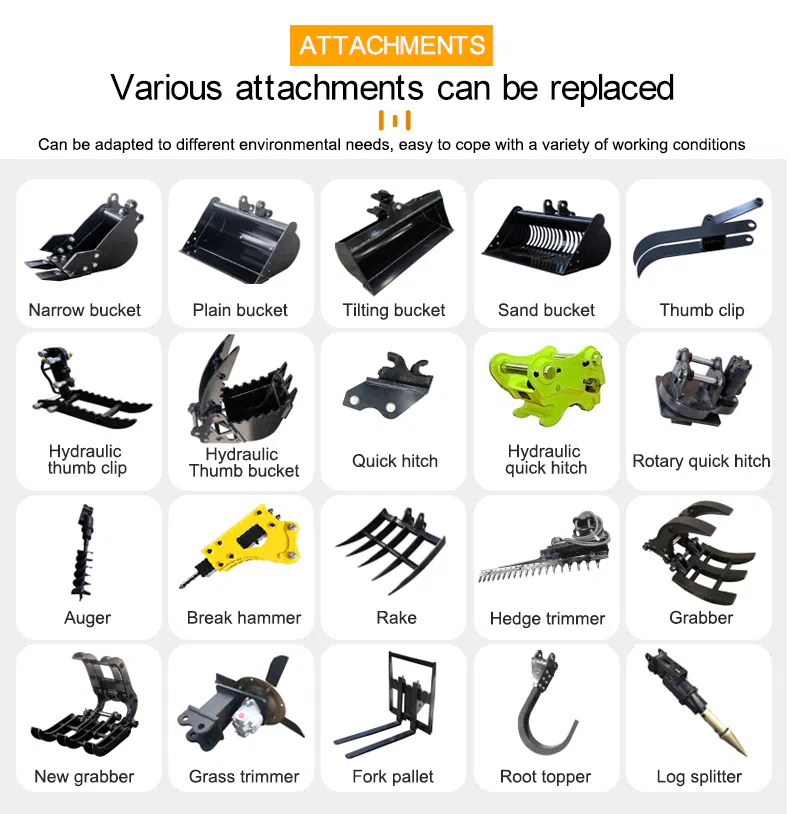

ATTACHMENTS
Various attachments can be replaced
Can be adapted to different environmental needs, easy to cope with a variety of working conditions

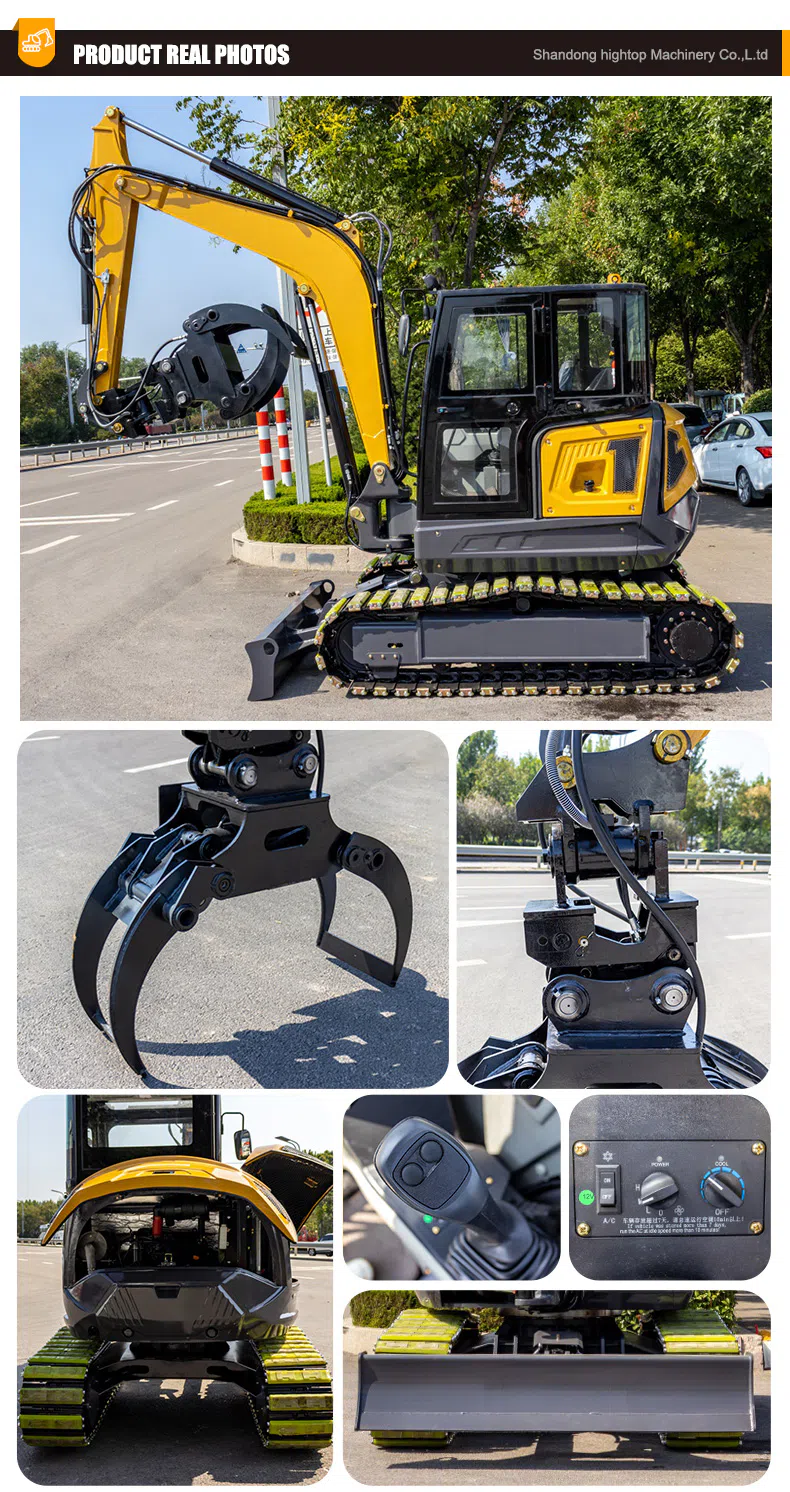

The available replacement attachments for excavators and engineering machinery include the narrow bucket, plain bucket, tilting bucket, sand bucket, thumb clip, hydraulic thumb clip, hydraulic thumb bucket, quick hitch, hydraulic quick hitch, rotary quick hitch, auger, break hammer, rake, hedge trimmer, grabber, new grabber, grass trimmer, fork pallet, root topper, and log splitter. These various attachments can be adapted to different environmental needs and easily cope with a variety of working conditions.
