Wheel Loader With Long Boom Design HT180 Introduction
The HIGHTOP HT180 Compact Wheel Loader is a versatile small loading machine designed for material handling, landscaping, agriculture, and light construction applications. Featuring a long boom design, powerful 28HP engine, and multi-function attachment compatibility, the HT180 provides an efficient solution for users who need compact equipment with extended working capability.
Unlike traditional small loaders, the HT180 combines a compact structure with enhanced lifting performance. The optimized boom design provides a higher working reach, allowing operators to load materials more efficiently in applications such as farm transportation, construction material handling, landscaping projects, and maintenance operations.
The HT180 compact wheel loader is equipped with a practical hydraulic system and supports multiple attachments, including buckets, forks, augers, and other working tools. This allows one machine to complete different tasks such as loading, lifting, digging assistance, transportation, and site preparation, improving equipment utilization and reducing the need for multiple machines.
With its small body size, four-wheel drive structure, and flexible operation, the HT180 can work efficiently in various environments where larger loaders may not be suitable. It is an ideal choice for customers searching for a mini wheel loader, compact wheel loader, small loader for sale, or multi-purpose material handling machine.
HIGHTOP provides complete solutions for global customers, including equipment customization, spare parts supply, technical support, and after-sales service to ensure reliable long-term operation.

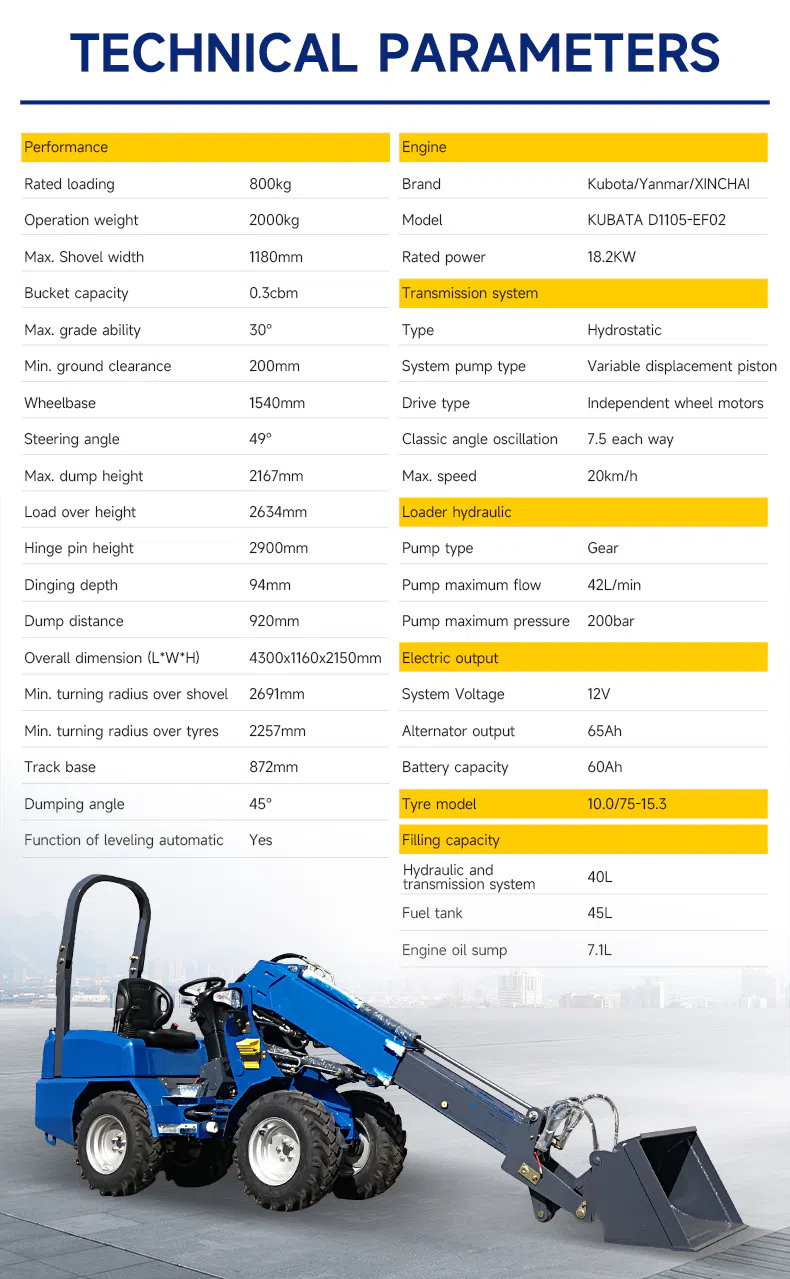

Wheel Loader With Long Boom Design HT180 Parameters
| Parameter | Value |
|---|---|
| Rated loading | 800kg |
| Operation weight | 2000kg |
| Max. Shovel width | 1180mm |
| Bucket capacity | 0.3cbm |
| Max. grade ability | 30° |
| Min. ground clearance | 200mm |
| Wheelbase | 1540mm |
| Steering angle | 49° |
| Max. dump height | 2167mm |
| Load over height | 2634mm |
| Hinge pin height | 2900mm |
| Digging depth | 94mm |
| Dump distance | 920mm |
| Overall dimension (LWH) | 4300x1160x2150mm |
| Min. turning radius over shovel | 2691mm |
| Min. turning radius over tyres | 2257mm |
| Track base | 872mm |
| Dumping angle | 45° |
| Function of leveling automatic | Yes |
| Brand(Engine) | Kubota/Yanmar/XINCHAI |
| Model(Engine) | KUBATA D1105-EF02 |
| Rated power | 18.2KW |
| Transmission system Type | Hydrostatic |
| System pump type | Variable displacement piston |
| Drive type | Independent wheel motors |
| Classic angle oscillation | 7.5 each way |
| Max. speed | 20km/h |
| Loader hydraulic Pump type | Gear |
| Pump maximum flow | 42L/min |
| Pump maximum pressure | 200bar |
| System Voltage | 12V |
| Alternator output | 65Ah |
| Battery capacity | 60Ah |
| Tyre model | 10.0/75-15.3 |
| Hydraulic and transmission system filling capacity | 40L |
| Fuel tank | 45L |
| Engine oil sump | 7.1L |
Wheel Loader With Long Boom Design HT180 Images

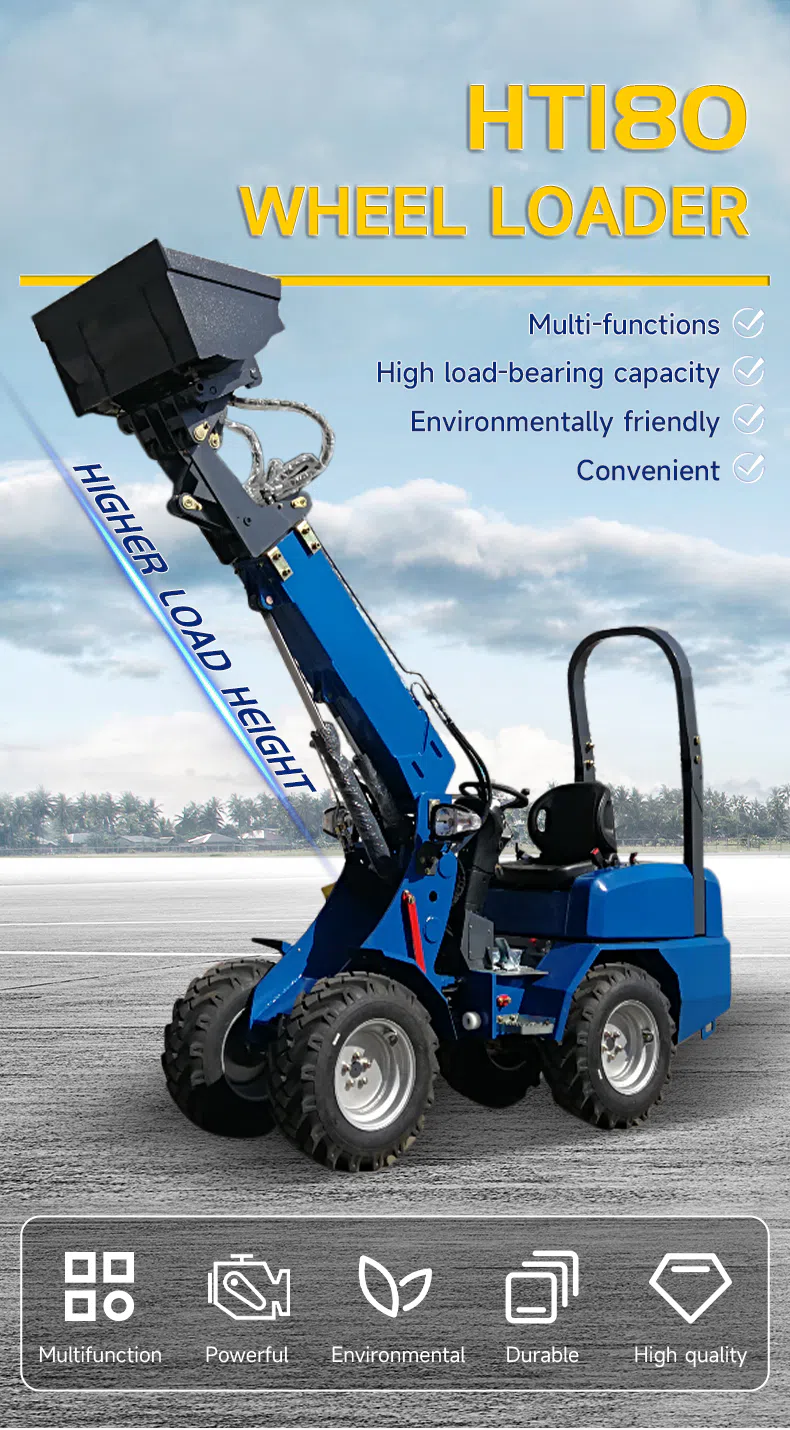

Multi-functionsHigh load-bearing capacityEnvironmentally friendlyConvenient

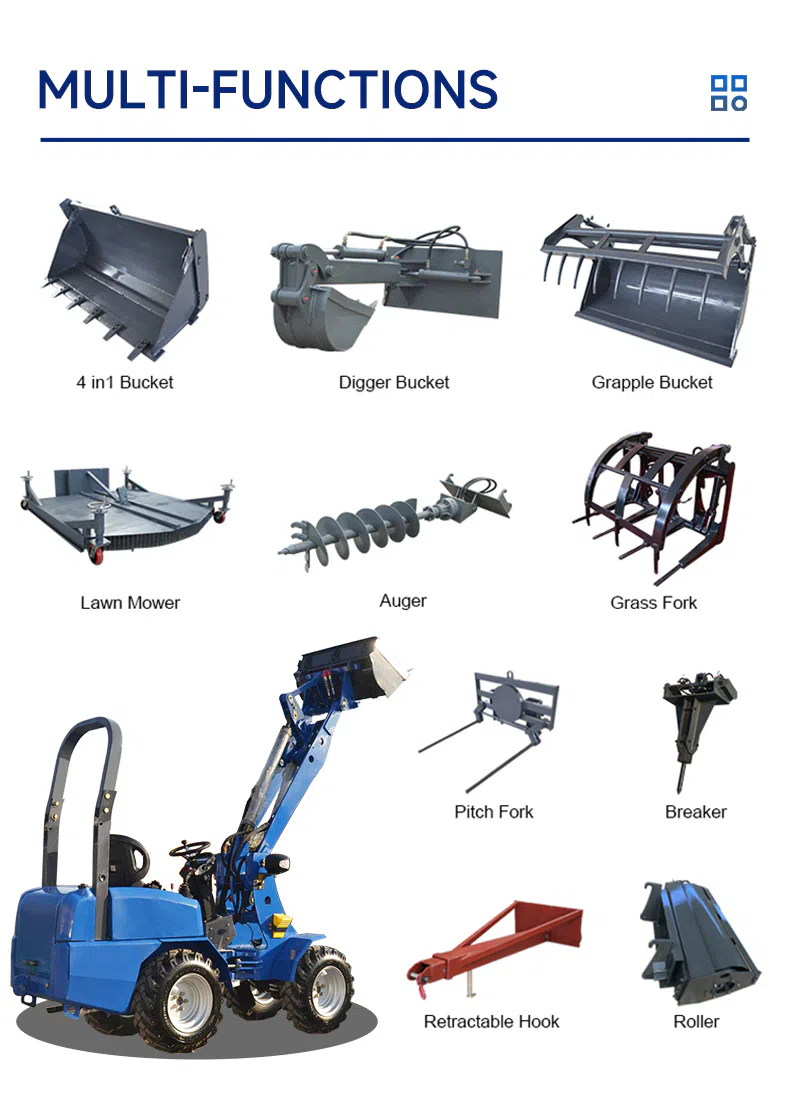

MULTI-FUNCTIONS

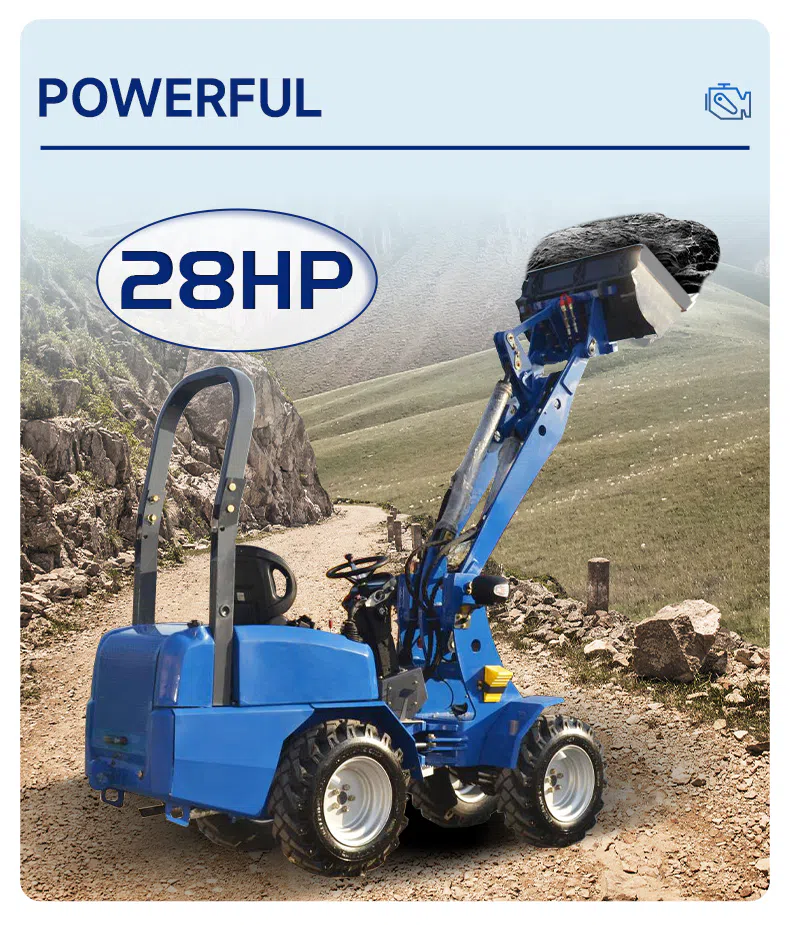

POWERFUL 28HP

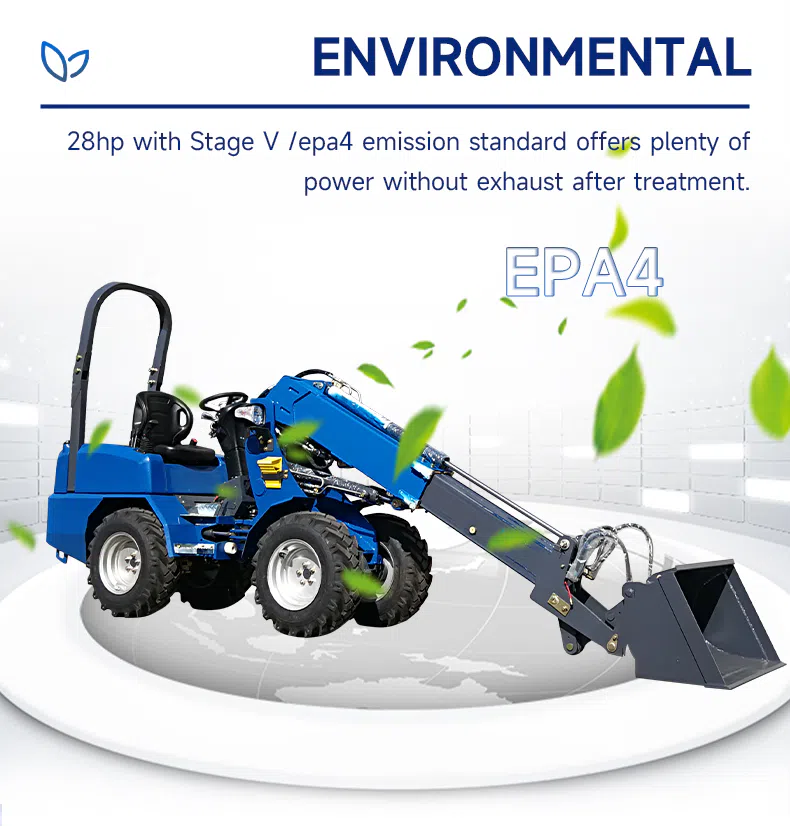

ENVIRONMENTAL 28hp with Stage V /epa4 emission standard offers plenty of power without exhaust after treatment.

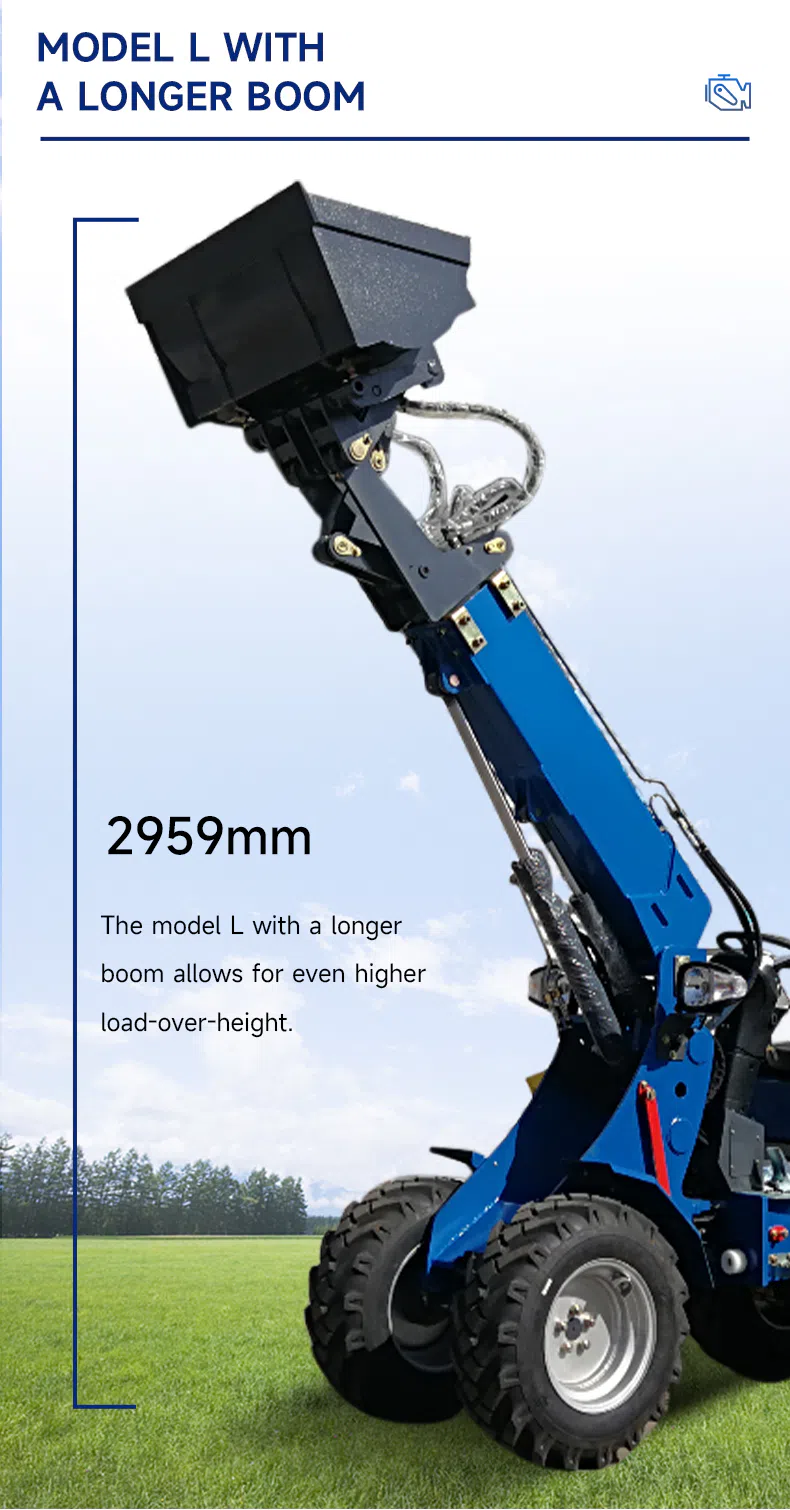

2959mm

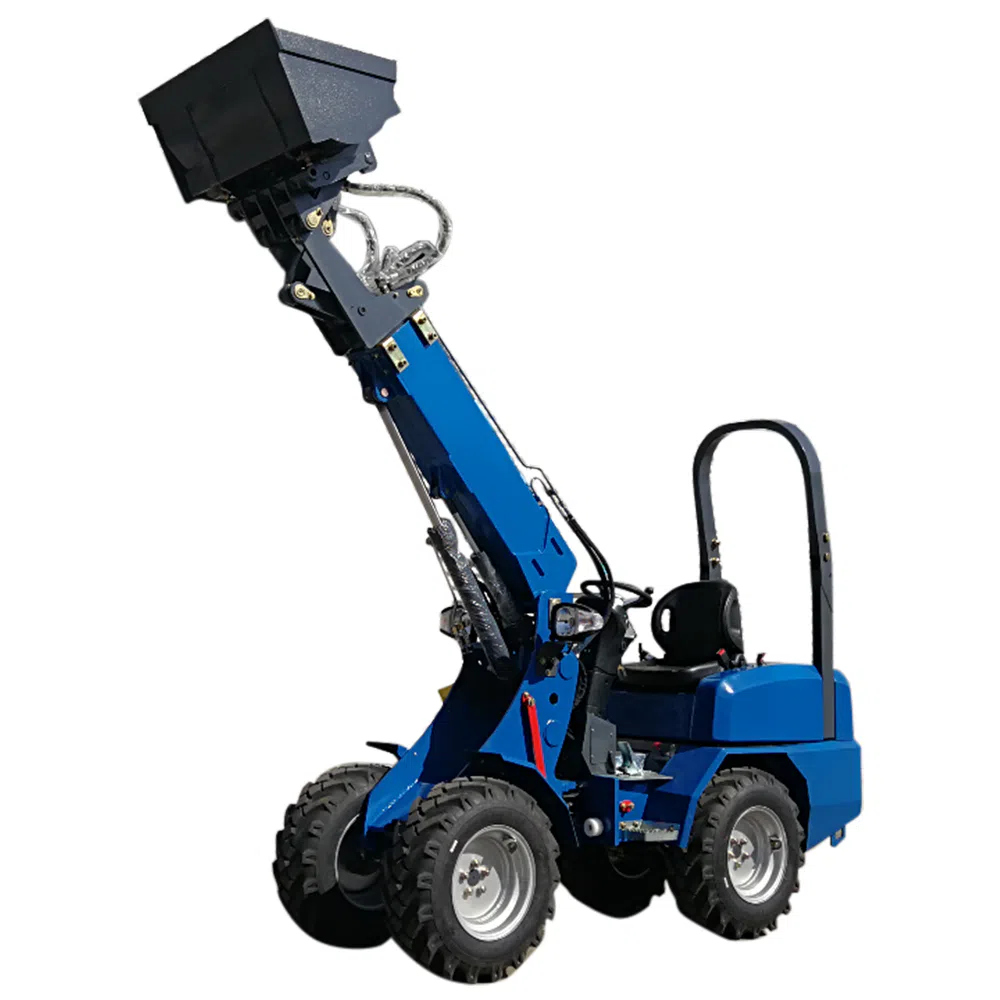

The model L with a longer
boom allows for even higher
load-over-height.
Wheel Loader With Long Boom Design HT180 Applications
The HT180 compact wheel loader is widely used in agriculture, landscaping, construction maintenance, and material handling applications.
In agricultural operations, the HT180 can be used for transporting feed, fertilizer, soil, and farm supplies. Its compact size allows it to work efficiently in orchards, farms, and greenhouse environments where large machinery may have limited access.
For landscaping projects, the loader is suitable for soil movement, garden maintenance, planting preparation, and site cleaning. The long boom design provides additional working height, making it easier to load materials into trucks or higher containers.
In construction and property maintenance, the HT180 can handle sand, gravel, construction materials, and waste transportation. Its flexible structure makes it suitable for small contractors and users who need a practical loader for multiple working conditions.
HIGHTOP Service Support
HIGHTOP provides professional support for HT180 wheel loader customers worldwide, including:
- Equipment selection guidance
- Technical consultation
- Spare parts supply
- Customized configurations
- Transportation assistance
- Operation and maintenance support
Before purchase, HIGHTOP engineers help customers choose suitable configurations based on working conditions and application requirements.
For distributors, contractors, and business users, HIGHTOP supports OEM cooperation, bulk purchasing, and customized equipment solutions.
After delivery, HIGHTOP continues to provide technical support and maintenance guidance to ensure stable machine performance.
Wheel Loader Frequently Asked Questions
1. What is the HT180 wheel loader mainly used for?
The HT180 is mainly used for agriculture, landscaping, construction maintenance, material transportation, and small loading projects.
2. What is the advantage of the HT180 long boom design?
The long boom design provides higher lifting reach, allowing operators to load materials into higher positions and improve working efficiency.
3. Can the HT180 use different attachments?
Yes. The HT180 supports multiple attachments such as buckets, forks, augers, and other tools for different applications.
4. Is the HT180 suitable for farm work?
Yes. The compact wheel loader is suitable for farms, orchards, greenhouses, and agricultural material handling operations.
5. Why choose a compact wheel loader instead of a large loader?
Compact wheel loaders like the HT180 provide better flexibility in narrow spaces, easier transportation, and lower operating costs while meeting daily loading requirements.
