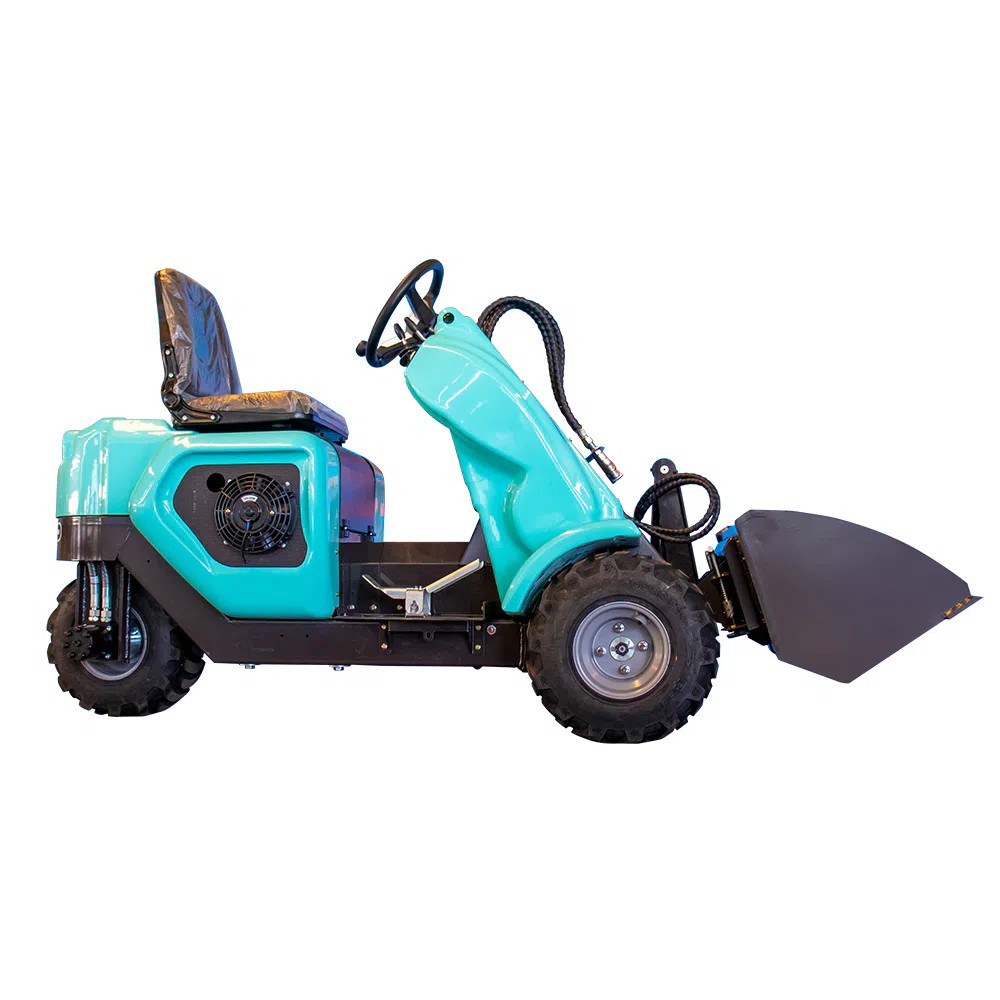

Three Wheel Loader Multi Function HTS130Pro Introduction
The HIGHTOP HTS130Pro Three Wheel Loader is a compact and versatile loading machine designed for landscaping, agriculture, construction maintenance, and small-scale material handling applications. Developed from the HTS130BaS platform, the HTS130Pro keeps the advantages of compact structure and flexible operation while optimizing configurations and improving overall working performance.
Compared with the HTS130BaS, the HTS130Pro provides enhanced operating efficiency, improved adaptability, and a better user experience for customers who require a more capable compact loader. The upgraded design focuses on practical improvements, allowing the machine to handle more working conditions while maintaining easy operation and excellent maneuverability.
With its compact body structure and flexible movement capability, the HTS130Pro can efficiently work in narrow spaces such as gardens, farms, greenhouses, small construction sites, and property maintenance areas. The machine is suitable for various material handling tasks, including soil loading, sand transportation, gravel handling, agricultural material movement, and site cleaning.
The HTS130Pro supports different attachments to expand its application range. By changing working tools according to project requirements, this mini wheel loader can perform multiple tasks with one machine, helping users improve productivity and reduce equipment investment.
For customers searching for a three wheel loader, compact wheel loader, mini loader for sale, or small material handling equipment, the HTS130Pro provides a practical solution that combines compact size, flexible operation, and reliable performance.
As a professional construction machinery manufacturer, HIGHTOP provides complete support including technical consultation, spare parts supply, customized solutions, and after-sales service to ensure stable long-term operation for global customers.

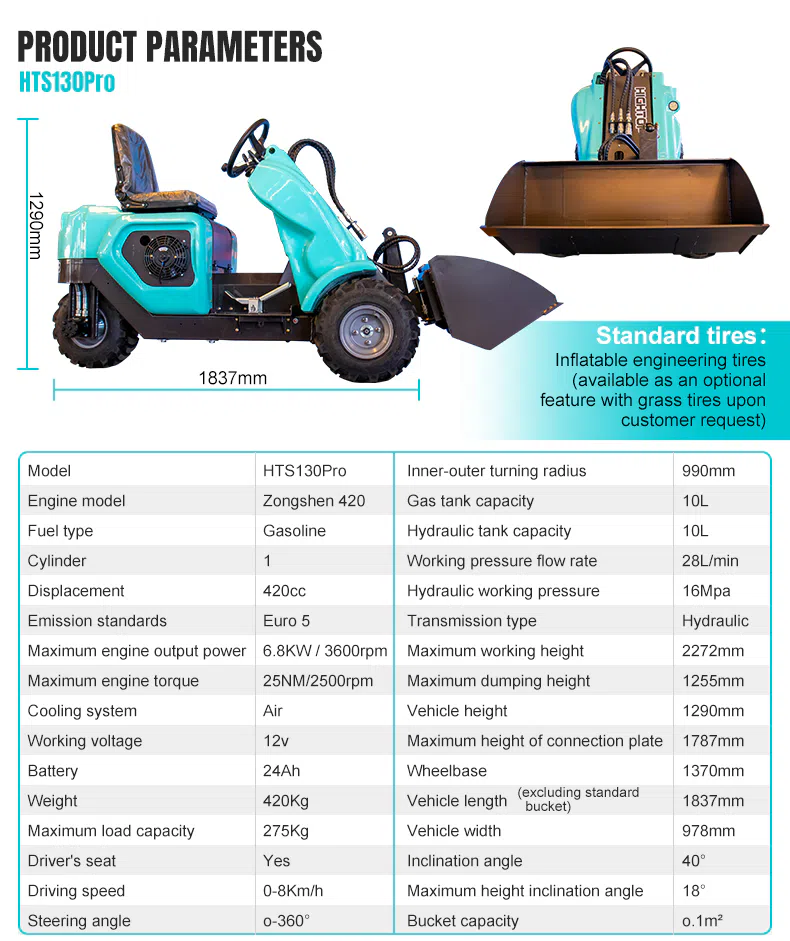

Three Wheel Loader Multi Function HTS130Pro Parameters
| Parameter | Value |
|---|---|
| Model | HTS130Pro |
| Engine model | Zongshen 420 |
| Fuel type | Gasoline |
| Cylinder | 1 |
| Displacement | 420cc |
| Emission standards | Euro 5 |
| Maximum engine output power | 6.8KW / 3600rpm |
| Maximum engine torque | 25NM/2500rpm |
| Cooling system | Air |
| Working voltage | 12v |
| Battery | 24Ah |
| Weight | 420Kg |
| Maximum load capacity | 275Kg |
| Driver's seat | Yes |
| Driving speed | 0-8Km/h |
| Steering angle | 0-360° |
| Inner-outer turning radius | 990mm |
| Gas tank capacity | 10L |
| Hydraulic tank capacity | 10L |
| Working pressure flow rate | 28L/min |
| Hydraulic working pressure | 16Mpa |
| Transmission type | Hydraulic |
| Maximum working height | 2272mm |
| Maximum dumping height | 1255mm |
| Vehicle height | 1290mm |
| Maximum height of connection plate | 1787mm |
| Wheelbase | 1370mm |
| Vehicle length (excluding standard bucket) | 1837mm |
| Vehicle width | 978mm |
| Inclination angle | 40° |
| Maximum height inclination angle | 18° |
| Bucket capacity | 0.1m³ |

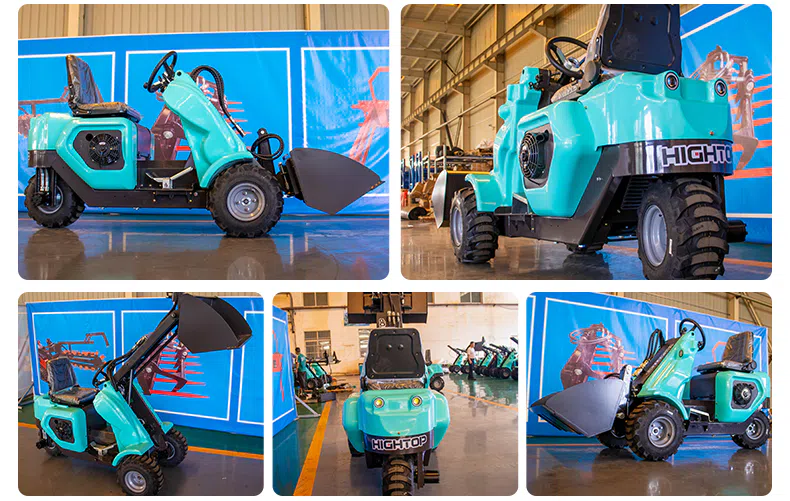

Three Wheel Loader Multi Function HTS130Pro Picture
HTS13OPrOCOMPACT HYDRAULIC LOADER ：Small Size. Powerful Performance. Flexible Handling.

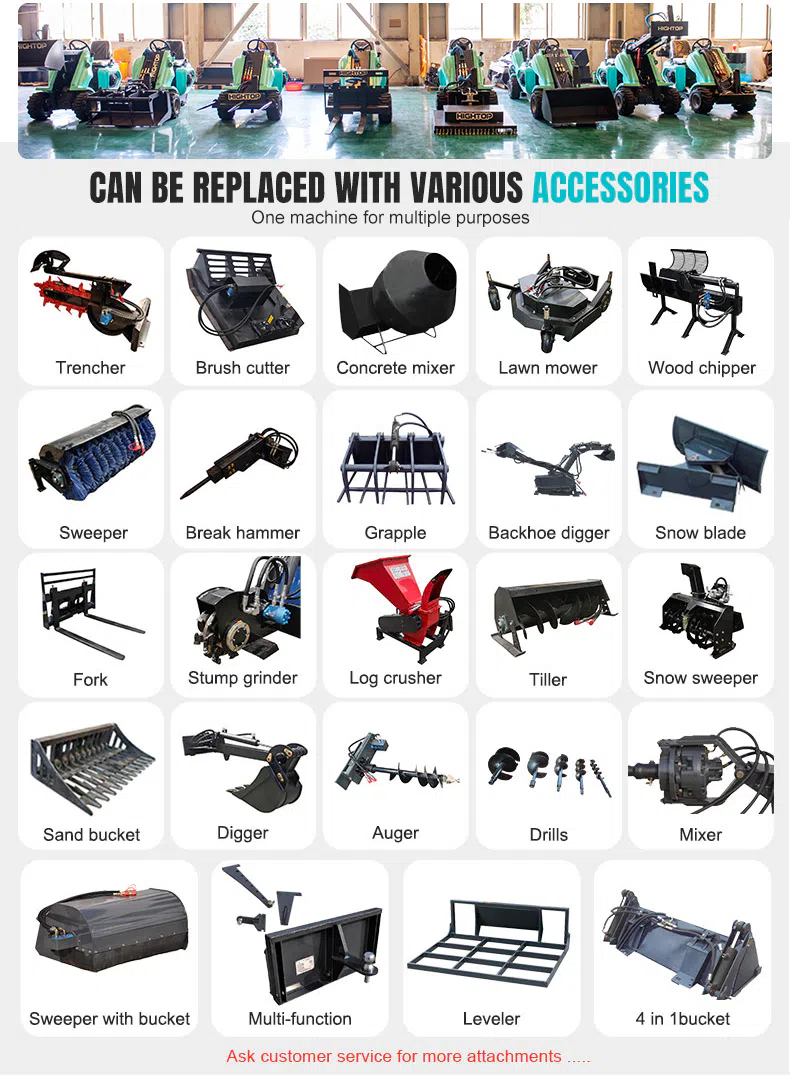

CAN BE REPLACED WITH VARIOUS ACCESSORIES，One machine for multiple purposes
WHY CHOOSE HTS13OPrOMINI LOADER?
01 COMPACT STRUCTURESmall body design allowsflexible operation in limitedworking spaces.
02 RELIABLE POWER PERFORMANCEEquipped with a 420cc gasolineengine, delivering stable poweroutput for efficient dailyoperations.
03 EFFICIENT HYDRAULIC SYSTEMHydrostatic transmissionwith hydraulic workingsystem for smoothoperation
04 EASY MAINTENANCESimple structure designhelps reduce dailymaintenance difficulty.

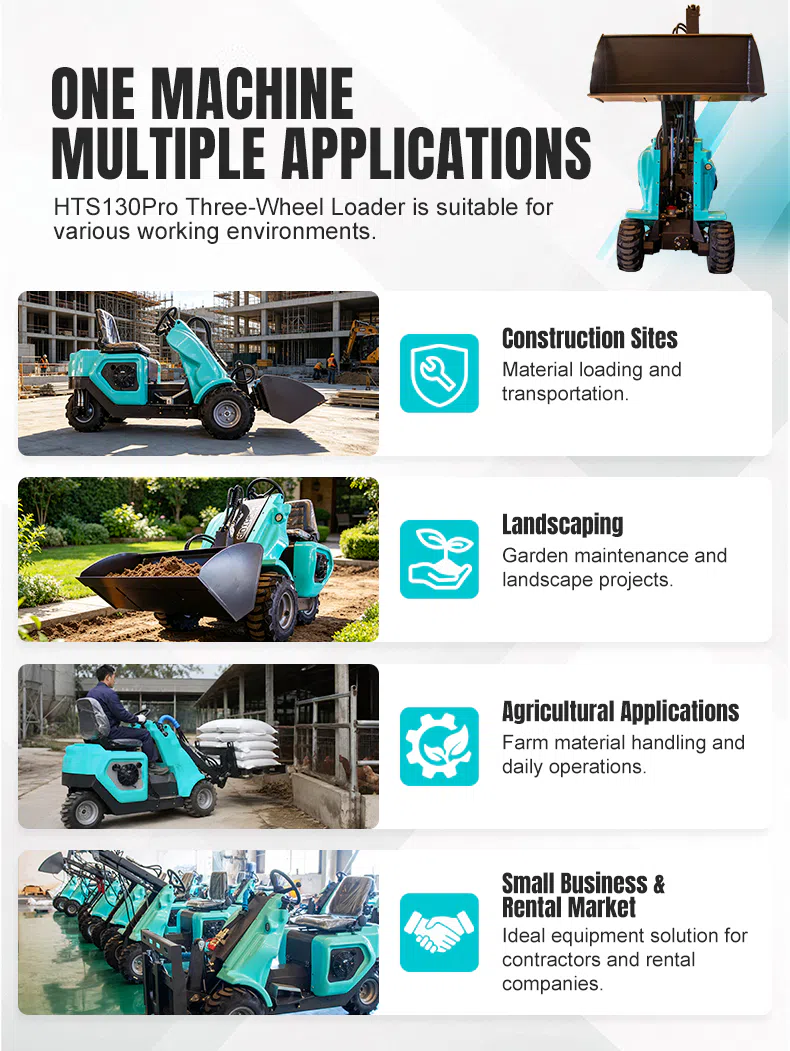

ONE MACHINEMULTIPLE APPLICATIONS,HTS130Pro Three-Wheel Loader is suitable forvarious working environments.

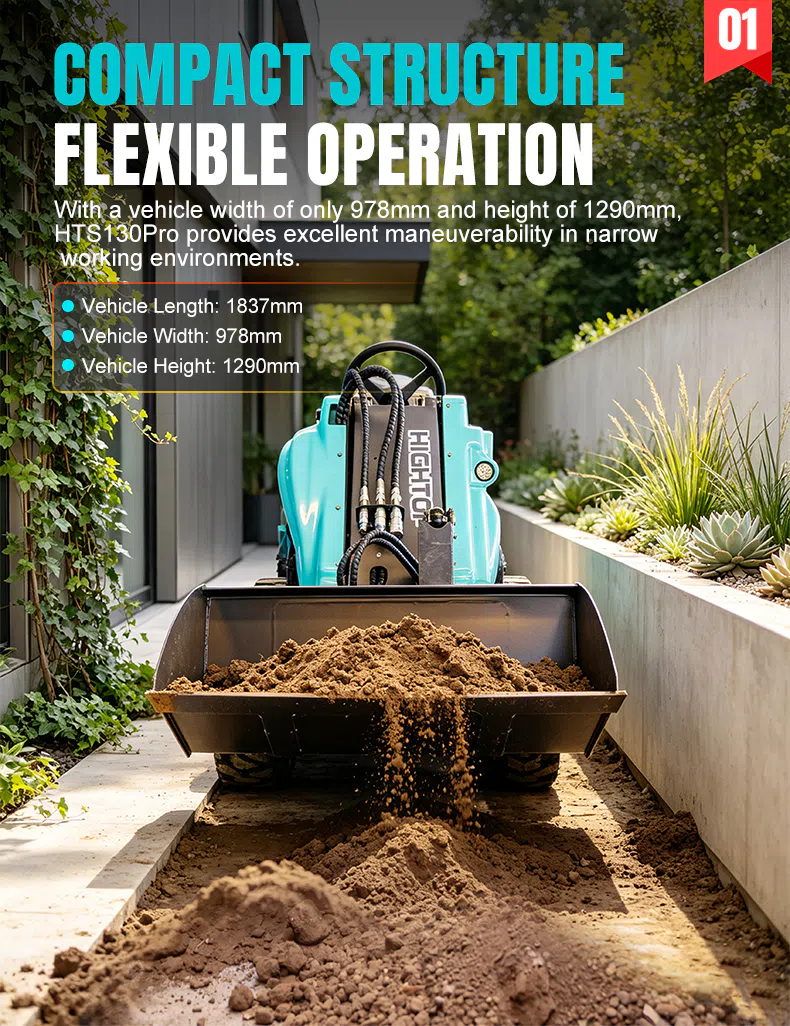

COMPACT STRUCTUREFLEXIBLE OPERATION
With a vehicle width of only 978mm and height of 1290mmHTS130Pro provides excellent maneuverability in narrowworking environments
Vehicle Length: 1837mmVehicle Width: 978mmVehicle Height: 1290mm

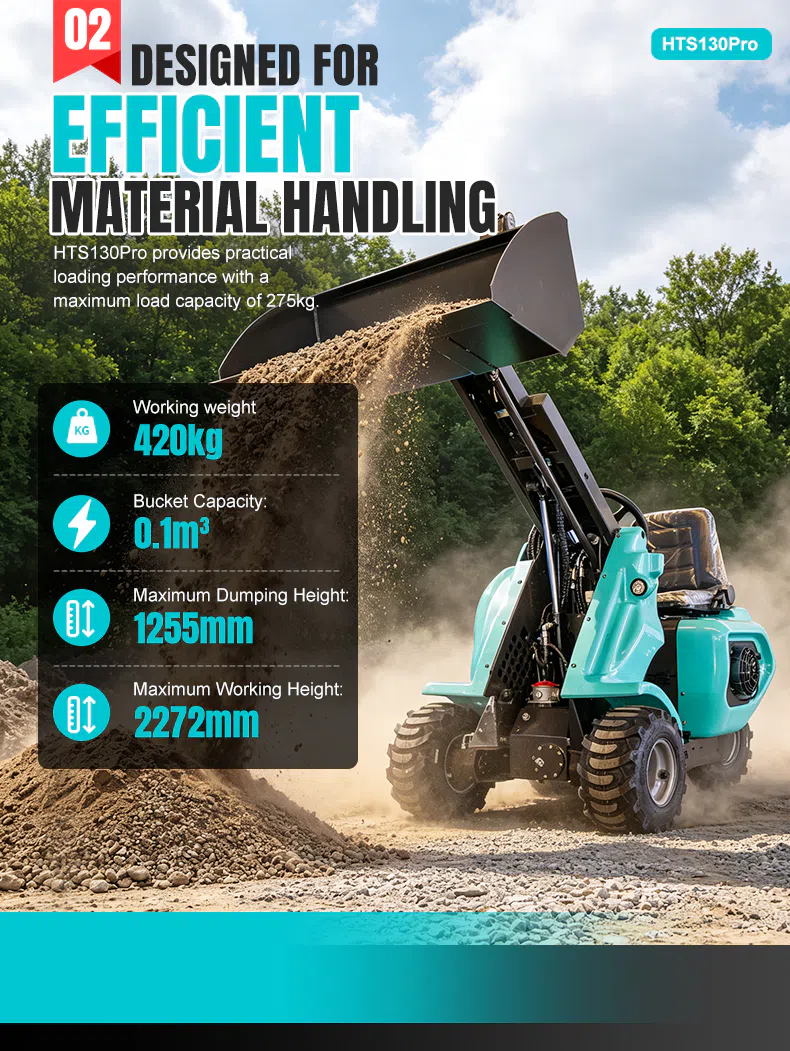

DESIGNED FOREEFICIENTMATERIAL HANDLINGHTS130Pro
provides practical
loading performance with a
maximum load capacity of 275kg

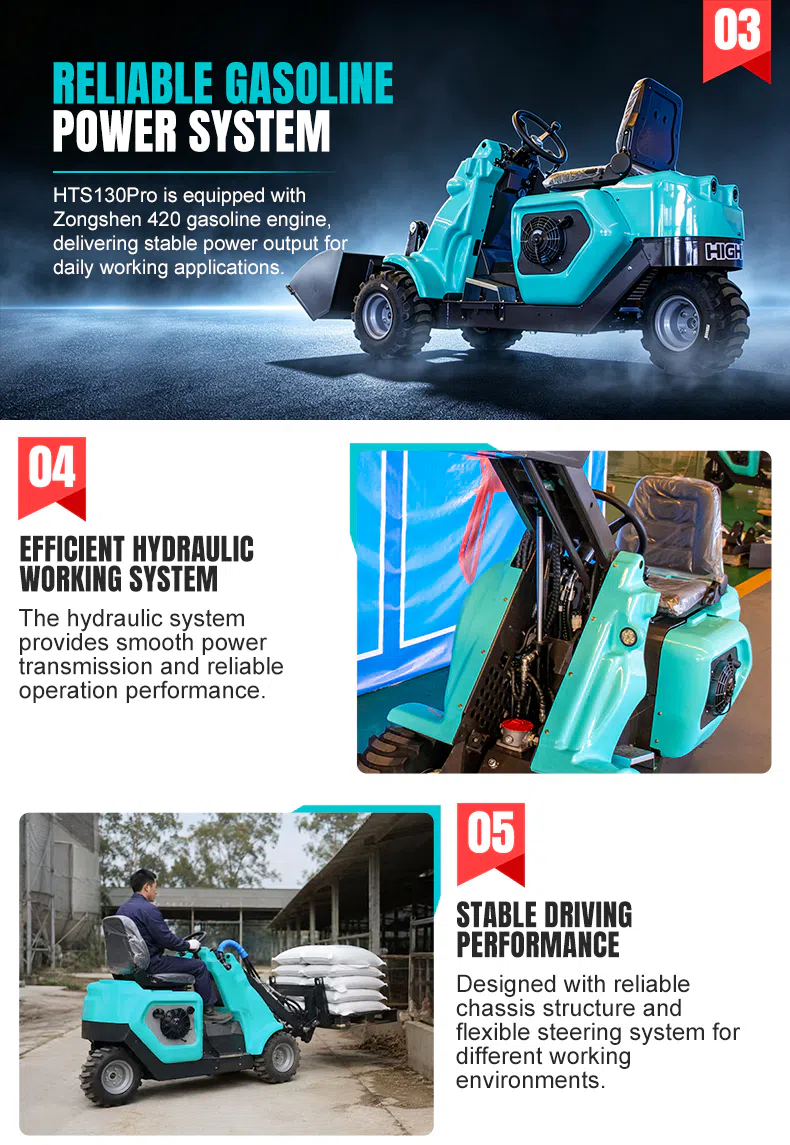

RELIABLE GASOLINEPOWER SYSTEM
HTS130Pro is equipped withZongshen 420 gasoline engine,delivering stable power output fordaily working applications

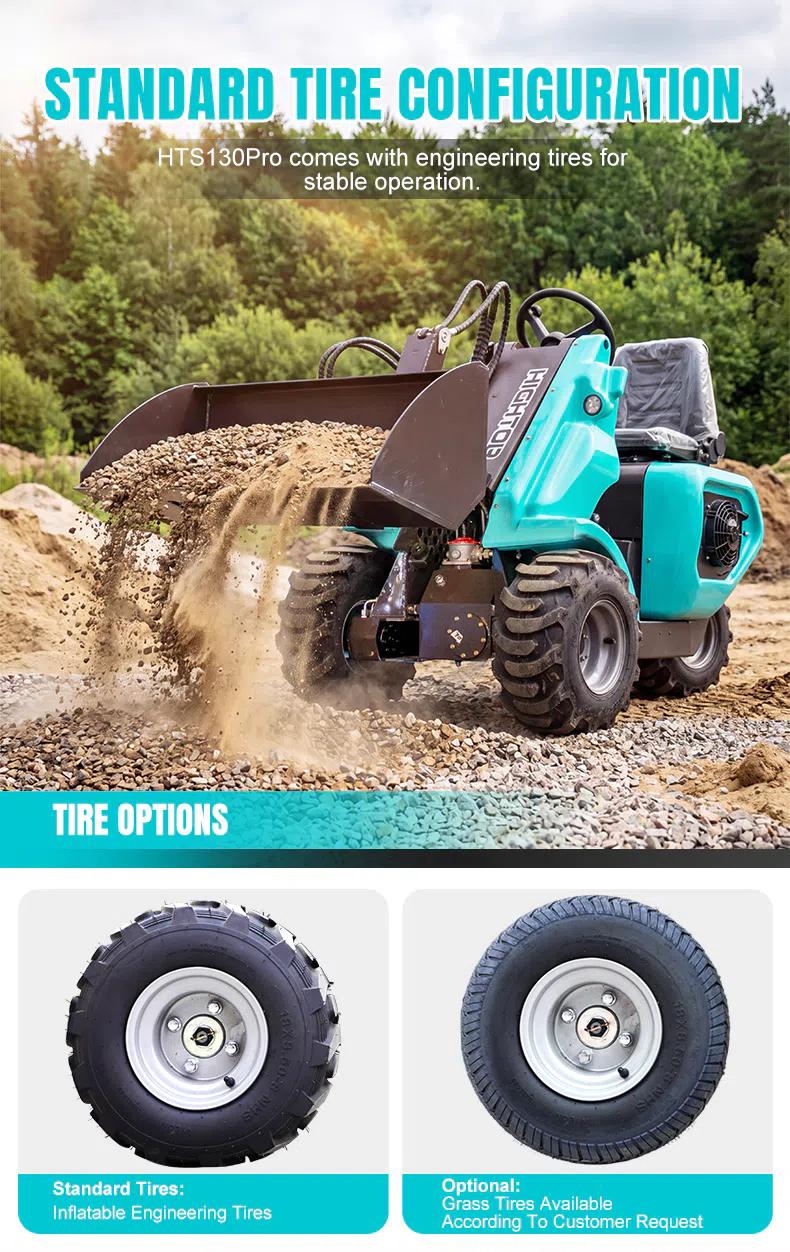

STANDARD TIRE,CONEIGURATION
HTS130Pro comes with engineering tires for
stable operation.
CUSTOMIZATION SERVICE
Build Your Own HTS130Pro Loader
Customized Solutions For Your Local Market
We provide flexible OEM & ODM services to help globalpartners create unique products with their own brandidentity.From machine appearance to functional configurations, wesupport customized solutions based on your businessrequirements.
Three Wheel Loader Multi Function HTS130Pro Applications
The HTS130Pro three wheel loader is widely used in landscaping, agriculture, construction maintenance, and small material handling projects.

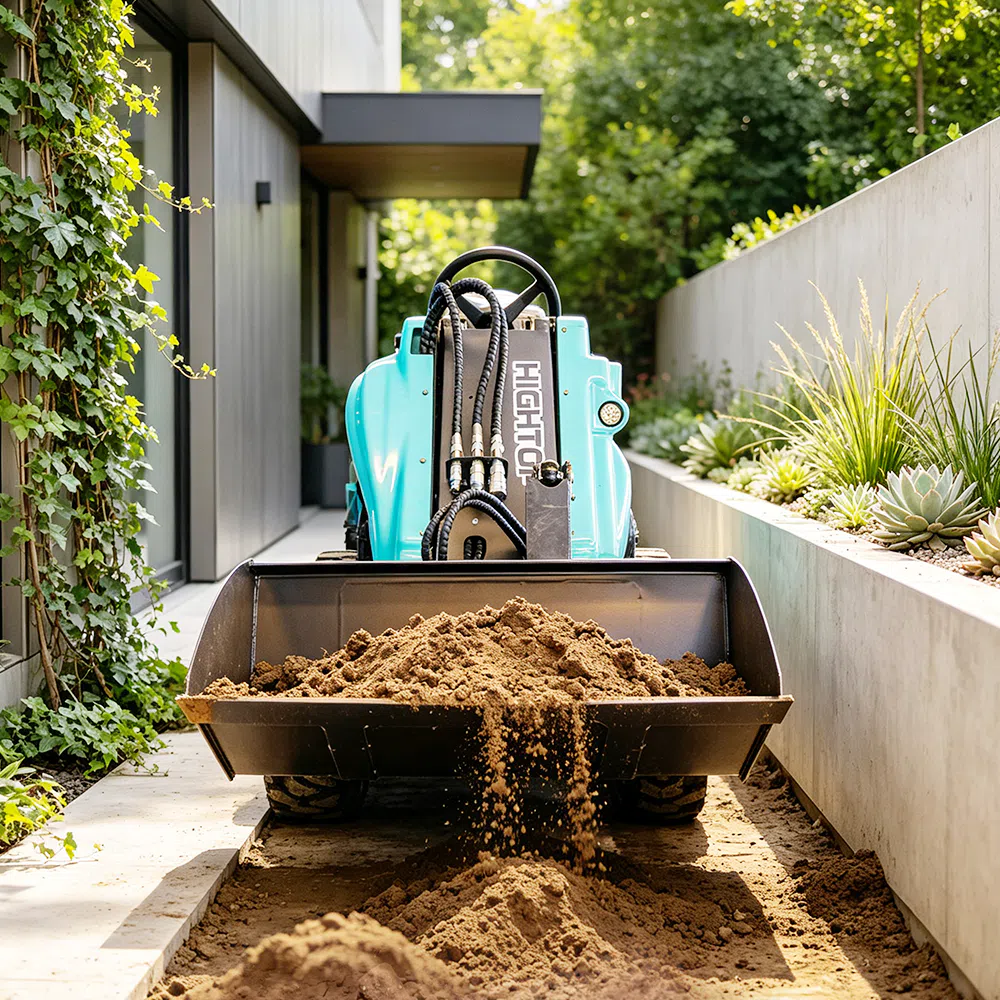

In landscaping applications, the machine can be used for soil transportation, garden maintenance, planting area preparation, and landscape construction. Its compact structure allows operators to work around trees, lawns, narrow pathways, and residential areas with greater flexibility.
For agricultural applications, the HTS130Pro is suitable for farms, greenhouses, livestock areas, and agricultural production sites. It can handle materials such as feed, fertilizer, soil, and other supplies, helping reduce manual labor and improve daily working efficiency.

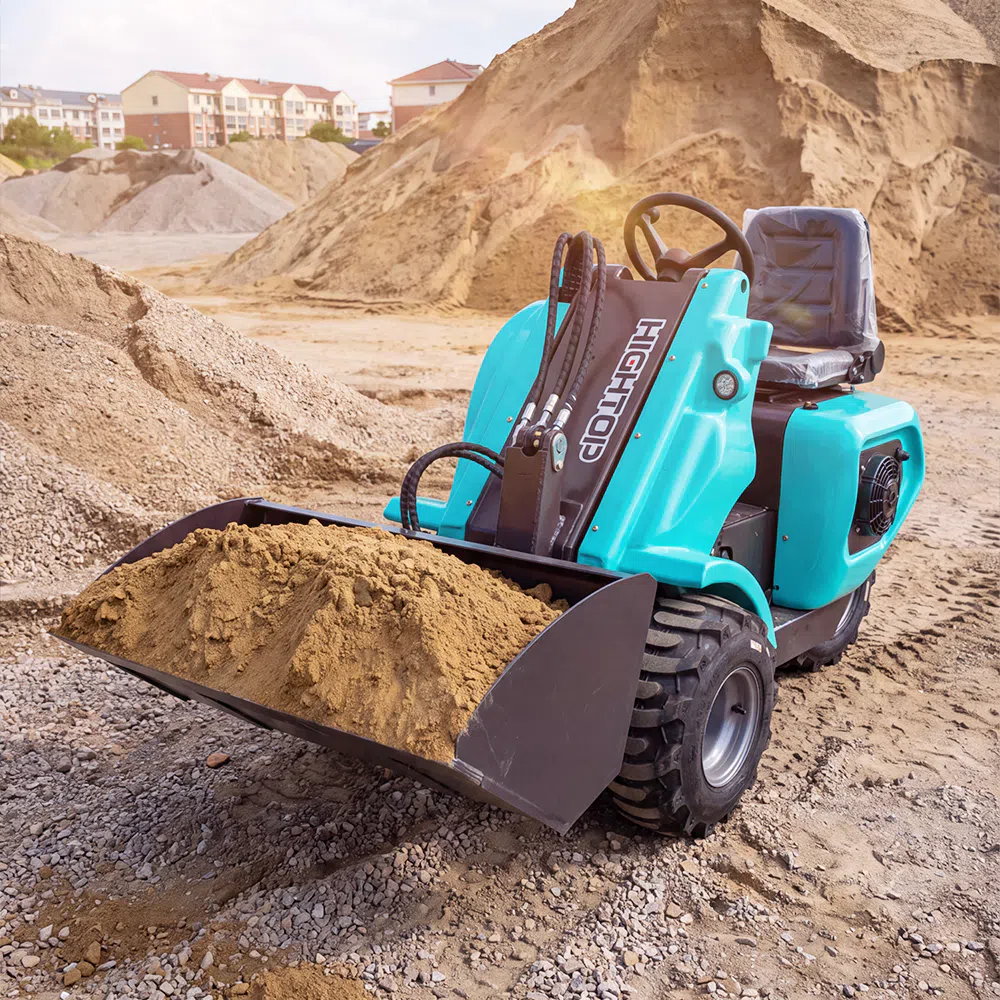

In small construction and property maintenance projects, the loader can assist with loading sand, gravel, debris, and other materials. Its compact size makes it an ideal choice for contractors, maintenance companies, and users who need flexible equipment for multiple working environments.
HIGHTOP Service Support
HIGHTOP provides professional service support for HTS130Pro three wheel loader customers worldwide, including:
- Professional equipment selection guidance
- Technical consultation before purchase
- Spare parts supply
- Transportation assistance
- Customized equipment solutions
- Operation and maintenance support
Before purchase, HIGHTOP engineers analyze customers’ working environments and recommend suitable configurations according to application requirements.
For distributors, contractors, and business users, HIGHTOP supports bulk orders, OEM cooperation, and customized solutions.
After delivery, HIGHTOP continues to provide technical assistance and maintenance guidance to help customers maintain efficient machine performance.
Three Wheel Loader Frequently Asked Questions
1. What is the HTS130Pro three wheel loader used for?
The HTS130Pro is mainly used for landscaping, agriculture, small construction projects, property maintenance, and material handling applications.
2. What is the difference between HTS130Pro and HTS130BaS?
The HTS130Pro is developed based on the HTS130BaS platform. It keeps the compact structure and flexible operation advantages while improving configurations, working efficiency, and user experience.
3. Can the HTS130Pro work in narrow spaces?
Yes. The compact structure and flexible movement allow the machine to operate efficiently in narrow areas such as gardens, farms, greenhouses, and small construction sites.
4. Can different attachments be installed on HTS130Pro?
Yes. The HTS130Pro supports various attachments to expand working functions and adapt to different applications.
5. Is HTS130Pro suitable for agricultural work?
Yes. The compact loader can be used for agricultural material transportation, greenhouse operations, farm maintenance, and livestock area handling tasks.
