Mini Crawler Dumper with 180° Hydraulic Dumping Function Introduction

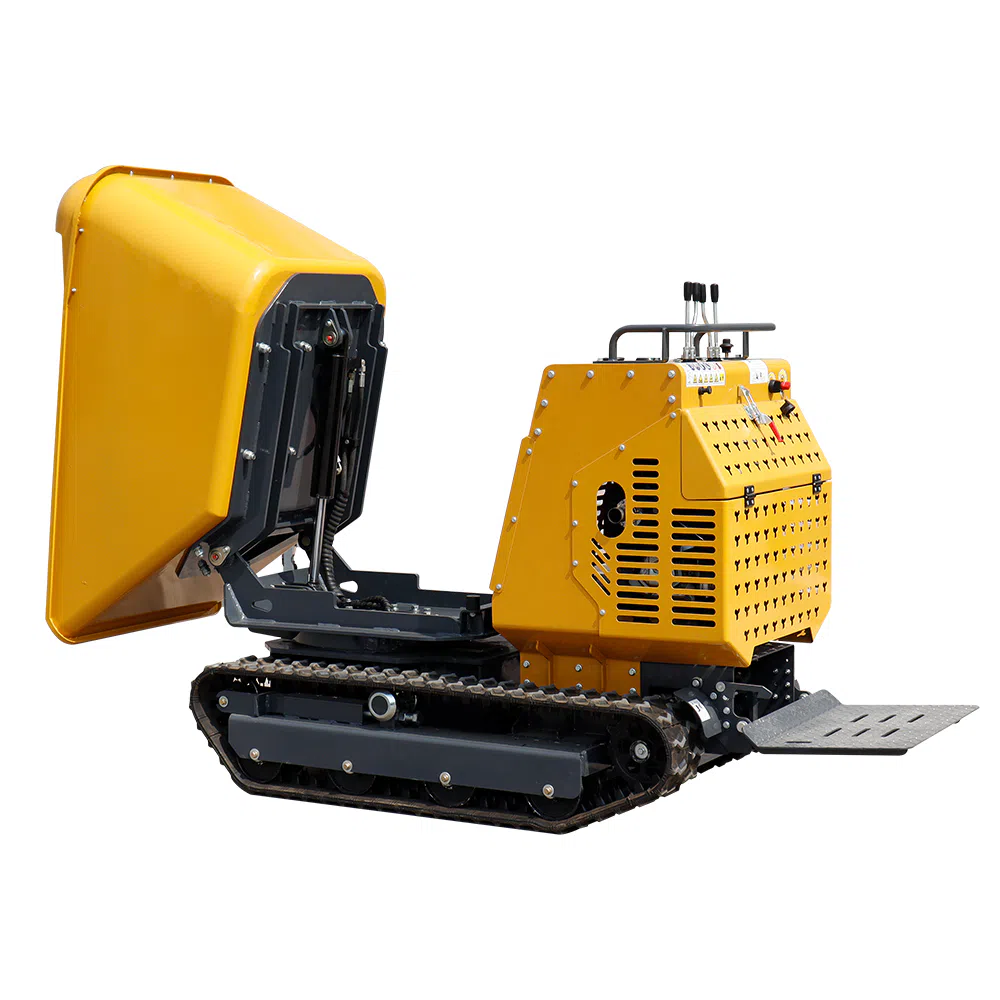

The HT1200 Mini Crawler Dumper with 180° Hydraulic Dumping Function is a compact tracked transport machine designed for material handling in challenging outdoor environments. With its crawler chassis, hydraulic dumping system, and adjustable loading structure, the HT1200 provides a practical solution for transporting and unloading materials where traditional wheeled vehicles are difficult to operate.
Unlike standard small dump trucks, the HT1200 tracked dumper uses a crawler undercarriage to improve ground adaptability on uneven, muddy, sloped, and soft terrain. The track system helps reduce ground pressure while providing stable movement on construction sites, farms, gardens, and other outdoor working areas.
The machine features a hydraulic dump body with a wide unloading angle, allowing operators to complete loading and unloading tasks more efficiently. The bucket can be adjusted according to different working conditions, making the HT1200 suitable for transporting soil, gravel, sand, agricultural materials, and other bulk materials.
With a compact structure, the HT1200 mini crawler dumper can access narrow working areas where larger transport equipment cannot easily enter. It is suitable for landscaping projects, small construction operations, agricultural transportation, and maintenance work in difficult environments.
For customers looking for different material handling solutions, HIGHTOP also provides various compact construction equipment options, including mini excavators, loaders, and other tracked machines to meet different job requirements.

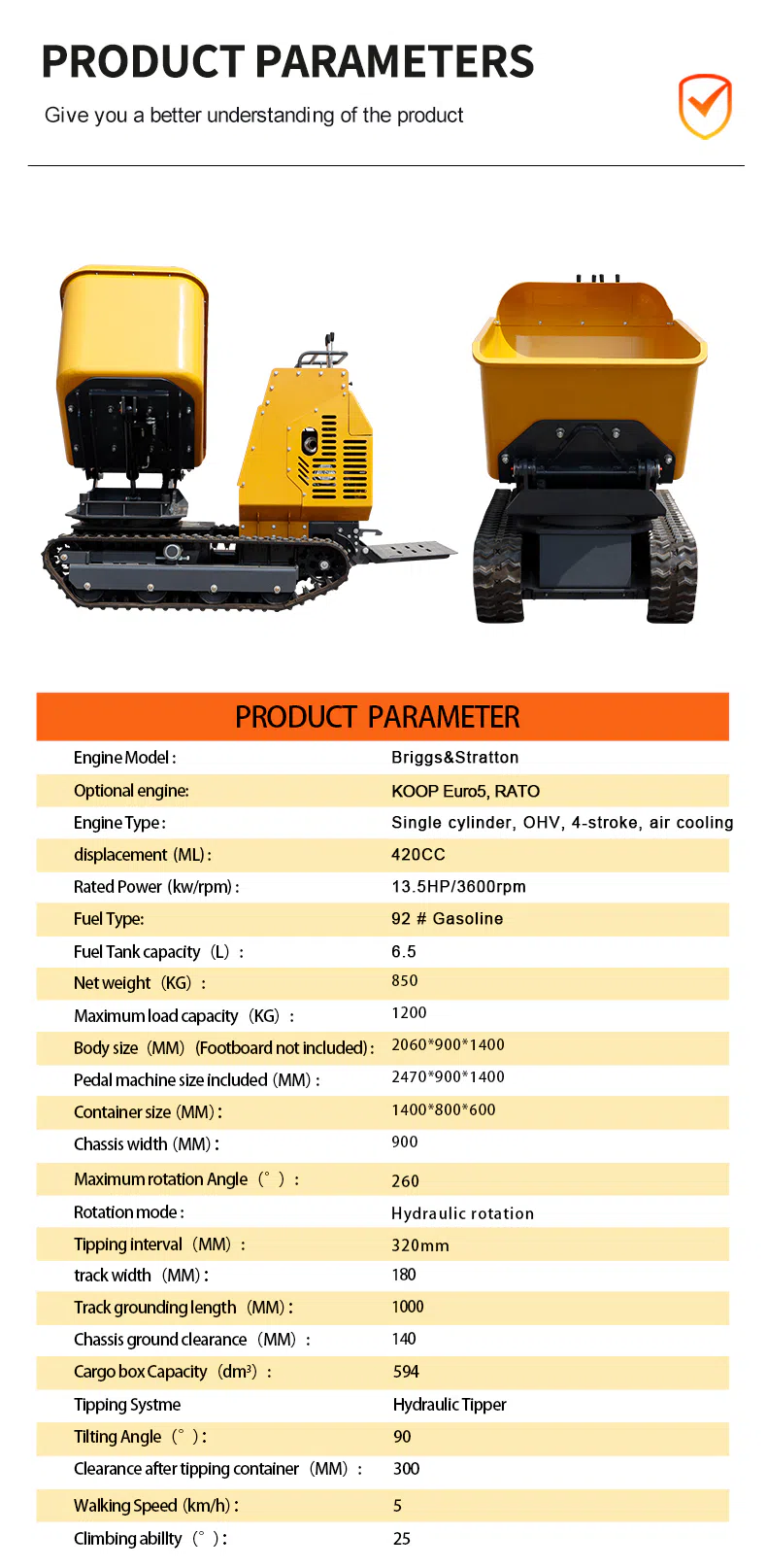

Mini Crawler Dumper with 180° Hydraulic Dumping Function Parameters
| Parameter | Value |
|---|---|
| Engine Model | Briggs & Stratton |
| Optional Engine | KOOP Euro5, RATO |
| Engine Type | Single cylinder, OHV, 4‑stroke, air cooling |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6.5 L |
| Net Weight | 850 kg |
| Maximum Load Capacity | 1200 kg |
| Body Size (Footboard not included) | 2060×900×1400 mm |
| Pedal Machine Size (Included) | 2470×900×1400 mm |
| Container Size | 1400×800×600 mm |
| Chassis Width | 900 mm |
| Maximum Rotation Angle | 260° |
| Rotation Mode | Hydraulic rotation |
| Tipping Interval | 320 mm |
| Track Width | 180 mm |
| Track Grounding Length | 1000 mm |
| Chassis Ground Clearance | 140 mm |
| Cargo Box Capacity | 594 dm³ |
| Tipping System | Hydraulic Tipper |
| Tilting Angle | 90° |
| Clearance After Tipping Container | 300 mm |
| Walking Speed | 5 km/h |
| Climbing Ability | 25° |
Mini Crawler Dumper with 180° Hydraulic Dumping Function Application Scenarios
Construction Sites：The HT1200 mini crawler dumper is suitable for transporting excavated soil, gravel, sand, and construction materials in small construction areas.
Landscaping Projects：With its compact size and crawler mobility, the machine can work efficiently in gardens, parks, and outdoor landscaping projects.
Agriculture and Farm Use：The crawler dumper can transport fertilizer, feed, soil, crops, and other agricultural materials in farm environments.
Difficult Terrain Transportation：The tracked design makes it suitable for muddy areas, slopes, forests, and other challenging outdoor environments.

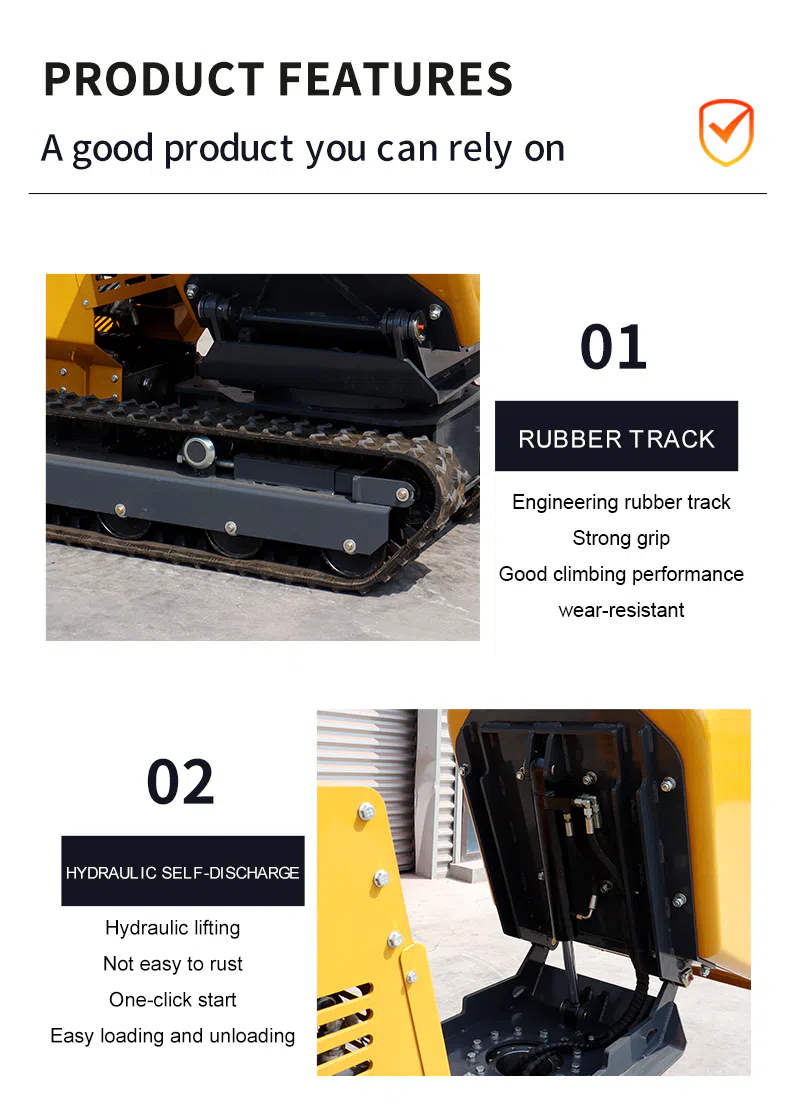

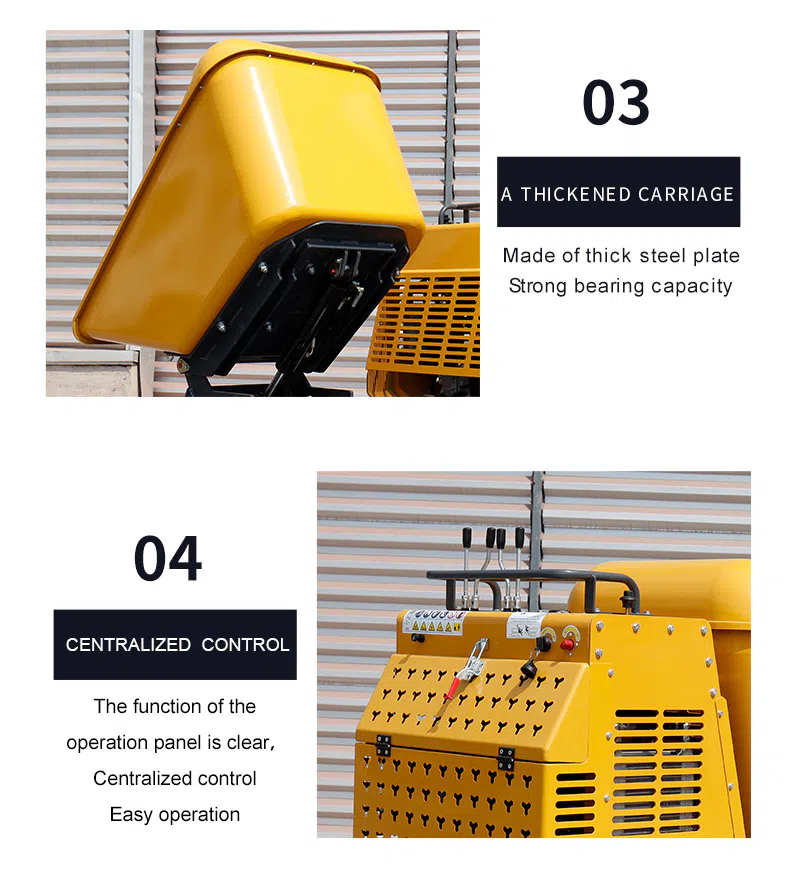

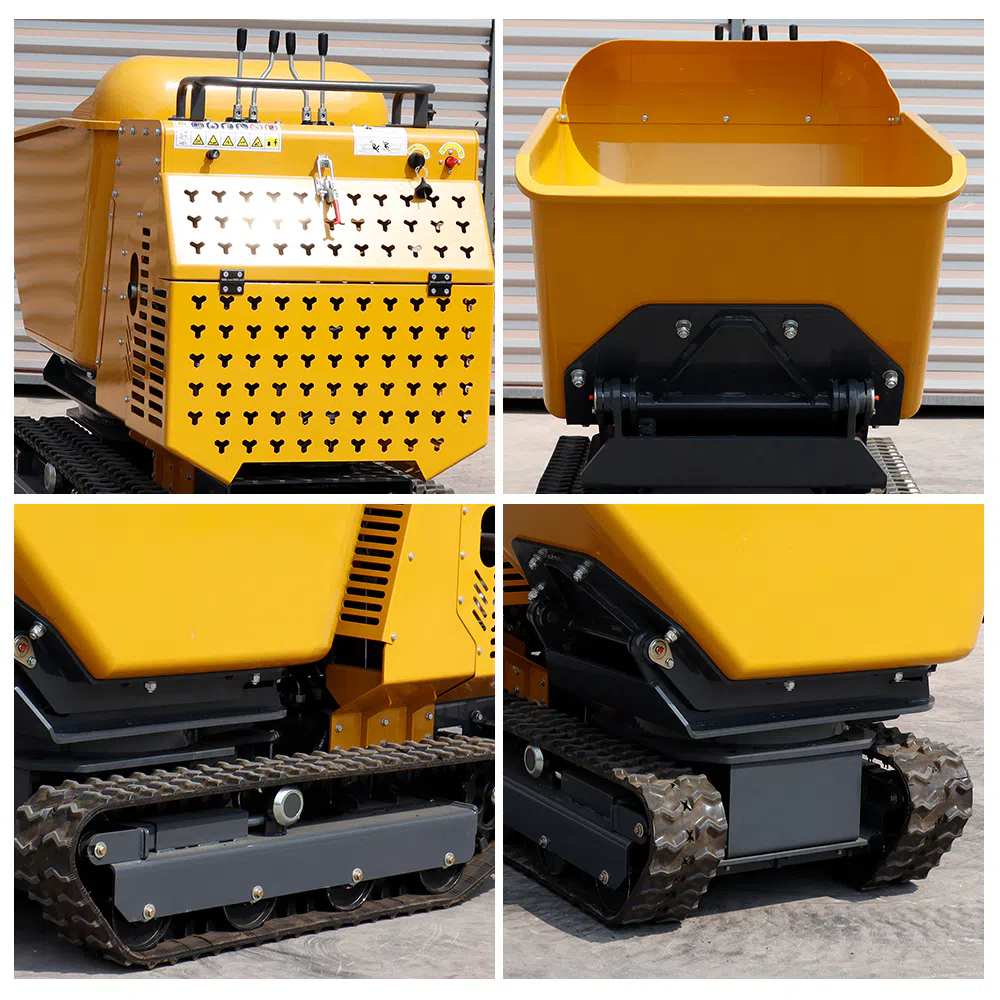

Mini Crawler Dumper with 180° Hydraulic Dumping Function Picture

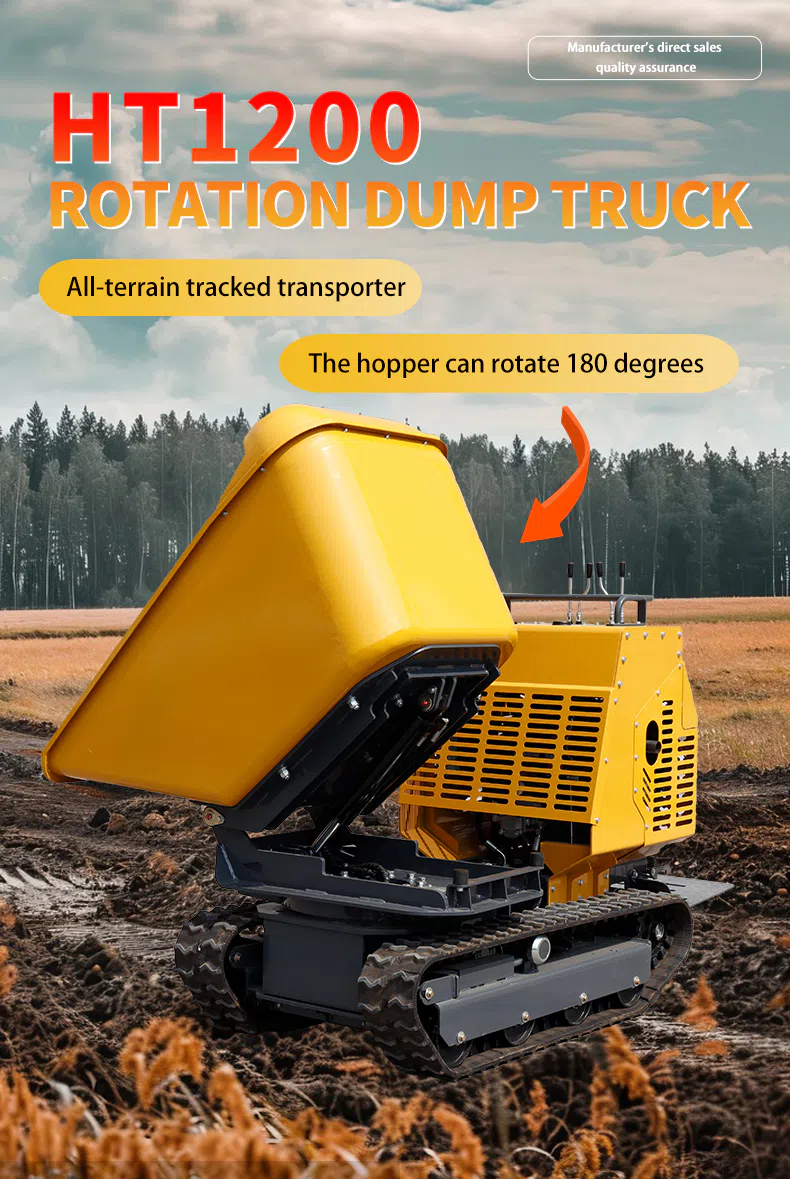

HT1200 ROTATION DUMP TRUCK
All-terrain tracked transporter

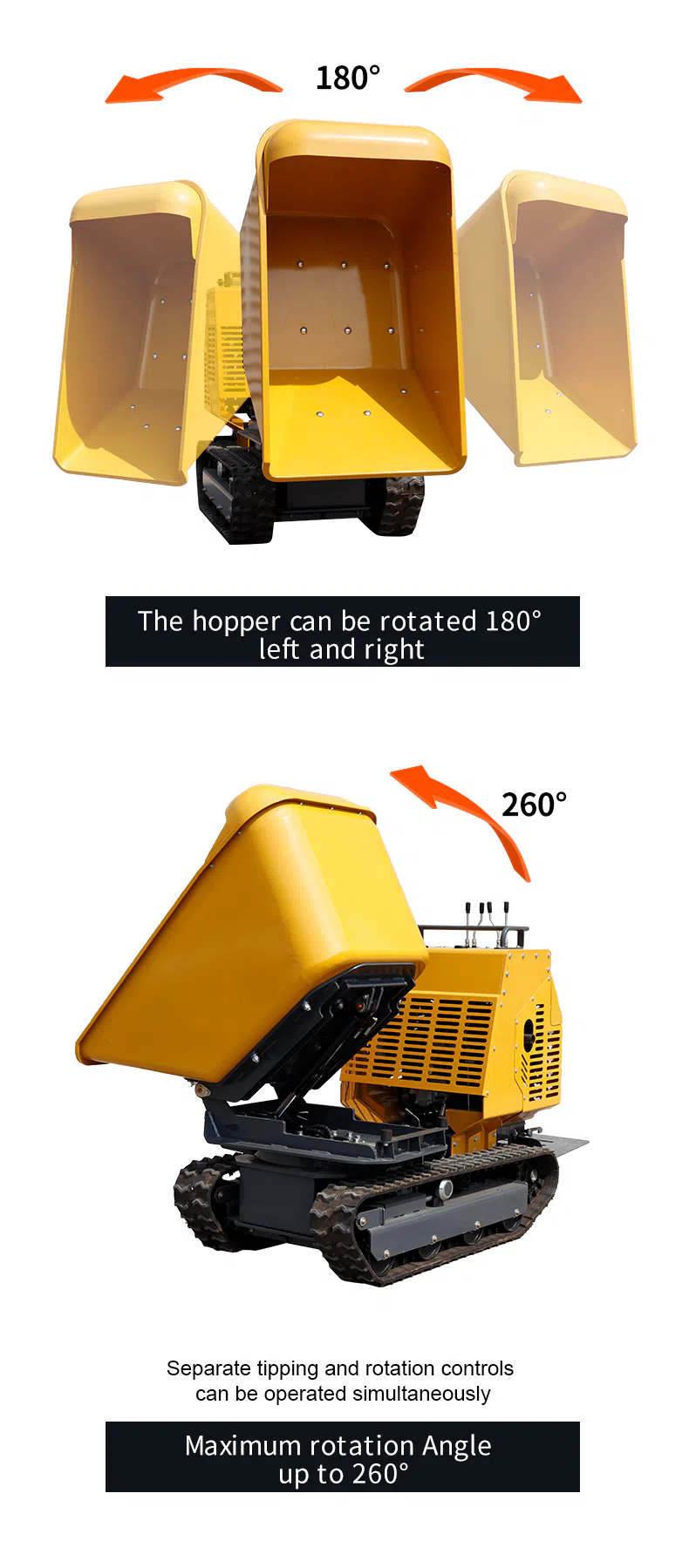

The hopper can rotate 180 degrees

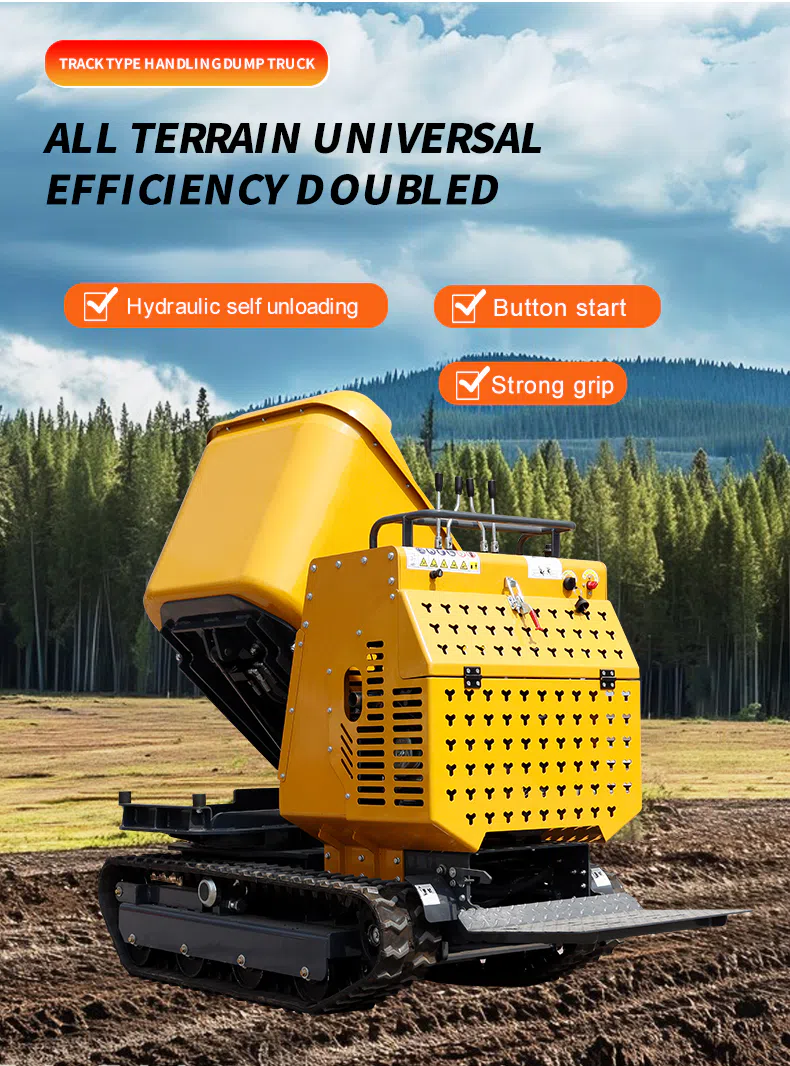

Hydraulic self unloading,Button start,Strong grip

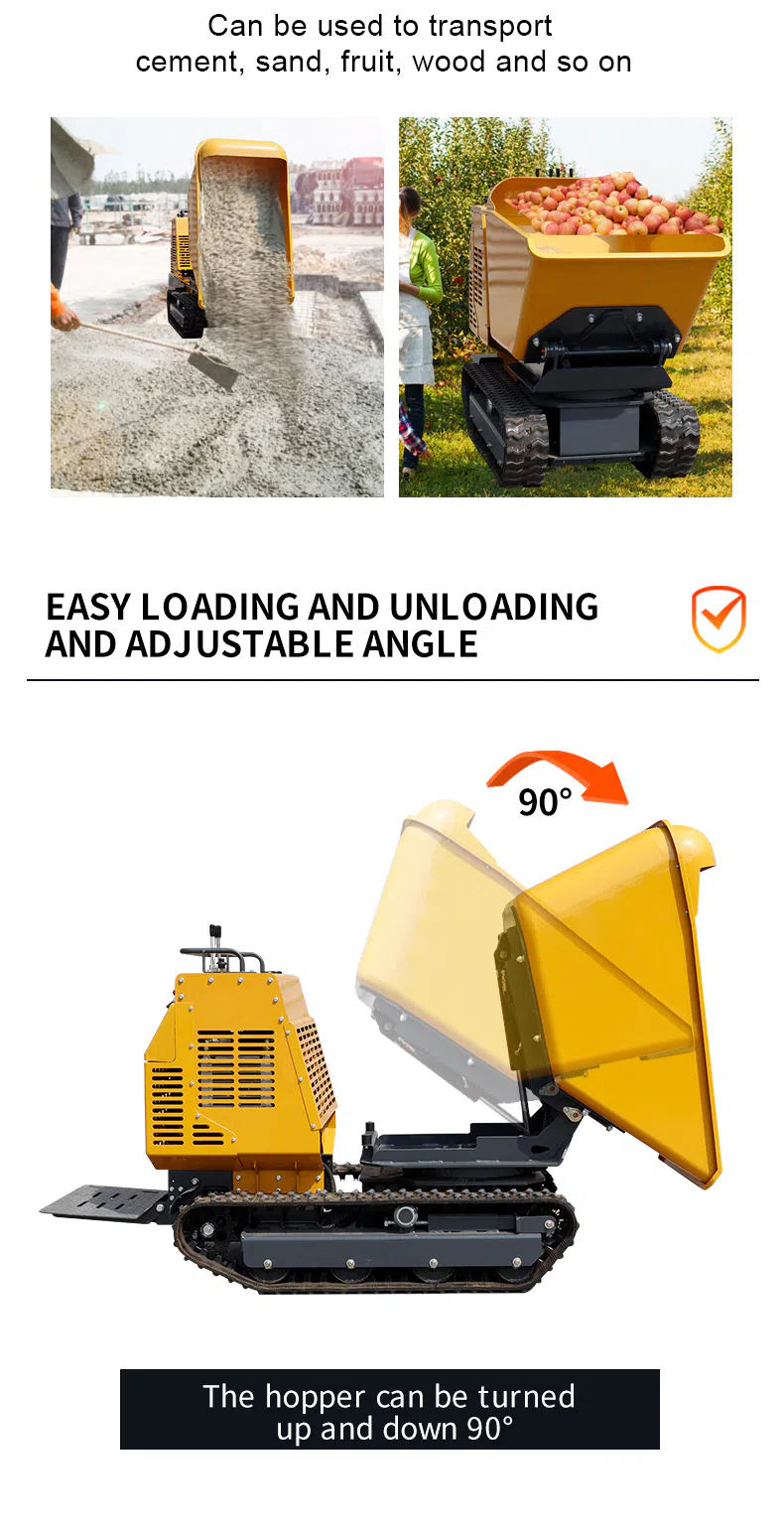

The hopper can be turnedup and down 90°
Maximum rotation Angleup to 260°
HIGHTOP Service Support
HIGHTOP provides professional service support for customers worldwide, covering equipment selection, customized solutions, technical assistance, and after-sales service. Before purchasing, our experienced team helps customers choose the right crawler dumper model according to working environment, terrain conditions, transportation requirements, and material handling needs.
For different application scenarios, HIGHTOP can provide suitable configuration recommendations, including machine options, attachments, and working solutions to improve equipment efficiency. We also support OEM/ODM requirements, customized product specifications, branding solutions, and export services for international customers.
During production, each machine undergoes strict quality inspection to ensure reliable performance and stable operation. HIGHTOP provides professional packaging, shipping assistance, and export support to help customers receive equipment safely and efficiently.
After delivery, HIGHTOP continues to offer technical guidance, operation instructions, spare parts supply, and maintenance support. Our service team helps customers solve operation questions and provides long-term assistance to ensure the equipment maintains good working performance.
With years of experience in manufacturing mini excavators, loaders, crawler dumpers, and compact construction machinery, HIGHTOP is committed to providing reliable equipment solutions and complete support for global customers.
Mini Crawler Dumper with 180° Hydraulic Dumping Function Frequently Asked Questions
1.What is the HT1200 crawler dumper used for?
The HT1200 is mainly used for transporting and unloading soil, gravel, sand, agricultural materials, and construction materials in outdoor environments.
2.Why does HT1200 use crawler tracks?
Crawler tracks provide better stability and traction on muddy, uneven, and soft terrain compared with wheeled machines.
3.Does the HT1200 have a hydraulic dumping function?
Yes. The HT1200 features a hydraulic dumping system that helps operators unload materials more efficiently.
4.Can HT1200 work on slopes?
The crawler design improves stability on slopes and uneven terrain, making it suitable for various outdoor applications.
5.What materials can HT1200 transport?
The HT1200 can transport soil, gravel, sand, fertilizer, feed, crops, and other bulk materials.
