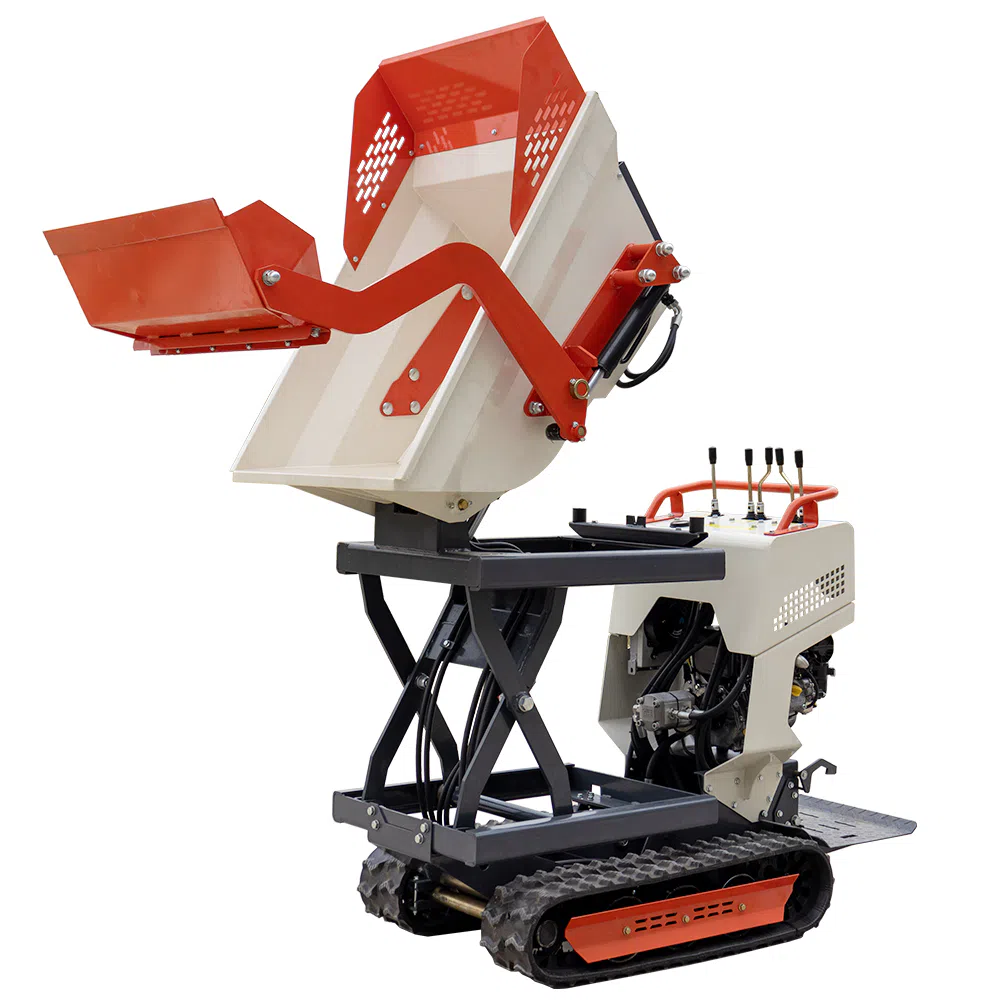

HT500Y Lifting Dumper with Hydraulic Lifting System Introduction
The HIGHTOP HT500Y-4 Lifting Dumper is a compact tracked material transport machine designed for construction sites, landscaping projects, agricultural operations, and narrow working environments. Different from traditional mini dumpers, the HT500Y-4 combines a hydraulic lifting dumper structure with a crawler travel system, allowing operators to transport and lift materials efficiently in areas where larger machines cannot easily access.
The HT500Y-4 mini dumper features a 500kg loading capacity and a hydraulic lifting hopper design, which allows materials to be raised and unloaded at a higher position compared with standard tipping dumpers. This structure is especially suitable for loading materials into trucks, containers, or higher unloading areas, improving working efficiency during repeated transportation tasks.
Equipped with a crawler chassis, the HT500Y-4 tracked dumper provides stable movement on uneven ground, muddy roads, gravel surfaces, and construction areas. The compact body size allows flexible operation in gardens, farms, renovation projects, and small construction sites.
For customers searching for reliable compact transport equipment, HIGHTOP also provides different solutions including mini dumpers, tracked transport machines, and construction machinery designed for various material handling requirements.

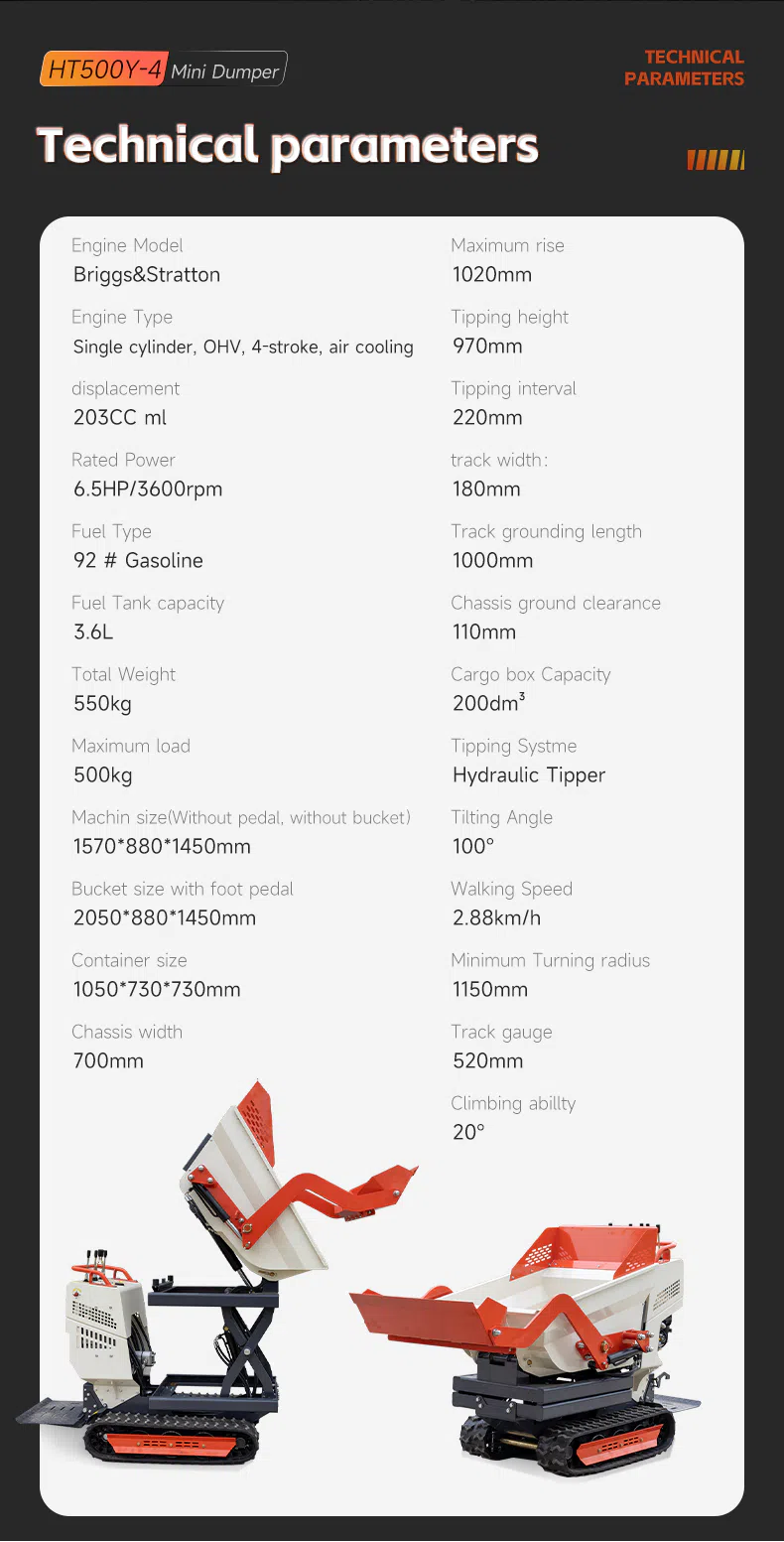

Lifting Dumper with Hydraulic Lifting System HT500Y Parameters
| Parameter | Value |
|---|---|
| Engine Model | Briggs & Stratton |
| Engine Type | Single cylinder, OHV, 4‑stroke, air cooling |
| Displacement | 203 cc |
| Rated Power | 6.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 3.6 L |
| Total Weight | 550 kg |
| Maximum Load | 500 kg |
| Machine Size (Without Pedal, Without Bucket) | 1570×880×1450 mm |
| Bucket Size with Foot Pedal | 2050×880×1450 mm |
| Container Size | 1050×730×730 mm |
| Chassis Width | 700 mm |
| Maximum Rise | 1020 mm |
| Tipping Height | 970 mm |
| Tipping Interval | 220 mm |
| Track Width | 180 mm |
| Track Grounding Length | 1000 mm |
| Chassis Ground Clearance | 110 mm |
| Cargo Box Capacity | 200 dm³ |
| Tipping System | Hydraulic Tipper |
| Tilting Angle | 100° |
| Walking Speed | 2.88 km/h |
| Minimum Turning Radius | 1150 mm |
| Track Gauge | 520 mm |
| Climbing Ability | 20° |

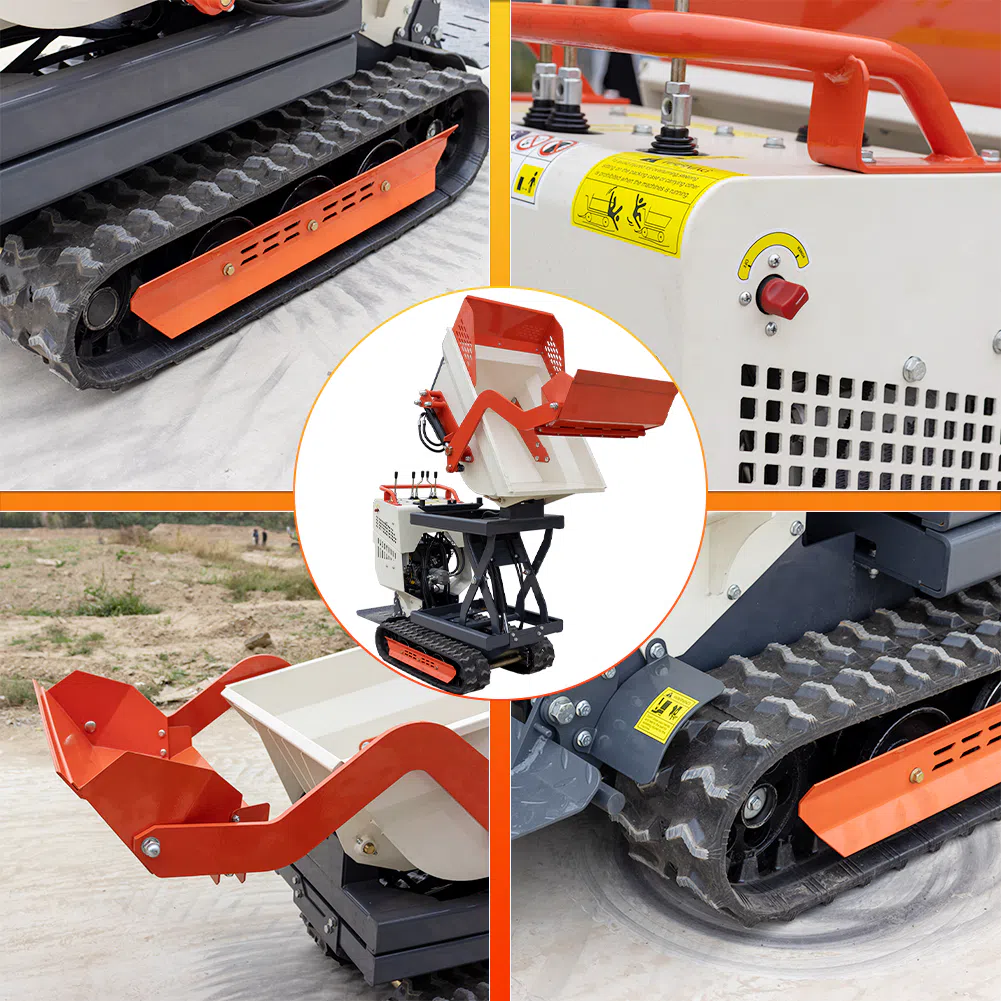

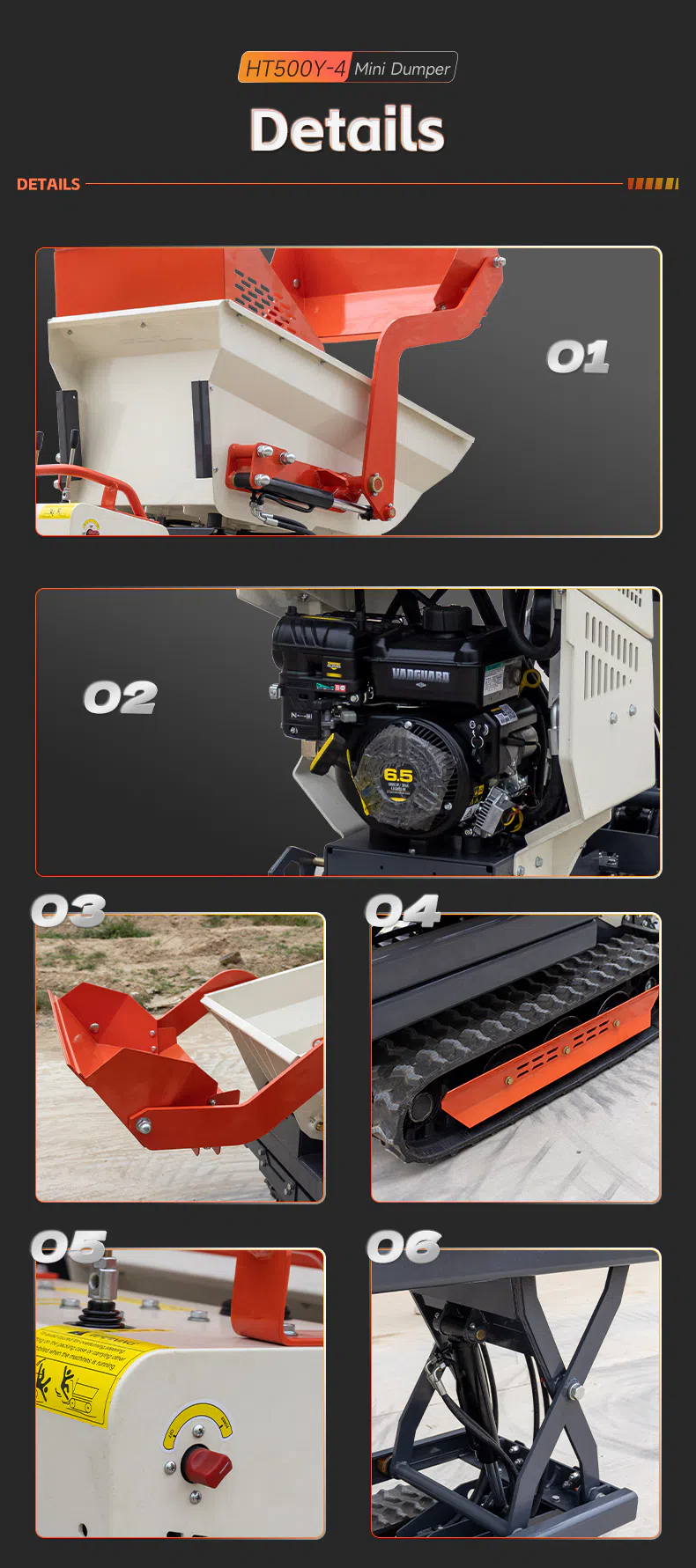

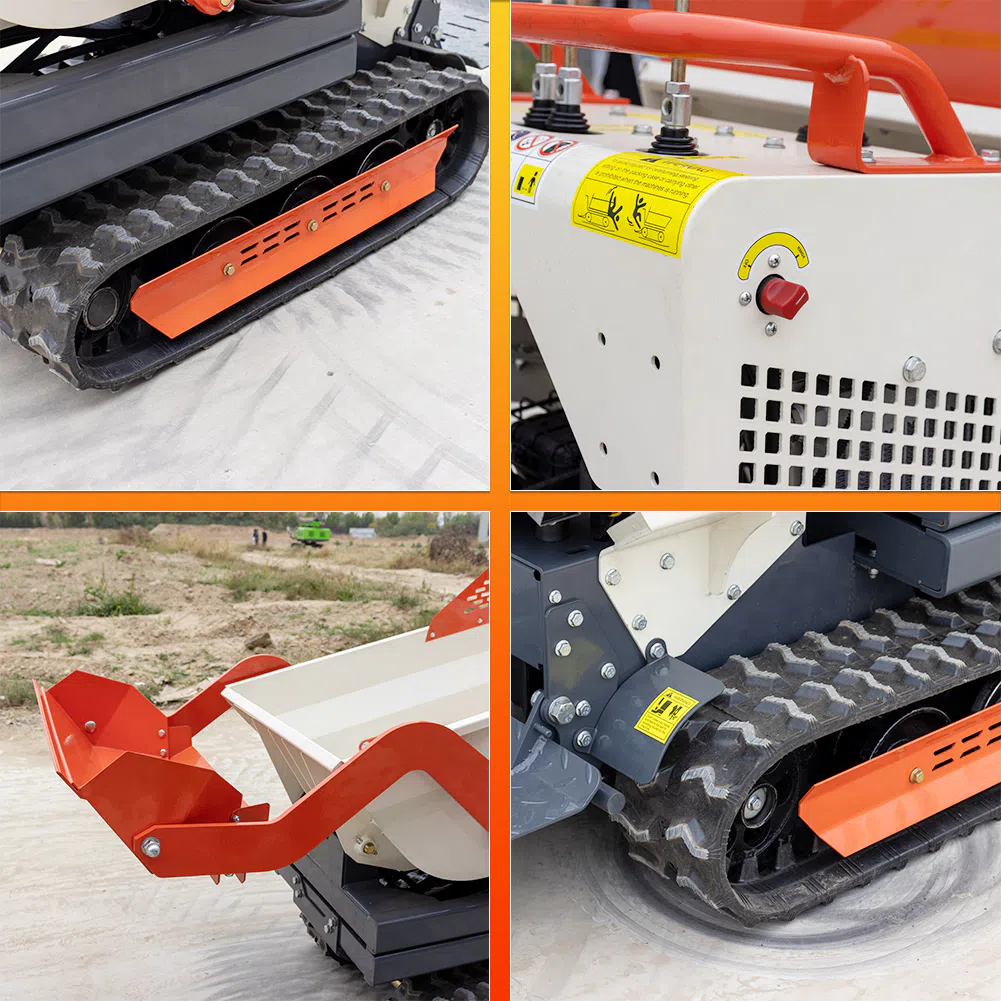

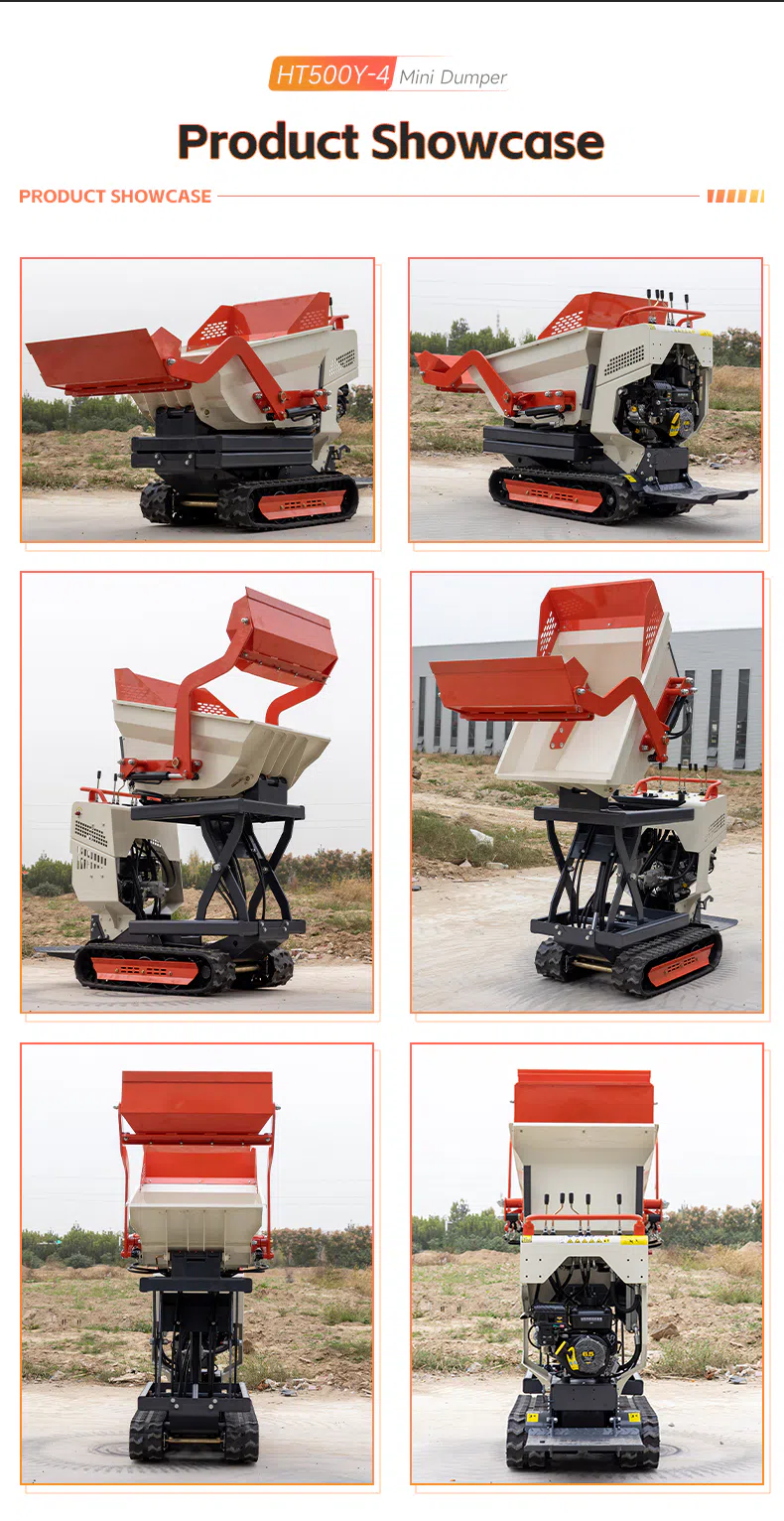

Lifting Dumper HT500Y with Hydraulic Lifting System Images

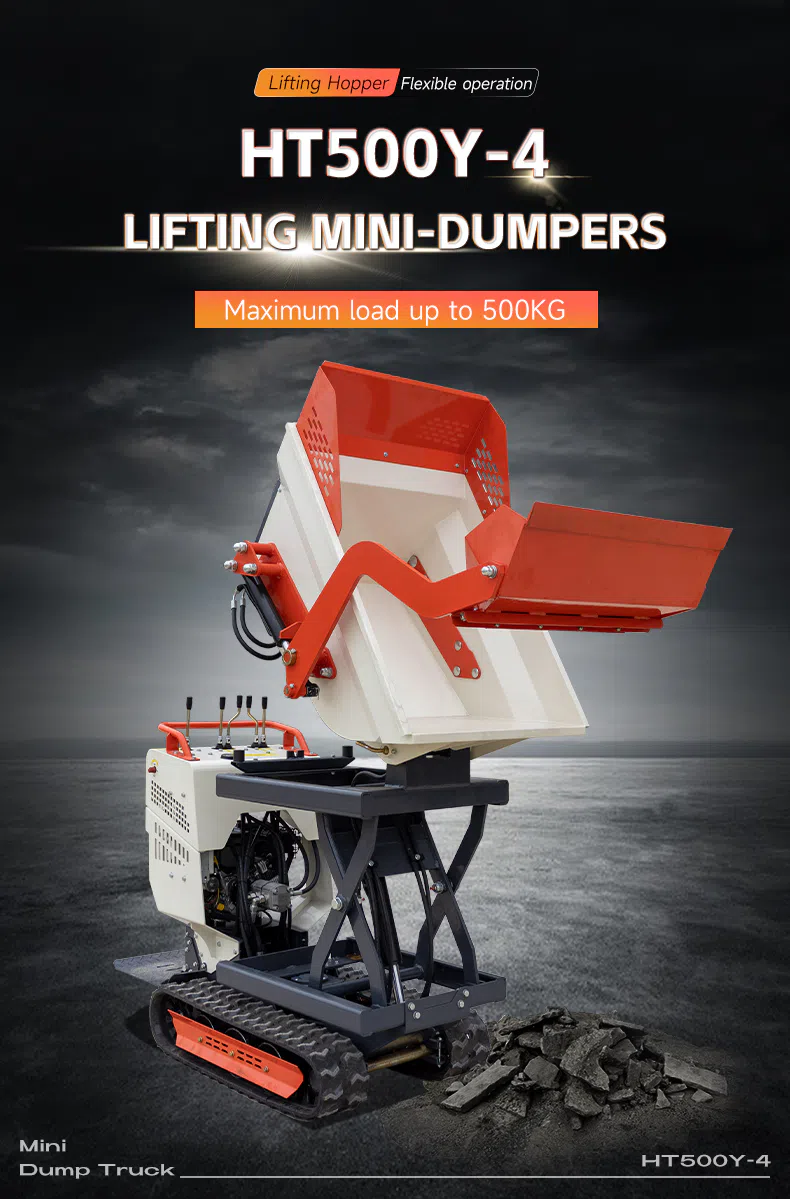

HT500Y-4LIETING MINI-DUMPERS s

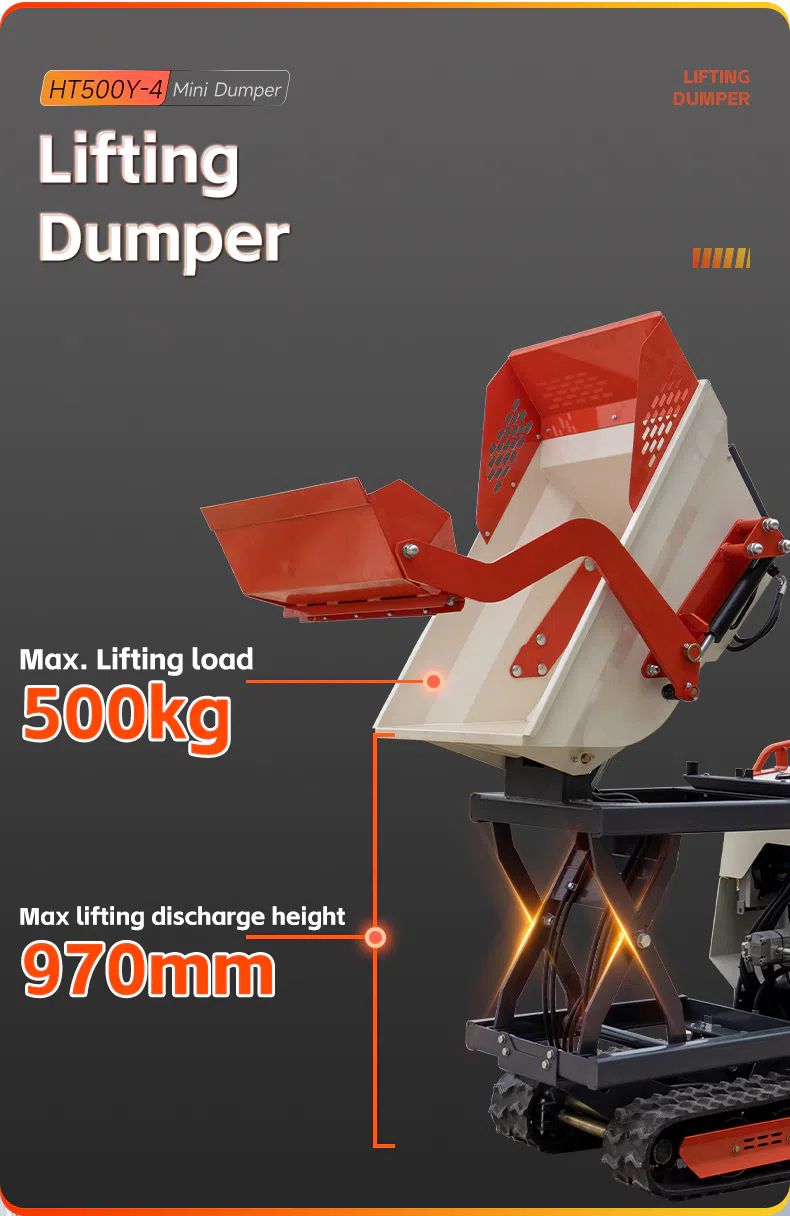

Maximum load up to 500KG

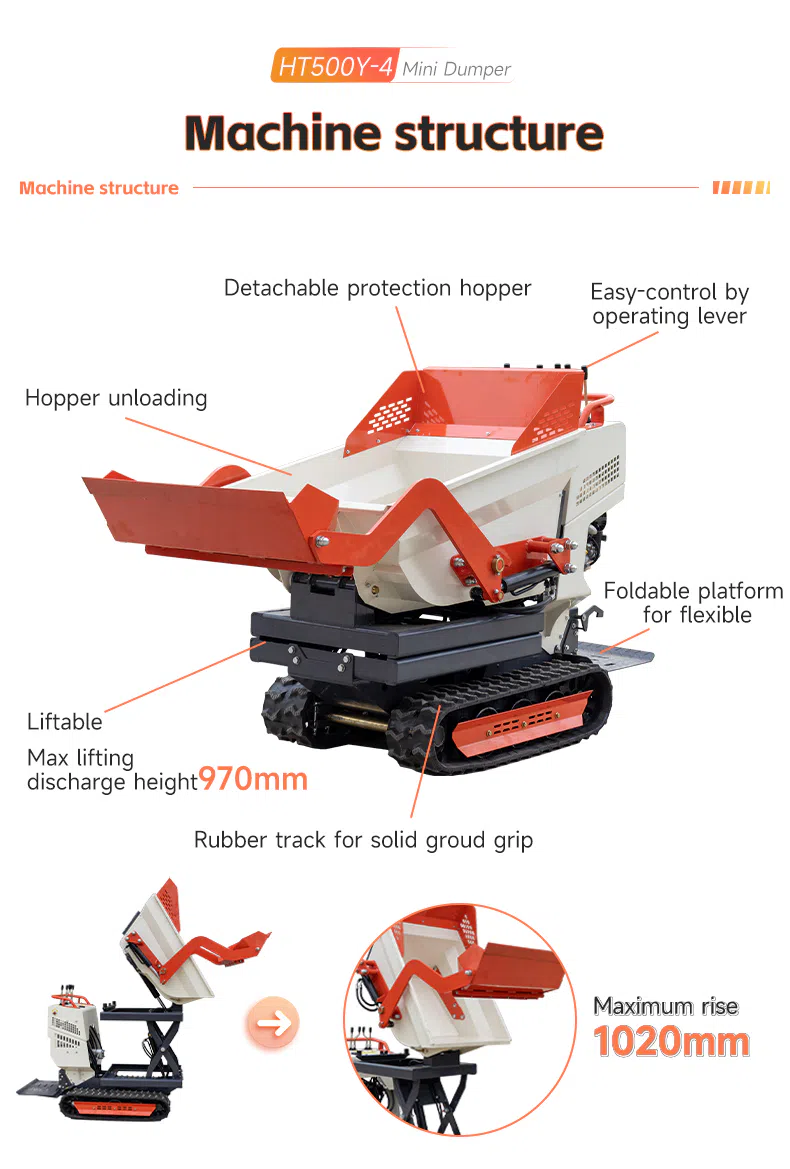

Maximum rise1020mm

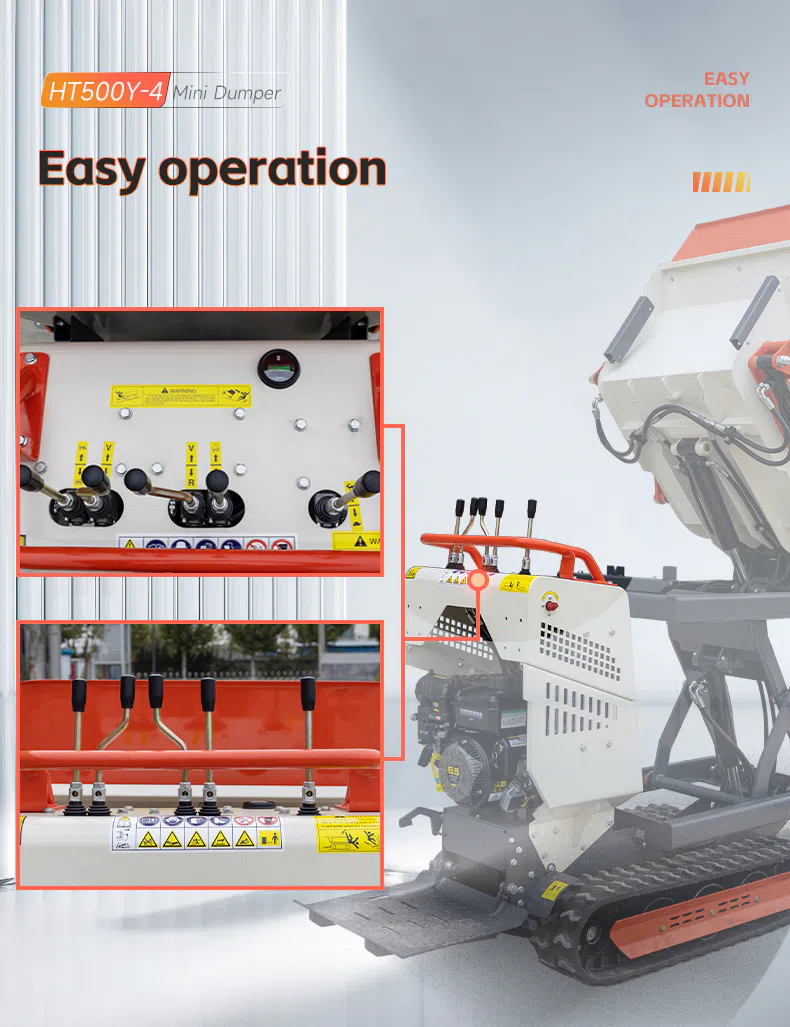

Easy operation

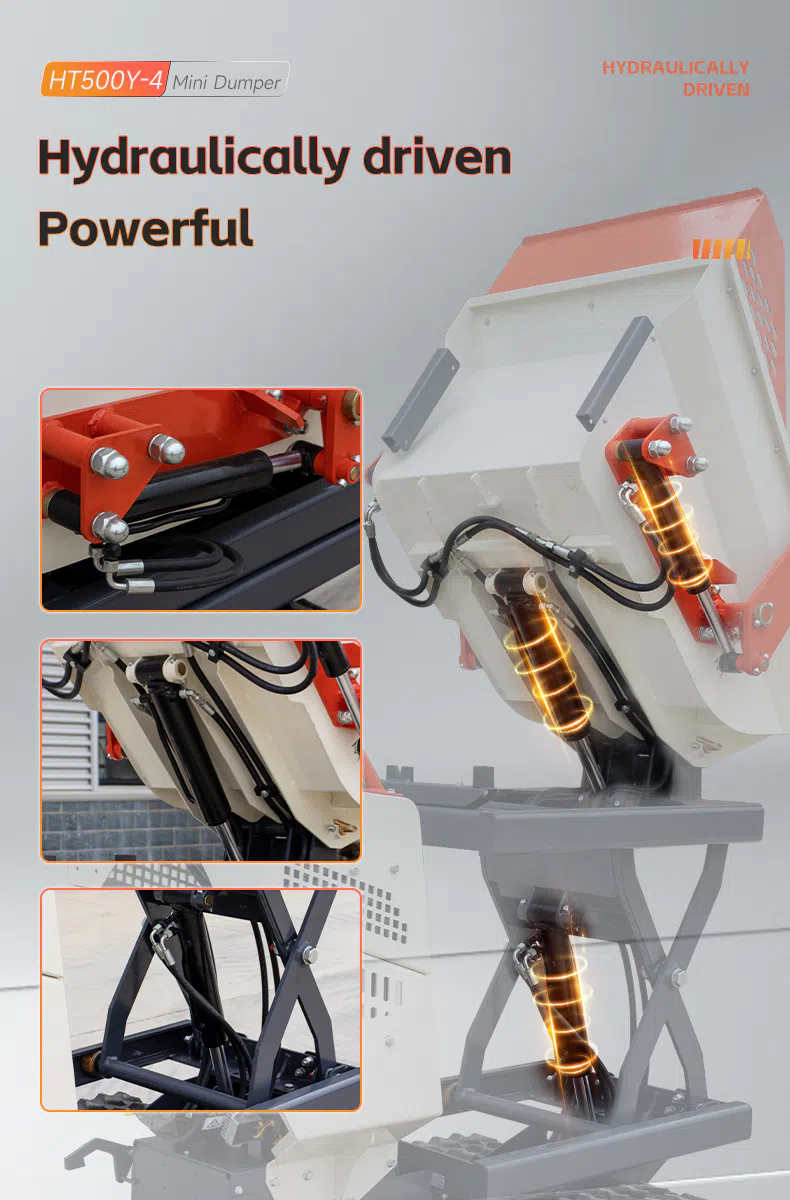

Powerful Hydraulically driven
Lifting Dumper with Hydraulic Lifting System HT500Y Product Applications
The HT500Y-4 lifting dumper is suitable for many material transportation applications.
In construction projects, it can transport sand, gravel, cement, bricks, concrete, and excavation materials. The hydraulic lifting function makes it especially useful when materials need to be unloaded into higher positions or vehicles.
For landscaping and gardening work, the compact tracked dumper can move soil, fertilizer, plants, and green waste through narrow paths and uneven outdoor areas.
In agricultural applications, the HT500Y-4 can assist with transporting feed, crops, and farm supplies between fields, greenhouses, and storage locations.
It is also suitable for property maintenance, municipal projects, small engineering work, and rental equipment operations where compact size and flexible transportation are required.
HIGHTOP Service Support
HIGHTOP provides complete support for customers worldwide, including product consultation, machine configuration recommendations, technical documents, spare parts supply, and after-sales assistance.
Before purchasing, our professional team can help customers select suitable equipment according to working conditions, loading requirements, transportation distance, and application environment. For overseas customers, HIGHTOP provides operation guidance and technical support to help ensure efficient machine use.
HIGHTOP also supports customized solutions according to customer requirements, including product configuration adjustments, appearance customization, OEM/ODM cooperation, and bulk purchasing support.
With professional manufacturing experience and strict quality control, HIGHTOP continues to provide reliable compact construction equipment solutions for global customers.
Lifting Dumper with Hydraulic Lifting System HT500Y Frequently Asked Questions
1. What is the maximum loading capacity of the HT500Y-4 lifting dumper?
The HT500Y-4 has a maximum loading capacity of 500kg, suitable for transporting various construction and agricultural materials.
2. What is the difference between a lifting dumper and a normal mini dumper?
A lifting dumper uses a hydraulic lifting structure to raise the hopper unloading position, making it easier to discharge materials into higher locations compared with standard tipping dumpers.
3. Can the HT500Y-4 work on muddy or uneven terrain?
Yes. The crawler track system provides better traction and stability on soft ground, muddy roads, gravel surfaces, and uneven terrain.
4. What materials can this mini dumper transport?
It can transport soil, sand, gravel, concrete, construction waste, fertilizer, crops, and other common materials.
5. Does HIGHTOP provide customization services?
Yes. HIGHTOP supports OEM/ODM cooperation, configuration customization, spare parts supply, and technical assistance.
