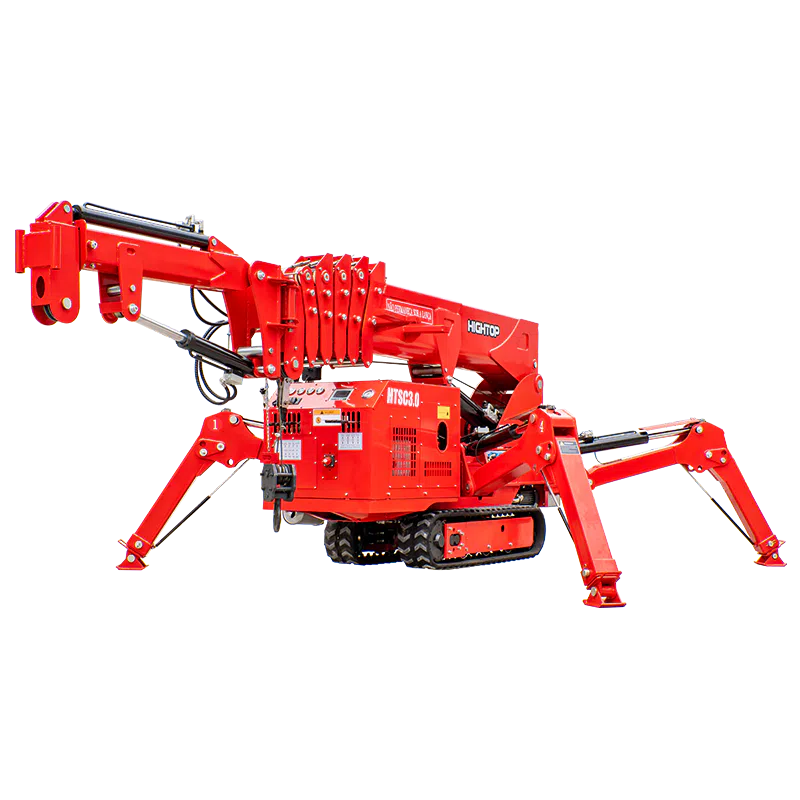

Spider Crane 3 Ton With Higher Capacity HTSC3.0 Introduction
The HIGHTOP HTSC3.0 3 Ton Spider Crane is a compact crawler lifting machine designed for projects that require higher lifting capacity while working in restricted or difficult-to-access areas. Combining a spider-style stabilizing system, crawler mobility, and flexible boom operation, HTSC3.0 provides an efficient lifting solution for construction, installation, maintenance, and industrial applications.
Compared with smaller mini spider cranes, the HTSC3.0 offers increased lifting capability for heavier materials and equipment while maintaining the compact advantages required for narrow job sites. Its crawler structure allows the crane to move through uneven ground, outdoor construction areas, and locations where traditional mobile cranes may not be practical.
The spider crane design with adjustable outriggers provides stable support during lifting operations. Operators can adjust the supporting legs according to different working conditions, helping maintain balance when lifting loads on uneven surfaces or limited-access sites.

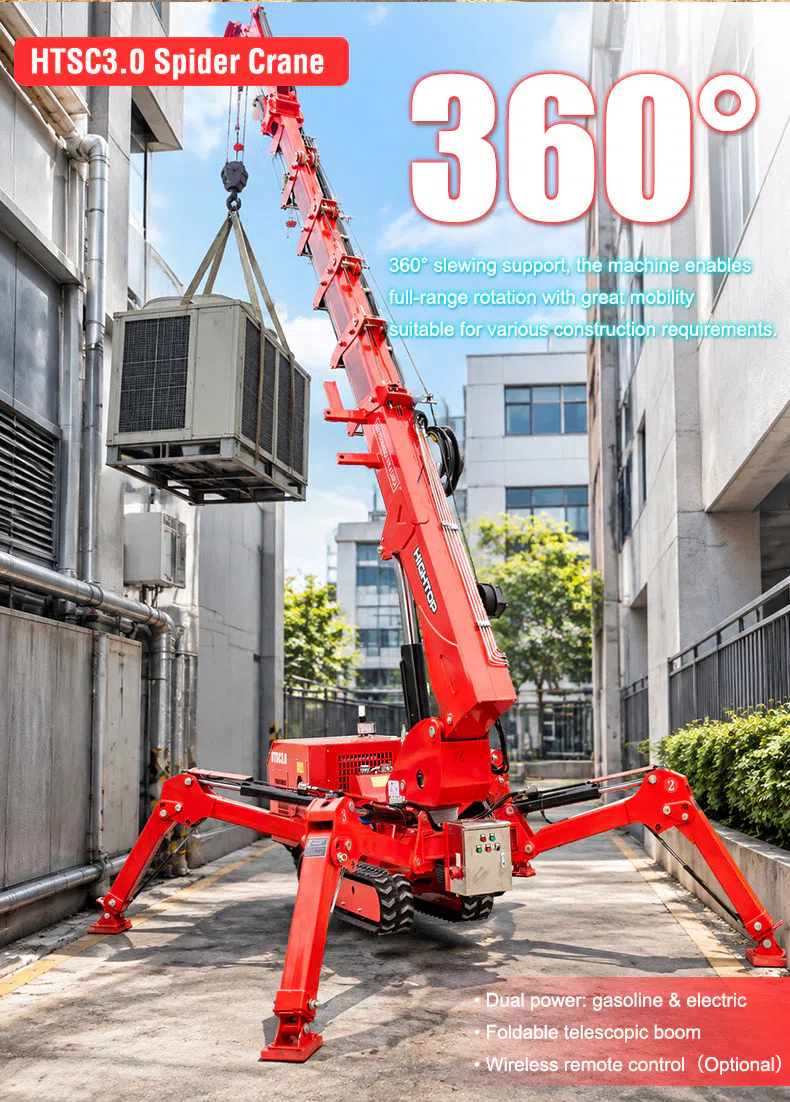

Equipped with a flexible boom system and 360° rotation capability, HTSC3.0 allows operators to adjust the lifting direction smoothly without frequently repositioning the machine. This improves efficiency during glass installation, steel structure assembly, equipment handling, and building maintenance projects.
For customers searching for a 3 ton spider crane for sale, mini crawler crane for construction, or compact spider crane for narrow spaces, the HIGHTOP HTSC3.0 provides a practical combination of lifting capacity, mobility, and operational flexibility.
HIGHTOP also supplies a complete range of compact lifting solutions, including mini spider cranes and crawler lifting equipment, helping customers choose suitable machines according to different project requirements.

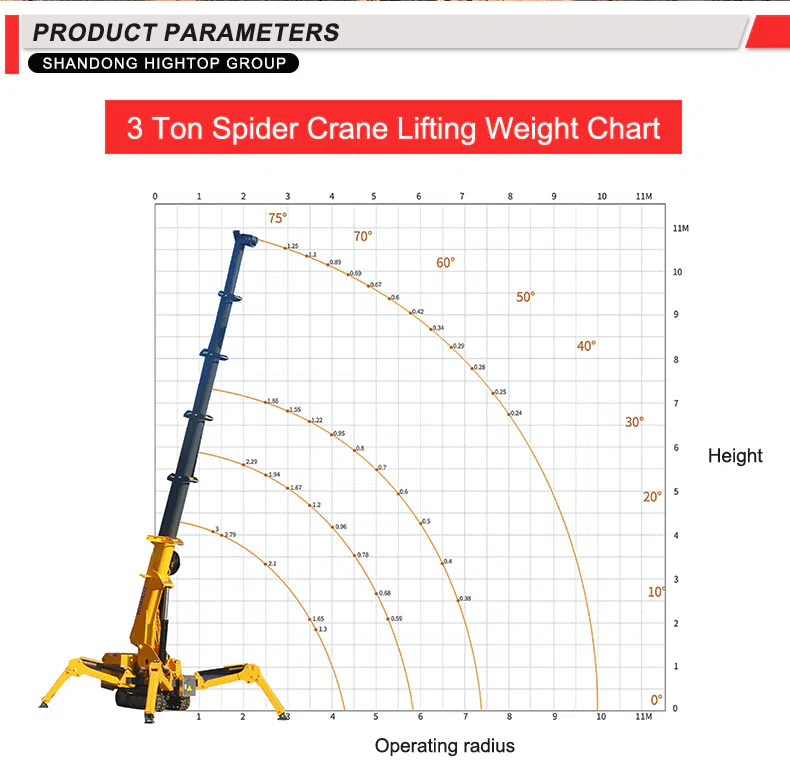

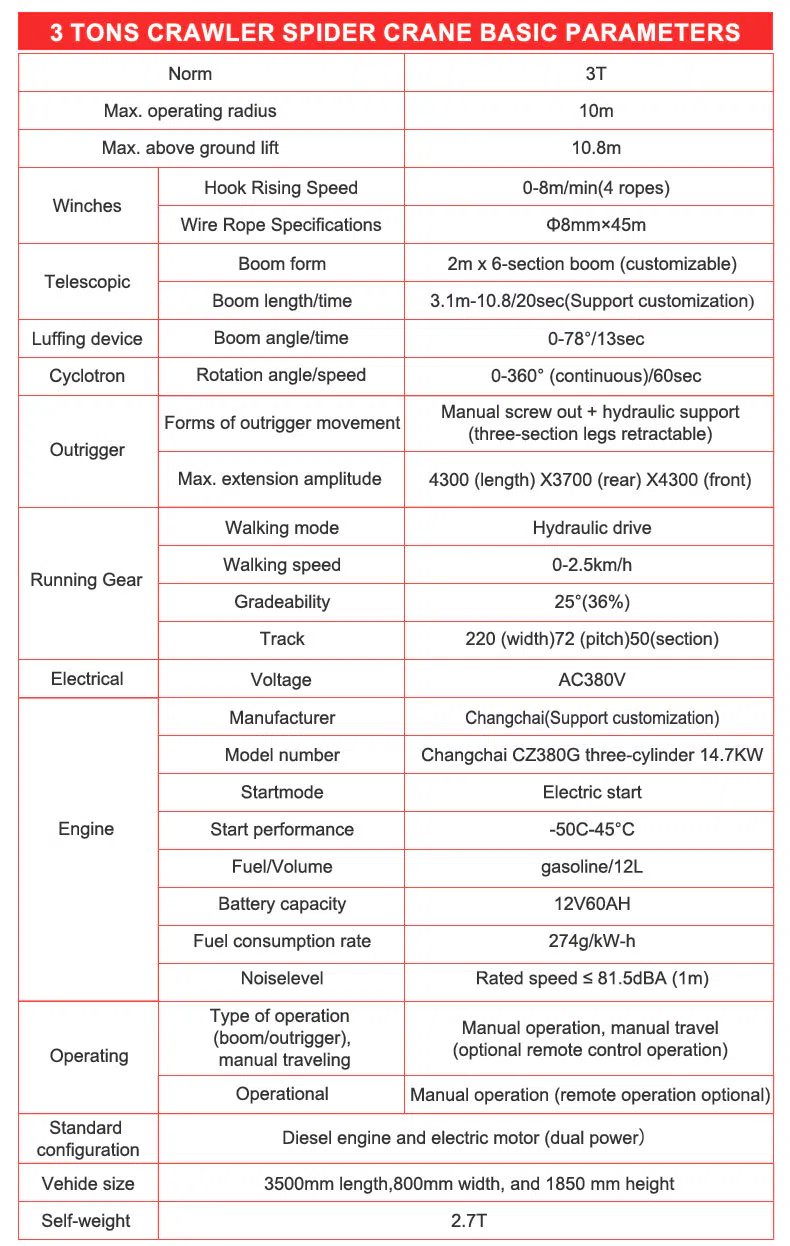

Spider Crane 3 Ton With Higher Capacity HTSC3.0 Parameters
| Parameter | Value |
|---|---|
| Norm | 3T |
| Max. Operating Radius | 10m |
| Max. Above Ground Lift | 10.8m |
| Winches | |
| Hook Rising Speed | 0‑8m/min (4 ropes) |
| Wire Rope Specifications | Φ8mm×45m |
| Telescopic | |
| Boom Form | 2m × 6‑section boom (customizable) |
| Boom Length/Time | 3.1m‑10.8m/20sec (Support customization) |
| Luffing Device | |
| Boom Angle/Time | 0‑78°/13sec |
| Cyclotron | |
| Rotation Angle/Speed | 0‑360° (continuous) / 60sec |
| Outrigger | |
| Forms of Outrigger Movement | Manual screw out + hydraulic support (three‑section legs retractable) |
| Max. Extension Amplitude | 4300 (length) X3700 (rear) X4300 (front) |
| Running Gear | |
| Walking Mode | Hydraulic drive |
| Walking Speed | 0‑2.5km/h |
| Gradeability | 25° (36%) |
| Track | 220 (width)72(pitch)50(section) |
| Electrical | |
| Voltage | AC380V |
| Engine | |
| Manufacturer | Changchai(Support customization) |
| Model Number | Changchai CZ380G three‑cylinder 14.7KW |
| Start Mode | Electric start |
| Start Performance | -50°C–45°C |
| Fuel / Volume | gasoline/12L |
| Battery Capacity | 12V60AH |
| Fuel Consumption Rate | 274g/kW·h |
| Noise Level | Rated speed ≤ 81.5dBA (1m) |
| Operating | |
| Type of Operation (Boom/Outrigger), Manual Traveling | Manual operation, manual travel (optional remote control operation) |
| Operational | Manual operation (remote operation optional) |
| Standard Configuration | Diesel engine and electric motor (dual power) |

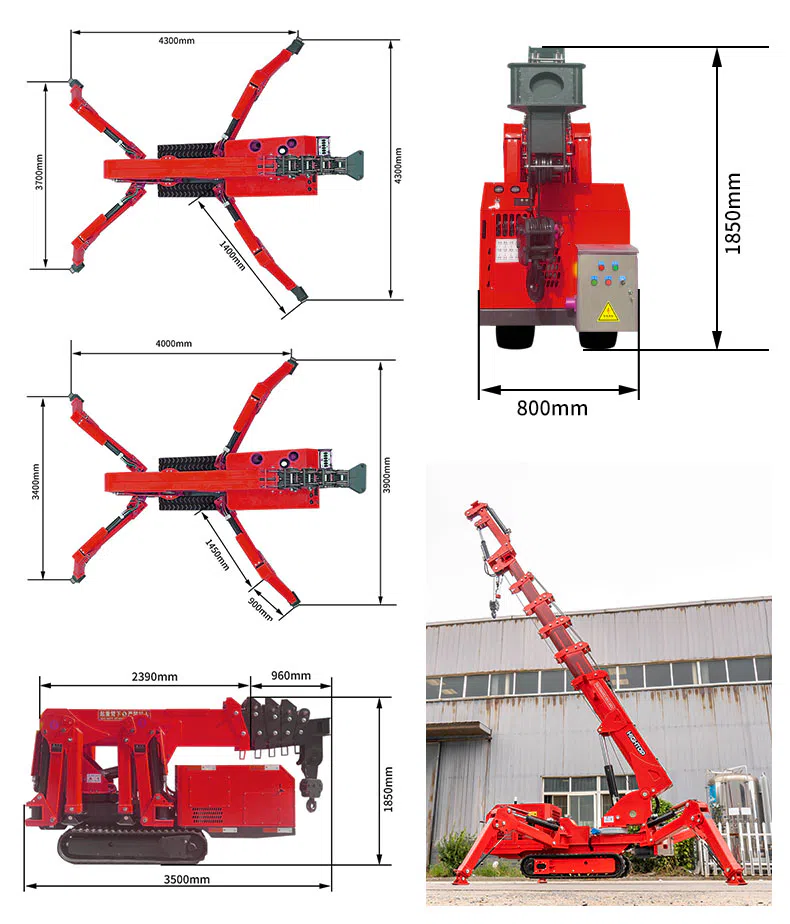

| Vehicle Size | 3500mm length,800mm width, and 1850 mm height |
| Self‑weight | 2.7T |

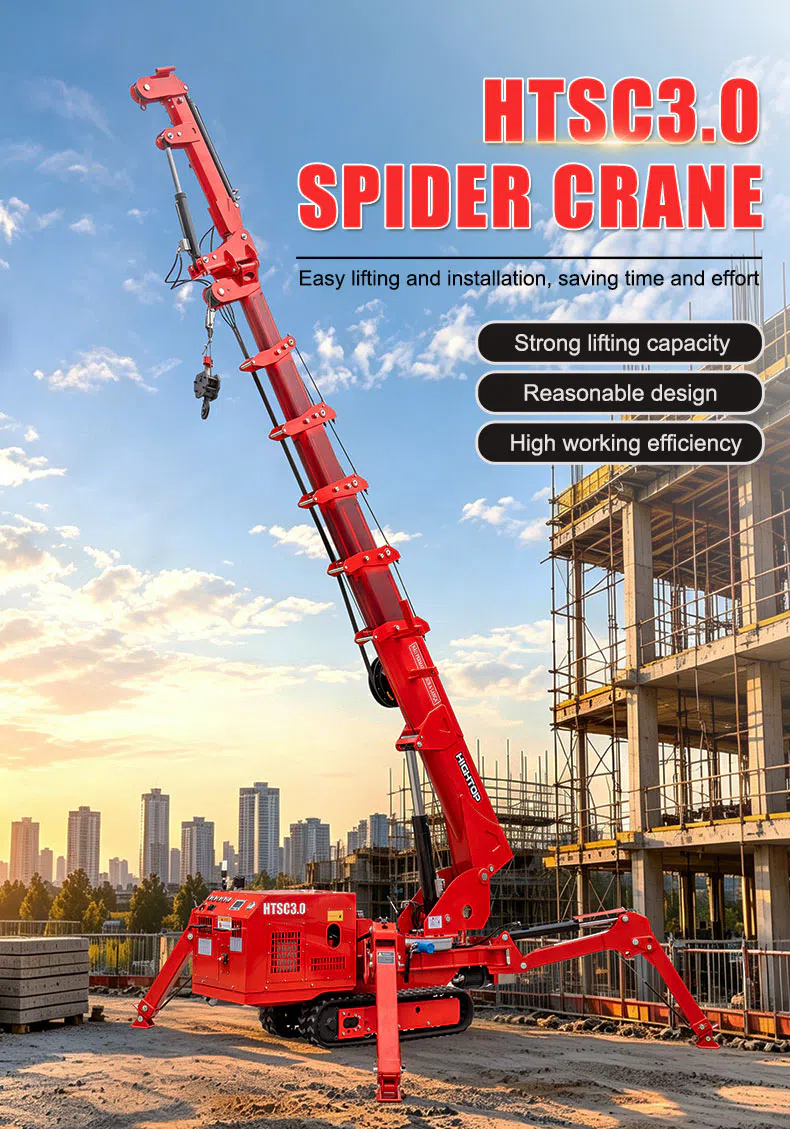

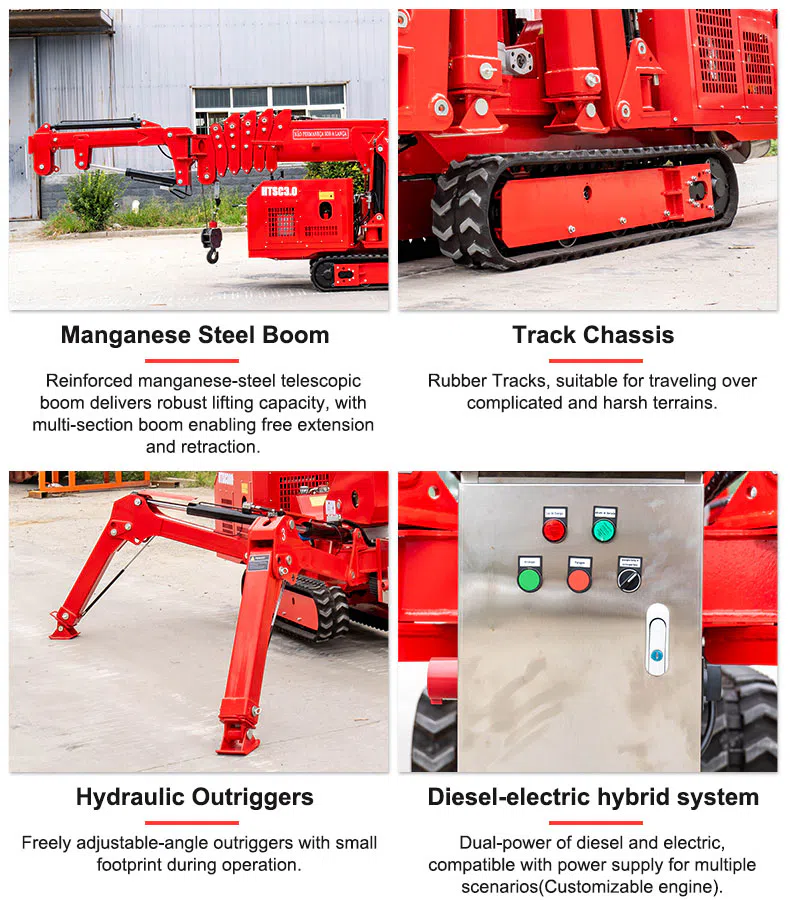

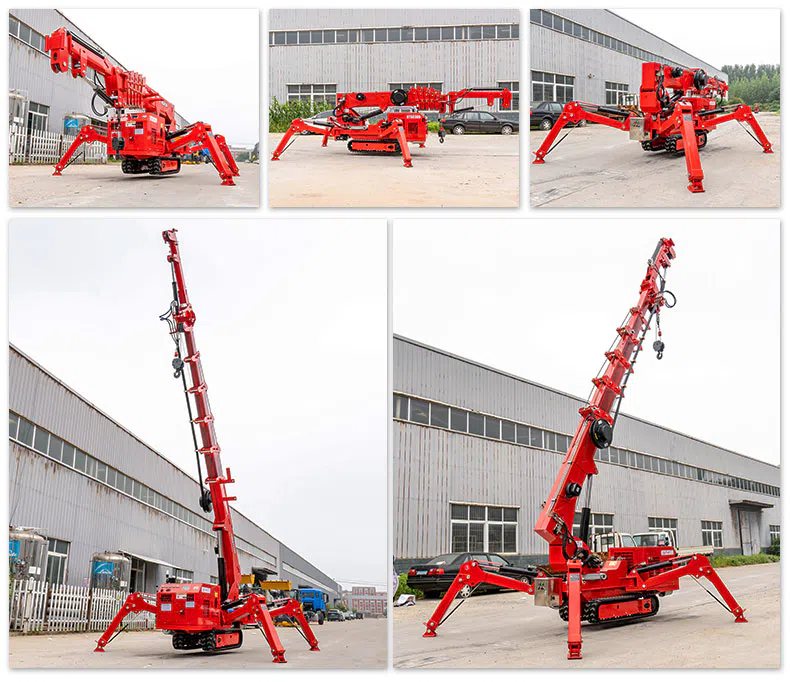

Spider Crane 3 Ton With Higher Capacity HTSC3.0 Images

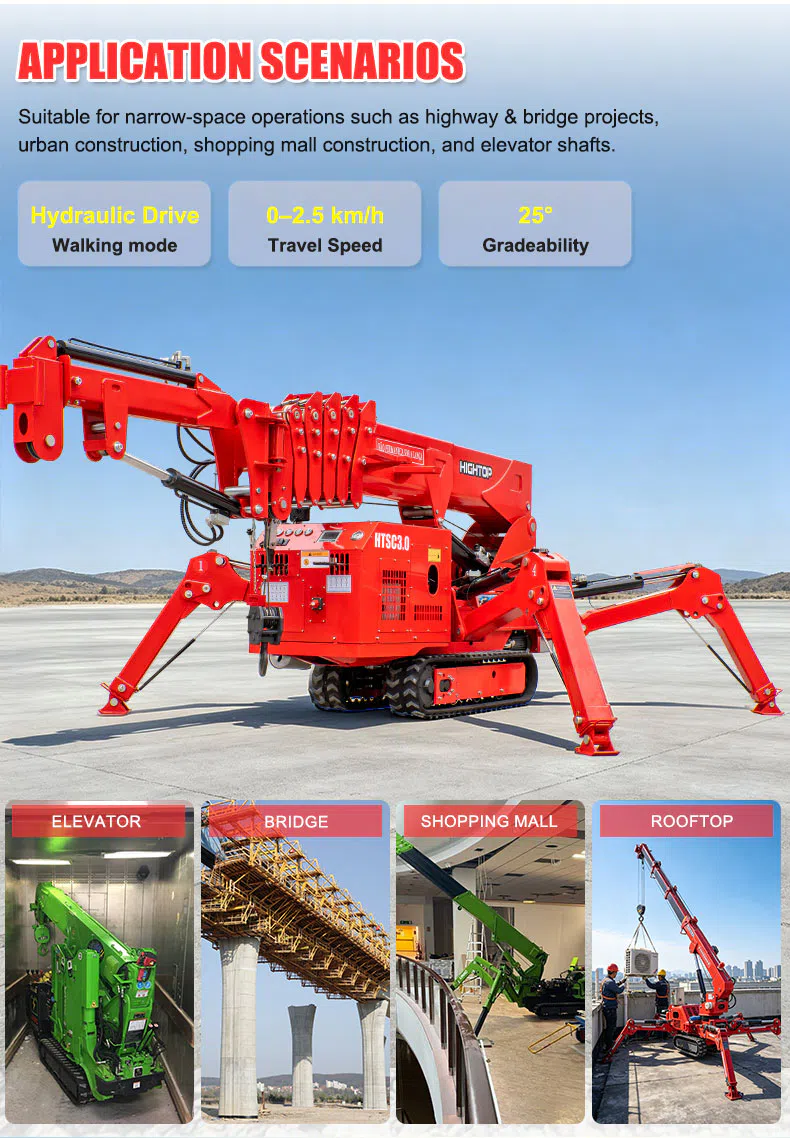

Spider Crane 3 Ton With Higher Capacity HTSC3.0 Applications
Glass Installation:The HTSC3.0 mini spider crane is suitable for glass curtain wall installation and architectural decoration projects.Its compact structure allows operation in areas where large cranes cannot easily access.
Construction Projects:For construction sites with limited space, HTSC3.0 provides a flexible lifting solution for materials, components, and equipment installation.
Steel Structure Installation:The 3 ton lifting capacity makes HTSC3.0 suitable for lifting steel components and structural materials during installation work.
Industrial Equipment Maintenance:Factories and industrial facilities often require precise lifting in restricted areas.
HTSC3.0 helps move and install machinery components with improved accessibility.
Building Renovation:Urban renovation projects often face space limitations.The compact crawler spider crane provides efficient lifting support without requiring large operating areas.
HIGHTOP Service Support
HIGHTOP provides complete support for HTSC3.0 spider crane customers, including product consultation, configuration recommendations, manufacturing, transportation, spare parts supply, and after-sales service.
Before purchase, our professional team helps customers select suitable lifting solutions according to lifting requirements, working environment, transportation conditions, and project applications.
For distributors, contractors, and rental companies, HIGHTOP supports OEM and ODM cooperation, customized solutions, bulk orders, and long-term supply partnerships.
After delivery, HIGHTOP provides technical guidance, operation instructions, maintenance suggestions, and spare parts support to ensure stable equipment performance throughout the machine lifecycle.
With professional manufacturing experience and global export capability, HIGHTOP continues to provide reliable compact lifting equipment solutions for customers worldwide.
Spider Crane 3 Ton With Higher Capacity HTSC3.0 Frequently Asked Questions
1. What is the lifting capacity of HTSC3.0?
HTSC3.0 is a 3 ton spider crane designed for small and medium lifting projects requiring higher capacity than compact 2 ton models.
2. What is the advantage of a spider crane?
A spider crane combines compact dimensions with strong lifting performance, allowing operation in narrow spaces where traditional cranes cannot easily work.
3. Can HTSC3.0 work on uneven ground?
Yes. The crawler travel system and adjustable outriggers help improve stability on uneven construction surfaces.
4. What industries use HTSC3.0?
It is commonly used in construction, glass installation, industrial maintenance, steel structure installation, and equipment handling projects.
5. Why choose HTSC3.0 instead of a larger crane?
HTSC3.0 provides lifting capability while keeping a compact footprint, making it more suitable for restricted-access job sites.
