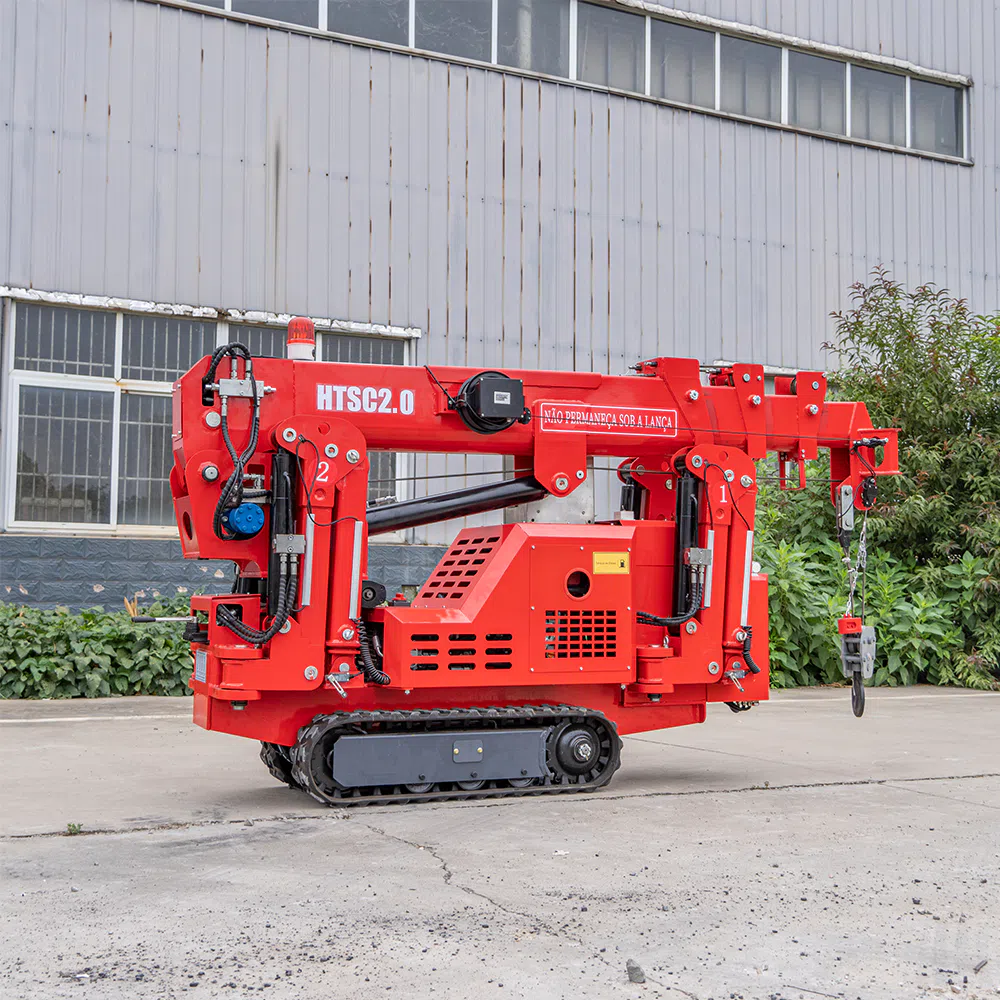

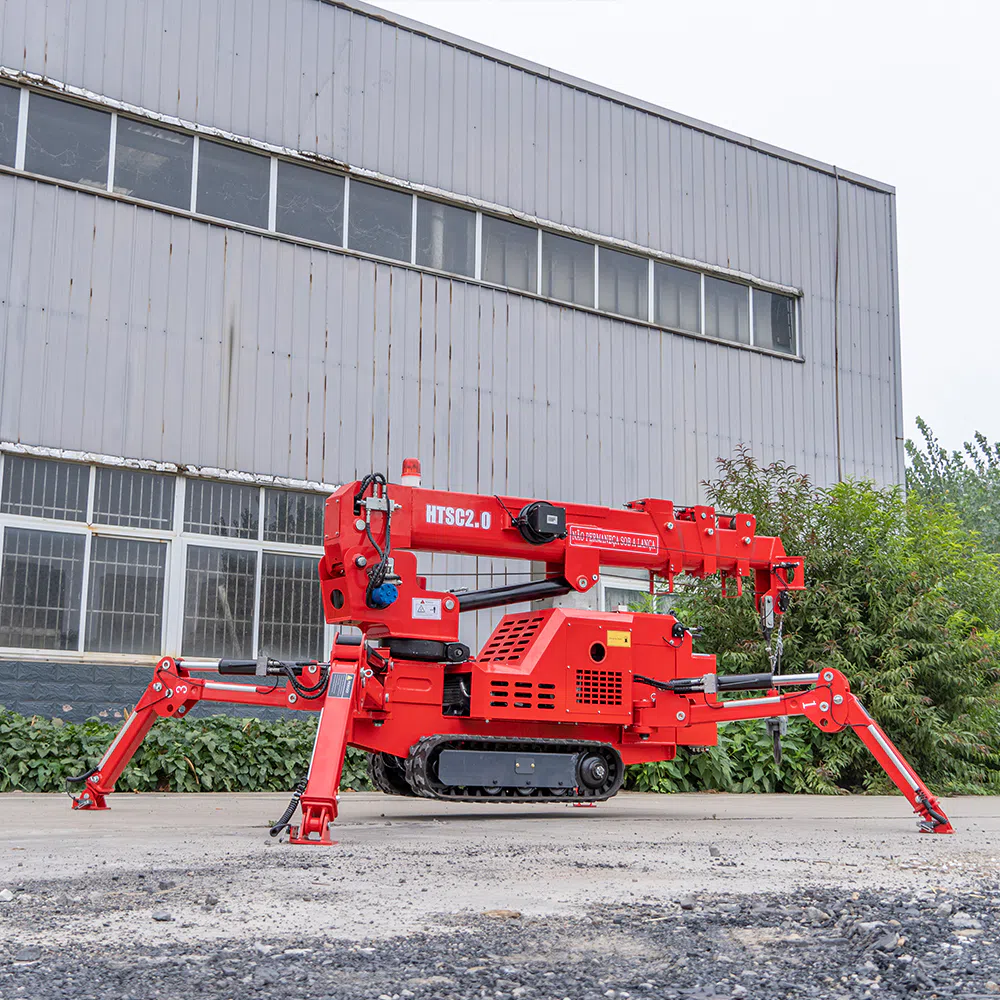

Spider Crane 2 Ton With 360° Rotation Introduction
The HIGHTOP HTSC2.0 2 Ton Mini Spider Crane is a compact crawler lifting machine designed for construction, installation, maintenance, and material handling projects where traditional cranes cannot easily access. With a compact spider structure, flexible outriggers, and a 360° rotation working system, HTSC2.0 provides a practical lifting solution for narrow and complex working environments.
Unlike conventional mobile cranes that require large operating areas, the HTSC2.0 mini spider crane is designed for restricted-access locations. Its compact body allows it to enter narrow passages, indoor areas, workshops, renovation sites, and urban construction environments where space is limited.

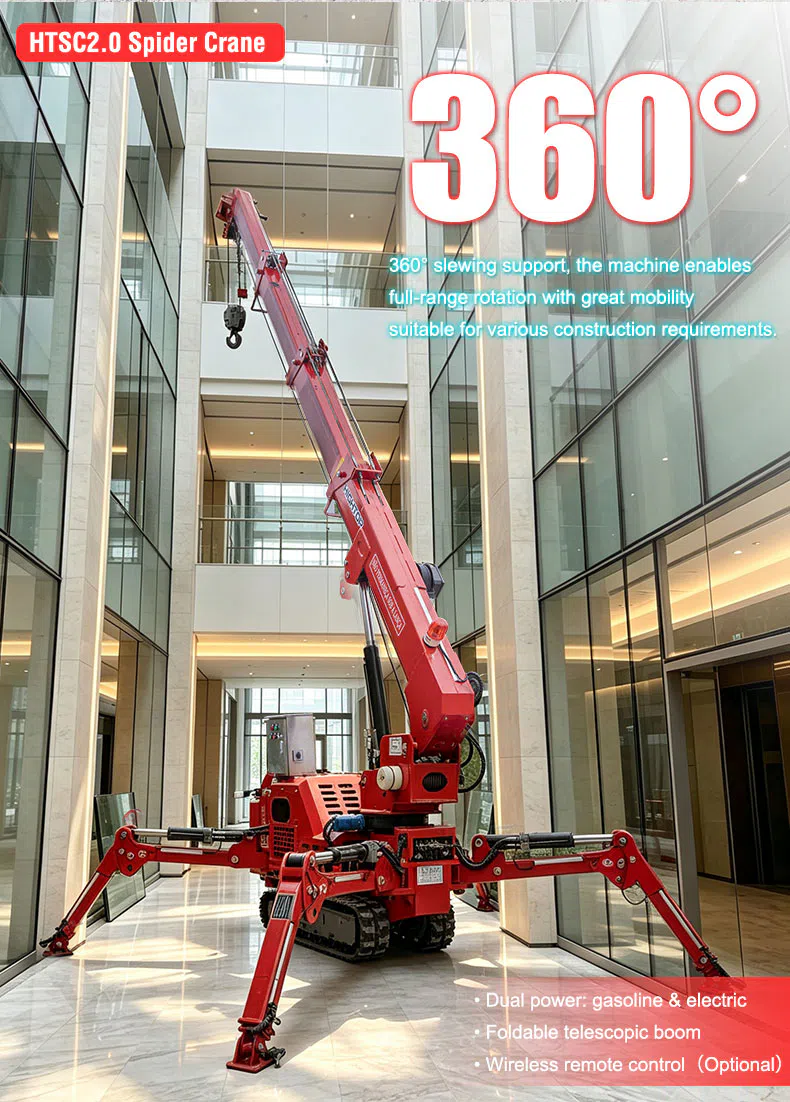

The continuous 360-degree rotation system enables operators to adjust the boom direction smoothly during lifting operations without frequently repositioning the machine. This improves working efficiency when handling glass panels, steel structures, mechanical equipment, and construction materials in complicated environments.
The spider-type outrigger system provides flexible support adjustment according to different ground conditions. Combined with crawler travel capability, HTSC2.0 can operate on uneven surfaces while maintaining stability during lifting tasks.
For customers searching for a 2 ton spider crane for sale, mini crawler crane for narrow spaces, or compact spider crane for indoor lifting, the HIGHTOP HTSC2.0 offers a balance of lifting capability, mobility, and space adaptability.
HIGHTOP provides complete compact lifting equipment solutions, including mini spider cranes and crawler lifting machines, helping customers select suitable equipment according to different project requirements.

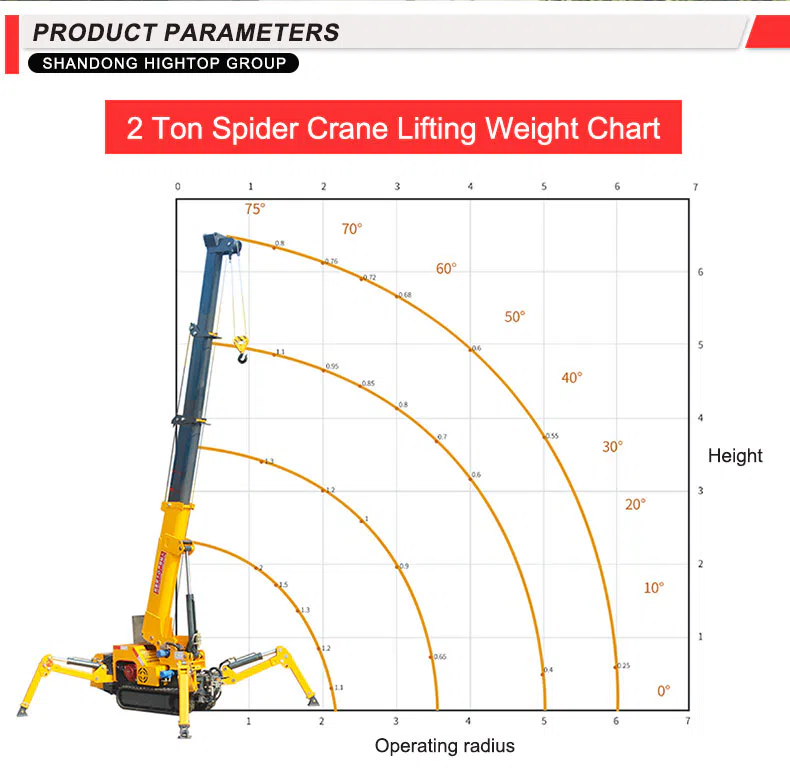

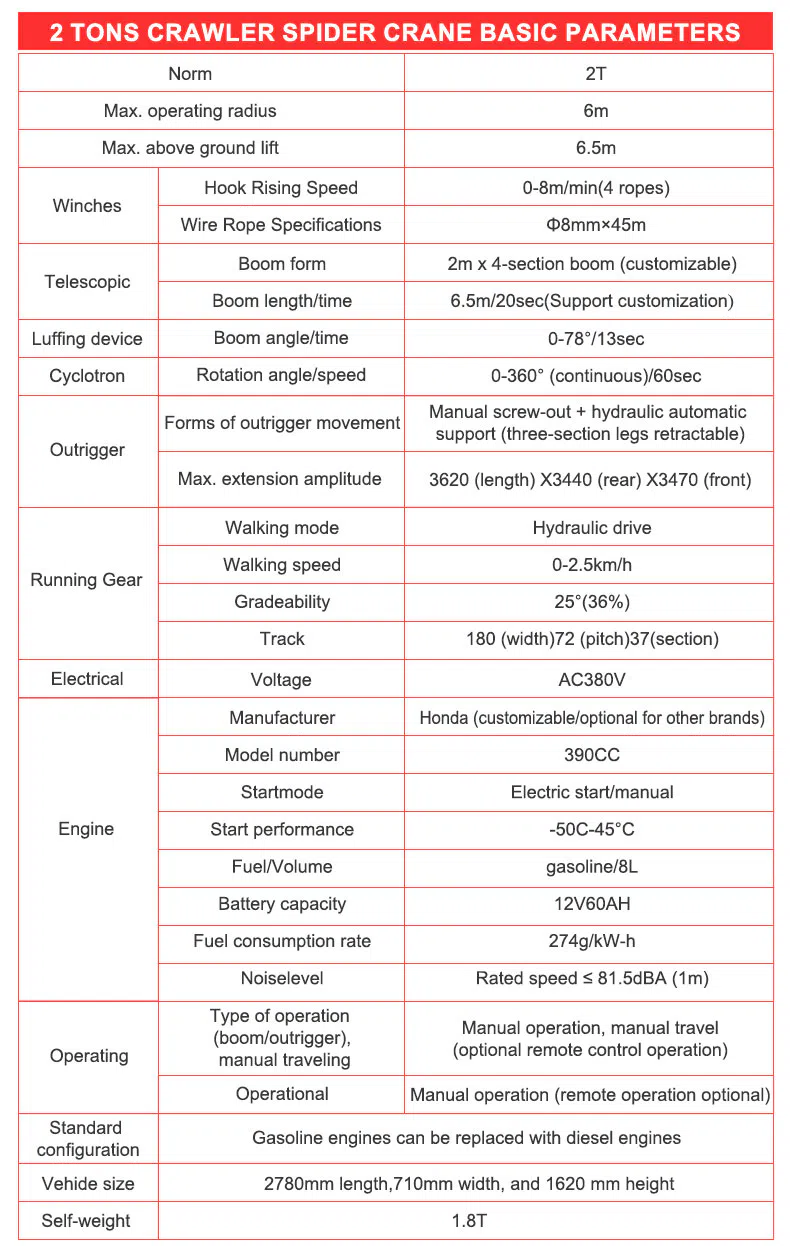

Spider Crane 2 Ton With 360° Rotation Parameters
| Parameter | Value |
|---|---|
| Norm | 2T |
| Max. Operating Radius | 6m |
| Max. Above Ground Lift | 6.5m |
| Winches | |
| Hook Rising Speed | 0‑8m/min (4 ropes) |
| Wire Rope Specifications | Φ8mm×45m |
| Telescopic | |
| Boom Form | 2m × 4‑section boom (customizable) |
| Boom Length/Time | 6.5m/20sec (Support customization) |
| Luffing Device | |
| Boom Angle/Time | 0‑78°/13sec |
| Cyclotron | |
| Rotation Angle/Speed | 0‑360° (continuous) / 60sec |
| Outrigger | |
| Forms of Outrigger Movement | Manual screw‑out + hydraulic automatic support (three‑section legs retractable) |
| Max. Extension Amplitude | 3620 (length) / 3440 (rear) / 3470 (front) |
| Running Gear | |
| Walking Mode | Hydraulic drive |
| Walking Speed | 0‑2.5km/h |
| Gradeability | 25° (36%) |
| Track | 180 (width) / 72 (pitch) / 37 (section) |
| Electrical | |
| Voltage | AC380V |
| Engine | |
| Manufacturer | Honda (customizable/optional for other brands) |
| Model Number | 390CC |
| Start Mode | Electric start / manual |
| Start Performance | -50°C – 45°C |
| Fuel / Volume | gasoline / 8L |
| Battery Capacity | 12V60AH |
| Fuel Consumption Rate | 274g/kW·h |
| Noise Level | Rated speed ≤ 81.5dBA (1m) |
| Operating | |
| Type of Operation (Boom/Outrigger), Manual Traveling | Manual operation, manual travel (optional remote control operation) |
| Operational | Manual operation (remote operation optional) |
| Standard Configuration | Gasoline engines can be replaced with diesel engines |

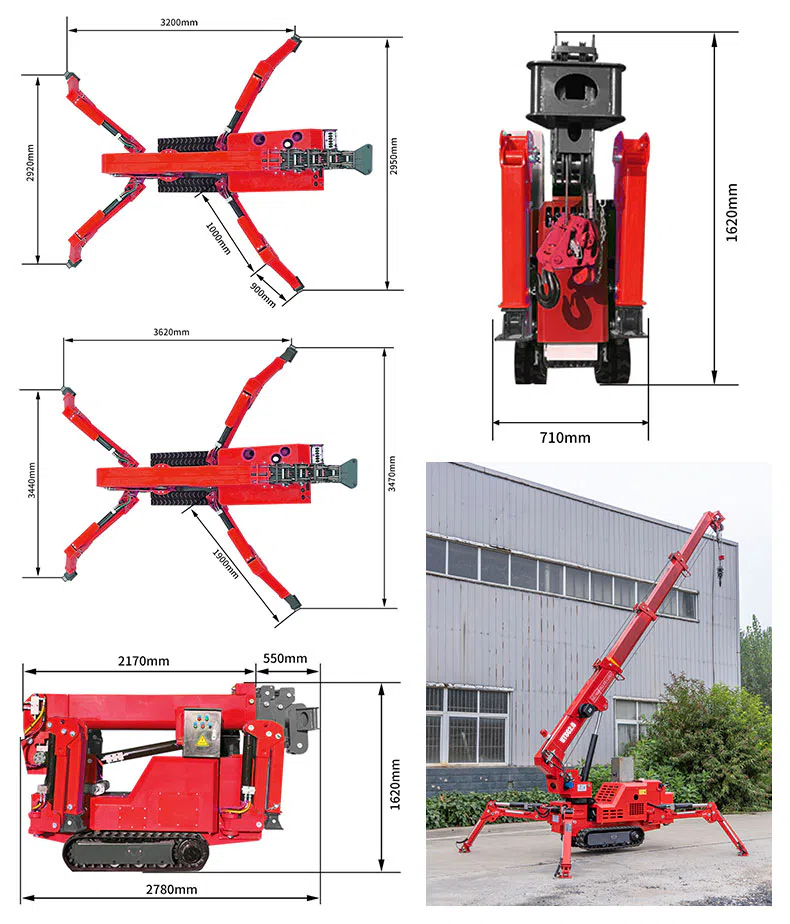

| Vehicle Size | 2780mm length, 710mm width, 1620mm height |
| Self‑weight | 1.8T |

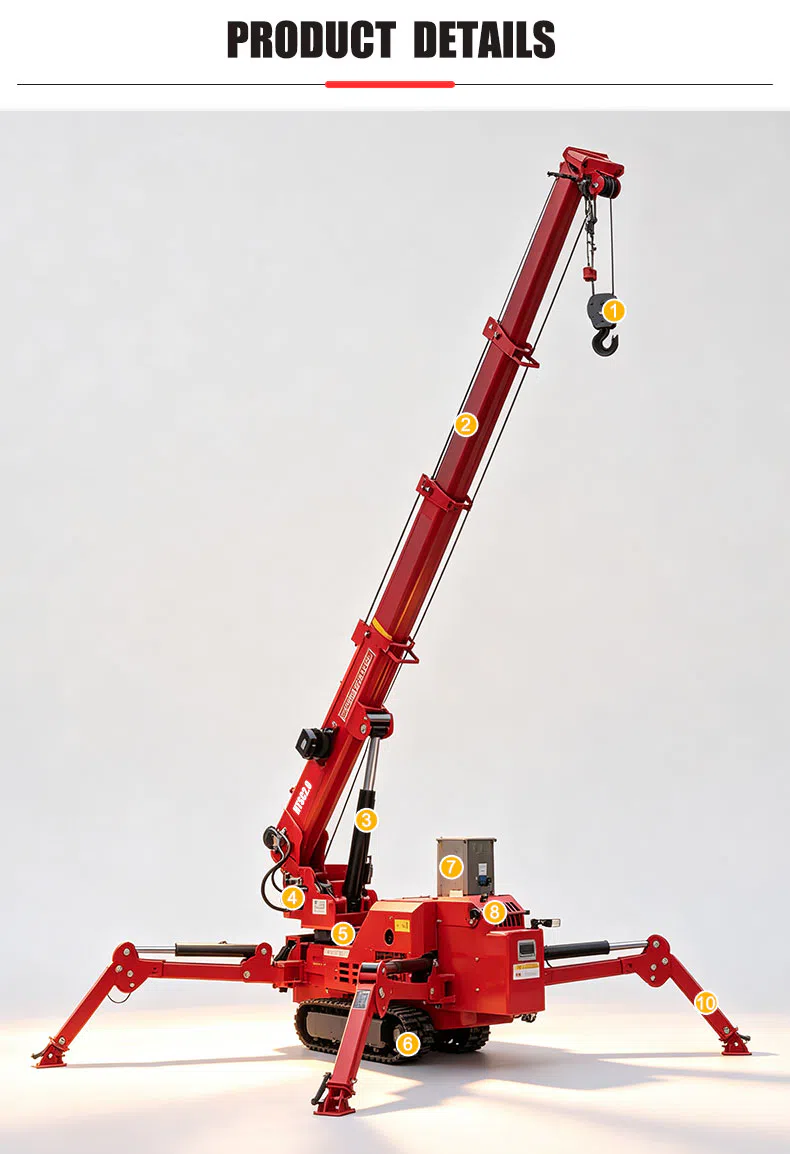

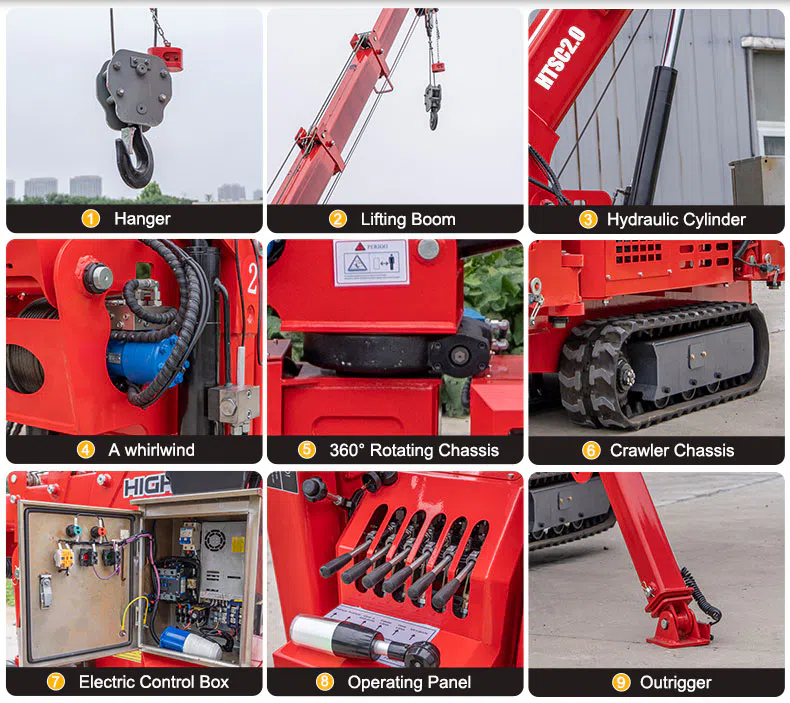

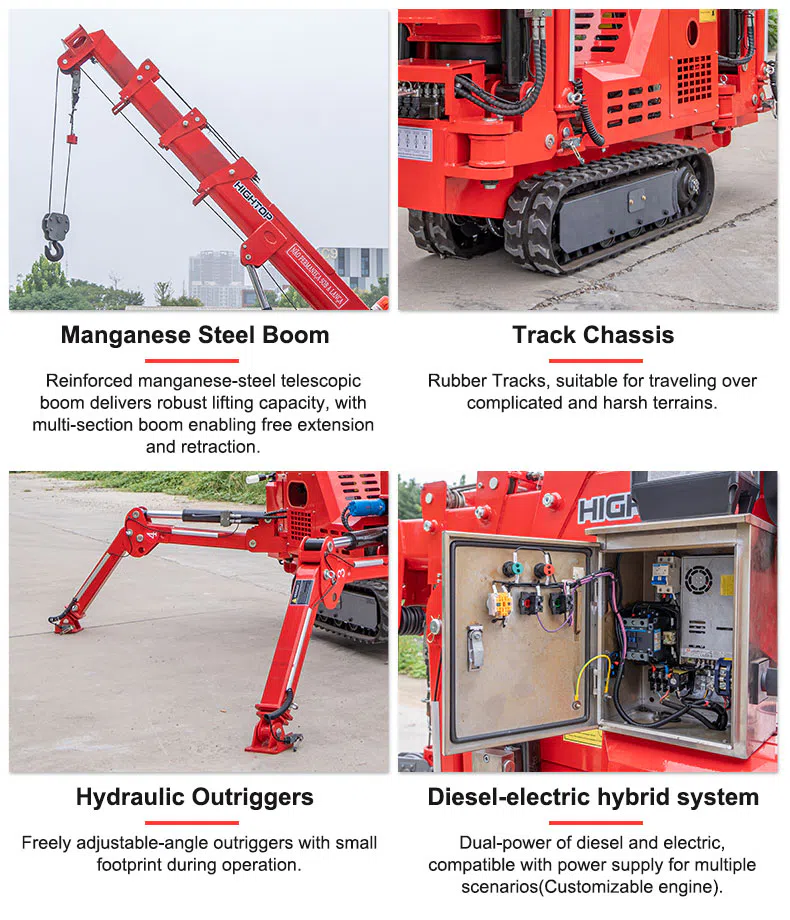

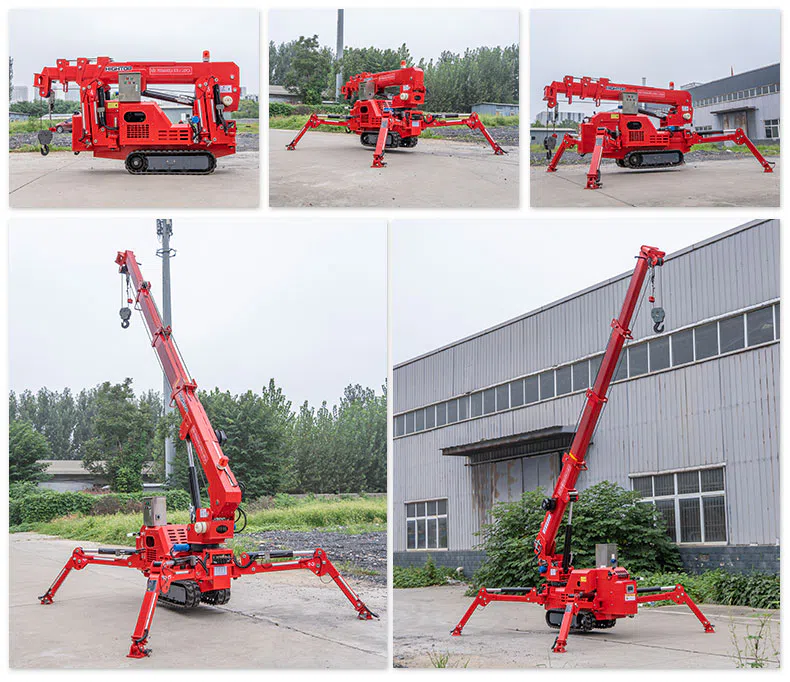

Spider Crane 2 Ton With 360° Rotation Images

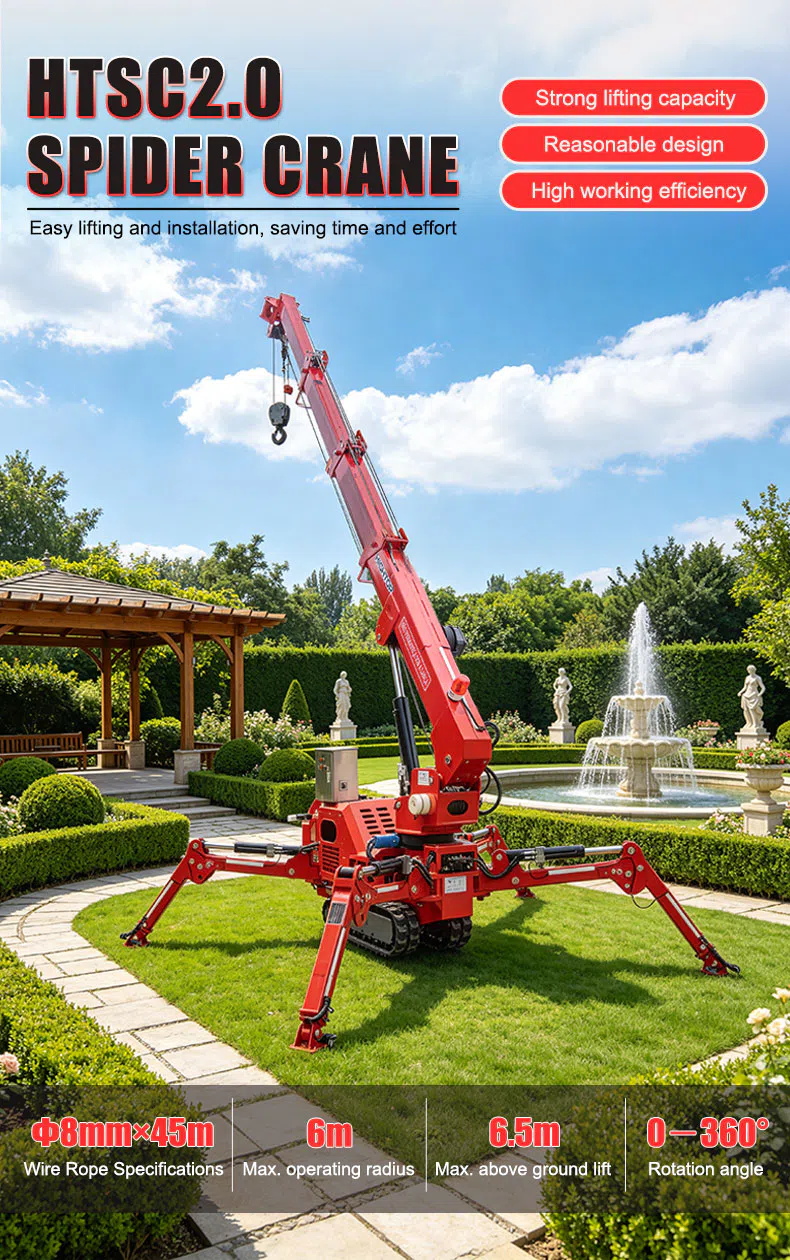

HTSC2.0SPIDER CRANE
Easy lifting and installation, saving time and effort
Stronglifting capacity
Reasonable design
High working efficiency

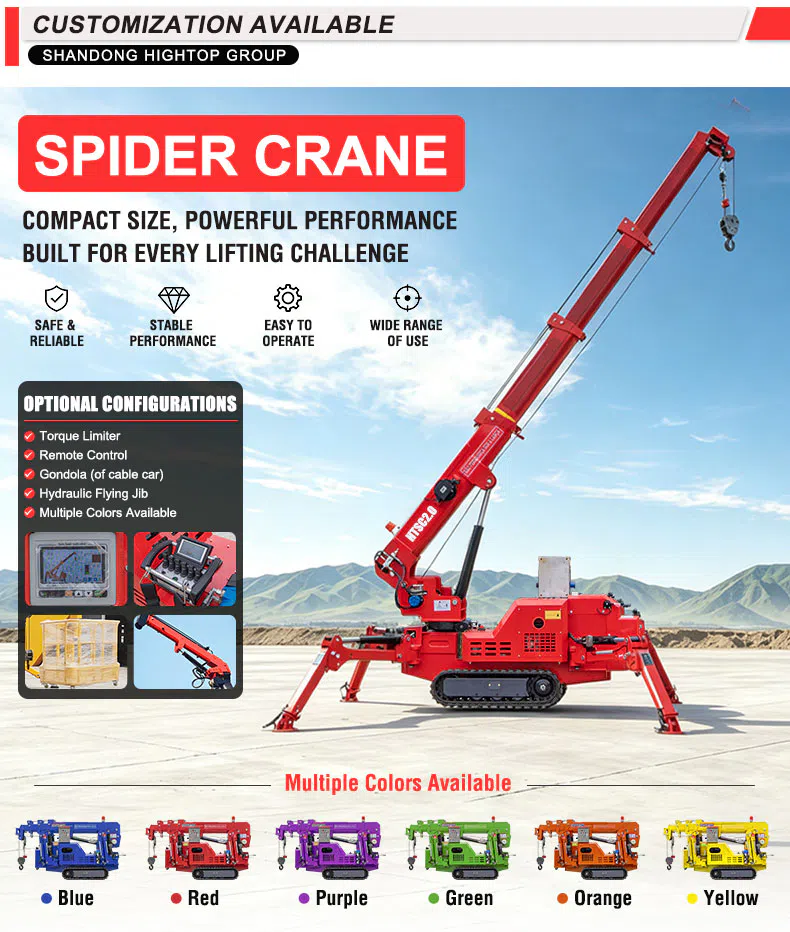

SPIDER CRANE
COMPACT SIZE, POWERFUL PERFORMANCEBUILT FOR EVERY LIFTING CHALLENGE

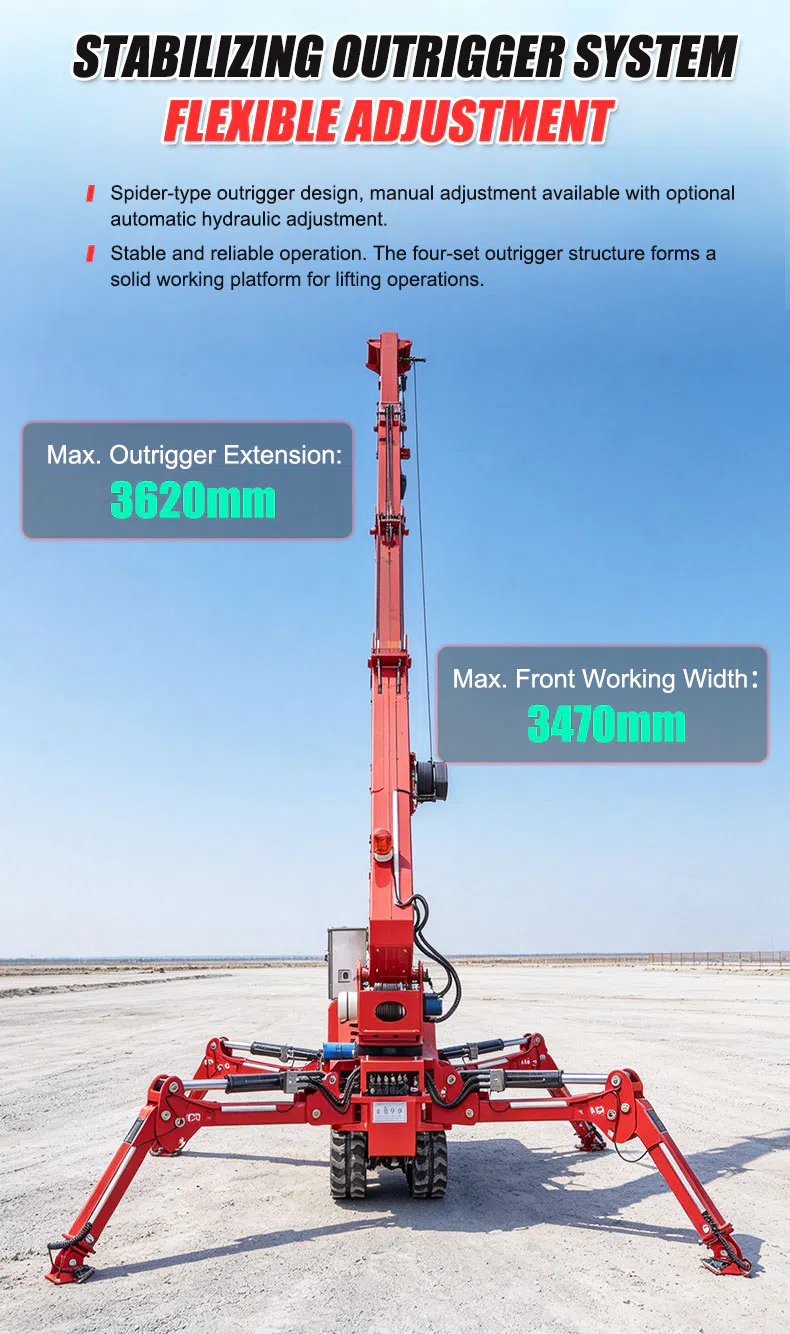

STABILIZING OUTRIGGER SYSTEM
STABILIZING OUTRIGGER SYSTEM
FLEXIBLE ADJUSTMENT
Spider-type outrigger design, manual adjustment available with optional
automatic hydraulic adjustment.
Stable and reliable operation. The four-set outrigger structure forms a
solid working platform for lifting operations.

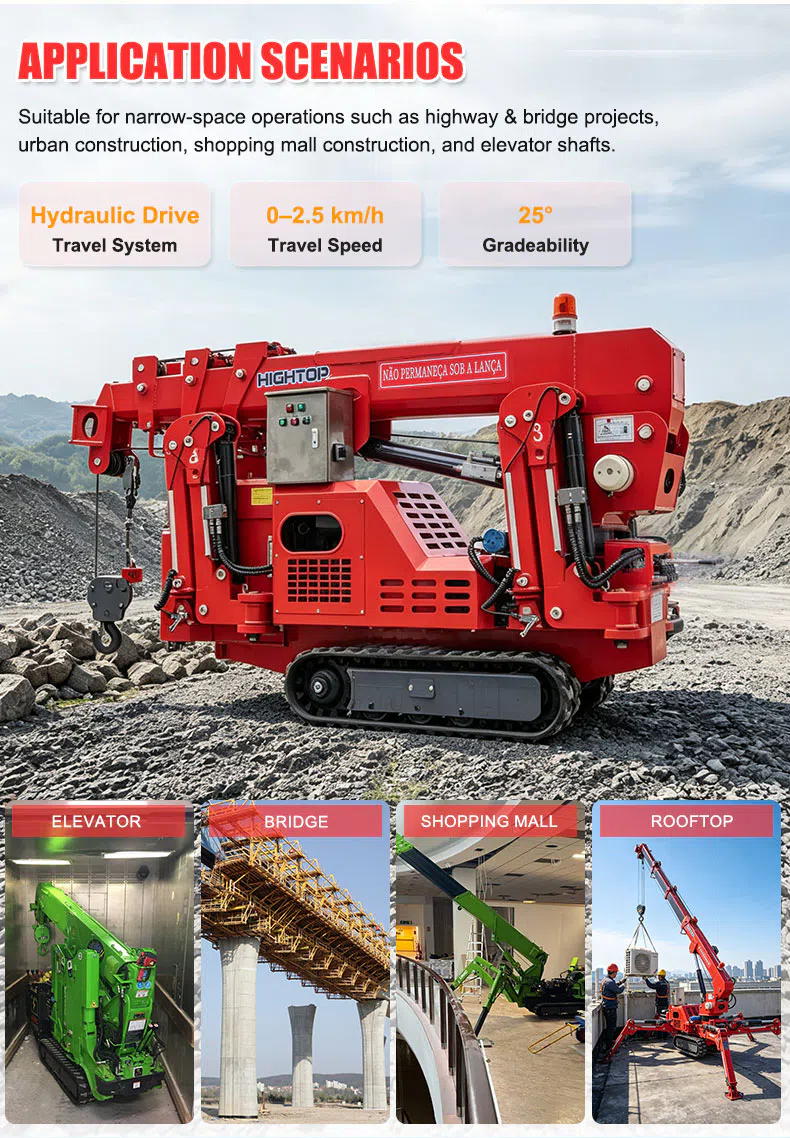

Hightop Spider Crane 2 Ton With 360° Rotation Applications
Glass Installation Projects：The HTSC2.0 mini spider crane is suitable for glass curtain wall installation and building decoration projects.
Its compact structure allows operators to work in areas where large cranes cannot enter.
Indoor Construction And Maintenance：For factories, workshops, shopping malls, and indoor renovation projects, HTSC2.0 provides flexible lifting performance without requiring large operating space.
Steel Structure Installation：The crane can assist with lifting steel components, mechanical parts, and construction materials during installation projects.
Building Renovation Projects：Urban renovation sites often have limited access conditions.The compact crawler spider crane provides an effective solution for lifting operations in restricted environments.
Industrial Equipment Handling：HTSC2.0 can be used for factory equipment positioning, maintenance operations, and machinery installation.
HIGHTOP Service Support
HIGHTOP provides complete service support for HTSC2.0 mini spider crane customers, including product consultation, configuration recommendations, production, delivery, spare parts supply, and after-sales assistance.
Before purchase, our professional team helps customers select suitable lifting solutions according to lifting requirements, working environment, transportation conditions, and application scenarios.
For distributors, contractors, and rental companies, HIGHTOP supports OEM and ODM cooperation, customized requirements, bulk orders, and long-term supply solutions.
After delivery, HIGHTOP provides technical guidance, operation recommendations, spare parts support, and maintenance assistance to help customers maintain reliable equipment performance.
With professional manufacturing experience and global export capability, HIGHTOP continues to provide compact lifting equipment solutions for customers worldwide.
Spider Crane 2 Ton With 360° Rotation Frequently Asked Questions
1. What is the main advantage of HTSC2.0 spider crane?
The main advantage of HTSC2.0 is its compact structure and flexible 360° rotation capability, making it suitable for lifting tasks in narrow and complex areas.
2. What is the lifting capacity of HTSC2.0?
HTSC2.0 is a 2 ton mini spider crane designed for compact lifting applications.
3. Can HTSC2.0 work indoors?
Yes. Its compact dimensions and flexible operation make it suitable for indoor lifting, workshops, renovation projects, and restricted-access locations.
4. What projects can use a mini spider crane?
Mini spider cranes are commonly used for glass installation, steel structure installation, equipment maintenance, construction renovation, and industrial lifting projects.
5. Why choose a spider crane instead of a traditional crane?
A spider crane provides better accessibility and flexibility in narrow spaces where traditional cranes may not be suitable.
