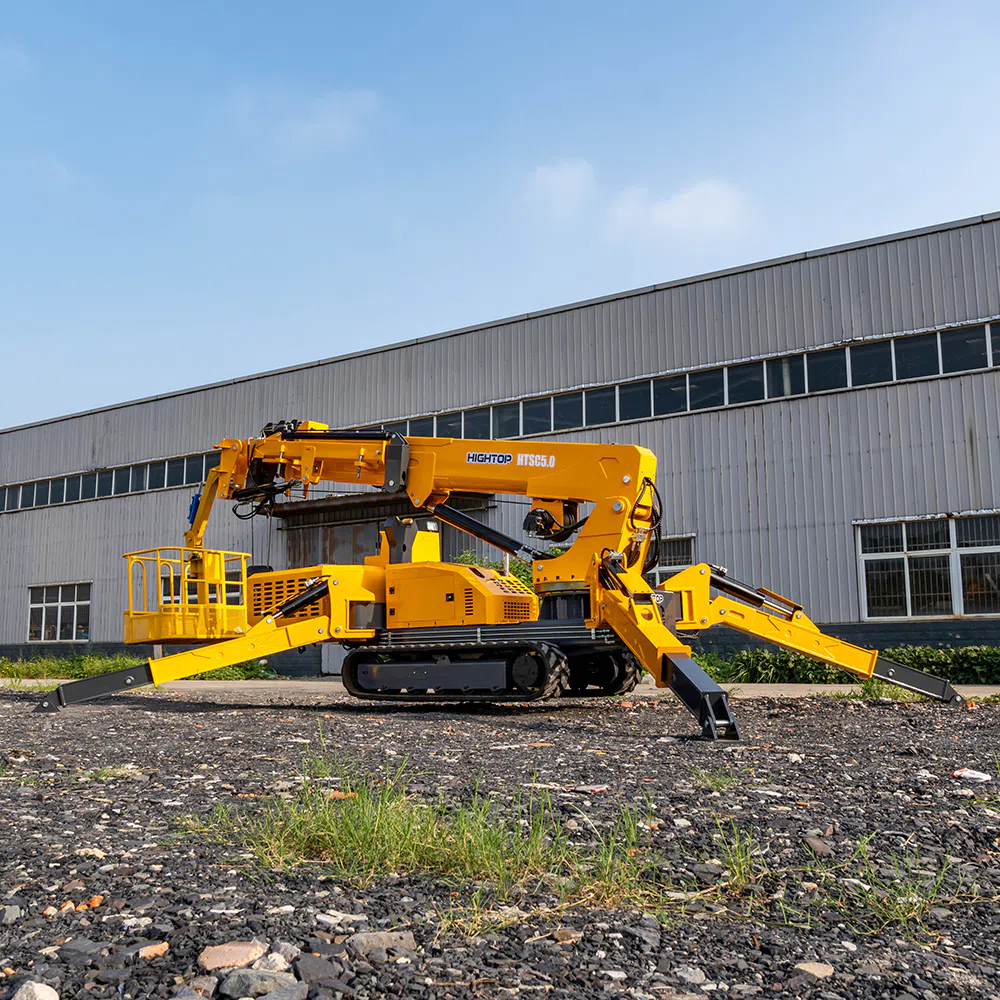

5 Ton Spyder Crane With Dual Power HTSC5.0 Introduction
The HIGHTOP HTSC5.0 5 Ton Spider Crane is a crawler-type mini crane designed for professional lifting operations requiring stable performance, flexible mobility, and reliable power solutions. Featuring a diesel and electric dual power system, adjustable spider outriggers, and a crawler track chassis, this compact lifting machine provides an efficient solution for construction, industrial installation, maintenance, and complex working environments.
Unlike traditional lifting equipment that requires large operating areas, the HTSC5.0 combines a compact structure with strong lifting capability. The crawler undercarriage allows the crane to move across uneven terrain, construction sites, and outdoor environments while maintaining stable operation.
The dual power system gives operators more flexibility in different working conditions. The diesel engine provides strong power for outdoor projects, while the electric motor option is suitable for environments where cleaner operation and lower noise are required.
Equipped with adjustable hydraulic outriggers and a stable spider-style support structure, the HTSC5.0 can adapt to different ground conditions. The support system helps improve balance during lifting operations, especially when working on uneven surfaces or restricted construction areas.
The 360° rotating working system and telescopic boom structure allow operators to complete lifting tasks from different directions with better efficiency. The machine is suitable for lifting steel structures, construction materials, mechanical equipment, and other loads that require accurate positioning.
For customers searching for a 5 ton spider crane for sale, crawler spider crane manufacturer, or compact lifting crane for construction, the HIGHTOP HTSC5.0 offers a practical combination of mobility, stability, and multi-environment adaptability.
HIGHTOP provides professional crawler spider crane solutions and customized lifting equipment options for contractors, distributors, and engineering companies worldwide.

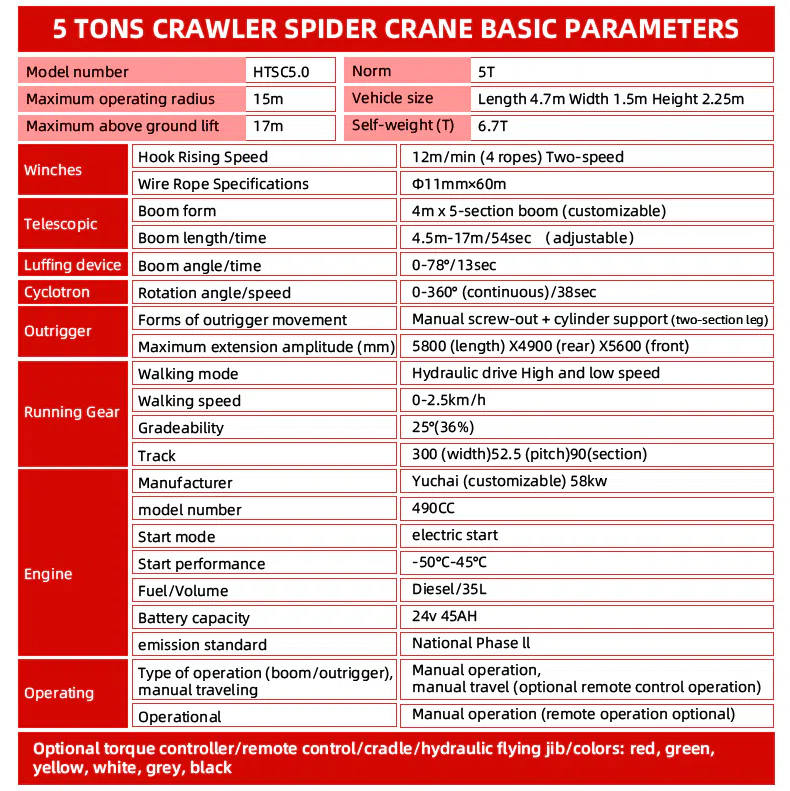

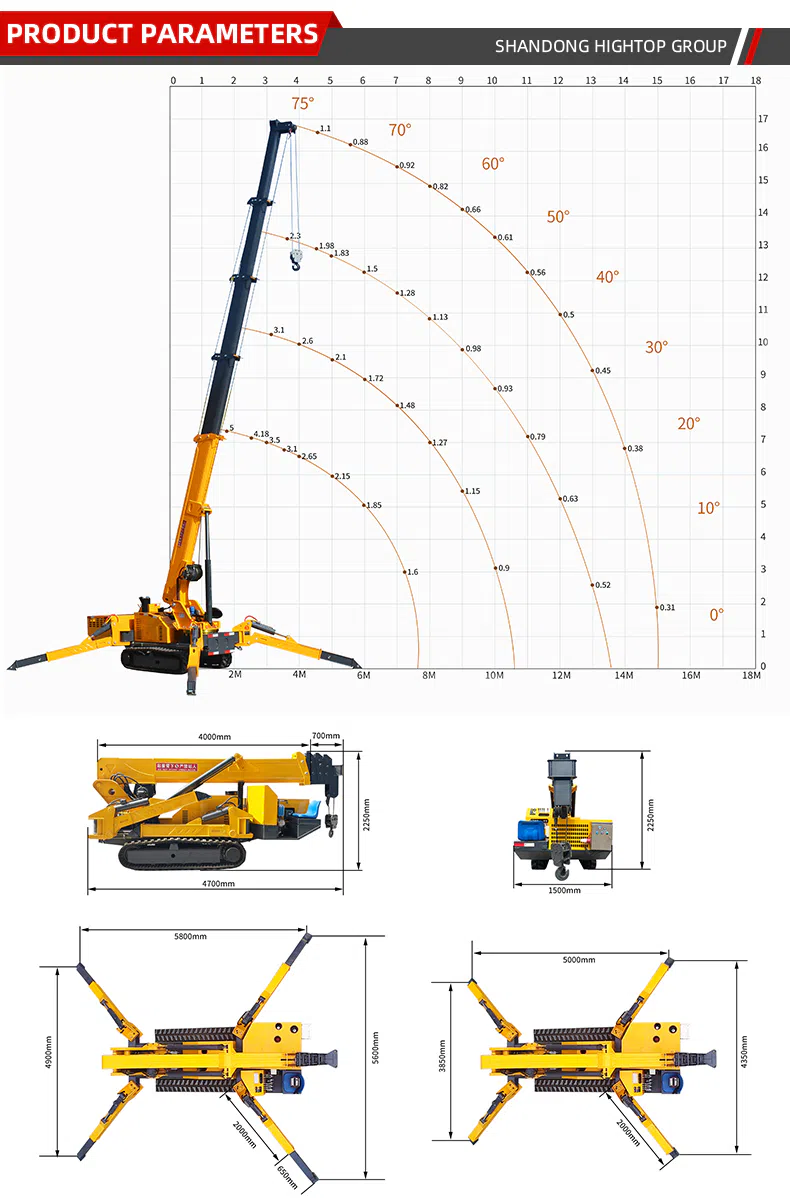

5 Ton Spyder Crane With Dual Power HTSC5.0 Parameters
| Parameter | Value |
|---|---|
| Model Number | HTSC5.0 |
| Norm | 5T |
| Maximum Operating Radius | 15m |
| Vehicle Size | Length 4.7m × Width 1.5m × Height 2.25m |
| Maximum Above Ground Lift | 17m |
| Self‑weight (T) | 6.7T |
| Winches | |
| Hook Rising Speed | 12m/min (4 ropes) Two‑speed |
| Wire Rope Specifications | Φ11mm × 60m |
| Telescopic | |
| Boom Form | 4m × 5‑section boom (customizable) |
| Boom Length/Time | 4.5m – 17m / 54sec (adjustable) |
| Luffing Device | |
| Boom Angle/Time | 0‑78° / 13sec |
| Cyclotron | |
| Rotation Angle/Speed | 0‑360° (continuous) / 38sec |
| Outrigger | |
| Forms of Outrigger Movement | Manual Screw‑out + Cylinder Support (Two‑section Leg) |
| Maximum Extension Amplitude (mm) | 5800 (Length) × 4900 (Rear) × 5600 (Front) |
| Running Gear | |
| Walking Mode | Hydraulic Drive High and Low Speed |
| Walking Speed | 0‑2.5km/h |
| Gradeability | 25° (36%) |
| Track | 300 (width) / 52.5 (pitch) / 90 (section) |
| Engine | |
| Manufacturer | Yuchai (customizable) 58kW |
| Model Number | 490CC |
| Start Mode | Electric Start |
| Start Performance | -50°C – 45°C |
| Fuel/Volume | Diesel / 35L |
| Battery Capacity | 24V 45AH |
| Emission Standard | National Phase II |
| Operating | |
| Type of Operation (Boom/Outrigger), Manual Traveling | Manual Operation, Manual Travel (Optional Remote Control Operation) |
| Operational | Manual Operation (Remote Operation Optional) |
| Optional Torque Controller | |
| Optional Torque Controller / Remote Control / Cradle / Hydraulic Flying Jib / Colors | Red, Green, Yellow, White, Grey, Black |

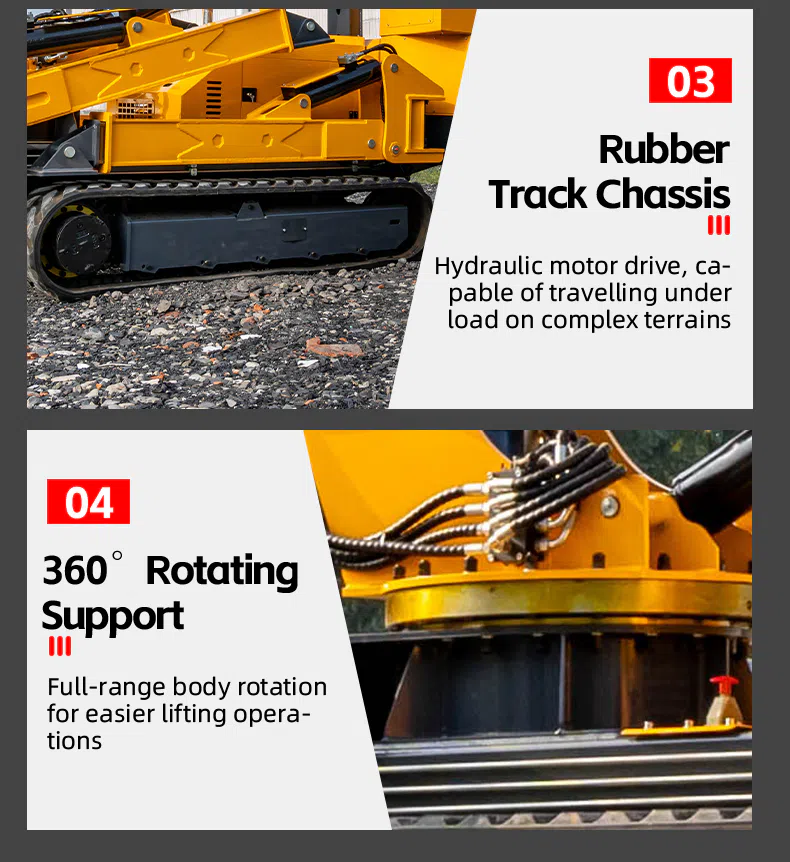

5 Ton Spyder Crane With Dual Power HTSC5.0 Images

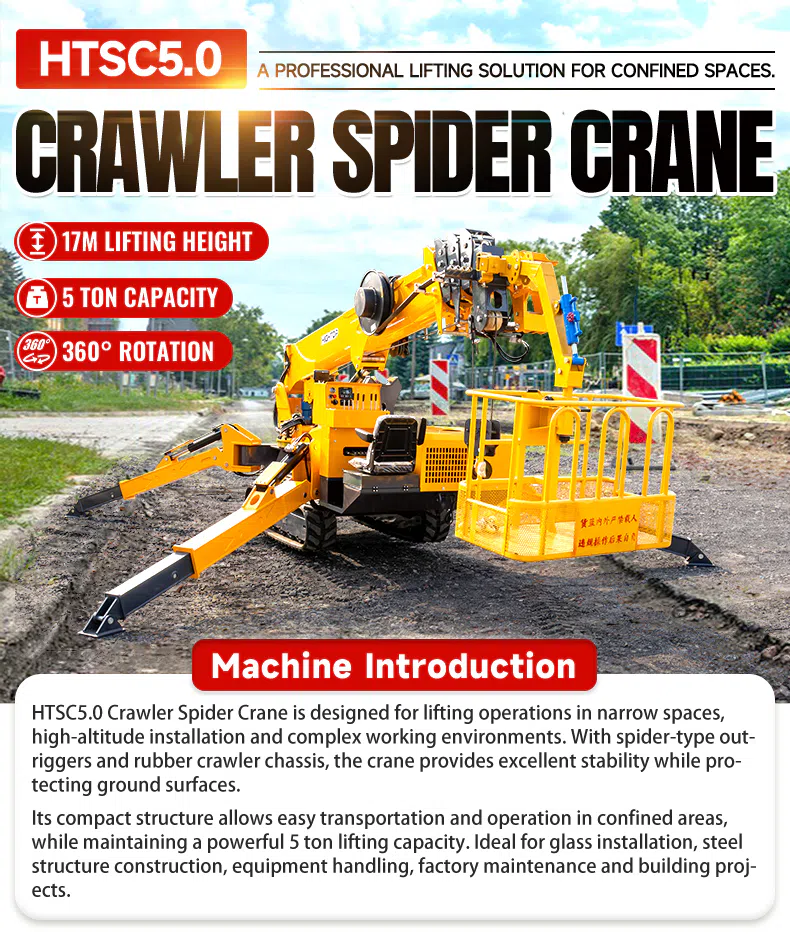

Machine Introduction
HTSC5.0 Crawler Spider Crane is designed for lifting operations in narrow spaces,high-altitude installation and complex working environments. With spider-type out-riggers and rubber crawler chassis, the crane provides excellent stability while pro-tecting ground surfaces.
Its compact structure allows easy transportation and operation in confined areas,while maintaining a powerful 5 ton lifting capacity. Ideal for glass installation, steelstructure construction, equipment handling, factory maintenance and building proj-ects.

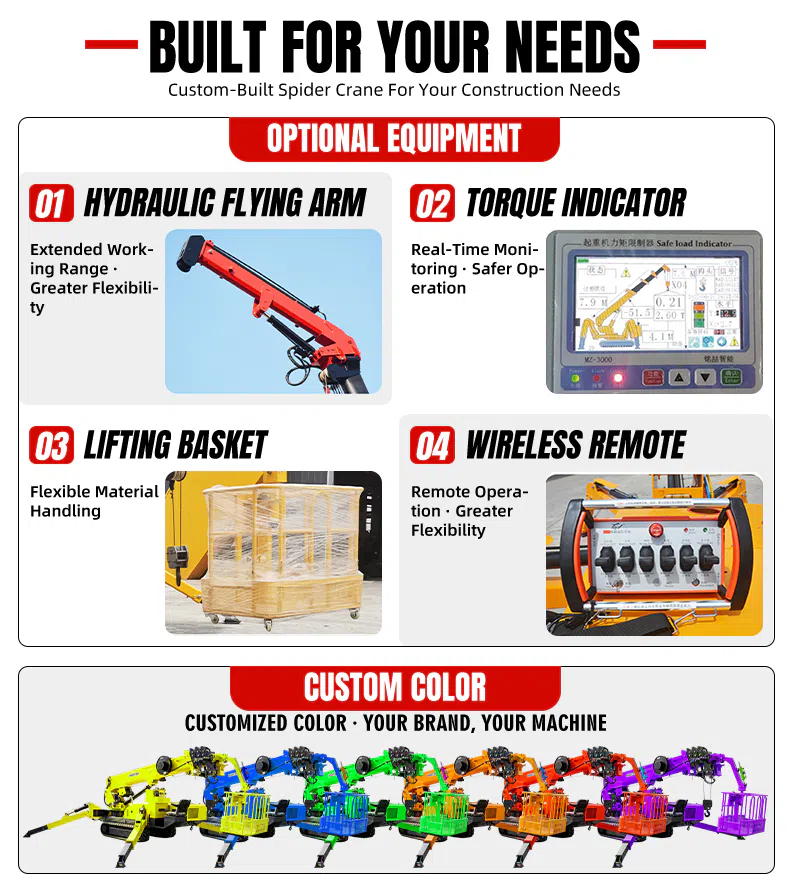

CUSTOM COLOR
CUSTOMIZED COLOR - YOUR BRAND, YOUR MACHINE

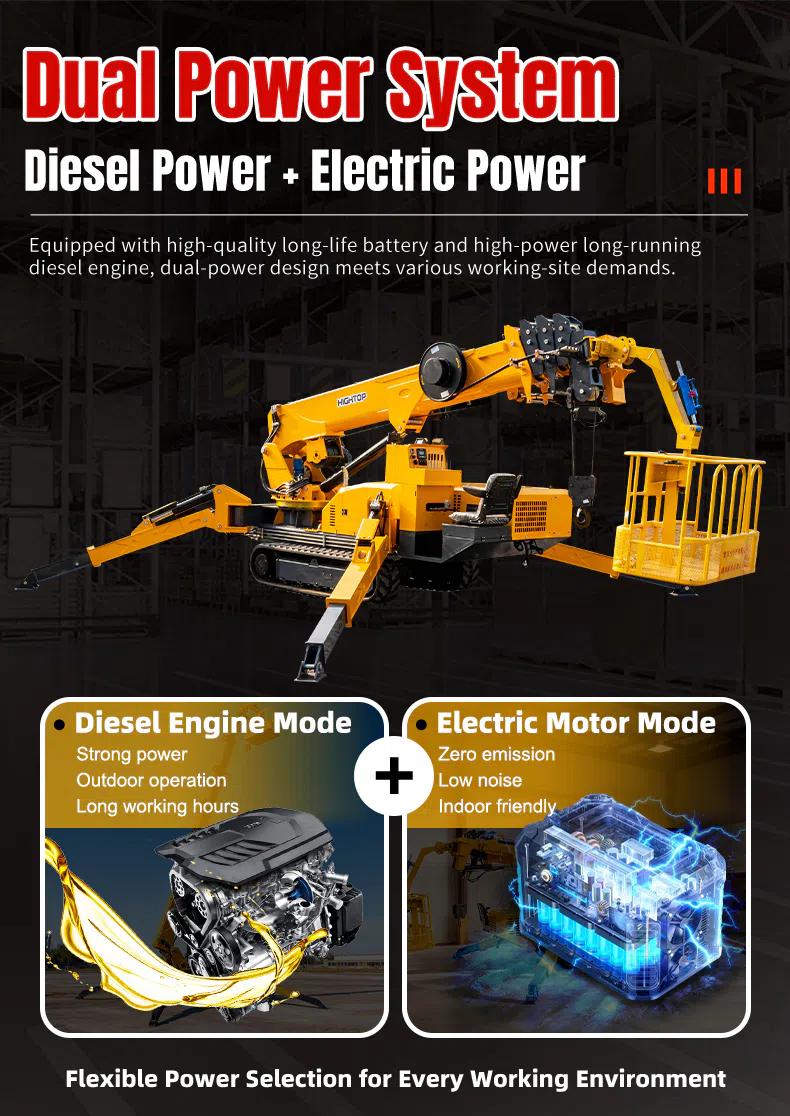

Dual Power SystemDiesel Power +Electric Power
Equipped with high-quality long-life battery and high-power long-runningdiesel engine, dual-power design meets various working-site demands.

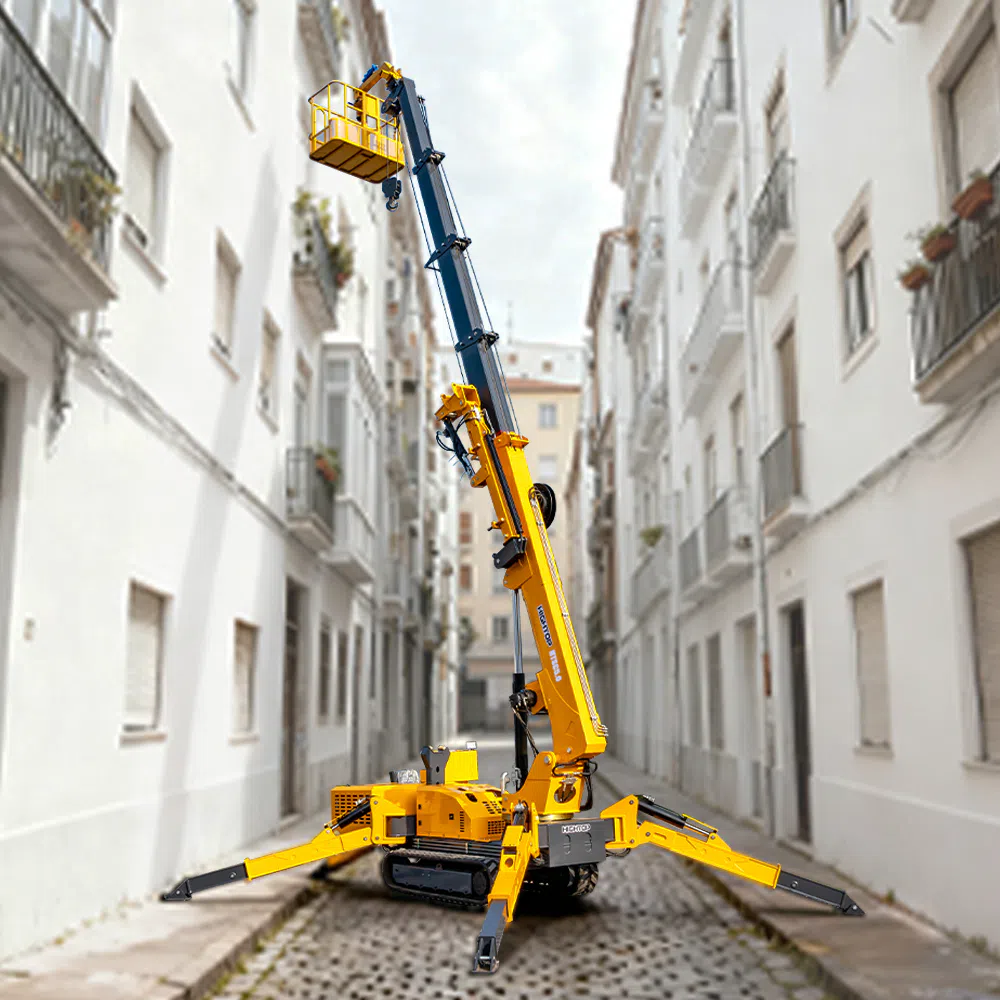

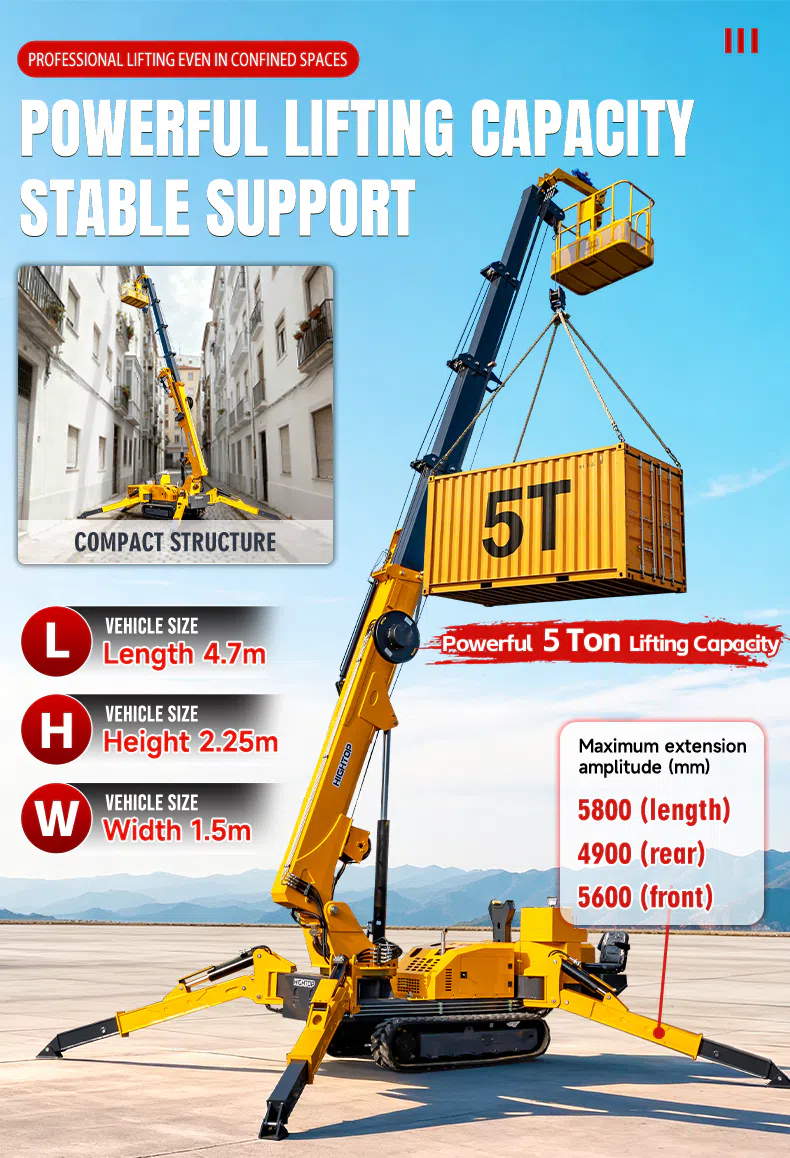

PROFESSIONAL LIFTING EVEN IN CONFINED SPACES
POWERFUL LIFTING CAPACITYSTABLE SUPPORT

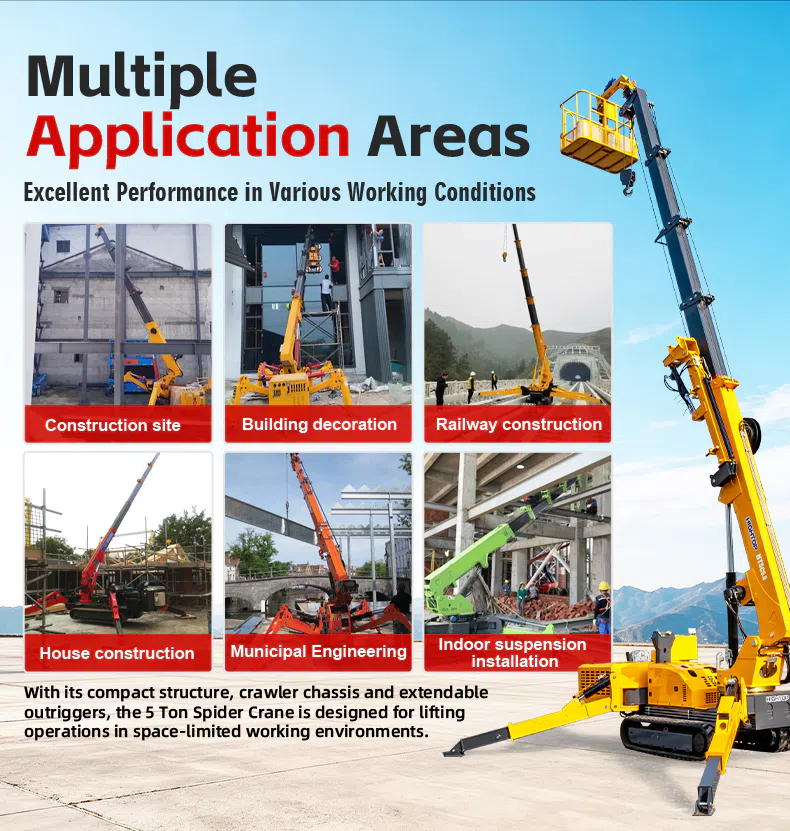

5 Ton Spyder Crane With Dual Power HTSC5.0 Applications
Construction Projects:The HTSC5.0 crawler spider crane is suitable for lifting steel structures, building materials, prefabricated components, and construction equipment.
Industrial Equipment Installation:Factories and industrial facilities often require precise lifting operations.The compact crawler crane provides flexible support for equipment positioning and maintenance.
Glass And Curtain Wall Installation:The stable support structure and flexible boom system make it suitable for installation projects requiring accurate lifting control.
Outdoor Engineering:The crawler chassis allows operation in outdoor environments such as uneven ground, landscaping projects, and infrastructure construction.
Equipment Maintenance:The HTSC5.0 can be used for maintenance work where lifting equipment needs to operate in limited or complex areas.
HIGHTOP Service Support
HIGHTOP provides complete service support for HTSC5.0 crawler spider crane customers, including product consultation, technical guidance, customized solutions, spare parts supply, transportation assistance, and after-sales service.
Before purchase, our professional team helps customers select suitable lifting equipment according to lifting capacity, working environment, transportation requirements, and project conditions.
For distributors, contractors, and rental companies, HIGHTOP supports OEM and ODM cooperation, customized configurations, bulk orders, and long-term cooperation plans.
After delivery, HIGHTOP provides operation guidance, maintenance recommendations, and technical support to help customers keep their equipment operating efficiently throughout its service life.
Spyder Crane With Dual Power HTSC5.0 Frequently Asked Questions
1. What is the lifting capacity of HTSC5.0 spider crane?
The HTSC5.0 is a 5-ton class crawler spider crane designed for construction, installation, and industrial lifting applications.
2. What are the advantages of dual power spider cranes?
The dual power system provides flexible operation options. Diesel power is suitable for outdoor heavy-duty work, while electric operation is useful for indoor environments requiring lower noise.
3. Can HTSC5.0 work on uneven terrain?
Yes. The crawler track chassis and adjustable hydraulic outriggers improve stability and adaptability on different ground conditions.
4. What industries use crawler spider cranes?
They are widely used in construction, industrial maintenance, equipment installation, glass installation, and special engineering projects.
5. Can customers customize the spider crane configuration?
Yes. HIGHTOP supports customized solutions according to different market requirements and project applications.
