8 Ton Spider Crane With High Load Capacity Introduction
The HIGHTOP 8 Ton Spider Crane is a multi-functional self-propelled tracked spider crane designed for lifting operations that require higher capacity, flexible mobility, and stable performance in complex working environments. Combining a crawler travel system, spider-style stabilizing outriggers, and a flexible boom structure, this compact lifting machine provides an efficient solution for construction, industrial maintenance, transportation, and installation projects.
Compared with small mini spider cranes, the offers stronger lifting capability for heavier materials and equipment while maintaining the advantages of a compact crawler crane. Its tracked design allows the machine to move smoothly across uneven ground, outdoor construction areas, and locations where traditional lifting equipment may have difficulty operating.
The spider-type outrigger system improves stability during lifting operations. The supporting legs can be adjusted according to different site conditions, helping the crane maintain balance when working on rough terrain, slopes, or restricted construction areas.
Equipped with a flexible boom system and crawler mobility, the spider crane can efficiently complete lifting tasks in various environments. It is suitable for handling steel structures, construction materials, industrial equipment, and other heavy loads that require precise positioning.
For customers searching for an 8 ton spider crane for sale, tracked mini crane for construction, or compact crawler lifting equipment, the HIGHTOP provides a practical combination of lifting capacity, mobility, and operational flexibility.
HIGHTOP provides a complete range of spider crane solutions, including compact crawler cranes and mini lifting equipment, helping customers select suitable machines according to different lifting requirements and job conditions.

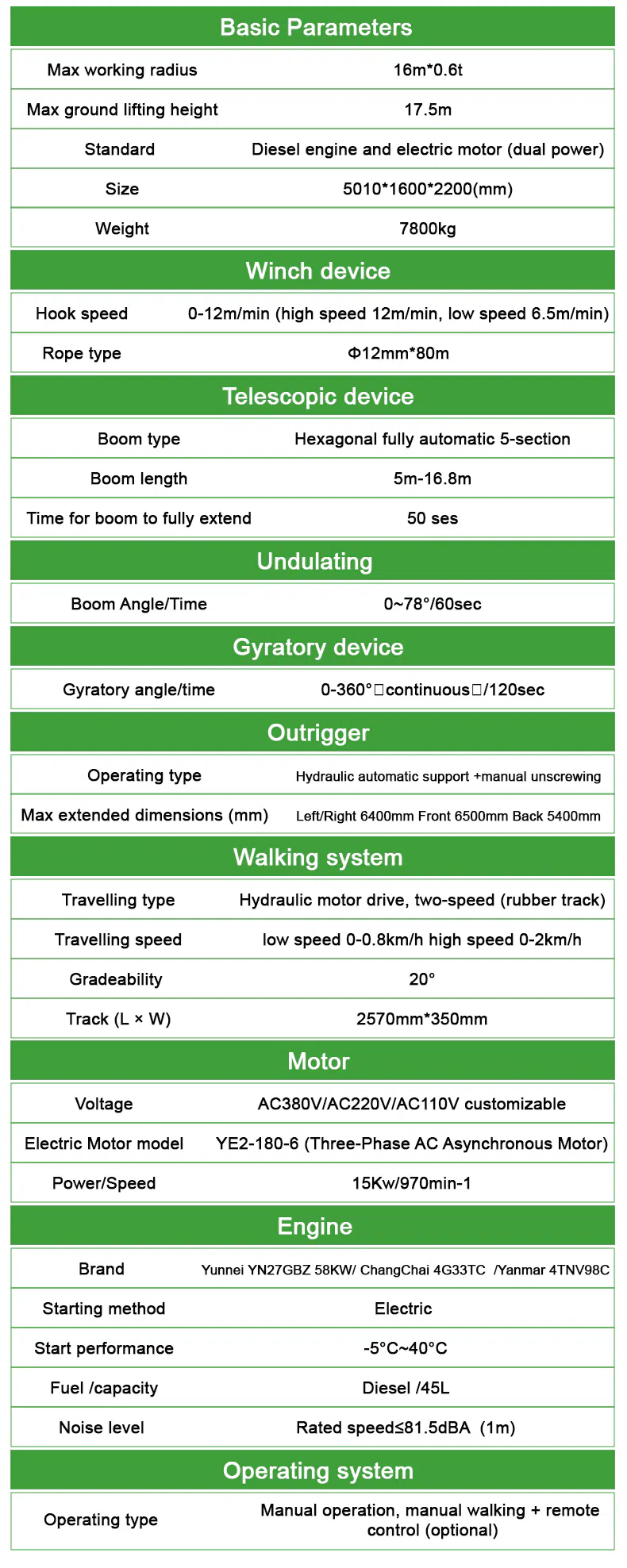

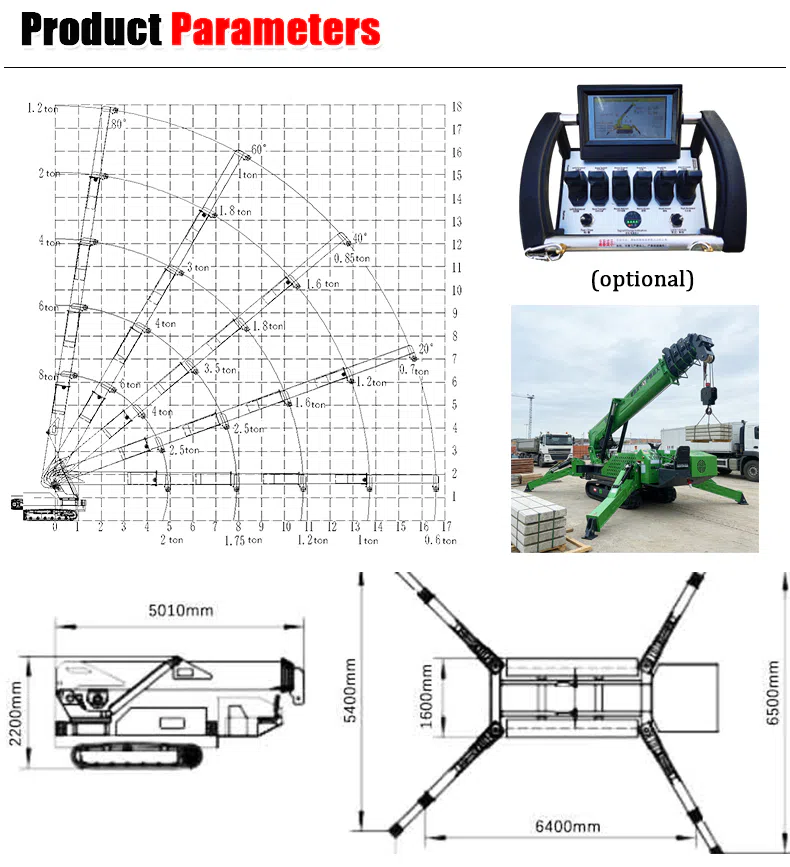

8 Ton Spider Crane With High Load Capacity Parameters
| Parameter | Value |
|---|---|
| Basic Parameters | |
| Max Working Radius | 16m × 0.6t |
| Max Ground Lifting Height | 17.5m |
| Standard | Diesel Engine and Electric Motor (Dual Power) |
| Size | 5010 × 1600 × 2200 mm |
| Weight | 7800 kg |
| Winch Device | |
| Hook Speed | 0‑12m/min (High Speed 12m/min, Low Speed 6.5m/min) |
| Rope Type | Φ12mm × 80m |
| Telescopic Device | |
| Boom Type | Hexagonal Fully Automatic 5‑section |
| Boom Length | 5m – 16.8m |
| Time for Boom to Fully Extend | 50 sec |
| Undulating | |
| Boom Angle / Time | 0~78° / 60sec |
| Gyratory Device | |
| Gyratory Angle / Time | 0‑360° (continuous) / 120sec |
| Outrigger | |
| Operating Type | Hydraulic Automatic Support + Manual Unscrewing |
| Max Extended Dimensions (mm) | Left/Right 6400mm, Front 6500mm, Back 5400mm |
| Walking System | |
| Travelling Type | Hydraulic Motor Drive, Two‑speed (Rubber Track) |
| Travelling Speed | Low Speed 0‑0.8km/h, High Speed 0‑2km/h |
| Gradeability | 20° |
| Track (L × W) | 2570mm × 350mm |
| Motor | |
| Voltage | AC380V / AC220V / AC110V (Customizable) |
| Electric Motor Model | YE2‑180‑6 (Three‑Phase AC Asynchronous Motor) |
| Power / Speed | 15kW / 970min⁻¹ |
| Engine | |
| Brand | Yunnei YN27GBZ 58kW / ChangChai 4G33TC / Yanmar 4TNV98C |
| Starting Method | Electric |
| Start Performance | -5°C ~ 40°C |
| Fuel / Capacity | Diesel / 45L |
| Noise Level | Rated Speed ≤ 81.5dBA (1m) |
| Operating System | |
| Operating Type | Manual Operation, Manual Walking + Remote Control (Optional) |

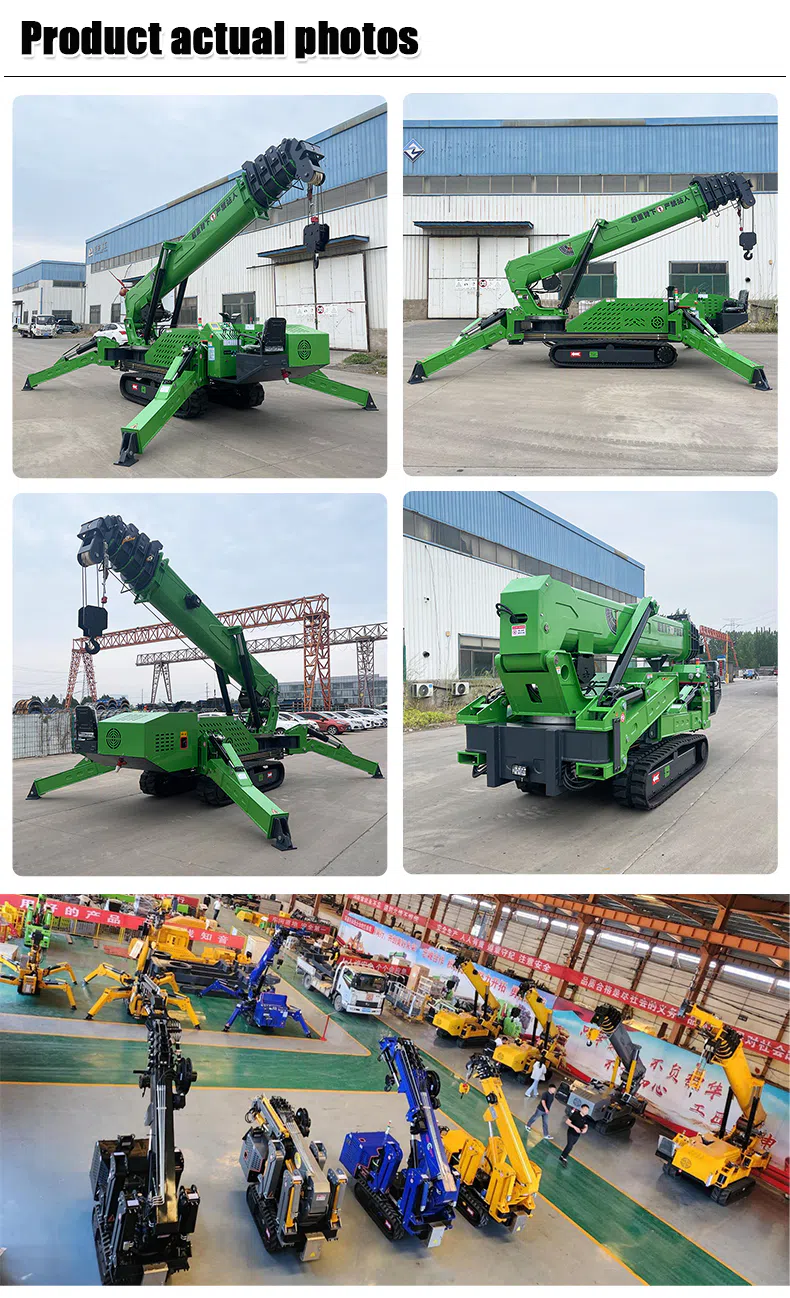

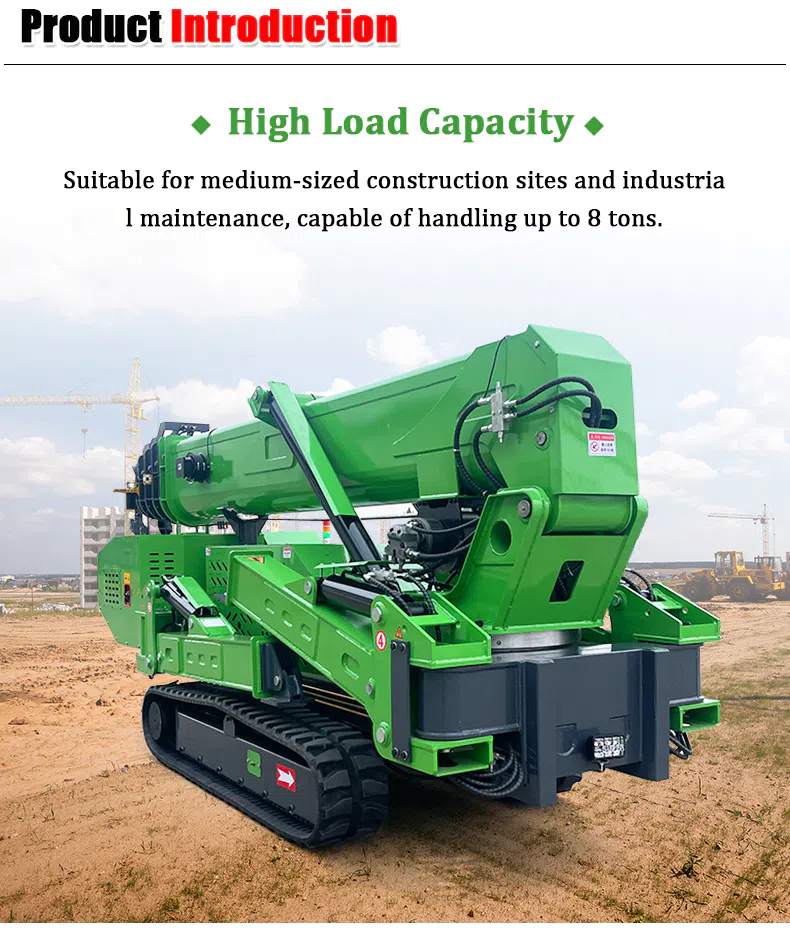

HIGHTOP Spider Crane 8 Ton With High Load Capacity Picture

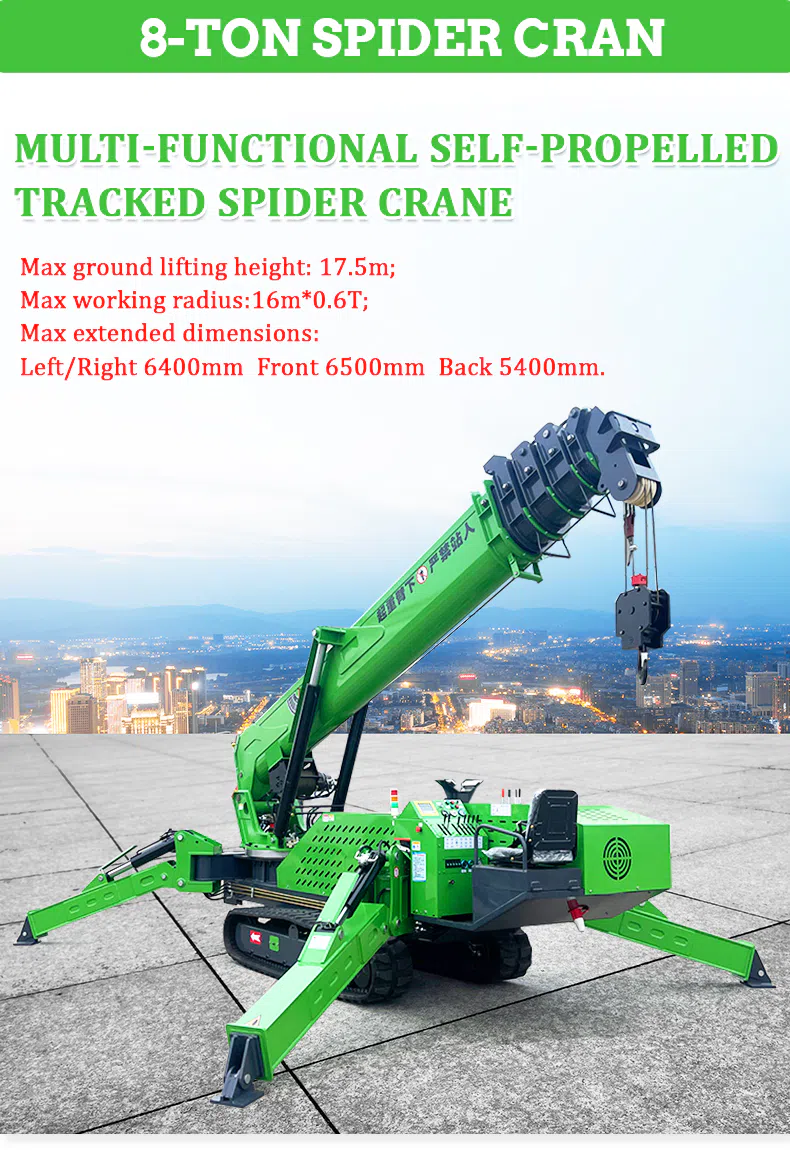

MULTI-FUNCTIONAL SELF-PROPELLED
TRACKED SPIDER CRANE
Max ground lifting height: 17.5m;
Max working radius:16m*0.6T;
Max extended dimensions:
Left/Right 6400mm Front 6500mm Back 5400mm.

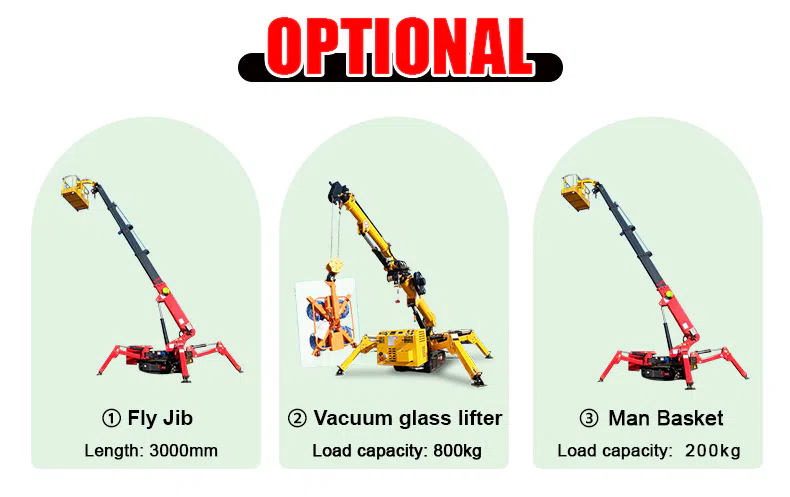

OPTIONAL: Fly JibLength:3000mm,Vacuum glass lifter Load capacity: 800kg,Man BasketLoad capacity: 200kg

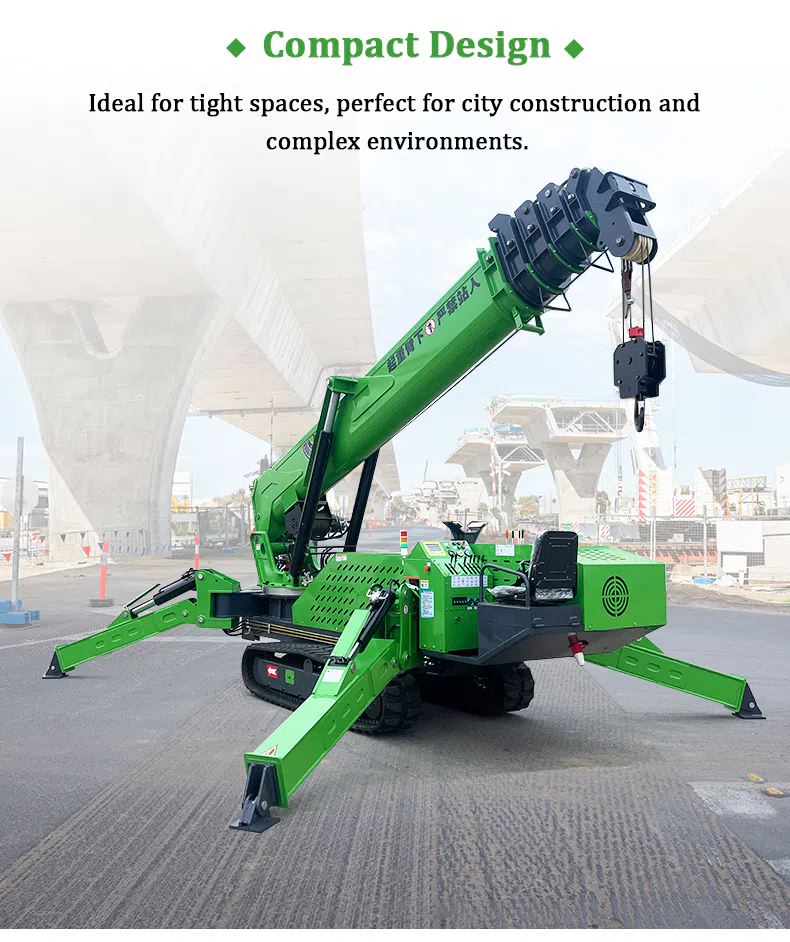

Compact Design:Ideal for tight spaces, perfect for city construction and complex environments.

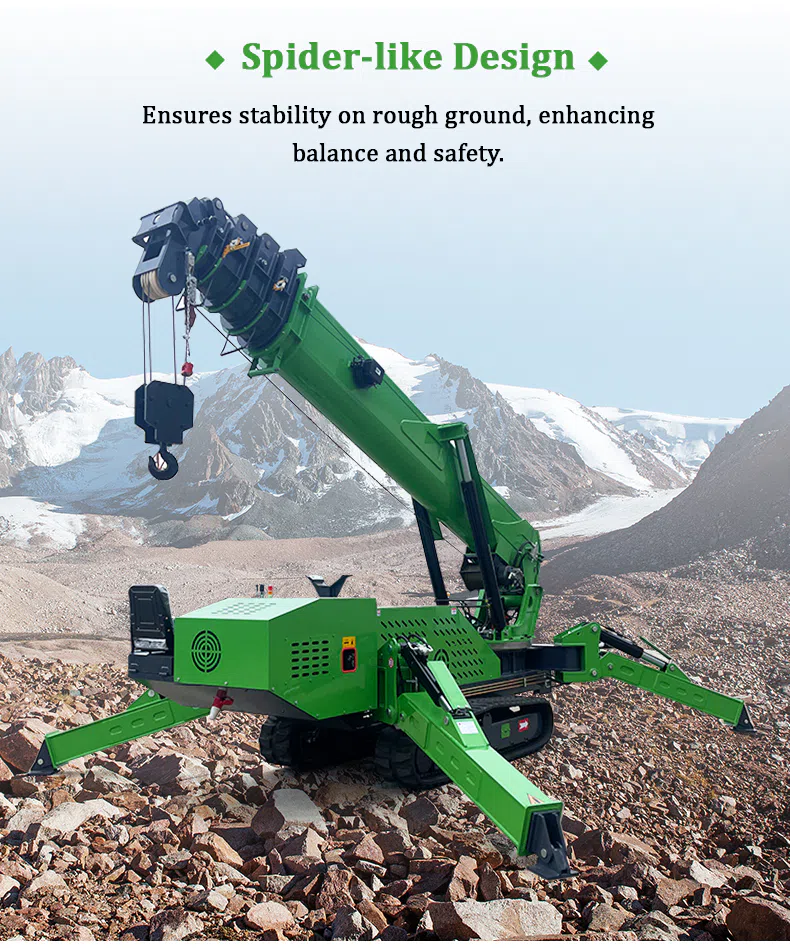

Spider-like Design:Ensures stability on rough ground, enhancingbalance and safety.

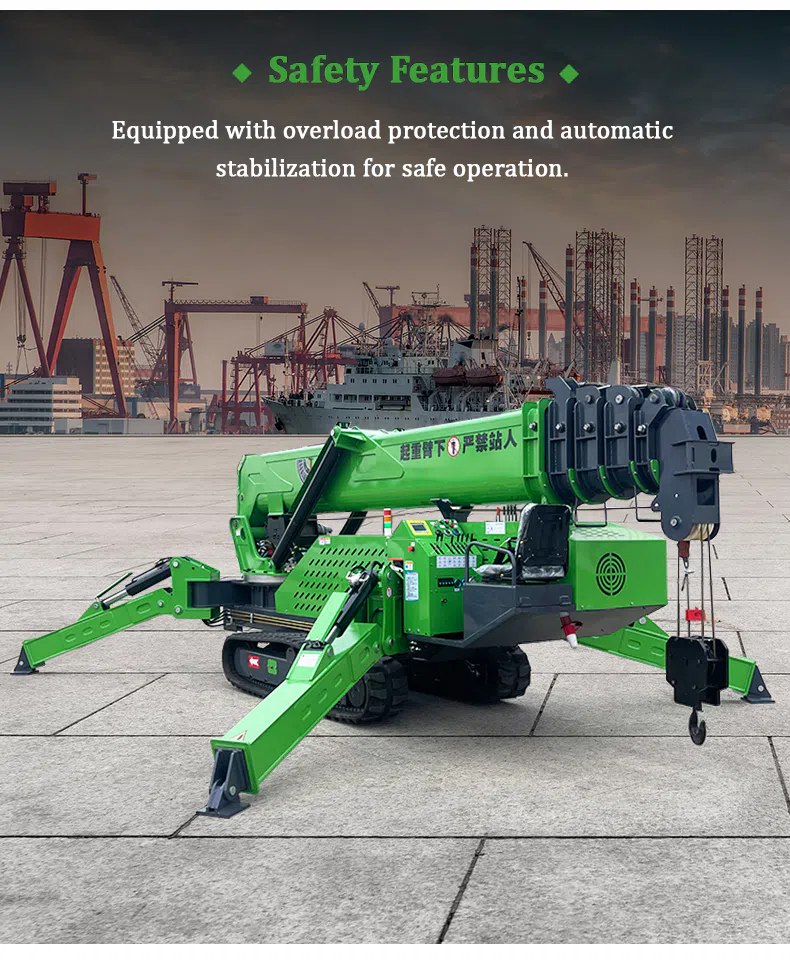

Safety Features:Equipped with overload protection and automatic stabilization for safe operation.
8 Ton Spider Crane With High Load Capacity Applications
Construction Projects:The spider crane is suitable for construction sites requiring flexible lifting equipment for steel structures, prefabricated components, and building materials.
Industrial Equipment Installation:Factories and industrial facilities often require accurate lifting in limited areas.The crawler spider crane provides a practical solution for machinery installation and maintenance operations.
Steel Structure Installation:The higher lifting capacity makes suitable for lifting steel components and structural materials during assembly projects.
Building Maintenance And Renovation:For renovation projects with limited access, the compact crawler crane can provide efficient lifting support without requiring large operating areas.
Landscaping And Outdoor Engineering:The tracked design allows operation on outdoor terrain, making it suitable for landscaping projects and special engineering environments.
HIGHTOP Service Support
HIGHTOP provides complete support for HT-8T spider crane customers, including product consultation, technical assistance, customized solutions, production management, transportation support, spare parts supply, and after-sales service.
Before purchase, our professional team helps customers choose suitable lifting equipment according to lifting capacity requirements, working environment, transportation conditions, and application scenarios.
For distributors, contractors, and rental companies, HIGHTOP supports OEM and ODM cooperation, customized configurations, bulk orders, and long-term supply partnerships.
After delivery, HIGHTOP provides operation guidance, maintenance suggestions, technical support, and spare parts services to help customers maintain stable machine performance throughout the equipment lifecycle.
8 Ton Spider Crane With High Load Capacity Frequently Asked Questions
1. What is the lifting capacity of HT-8T spider crane?
The HT-8T is an 8-ton class spider crane designed for medium and heavy lifting applications.
2. What makes a spider crane different from a traditional crane?
A spider crane combines compact dimensions, crawler mobility, and adjustable outriggers, allowing it to work in areas where conventional cranes may not be suitable.
3. Can HT-8T operate on uneven terrain?
Yes. The crawler track system and spider-type support legs help improve stability on uneven construction surfaces.
4. What industries use an 8 ton spider crane?
It is widely used in construction, industrial installation, steel structure projects, maintenance work, landscaping, and special lifting operations.
5. Is HT-8T suitable for restricted-access projects?
Yes. Its compact tracked structure allows operation in complex environments where larger cranes may have limited accessibility.
