Mini Skid Steer Loader For Tight Spaces HTS380T Introduction
The HIGHTOP HTS380T Mini Skid Steer Loader is a compact crawler skid steer loader designed for contractors, landscapers, farmers, and property maintenance users who need powerful performance in limited working areas. With its small footprint, crawler chassis, and flexible attachment compatibility, HTS380T provides an efficient solution for material handling, ground preparation, and daily maintenance tasks.
Unlike traditional large loaders that require wider operating areas, the HTS380T mini skid steer loader is designed for tight spaces where accessibility is important. Its compact structure allows it to move through narrow passages, small yards, gardens, construction areas, and other restricted environments while maintaining stable working performance.
The crawler design improves traction and stability on uneven surfaces such as mud, gravel, slopes, and soft ground. Combined with a powerful hydraulic system, the HTS380T can perform various operations including loading, digging, leveling, cleaning, and material transportation.
With a quick attachment changing system, this compact skid steer loader can work with different attachments to expand application possibilities. Users can configure the machine according to project requirements, making it suitable for landscaping, agriculture, construction, municipal maintenance, and property improvement projects.
For customers searching for a mini skid steer loader for tight spaces, compact crawler skid steer loader, or small skid steer loader for sale, the HIGHTOP HTS380T provides a practical balance between machine size, operating flexibility, and multi-purpose capability.
HIGHTOP also provides a complete range of compact construction machinery solutions, including mini excavators, skid steer loaders, and crawler equipment, helping customers select suitable machines for different working environments.

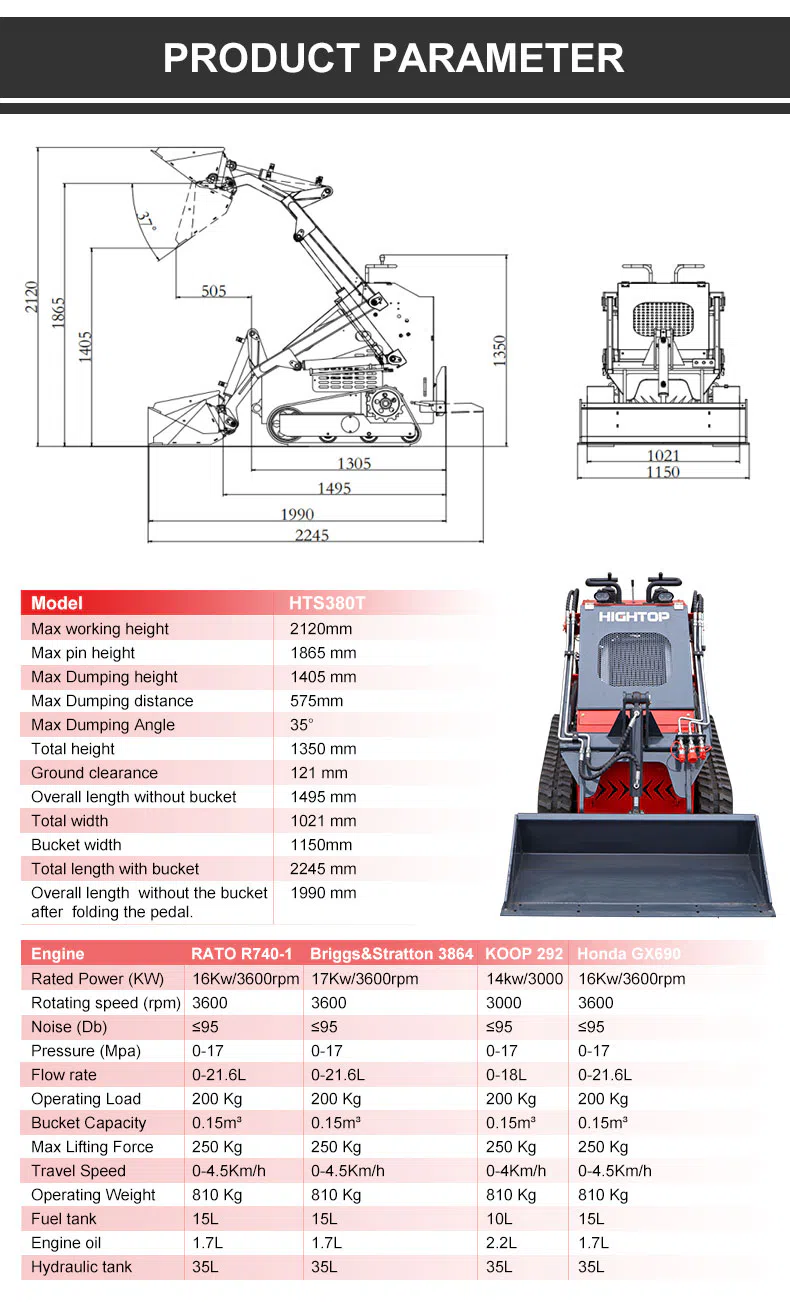

Mini Skid Steer Loader For Tight Spaces HTS380T Parameters
| Parameter | Value |
|---|---|
| Main Specifications | |
| Model | HTS380T |
| Max Working Height | 2120 mm |
| Max Pin Height | 1865 mm |
| Max Dumping Height | 1405 mm |
| Max Dumping Distance | 575 mm |
| Max Dumping Angle | 35° |
| Total Height | 1350 mm |
| Ground Clearance | 121 mm |
| Overall Length Without Bucket | 1495 mm |
| Total Width | 1021 mm |
| Bucket Width | 1150 mm |
| Total Length With Bucket | 2245 mm |
| Overall Length Without Bucket After Folding the Pedal | 1990 mm |

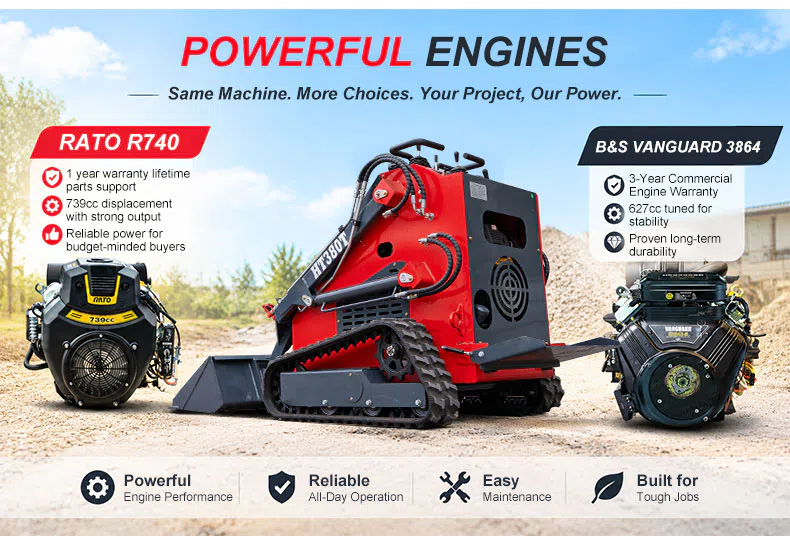

| Engine Options | |
| Engine 1 | RATO R740‑1 |
| Rated Power (RATO R740‑1) | 16 kW / 3600 rpm |
| Rotating Speed (RATO R740‑1) | 3600 rpm |
| Noise (RATO R740‑1) | ≤95 dB |
| Pressure (RATO R740‑1) | 0‑17 MPa |
| Flow Rate (RATO R740‑1) | 0‑21.6 L |
| Fuel Tank (RATO R740‑1) | 15 L |
| Engine Oil (RATO R740‑1) | 1.7 L |
| Engine 2 | Briggs & Stratton 3864 |
| Rated Power (Briggs & Stratton 3864) | 17 kW / 3600 rpm |
| Rotating Speed (Briggs & Stratton 3864) | 3600 rpm |
| Noise (Briggs & Stratton 3864) | ≤95 dB |
| Pressure (Briggs & Stratton 3864) | 0‑17 MPa |
| Flow Rate (Briggs & Stratton 3864) | 0‑21.6 L |
| Fuel Tank (Briggs & Stratton 3864) | 15 L |
| Engine Oil (Briggs & Stratton 3864) | 1.7 L |
| Engine 3 | KOOP 292 |
| Rated Power (KOOP 292) | 14 kW / 3000 rpm |
| Rotating Speed (KOOP 292) | 3000 rpm |
| Noise (KOOP 292) | ≤95 dB |
| Pressure (KOOP 292) | 0‑17 MPa |
| Flow Rate (KOOP 292) | 0‑18 L |
| Travel Speed (KOOP 292) | 0‑4 km/h |
| Fuel Tank (KOOP 292) | 10 L |
| Engine Oil (KOOP 292) | 2.2 L |
| Engine 4 | Honda GX690 |
| Rated Power (Honda GX690) | 16 kW / 3600 rpm |
| Rotating Speed (Honda GX690) | 3600 rpm |
| Noise (Honda GX690) | ≤95 dB |
| Pressure (Honda GX690) | 0‑17 MPa |
| Flow Rate (Honda GX690) | 0‑21.6 L |
| Fuel Tank (Honda GX690) | 15 L |
| Engine Oil (Honda GX690) | 1.7 L |
| Common Parameters (All Engines) | |
| Operating Load | 200 kg |
| Bucket Capacity | 0.15 m³ |
| Max Lifting Force | 250 kg |
| Travel Speed (Except KOOP 292) | 0‑4.5 km/h |
| Operating Weight | 810 kg |
| Hydraulic Tank | 35 L |
Mini Skid Steer Loader For Tight Spaces HTS380T Picture

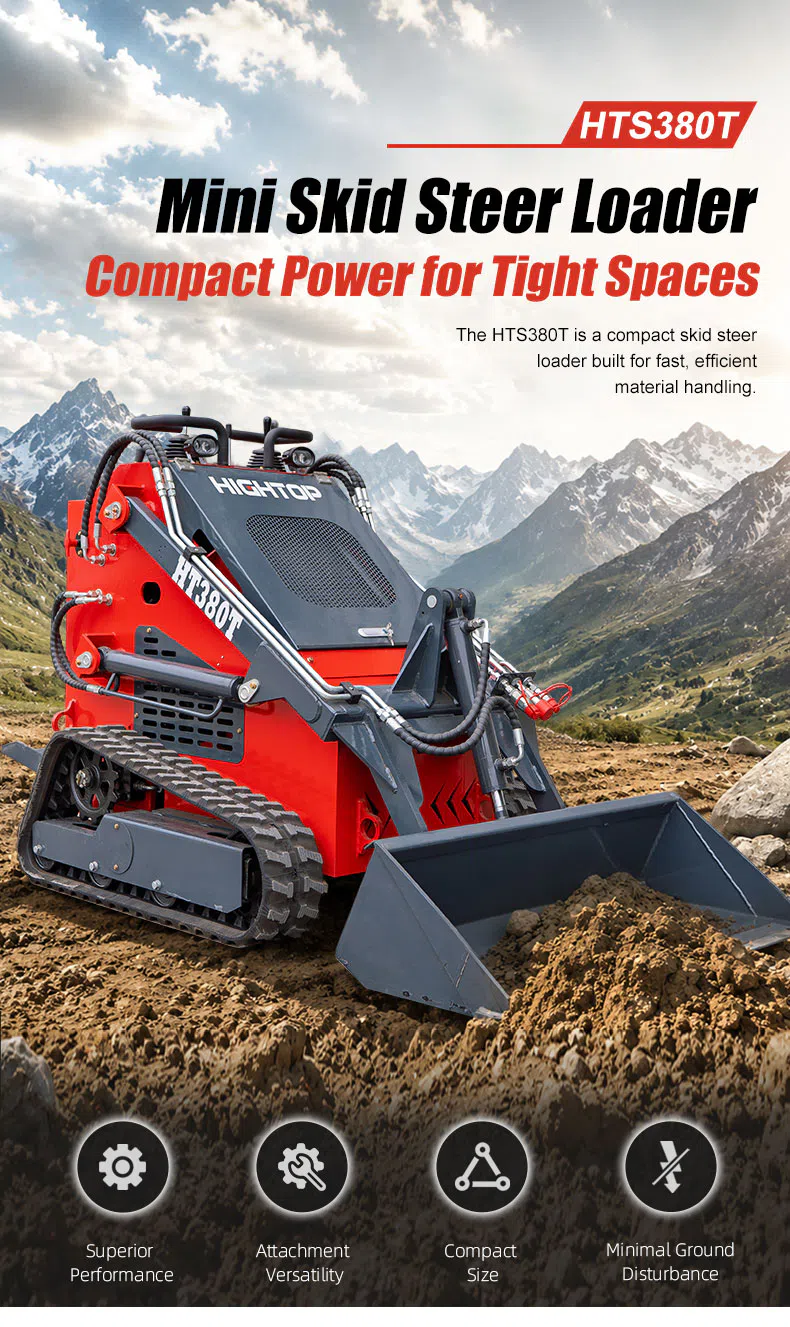

HTS380T Mini Skid Steer LoaderCompact Power for Tight Spaces:The HTS380T is a compact skid steer loader built for fast, efficient material handling.

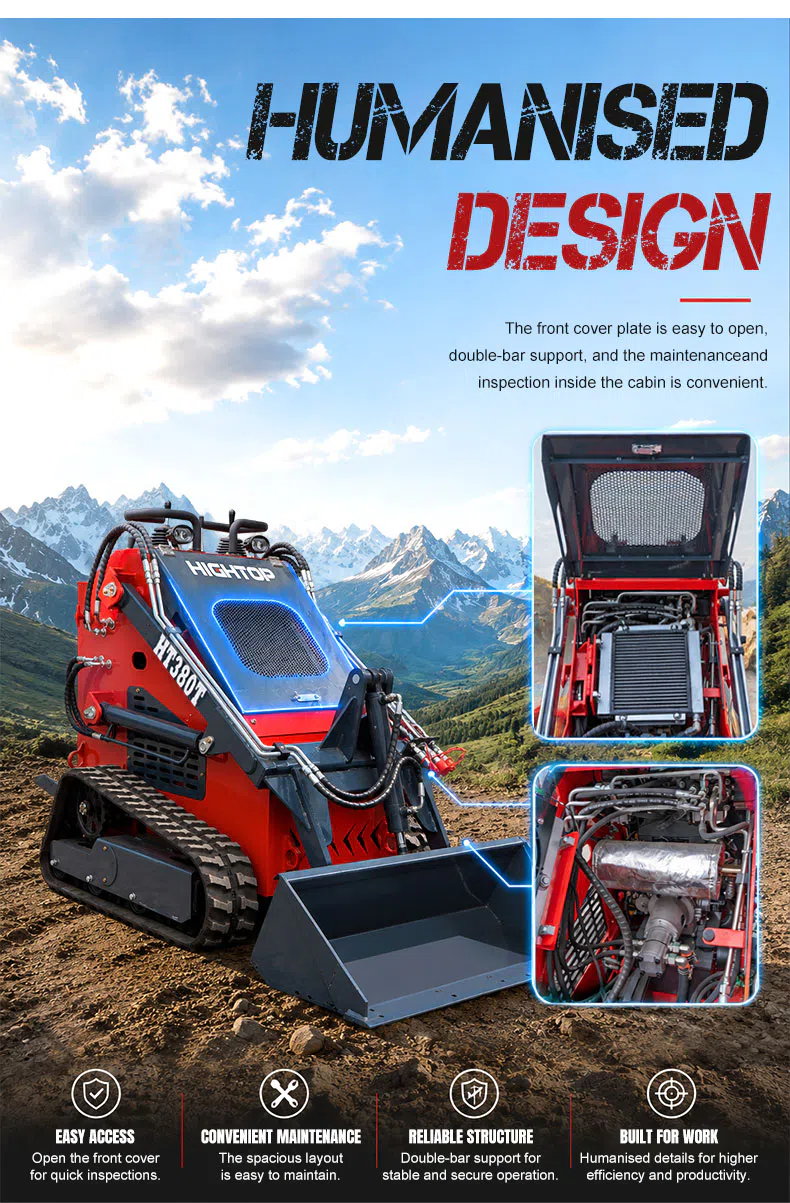

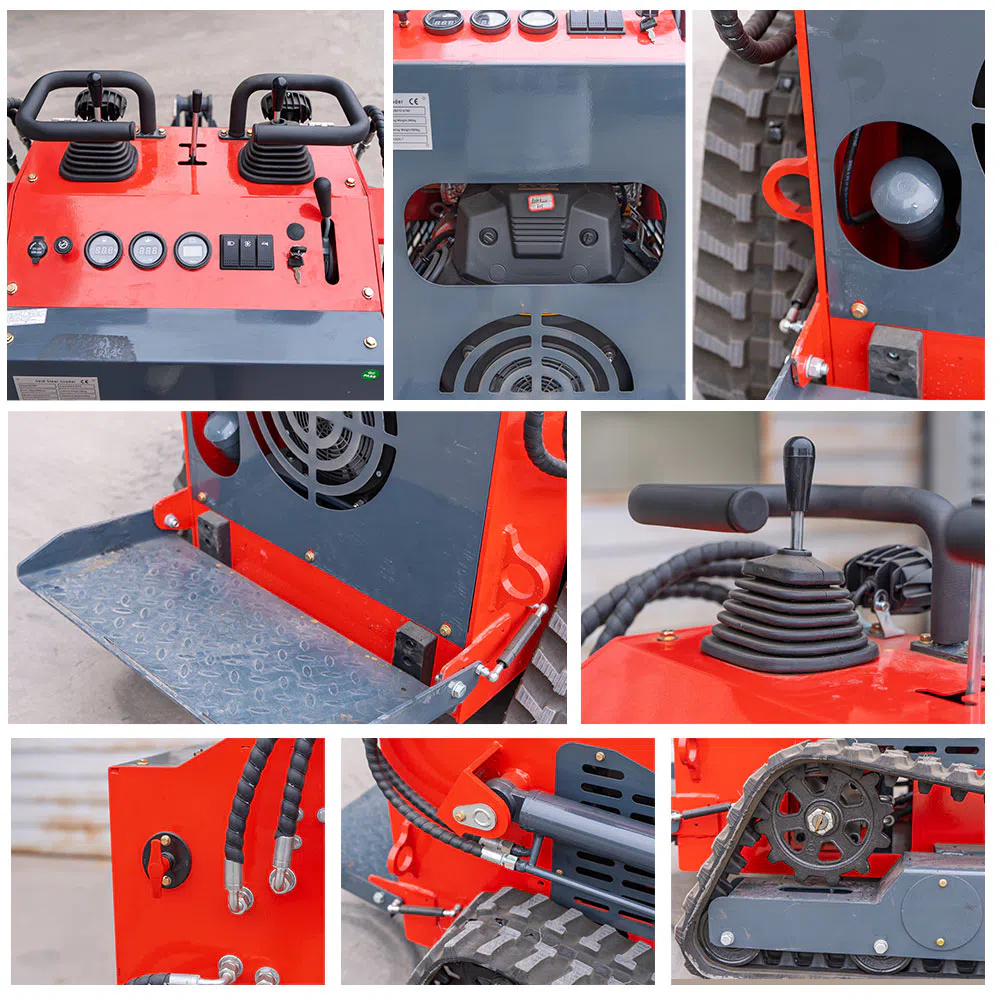

The front cover plate is easy to open,double-bar support, and the maintenanceandinspection inside the cabin is convenient.

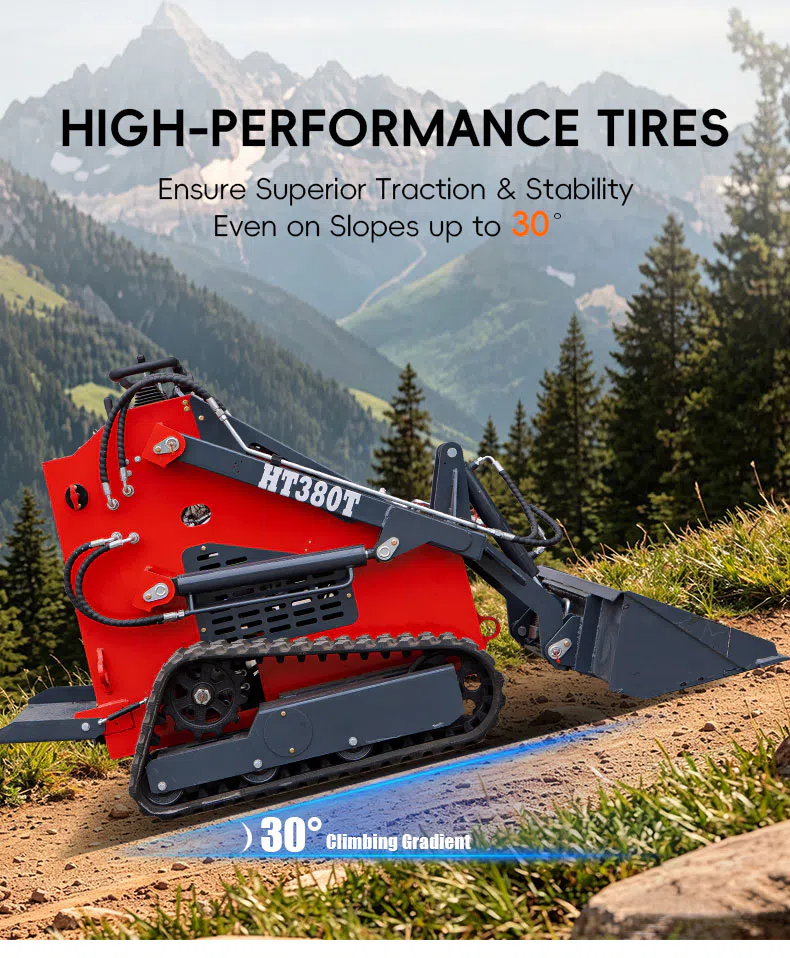

HIGH-PERFORMANCE TIRES Ensure Superior Traction & StabilityEven on Slopes up to 30

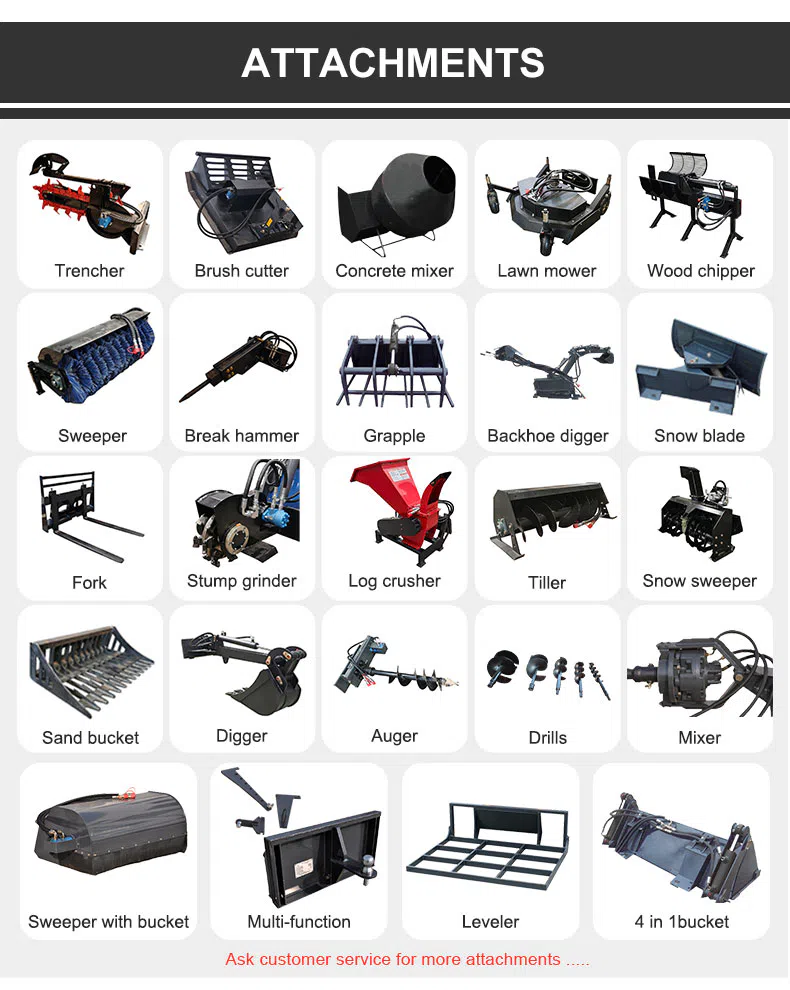

Can use multiple attachments
Mini Skid Steer Loader For Tight Spaces HTS380T Applications
Landscaping And Garden Maintenance
The HTS380T mini skid steer loader is ideal for landscaping projects including soil preparation, material movement, garden renovation, and vegetation maintenance.
Its compact size allows it to enter residential gardens, parks, and landscape areas without requiring large working spaces.
Agriculture And Farm Work
In agricultural applications, HTS380T can assist with farm material handling, land improvement, animal farm maintenance, and transportation tasks.
The crawler structure provides better adaptability on farmland, muddy areas, and uneven terrain.
Construction And Site Preparation
For small construction projects, HTS380T can be used for loading materials, site cleanup, ground preparation, and general handling operations.
Its compact dimensions make it especially suitable for urban construction areas and restricted job sites.
HIGHTOP Service Support
HIGHTOP provides complete service support for the HTS380T Mini Skid Steer Loader, including equipment selection, production, delivery, and after-sales assistance.
Before purchase, our professional team helps customers choose suitable configurations according to working conditions, application requirements, and attachment needs.
For distributors, contractors, and rental companies, HIGHTOP supports OEM and ODM cooperation, including customized colors, logos, machine configurations, and bulk purchasing solutions.
After delivery, HIGHTOP provides technical guidance, spare parts support, operation recommendations, and maintenance assistance to help customers keep their equipment working efficiently.
With professional manufacturing experience and global export capability, HIGHTOP continues to provide reliable compact machinery solutions for customers worldwide.
Mini Skid Steer Loader For Tight Spaces HTS380T Frequently Asked Questions
1. What is the main advantage of HTS380T mini skid steer loader?
The main advantage of HTS380T is its compact size and strong adaptability in tight working areas. It can operate where larger loaders are difficult to access.
2. Is HTS380T suitable for uneven terrain?
Yes. The crawler undercarriage improves traction and stability on muddy, soft, gravel, and uneven surfaces.
3. What attachments can HTS380T use?
HTS380T can work with different attachments for loading, cleaning, landscaping, material handling, and other tasks.
4. What industries can use HTS380T?
It is suitable for landscaping, agriculture, construction, municipal maintenance, and property management applications.
5. Why choose a mini skid steer loader instead of a traditional loader?
A mini skid steer loader provides better maneuverability, lower transportation requirements, and easier operation in limited spaces.
