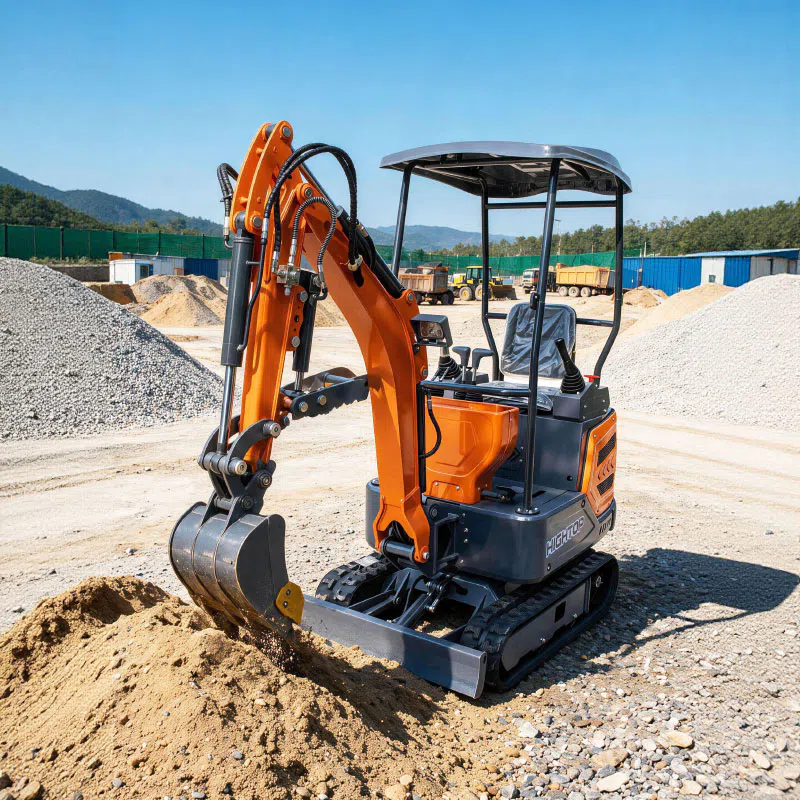

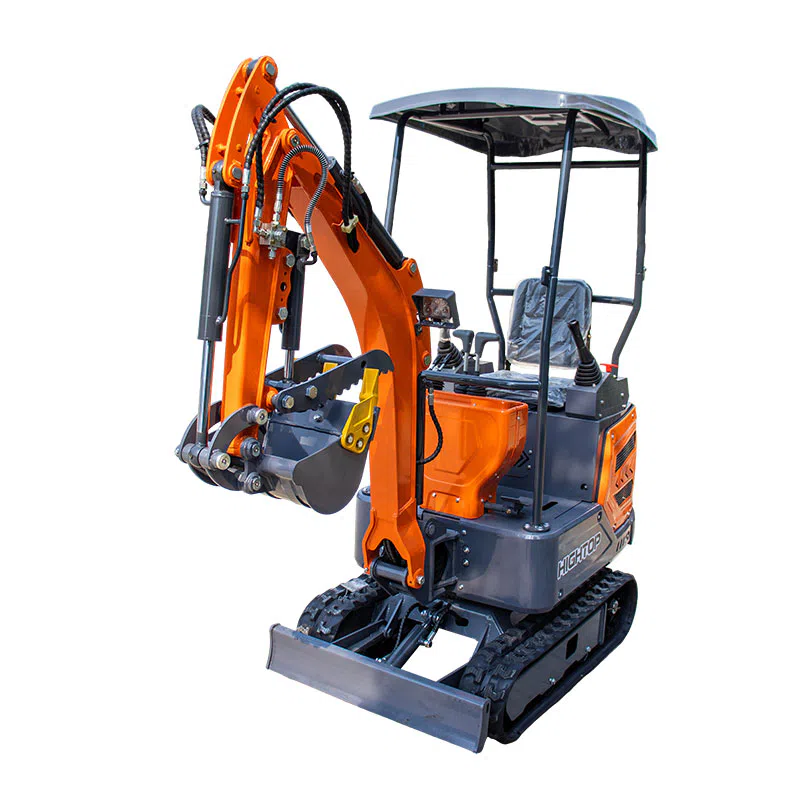

Mini Excavator HTY15 1.5 Ton With 360° Rotation Product Description
The HTY15 mini excavator is a purpose-built 1.5-ton compact excavator that delivers professional digging power in spaces too small for full-size machines. Weighing just 1,200 kg, measuring only 950 mm wide and 2,500 mm long, and standing 2,300 mm tall, this small excavator slips through standard garden gates, residential driveways, and indoor doorways where a 3-ton machine simply cannot go. The KOOP 192F gasoline engine—rated at 7.6 kW of reliable output—delivers the strong working capacity contractors expect from a 1.5 ton mini excavator in this category, while the ultra compact design keeps the overall footprint small enough for the tightest urban sites.
What makes the HTY15 stand out among mini diggers is its 360-degree rotation upper structure. Unlike fixed-rail micro excavators that lose reach at the corners, the HTY15 swings the entire house left, right, and around—giving operators omni-directional operation without dead angle and dramatically reducing repositioning time. With 1,700 mm max digging depth, 2,900 mm max digging radius, and a 2,500 mm max digging height, this compact crawler excavator handles foundation trenches, utility lines, garden ponds, and basement footings that other machines in its size class can only dream of. The 30° gradeability makes it a confident performer on hilly and rough terrain, while the 0-3 km/h walking speed keeps positioning precise on finished lawns.
The HTY15 also brings low fuel consumption to the 1.5 ton mini excavator class. The KOOP 192F engine has been tuned for fuel economy under real-world load cycles, reducing operating costs by up to 20% compared with older designs. Standard equipment includes the adjustable bulldozer blade for dozing and leveling, a standard digging bucket, a digital display instrument for real-time status monitoring, and a built-in oil pipe routing system that keeps the hydraulic lines protected from collision damage. For fleets looking to add capacity in the sub-1.5-ton segment, pair this machine with our Hightop mini excavatorlineup or browse the full mini excavator attachmentscatalog.

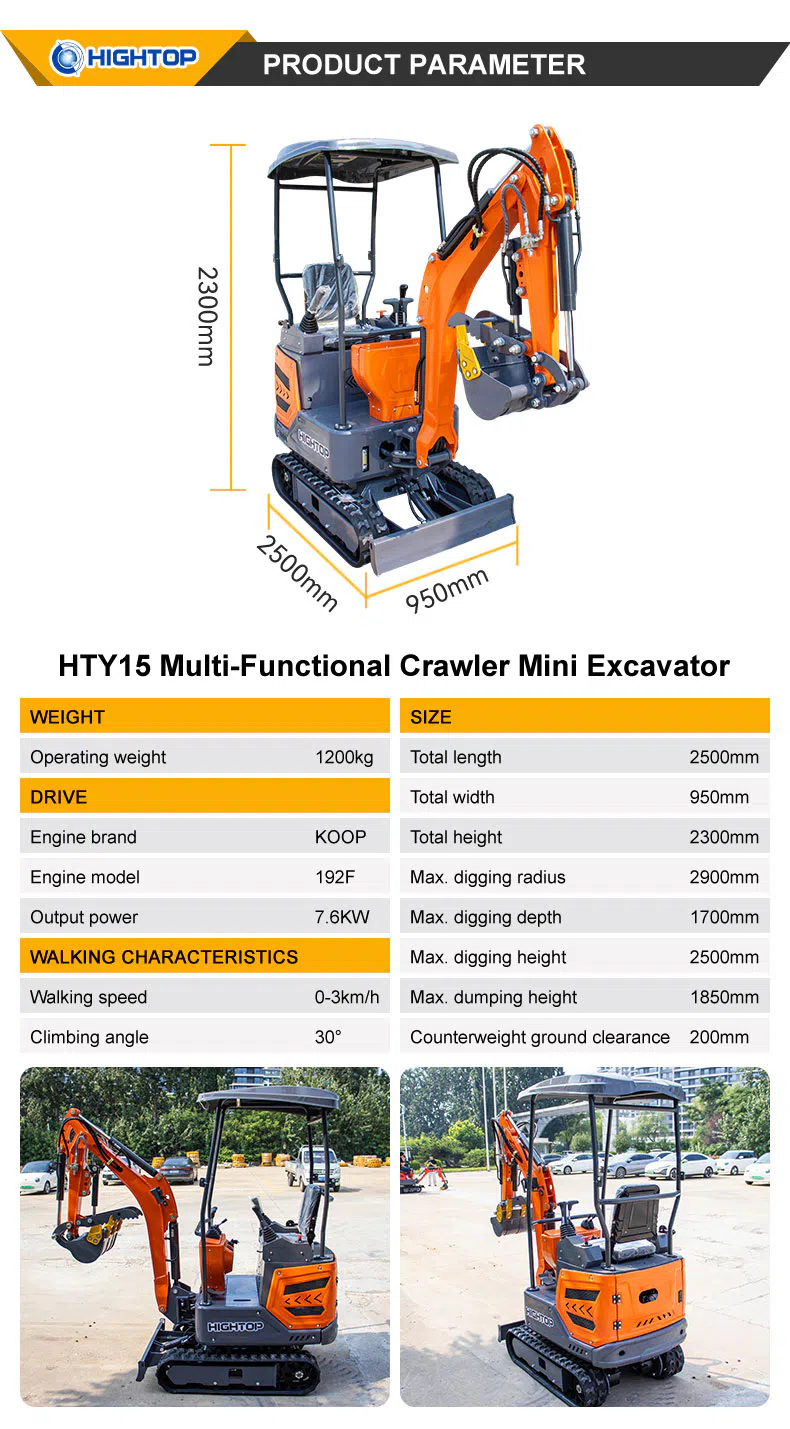

Hightop HTY15 Mini Excavator 1.5 Ton With 360° Rotation Specifications
| Parameter | Value |
|---|---|
| Operating Weight | 1,200 kg |
| Engine Brand | KOOP |
| Engine Model | 192F |
| Output Power | 7.6 kW |
| Walking Speed | 0–3 km/h |
| Climbing Angle | 30° |
| Total Length | 2,500 mm |
| Total Width | 950 mm |
| Total Height | 2,300 mm |
| Max. Digging Radius | 2,900 mm |
| Max. Digging Depth | 1,700 mm |
| Max. Digging Height | 2,500 mm |
| Max. Dumping Height | 1,850 mm |
| Counterweight Ground Clearance | 200 mm |
1.5 Ton Hightop HTY15 Mini Excavator With 360° Rotation Images

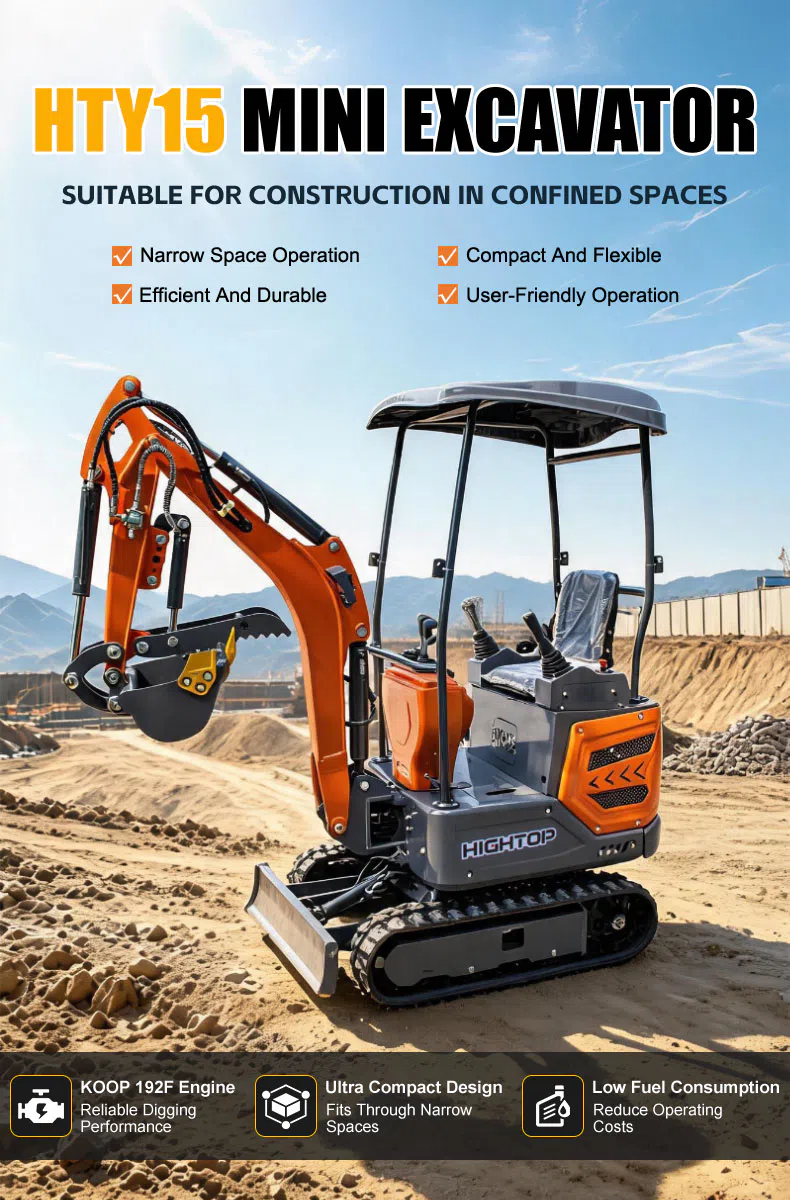

The HTY15 small digger adopts the popular science 192F engine, which has reliable performance, ultra compact design, can pass through narrow areas, simple operation, low fuel consumption, and low operating costs

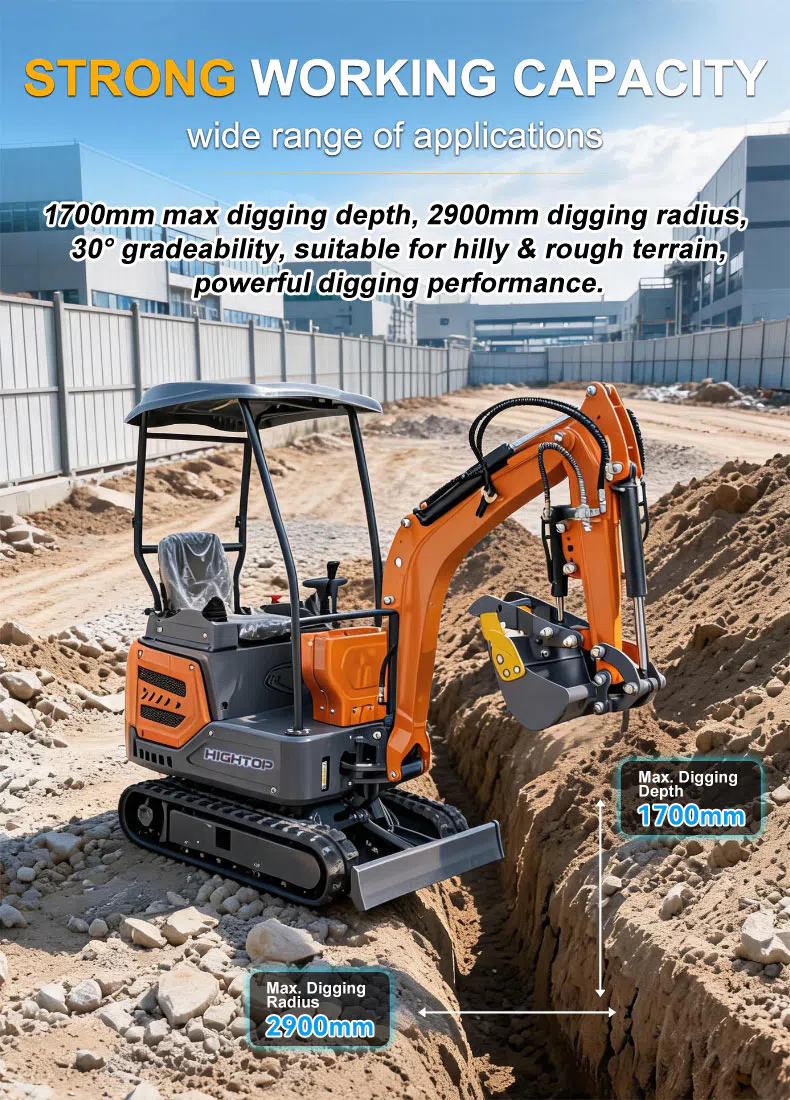

Strong homework ability: maximum excavation depth of 1700mm, maximum excavation radius of 2900mm, maximum climbing angle of 30; Suitable for rugged mountain conditions, with strong excavation power.

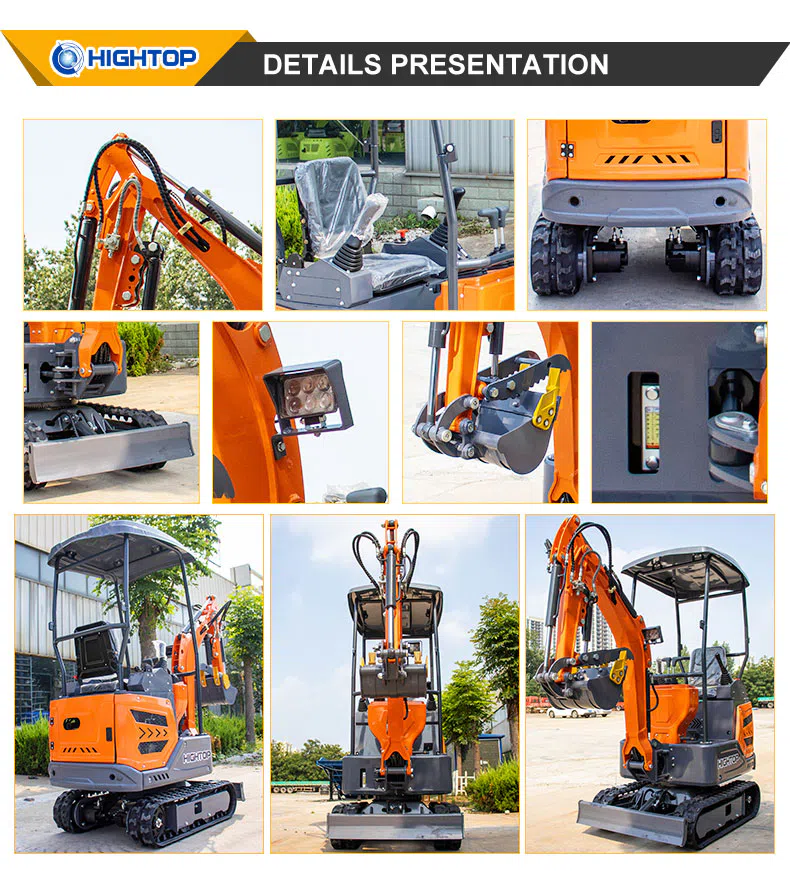

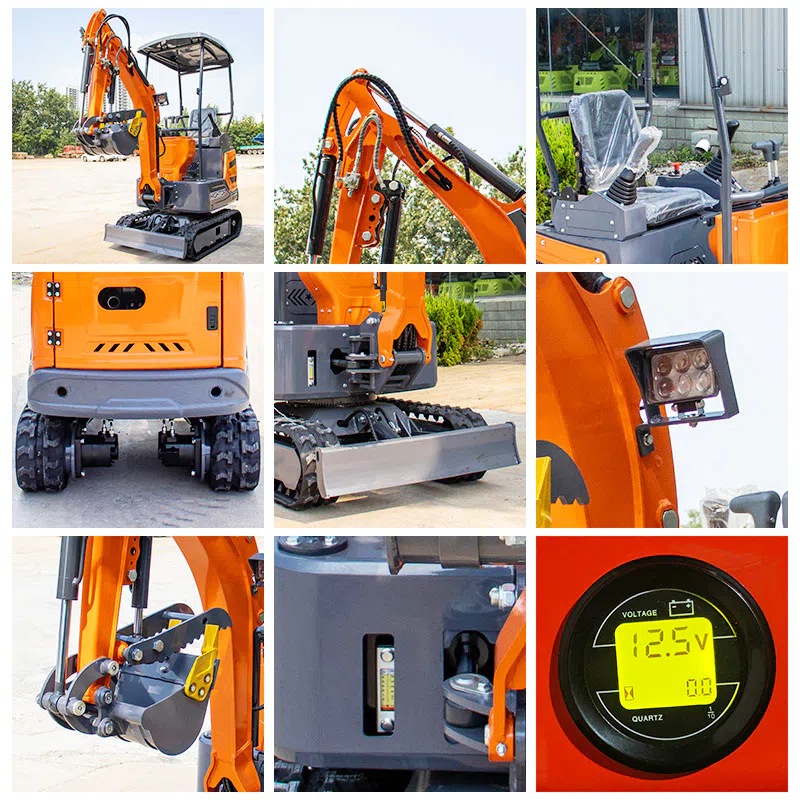

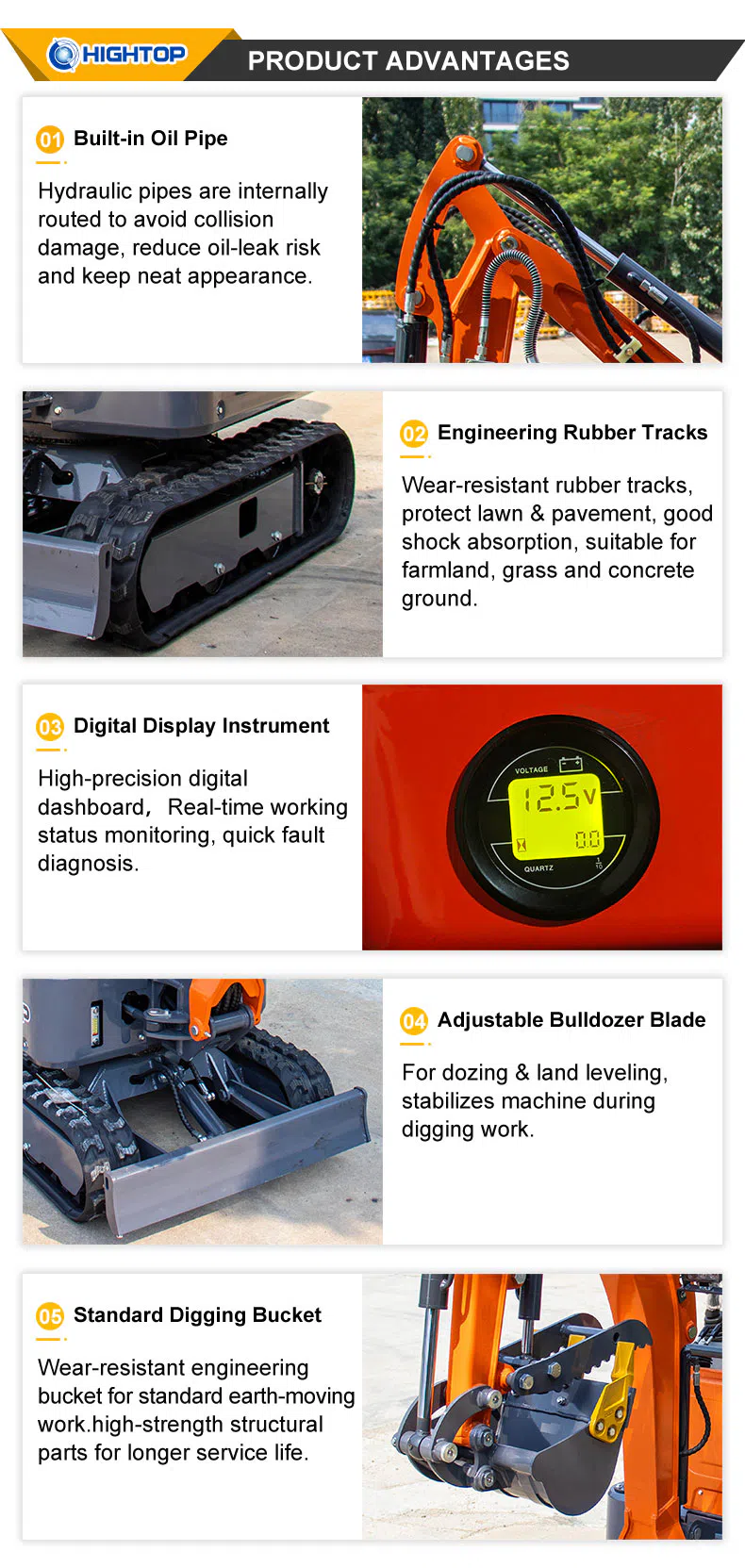

Design feature:
1. Built-in oil pipe:The hydraulic pipeline is arranged internally to avoid collision damage and reduce the risk of oil leakage. It is installed outside the entire machine Observe cleanliness.
2.Engineering rubber track:Wear resistant rubber tracks protect lawns and paved roads; Excellent shock absorption effect, suitable for farmland, grassland, and concrete ground.
3.Digital display instrument:High precision digital dashboard, real-time monitoring of equipment working status, and rapid fault diagnosis.
4.Increase the thickness of the bulldozer shovel:Can complete bulldozing and leveling operations, homework Stabilize the body at all times.
5.Wear resistant excavator bucket:Wear resistant engineering excavator bucket, high-strength structural components,longer service life.
The whole machine can rotate 360 °, with no dead corners and all-round operation, suitable for the site
Maximizing utilization. Can be paired with various accessories

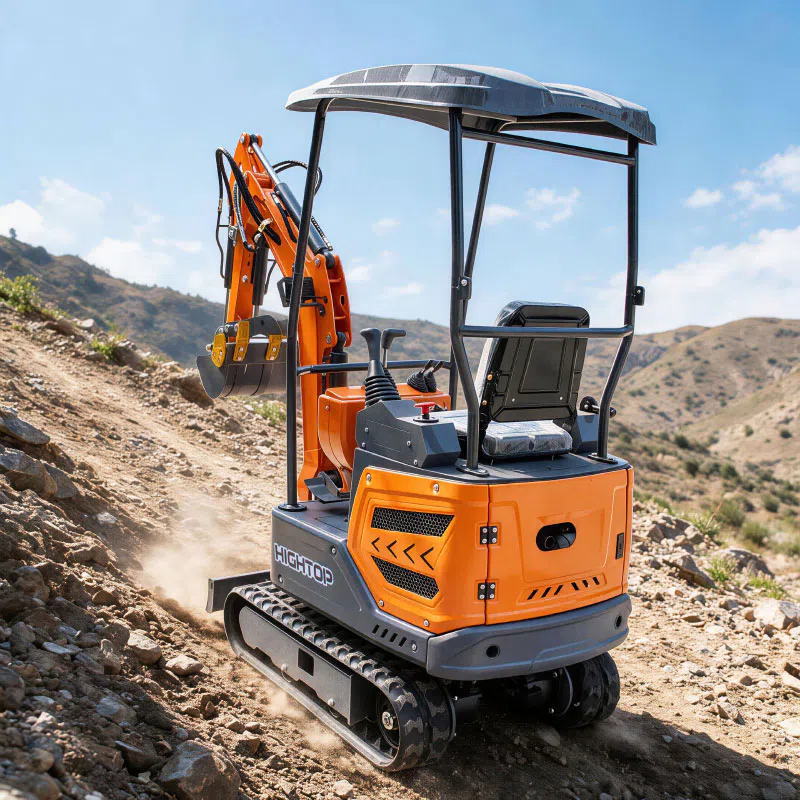

Powerful and capable of climbing slopes up to 30 degrees
Hightop HTY15 Mini Excavator 1.5 Ton With 360° Rotation Application Scenarios
1.Residential Foundation & Trenching — Tight Access Without Damage
Pouring a new home foundation or trenching for utility lines often requires a compact excavator that can drive down a 1-meter-wide side yard without destroying fences or landscaping. The HTY15's 950 mm width and 1,200 kg operating weight let it pass through standard gates and minimize ground pressure on finished lawns. With 1,700 mm digging depth, it reaches the bottom of typical residential footing excavations in a single pass.
2.Indoor Demolition & Warehouse Fit-Out
When warehouses, retail spaces, or barn conversions need internal demolition, the HTY15's ultra compact design and 360° rotation upper structure make it one of the few practical mini diggers for the job. Pair the standard bucket with a hydraulic breaker from our mini excavator attachments catalog to break concrete slabs, then load debris into a small dumper parked just outside the roll-up door.
3.Landscape & Hardscape Construction
From digging koi ponds and planting beds to leveling paver patios and trenching for landscape lighting, the HTY15 is a versatile small excavator for landscape professionals. The engineering rubber tracks protect finished surfaces, the adjustable bulldozer blade handles rough grading, and the optional wood grapple, rake, tilt bucket, thumb clamp, ripper, and breaker turn the machine into a one-crew landscape crew.
4.Agricultural Drainage & Small Farm Earthmoving
For small farms and orchards, the HTY15's 30° gradeability and 0-3 km/h walking speed make it a stable workhorse for digging drainage ditches, cleaning irrigation channels, and clearing fence lines. The low fuel consumption KOOP 192F engine runs an entire shift on a small tank, and routine service items—air filter, spark plug, oil—are stocked by small-engine dealers in nearly every region.
5.Rental Fleets & Multi-Site Operators
The HTY15's 1,200 kg transport weight, 950 mm width, and 2,500 mm length let it fit on a small plant trailer behind a mid-size pickup or van—no commercial license required in most regions. For rental businesses serving landscapers, plumbers, and DIY homeowners, this mini excavator is the most requested size class, and the KOOP 192F's global parts support keeps utilization high.
Hightop Service & Support
1.12-Month Powertrain Warranty & Global Parts Network
Every HTY15 ships with a 12-month powertrain warranty, a full set of wear-part diagrams, and access to Hightop's global parts network. We stock filters, pins, bushings, and seal kits for immediate dispatch from regional hubs in Asia, Europe, and the Americas, so a downed mini digger gets back to work in days, not weeks.
2.Door-to-Door Shipping & Customs Clearance
Hightop partners with long-term freight forwarders to offer door-to-door shipping for every HTY15 mini excavator. We handle FCL, LCL, and Ro-Ro vessel booking from the main Chinese ports (Qingdao, Shanghai, Tianjin) to your nearest gateway, and our export documentation team prepares the commercial invoice, packing list, certificate of origin, and CE/EPA paperwork in advance. Buyers in over 60 countries rely on our DDP (Delivered Duty Paid) and CIF terms to clear customs without local paperwork headaches.
3.Container Loading Optimization — Maximize Every TEU
Our logistics engineers have refined the loading plan for the HTY15 1.2 ton mini excavator so you get the most units per shipping container. A standard 20GP holds up to 4 units, a 40HQ accommodates up to 8 units, and we can mix in mini excavator attachments—breakers, rippers, grapples, rakes, tilt buckets, and thumb clamps—to fill dead space and lower your per-unit freight cost. Custom brackets protect the cab, boom, and tracks during ocean transit.
4.Truck, Trailer & Ro-Ro Delivery Options
For shorter distances or inland destinations, Hightop arranges flatbed truck delivery across Asia, the Middle East, and Africa, and coordinates Ro-Ro (roll-on/roll-off) vessels for self-drive shipments to Africa, South America, and the Mediterranean. If you already own a plant trailer, the HTY15's 1,200 kg operating weight and 2,500 mm transport length make it towable behind a mid-size pickup or large van—no commercial license required in most regions.
5.Customs Brokerage, Tax Planning & Destination Support
Our export team works with licensed customs brokers in 30+ countries to handle HS code classification, duty optimization, and import license applications. For buyers in markets with high duties (Brazil, India, parts of Africa), we help plan bonded warehouse transit or CKD/SKD assembly strategies to reduce landed cost. Once the HTY15 arrives, our regional partners provide on-site commissioning, operator training, and the first scheduled maintenance free of charge.
6.OEM Branding, Custom Paint & Turnkey Attachment Packages
Need a fully customized machine? Hightop offers OEM branding (your logo on the hood, boom, and tail), custom paint colors matched to your fleet scheme, and turnkey compact excavator attachment packages. Browse the full catalog of mini excavator attachments—breakers, rippers, wood grapples, rakes, tilt buckets, and thumb clamps—to maximize utilization across every season.
Mini hightop Excavator 1.5 Ton HTY15 With 360° Rotation Frequently Asked Questions
Q1: What is the difference between the HTY15 and other 1.2-ton mini excavators?
A: The HTY15 combines a 1,200 kg operating weight, a 950 mm width, and a 360° rotation upper structure with a KOOP 192F engine producing 7.6 kW. Many competitors in this size class use a fixed-rail or limited-rotation design, which forces operators to reposition the tracks frequently. The HTY15's full-rotation upper structure, combined with built-in oil pipe routing, a digital display instrument, and engineering rubber tracks, makes it one of the most capable and operator-friendly small excavators in the 1.2-ton segment.
Q2: Can the HTY15 fit through a standard garden gate?
A: Yes. The HTY15's overall width of 950 mm is below the 1,000 mm clear opening of most standard garden gates, residential doorways, and pedestrian entries. Combined with a 2,500 mm length and 2,300 mm height, the compact crawler excavator can drive directly into backyards, side yards, and indoor work areas without dismantling fences or removing door frames—saving hours of preparation on residential jobs.
Q3: How fuel-efficient is the KOOP 192F engine?
A: The KOOP 192F is tuned for fuel economy under typical mini excavator load cycles. Compared with older small-engine designs, the HTY15 achieves up to 20% lower fuel consumption—translating to longer runtime per tank, lower daily operating cost, and fewer refueling stops on long shifts. The 7.6 kW output also ensures the compact excavator maintains full hydraulic power even at low RPM.
Q4: What attachments work with the HTY15?
A: The HTY15 supports a wide range of optional mini excavator attachments, including hydraulic breakers, rippers, wood grapples, rakes, tilt buckets, and thumb clamps. The auxiliary hydraulic lines are standard, and the quick-coupler system lets operators swap tools in minutes. For landscaping, demolition, trenching, and material handling, the right attachment turns this mini digger into a one-machine multi-task fleet.
Q5: Can the HTY15 climb slopes?
A: Yes. The HTY15 has a 30° climbing angle and uses wear-resistant rubber tracks for stable traction on hillsides, terraced fields, and rough farmland. The 0-3 km/h walking speed keeps positioning controlled, and the engineering rubber tracks provide good shock absorption on uneven ground. For sites with steeper grades, the adjustable bulldozer blade can be lowered to add stability during stationary work.
Q6: How is the HTY15 transported between job sites?
A: With an operating weight of 1,200 kg, total length of 2,500 mm, and total width of 950 mm, the HTY15 fits on a small plant trailer and can be towed by a mid-size pickup, SUV, or large van—no commercial license required in most regions. The compact dimensions also let the mini excavator drive directly through garden gates and narrow service roads once on site, eliminating the need for a telehandler or crane to position the machine.
