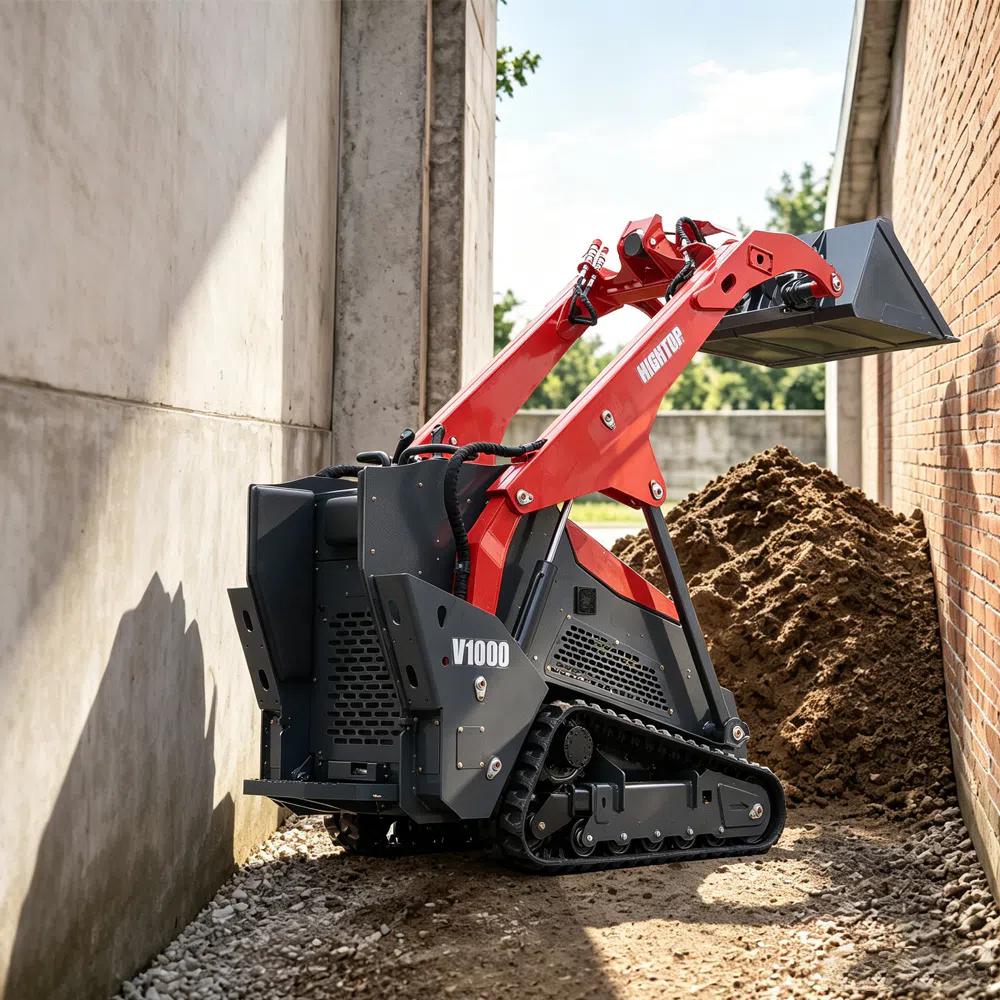

Hightop Crawler Skid Steer Loader HTV1000 With Front-Opening Hood For Easy Maintenance Description
The HIGHTOP crawler skid steer loader is a compact tracked machine designed for construction, landscaping, agriculture, and material handling applications where stability, flexibility, and easy maintenance are important. Equipped with a crawler track system, this mini track loader provides excellent ground contact and traction on soft soil, muddy areas, uneven terrain, and narrow working spaces.
One of the key design advantages of this crawler skid steer loader is the front-opening hood structure, which allows operators and maintenance technicians to access important components more conveniently. Compared with traditional compact loaders with limited service space, the front-opening engine hood helps simplify daily inspection, engine maintenance, hydraulic system checking, and routine servicing, reducing downtime during operation.
Powered by a reliable diesel engine and matched with an efficient hydraulic system, the compact crawler skid steer loader delivers stable working performance for digging, loading, leveling, pushing, and transporting tasks. The crawler undercarriage improves machine balance and reduces ground pressure, making it suitable for applications where wheeled machines may have difficulty operating.
The machine supports various hydraulic attachments, allowing users to quickly change tools according to different working requirements. With attachments such as buckets, forks, augers, breakers, sweepers, and other implements, this tracked skid steer loader can be adapted for multiple industries and working conditions.
For customers looking for different compact excavation equipment solutions, HIGHTOP also provides a range of [mini excavators](internal link) and other small construction machinery to meet different project requirements.
With its practical structure, easy service access, strong traction, and flexible attachment compatibility, the HIGHTOP crawler skid steer loader is a reliable choice for contractors, rental companies, farms, landscaping teams, and construction professionals.

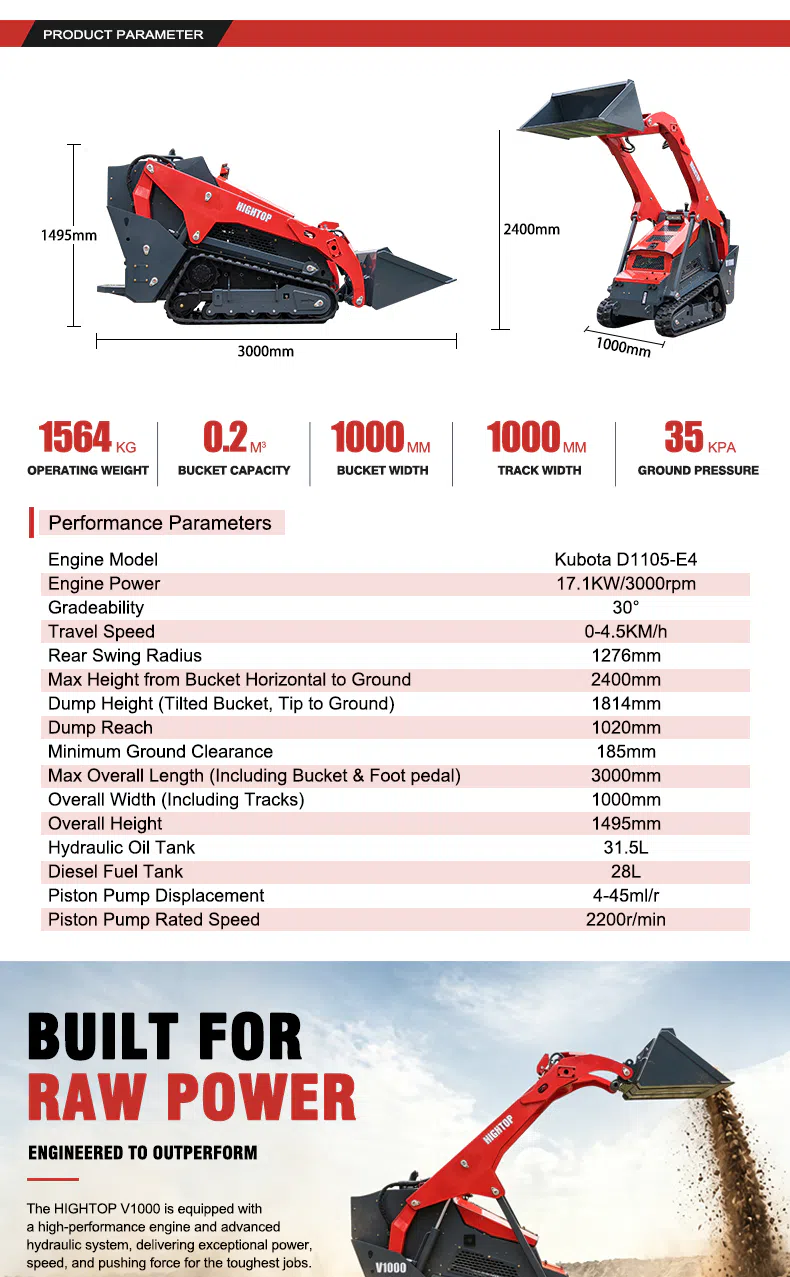

HTV1000 Crawler Skid Steer Loader With Front-Opening Hood For Easy Maintenance Parameters
| Parameter | Value |
|---|---|
| Operating Weight | 1564 kg |
| Bucket Capacity | 0.2 m³ |
| Bucket Width | 1000 mm |
| Track Width | 1000 mm |
| Ground Pressure | 35 kPa |
| Engine Model | Kubota D1105‑E4 |
| Engine Power | 17.1 kW / 3000 rpm |
| Gradeability | 30° |
| Travel Speed | 0‑4.5 km/h |
| Rear Swing Radius | 1276 mm |
| Max Height of Bucket Bottom (Level Position) | 2400 mm |
| Dump Height (Bucket Tilted, Tip to Bottom) | 1814 mm |
| Dump Reach | 1020 mm |
| Minimum Ground Clearance | 185 mm |
| Overall Length (with bucket & step) | 3000 mm |
| Overall Width (with tracks) | 1000 mm |
| Overall Height | 1495 mm |
| Hydraulic Oil Tank Capacity | 31.5 L |
| Fuel Tank Capacity | 28 L |
| Piston Pump Displacement | 4‑45 ml/r |
| Piston Pump Rated Speed | 2200 r/min |

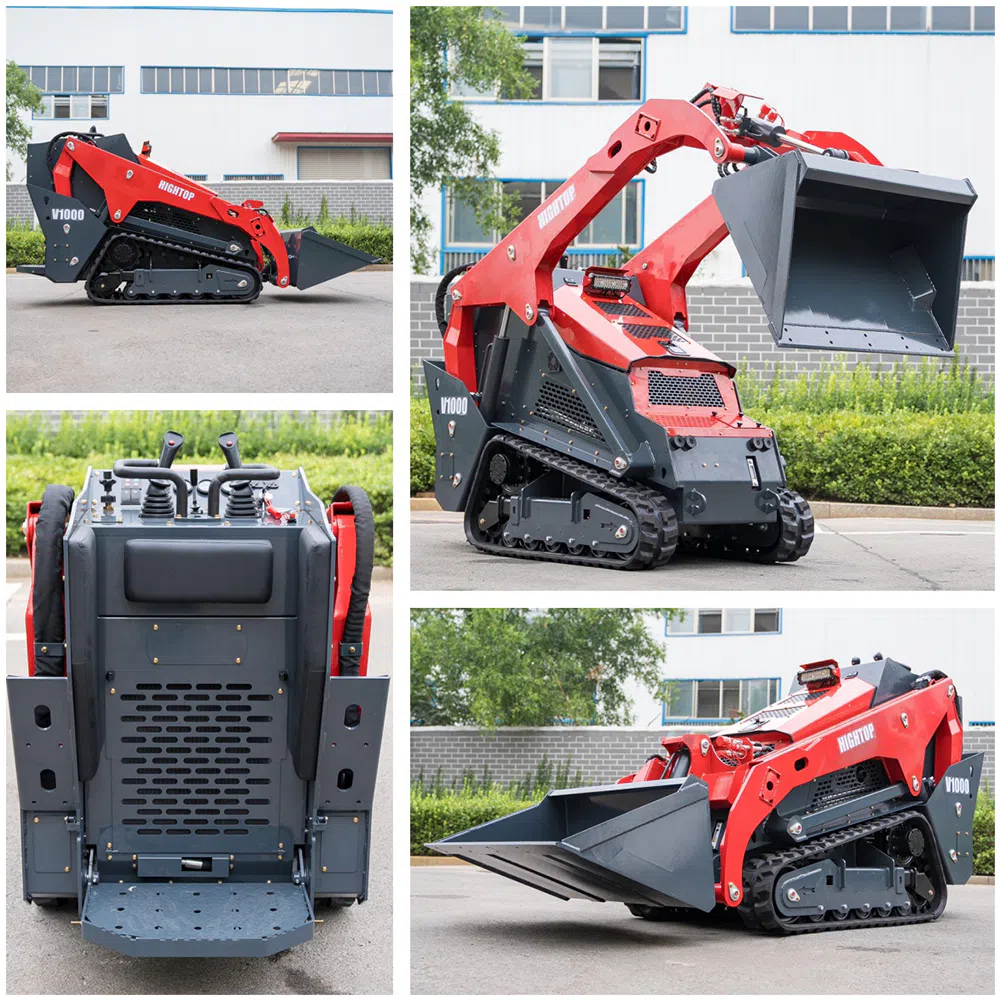

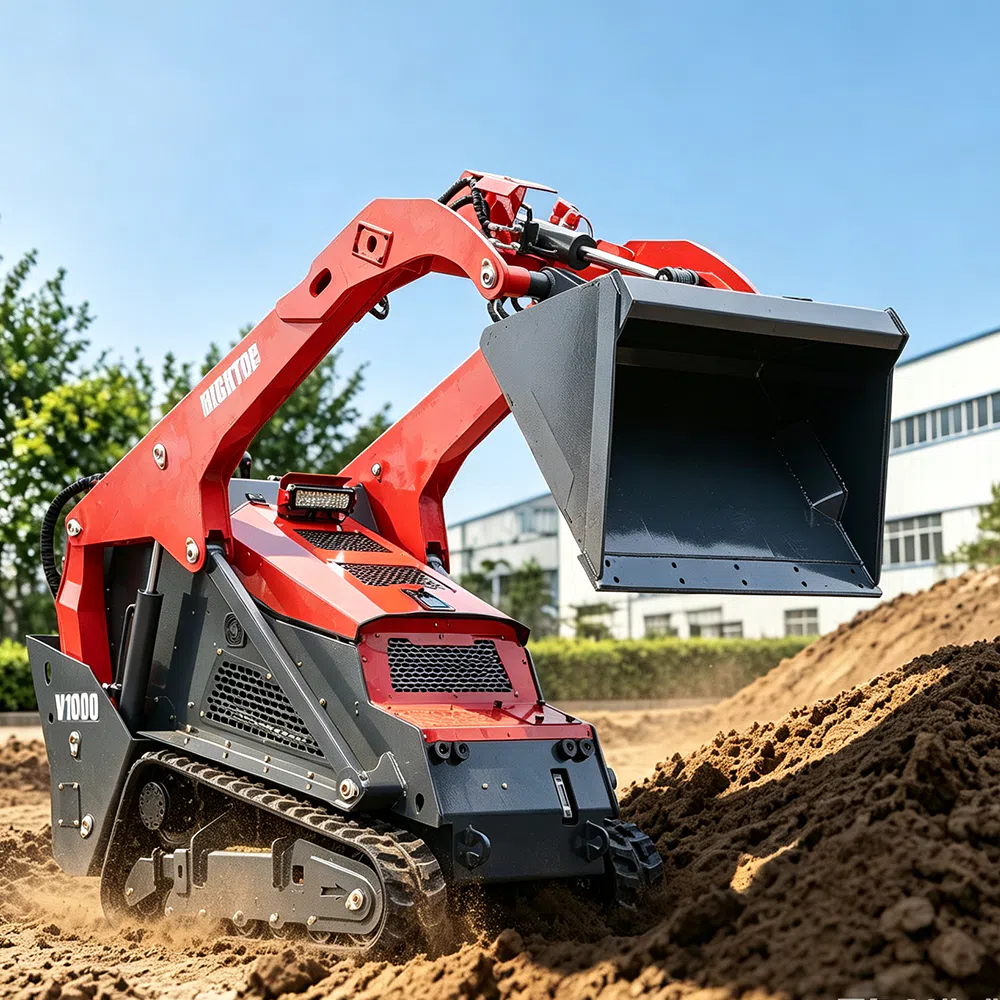

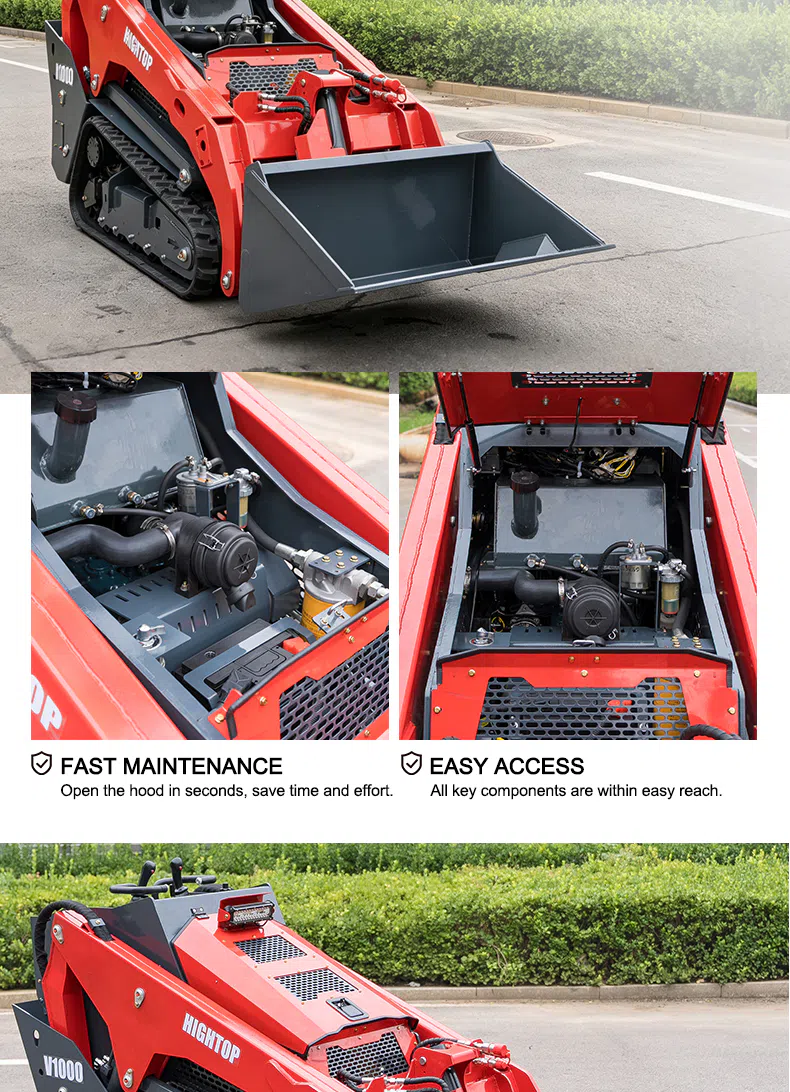

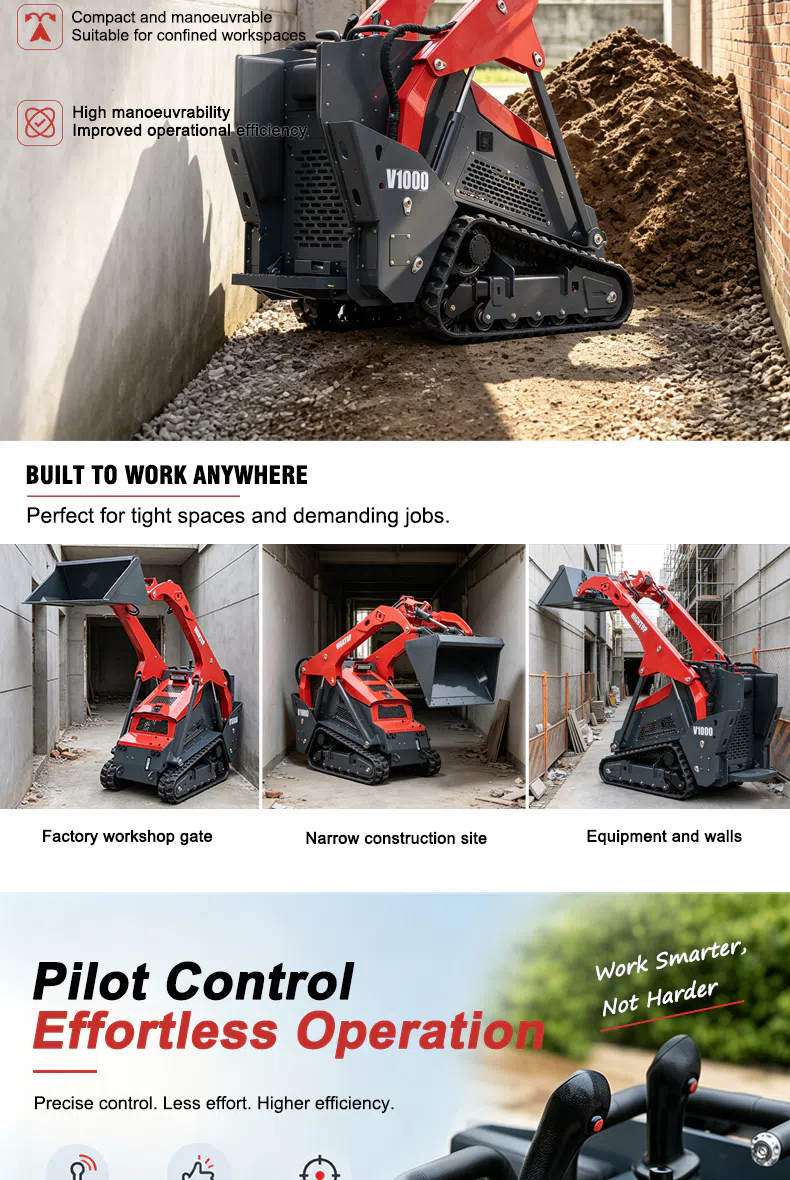

Crawler Skid Steer Loader With Front-Opening Hood For Easy Maintenance HTV1000 Images
Crawler Skid Steer Loader With Front-Opening Hood For Easy Maintenance HTV1000 Application Scenarios
The crawler skid steer loader is widely used in construction, landscaping, agriculture, municipal maintenance, and material handling projects.
In construction projects, it can be used for site preparation, earthmoving, loading materials, trench backfilling, and general construction assistance. Its tracked design makes it suitable for muddy construction sites and uneven ground conditions.
For landscaping and agriculture, the compact track loader is suitable for soil preparation, garden maintenance, farm material handling, tree planting preparation, and land improvement work.
In municipal and property maintenance applications, the machine can assist with snow removal, cleaning, transportation, and maintenance tasks when combined with suitable attachments.
Professional Mini Construction Equipment Manufacturer Support
HIGHTOP provides professional support throughout the entire purchasing and ownership process, from equipment selection and configuration recommendations to after-sales service and spare parts supply. As an experienced manufacturer of compact construction machinery, HIGHTOP focuses on providing reliable crawler skid steer loader solutions for customers with different working requirements, helping users select suitable machines according to their projects, operating environments, and application needs.
Before purchasing a crawler skid steer loader, HIGHTOP’s technical team can provide professional recommendations based on job requirements, including material handling, construction conditions, terrain characteristics, and expected working intensity. Customers can receive suitable model suggestions, attachment matching advice, and configuration solutions to ensure the machine meets actual operation needs.
To meet different market demands, HIGHTOP supports customized solutions for crawler skid steer loaders, including optional attachments, hydraulic functions, control configurations, colors, and branding requirements. The machine can be equipped with different working tools such as buckets, forks, augers, breakers, sweepers, and other attachments, allowing one machine to handle multiple applications and improve working efficiency.
As a professional construction equipment manufacturer, HIGHTOP provides OEM and ODM cooperation for global distributors, dealers, and business partners. We can support customized product solutions according to market requirements, helping partners develop compact machinery products suitable for their local customers.
Before shipment, each HIGHTOP crawler skid steer loader undergoes detailed inspection and testing, including engine performance, hydraulic system operation, attachment function, and overall machine condition. Strict quality control procedures help ensure that every machine is delivered in stable working condition and ready for customer operation.
With years of international export experience, HIGHTOP understands the requirements of customers from different countries and regions. We provide professional export assistance, including technical documents, operation information, shipping coordination, and communication support, making the purchasing process smoother for overseas customers.
During the machine’s service life, HIGHTOP continues to provide technical assistance and spare parts support. Customers can receive maintenance guidance, operation suggestions, and replacement parts solutions to reduce downtime and maintain long-term equipment performance.
HIGHTOP believes that reliable machinery requires reliable service. From the first inquiry to long-term cooperation, we focus on building stable partnerships with customers by providing professional communication, practical solutions, and continuous support throughout the entire equipment lifecycle.
Crawler Skid Steer Loader HTV1000 Frequently Asked Questions
1. What is a crawler skid steer loader?
A crawler skid steer loader is a compact loader equipped with crawler tracks instead of wheels. It provides better stability and traction on soft, uneven, or muddy terrain.
2. What is the advantage of the front-opening hood?
The front-opening hood improves maintenance accessibility, allowing easier inspection and servicing of engine and internal components.
3. Can this crawler skid steer loader use different attachments?
Yes. The machine can work with various hydraulic attachments, including buckets, forks, breakers, augers, and sweepers.
4. Is this machine suitable for small construction sites?
Yes. Its compact structure and tracked design make it suitable for narrow spaces, landscaping projects, farms, and small construction sites.
5. Does HIGHTOP provide spare parts and technical support?
Yes. HIGHTOP provides spare parts supply and technical support for international customers.
