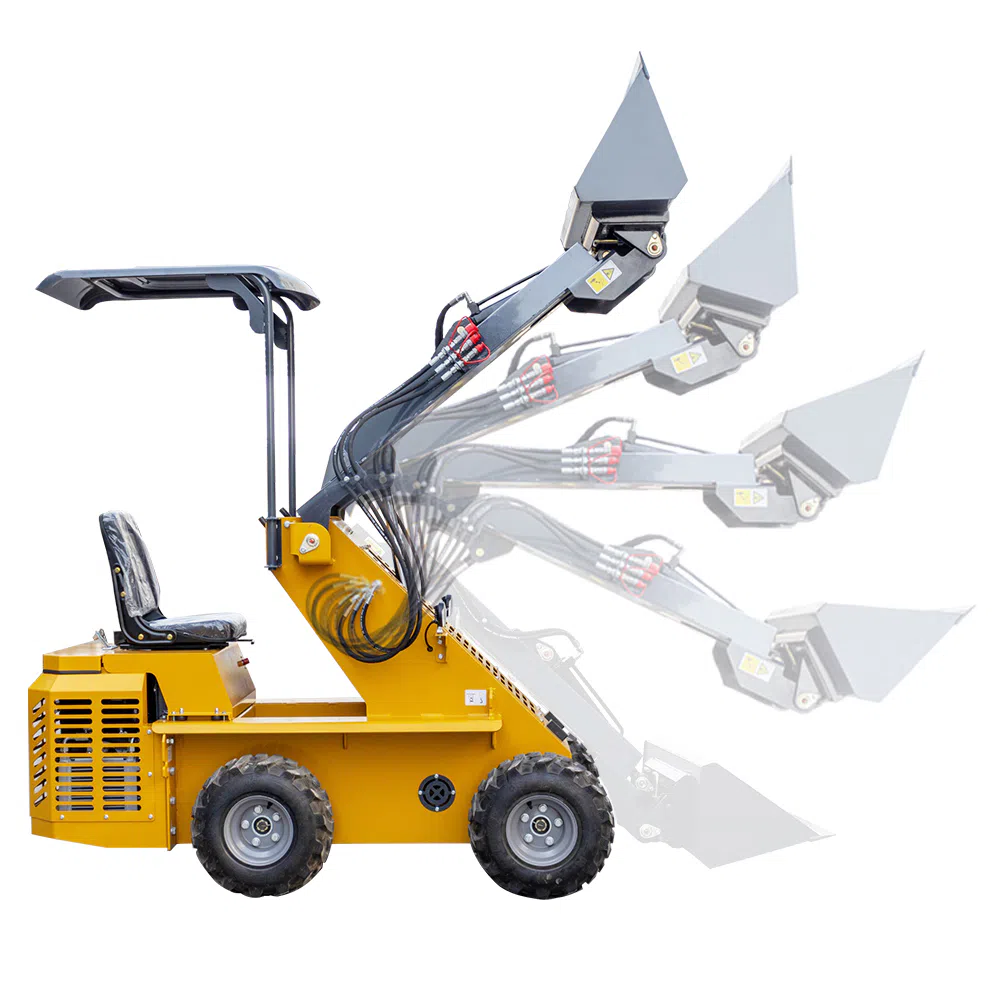

Hightop Small Skid Steer With Ride-On Operation HTHY800 Introduction
The HIGHTOP small skid steer loader with ride-on operation is designed for users who need a compact machine with convenient driving control, flexible movement, and reliable loading performance in limited working areas. Compared with walk-behind skid steer loaders, the ride-on design provides operators with a more comfortable working position, better visibility, and easier control during continuous operation.
Powered by a reliable engine system and equipped with a compact chassis structure, this small skid steer loader delivers practical performance for material handling, landscaping, construction preparation, farm maintenance, and other light-duty applications. The ride-on operator platform reduces fatigue during long working hours while improving operating efficiency.
The machine features a front-mounted bucket system with hydraulic control, allowing operators to complete loading, lifting, leveling, and material transportation tasks efficiently. With its small body size and flexible steering capability, this mini skid steer loader can work in narrow spaces where larger equipment cannot easily access.
For customers looking for different compact construction equipment solutions, HIGHTOP also provides various mini excavators and compact machinery options to meet different project requirements. You can explore our mini excavator products for more machine choices.
The small skid steer loader is suitable for contractors, landscapers, farmers, rental companies, and property maintenance teams who need a reliable compact loader with simple operation and easy transportation.
HTHY800 Small Skid Steer With Ride-On Operation Parameters
| Parameter | Value |
|---|---|
| Model | HT‑L28 |
| Max Lifting Height | 3350 mm |
| Maximum Pin Height | 2680 mm |
| Dumping Height of Main Boom (dumping angle 45°) | 2000 mm |
| Dumping Reach of Main Boom | 1240 mm |
| Max. Loading Capacity of Main Boom | 800 kg |
| Lifting Height of Small Boom | 2680 mm |
| Dumping Height of Small Boom (dumping angle 45°) | 2300 mm |
| Max. Loading Capacity of Small Boom | 600 kg |
| Overall Length (bucket on ground position) | 3380 mm |
| Overall Width | 1240 mm |
| Overall Height | 2250 mm |
| Wheel Base | 1360 mm |
| Tread | 20 mm |
| Min. Ground Clearance | 190 mm |
| Turning Radius | 2600 mm |
| Tire Model | 23*8.5‑12 |
| Carrying Capacity | 500 kg |
| Bucket Volume | 0.3 m³ |
| Max. Speed | 12 km/h |
| Net Weight | 1446/1552 kg |
| Working Weight | 2000 kg |
| Gradeability | 30% |
| Engine Model | Rato739 / Briggs&Stratton3864 / Honda GX690 / Kubota D1105 |
| Engine Type | Gasoline engine, Air cooled / Diesel oil, Water cooled |
| Rated Power | 23HP / 18.2kW |
| Rated Speed | 3600/3000 rpm |
| Max. Torque | 71.5 |
| Speed at Max. Torque | 2200 rpm |
| Number of Cylinders | 2/3 |
| Displacement | 739/627/690/1123 ML |
| Rated Fuel Consumption | 240 g/kW·h |
| System Pressure | 25 MPa |
| Pump Pressure | 31 MPa |
| Driving | 4 wheel drive |
| Steering Type | All hydraulic steering |
| Brake Drum Diameter | 300 |

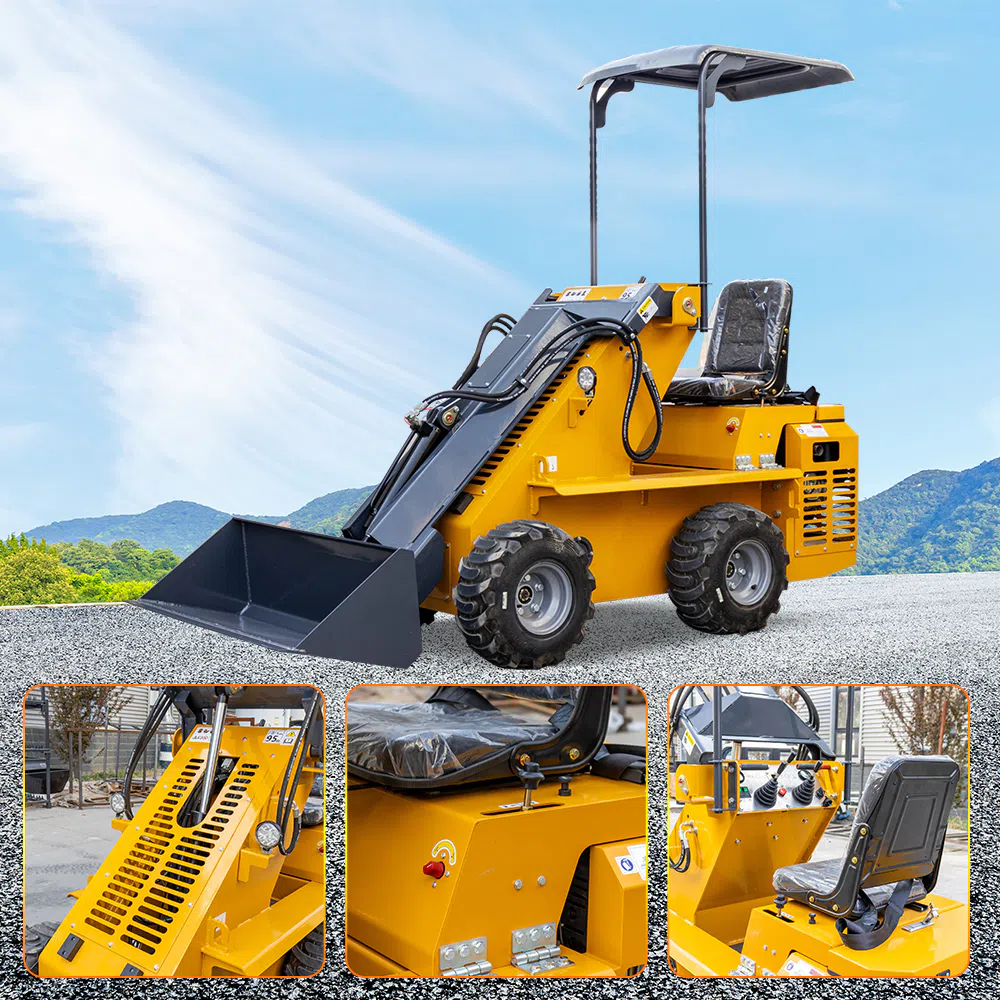

Small Skid Steer With Ride-On Operation HTHY800 Images

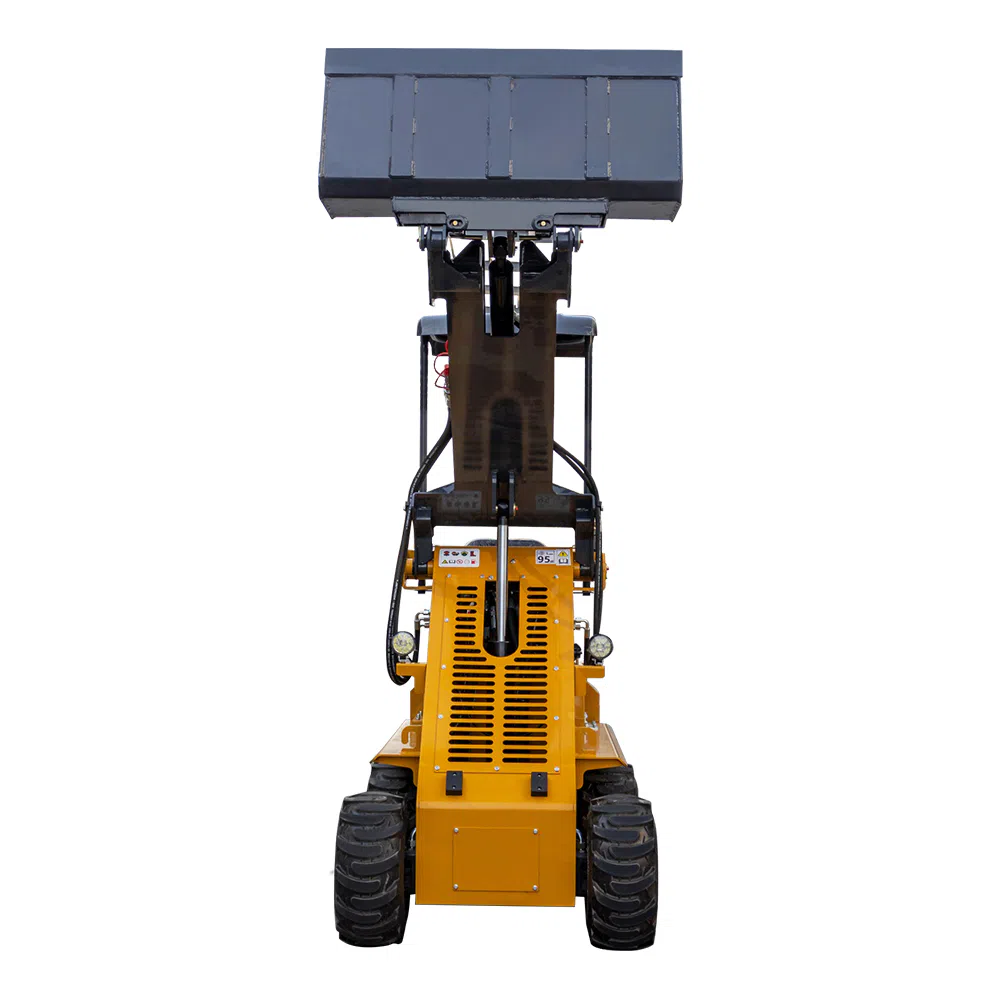

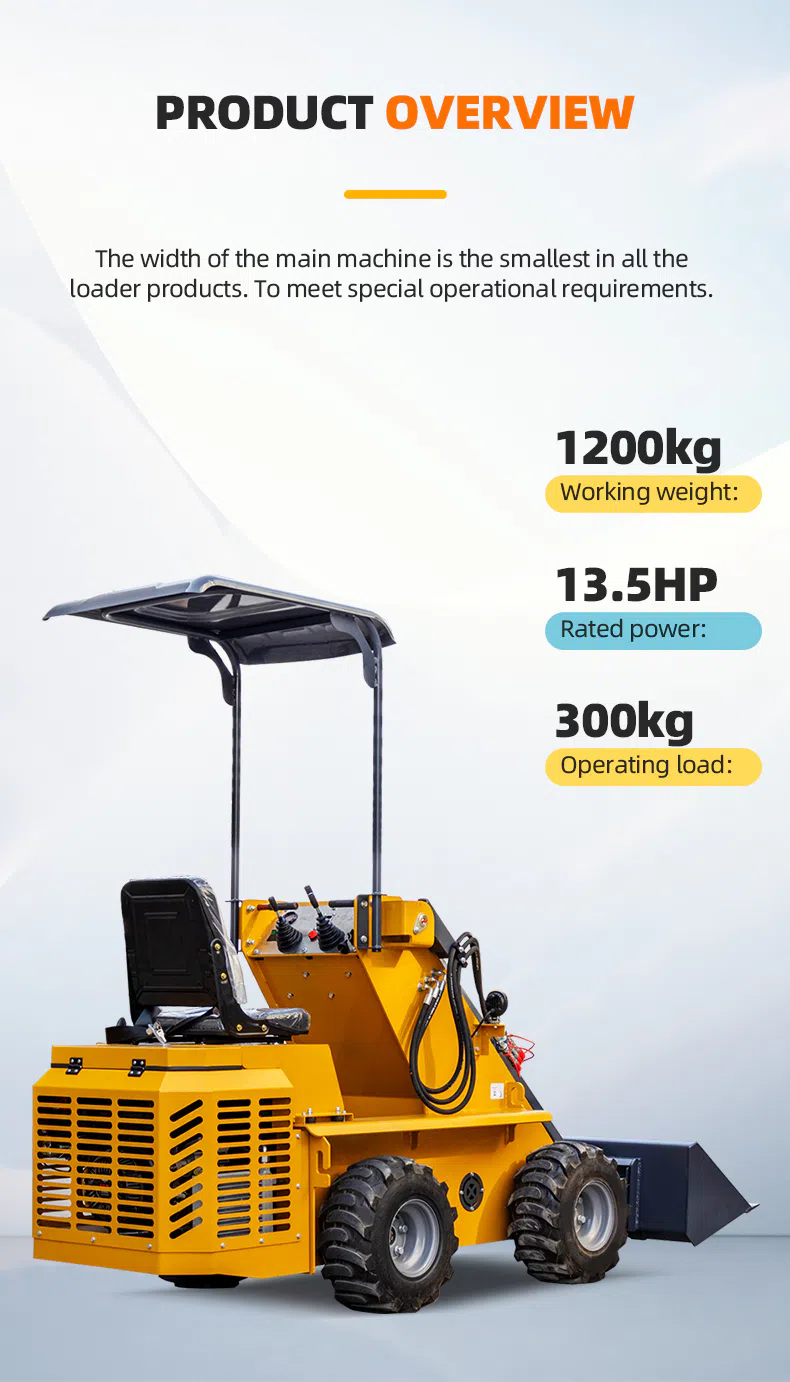

The width of the main machine is the smallest in all theloader products. To meet special operational requirements.
Slip loader is a loading and unloading mechanical equipment withmobile function, it can use the slip device to rotate and move,transfer goods or materials from one position to another position, isthe upgrade of traditional loading and unloading equipmentproducts.

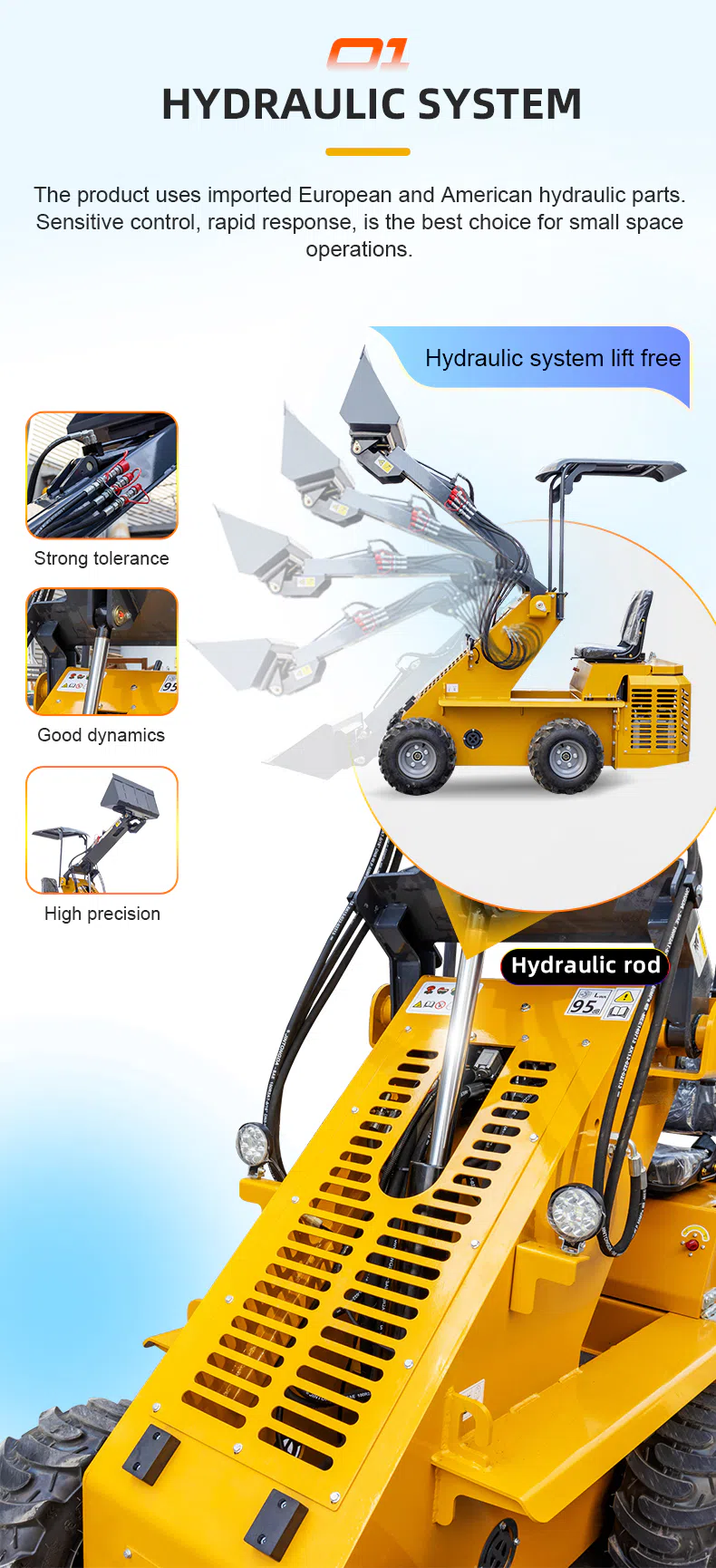

The product uses imported European and American hydraulic parts.Sensitive control, rapid response, is the best choice for small spaceoperations.

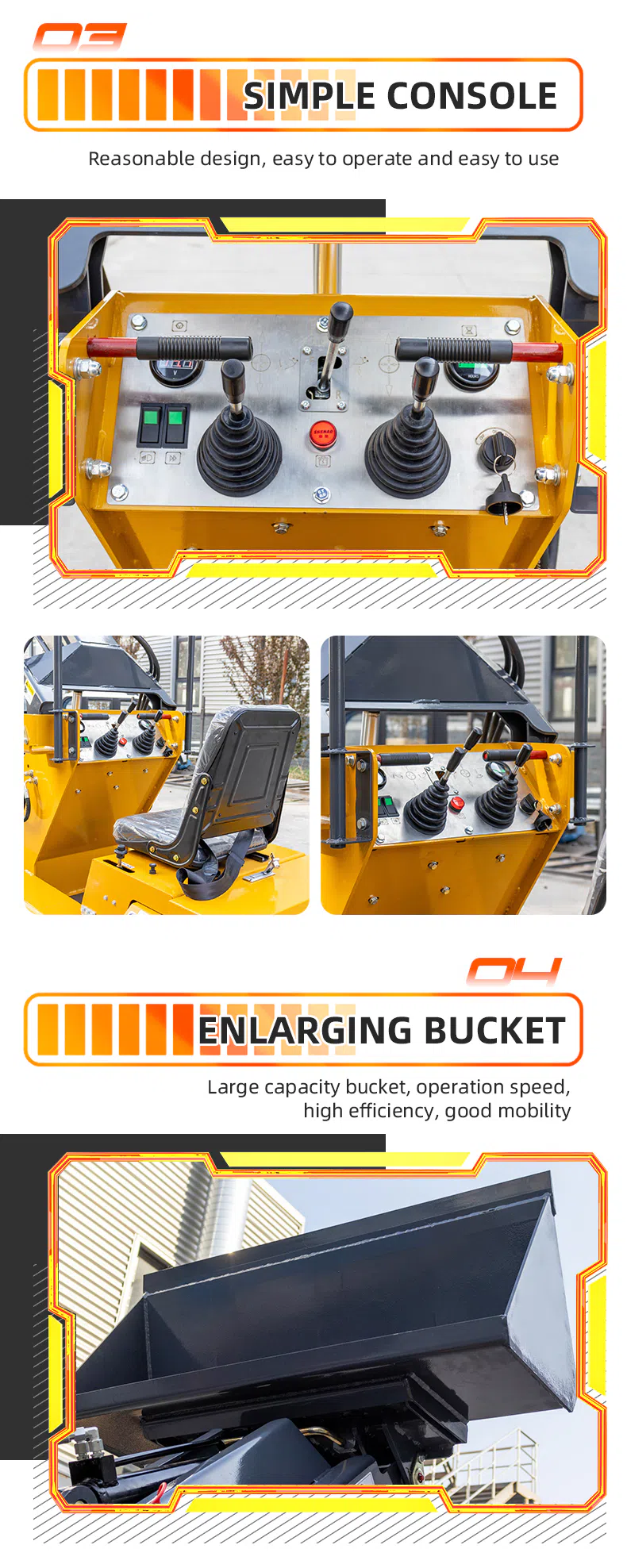

Reasonable design, easy to operate and easy to use

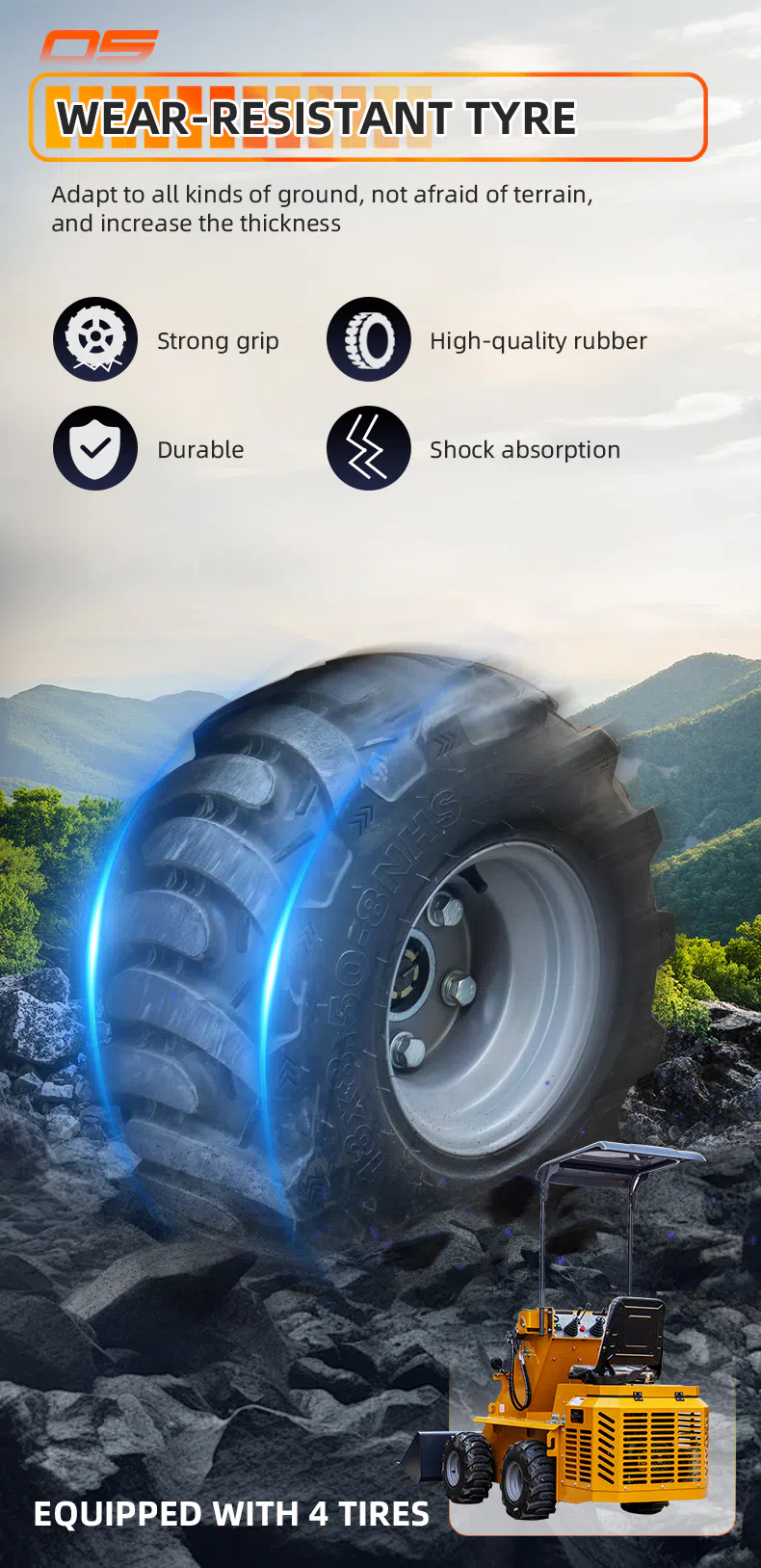

WEAR-RESISTANT TYRE:Adapt to all kinds of ground, not afraid of terrain,and increase the thickness
Small Skid Steer With Ride-On Operation HTHY800 Applications
Landscaping and Garden Maintenance
This small skid steer loader is suitable for landscaping projects, including soil preparation, garden renovation, material transportation, and vegetation maintenance. Its compact size allows it to enter residential gardens and narrow landscape areas.
Farm and Agricultural Work
The machine can be used for farm maintenance tasks such as moving feed, transporting soil, cleaning livestock areas, and handling agricultural materials.
Construction Site Assistance
For small construction projects, the ride-on skid steer loader can assist with loading sand, gravel, bricks, and other materials. It is suitable for site preparation, cleanup work, and general material handling.
Property and Municipal Maintenance
The compact loader is useful for property maintenance, road-side cleaning, snow removal, and other daily maintenance operations.
Rental and Small Contractor Projects
Due to its simple operation and transportation convenience, this machine is suitable for rental businesses and small contractors who need flexible equipment for different job sites.
HIGHTOP Service Support
HIGHTOP provides professional support for global customers, including equipment selection guidance, customized configuration recommendations, spare parts supply, and technical assistance.
Before purchase, our team can help customers choose suitable machine specifications and attachments according to working conditions.
For international orders, HIGHTOP supports export services, including machine inspection, packaging, transportation coordination, and after-sales communication.
We provide long-term technical support and spare parts assistance to help customers maintain stable machine operation.
Small Skid Steer With Ride-On Operation HTHY800 Frequently Asked Questions
1. What is the difference between a small skid steer loader and a walk-behind skid steer?
A ride-on skid steer loader allows the operator to sit on the machine and control driving and working functions directly. It provides better comfort and is more suitable for longer working periods.
2. What jobs can this small skid steer loader do?
It can be used for material loading, soil moving, landscaping, farm maintenance, construction assistance, and property maintenance.
3. Can the skid steer loader use different attachments?
Yes. According to working requirements, different attachments such as buckets, forks, and sweepers can be installed to expand machine functions.
4. Is this machine suitable for narrow spaces?
Yes. The compact structure and flexible steering system make it suitable for small yards, gardens, farms, and restricted working areas.
5. Does HIGHTOP provide spare parts and technical support?
Yes. HIGHTOP provides spare parts supply and technical support for overseas customers to ensure long-term machine operation.
