Hightop Skid Steer Loader With Compact Size HT530T Introduction
The HIGHTOP HT530T skid steer loader is a compact tracked loader designed for construction, landscaping, agriculture, material handling and other small-scale engineering projects where working space is limited. With a compact body width of 1050mm and a maximum working height of 2630mm, the HT530T can access narrow areas such as entrances, gates and indoor working environments while maintaining practical lifting performance.
Powered by a reliable Kubota D1105 engine with 14kW rated power, the HT530T mini skid steer loader provides stable power output and efficient hydraulic performance for daily loading and handling operations. The machine features a 0.2m³ bucket capacity, 450kg rated operating load and 530kg maximum lifting force, making it suitable for moving soil, gravel, sand, construction materials and agricultural products.
Compared with traditional large loaders, the HT530T compact skid steer loader focuses on flexibility and accessibility. Its rubber track system provides stable movement on uneven ground, while the 360-degree in-place turning capability helps operators work efficiently in confined areas. This makes the HT530T an ideal choice for customers looking for a small skid steer loader with reliable performance and easy operation.
For customers who need different compact construction equipment solutions, HIGHTOP also provides a range of mini excavators and compact loaders to meet different project requirements. You can explore more products through our related mini excavator solutions and compact machinery categories.
HT530T Skid Steer Loader With Compact Size Parameters
| Parameter | Value |
|---|---|
| Model | HT530T |
| Engine | RATO R740 |
| Rated Power | 17 KW |
| Rotating Speed | 3600 rpm |
| Max Working Height | 2420 mm |
| Max Pin Height | 2085 mm |
| Max Dumping Height | 1580 mm |
| Max Dumping Distance | 755 mm |
| Max Dumping Angle | 29° |
| Total Height | 1630 mm |
| Ground Clearance | 150 mm |
| Overall Length Without Bucket | 2220 mm |
| Total Width | 1070 mm |
| Bucket Width | 1150 mm |
| Total Length With Bucket | 2725 mm |
| Overall Length Without Bucket After Folding the Pedal | 2055 mm |
| Noise | ≤95 dB |
| Pressure | 0‑17 MPa |
| Flow Rate | 0‑36 L |
| Operating Load | 380 kg |
| Bucket Capacity | 0.2 m³ |
| Max Lifting Force | 500 kg |
| Travel Speed | 0‑4.5 km/h |
| Fuel Tank | 30 L |
| Engine Oil | 1.5 L |
| Hydraulic Tank | 35 L |

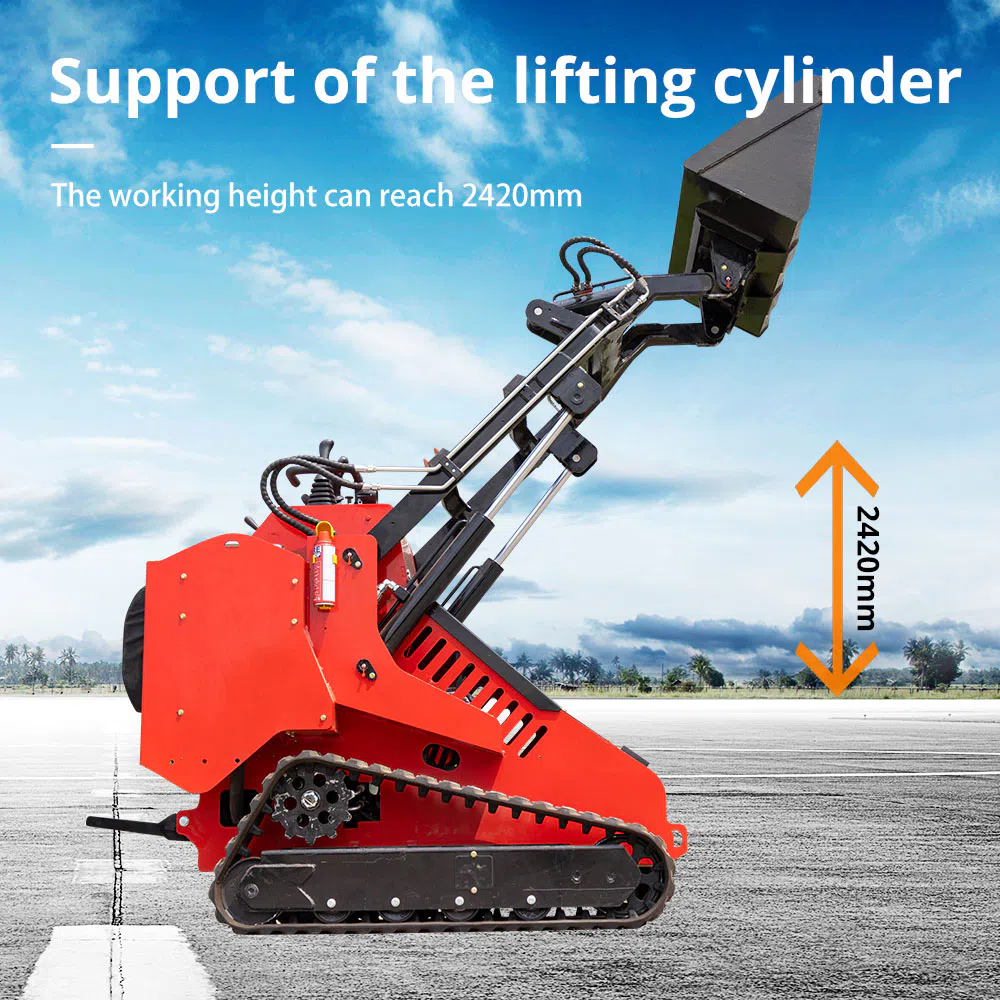

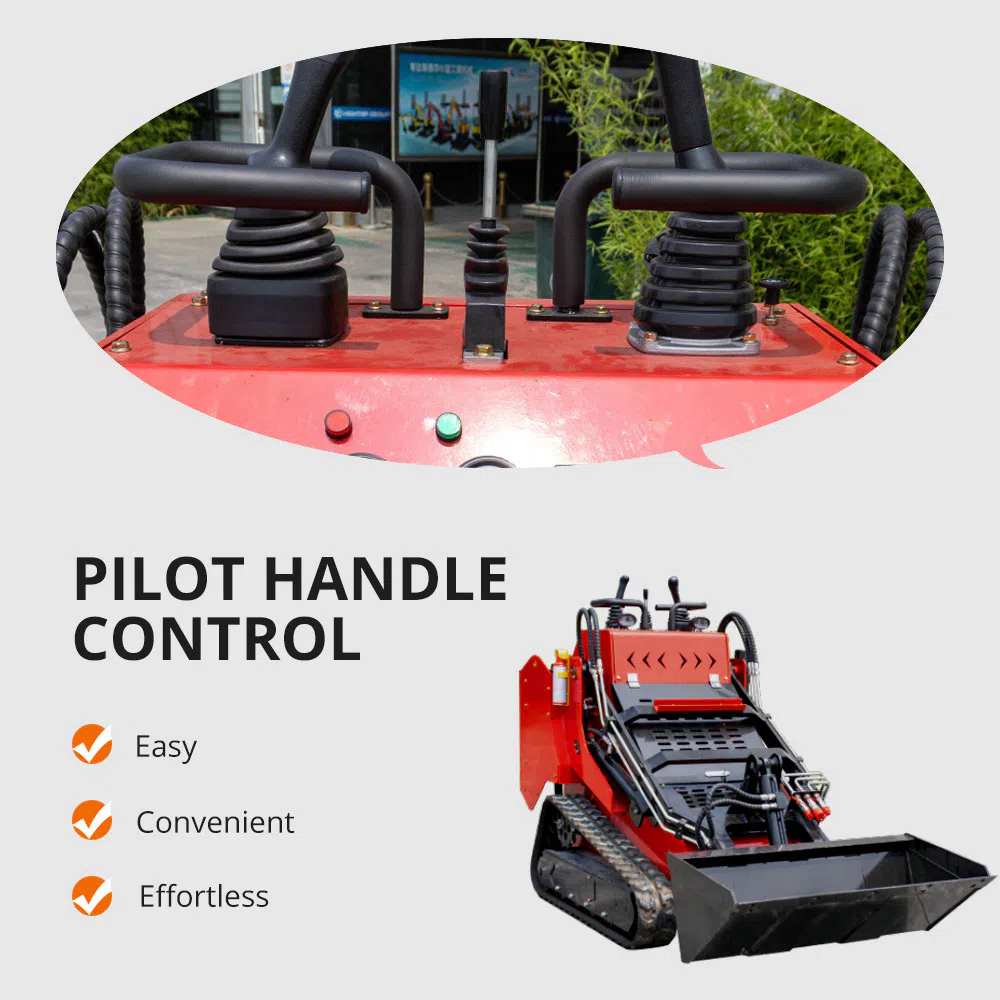

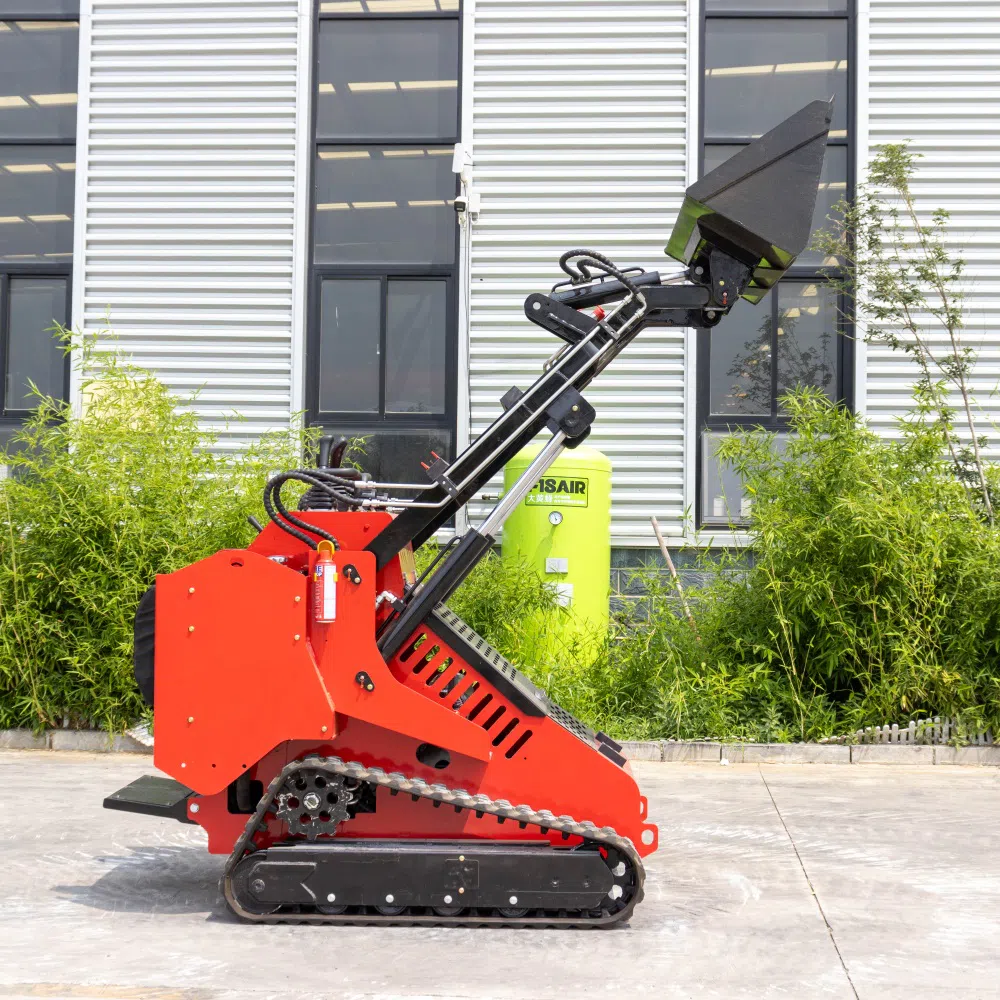

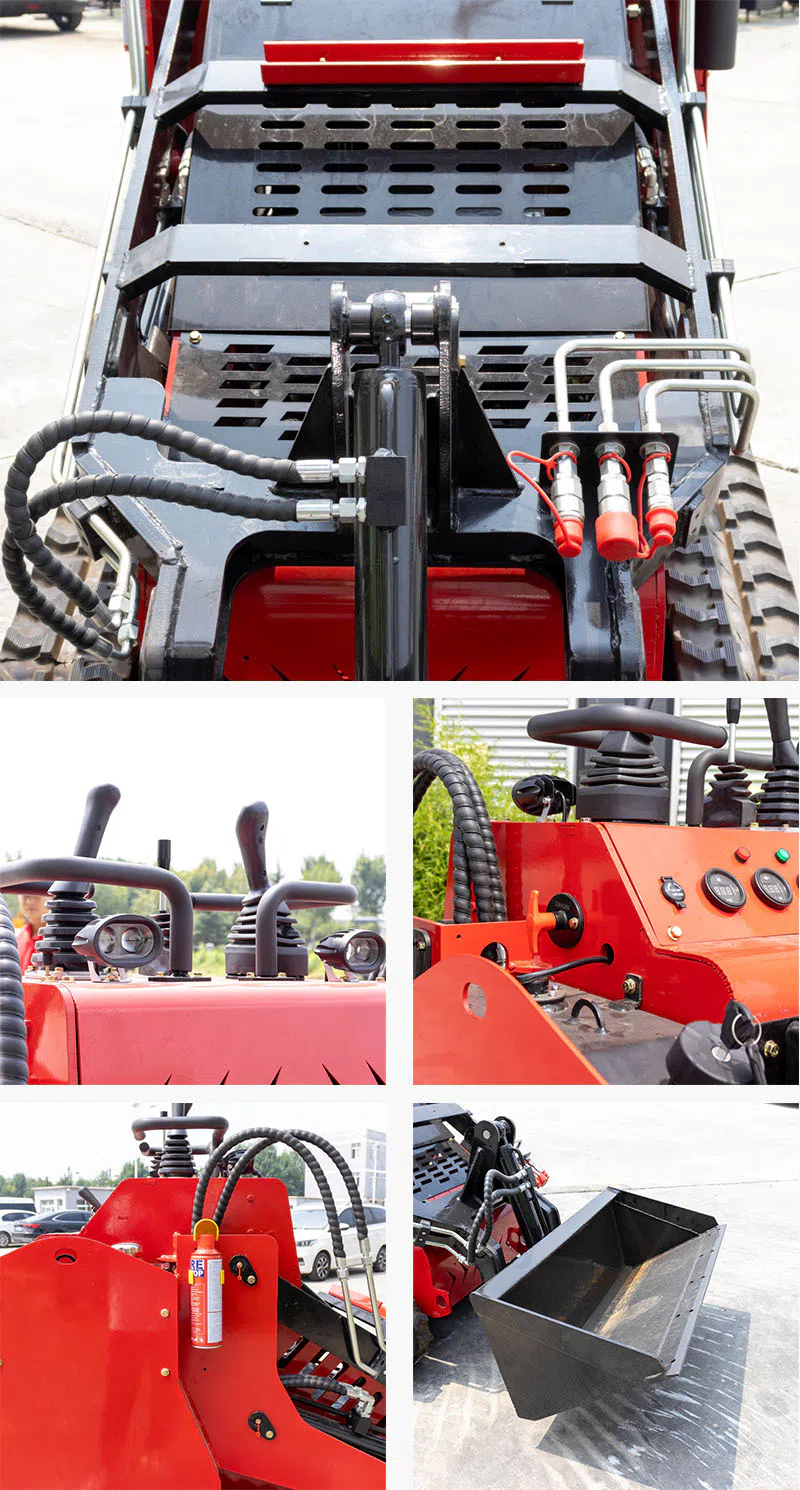

Skid Steer Loader HT530T With Compact Size Picture
HIGHTOP Service Support
HIGHTOP provides complete support for HT530T skid steer loader customers from equipment selection to after-sales service.
Before purchase, our professional team helps customers choose suitable machine configurations according to working conditions, application requirements and attachment needs. We can provide technical specifications, operation guidance and customized solutions for different markets.
During production, HIGHTOP follows strict manufacturing standards and performs quality inspections on key components including the hydraulic system, engine system and structural parts to ensure reliable machine performance.
After delivery, we provide technical support, operation instructions, maintenance guidance and spare parts assistance. If customers encounter equipment problems, our technical team can provide online troubleshooting support and practical solutions to help reduce downtime.
As a compact machinery manufacturer, HIGHTOP also supports OEM/ODM cooperation, customized colors, logos and machine configurations according to customer requirements.
Skid Steer Loader With Compact Size HT530T Frequently Asked Questions
1. What is the lifting capacity of the HT530T skid steer loader?
The HT530T has a rated operating load of 450kg and a maximum lifting force of 530kg, making it suitable for small and medium material handling operations.
2. What engine does the HT530T use?
The standard engine is Kubota D1105 with 14kW rated power. Different engine options can be discussed according to market requirements.
3. Can the HT530T work in narrow spaces?
Yes. The compact structure and 1050mm width allow the machine to operate in narrow areas such as small construction sites, gardens, entrances and indoor environments.
4. What attachments can be used with this mini skid steer loader?
The HT530T can work with different attachments depending on application requirements, including buckets and other hydraulic attachments for loading, cleaning and material handling.
5. Is the HT530T suitable for uneven terrain?
Yes. The rubber track system provides improved traction and stability on soft ground, gravel surfaces and uneven working conditions.
