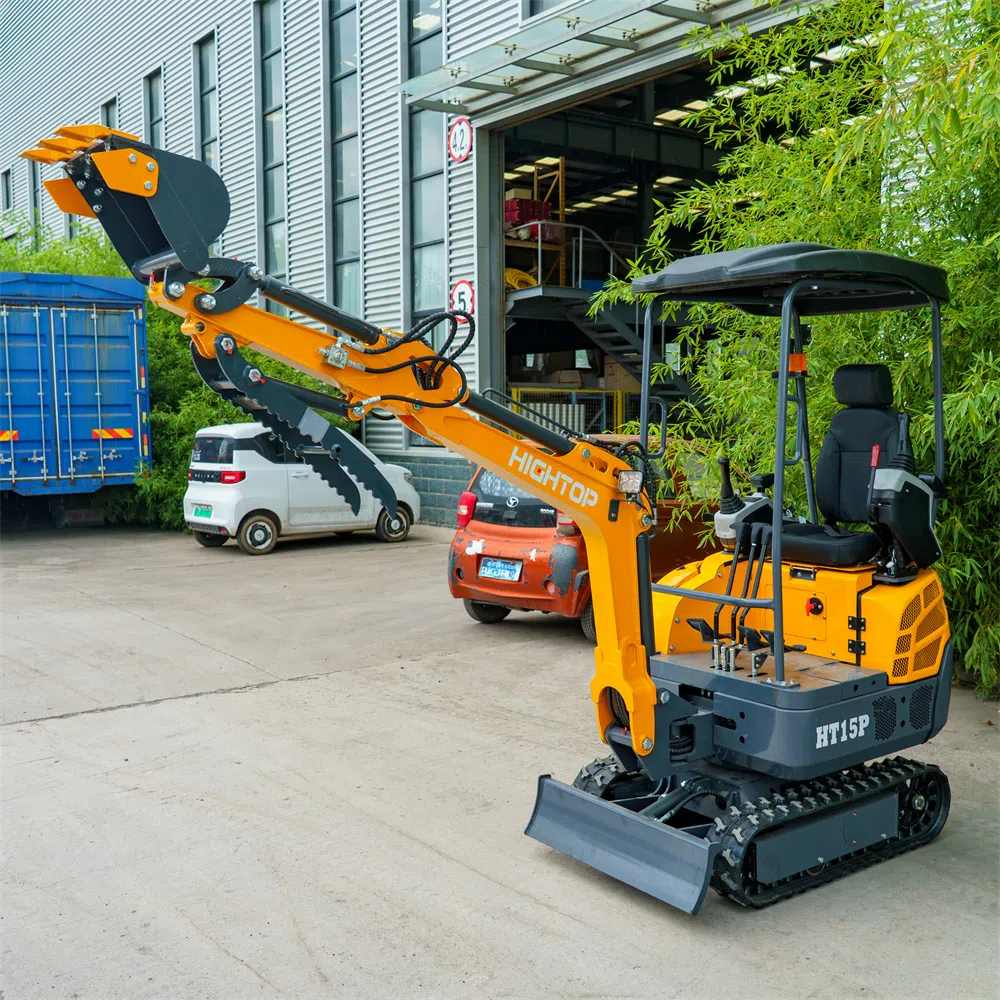

1.5 Ton Mini Excavator HT15Pro Key Features
- Two Factory Options, Four Configurations Order the HT15 Pro as a base fixed-track machine, add the retractable track frame, add the enclosed cab, or take both. One platform covers four configuration permutations — no dealer-side modification required.
- Kohler or Briggs & Stratton Gasoline Engine Proven fuel system, low up-front cost, simple maintenance. Engine selection is a build-time option based on your local parts availability and operator preference.
- Optional Retractable Track Frame Retract for narrow gates and greenhouse aisles; extend for wider stance on slopes and rough ground. The hydraulic geometry stays the same — only the width changes.

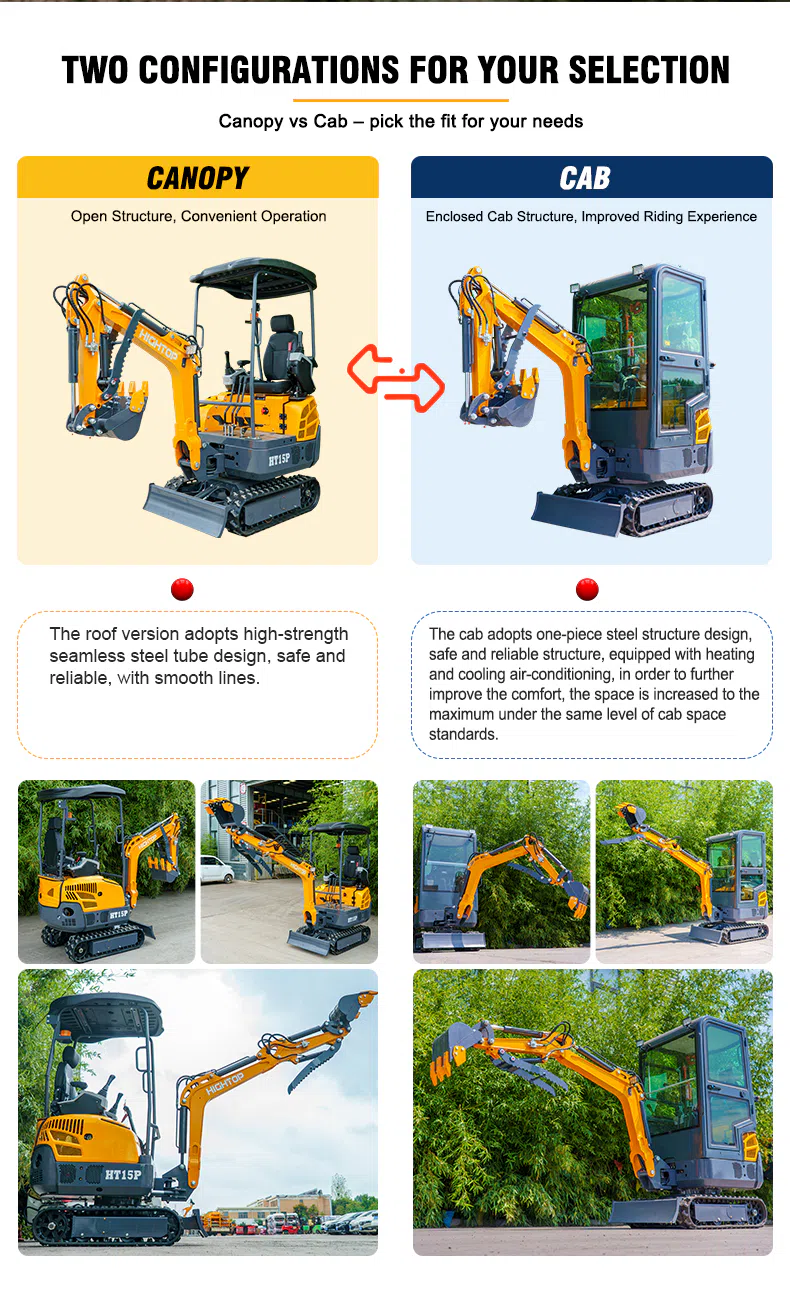

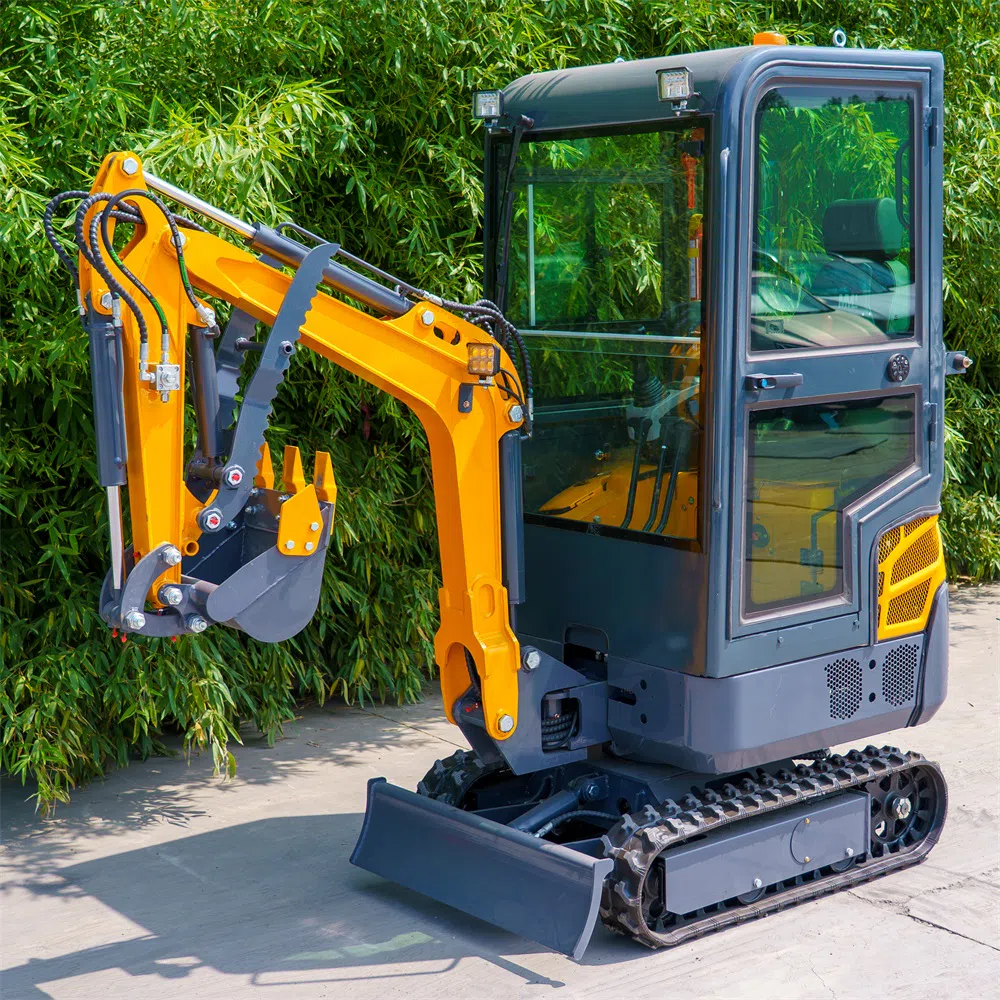

- Optional Enclosed Cab The factory-installed cab extends working seasons into cold winters, hot summers, and dusty demolition sites. Heater-ready with optimized ventilation and reduced operator-side noise.
- 800 mm Tail Swing, Zero-Rear-Clearance Digging The 800 mm tail radius keeps the rear of the upperstructure within the track footprint — dig against walls, fences, and foundations without rear swing clearance.
- 1,710 mm Dig Depth, 2,920 mm Reach Real backhoe geometry in a 1.5 ton class package — not a scaled-down toy. Supports residential foundations, utility trenching, and irrigation line installation.
- Standard Dozer Blade (110 mm Lift / 200 mm Cut) Backfill trenches, push spoil, and grade surfaces without swapping attachments. Saves cleanup time and reduces the number of machines on a small job.
- 30° Climbing Grade & Even Track Pressure Crawl up sloped yards, enter excavated pits, and work on landscaped berms with confidence. Track design distributes weight evenly to protect lawns and finished surfaces.

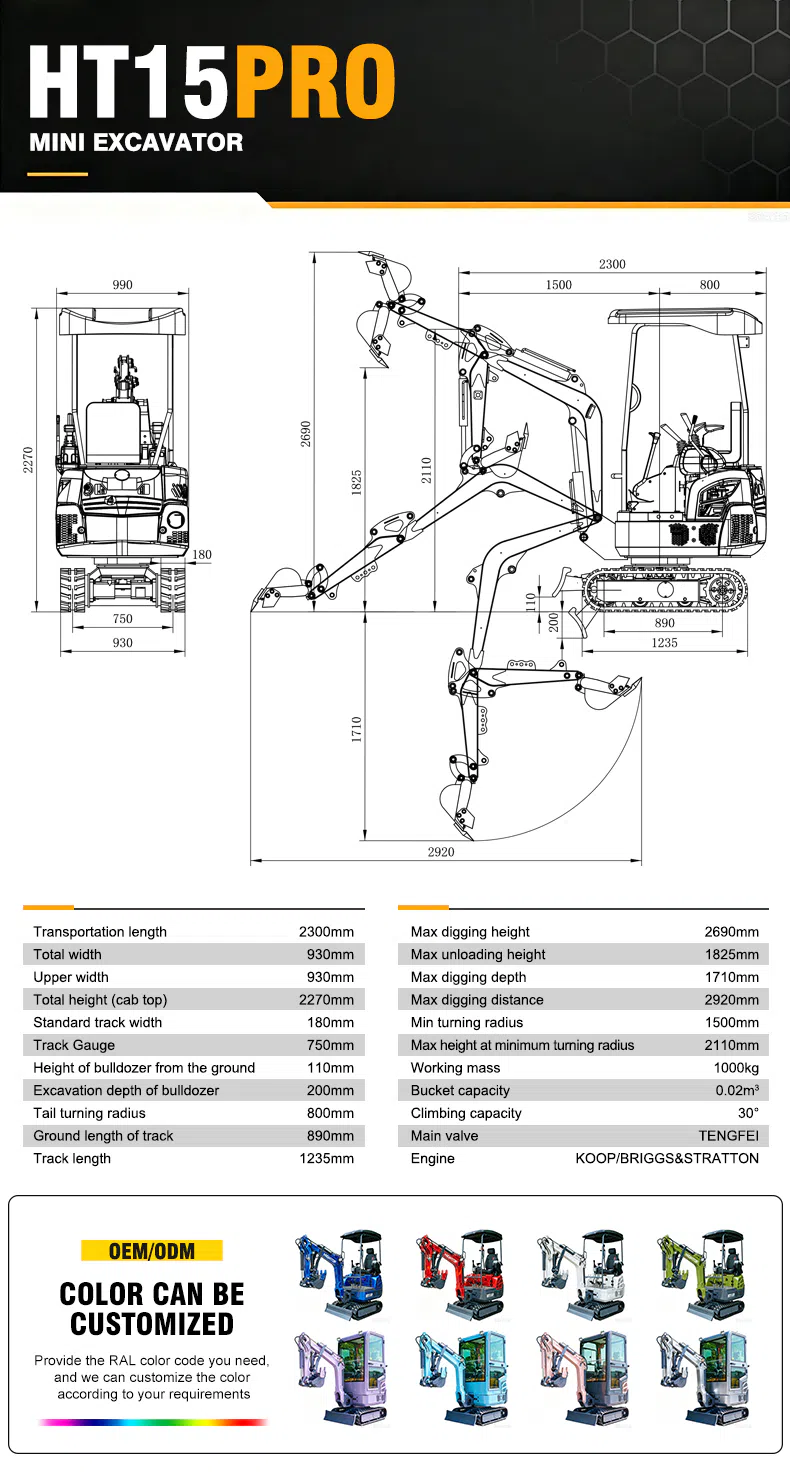

1.5 Ton Hightop Mini Excavator HT15Pro Parameters
| Parameter | Value |
|---|---|
| Transportation length | 2300 mm |
| Total width | 930 mm |
| Upper width | 930 mm |
| Total height (cab top) | 2270 mm |
| Standard track width | 180 mm |
| Track Gauge | 750 mm |
| Height of bulldozer from the ground | 110 mm |
| Excavation depth of bulldozer | 200 mm |
| Tail turning radius | 800 mm |
| Ground length of track | 890 mm |
| Track length | 1235 mm |
| Max digging height | 2690 mm |
| Max unloading height | 1825 mm |
| Max digging depth | 1710 mm |
| Max digging distance | 2920 mm |
| Min turning radius | 1500 mm |
| Max height at minimum turning radius | 2110 mm |
| Working mass | 1000 kg |
| Bucket capacity | 0.02 m³ |
| Climbing capacity | 30° |
| Main valve | TENGFEI |
| Engine | KOOP/BRIGGS&STRATTON |

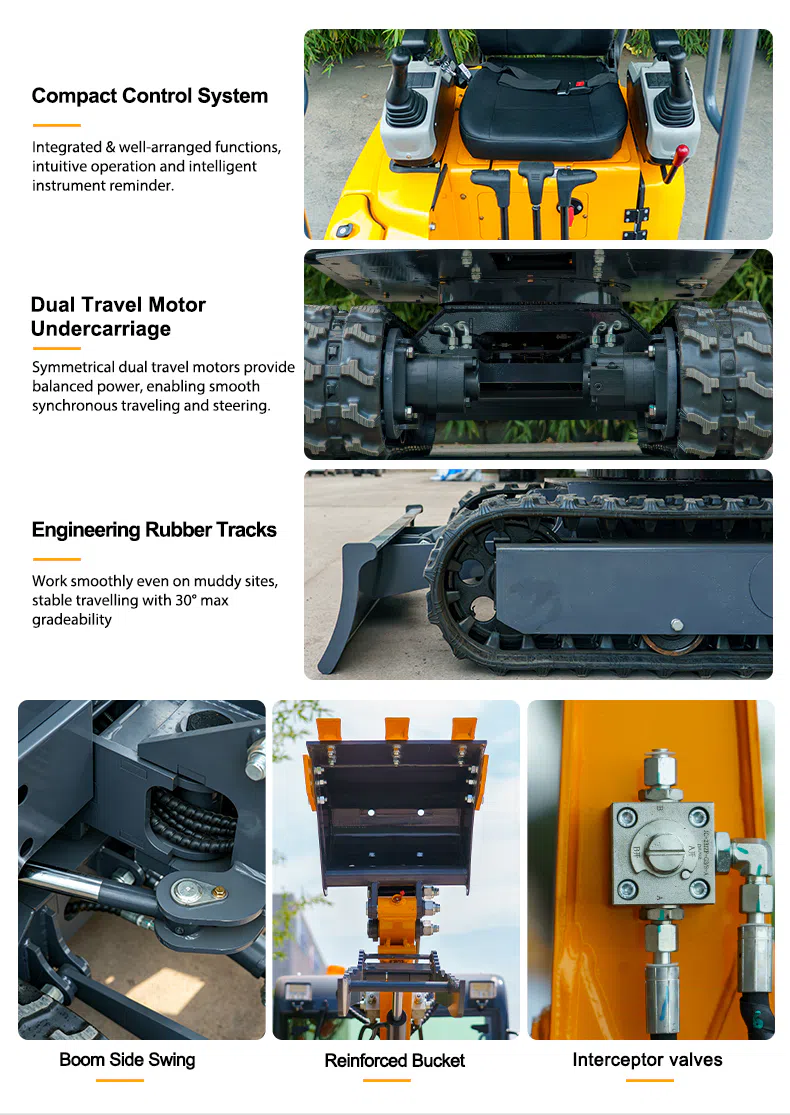

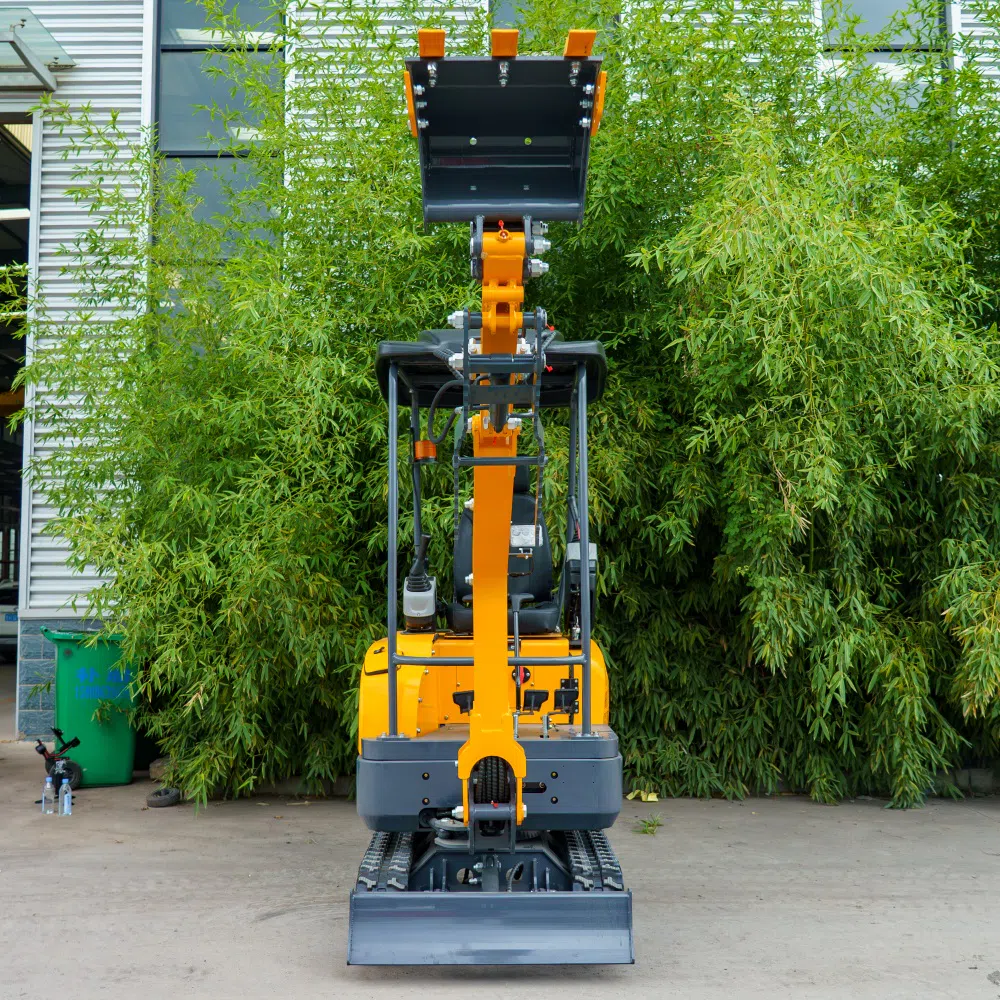

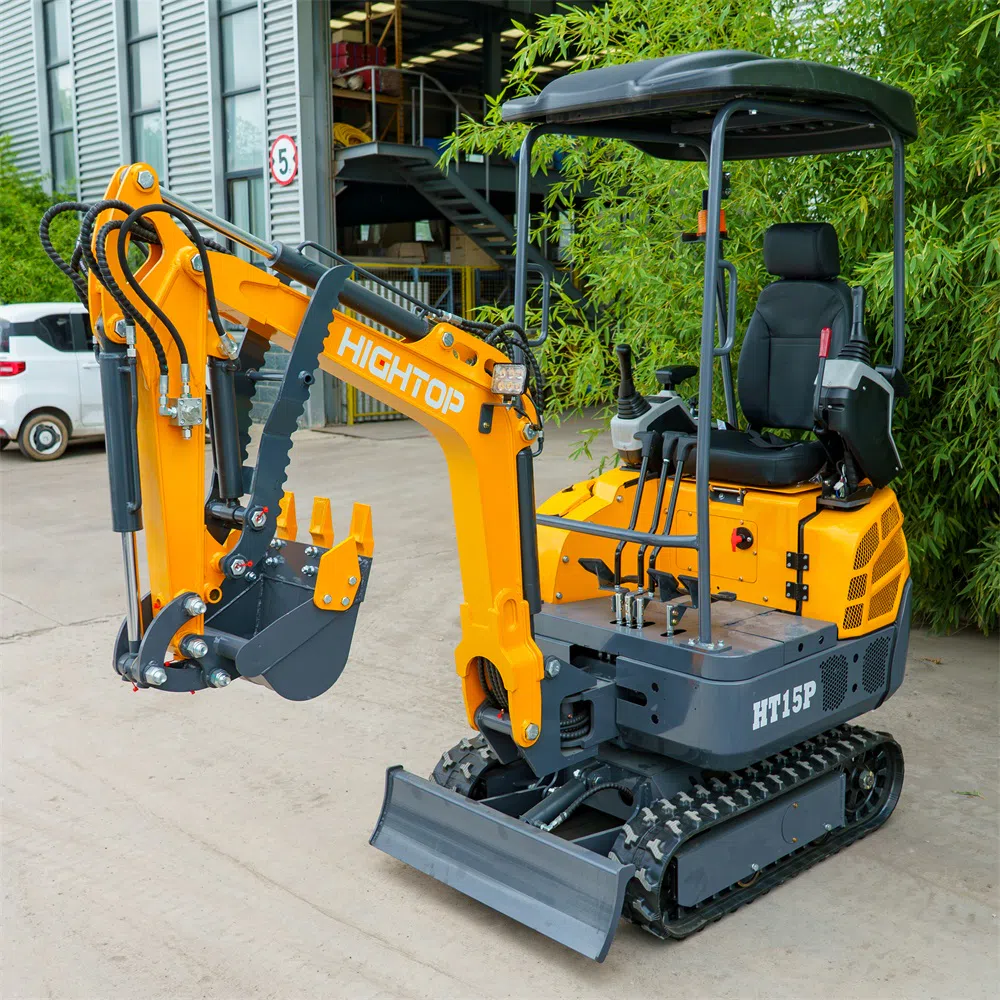

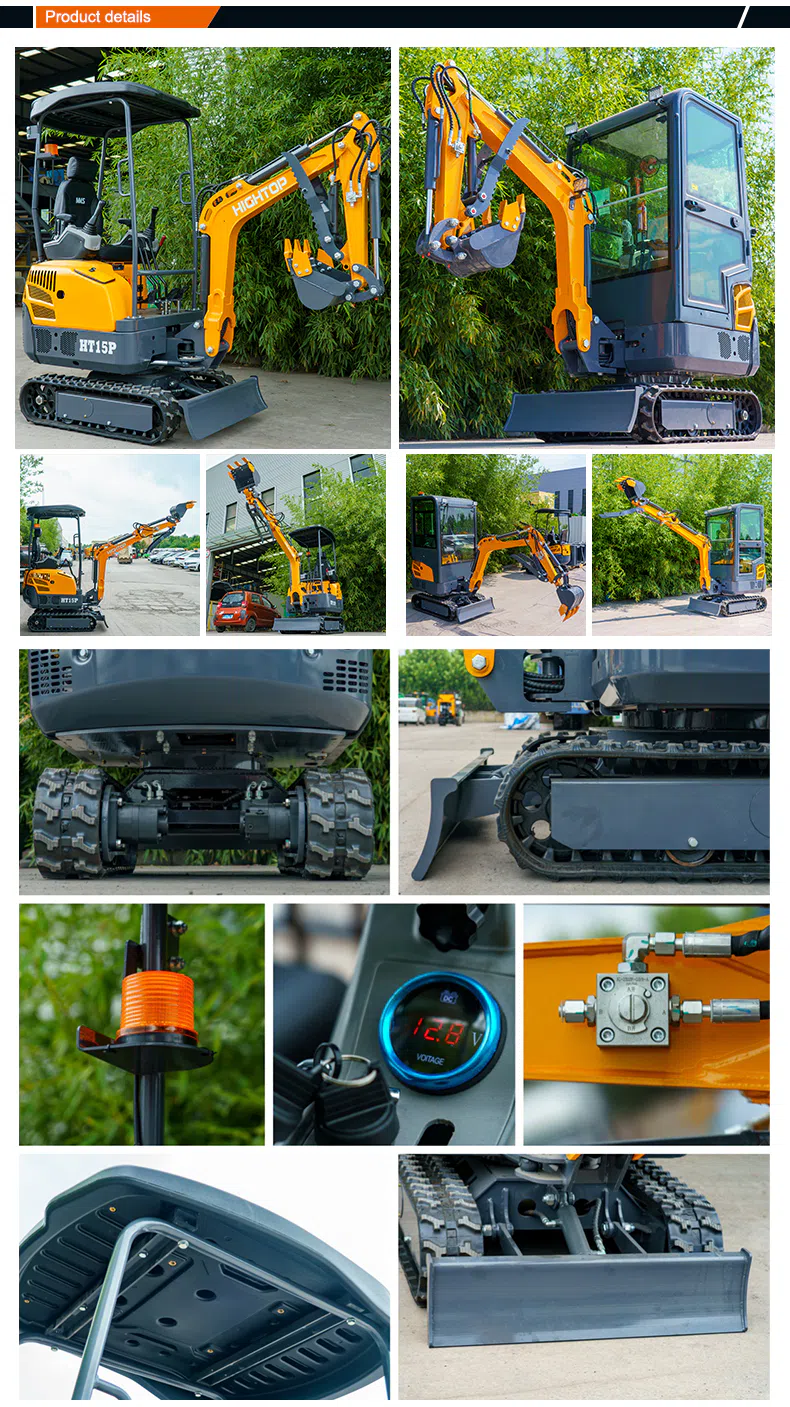

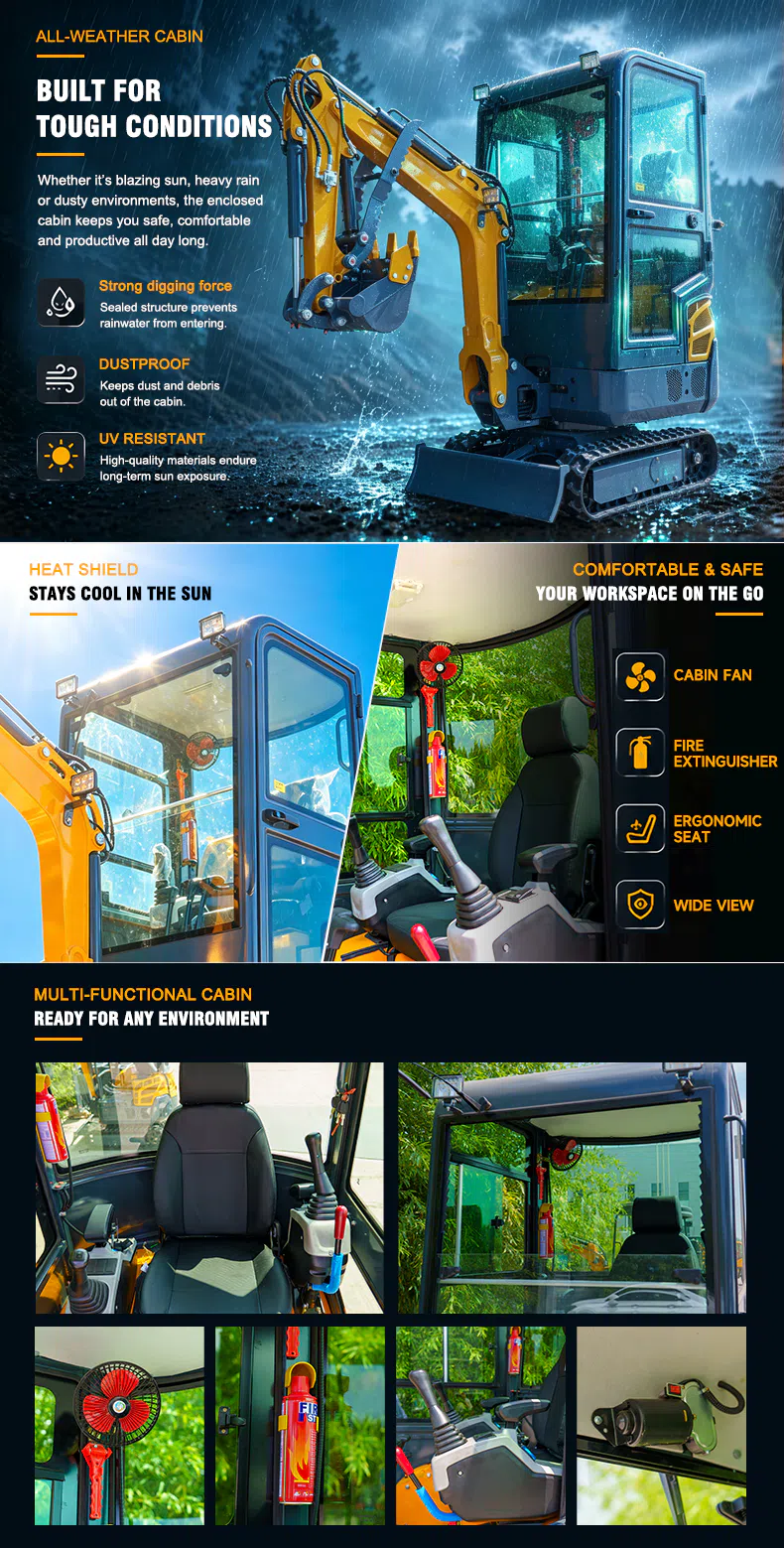

1.5 Ton Mini Excavator HT15Pro Pictures
1.5 Ton Mini Excavator HT15Pro Applications
- Residential Landscaping & Hardscaping — Dig footings, lay irrigation, and grade patios in backyards with sub-1-meter gates. The optional retractable track adjusts width per access.
- Greenhouse & Nursery Operations — The 930 mm total width fits greenhouse aisles; the optional enclosed cab reduces on-site noise for plant-friendly operations.
- Cold-Climate & Year-Round Operation — With the optional enclosed cab (heater-ready), the HT15 Pro deploys through long winters in northern climates without cold-start complications.
- Rental Fleets & Contractor Pools — Four configuration permutations on a single platform let rental companies and contractors stock one SKU with multiple working widths and operator-station options.
- Demolition & Site Prep — 1,710 mm dig depth and a standard dozer blade support footing demolition, small structure removal, and trench backfill in tight lots.
- Indoor & Noise-Sensitive Sites (Cross-Power Reference) — For interior renovation, basement excavation, hospital and school sites, or night-shift municipal projects where combustion engines are restricted, see the HT15 Pro-Li lithium version on the same chassis with the same options.
Shandong Hightop Group Service & Support
1. Four-in-One Factory Configuration Every HT15 Pro ships as a single-platform machine with two factory options (retractable track frame, enclosed cab). Order any combination — base, retractable only, cab only, or both — and we confirm the build list in writing before production. Your machine arrives jobsite-ready, no dealer-side modification required.
2. Engine Selection at Build Time Choose between Kohler and Briggs & Stratton gasoline engines based on local parts availability, emission regulations, and operator preference. Both engines deliver the same hydraulic performance envelope.
3. Cross-Power Reference to HT15 Pro-Li For projects restricted from internal-combustion engines — interior renovation, greenhouse work, hospital and school sites, night-shift municipal jobs — Hightop's HT15 Pro-Li runs the same chassis, options, and geometry on a 72V 150Ah lithium platform with a 6.5 kW PMSM drive. Lithium and gasoline versions share spare parts for hydraulics, undercarriage, and operator station.
4. Container Loading for International Shipping At 2,300 × 930 × 2,270 mm (L×W×H), the HT15 Pro loads efficiently into 20-foot containers. We provide container-loading diagrams, lashing points, and recommended securing methods. Multiple units per container significantly reduce per-unit ocean freight.

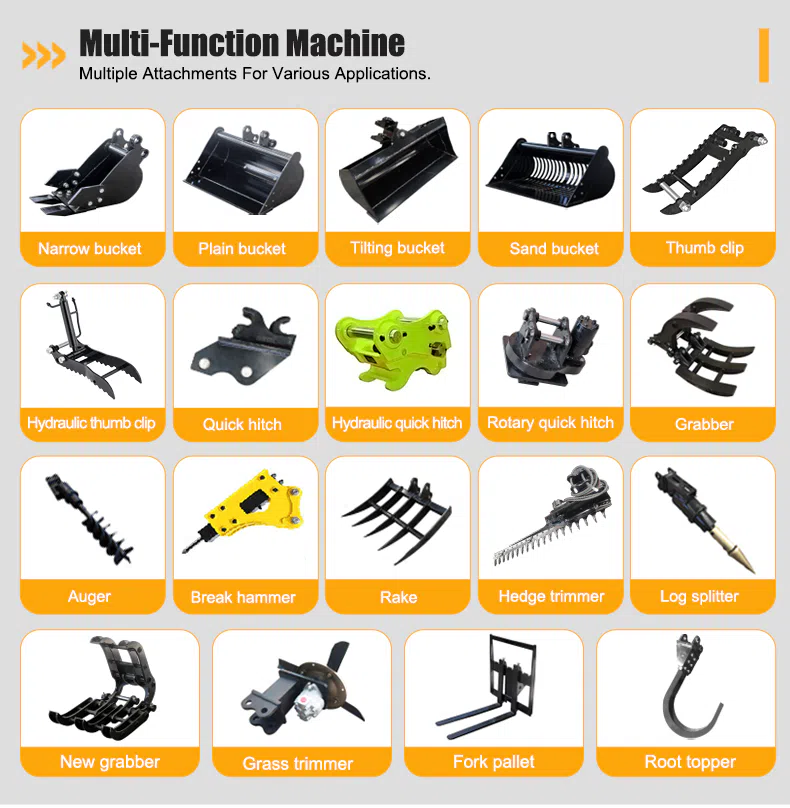

5. Compatibility with Mini Excavator Attachments The HT15 Pro shares quick-hitch interfaces with Hightop's full mini excavator attachments range — narrow buckets, hydraulic breakers, augers, tilt buckets, rippers, rakes, rotary grapples, and more. One platform, multiple tools, zero downtime.
6. Warranty & Spare Parts 12-month comprehensive warranty on the complete machine. Critical wear parts (filters, seals, track rollers, hydraulic hoses) ship from regional warehouses with 3–5 day delivery. Extended warranty and fleet service contracts are available.
Common Problems With Ht15pro 1.5-ton Small Excavator
Q1: What configurations are available on the HT15 Pro?
A: Four configurations on one platform: (1) base fixed-track machine with open canopy, (2) base + retractable track frame, (3) base + enclosed cab, (4) base + both retractable track and enclosed cab. All configurations are factory-built and confirmed in writing before production.
Q2: Which engine comes on the HT15 Pro — Kohler or Briggs & Stratton?
A: Either. Build-time selection depends on your local parts availability and operator preference. Both engines deliver the same hydraulic power and operating envelope.
Q3: Can I order the HT15 Pro and add a cab or retractable track later?
A: Both options are factory-installed. Field retrofit is not standard practice. We strongly recommend specifying the configuration at order time to ensure correct hydraulic routing, electrical harness, and structural mounting.
Q4: How does the HT15 Pro compare to the HT15 Pro-Li?
A: The HT15 Pro is the gasoline version (Kohler / Briggs & Stratton) — lower up-front cost, traditional fuel system, suited to general outdoor jobsites. The HT15 Pro-Li is the lithium-electric version (72V 150Ah + 6.5 kW PMSM) — zero on-site emissions, near-silent operation, suited to indoor renovation, basements, and noise-sensitive sites. Both are 1.5 ton class machines sharing the same chassis, retractable track, enclosed cab options, and geometry.
Q5: Is the enclosed cab heated?
A: The cab is heater-ready. The heater unit itself is a configurable item — confirm with our sales team whether you need a heater unit included for your climate.
Q6: Can the HT15 Pro fit through a standard residential gate?
A: Yes. The base undercarriage is 930 mm wide, fitting through most garden gates, greenhouse doorways, and standard indoor doorways. Always measure your specific opening before delivery.
Q7: What is the warranty coverage?
A: 12-month comprehensive warranty covering the engine, hydraulics, undercarriage, and structural components. Wear parts (tracks, bucket teeth, filters) are covered for manufacturing defects. Extended warranty packages are available for fleet customers.
Q8: What attachments are compatible with the HT15 Pro?
A: The HT15 Pro uses Hightop's standard quick-hitch system. Compatible attachments include narrow buckets, hydraulic breakers, augers, tilt buckets, rippers, rakes, rotary grapples, and more. Contact us for a full compatibility chart.
