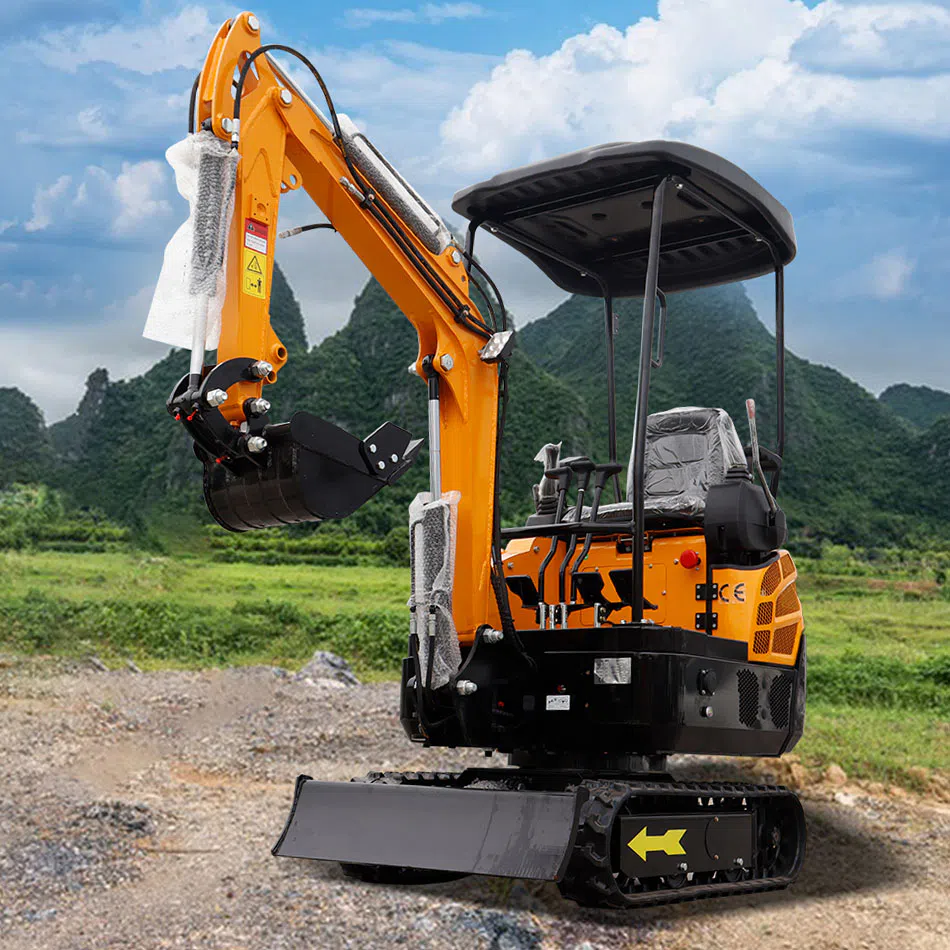

1.5 Ton Electric Mini Excavator HT15Pro-Li Key Features
- Optional Retractable Track Frame The base HT15 Pro-Li ships with a fixed 750 mm track gauge. Order the retractable track option to widen the stance on slopes and rough ground, then narrow it again for gate and indoor access — one machine, two operating widths.
- Optional Enclosed Cab The factory-installed enclosed cab extends working seasons into cold winters, hot summers, and dusty demolition sites. Heater-ready, with optimized ventilation and reduced operator-side noise for residential and night-shift work.
- 72V 150Ah Lithium Battery + 6.5 kW PMSM Zero on-site emissions, low noise, and instant torque from the permanent-magnet synchronous motor. Charge overnight, run a full shift. No diesel fuel storage required on site.
- 1,050 kg Operating Weight, 800 mm Tail Swing Compact enough to trailer with a small pickup, sturdy enough for real trenching. The 800 mm tail radius keeps the upperstructure within the track footprint for zero-rear-clearance digging.
- 1,710 mm Dig Depth, 2,920 mm Reach The HT15 Pro-Li is not a scaled-down toy. Its geometry matches mid-size 1.5 ton class machines, supporting utility trenching, foundation footings, and irrigation line installation.
- Standard Dozer Blade (110 mm Lift / 200 mm Cut) Backfill trenches, push spoil, and grade surfaces without swapping attachments. Saves time on cleanup and reduces the number of machines on a small job.
- 30° Climbing Grade Crawl up sloped yards, enter excavated pits, and work on landscaped berms with confidence. Battery weight distribution keeps the machine planted on side slopes.
1.5 Ton Electric Mini Excavator HT15 Pro-Li Video

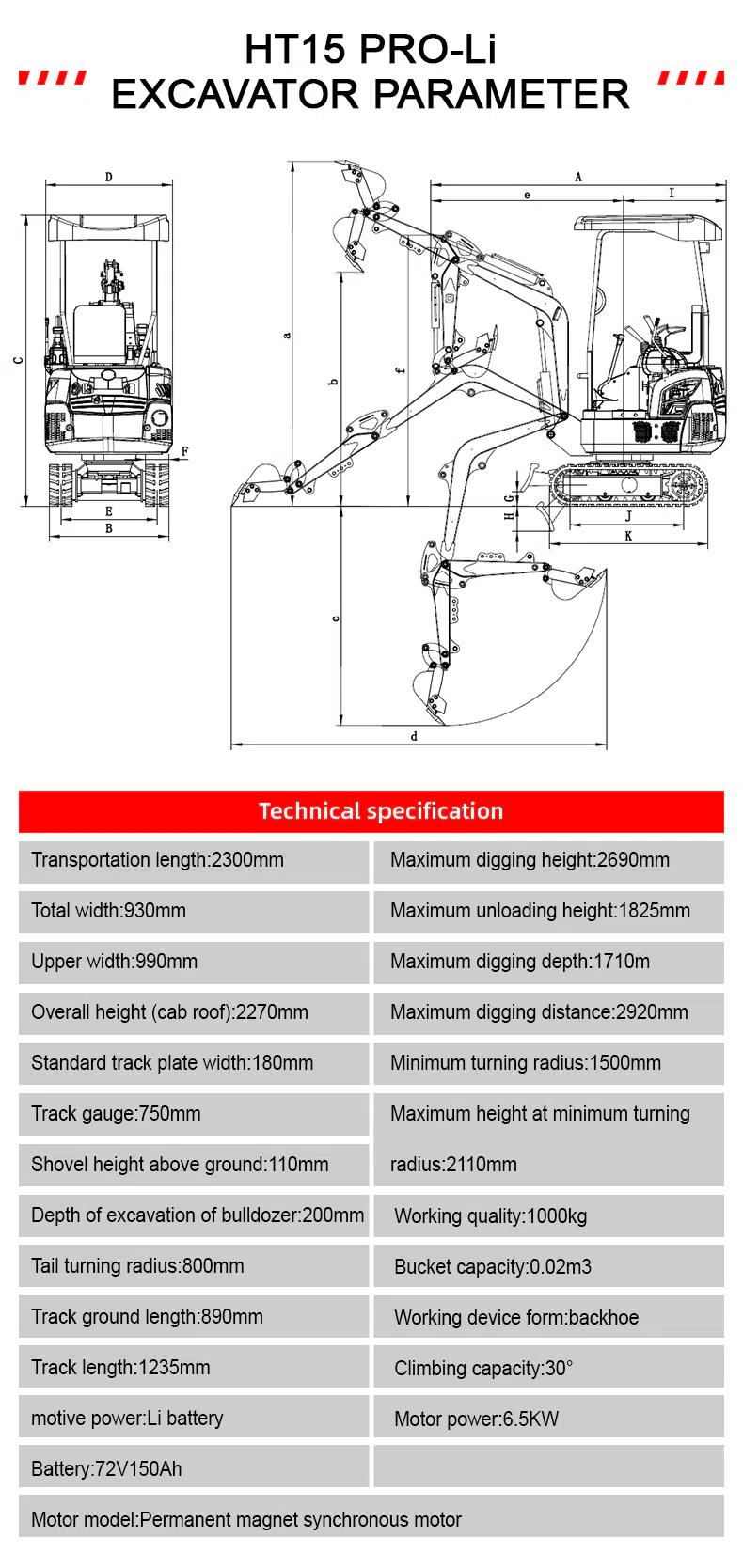

1.5 Ton Electric Mini Excavator HT15Pro-Li Parameters
| Parameter | Value |
|---|---|
| Transport Length | 2300 mm |
| Overall Width | 930 mm |
| Upper Structure Width | 990 mm |
| Overall Height (Top of Cab) | 2270 mm |
| Standard Track Shoe Width | 180 mm |
| Track Gauge | 750 mm |
| Dozer Blade Ground Clearance | 110 mm |
| Dozer Blade Digging Depth | 200 mm |
| Tail Swing Radius | 800 mm |
| Track Ground Contact Length | 890 mm |
| Track Length | 1235 mm |
| Power Source | Lithium‑ion Battery |
| Battery Capacity | 72V 150Ah |
| Max Digging Height | 2690 mm |
| Max Dumping Height | 1825 mm |
| Max Digging Depth | 1710 mm |
| Max Digging Reach | 2920 mm |
| Swing Radius | 1500 mm |
| Height at Minimum Swing Radius | 2100 mm |
| Operating Weight | 1050 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device Type | Backhoe |
| Gradeability | 30° |
| Engine | KOOP / Briggs & Stratton |
| Battery Power | 6.5 kW |
| Motor Type | Permanent Magnet Synchronous Motor |

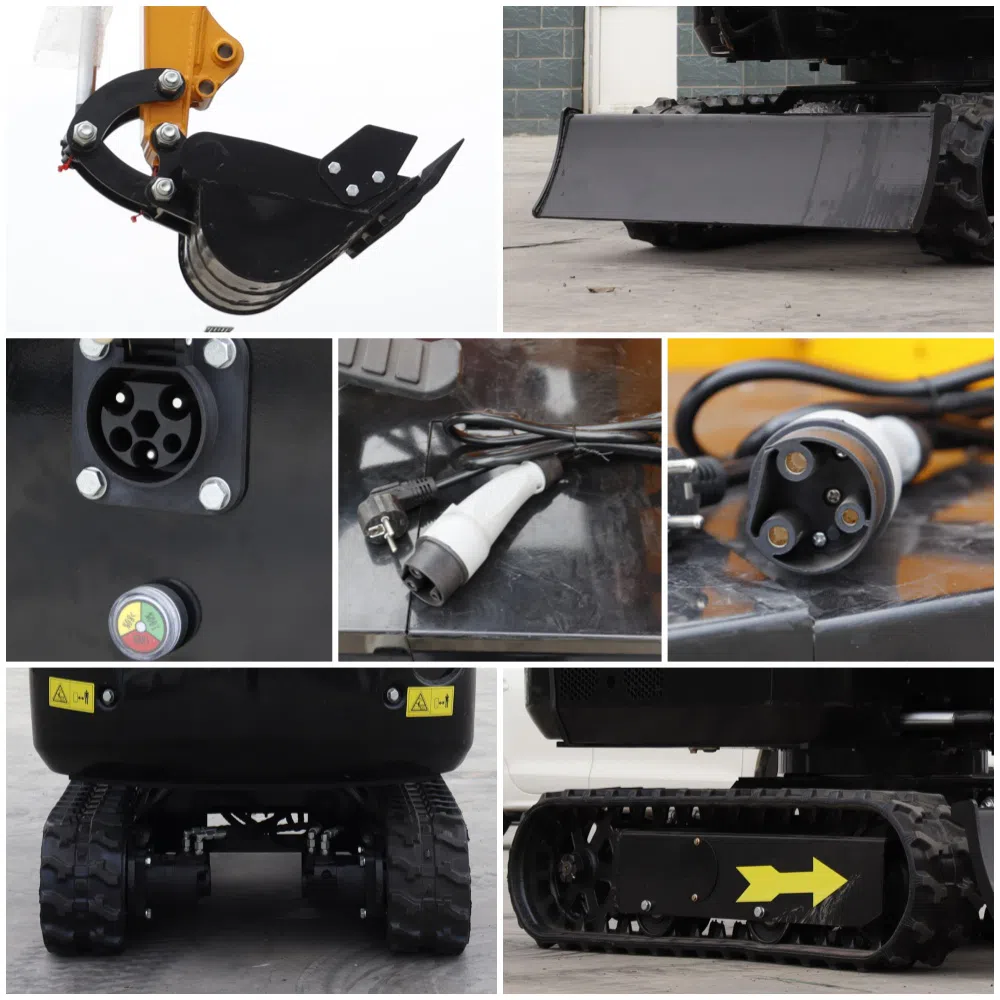

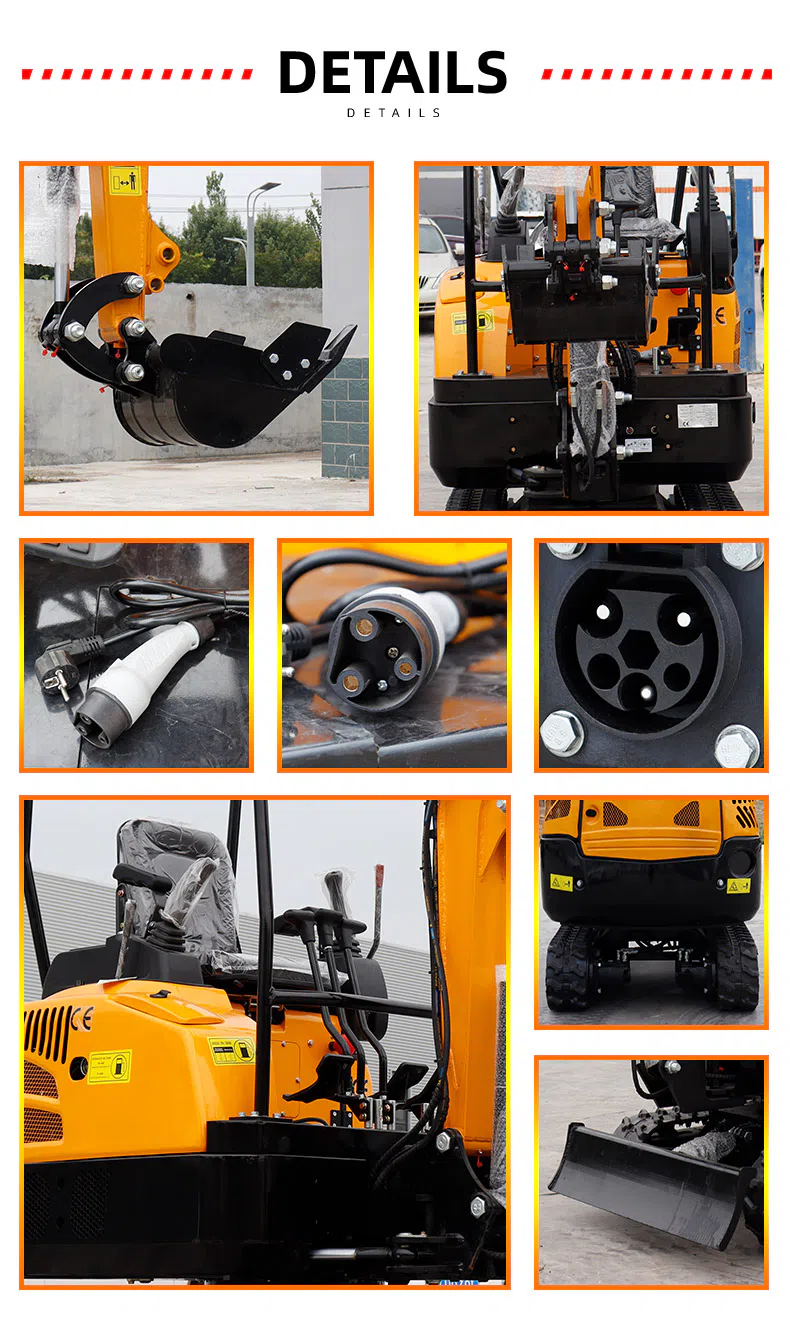

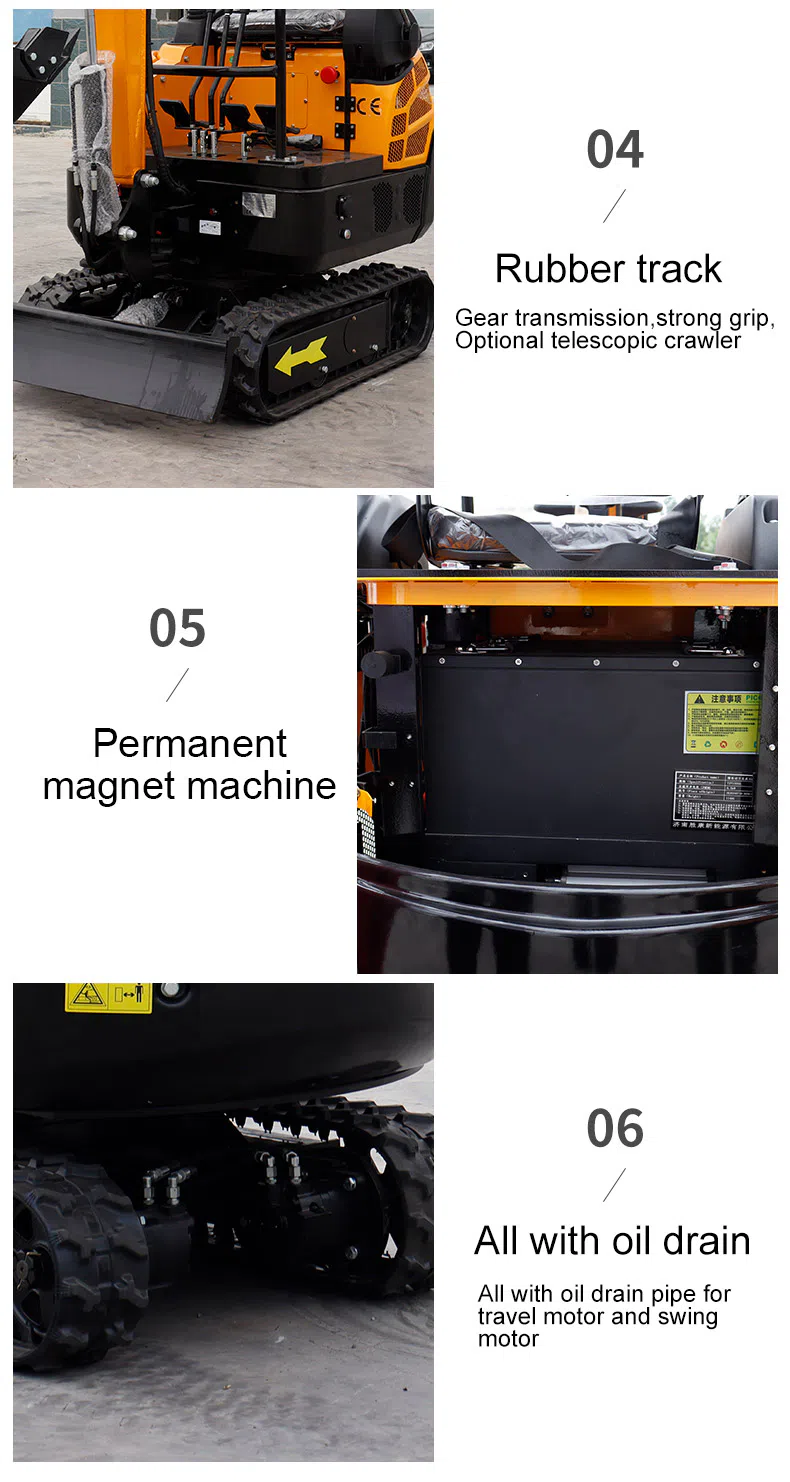

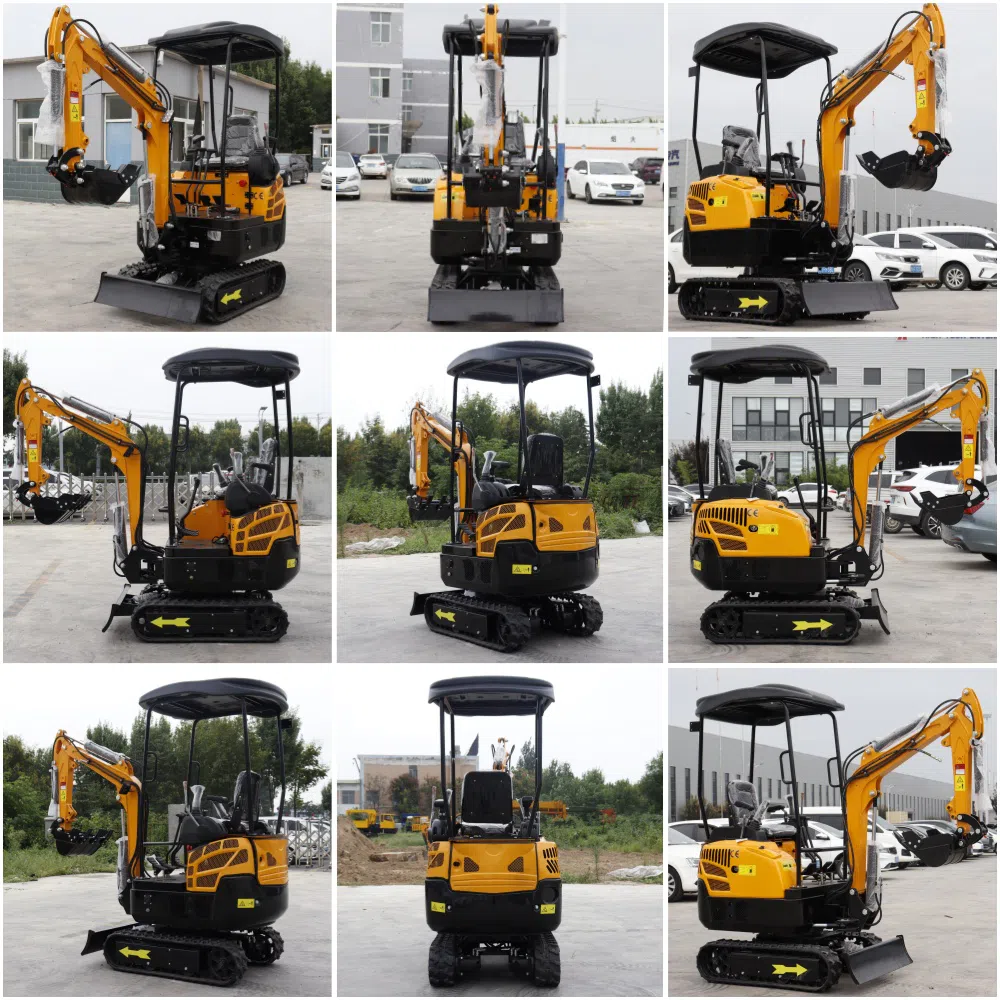

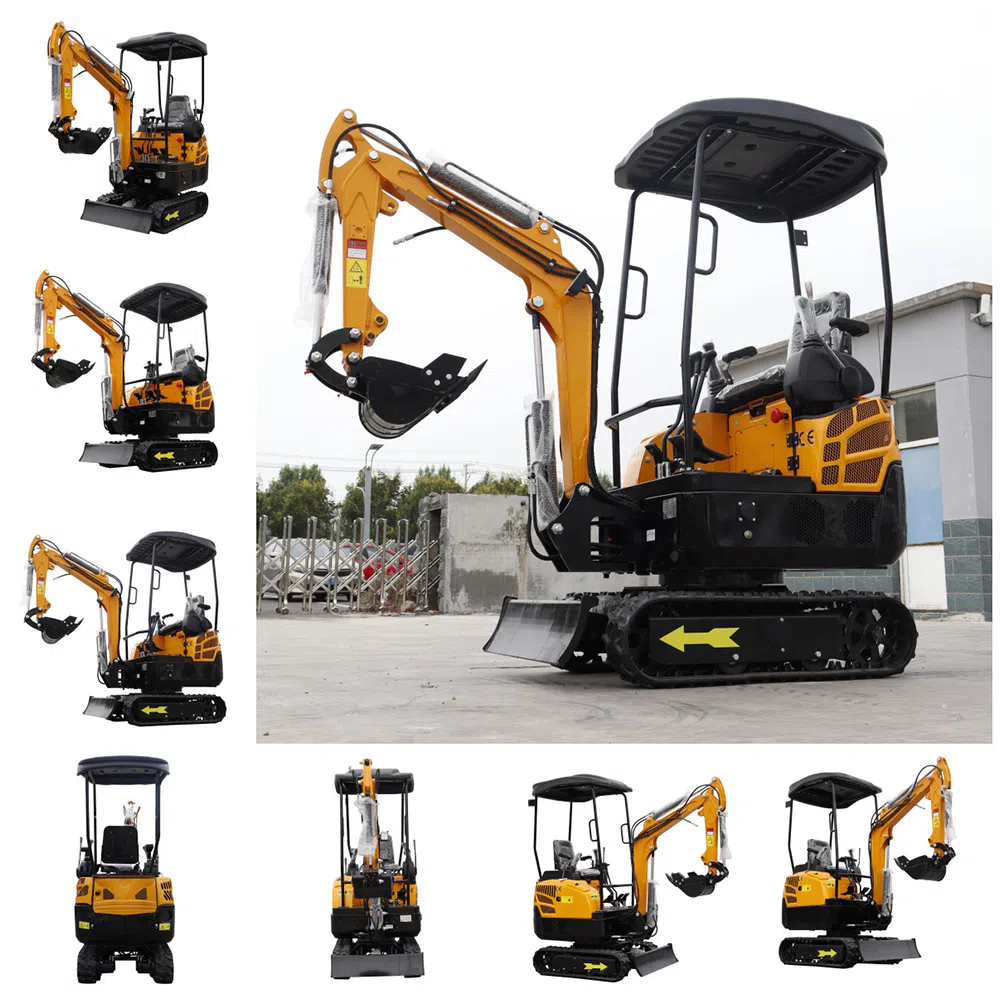

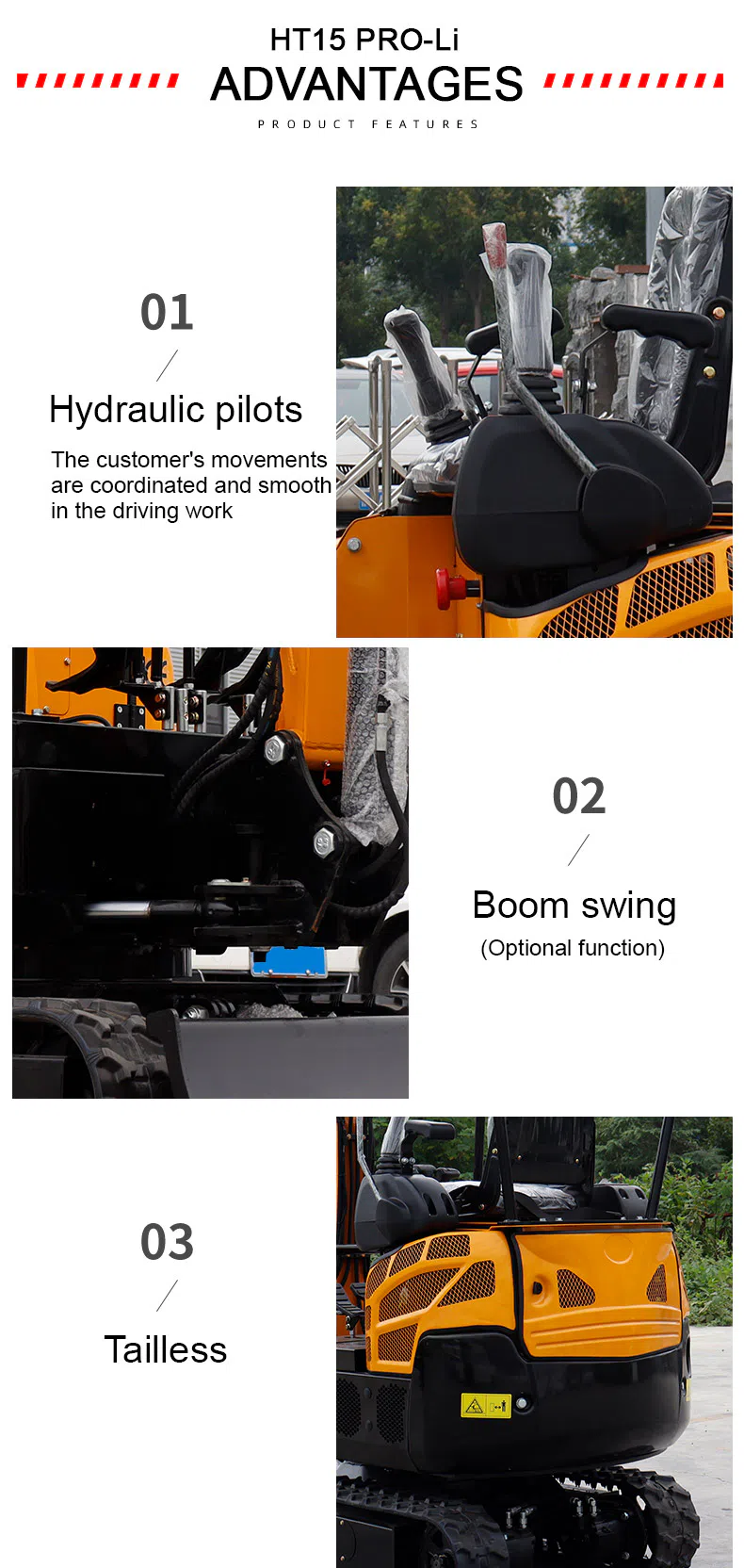

1.5 Ton Electric Mini Excavator HT15Pro-Li Pictures
Electric 1.5 Ton Mini Excavator HT15 Pro-Li Application Scenarios
- Residential Landscaping & Irrigation — Dig footings, install irrigation lines, and grade patios in backyards where gate access is under 1 m. The 800 mm tail radius allows trenching alongside walls and fences.
- Indoor Renovation & Basement Excavation — Zero on-site emissions and quiet operation suit interior strip-outs and below-grade work. The optional enclosed cab further reduces operator-side noise and dust ingress.
- Greenhouse & Nursery Operations — The 930 mm total width fits standard greenhouse aisles. Battery-electric operation eliminates exhaust fumes that could damage plants.
- Cold-Climate Year-Round Operation — With the optional enclosed cab (heater-ready), the HT15 Pro-Li deploys through long winters in northern climates without cold-start complications.
- Noise-Sensitive Urban Sites — Hospitals, schools, hotels, and night-shift municipal projects benefit from the quiet electric platform. The optional enclosed cab further reduces operator-side sound.
- Rental Fleets & Contractor Pools — Two factory options (retractable track, enclosed cab) let rental companies and contractors configure the machine per customer, season, and site.
Shandong Hightop Group Service & Support
1. Two-Option Factory Configuration Every HT15 Pro-Li is built on a single platform. Order with the retractable track, the enclosed cab, both, or neither. Configuration is confirmed in writing before production so your machine arrives jobsite-ready, without dealer-side modification.
2. Compact Container Loading At 2,300 × 930 × 2,270 mm (L×W×H) and 1,050 kg, the HT15 Pro-Li loads efficiently into 20-foot containers. We provide container-loading diagrams, lashing points, and recommended securing methods. Multiple units per container significantly reduce per-unit ocean freight.

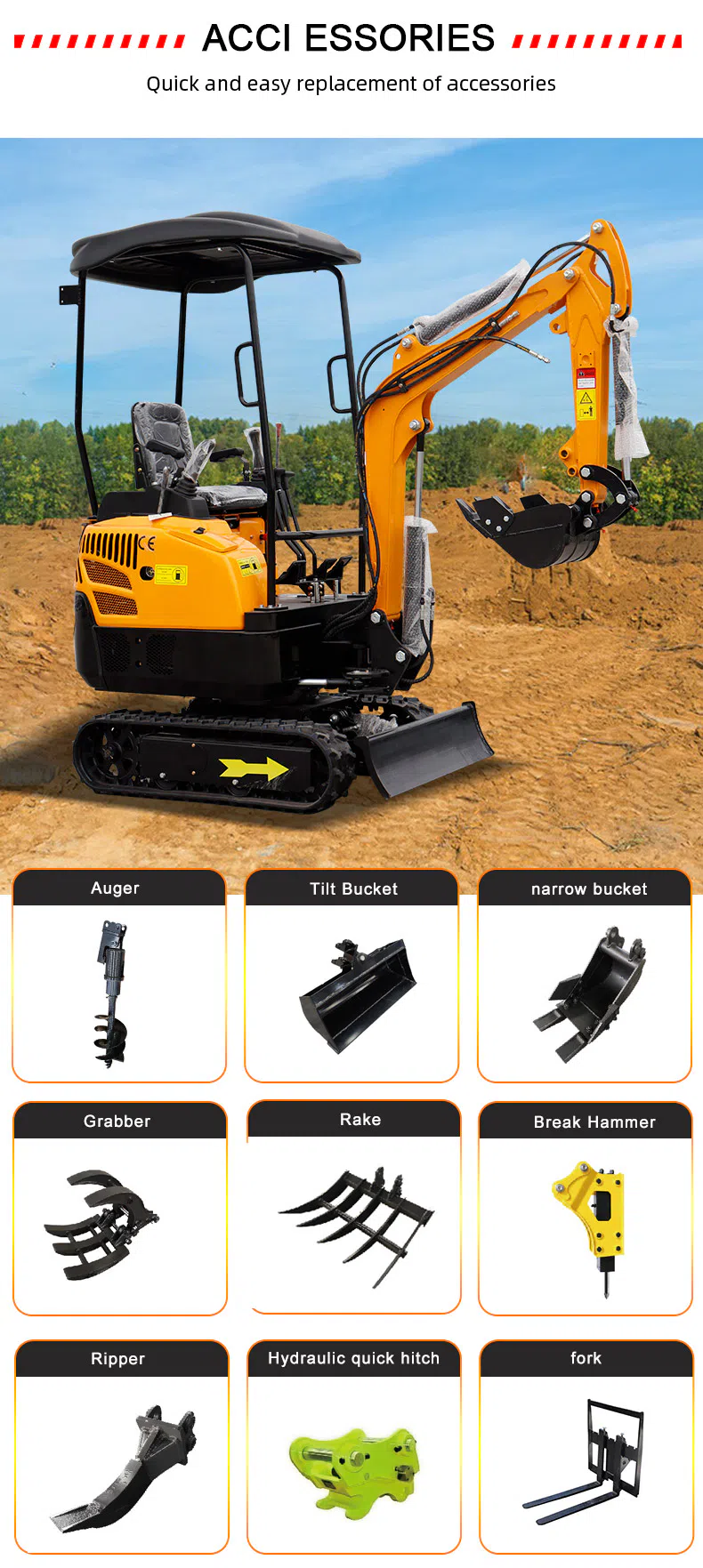

3. Compatibility with Mini Excavator Attachments The HT15 Pro-Li shares quick-hitch interfaces with Hightop's full mini excavator attachments range — including narrow buckets, hydraulic breakers, augers, tilt buckets, rippers, rakes, and rotary grapples. One platform, multiple tools, zero downtime.
4. Battery Care, Warranty & Spare Parts 12-month comprehensive warranty on the complete machine, with separate battery cycle-life terms confirmed at order time. Critical wear parts (filters, seals, track rollers, hydraulic hoses, and battery management components) ship from regional warehouses with 3–5 day delivery. Extended warranty and fleet service contracts are available.
Common Problems Of 1.5ton Electric Excavator
Q1: Can I order the HT15 Pro-Li without any options?
A: Yes. The base HT15 Pro-Li ships with a fixed 750 mm track gauge and open operator canopy. The retractable track frame and enclosed cab are both optional upgrades that you can add, remove, or combine at order time.
Q2: Can I add the retractable track or cab after delivery?
A: The retractable track frame and enclosed cab are factory-installed options. Field retrofit is not standard practice. We strongly recommend specifying both options at order time to ensure correct hydraulic routing, electrical harness, and structural mounting.
Q3: How long does the battery last on a single charge?
A: Actual operating duration depends on duty cycle (digging, traveling, idle). Battery cycle life and typical daily run-time are confirmed in the sales quotation based on your workload profile. Contact our sales team for application-specific guidance.
Q4: How long does it take to charge?
A: Charging duration depends on the charger specification. Standard and fast-charging options are available; exact figures are provided in the sales quotation.
Q5: Is the enclosed cab heated?
A: The cab is heater-ready. The heater unit itself is a configurable item — please confirm with our sales team whether you need a heater unit included for your climate.
Q6: What is the warranty coverage?
A: 12-month comprehensive warranty covering the complete machine. Battery terms (cycle life, capacity retention) are stated separately in the order confirmation. Wear parts (tracks, bucket teeth, filters) are covered for manufacturing defects. Extended warranty packages are available for fleet customers.
Q7: What engine / motor powers the HT15 Pro-Li?
A: The HT15 Pro-Li uses a 6.5 kW permanent-magnet synchronous motor powered by a 72V 150Ah lithium battery. There is no internal combustion engine — zero on-site emissions, near-silent operation.
