The HT20 Pro 2 ton mini excavator pairs brand-matched color with real excavator performance. At 2,000 kg with a 0.025 m³ bucket, it delivers 1,995 mm digging depth and 3,130 mm reach, while the retractable undercarriage (970–1,270 mm) slips through narrow gates and urban corridors. A 980 mm tail radius allows wall-to-wall working, and the in-frame engine, Tengfei main valve, and 30° climbing grade keep trenching and grading steady all day.
What sets the HT20 Pro apart from other 2 ton mini excavators is factory-direct color customization. Choose yellow, orange, red, blue, green, or any Pantone-matched livery to align with your fleet, your dealer brand, or your municipal identity. The same paint process used on Hightop's export machines — primer, base coat, clear coat, oven-cured — is applied to every custom unit, so color durability matches structural durability.
The standard equipment list includes a comfortable safety seat, joystick pilot controls, a protective roof, and an integrated dozer blade with 290 mm lift and 285 mm cut depth. Through the standard quick-coupler system, the HT20 Pro accepts the full range of mini excavator attachments — narrow buckets, hydraulic hammers, augers, grapples, and rakes — turning one chassis into a multi-tool platform. For crews that need load-sensing hydraulics in the same weight class, the HT-20U variable piston pump model offers a Rexroth A10VO28 piston pump and a 662 mm tail radius in the same Hightop family.
2 Ton Mini Excavator HT20Pro Video
2 Ton Mini Excavator Features & Benefits

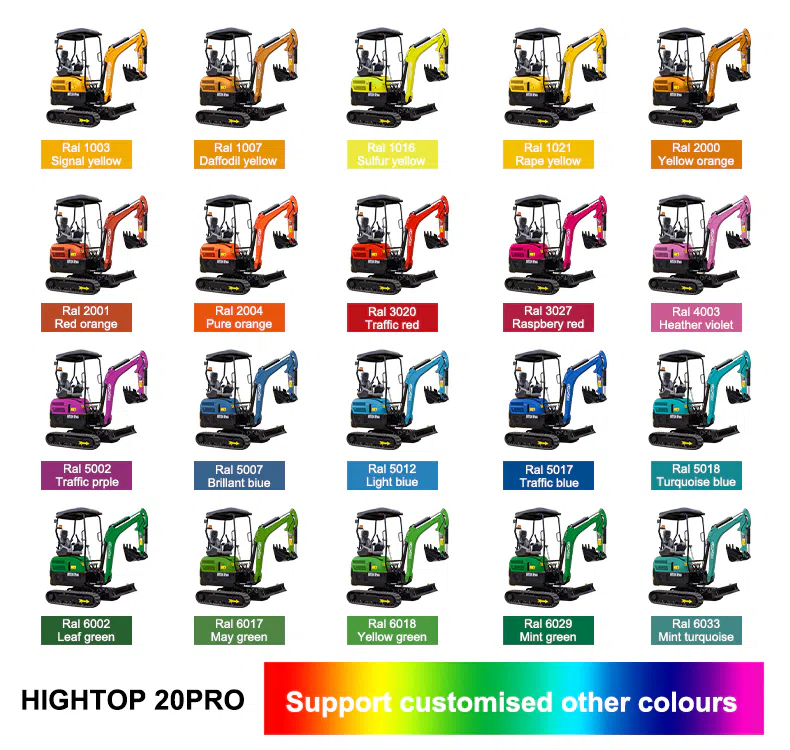

1. Factory-Direct Color Customization: Order your HT20 Pro in fleet yellow, safety orange, municipal green, or any Pantone-matched color. Factory-applied primer, base, and clear coat with oven curing give automotive-grade finish durability — not a post-assembly spray job.
2. Retractable Track Frame, 970–1,270 mm: Pull the undercarriage in to 970 mm to pass through a standard garden gate or greenhouse door; push it out to 1,270 mm for stable grading and digging on open ground. No tools, no second machine.
3. 980 mm Tail Radius for Confined Spaces : The upperstructure rotates fully inside the track envelope, so the HT20 Pro works flush against walls, foundations, and fences without rear overhang — ideal for alley trenching and indoor renovation.
4. Engine Installed Inside Rear Frame :The power unit sits low and inside the rear frame, lowering the center of gravity, reducing operator-side noise and vibration, and shielding the engine from trench splash and falling debris.
5. Integrated Dozer Blade, 290 mm Lift : A fixed dozer blade with 290 mm ground clearance and 285 mm cut depth handles backfilling, grading, and site cleanup without swapping attachments — one machine, dig and push.
6. Tengfei Main Valve Hydraulic System : The Tengfei main valve routes hydraulic flow with smooth, predictable joystick response. Breakout force stays consistent across the full boom and arm stroke, giving clean trench walls and controlled loading. Tengfei
7. Ergonomic Operator Station: A high-back safety seat, low-effort joystick pilot controls, and a protective roof come standard. Controls fall naturally to hand and foot, reducing fatigue over long shifts.

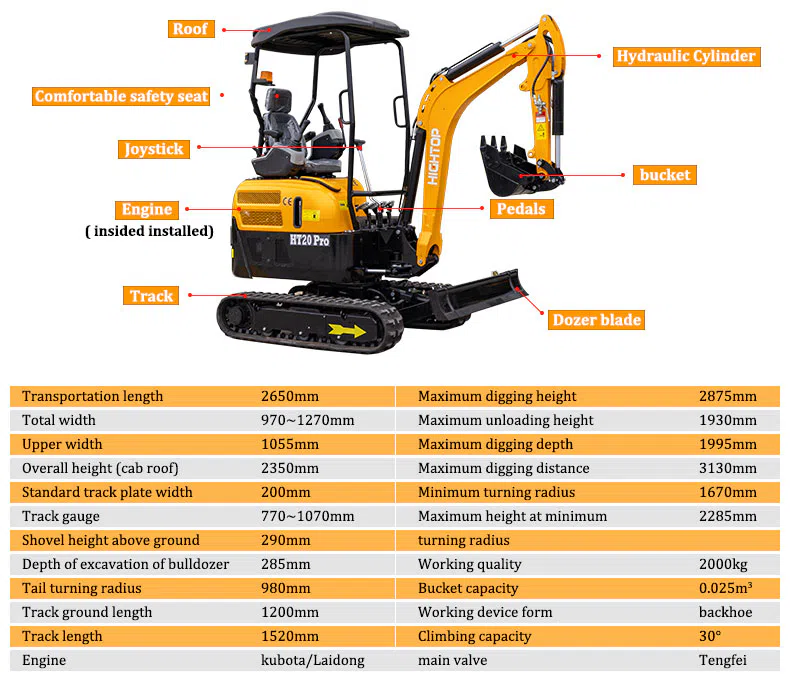

2 Ton Mini Excavator HT20Pro Product Parameters

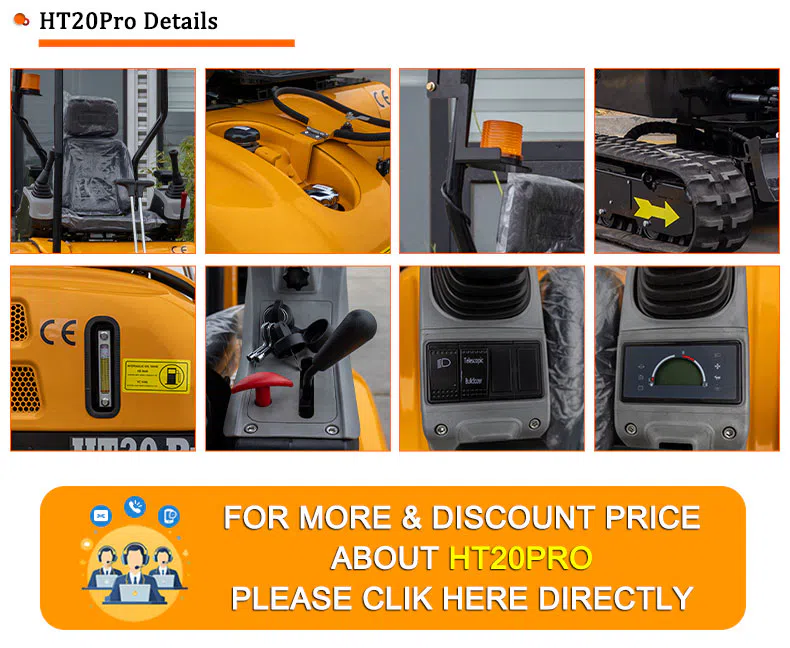

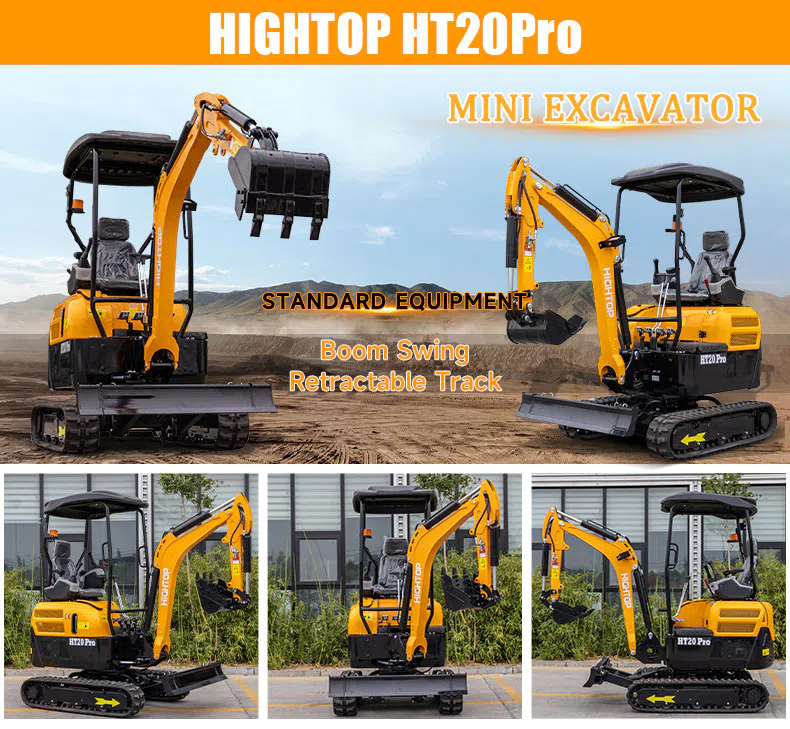

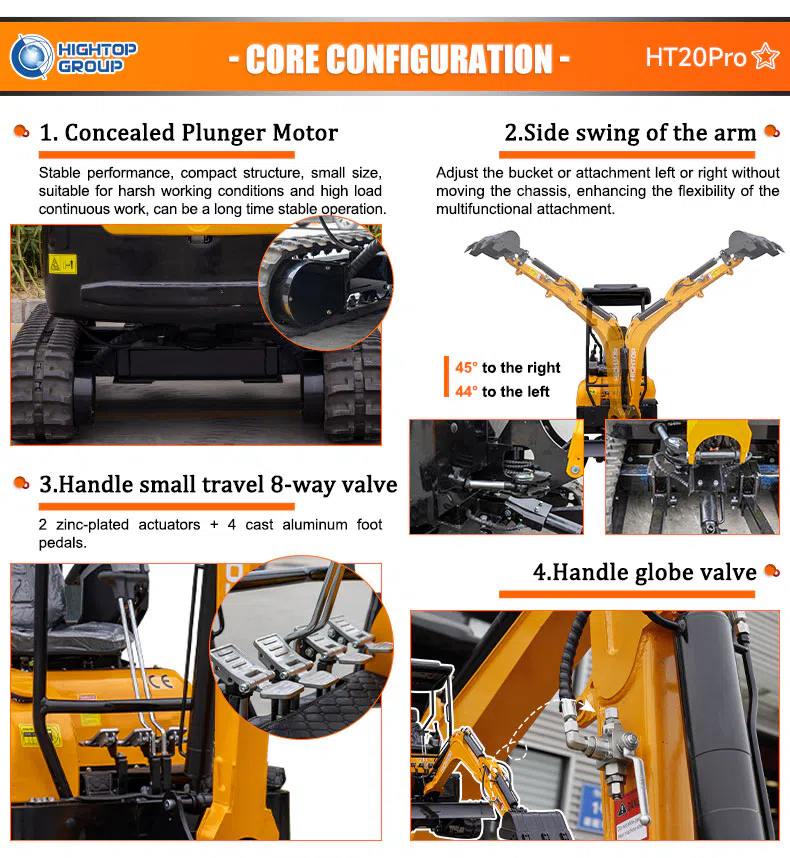

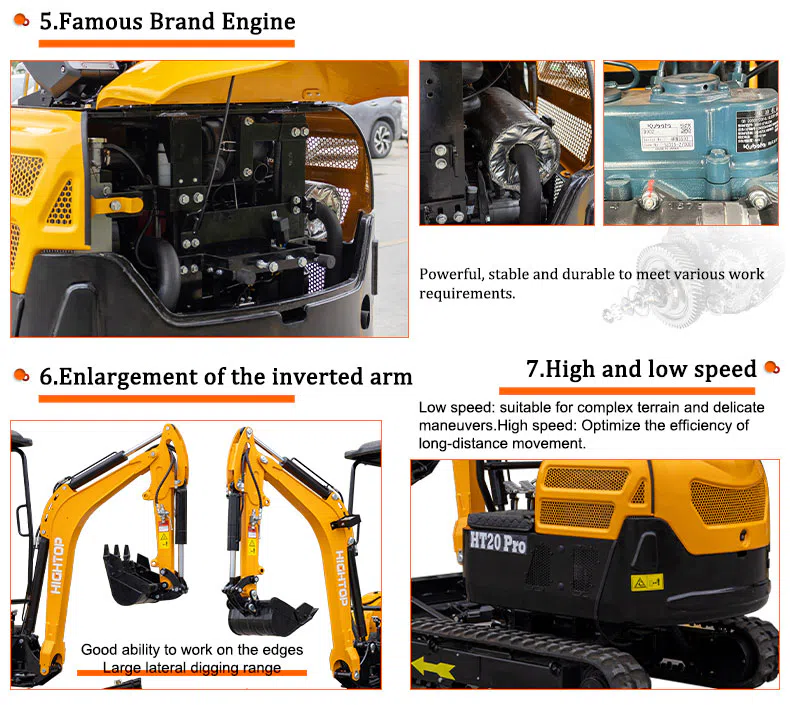

2 Ton Mini Excavator HT20Pro Product Images
2 Ton Mini Excavator HT20Pro Applications
1. Municipal & Urban Landscaping: City parks, roadside planting, and campus maintenance crews can match excavator color to municipal livery — green for parks departments, orange for public works — turning every job site into a brand statement.
2. Greenhouse & Nursery Operations: Retract to 970 mm to roll between greenhouse bays and planting rows. The 980 mm tail swing and 30° gradeability handle sloped nursery beds without damaging adjacent stock.
3. Residential Construction & Renovation: Foundation trenching, drainage installation, and pool excavation in backyards where space is tight and neighbor relations matter. Low noise from the inside-mounted engine keeps the site civil.
4. Agricultural & Farm Maintenance: Ditch cleaning, fence-line trenching, and barn foundation repair. The dozer blade grades farm roads and backfills irrigation trenches between digging cycles.
5. Rental Fleets & Dealer Inventory: Rental yards and equipment dealers order HT20 Pro units in their corporate colors with logo decals and fleet numbering — instant brand recognition on every delivery and return.
Shandong Hightop Group Service & Support
Hightop supports every HT20 Pro not just as a machine, but as a branded asset — from custom paint to fleet logistics.
1. OEM Color & Branding Customization
Submit your Pantone code, logo artwork, and fleet numbering requirements with your order. Our paint shop applies automotive-grade primer, base coat, and clear coat in a temperature-controlled booth, then oven-cures for hardness and UV resistance. Decals and fleet numbers are applied before final inspection — your machines arrive ready to represent your brand.
2. Container-Optimized Export Delivery
At 2,000 kg and 2,650 mm transport length, two HT20 Pro units load into a single 20 ft container — with attachments, decals, and documentation packed in the same box. Per-unit ocean freight drops significantly for fleet and dealer orders. Standard FOB / CIF / DDP terms, full export documentation, and 15–30 day delivery.
3.Spare Parts & Operator Onboarding
Each machine ships with a first-service parts kit. Regular spares — filters, seals, track components, hydraulic hoses — are kept in permanent stock for same-week dispatch. Your operators receive an English manual, a scheduled maintenance chart, and video tutorials covering daily checks, attachment swaps, and dozer blade adjustments.
4.Warranty & Technical Support
A standard warranty with documented claims covers the complete machine. Engineering support is available via WhatsApp, email, and video call — response within 24 hours, including remote fault diagnosis. Downtime stays measured in hours, not weeks.
2 Ton Mini Excavator Frequently Asked Questions
Q1: What colors are available for the HT20 Pro?
Any standard color — yellow, orange, red, blue, green — or any Pantone-matched custom shade. We apply primer, base coat, and clear coat with oven curing, so the finish resists chipping and fading as well as our standard export machines.
Q2: Does custom color affect the price or delivery time?
Standard colors (yellow, orange, red, blue, green) are included at no extra charge and do not extend delivery. Pantone-matched or multi-color schemes may add 3–5 days to production and a small paint-material surcharge — quoted per order.
Q3: What is the operating weight and transport size?
Operating weight is 2,000 kg. Transport dimensions are 2,650 × 970–1,270 × 2,350 mm (length × width × height). It can be towed on a standard 2–3 ton trailer and shipped in 20 ft or 40 ft containers.
Q4: What attachments fit the HT20 Pro?
Standard quick-coupler attachments across the Hightop 2-ton class: narrow buckets (200 / 300 / 400 mm), hydraulic hammer, auger (100–300 mm), grapple, rake, and tilt bucket. All share pin geometry with the HT20 and HT-20U for shared fleet inventory.
Q5: What warranty and support is included?
Standard warranty with documented claims, English operation & service manuals, first-service parts kit, WhatsApp / email / video-call support (24-hour response), and CE / EPA compliance documentation for export shipments.
