Wheeled Skid Steer With Closed Cabin HTS50
The HTS50 Wheeled Skid Steer Loader is a compact and versatile construction machine designed for material handling, earthmoving, landscaping, agriculture and municipal engineering applications. With a rated operating load of 750kg, tipping load of 1500kg, and an operating weight of approximately 3003kg, the HTS50 provides a reliable balance between lifting performance, stability and flexible operation.
Powered by a Xinchai 490 engine with 36.8kW power output at 2500rpm, the HTS50 wheeled skid steer loader delivers stable power for daily loading, transportation and auxiliary construction tasks. The mechanical/hydraulic control system ensures smooth operation, while the reinforced working structure improves durability during continuous material handling operations.
The HTS50 features a compact wheeled skid steer design with a maximum travel speed of 12km/h, allowing operators to move efficiently between different working areas. Equipped with a front quick-change attachment system, the machine can be adapted with various attachments such as buckets, sweepers, forks, grapples, breakers and augers, helping users complete multiple tasks with one machine.
With a 0.35m³ bucket capacity, maximum operating height of 4058mm, and dumping height of 2303mm, the HTS50 is suitable for loading soil, gravel, construction materials, agricultural products and other bulk materials. Its compact structure and multi-function capability make it an ideal choice for small and medium-scale construction projects, farms, landscaping operations, and municipal maintenance work.
For customers who need higher loading performance and stronger working capacity, HIGHTOP also provides the HTS60 Wheeled Skid Steer Loader, which offers upgraded specifications for users requiring greater productivity and heavier-duty applications.
HIGHTOP provides complete compact machinery solutions, including mini excavators, skid steer loaders and customized attachments, helping customers select the right equipment according to different working conditions.
Wheeled Skid Steer With Closed Cabin Specifications
| Parameter | Value |
|---|---|
| A — Max Operating Height | 4058 mm |
| B — Bucket Hinge Pin Height | 3077 mm |
| C — Cab Top Height | 2007 mm |
| D — Max Height of Bucket Bottom (Level) | 2908 mm |
| E — Length Without Bucket | 2700 mm |
| F — Length With Bucket | 3413 mm |
| H — Max Dump Height | 2303 mm |
| J — Dump Reach | 675 mm |
| M — Wheelbase | 999 mm |
| Q — Departure Angle | 25° |
| P — Ground Clearance | 185 mm |
| T — Rear Turning Radius | 1627 mm |
| V — Body Width | 1469 mm |
| W — Width at Tire Edges | 1740 mm |
| X — Width at Bucket Edges | 1780 mm |
| Bucket Capacity | 0.35 m³ |
| Diesel Tank Capacity | 88 L |
| Hydraulic Oil Tank Capacity | 70 L |
| Rated Operating Load | 750 kg |
| Tipping Load | 1500 kg |
| Operating Weight | 3003 kg |
| Max Travel Speed | 12 km/h |
| Standard Engine | Xinchai 490 |

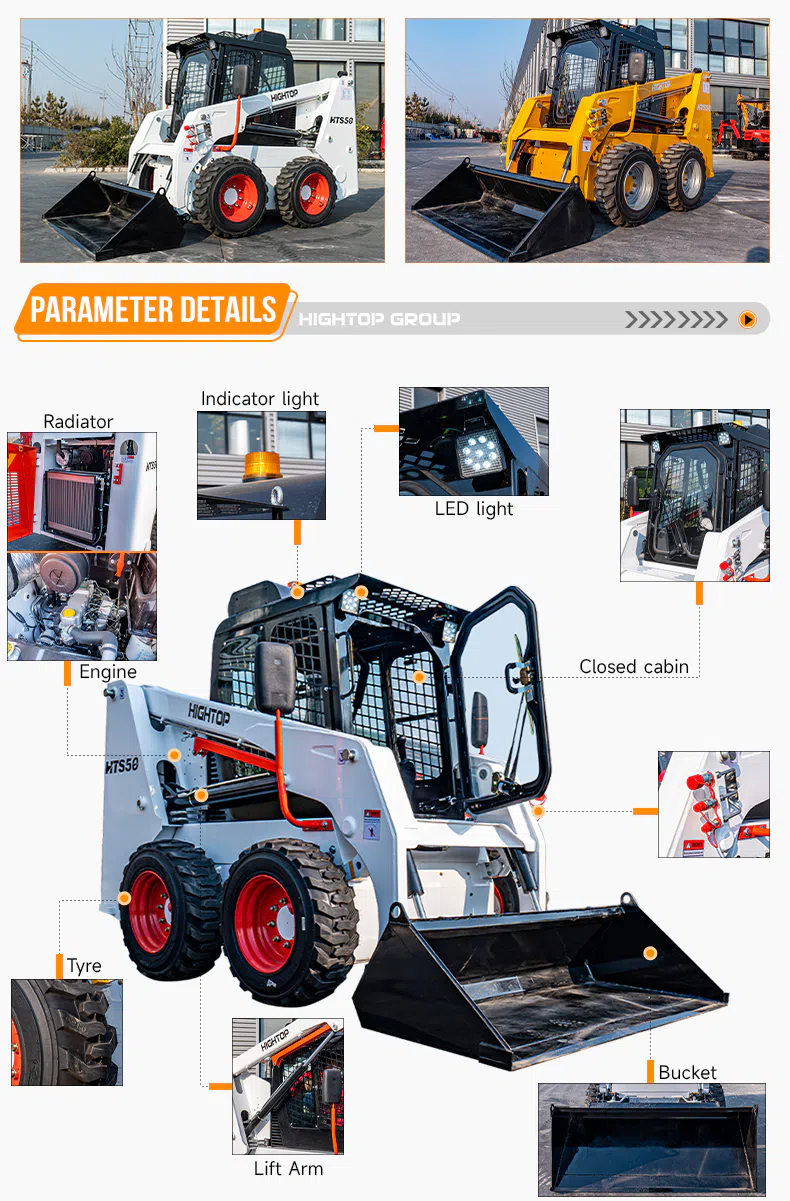

Wheeled Skid Steer With Closed Cabin Picture

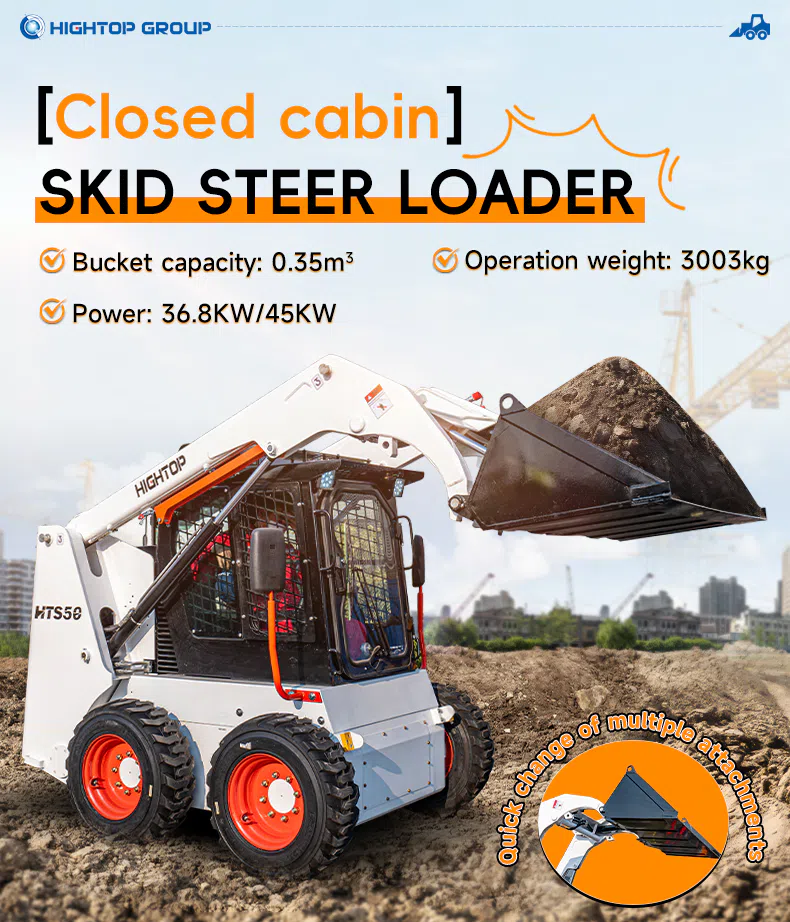

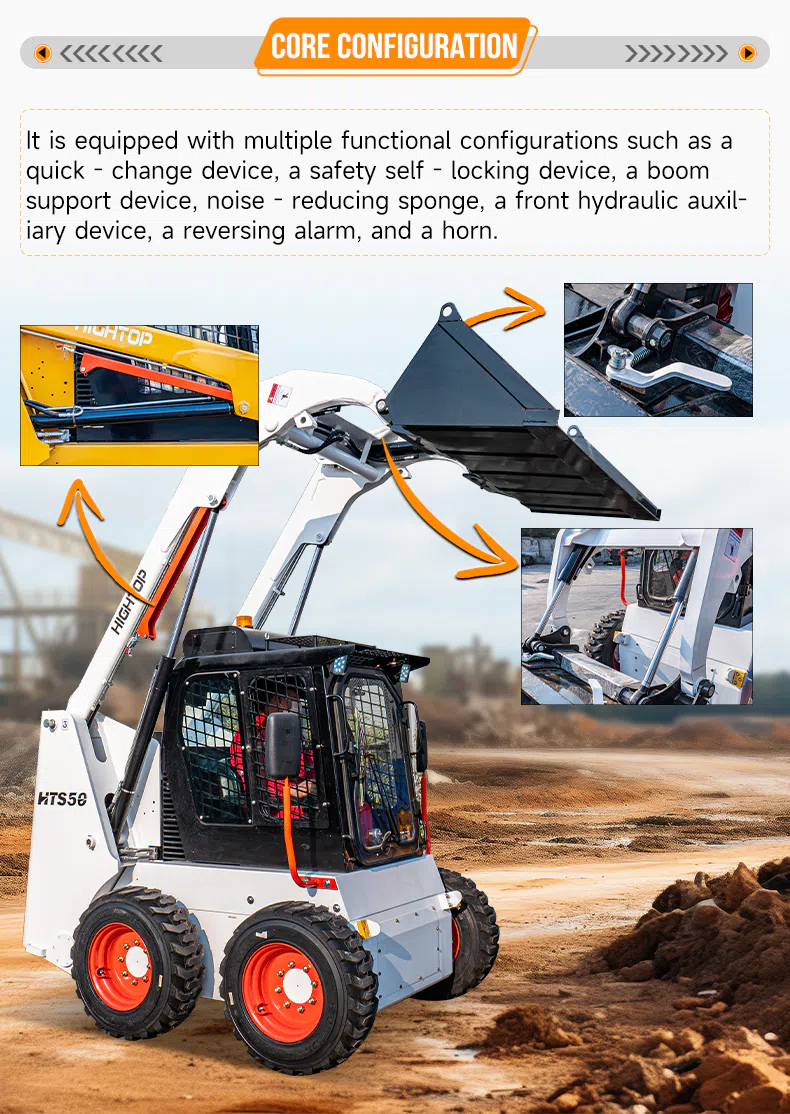

Closed cabin SKID STEER LOADER

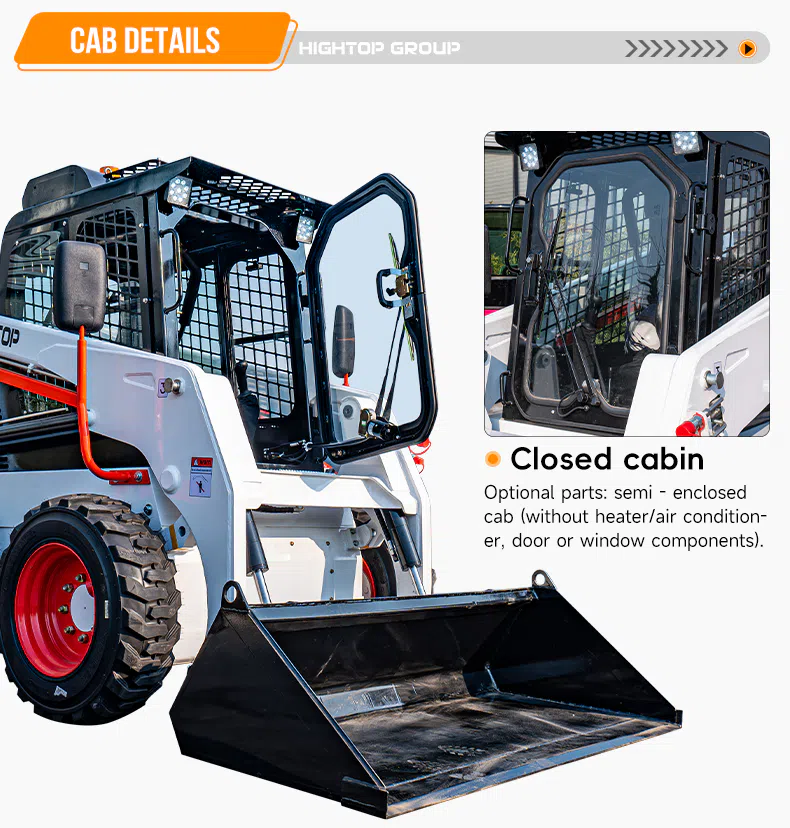

Closed cabin
Optional parts: semi - enclosed
cab (without heater/air condition-
er, door or window components).

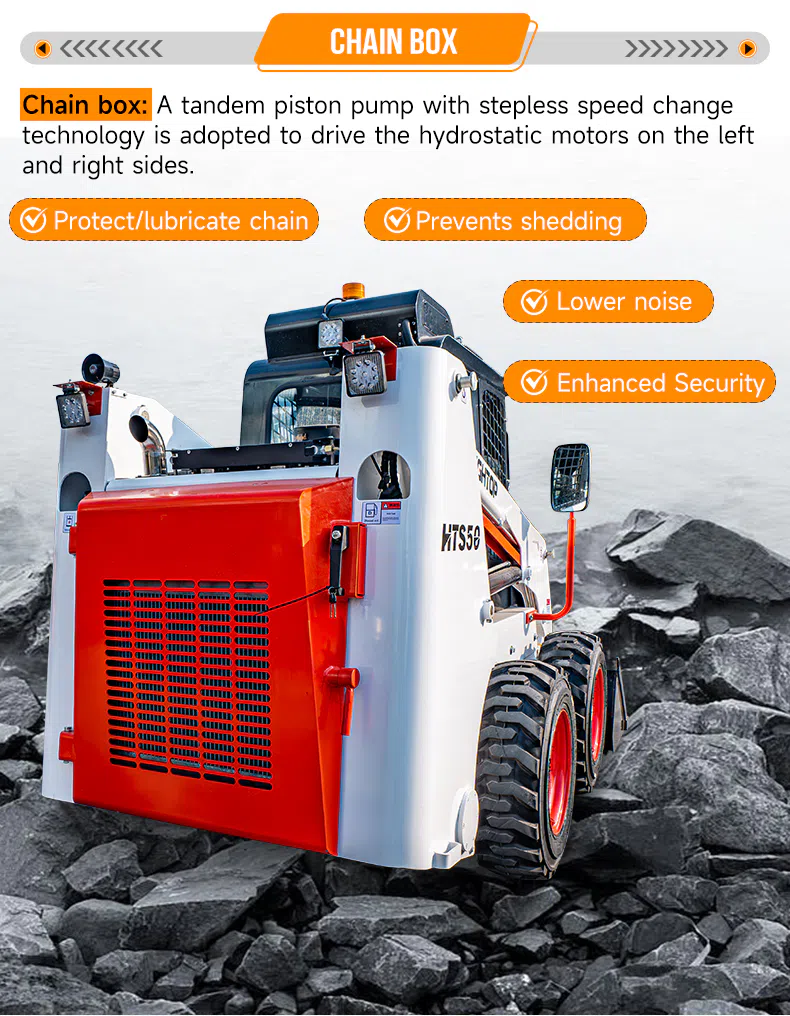

Chain box: A tandem piston pump with stepless speed changetechnology is adopted to drive the hydrostatic motors on the leftand right sides.

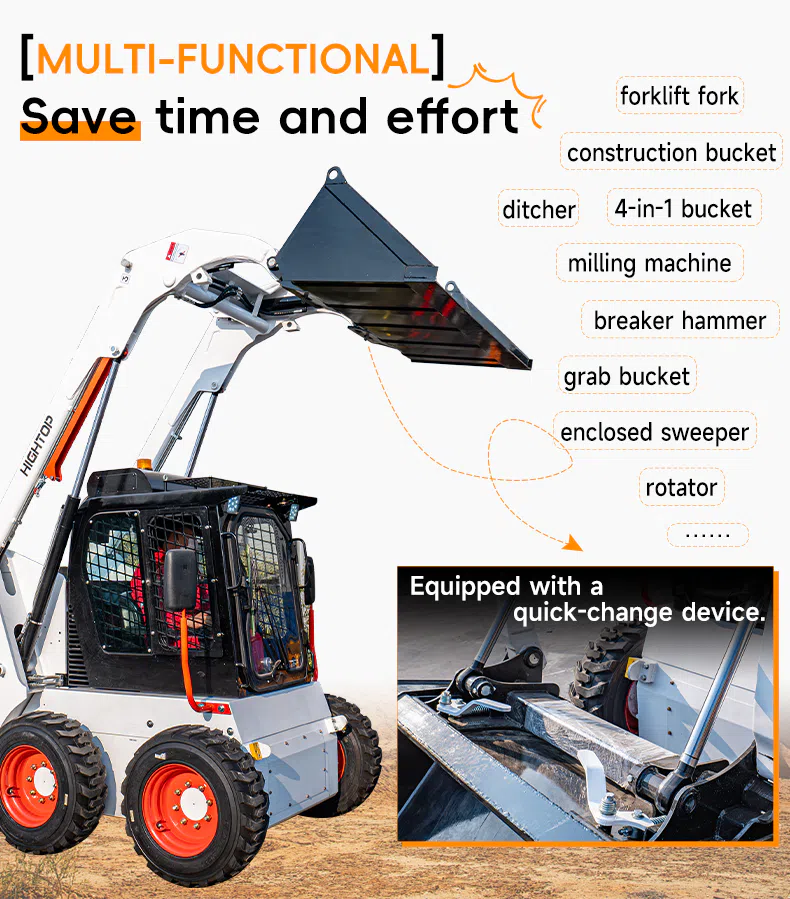

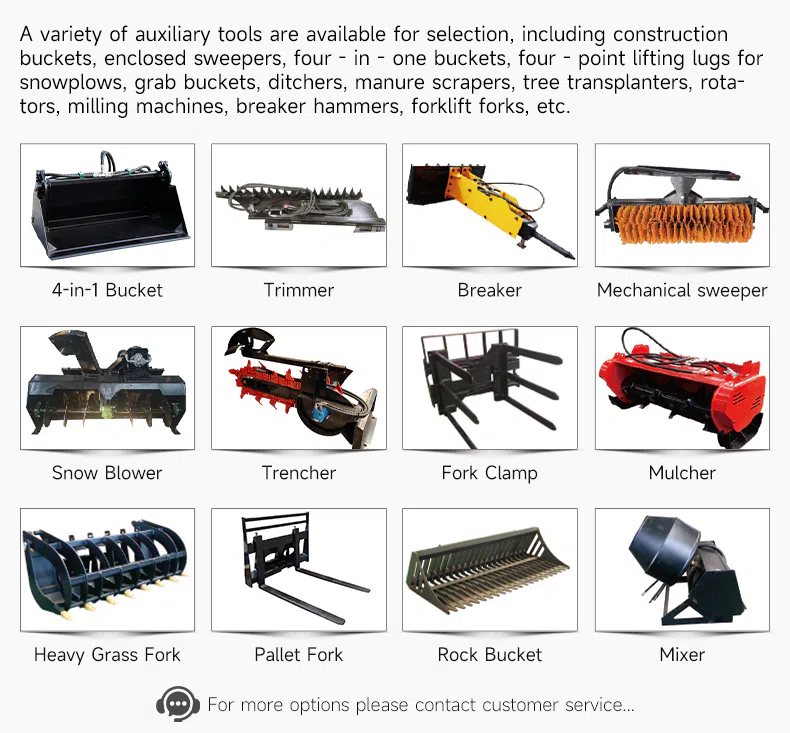

MULTI-FUNCTIONAL Save time and effort
Wheeled Skid Steer With Closed Cabin Application Scenarios
The HTS50 compact wheeled skid steer loader is widely used in construction, agriculture, landscaping, municipal maintenance and material handling industries.
In construction projects, the machine is suitable for loading sand, gravel, soil and construction waste. Its high lifting height and quick attachment replacement capability allow it to handle different tasks on job sites, including material transfer, site cleaning and equipment assistance.
In agriculture and farming applications, HTS50 can be used for transporting feed, cleaning livestock areas, handling agricultural materials and maintaining farm roads. The wheeled design allows fast movement between fields, barns and storage areas.
For landscaping and garden maintenance, the loader can be equipped with sweepers, forks, grapples and other tools to complete vegetation management, ground cleaning, material transportation and site preparation.
In municipal and industrial applications, HTS50 is suitable for warehouse handling, road maintenance, snow removal, environmental cleaning and various small engineering projects requiring flexible equipment.
