Hightop Mini Excavator HT10L 1 Ton With Optional Engines
The HIGHTOP HT10W is a 1 ton wheeled mini excavator designed for customers who need a compact machine with convenient transportation and flexible movement between different working locations. Compared with traditional crawler mini excavators, the wheeled design allows HT10W to move faster on hard surfaces such as concrete roads, farm roads and construction areas, reducing the need for frequent transportation.
Powered by a reliable KOOP engine, the HT10W provides stable power output for daily excavation operations. With an operating weight of approximately 1000kg, a maximum digging depth of 1500mm and a maximum digging height of 2600mm, this small wheeled excavator is suitable for light construction projects, landscaping work, agricultural applications and municipal maintenance.
The compact structure with a total width of about 930mm allows the machine to access narrow working spaces while maintaining good operating flexibility. The wheeled chassis provides improved mobility for short-distance movement, making it an efficient solution for users who frequently work in multiple locations.
The HT10W can be equipped with different attachments including buckets, breakers, augers and other hydraulic tools to meet various job requirements. For customers looking for a smaller construction machine, you can also check our related products such as the HT12G mini excavator for different working conditions and configuration options.
As a professional mini excavator manufacturer, HIGHTOP provides complete equipment solutions including customized configurations, spare parts supply and technical support for global customers.

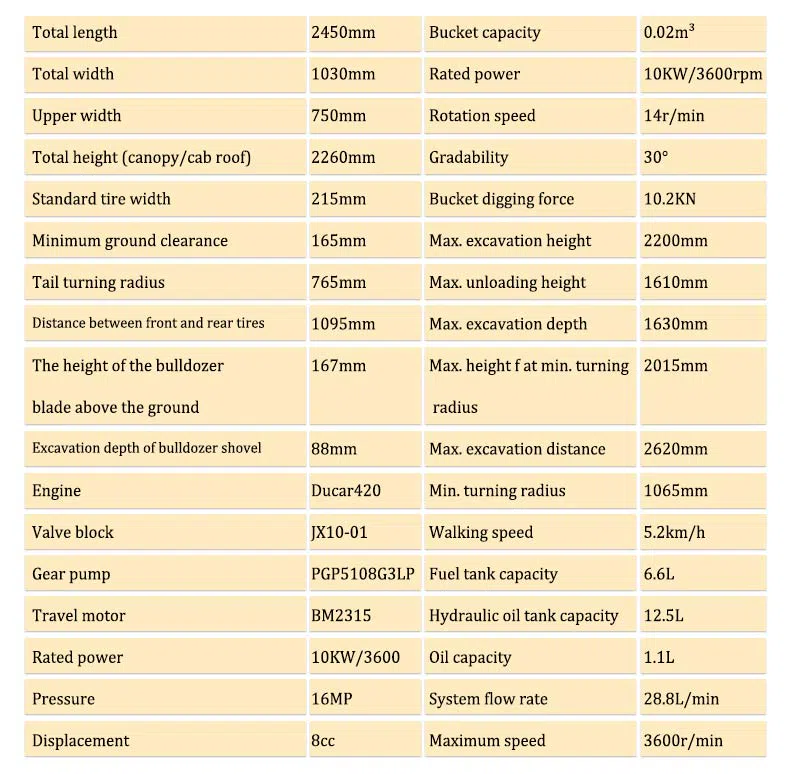

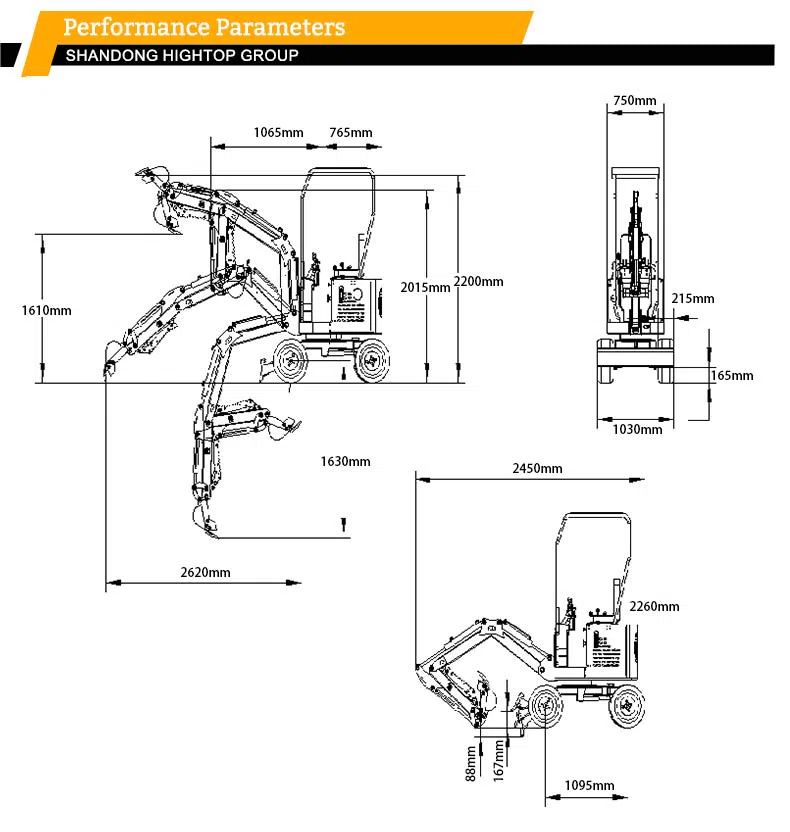

Mini Excavator HT10W 1 Ton With Optional Engines Parameters
| Parameter | Value |
|---|---|
| Overall Length | 2450 mm |
| Overall Width | 1030 mm |
| Upper Width | 750 mm |
| Total Height (Canopy / Cab Top) | 2260 mm |
| Standard Tire Width | 215 mm |
| Minimum Ground Clearance | 165 mm |
| Tail Swing Radius | 765 mm |
| Front‑Rear Tire Spacing | 1095 mm |
| Dozer Blade Ground Clearance | 167 mm |
| Dozer Blade Digging Depth | 88 mm |
| Engine | Ducar420 |
| Main Valve Group | JX10‑01 |
| Gear Pump | PGP5108G3LP |
| Travel Motor | BM2315 |
| Rated Power | 10 kW / 3600 rpm |
| Working Pressure | 16 MPa |
| Displacement | 8 cc |
| Bucket Capacity | 0.02 m³ |
| Swing Speed | 14 r/min |
| Gradeability | 30° |
| Bucket Digging Force | 10.2 KN |
| Max Digging Height | 2200 mm |
| Max Dumping Height | 1610 mm |
| Max Digging Depth | 1630 mm |
| Max Height at Minimum Swing Radius | 2015 mm |
| Max Digging Reach | 2620 mm |
| Minimum Swing Radius | 1065 mm |
| Travel Speed | 5.2 km/h |
| Fuel Tank Capacity | 6.6 L |
| Hydraulic Oil Tank Capacity | 12.5 L |
| Engine Oil Capacity | 1.1 L |
| System Flow | 28.8 L/min |
| Maximum Rotating Speed | 3600 r/min |

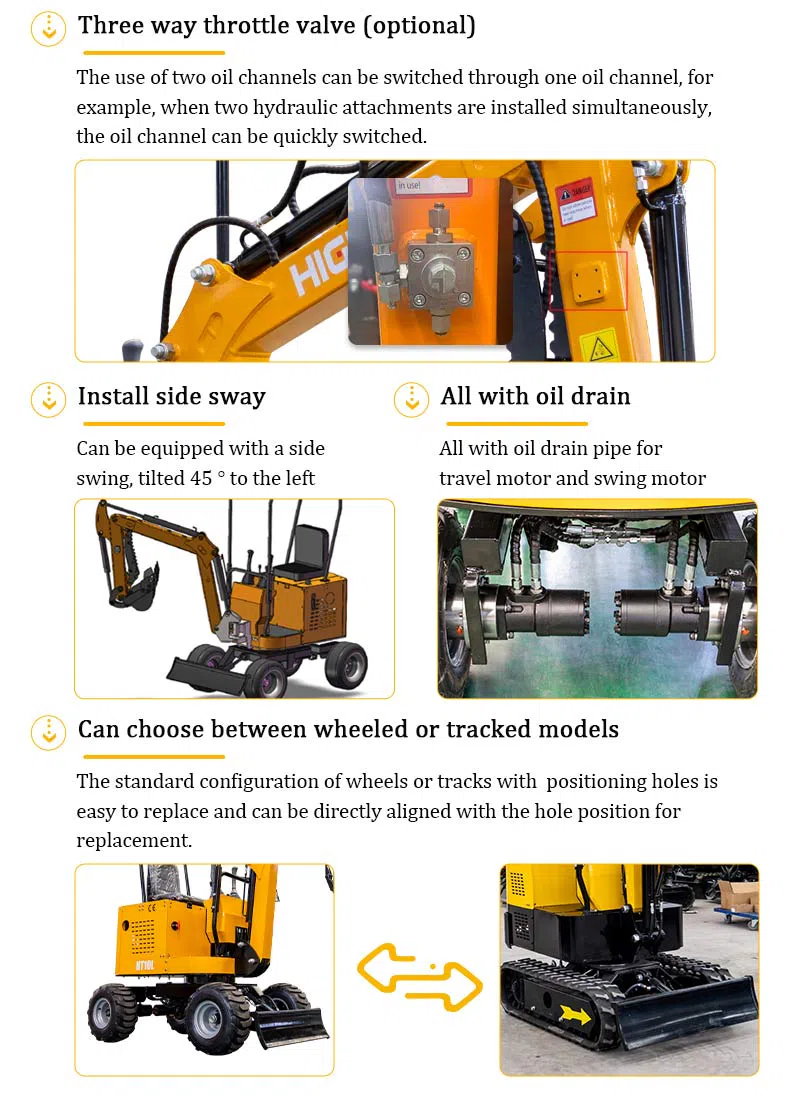

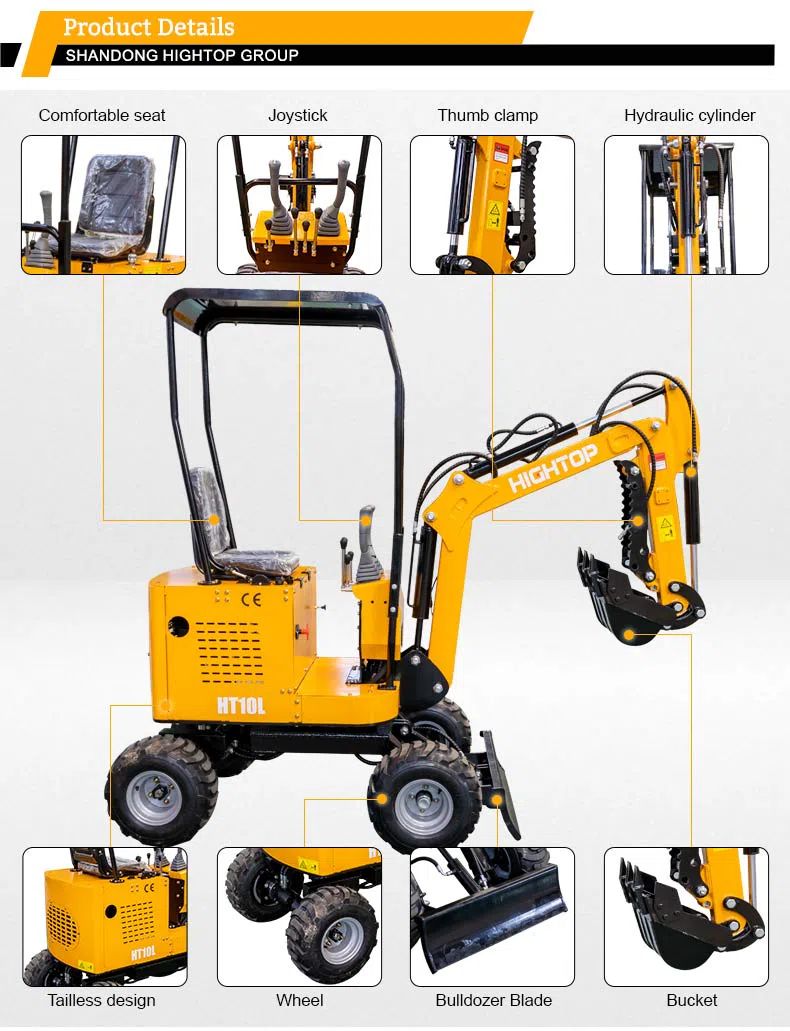

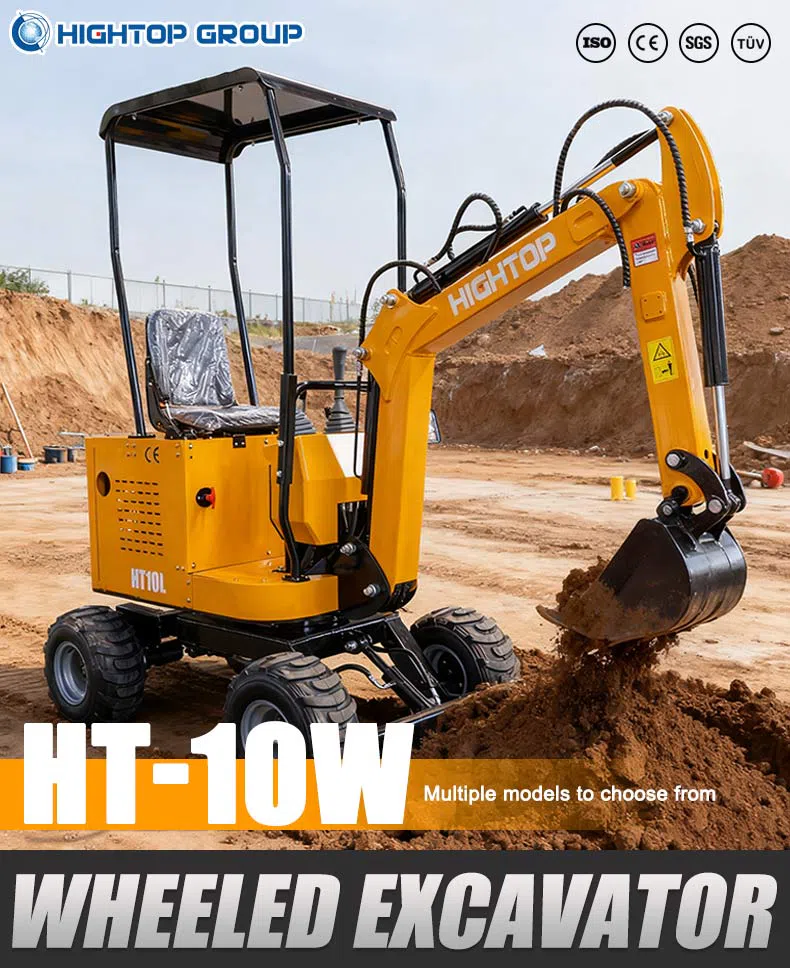

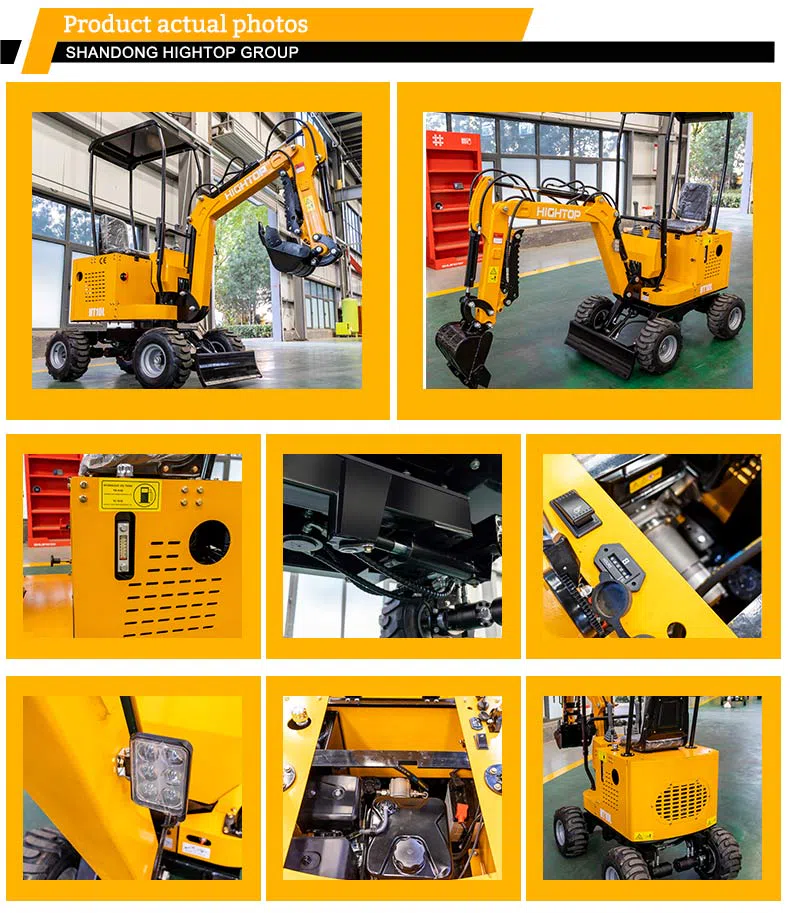

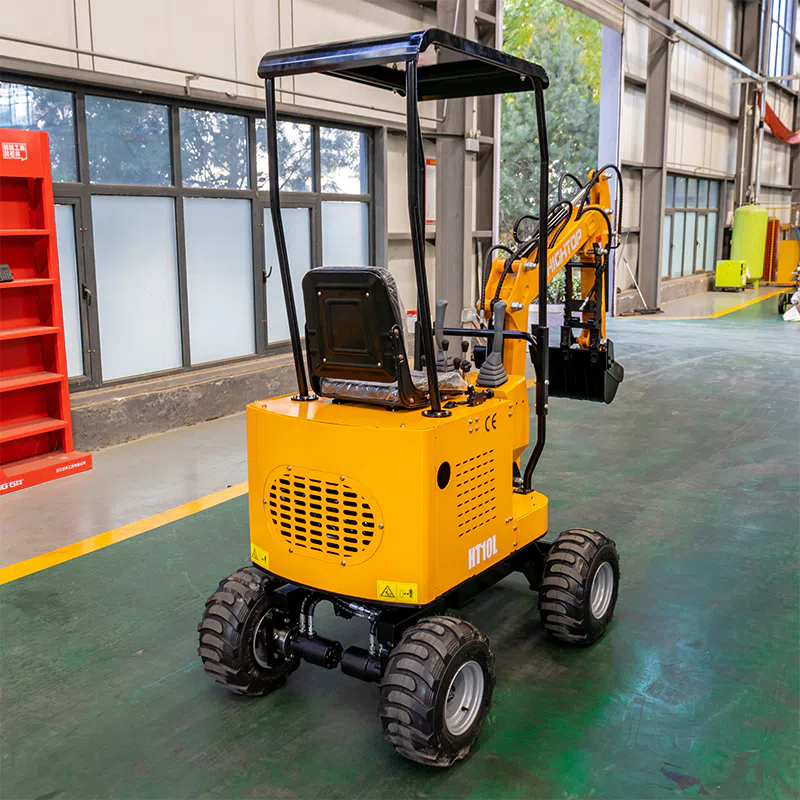

Hightop HT10W Mini Excavator 1 Ton With Optional Engines Picture

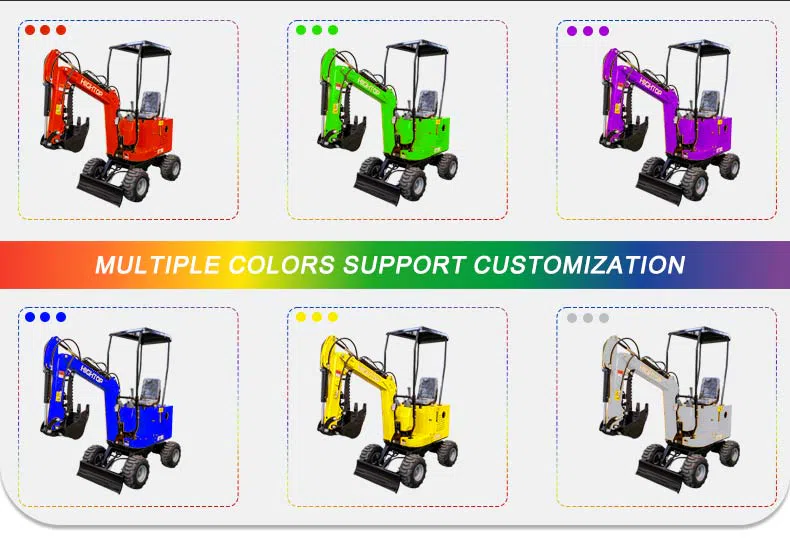

Compact design, customizable colors

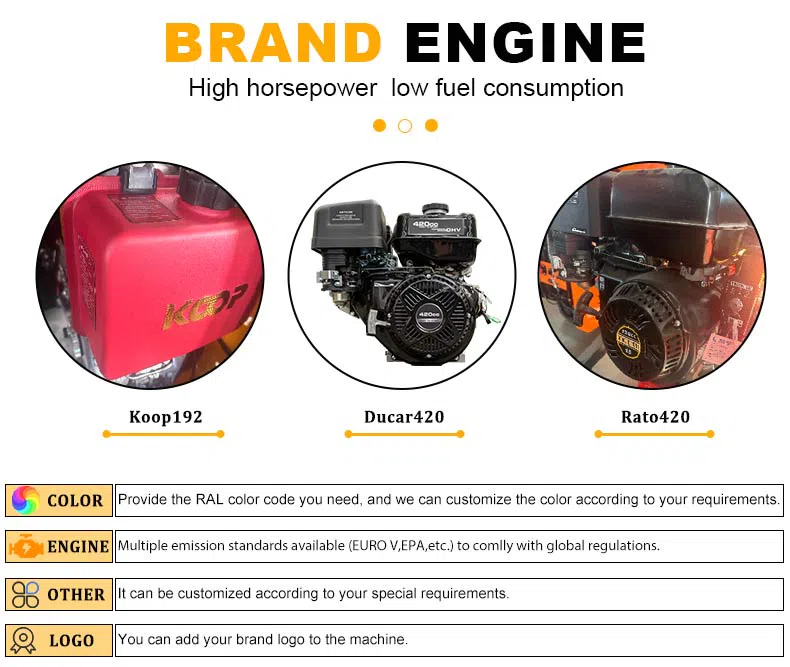

BRAND ENGINE:High horsepower low fuel consumption

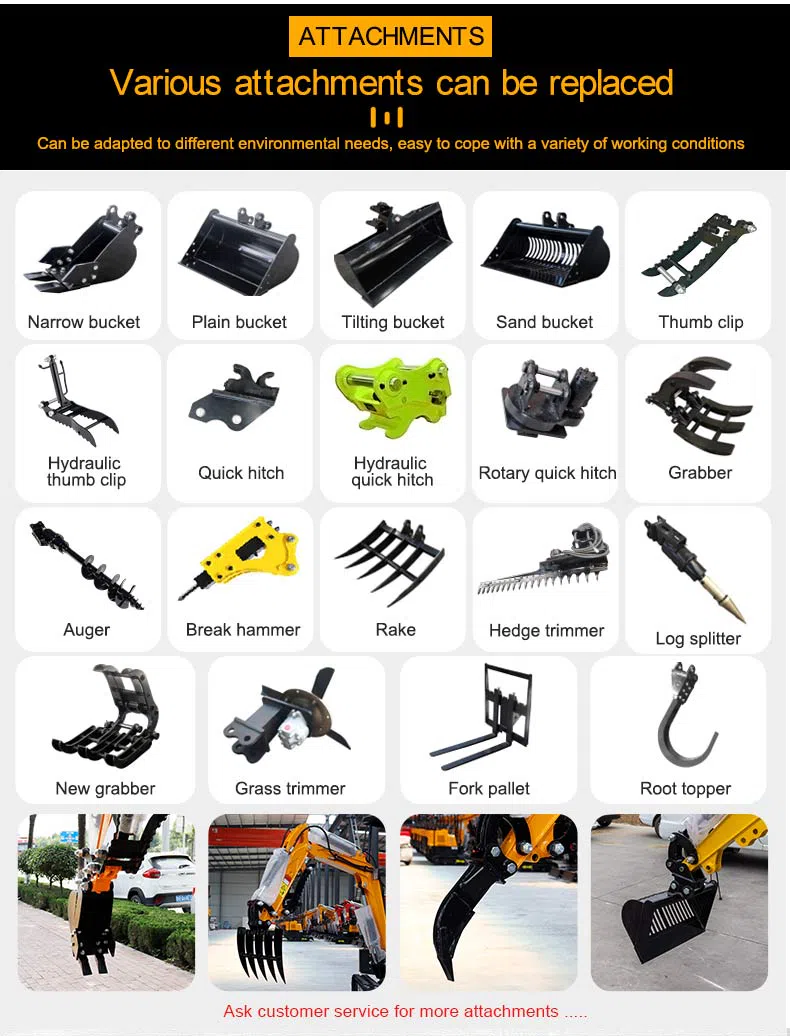

It can be equipped with a variety of accessories
Mini Excavator 1 Ton With Optional Engines HT10W Application Scenarios
The HT10W 1 ton wheeled mini excavator is widely used in small-scale construction and maintenance projects where flexibility and mobility are important.
It is suitable for residential construction, garden landscaping, agricultural land improvement, trench digging, pipeline installation, road maintenance and municipal repair projects.
Because of its wheeled design, HT10W is especially suitable for users who need to move the machine between different working locations without complicated transportation arrangements.
Professional Support From HIGHTOP
As an experienced mini excavator manufacturer, HIGHTOP provides comprehensive support for international customers.
We offer:
- Customized machine configurations according to different market requirements
- Engine options and attachment solutions
- Technical consultation before purchase
- Spare parts supply and maintenance support
- Export packaging and global shipping assistance
- Operation guidance and after-sales service
HIGHTOP focuses on providing reliable compact construction equipment solutions for dealers, contractors and end users worldwide.
Mini Excavator 1 Ton With Optional Engines HT10W Frequently Asked Questions
1. Is HT10W a crawler mini excavator?
No. HT10W is a wheeled mini excavator. It uses a wheel chassis instead of crawler tracks, making it more suitable for road movement and frequent relocation.
2. What engine does HT10W use?
HT10W is equipped with KOOP engine, providing reliable performance and easy maintenance.
3. What is the digging depth of HT10W?
The maximum digging depth of HT10W is approximately 1500mm.
4. Can HT10W use different attachments?
Yes. HT10W supports different attachments such as buckets, breakers and augers according to customer requirements.
5. Can HIGHTOP customize HT10W?
Yes. HIGHTOP can provide customized configurations according to different customer requirements, including engine options, attachments and machine specifications.
