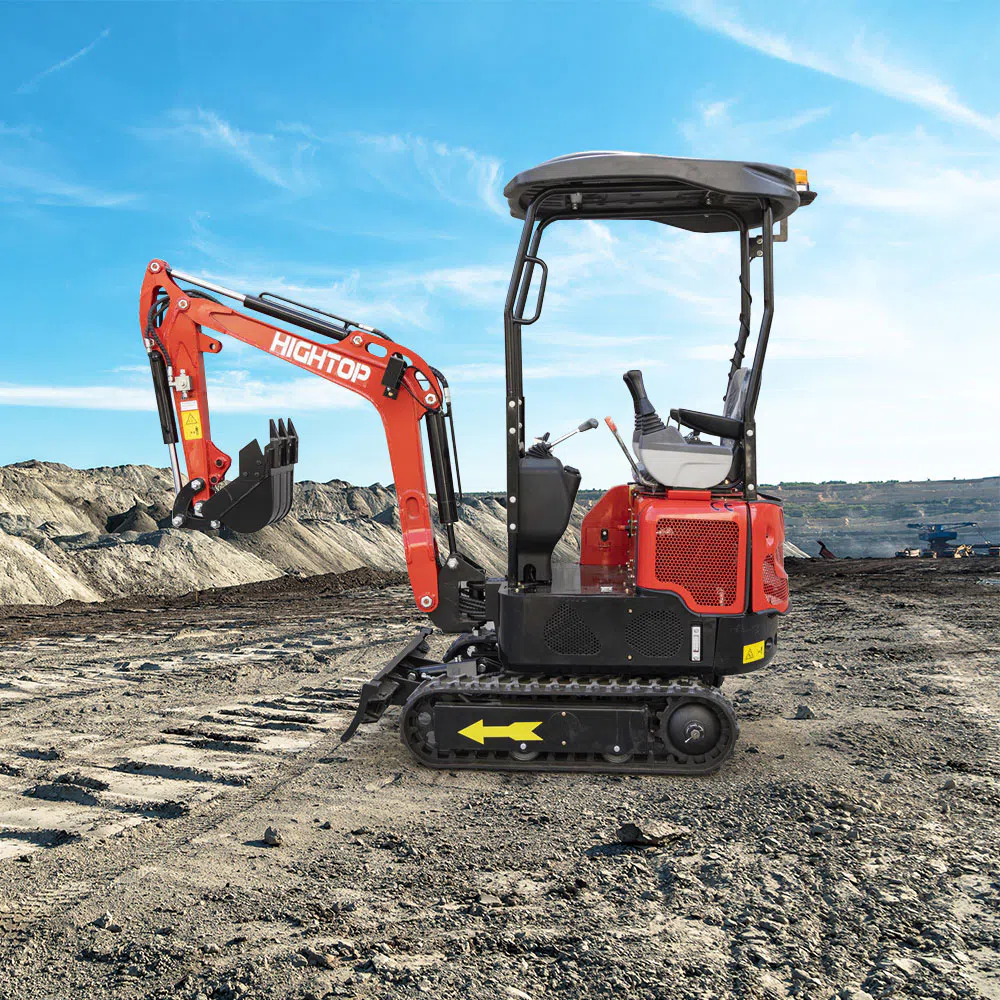

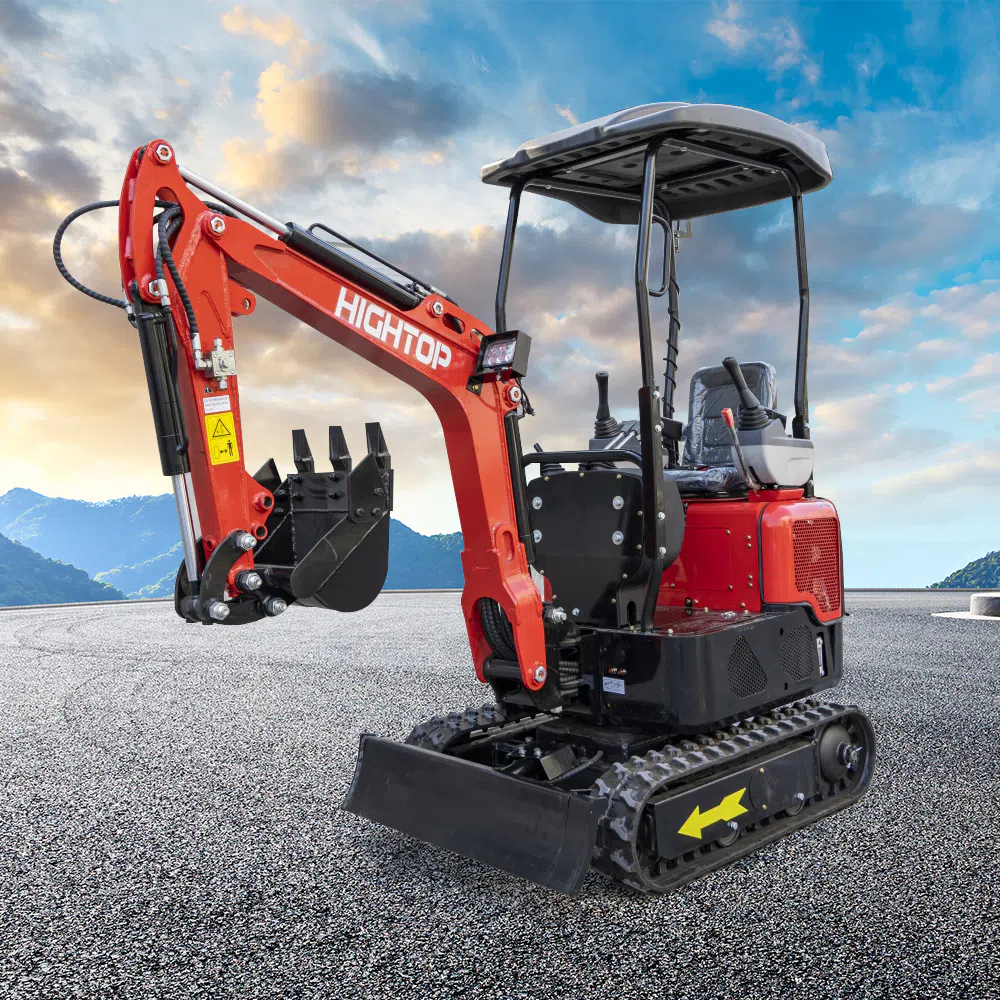

Hightop Mini Excavator HT12G 1.2 Ton With Kubota Z482 Engine Product Features
The HT12G is equipped with a Kubota Z482 engine, providing a reliable power solution for compact excavation applications. The engine configuration makes this model suitable for users who prefer Kubota-powered mini excavators for construction and maintenance work.
With a total width of only 930 mm, the HT12G can operate in relatively narrow areas where larger excavators may have difficulty entering. The compact design improves flexibility in residential areas, gardens and restricted construction sites.
The excavator provides a maximum digging depth of 1850 mm, allowing it to complete common trenching, drainage and foundation preparation tasks within its equipment class.
The maximum excavation distance reaches 2920 mm, providing a practical working range for compact construction projects and earthmoving operations.
The HT12G offers a 30-degree climbing capability, allowing the machine to work on slopes and uneven terrain when operating conditions are suitable.
The machine uses a backhoe working device, which is suitable for standard excavation tasks including digging, trenching and soil handling.
The HT12G is equipped with a bulldozer blade. The blade provides 110 mm ground clearance and a pushing excavation depth of 195 mm, helping with leveling and basic site preparation.
Small Excavator 1.2 Ton With Kubota Z482 Engine Parameters
| Parameter | Specification |
|---|---|
| Model | HT12G |
| Engine | Kubota Z482 |
| Transportation Length | 2380 mm |
| Total Width | 930 mm |
| Upper Width | 940 mm |
| Total Height (Cab Roof) | 2270 mm |
| Standard Track Shoe Width | 180 mm |
| Track Gauge | 750 mm |
| Track Length | 1235 mm |
| Tail Turning Radius | 820 mm |
| Track Grounding Length | 890 mm |
| Maximum Excavation Height | 2455 mm |
| Maximum Dumping Height | 1620 mm |
| Maximum Digging Depth | 1850 mm |
| Unloading Height | 1820 mm |
| Maximum Excavation Distance | 2920 mm |
| Minimum Radius | 1510 mm |
| Operating Weight | 1060 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device | Backhoe |
| Gradeability | 30° |
| Fuel Tank Capacity | 16 L |
| Bulldozer Blade Ground Clearance | 110 mm |
| Bulldozer Pushing Excavation Depth | 195 mm |
| Maximum Height at Minimum Turning Radius | 1930 mm |

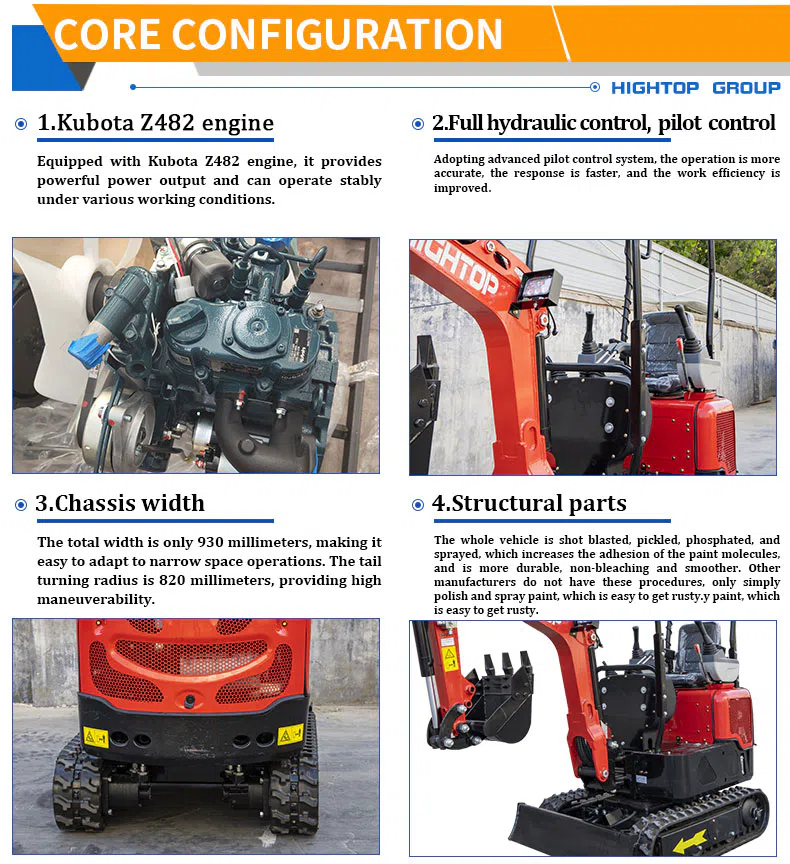

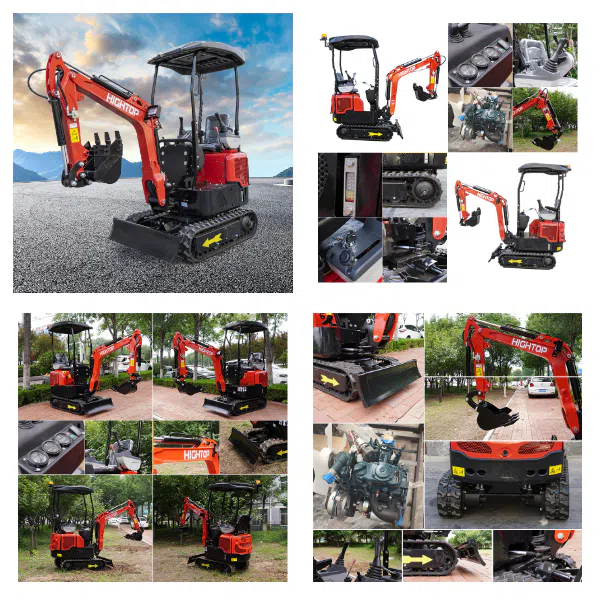

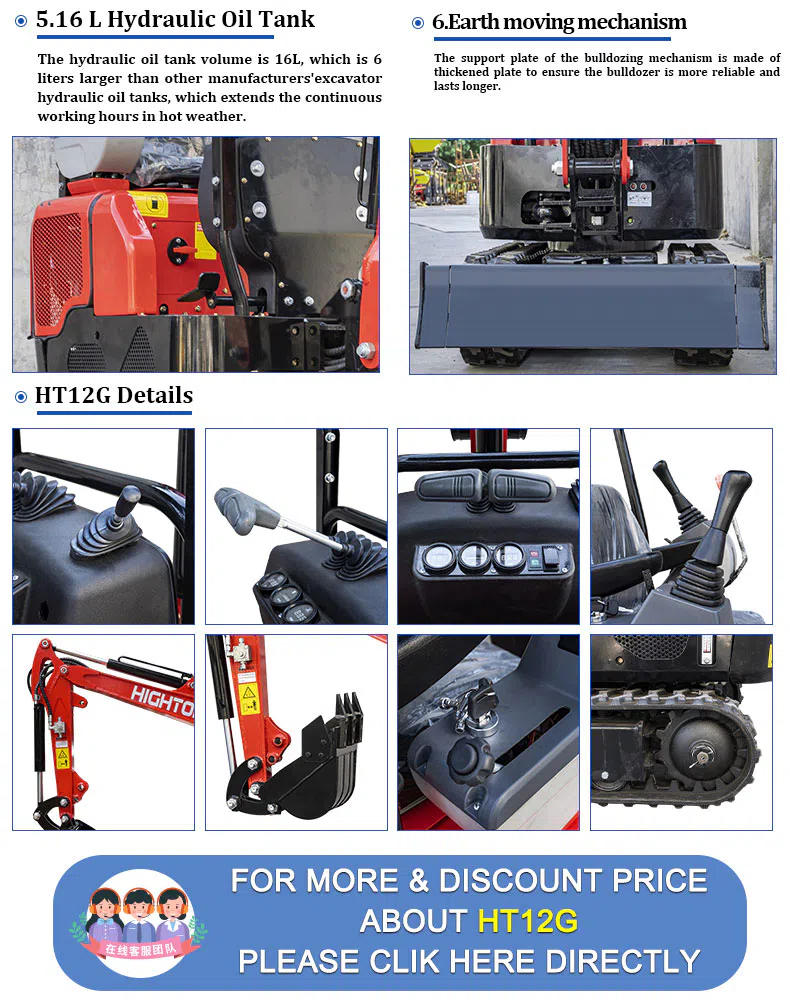

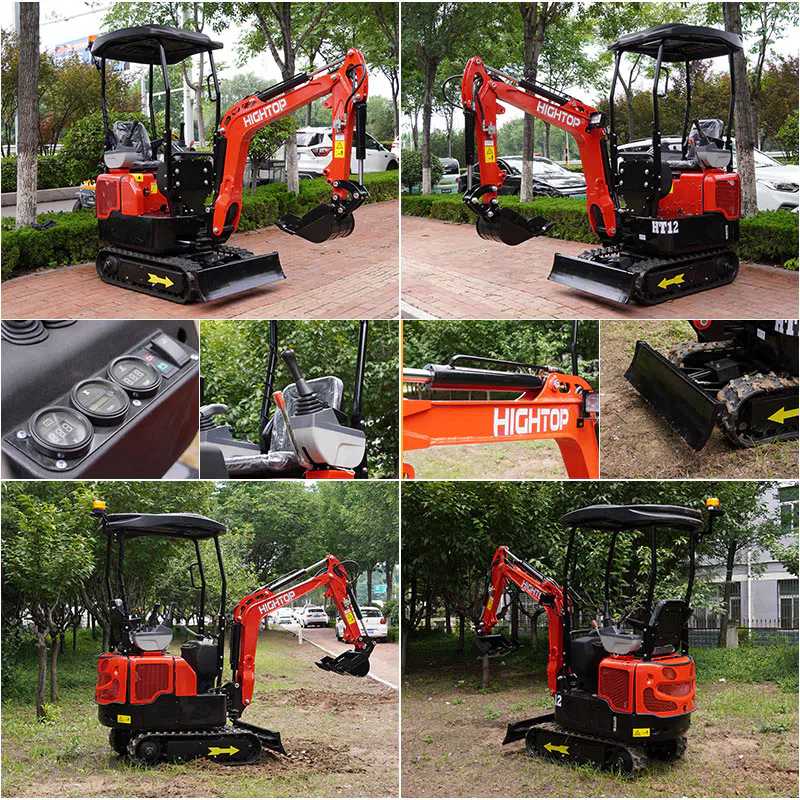

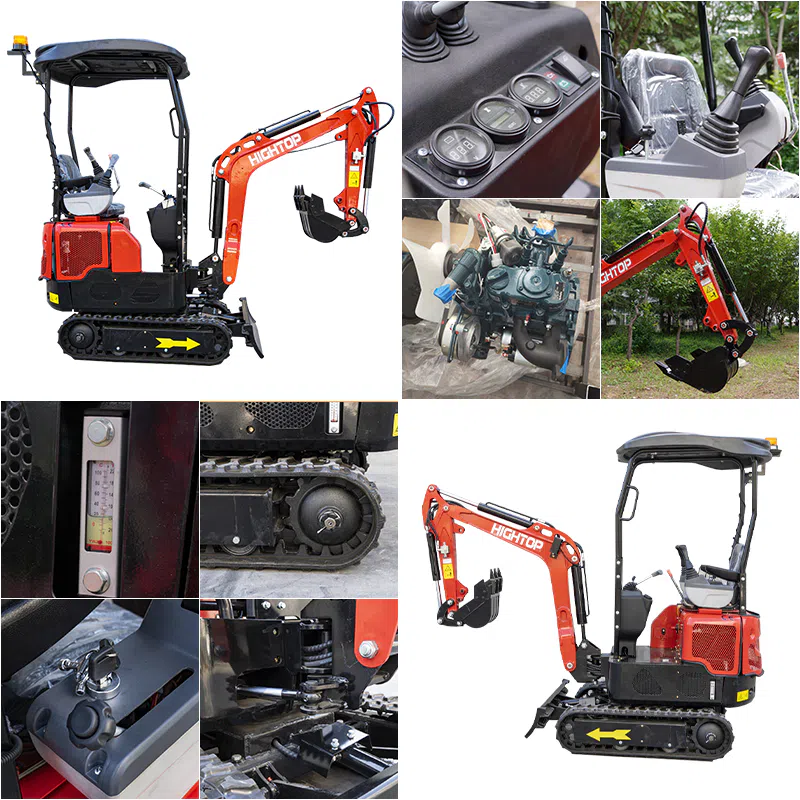

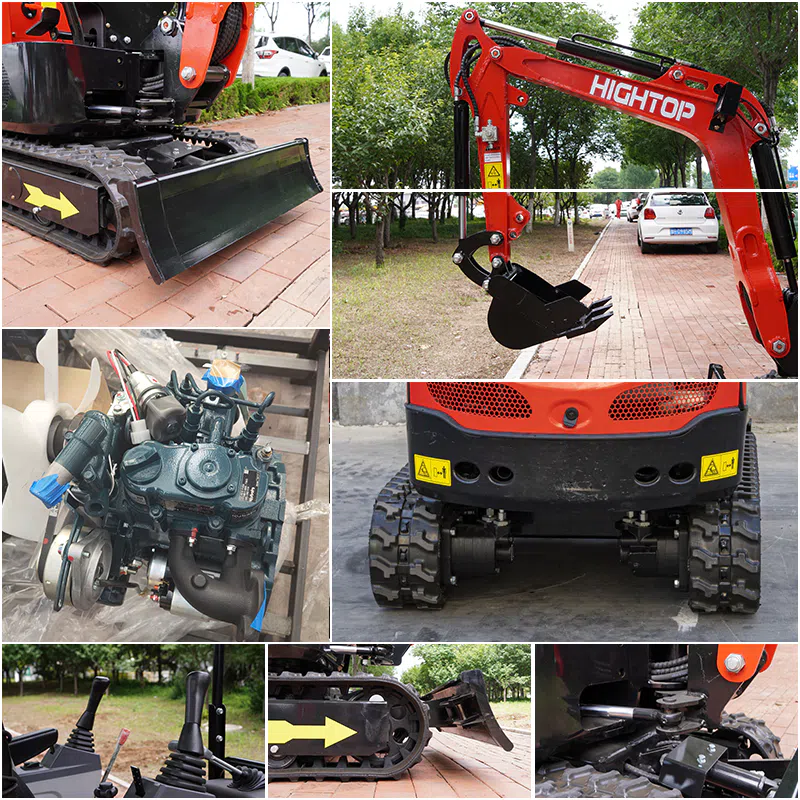

Mini Excavator HT12G 1.2 Ton With Kubota Z482 Engine Images

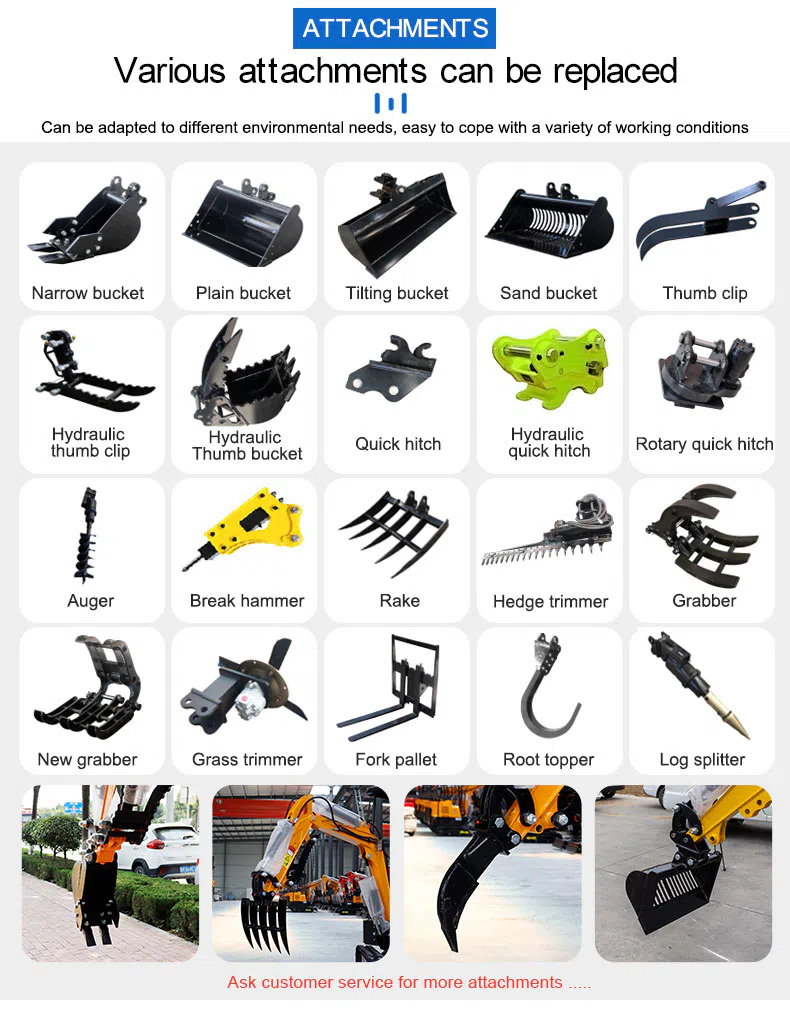

Can be paired with various accessories

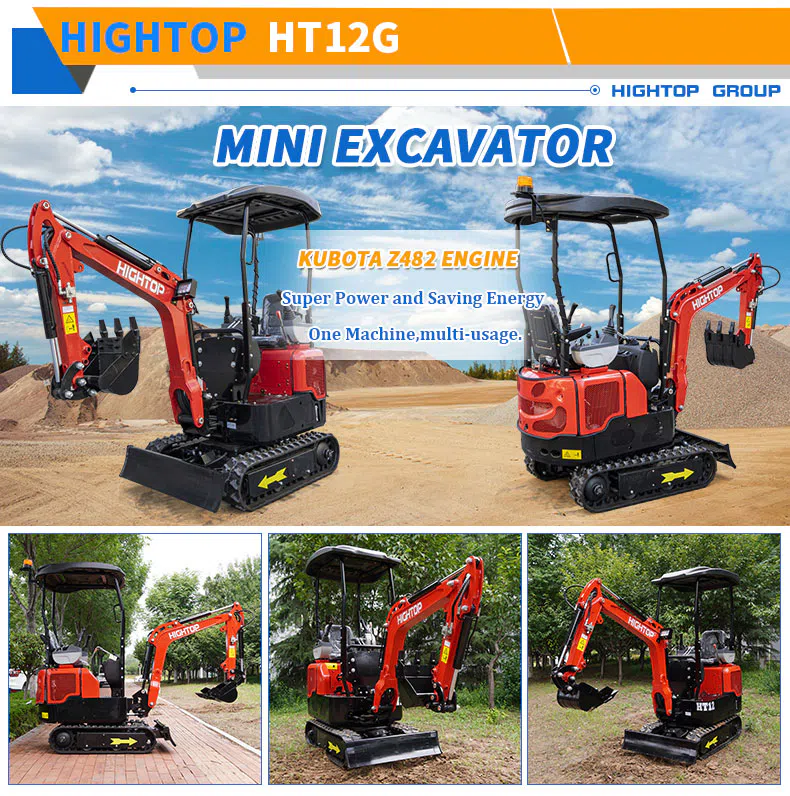

KUBOTA Z482 ENGINE :Super Power and Saving Energy.One Machine,multi-usage.
Can be paired with various accessories
Mini Excavator 1.2 Ton With Kubota Z482 Engine Applications
The HT12G mini excavator is suitable for residential projects such as foundation preparation, drainage work, pipeline trenching and small-scale excavation. Its compact width helps operators work around buildings and limited spaces.
For landscaping companies, the machine can be used for garden renovation, soil movement, planting area preparation and small excavation tasks. The compact crawler design reduces access limitations on landscaped sites.
The excavator can support agricultural applications including drainage channels, irrigation preparation, land maintenance and small earthmoving projects.
With a 930 mm overall width, the HT12G is suitable for compact job sites where working space is limited and larger excavators are difficult to use.

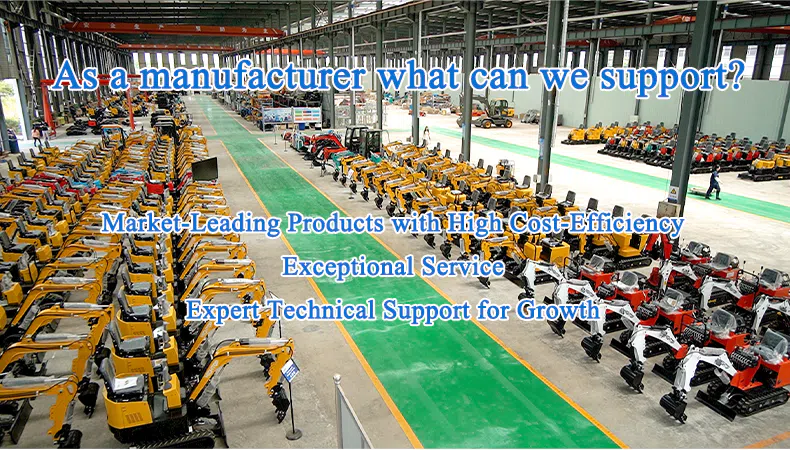

HIGHTOP Service Support
HIGHTOP provides complete support for international customers purchasing mini excavators, including machine configuration guidance, production inspection, export preparation, transportation coordination and technical support.
Before shipment, each excavator is inspected according to customer requirements. The engine configuration, working device, machine functions and main components are checked to ensure the equipment meets order specifications.

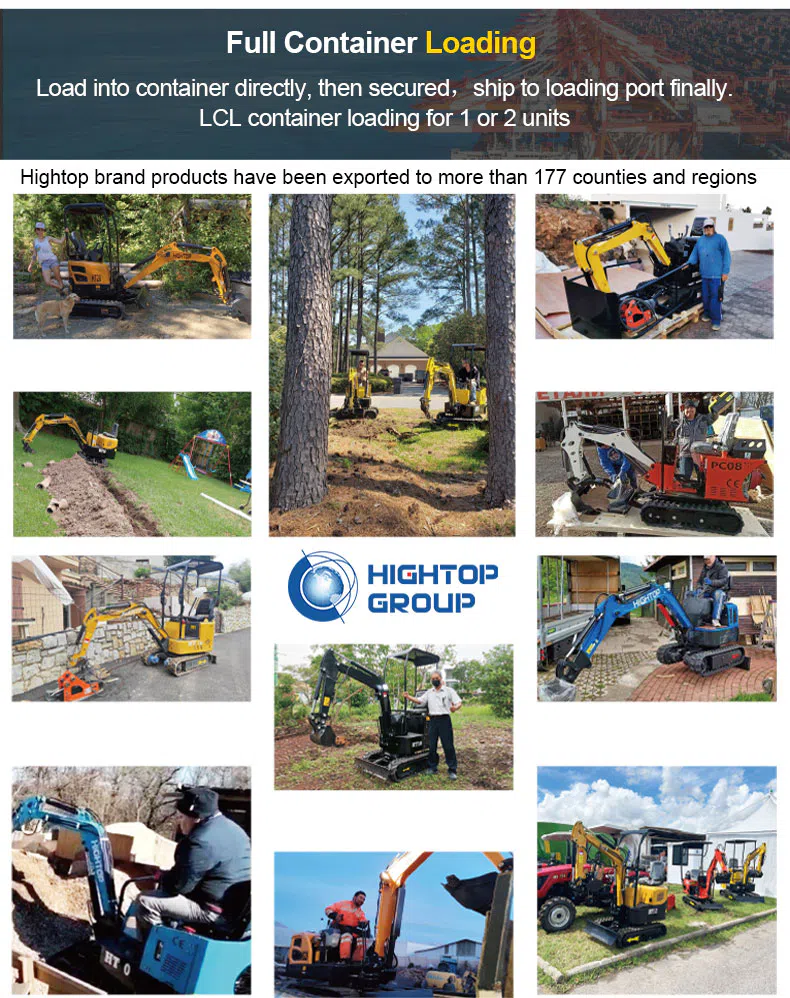

HIGHTOP supports customers with export documents, logistics arrangements and shipping coordination. Different transportation solutions can be provided according to destination requirements.
After delivery, HIGHTOP continues to provide technical assistance, operation guidance and spare parts support to help customers maintain stable machine performance.
