Hightop Mini Excavator HT12P 1.2 Ton With 1700mm Digging Depth Description
1.2 Ton Mini Excavator for Compact Excavation Work
The HIGHTOP HT-12P 1.2 ton mini excavator is built for customers who need a practical excavator for small construction sites without moving up to a larger machine class. Its 1200 kg operating weight, compact 2200 × 940 × 2150 mm machine size and 2100 mm transport length make it suitable for projects where access and transport space need to be considered carefully.
The machine provides a 1700 mm maximum digging depth and 2500 mm maximum digging height, giving the HT-12P a useful working range for trenching, foundation preparation, landscaping and general earthmoving. A 0.02 m³ bucket and 400 mm bucket width are suited to relatively small-scale digging tasks where controlled excavation is more important than simply maximizing bucket capacity.
For customers comparing different compact machines, the HIGHTOP mini excavator range provides additional configurations and operating-weight options for different working requirements.

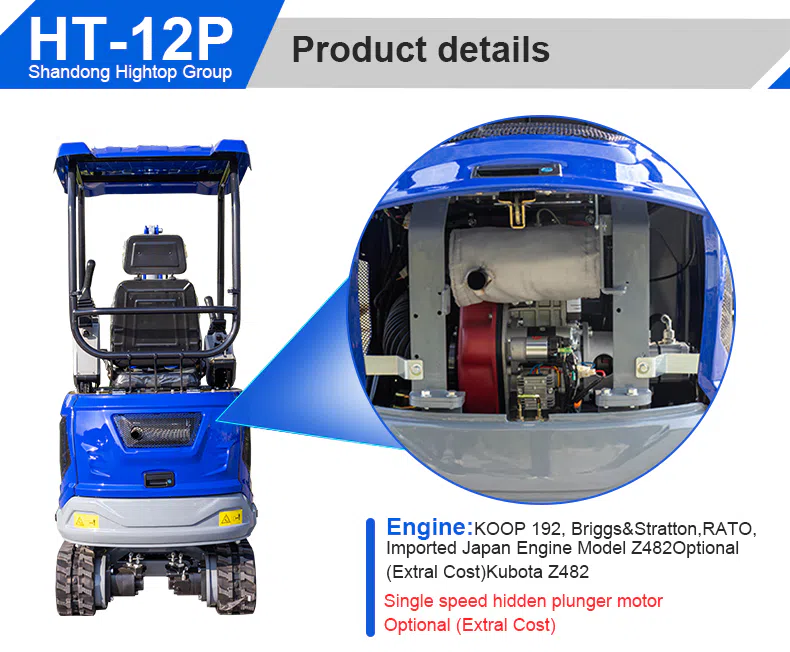

Engine Options for Different Market Requirements
The standard HT-12P configuration uses a KOOP 192F engine rated at 7 kW, while RATO and Briggs & Stratton engines are available as optional configurations. This allows buyers to select an engine setup according to their preferred brand, local market requirements and procurement plans.
The engine options are particularly useful for distributors and contractors who serve different markets. Instead of changing the overall machine concept, customers can select a suitable power configuration while keeping the same compact excavator platform.
Flexible Configuration for Confined Working Areas
The HT-12P is not limited to one fixed configuration. Optional functions include boom swing, retractable tracks, cabin and pilot control, allowing the machine to be specified for different working environments and operator preferences.

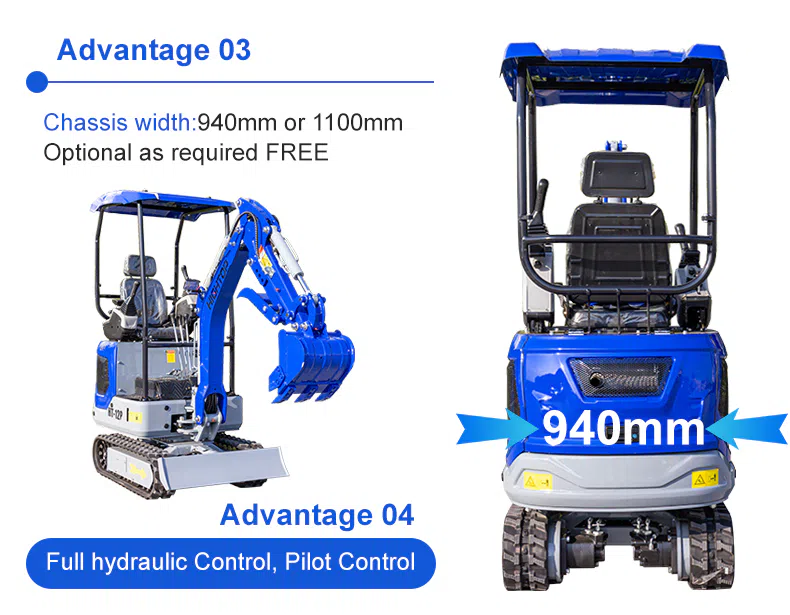

The standard chassis width is 940 mm, with 1100 mm also available as an option. When combined with optional retractable tracks, the machine can provide greater flexibility when moving through different site conditions. The 580 mm wheel pitch and 380 mm ground clearance also contribute to the machine's practical layout for compact job sites.

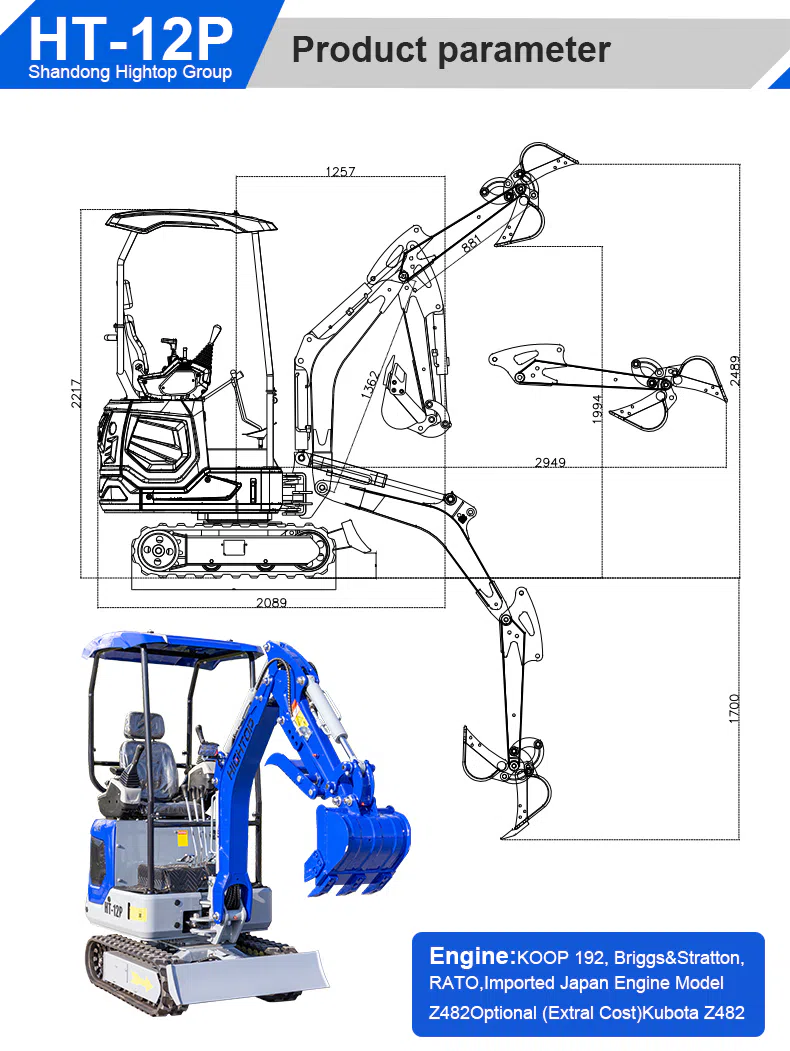

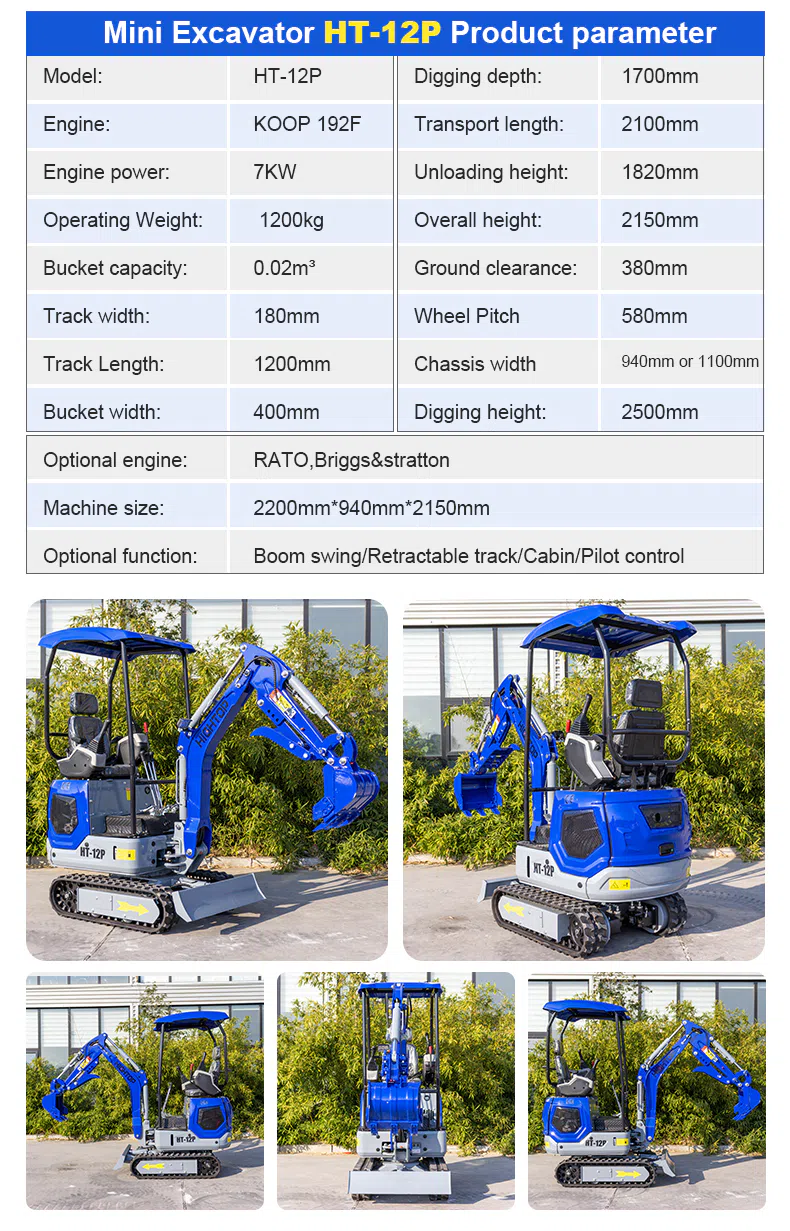

HT12P Small Excavator 1.2 Ton With 1700mm Digging Depth Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HT-12P |
| Engine | KOOP 192F |
| Engine Power | 7 kW |
| Operating Weight | 1200 kg |
| Bucket Capacity | 0.02 m³ |
| Track Width | 180 mm |
| Track Length | 1200 mm |
| Bucket Width | 400 mm |
| Optional Engine | RATO, Briggs & Stratton |
| Machine Size | 2200 × 940 × 2150 mm |
| Optional Function | Boom swing / Retractable track / Cabin / Pilot control |
| Digging Depth | 1700 mm |
| Transport Length | 2100 mm |
| Unloading Height | 1820 mm |
| Overall Height | 2150 mm |
| Ground Clearance | 380 mm |
| Wheel Pitch | 580 mm |
| Chassis Width | 940 mm or 1100 mm |
| Digging Height | 2500 mm |

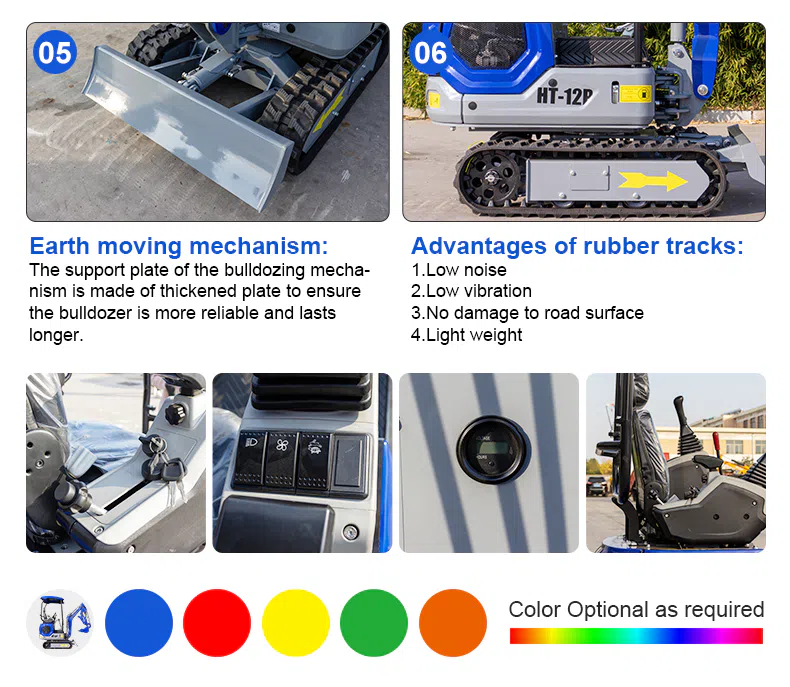

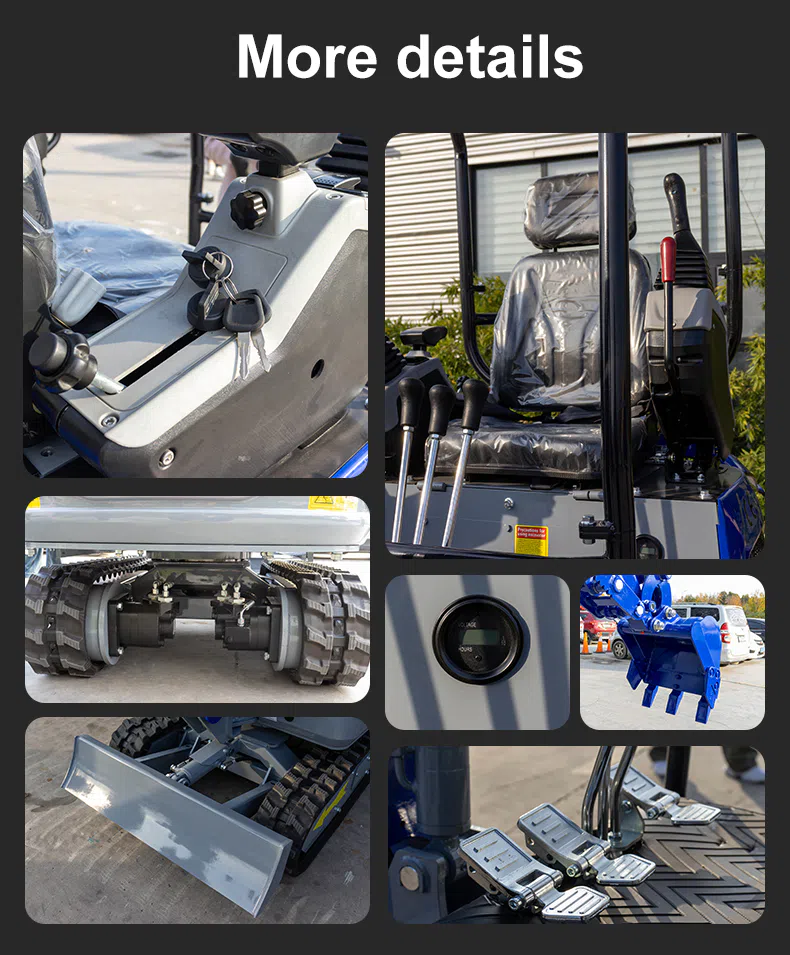

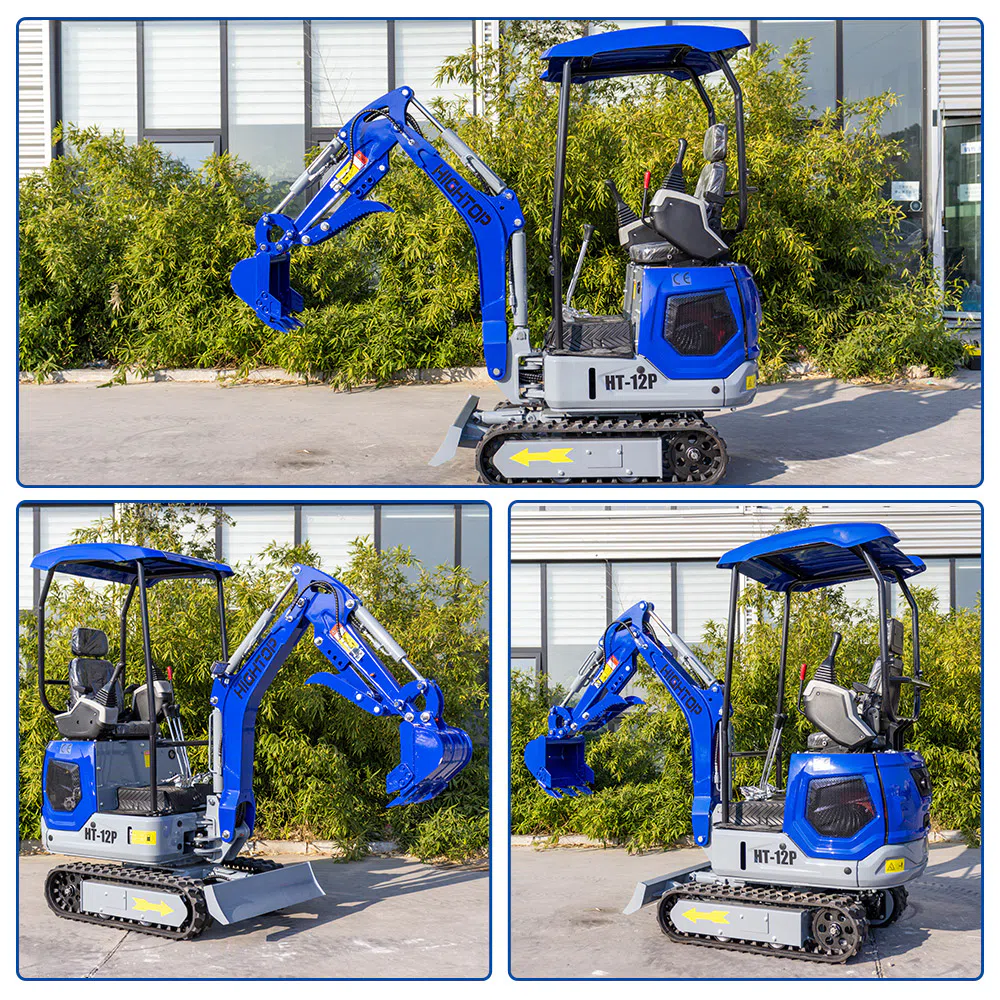

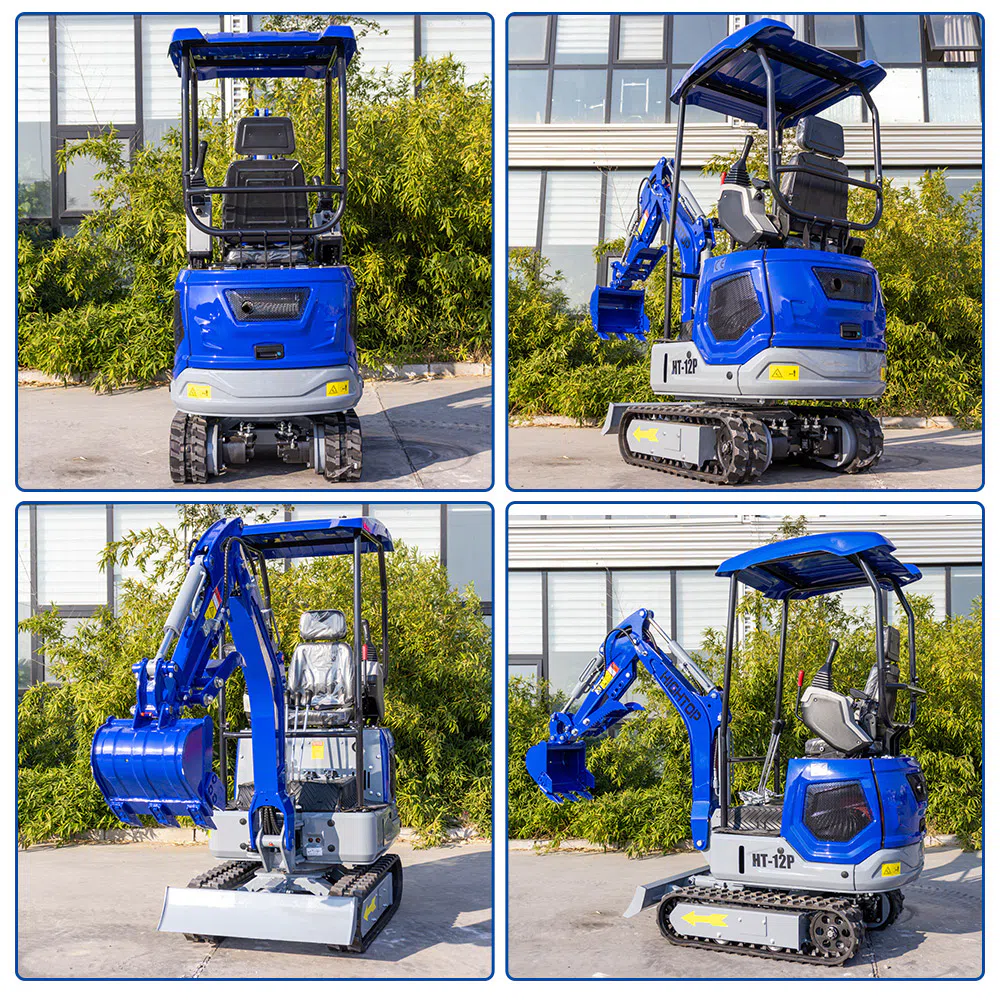

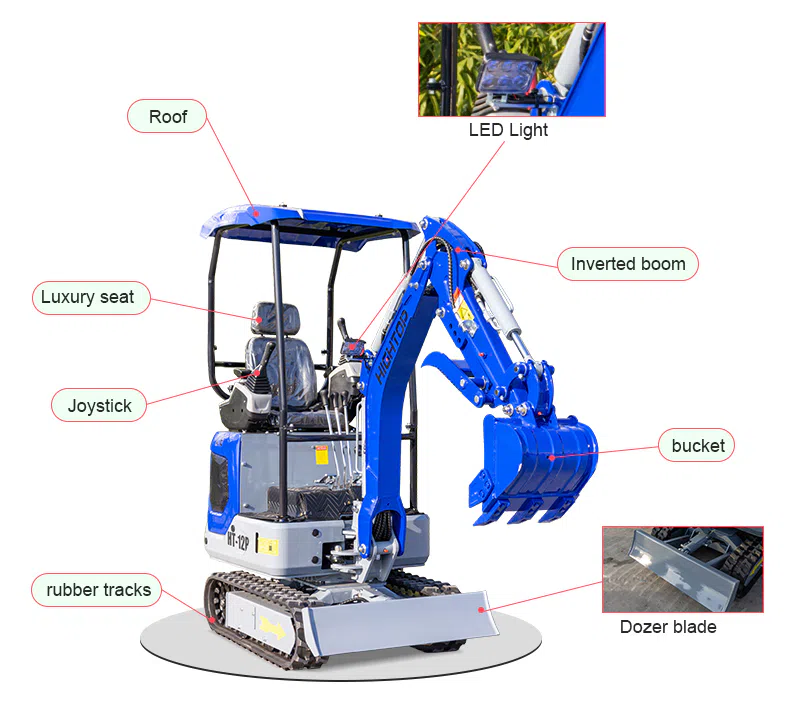

Mini Digger 1.2 Ton With 1700mm Digging Depth Images

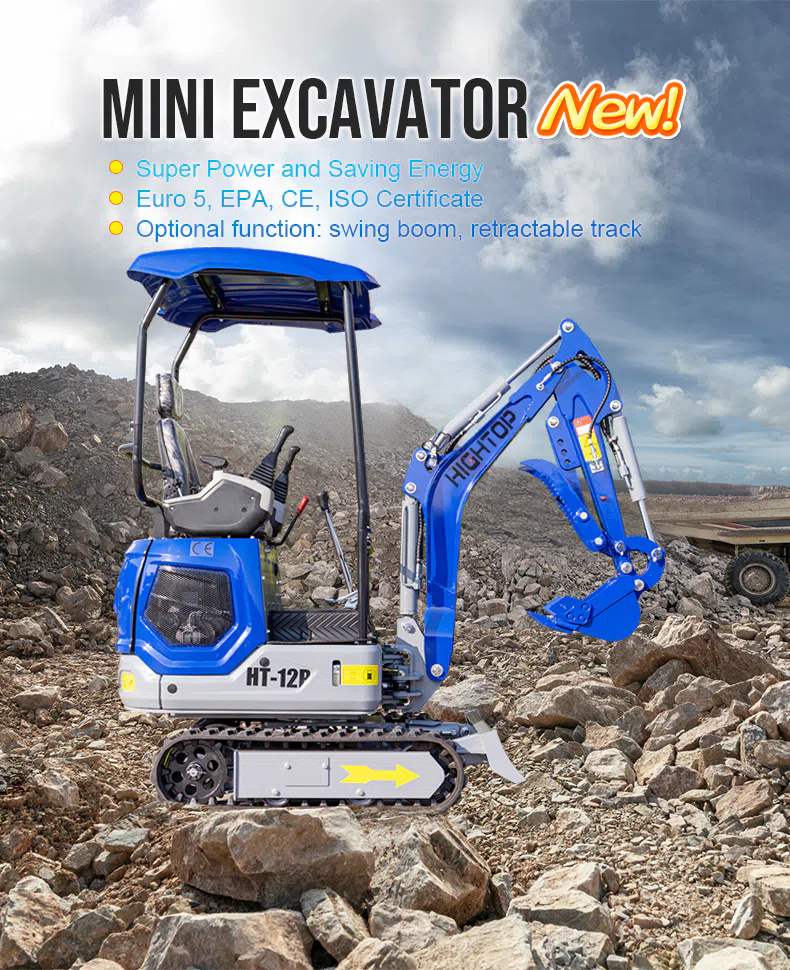

MINI EXCAVATOR
Super Power and Saving Energy
Euro 5, EPA, CE, ISO Certificate
Optional function: swing boom, retractable track

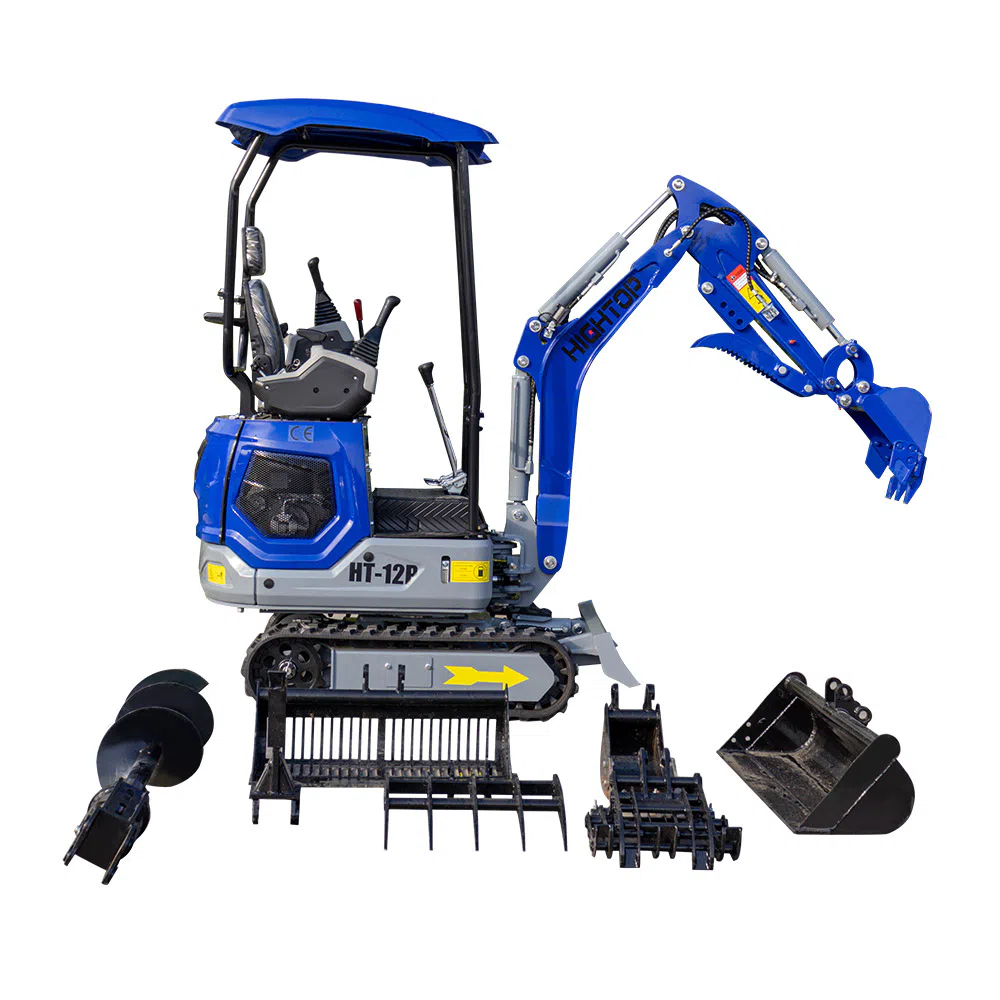

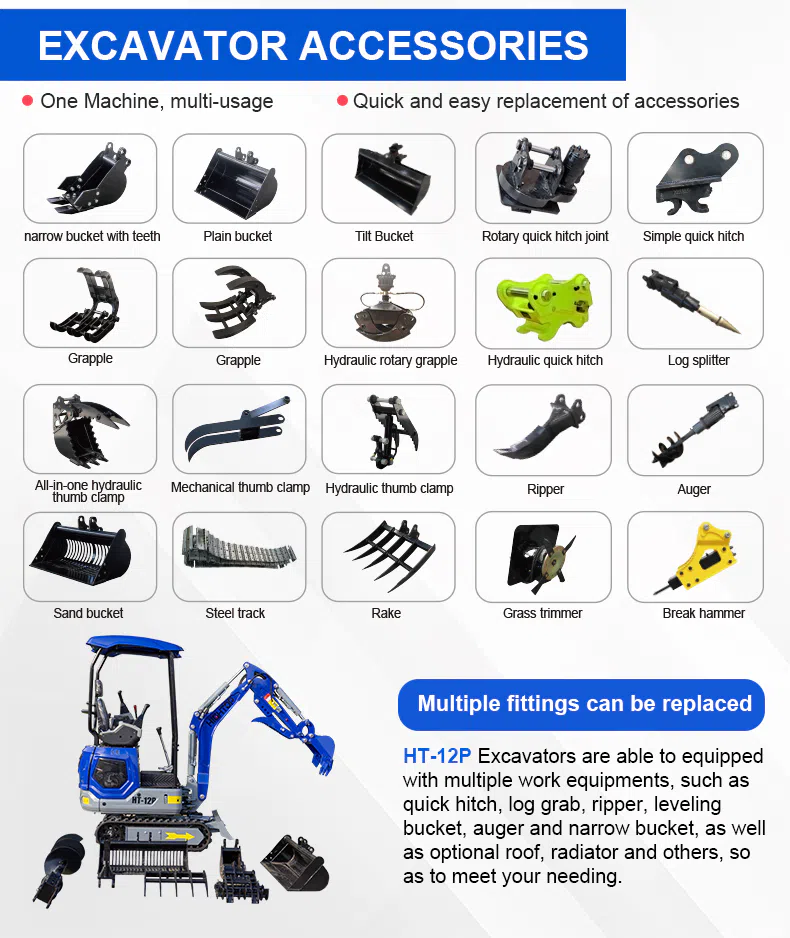

Can be paired with various accessories, suitable for different scenarios
1:Optional Boom Swing:Boom swing is available as an optional function and can provide additional flexibility when positioning the working equipment in confined job sites.

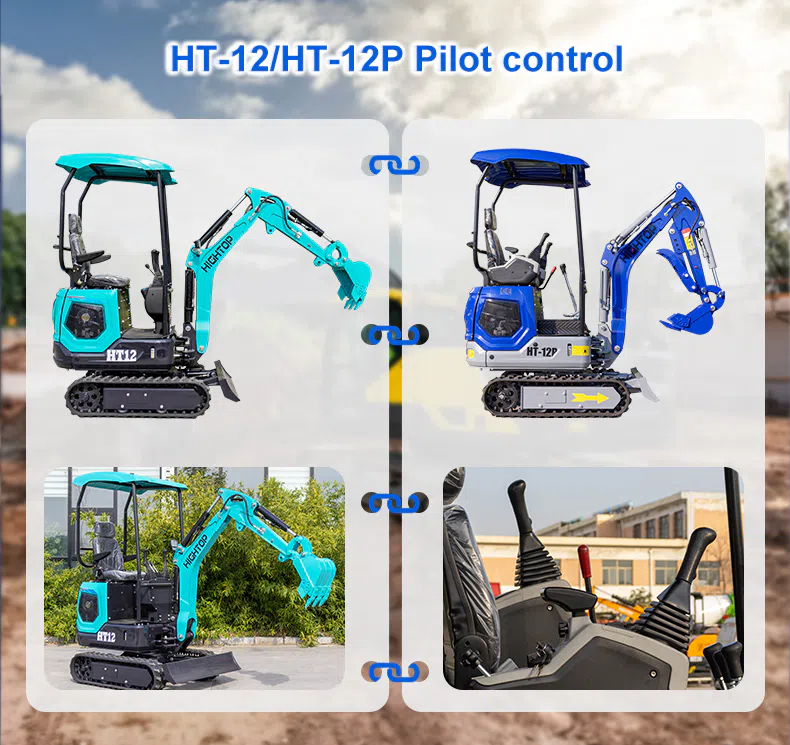

2:Cabin and Pilot Control Options:The machine can be supplied with optional cabin and pilot control configurations. Buyers can select the equipment setup according to operating environment and control requirements.
3.400 mm Bucket Width:The standard bucket width is 400 mm, making the machine suitable for controlled excavation and narrow trenching applications.
Mini Hightop Excavator 1.2 Ton With 1700mm Digging Depth Product Applications
1.Construction and Trenching:The HT-12P is suitable for small construction projects involving trenching, drainage channels, foundation preparation, soil removal and general site work. Its 1700 mm digging depth provides a useful working range for many compact excavation tasks.
2.Landscaping and Garden Projects:For landscaping contractors, the 1.2 ton mini excavator can be used for garden renovation, planting-area preparation, soil excavation and other small earthmoving jobs. The compact chassis dimensions are useful when working around existing buildings and landscaped areas.
3.Agricultural and Farm Maintenance:The machine can support agricultural work such as drainage preparation, irrigation trenching, land maintenance and small-scale excavation. Its different configuration options also allow users to select equipment according to the specific conditions of the farm or property.
4.Residential and Property Maintenance:The HT-12P is suitable for property contractors and maintenance teams working on driveways, yards, drainage, utility trenches and other small excavation projects. The optional retractable-track configuration can be considered when access width is an important part of the job.
5.Narrow Access Job Sites:The 940 mm chassis width makes the HT-12P particularly relevant to compact working areas where space is limited. For projects requiring more flexibility around machine width, the retractable-track option can be selected according to the required configuration.

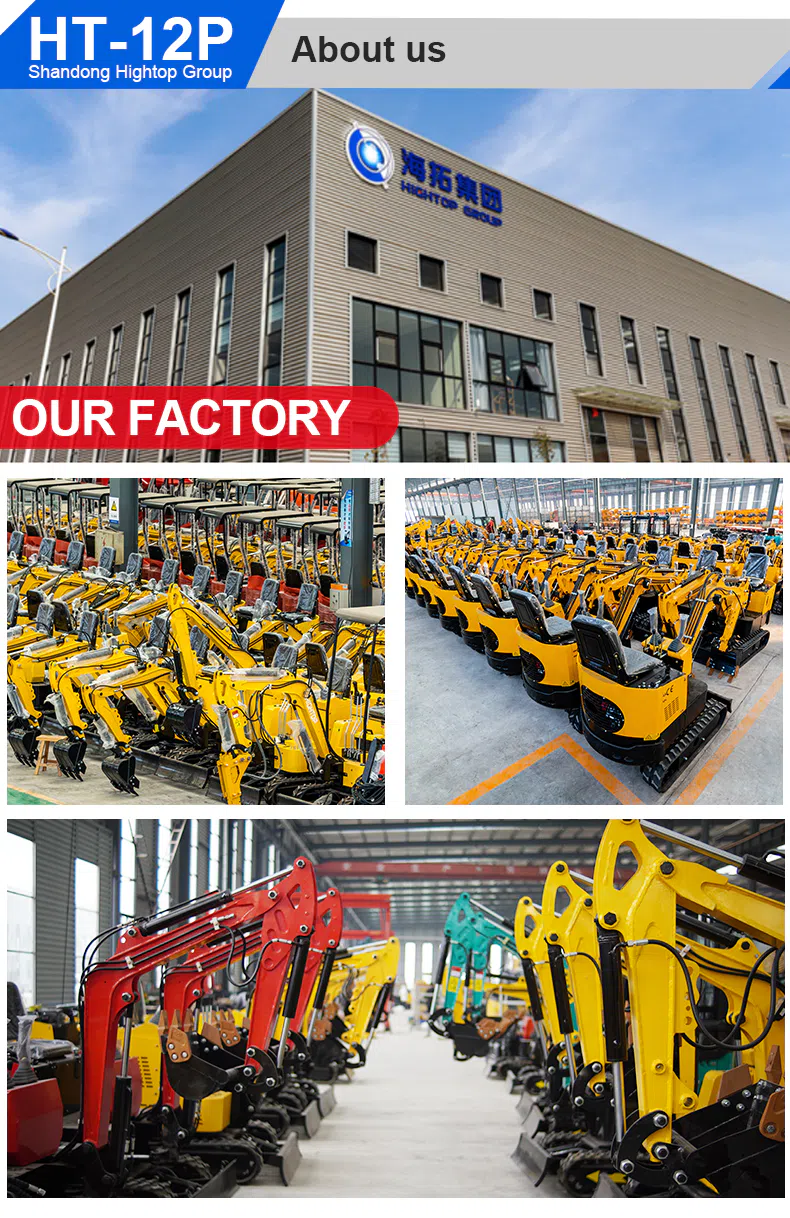

HIGHTOP Group Service and Support
HIGHTOP provides support for customers purchasing construction and agricultural machinery from China, covering equipment configuration, export preparation, shipping coordination and after-sales technical assistance.
Before shipment, the machine is inspected for its main components and working functions. The equipment configuration, engine option and requested accessories are checked according to the customer's order before packing and transportation.
HIGHTOP also assists with export documentation and shipping coordination, helping customers arrange transportation according to the destination and delivery requirements. International transport can be coordinated through suitable logistics arrangements for different markets.
After delivery, HIGHTOP provides technical support related to machine operation, routine maintenance and equipment use. Original spare parts can also be supplied to support long-term maintenance and normal machine operation.
Mini Excavator HT12P 1.2 Ton With 1700mm Digging Depth Frequently Asked Questions
1.What is the operating weight of the HT-12P?
The HT-12P has an operating weight of 1200 kg, placing it in the compact 1.2 ton mini excavator class.
2.How deep can the HT-12P dig?
The maximum digging depth is 1700 mm.
3.What engine does the HT-12P use?
The standard engine is the KOOP 192F with 7 kW power. RATO and Briggs & Stratton engines are available as optional configurations.
4.What is the width of the HT-12P?
The standard chassis width is 940 mm, while 1100 mm is also available as an option.
5.Does the HT-12P have a retractable-track option?
Yes. Retractable tracks are available as an optional function for customers who need additional flexibility regarding machine width.
6.Is a cabin available for the HT-12P?
Yes. A cabin configuration is available as an optional equipment choice.
7.Is pilot control available?
Yes. Pilot control is available as an optional configuration.
8.What is the bucket capacity?
The standard bucket capacity is 0.02 m³, with a bucket width of 400 mm.
9.What is the transport length?
The transport length is 2100 mm, while the listed overall machine size is 2200 × 940 × 2150 mm.
10.What kind of work is the HT-12P suitable for?
The HT-12P is suitable for compact excavation work including construction, trenching, landscaping, agricultural maintenance, drainage preparation and residential property work.
