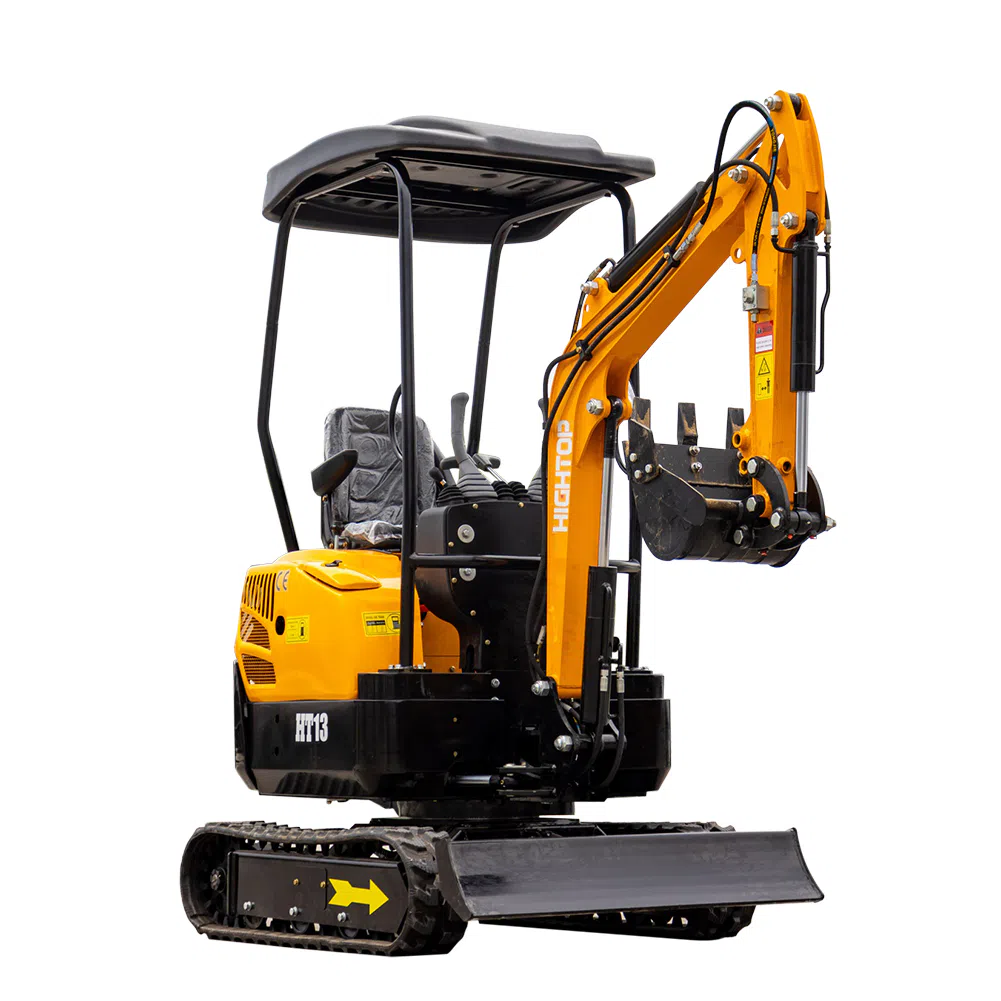

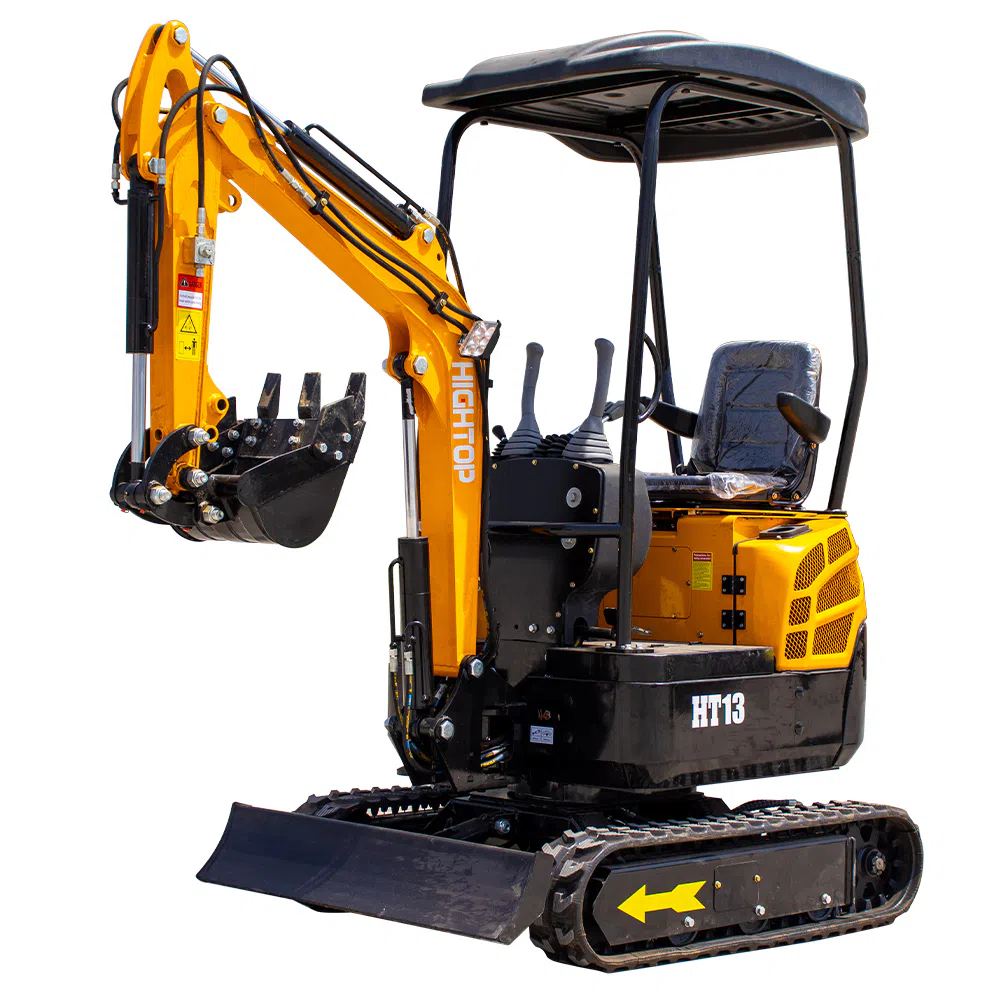

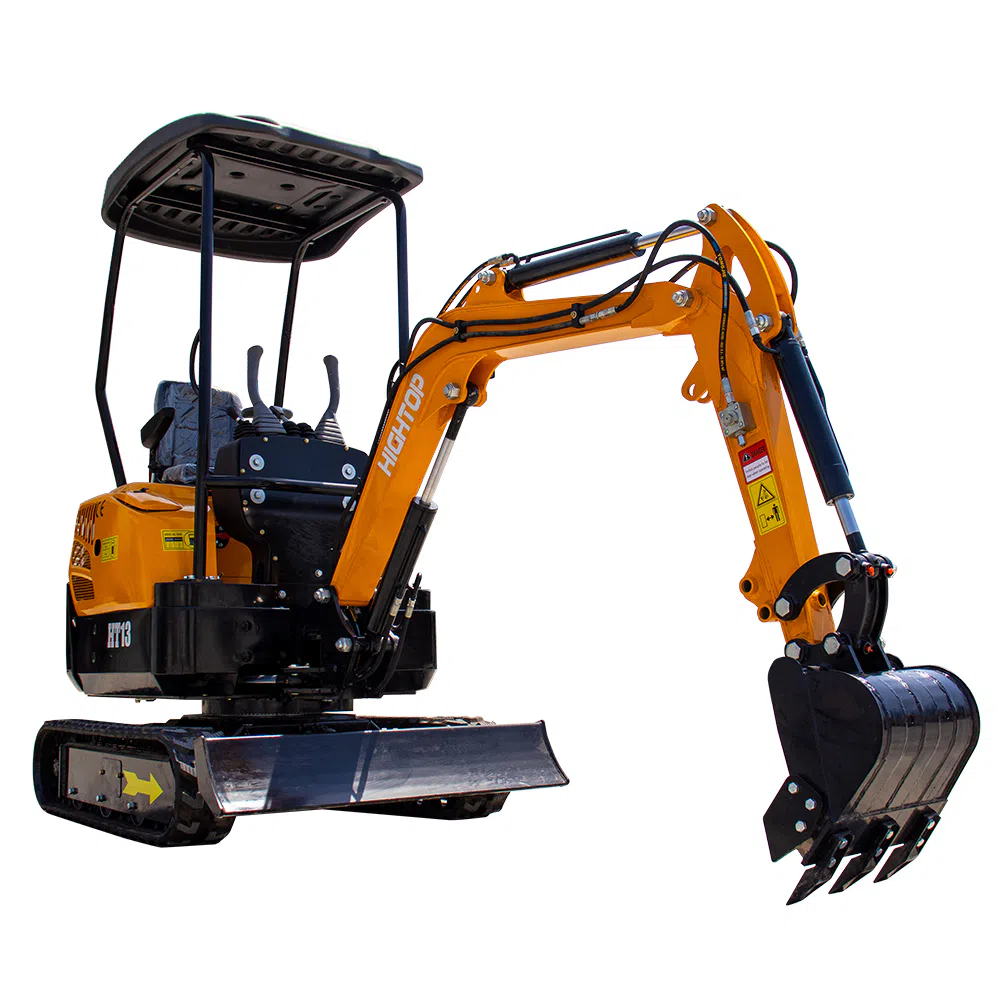

Hightop Mini Excavator 1.3 Ton for Construction and Earthmoving Key Features
The HIGHTOP 1.3 ton mini excavator is designed for compact excavation work where maneuverability, digging performance and transport convenience are important. With an operating weight of 1300 kg, the machine is suitable for a variety of light construction, landscaping, agricultural and earthmoving applications.
Its compact 1100 mm overall width allows the excavator to work in relatively narrow areas, while the 795 mm tail turning radius helps the operator maneuver around buildings, gardens, fences and other obstacles. The machine also provides a maximum digging depth of 1710 mm and a maximum digging distance of 2910 mm, giving it a practical working range for trenching, excavation and site preparation.
One of the key advantages of this 1.3 ton mini excavator is its choice of engine configurations. The machine can be equipped with KOOP192, B&S, CHANGCHAI or KUBOTA engines, allowing buyers to select a suitable power configuration according to operating requirements, engine preference and target market.
This engine flexibility also makes the excavator easier to specify for different customer requirements. Buyers looking for a 1300 kg mini excavator with a Kubota engine, for example, can choose the corresponding configuration without changing the basic machine application. The available engine options make the model suitable for distributors, contractors and equipment users with different market preferences.
For customers planning a complete compact construction solution, the HIGHTOP mini excavator range includes machines with different operating weights and configurations for different applications.

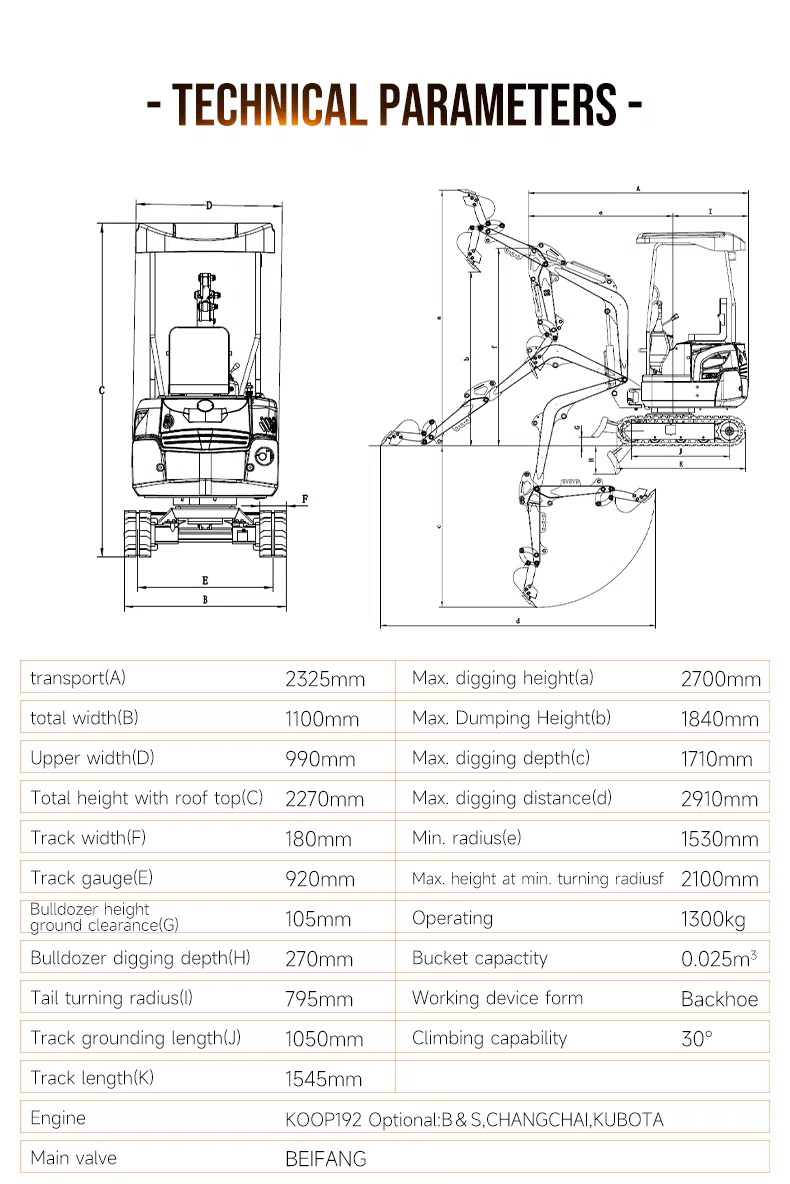

Mini Excavator HT13 1.3 Ton for Construction and Earthmoving Parameters
| Parameter | Value |
|---|---|
| Transport Length (A) | 2325 mm |
| Total Width (B) | 1100 mm |
| Upper Width (D) | 990 mm |
| Total Height with Roof Top (C) | 2270 mm |
| Track Width (F) | 180 mm |
| Track Gauge (E) | 920 mm |
| Bulldozer Height / Ground Clearance (G) | 105 mm |
| Bulldozer Digging Depth (H) | 270 mm |
| Tail Turning Radius (I) | 795 mm |
| Track Grounding Length (J) | 1050 mm |
| Track Length (K) | 1545 mm |
| Max Digging Height (a) | 2700 mm |
| Max Dumping Height (b) | 1840 mm |
| Max Digging Depth (c) | 1710 mm |
| Max Digging Distance (d) | 2910 mm |
| Min Radius (e) | 1530 mm |
| Max Height at Min Turning Radius | 2100 mm |
| Operating Weight | 1300 kg |
| Bucket Capacity | 0.025 m³ |
| Working Device Form | Backhoe |
| Climbing Capability | 30° |
| Engine | KOOP192；Optional: B&S, CHANGCHAI, KUBOTA |
| Main Valve | BEIFANG |

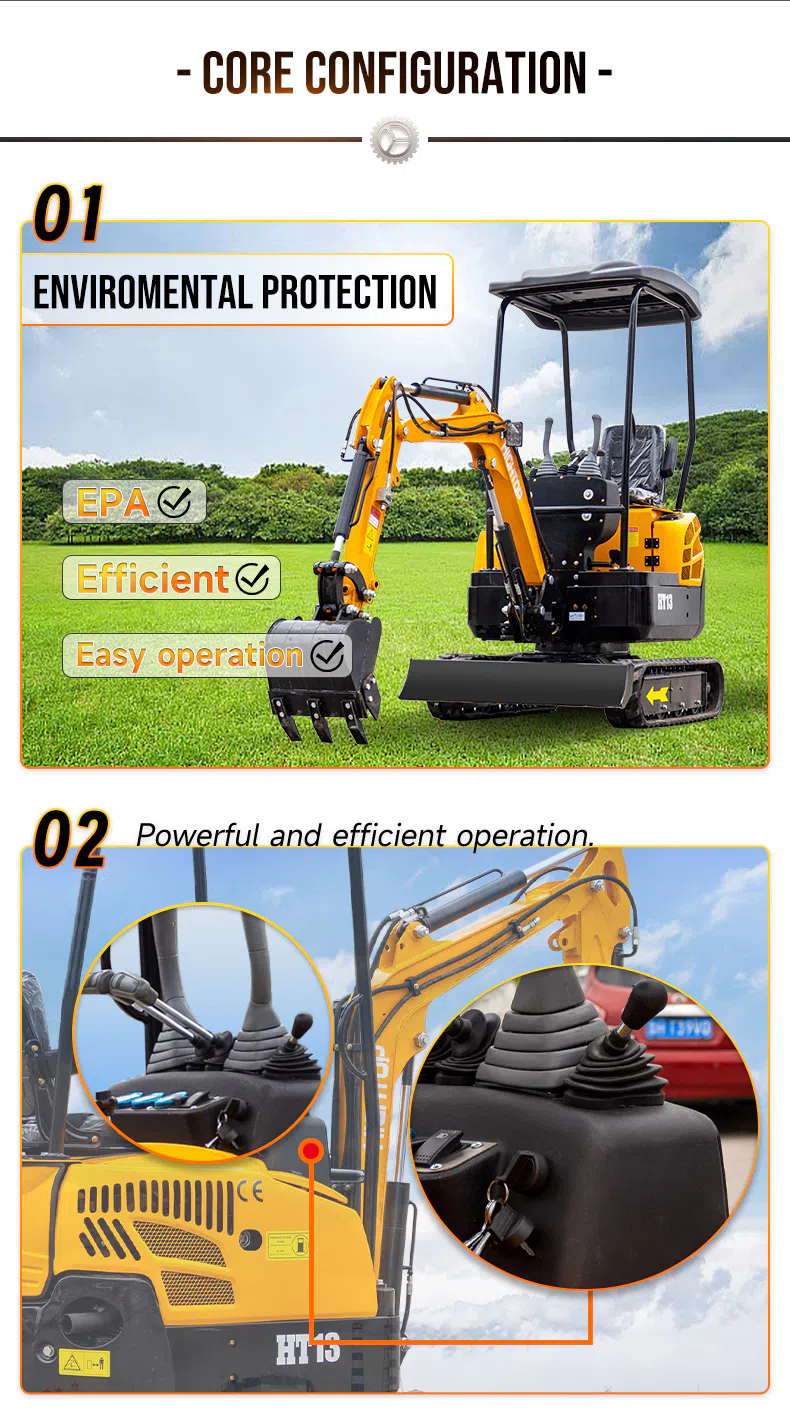

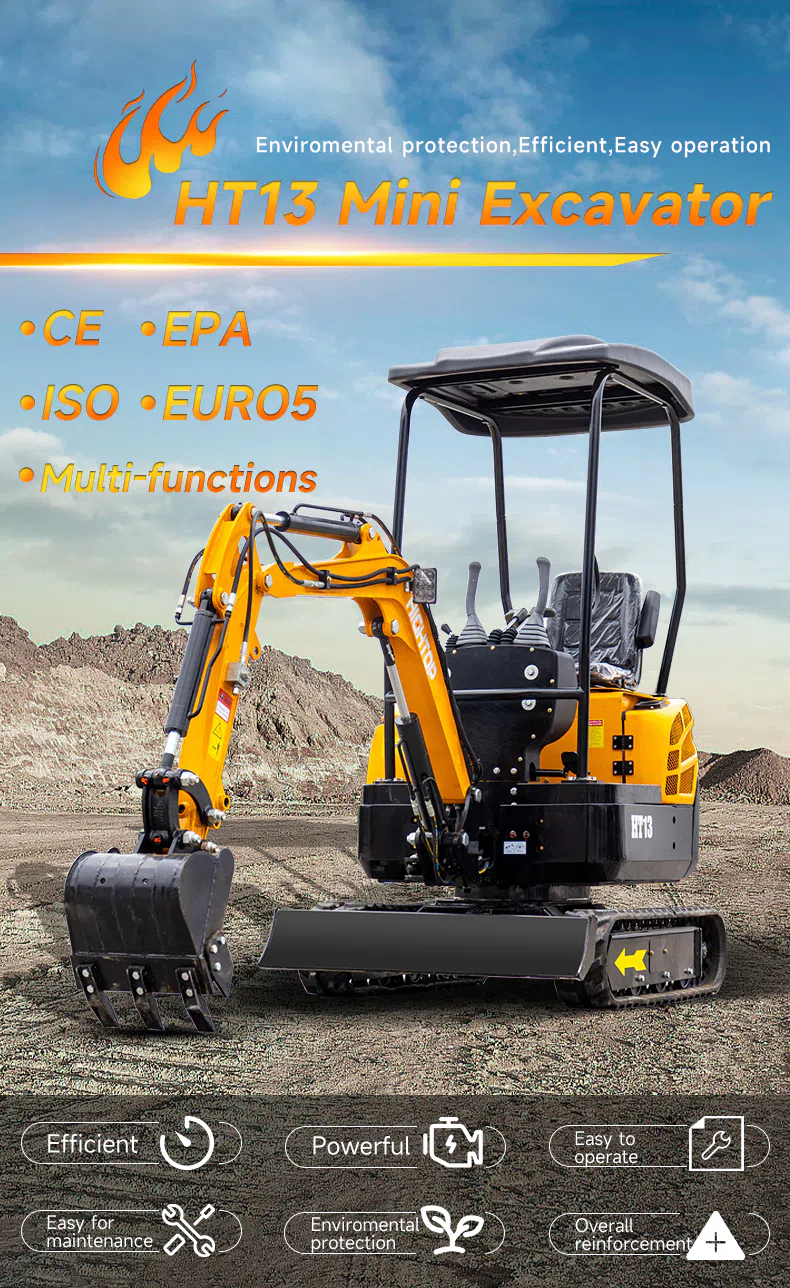

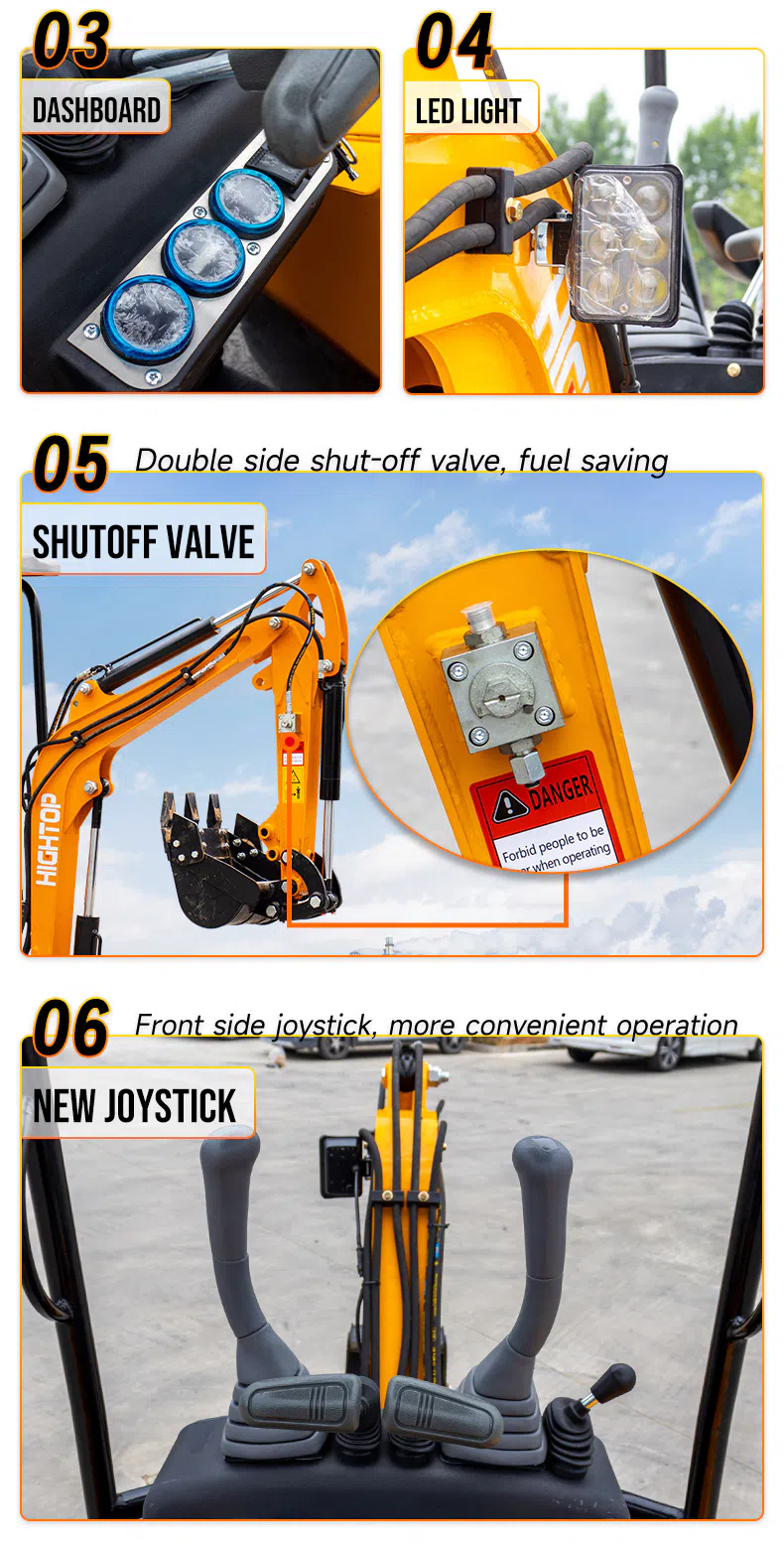

HT13 Mini Excavator 1.3 Ton for Construction and Earthmoving Images

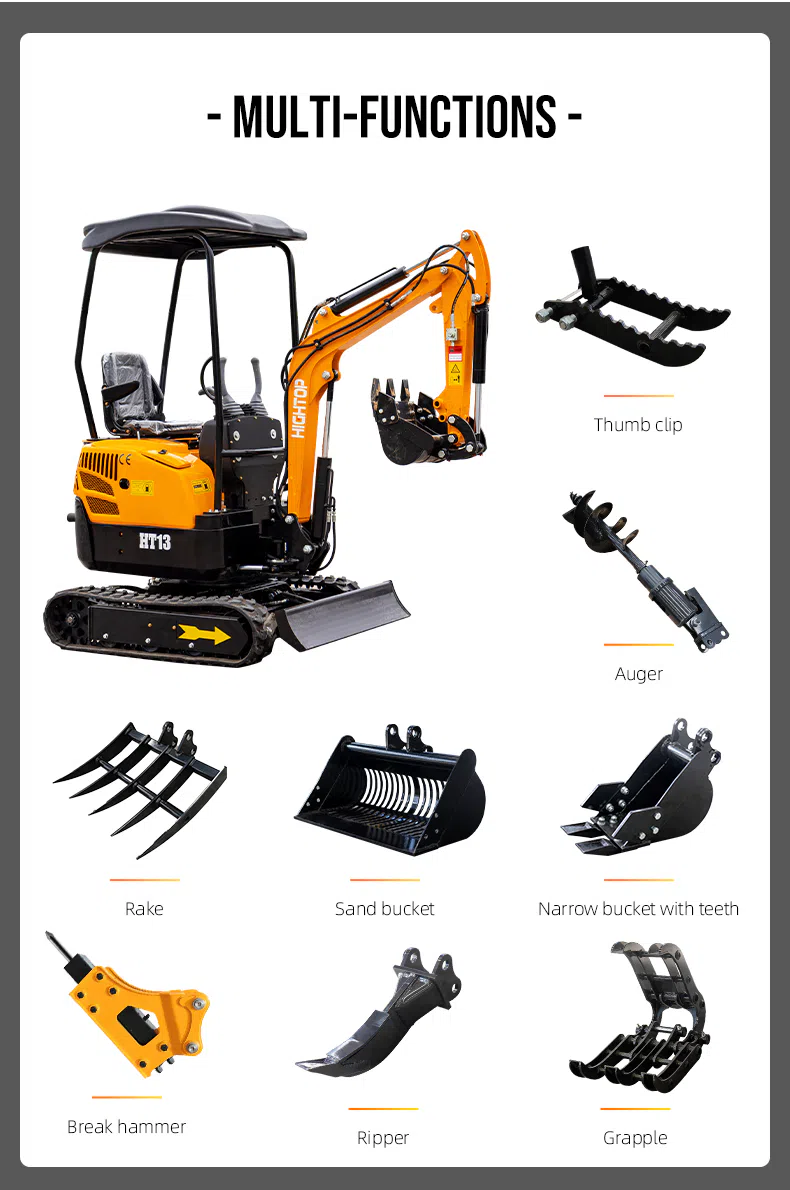

Can be paired with multiple accessories

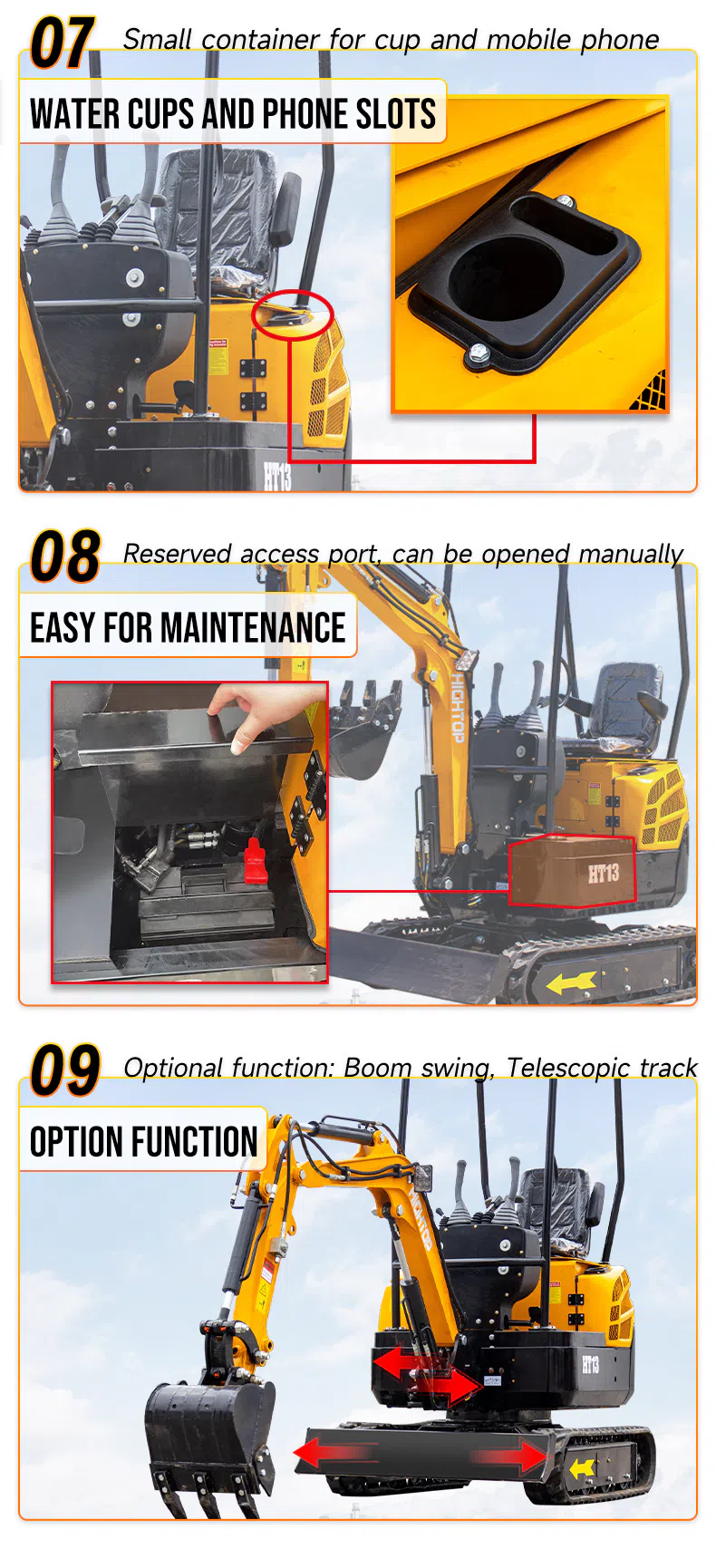

Easy to operate Optional function: Boom swing, Telescopic track
Mini Excavator 1.3 Ton for Construction and Earthmoving Applications
Construction and Earthmoving
The 1.3 ton mini excavator is suitable for small construction projects involving trenching, shallow foundation work, soil removal, site preparation and general earthmoving. Its compact width and short tail radius make it practical for sites where larger excavators are difficult to position.
Landscaping and Garden Construction
For landscaping contractors, the excavator can be used for digging, grading preparation, garden renovation and soil movement. The compact machine dimensions help operators work around existing buildings, landscaped areas and other obstacles.
Agricultural Work
The machine can be used for agricultural land preparation, drainage trenching, farm maintenance and other small-scale earthmoving tasks. Its 30° climbing capability also makes it suitable for certain sloped and uneven working areas.
Narrow and Confined Job Sites
The 1100 mm overall width and 795 mm tail turning radius provide useful maneuverability for narrow construction areas, residential projects, gardens and other locations where working space is limited.
Why Choose HIGHTOP 1.3 Ton Mini Excavator?
Choosing the right compact excavator is not only about machine size. Engine configuration, digging range, working width and operating conditions all influence how efficiently the machine can be used.
The HIGHTOP 1.3 ton mini excavator combines a 1300 kg operating weight, 1710 mm digging depth, 2910 mm digging distance and 30° climbing capability in a compact machine package. More importantly, the availability of KOOP192, B&S, CHANGCHAI and KUBOTA engine options gives buyers additional flexibility when selecting the machine for their local market or specific project requirements.

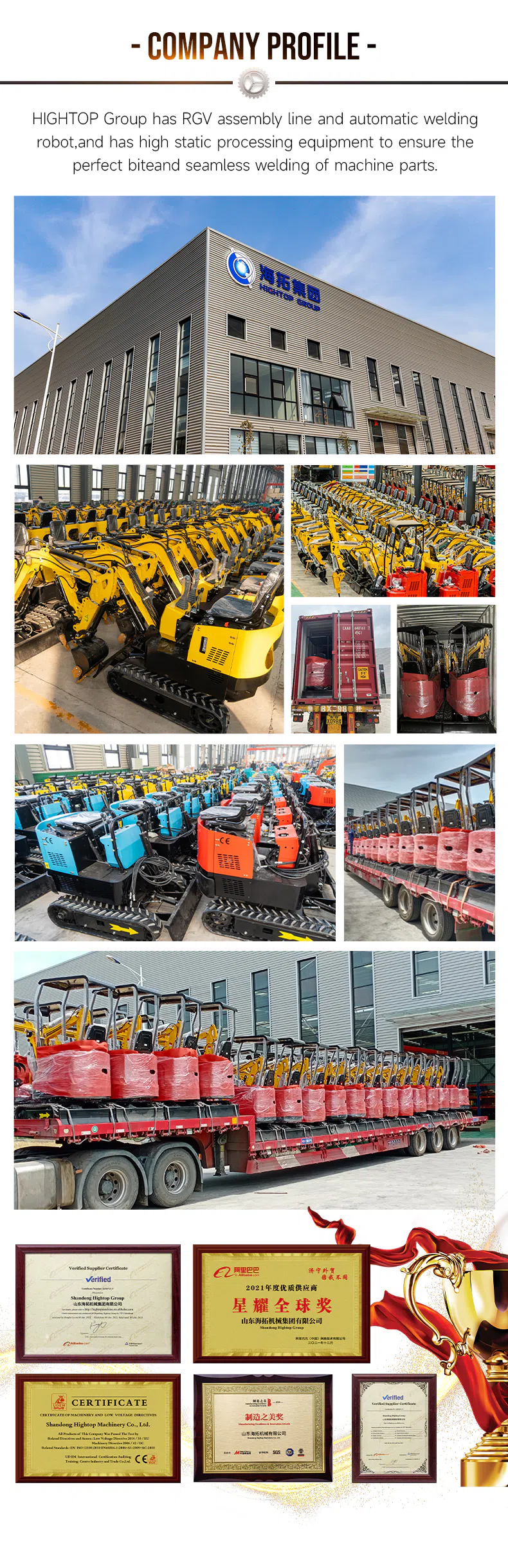

HIGHTOP provides a complete range of support services for overseas customers purchasing construction and agricultural machinery. After production, each machine is inspected with attention to the engine, hydraulic system, undercarriage and main working functions before shipment.
Before transportation, the excavator is professionally prepared for export. The machine is checked for fluid levels, component fastening, spare parts and equipment configuration, then securely packed according to international transportation requirements.
HIGHTOP also helps customers arrange the export process from China, including export documentation, shipping coordination and delivery arrangements. Different transportation solutions can be coordinated according to the destination and customer requirements.
After the machine arrives, HIGHTOP provides technical support related to machine operation, maintenance and daily use. Original spare parts can also be supplied to help customers maintain reliable equipment performance over the service life of the machine.
Hightop HT13 Mini Excavator 1.3 Ton for Construction and Earthmoving Frequently Asked Questions
1.What is the operating weight of this mini excavator?
The operating weight is 1300 kg, making it a compact excavator for construction, landscaping, agriculture and other earthmoving applications.
2.What engines are available for the 1.3 ton mini excavator?
The standard engine is KOOP192, with B&S, CHANGCHAI and KUBOTA available as optional engine configurations.
3.How deep can this mini excavator dig?
The maximum digging depth is 1710 mm.
4.Is the machine suitable for sloped ground?
The excavator has a 30° climbing capability, making it suitable for certain sloped and uneven working conditions. Actual operation should always consider the site, ground condition and machine safety requirements.
5.What is the overall width of the excavator?
The overall width is 1100 mm, which helps the machine access relatively narrow working areas.
6.Can the excavator be equipped with different engines?
Yes. The machine can be supplied with KOOP192, B&S, CHANGCHAI or KUBOTA engine configurations according to customer requirements and available configuration options.
7.What type of working device does the excavator use?
The machine is equipped with a backhoe working device for general excavation and trenching operations.
8.Can HIGHTOP provide spare parts and technical support?
Yes. HIGHTOP provides technical support and original spare parts for overseas customers to support machine operation and maintenance after delivery.
