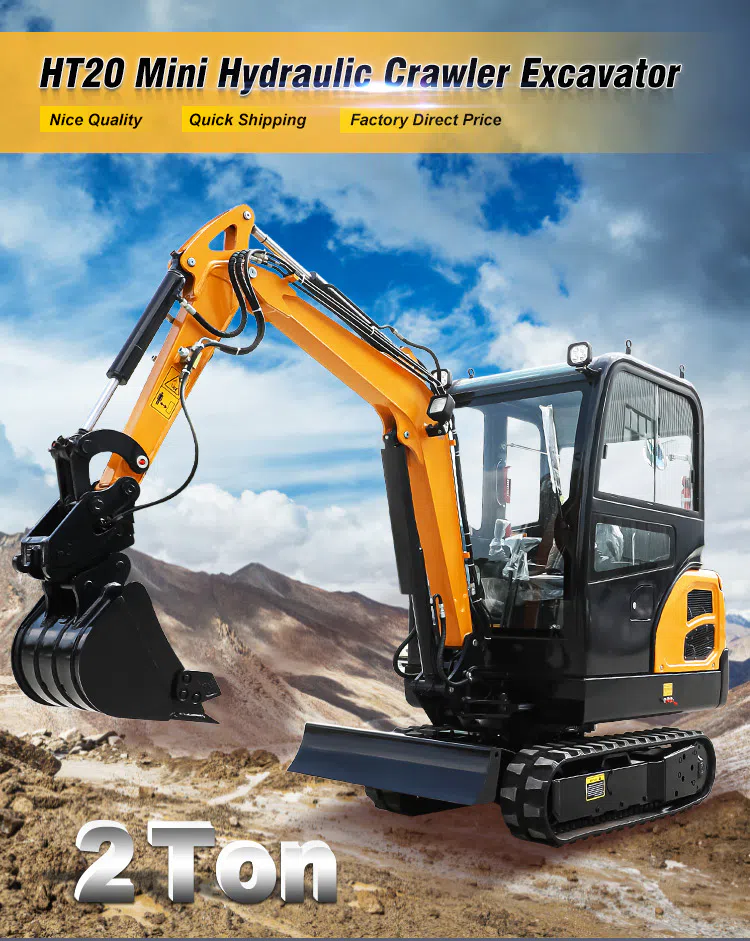

Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder Features
1. Efficient 19 kW Diesel Power
The proven 3TN25 diesel engine delivers 19 kW at 2,200 rpm — strong torque with uniform heat distribution and low fuel consumption, sized perfectly for a 2,000 kg machine. Expect smooth, vibration-reduced running and long service life.
2. Inverted Boom Cylinder for Deeper Digging
The inverted mounting of the boom cylinder changes the force geometry of the linkage, concentrating breakout power and pushing maximum digging depth to 2,060 mm — a meaningful gain for a machine this compact.
3. Hidden Oil Hose & Fixed Routing
Hydraulic lines are recessed and locked in fixed positions, keeping hoses away from the trench edge, debris, and the operator's body. This protects the hoses, reduces wear, and extends hydraulic service life.
4. Travel Motor Drain Line
A dedicated oil return line was added to the travel motor circuit, keeping final drives cool and contaminant-free even after long shuttle cycles on hard ground.
5. Ten-Attachment Versatility

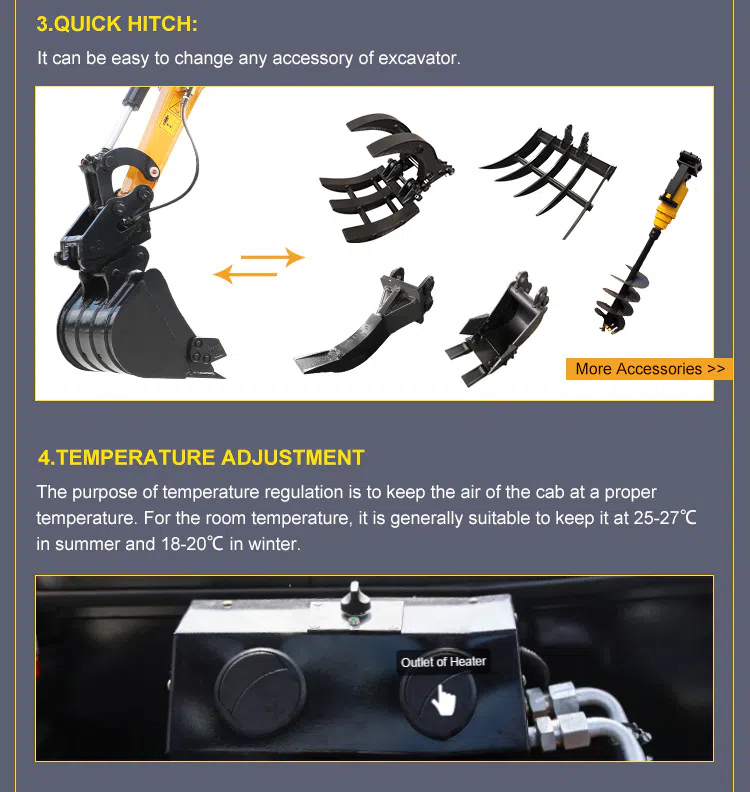

Standard hydraulic quick hitch supports narrow bucket, hammer, auger, tilt bucket, ripper, rake, rotary grapple, tree shears, and lawn mower — one chassis, a whole fleet of tools.
6. Compact Footprint
1,100 mm total width, 2,597 mm transport length, and a 1,013 mm tail radius let the HT20-1 work between rows, inside doorways, and beside walls where bigger machines simply cannot go.

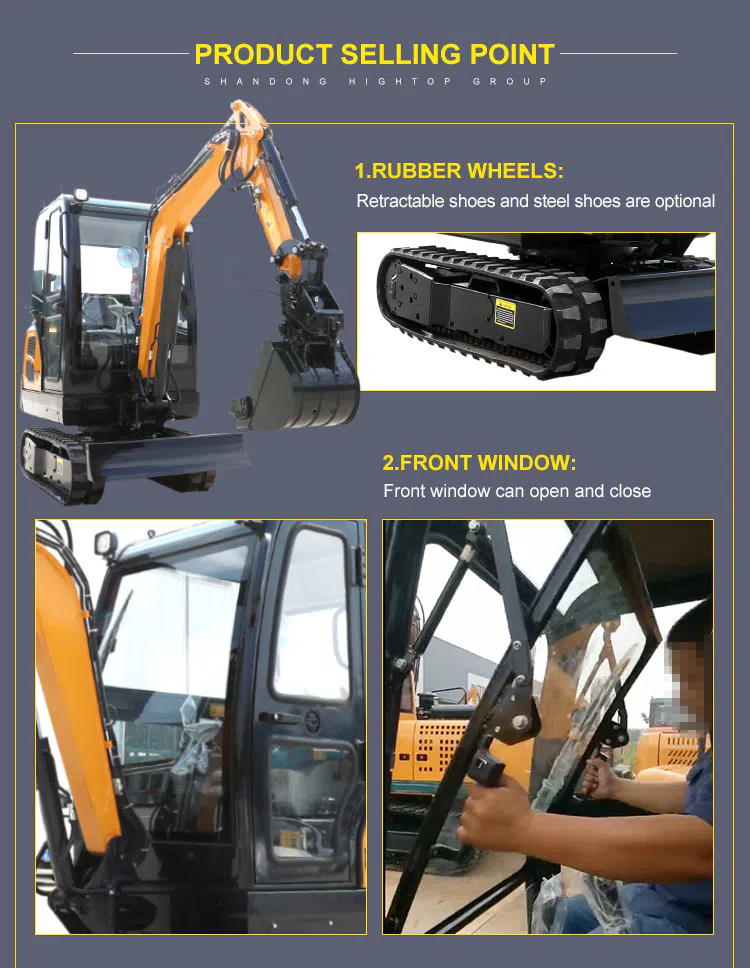

7. Optional Upgrades
Choose a rocker arm for extra breakout, retractable tracks to narrow the footprint further, or a fully enclosed cab for all-weather comfort.
Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder Specifications
| Parameter | Value |
|---|---|
| Model | HT20-1 |
| Engine | 3TN25 |
| Rated Power | 19 kW / 2200 rpm |
| Operating Weight | 2,000 kg |
| Bucket Capacity | 0.02 m³ |
| Length / Transport | 3,337 / 2,597 mm |
| Total Width | 1,100 mm |
| Height (cab roof) | 2,325 mm |
| Track Plate Width | 180 mm |
| Track Gauge | 920 mm |
| Ground Clearance | 119 mm |
| Tail Turning Radius | 1,013 mm |
| Slewing Speed | 12 rpm |
| Climbing Capacity | 30° |
| Max Digging Height | 2,580 mm |
| Max Dumping Height | 1,637 mm |
| Max Digging Depth | 2,060 mm |
| Max Digging Reach | 3,130 mm |
| 最小回转半径 Min Slewing Radius | 1,575 mm |
Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder HT20 Images
Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder Video
Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder HT20 Applications
1. Greenhouse & Orchard Work
At 1,100 mm wide with a 30° climbing capacity, the HT20-1 moves between planting rows and greenhouse aisles, handling trenching, transplanting, and fertilizer trench work without disturbing crops.
2. Residential & Small Construction
Foundation trenching, drainage lines, and small demolition in backyards and narrow urban lots — the 2,060 mm digging depth covers the vast majority of residential utility work.
3. Utility Trenching
Water, gas, and cable trenches up to 1.5 m deep are finished quickly with the narrow bucket, minimizing surface disruption and restoration cost.
4. Municipal Maintenance
Pothole patching support, sidewalk repair, and roadside drainage cleaning — small enough to trail to site, strong enough to do real work.
5. Agricultural & Forestry Material Handling
With rake, grapple, or tree shears fitted, the HT20-1 clears brush, moves debris, and trims trees around the farm — a full-season utility tool, not a one-job machine.
Mini Excavator 2 Ton With Hidden Oil Hose & Inverted Boom Cylinder FAQ
Q1: What is the operating weight of the HT20-1?
The HT20 has an operating weight of 2,000 kg with a 0.02 m³ standard bucket — a genuine 2 ton mini excavator that can be transported on a standard trailer behind a light truck in most regions.
Q2: What attachments can it use?
Through the hydraulic quick hitch: narrow buckets, hydraulic hammers, augers, tilt buckets, rippers, rakes, rotary grapples, tree shears, and lawn mowers — ten attachment types for one machine.
Q3: Can the tracks be made narrower?
Yes. Retractable tracks are available as an option to reduce the working width for extremely confined access, such as greenhouse aisles and narrow doorways.
Q4: What is the delivery time?
Standard delivery is 15–30 days after order confirmation, with FOB/CIF/DDP terms and full export documentation provided by our shipping team.
Q5: What after-sales support is included?
English operation & service manuals, first-service parts kit, WhatsApp support, and video-based remote guidance, backed by CE/EPA compliance and a standard warranty.
Hightop Service & Support
From your first inquiry to years of daily operation, Hightop stands behind every 2 ton mini excavator with a support system built around the buyer's journey — not a one-size-fits-all template.
① Machine Selection & Customization
Before you order, our engineers review your working conditions and recommend the right attachment combination — from narrow buckets for utility trenching to grapples and tree shears for land clearing — along with optional upgrades such as the rocker arm, retractable tracks, or enclosed cab. Live machine videos and factory visits (on-site or virtual) let you verify quality before committing.
② Container-Optimized Global Delivery
At 2,000 kg with a 2,597 mm transport length, two HT20-1 units fit into a single 20 ft container — with attachments loaded in the same box. That halves per-unit ocean freight and simplifies customs clearance. Every machine ships rust-proofed with full export documentation under FOB, CIF, or DDP terms.
③ Parts Supply & Operator Training
Each excavator arrives with a first-service parts kit, while filters, seals, and track components stay in permanent stock for same-week dispatch. Your team gets an English operation manual, a scheduled maintenance chart, and a growing video library covering daily checks, attachment swaps, and common adjustments.
④ Warranty & Fast Response
A standard warranty with a documented claims process covers the complete machine. When questions arise, reach us via WhatsApp, email, or video call — engineering support responds within 24 hours, including remote fault diagnosis to keep downtime measured in hours, not weeks.
