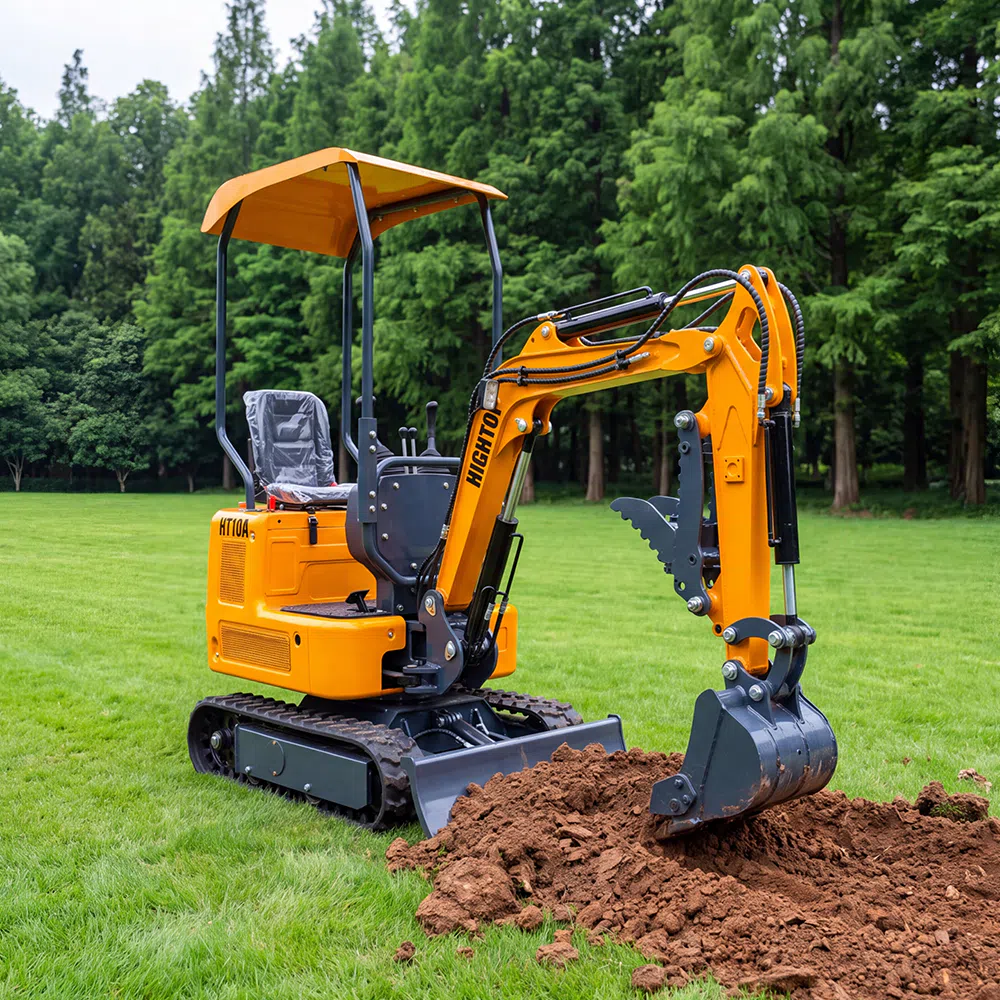

Mini Excavator 1 Ton With Compact Design HT10A Introduction
The HT10A 1 Ton Mini Excavator is a compact hydraulic excavator designed for small construction projects, landscaping, agriculture, property maintenance, and narrow working environments. With its lightweight structure, flexible operation, and practical digging performance, this mini excavator provides an efficient solution for users who need reliable earthmoving equipment in limited spaces.
Compared with larger excavators, the HT10A focuses on flexibility, transportation convenience, and easy operation. Its compact design allows the machine to access areas where traditional construction equipment may be difficult to operate, making it suitable for residential construction, garden improvement, pipeline installation, and small-scale excavation tasks.
The HT10A mini excavator combines a stable hydraulic system, durable undercarriage structure, and simple control operation to complete common excavation jobs such as digging, trenching, loading, and material handling. The optimized machine layout improves visibility and working efficiency while maintaining good stability during operation.
Designed as a practical 1 ton excavator for sale, the HT10A is suitable for contractors, farmers, landscapers, rental companies, and individual users who need compact construction machinery. Different attachments can be selected according to working requirements, helping the machine adapt to various applications.
For customers looking for complete compact construction solutions, HIGHTOP also provides different models of mini excavators and related equipment, including compact loaders and construction machinery for different project requirements.
With its compact size, easy transportation, and versatile working capability, the HT10A small excavator is an ideal choice for light excavation projects where efficiency and flexibility are important.

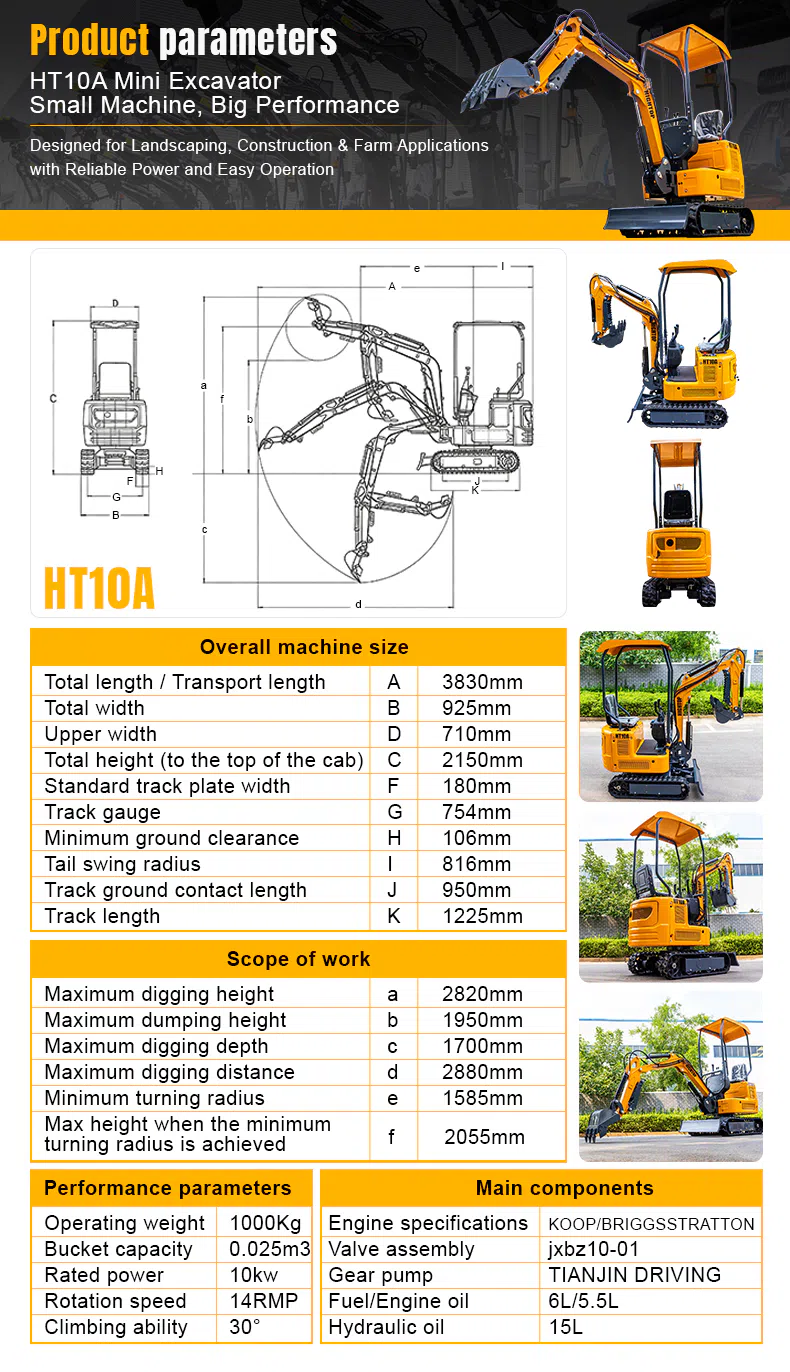

Hightop Mini Excavator 1 Ton With Compact Design Parameters
| Parameter | Value |
|---|---|
| Overall Dimensions | |
| Total Length / Transport Length (A) | 3830 mm |
| Overall Width (B) | 925 mm |
| Upper Width (D) | 710 mm |
| Total Height (To Cabin Top) (C) | 2150 mm |
| Standard Track Shoe Width (F) | 180 mm |
| Track Gauge (G) | 754 mm |
| Minimum Ground Clearance (H) | 106 mm |
| Tail Swing Radius (I) | 816 mm |
| Track Contact Length (J) | 950 mm |
| Track Length (K) | 1225 mm |
| Performance Parameters | |
| Operating Weight | 850 Kg |
| Bucket Capacity | 0.02 m³ |
| Rated Power | 10 kW |
| Swing Speed | 14 RPM |
| Gradeability | 30 ° |
| Working Range | |
| Maximum Digging Height (a) | 2820 mm |
| Maximum Dumping Height (b) | 1950 mm |
| Maximum Digging Depth (c) | 1700 mm |
| Maximum Digging Reach (d) | 2880 mm |
| Minimum Swing Radius (e) | 1585 mm |
| Max Height at Minimum Swing Radius (f) | 2055 mm |
| Main Components | |
| Engine Specification | DJ 420, Youpu 192 |
| Valve Bank | jxbz10-01 |
| Gear Pump | PGP5106G3LP (6mL/rpm) |
| Fuel Tank | 6L |
| Hydraulic Oil Tank | 15L |

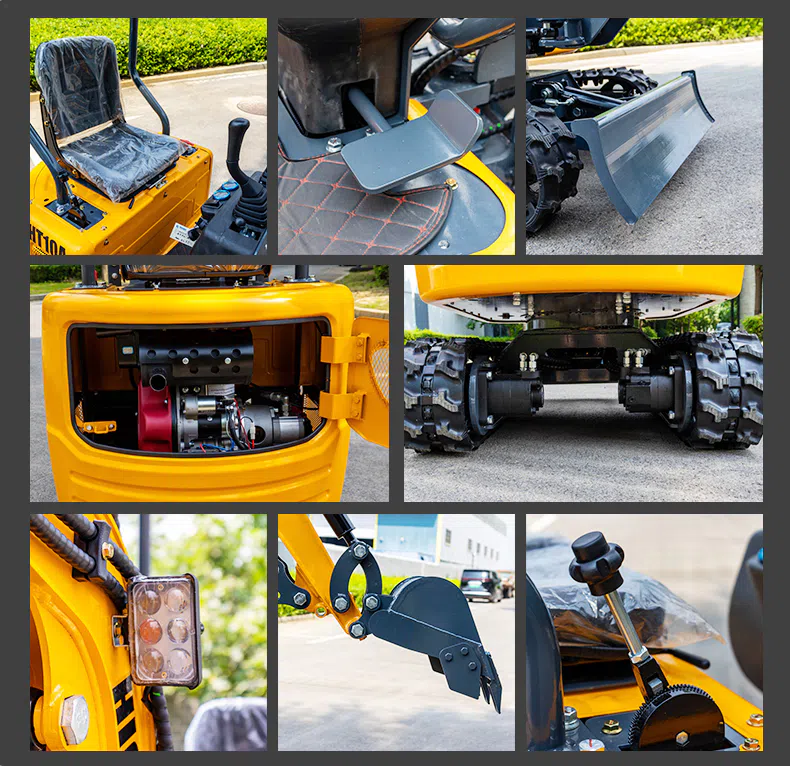

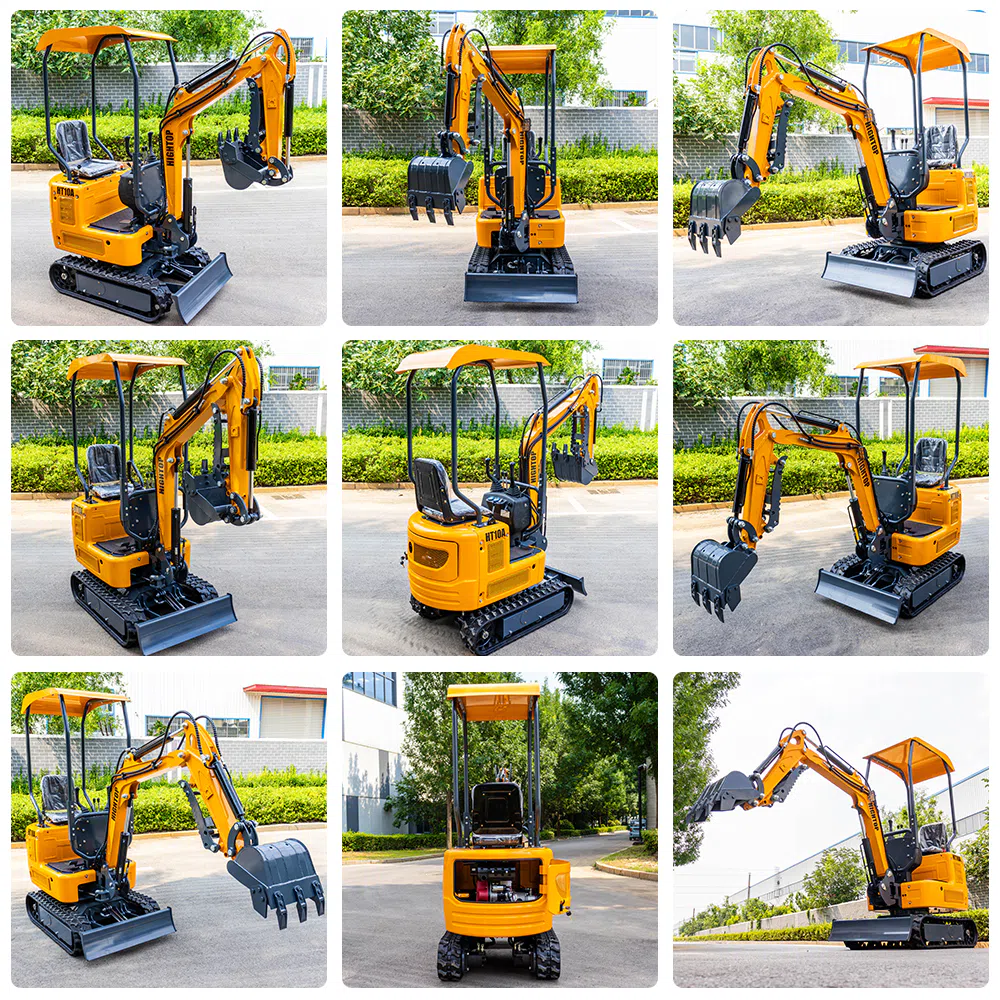

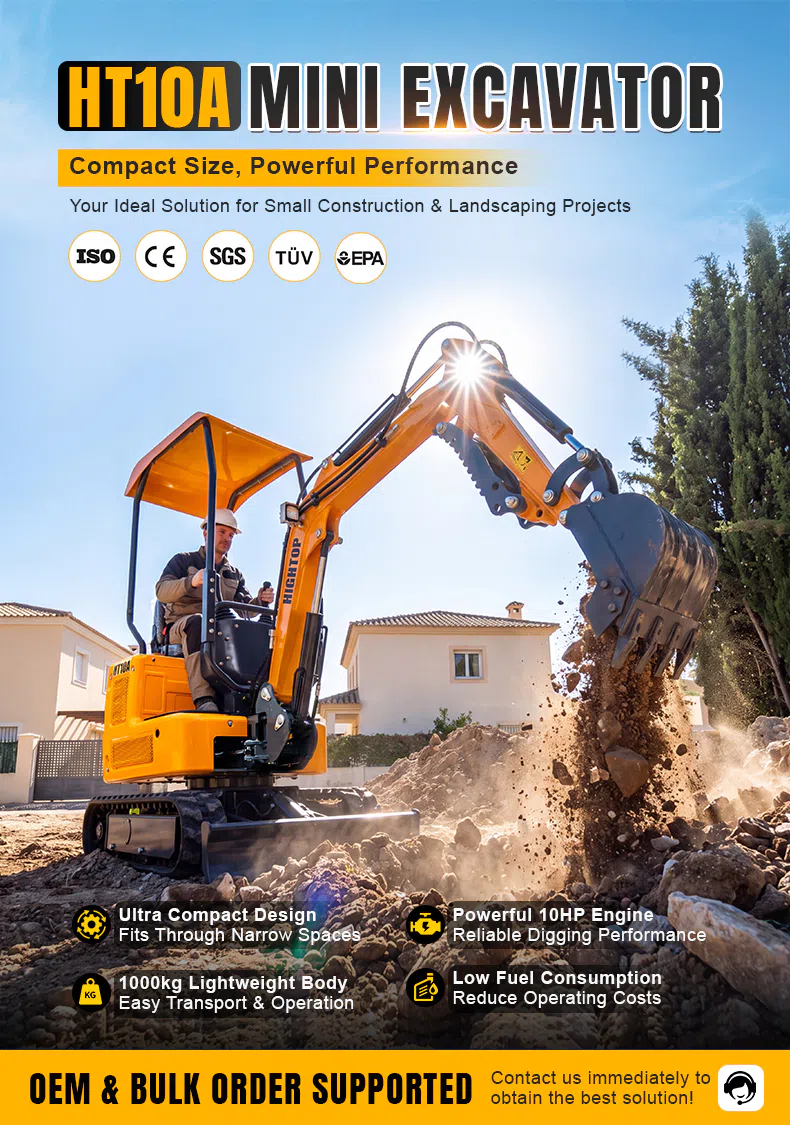

Mini Excavator 1 Ton With Compact Design HT10A Images

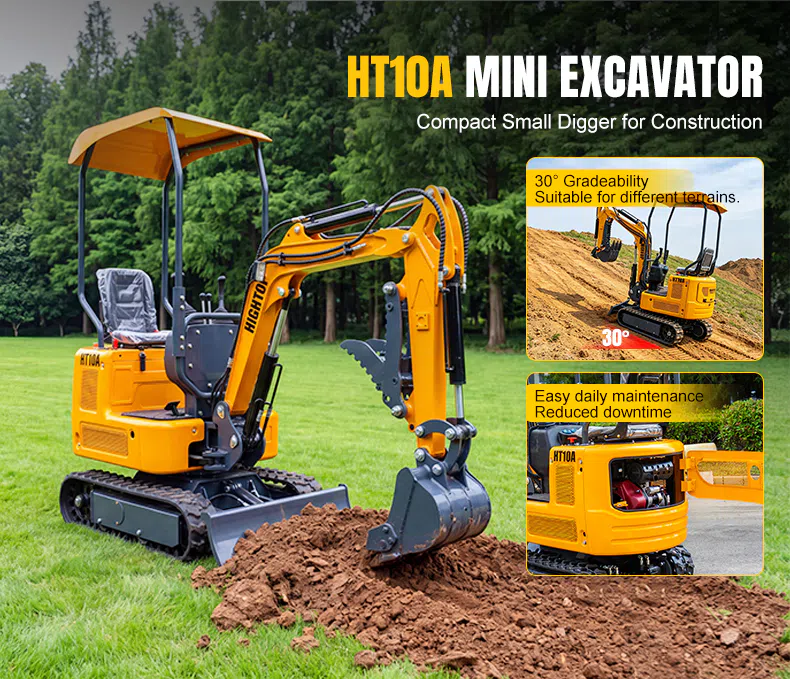

GTIOOMINI EXCAVATOR
Compact Size, Powerful PerformanceYour Ideal Solution for Small Construction & Landscaping Projects
SMALL JOBS
NEED SMART EQUIPMENT
Traditional excavators are often too big, expensive,and inefficient for small projects.

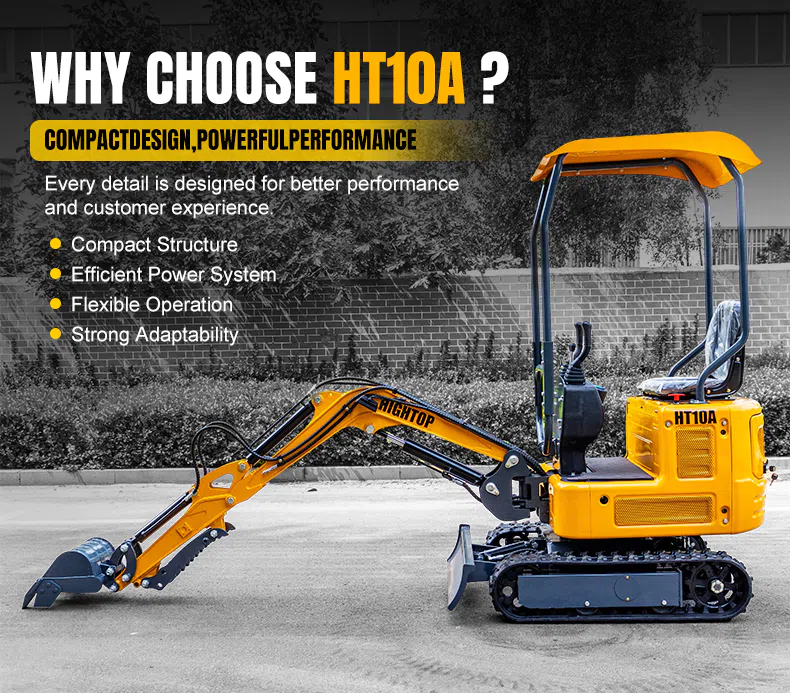

WHY CHOOSE HT1OA ?
COMPACTDESIGN.POWERFULPERFORMANCE
Every detail is designed for better performanceand customer experience

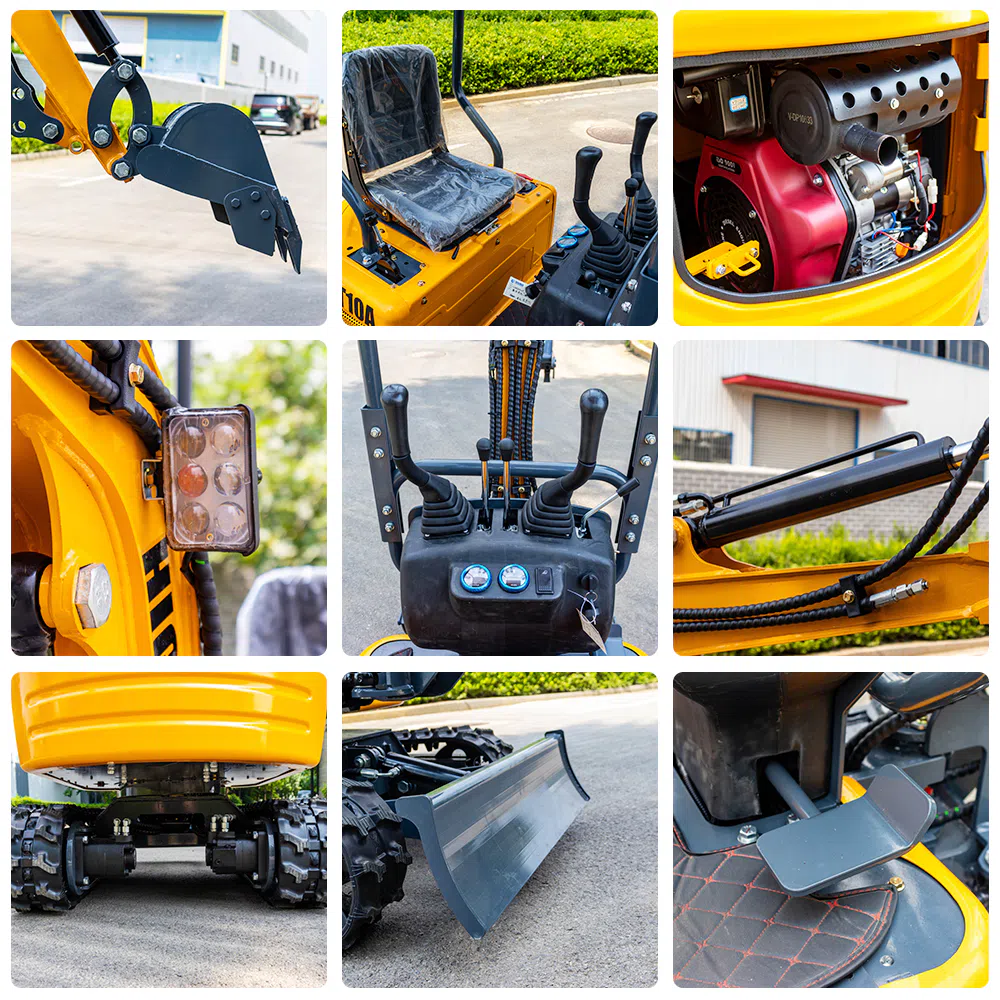

Compact StructureEfficient Power SystemFlexible OperationStrong Adaptability
CUSTOMIZE YOUR MINI EXCAVATOR
Build Your Brand. Expand Ycur Market.
Machine ColorLogo PrintingAttachment OptionsPackaging Solutions

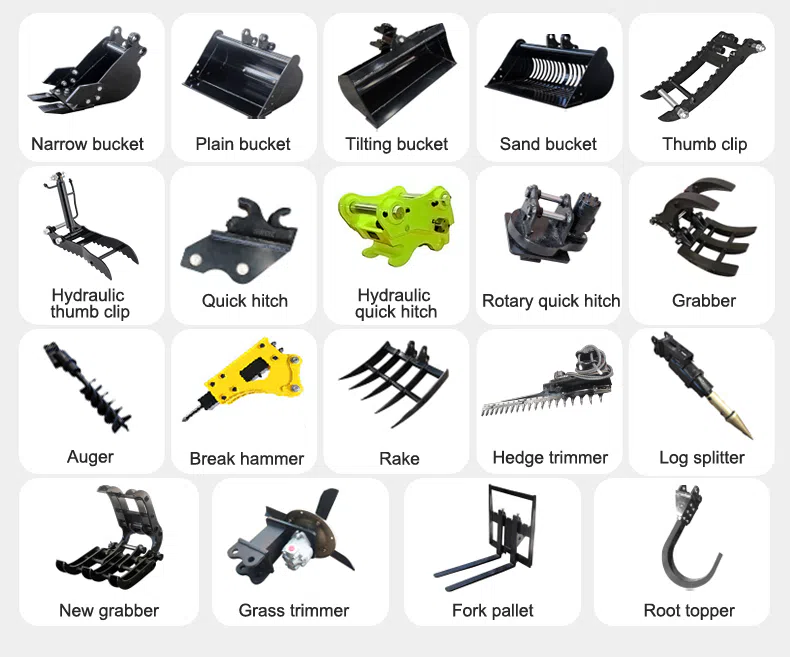

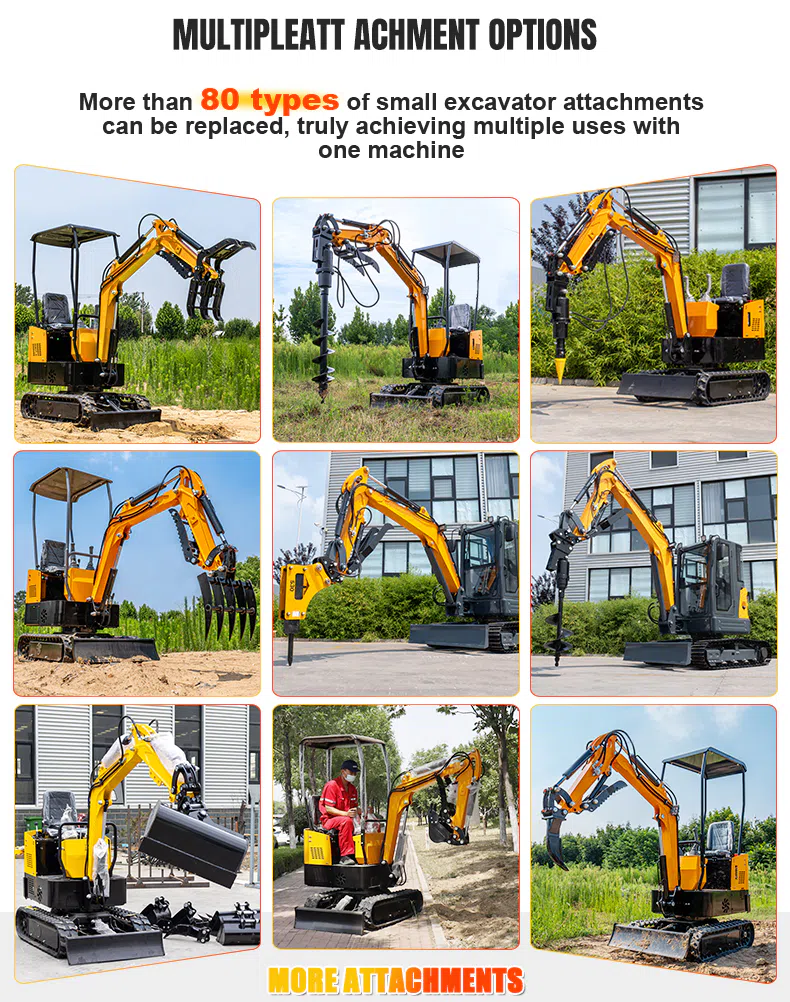

Can be paired with various accessories
Mini Excavator 1 Ton With Compact Design HT10A Applications
The HT10A 1 ton mini excavator is designed for light-duty excavation and material handling tasks where compact equipment is required.
It is widely used for residential foundation work, garden landscaping, agricultural land improvement, drainage installation, cable trenching, small road maintenance, farm construction, and property improvement projects.

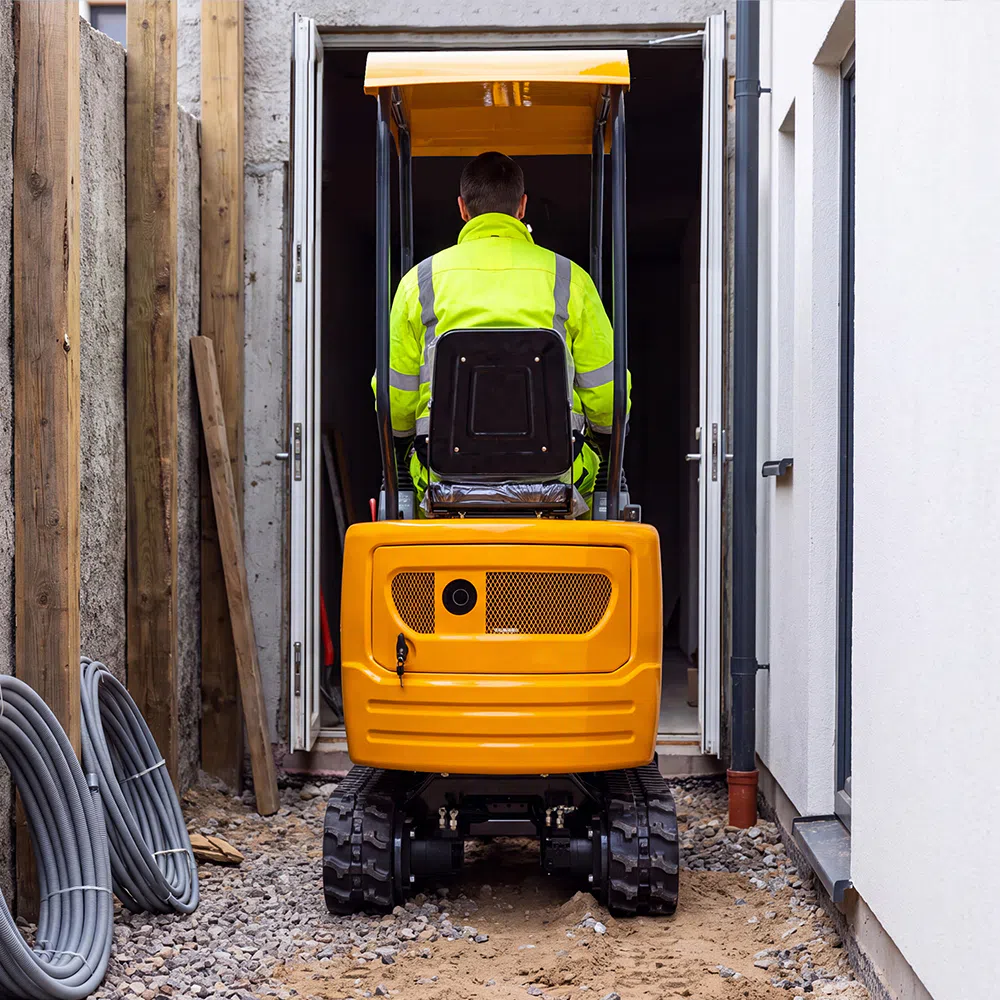

Because of its compact structure and flexible operation, the HT10A can work effectively in narrow spaces, backyard areas, green belts, farms, and locations where larger excavators cannot easily access.
For customers requiring complete construction equipment solutions, HIGHTOP also supplies related machinery including skid steer loaders, compact loaders, and road construction equipment.
HIGHTOP Service Support
HIGHTOP provides complete service support for HT10A mini excavator customers, covering product consultation, technical guidance, spare parts supply, and after-sales assistance.
Before purchasing, our professional team helps customers select suitable equipment according to project requirements, working environment, transportation conditions, and attachment needs. We provide detailed specifications, operation information, and equipment recommendations to help customers choose the right machine.
For overseas distributors, contractors, and rental companies, HIGHTOP supports OEM/ODM cooperation, bulk purchasing, customized requirements, and long-term partnership programs. Our service team provides maintenance guidance, technical support, and spare parts assistance to ensure stable equipment operation.
With professional manufacturing experience and global export capability, HIGHTOP is committed to providing reliable compact construction machinery solutions for customers worldwide.
