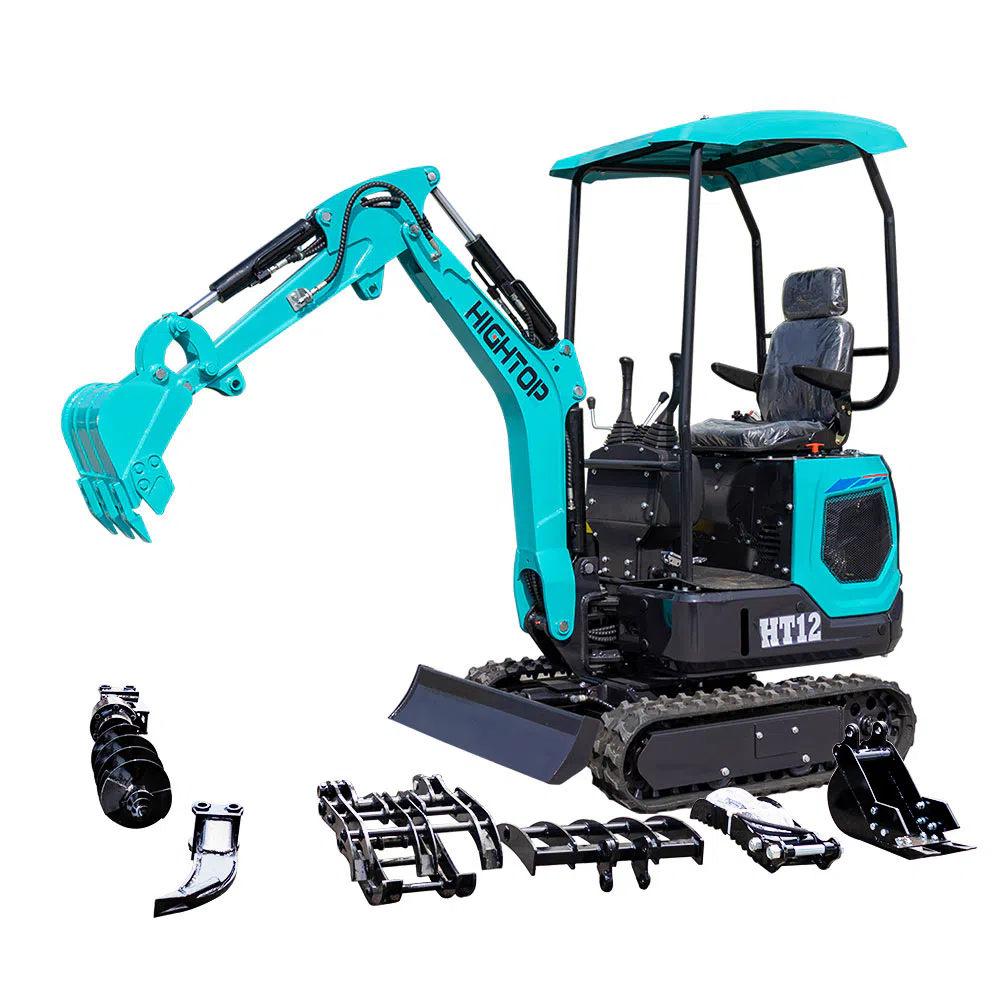

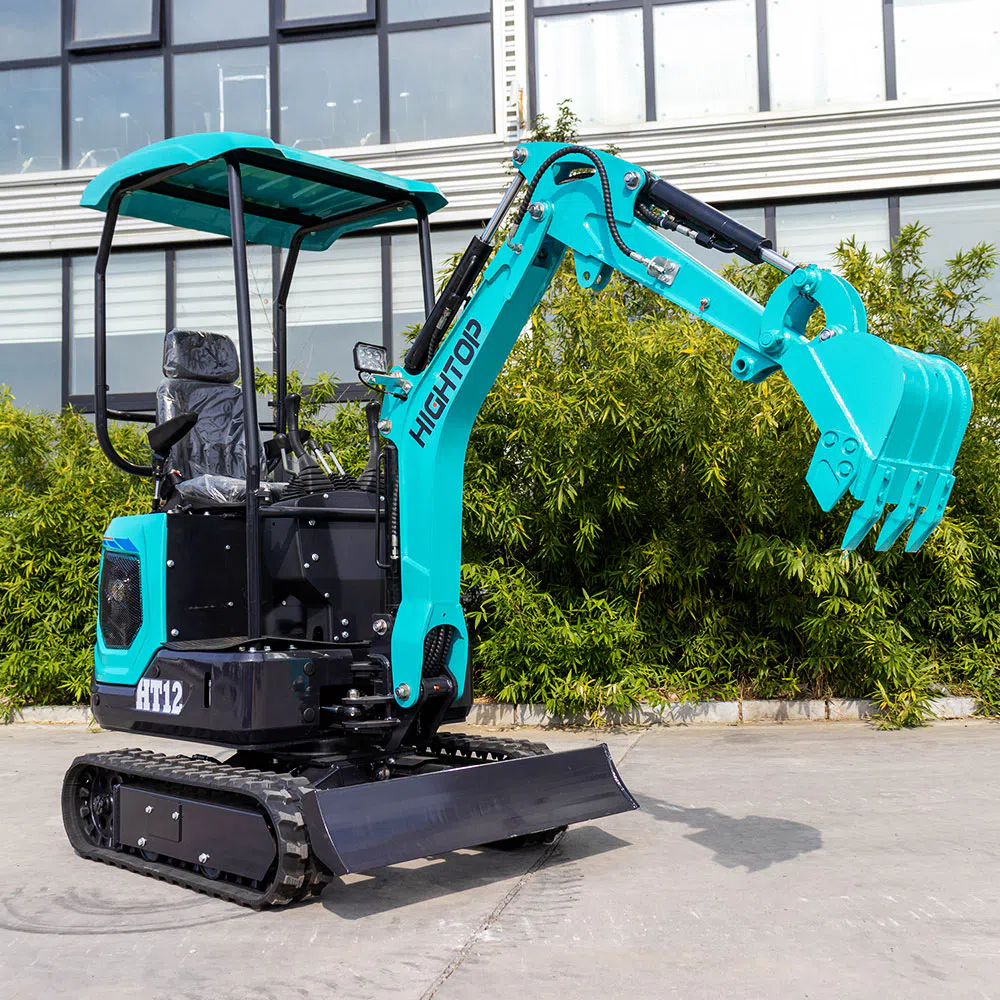

Mini Excavator 1.2 Ton With Zero Tail Swing HT12 Introduction
The HT12 1.2 Ton Mini Excavator is a compact construction machine designed for narrow-space excavation, landscaping, agriculture, utility installation, and small-scale construction projects. With a compact structure, flexible operation, and excellent maneuverability, this mini excavator provides an efficient solution for customers who need reliable digging performance in limited working areas.
Unlike larger excavators that require wider operating space, the HT12 mini excavator is designed for projects where accessibility and flexibility are important. Its compact body and zero tail swing design help operators work efficiently near walls, fences, buildings, and other obstacles while reducing space limitations during operation.
The HT12 1.2 ton excavator combines a practical hydraulic system, stable chassis structure, and precise control operation to provide smooth digging, loading, trenching, and material handling performance. The optimized design allows the machine to maintain good stability while working on different terrains, making it suitable for both professional contractors and individual users.
For customers looking for a compact excavator solution, HIGHTOP also provides different models of mini excavators for various application requirements, including machines with different operating weights, engine configurations, and optional attachments. Customers can choose suitable equipment according to project scale and working conditions.
With its compact dimensions, flexible operation, and easy transportation characteristics, the HT12 small excavator is an ideal choice for construction companies, rental businesses, farmers, landscapers, and maintenance teams who need a practical mini excavator for sale.

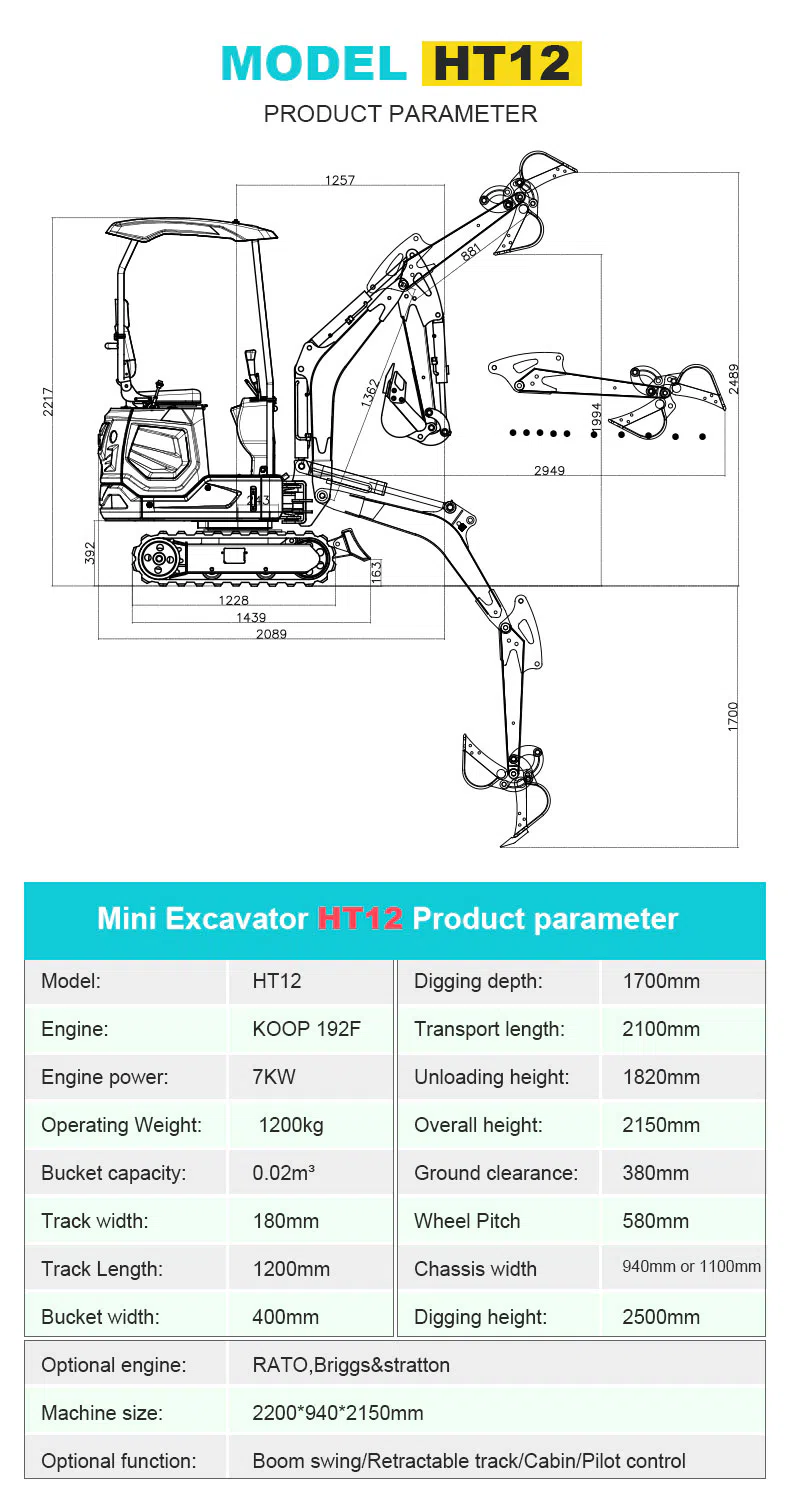

Mini Excavator 1.2 Ton With Zero Tail Swing HT12 Parameters
| Parameter | Value |
|---|---|
| Model | HT12 |
| Engine | KOOP 192F |
| Engine Power | 7 kW |
| Operating Weight | 1200 kg |
| Bucket Capacity | 0.02 m³ |
| Track Width | 180 mm |
| Track Length | 1200 mm |
| Bucket Width | 400 mm |
| Digging Depth | 1700 mm |
| Transport Length | 2100 mm |
| Unloading Height | 1820 mm |
| Overall Height | 2150 mm |
| Ground Clearance | 380 mm |
| Wheel Pitch | 580 mm |
| Chassis Width | 940 mm or 1100 mm |
| Digging Height | 2500 mm |
| Optional Engine | RATO, Briggs & Stratton |
| Machine Size | 2200×940×2150 mm |
| Optional Function | Boom Swing / Retractable Track / Cabin / Pilot Control |

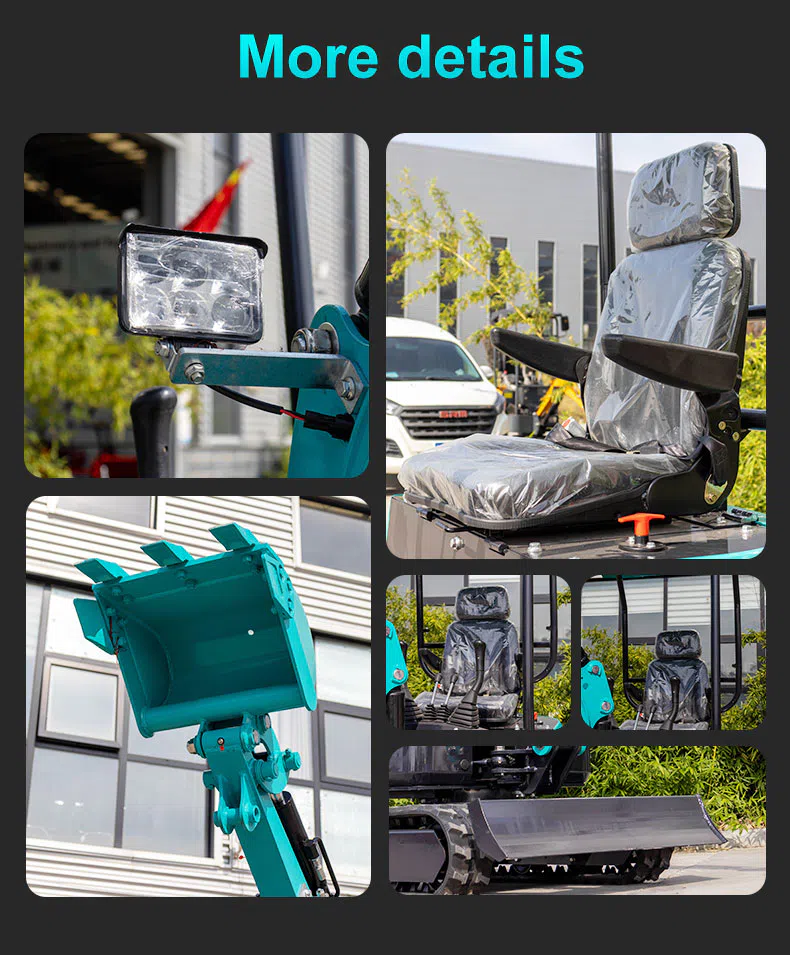

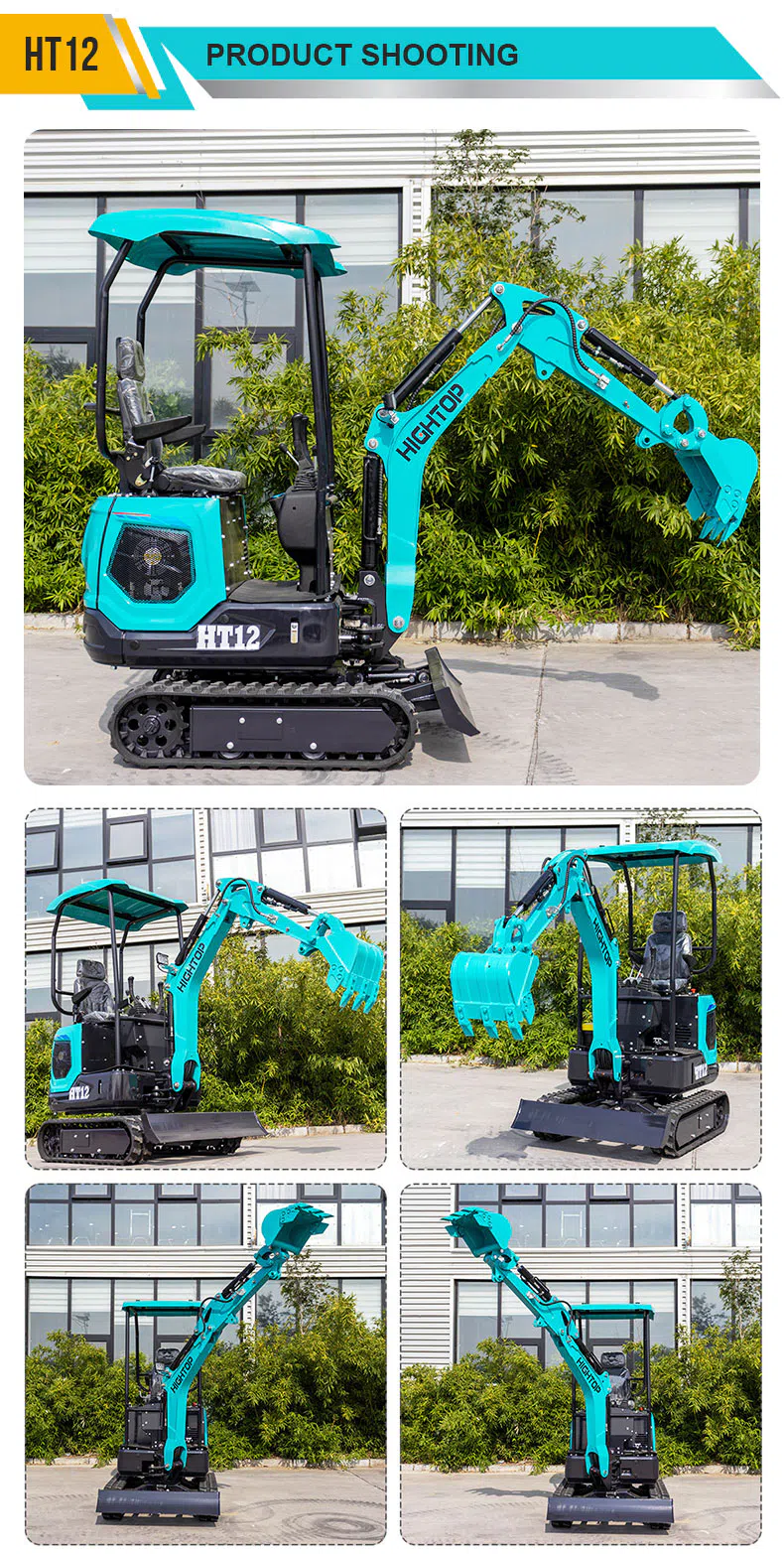

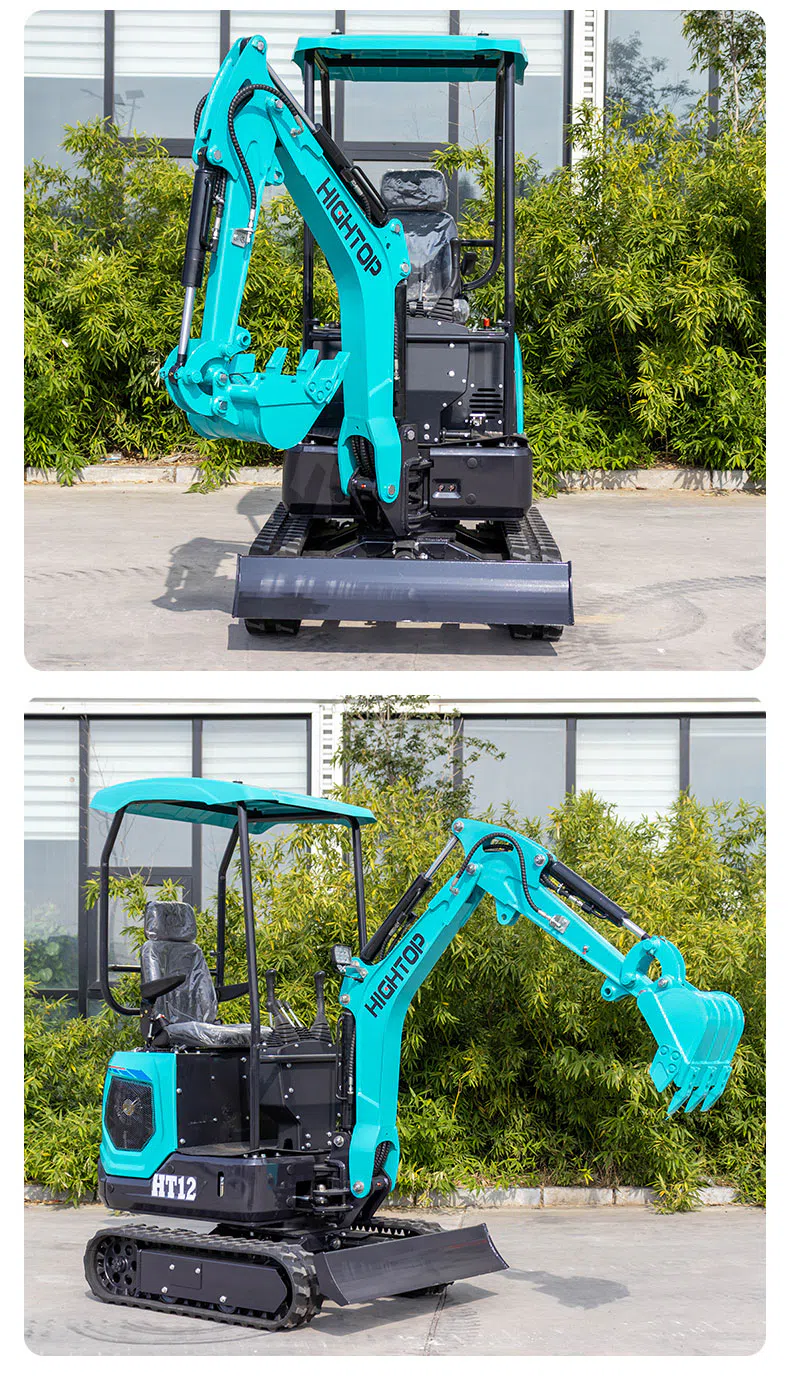

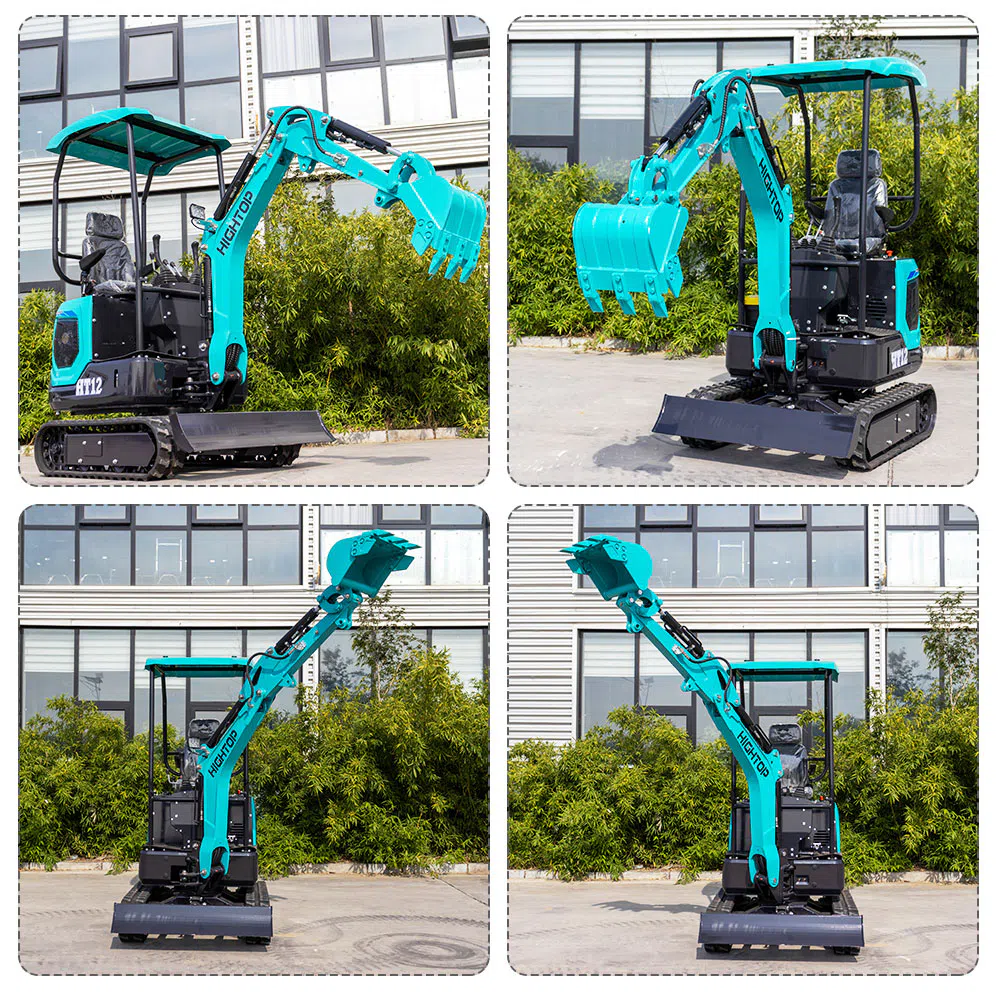

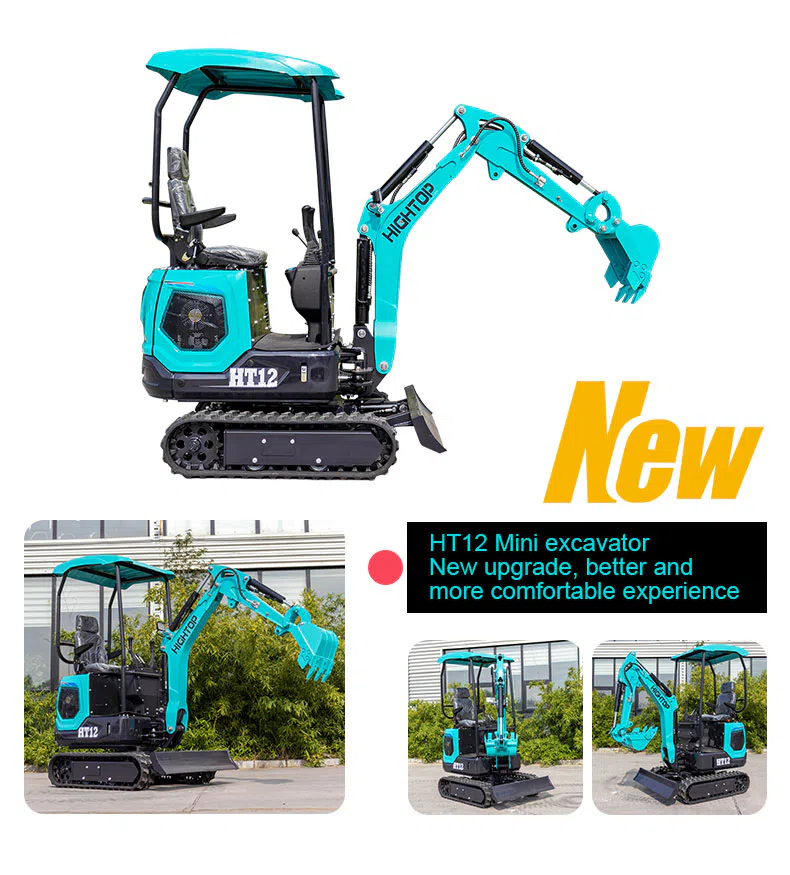

Hightop Mini Excavator 1.2 Ton With Zero Tail Swing HT12 Images

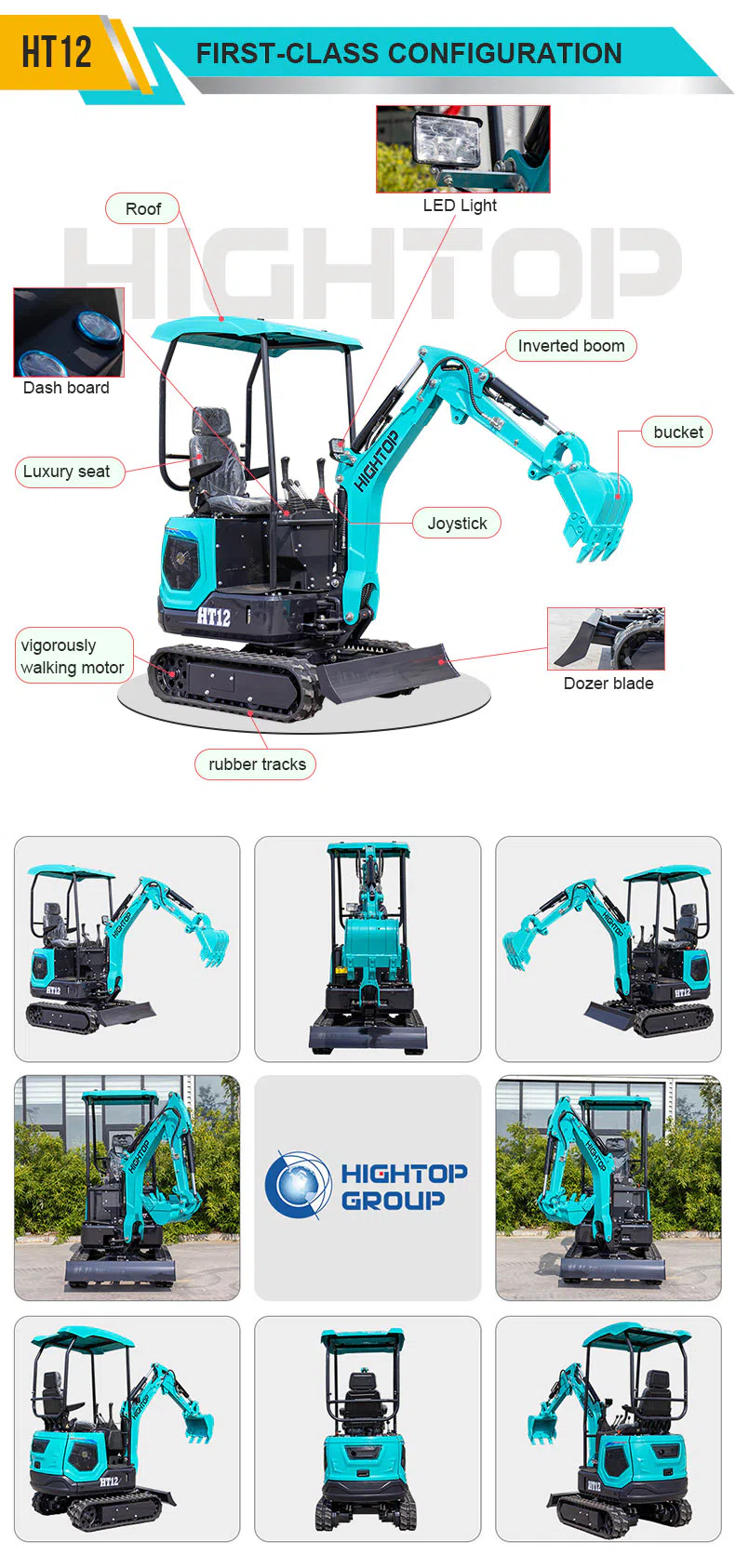

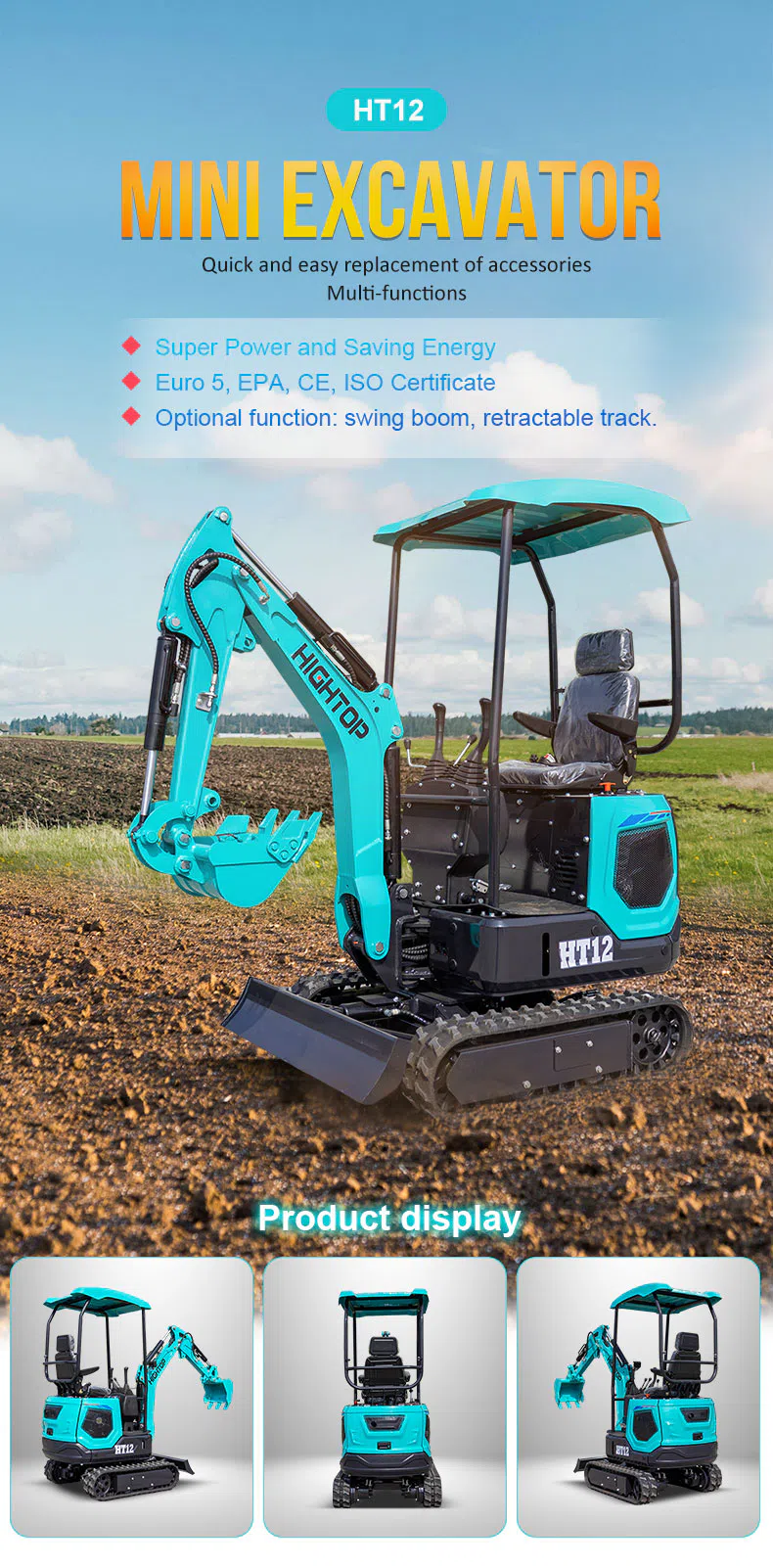

HT12 MIN EXCAVATOR:
Quick and easy replacement of accessoriesMulti-functions
Super Power and Saving EnergyEuro 5, EPA, CE, ISO Certificate
Optional function: swing boom, retractable track.

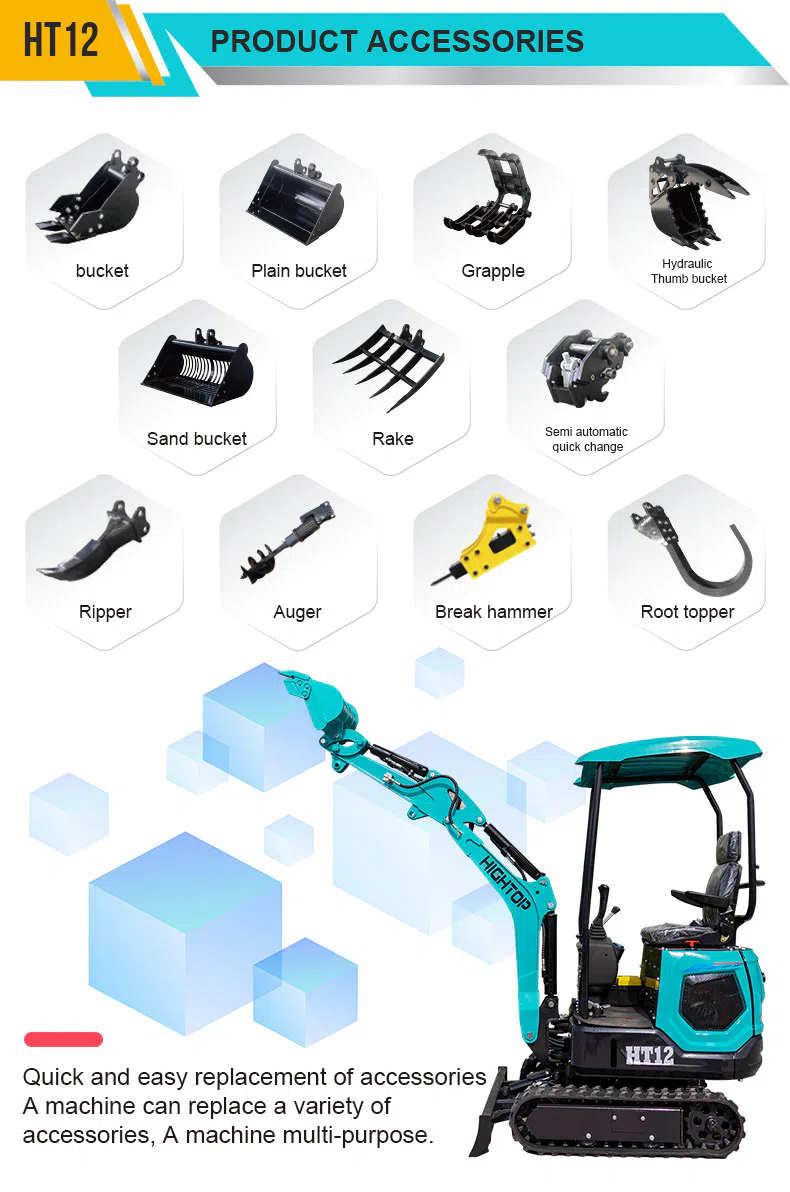

Quick and easy replacement of accessoriesA machine can replace a variety ofaccessories, A machine multi-purpose.

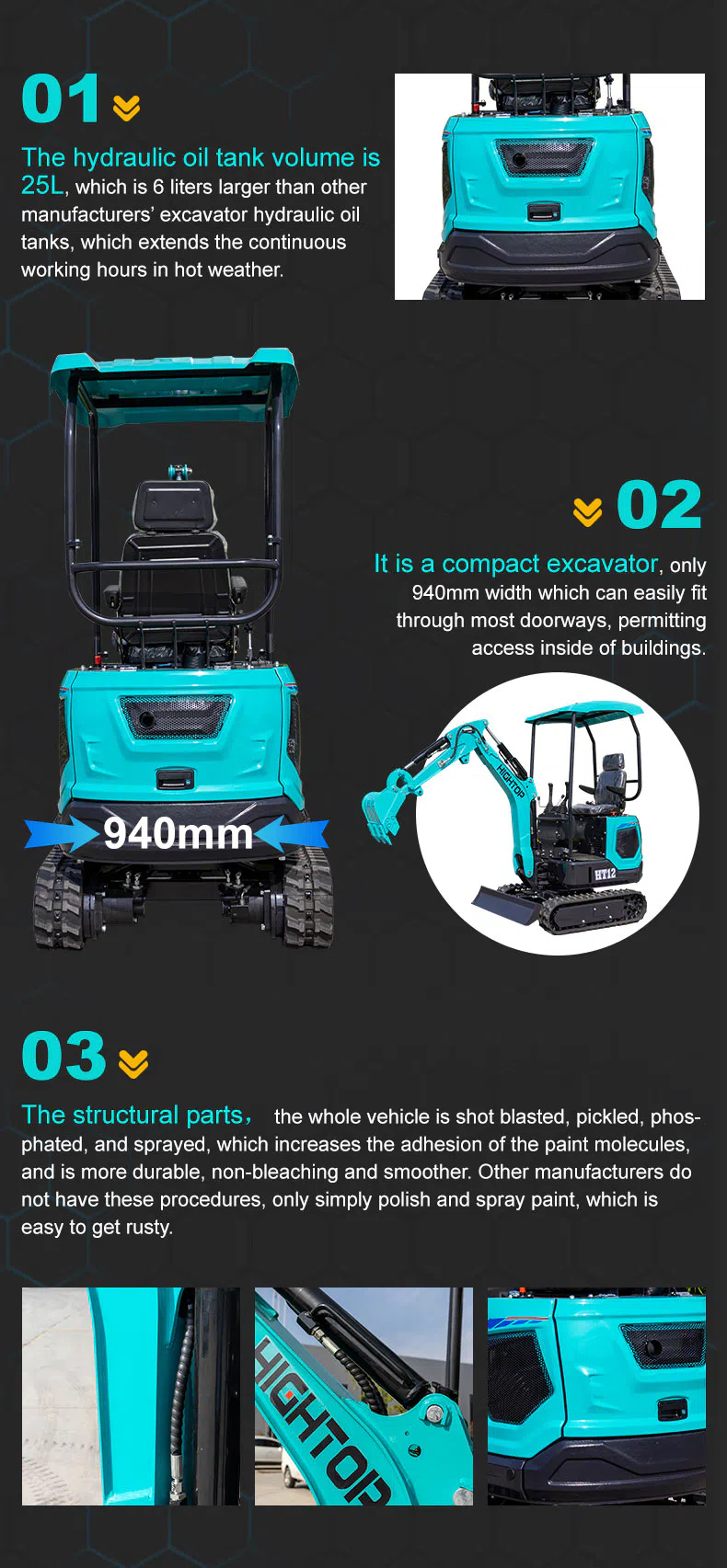

1.The hydraulic oil tank volume is 25L, which is 6 liters larger than other manufacturers' excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.
2.It is a compact excavator, only940mm width which can easily fitthrough most doorways, permittingaccess inside of buildings.
3.The structural parts, the whole vehicle is shot blasted, pickled, phos-phated, and sprayed, which increases the adhesion of the paint molecules,and is more durable, non-bleaching and smoother. Other manufacturers donot have these procedures, only simply polish and spray paint, which iseasy to get rusty.

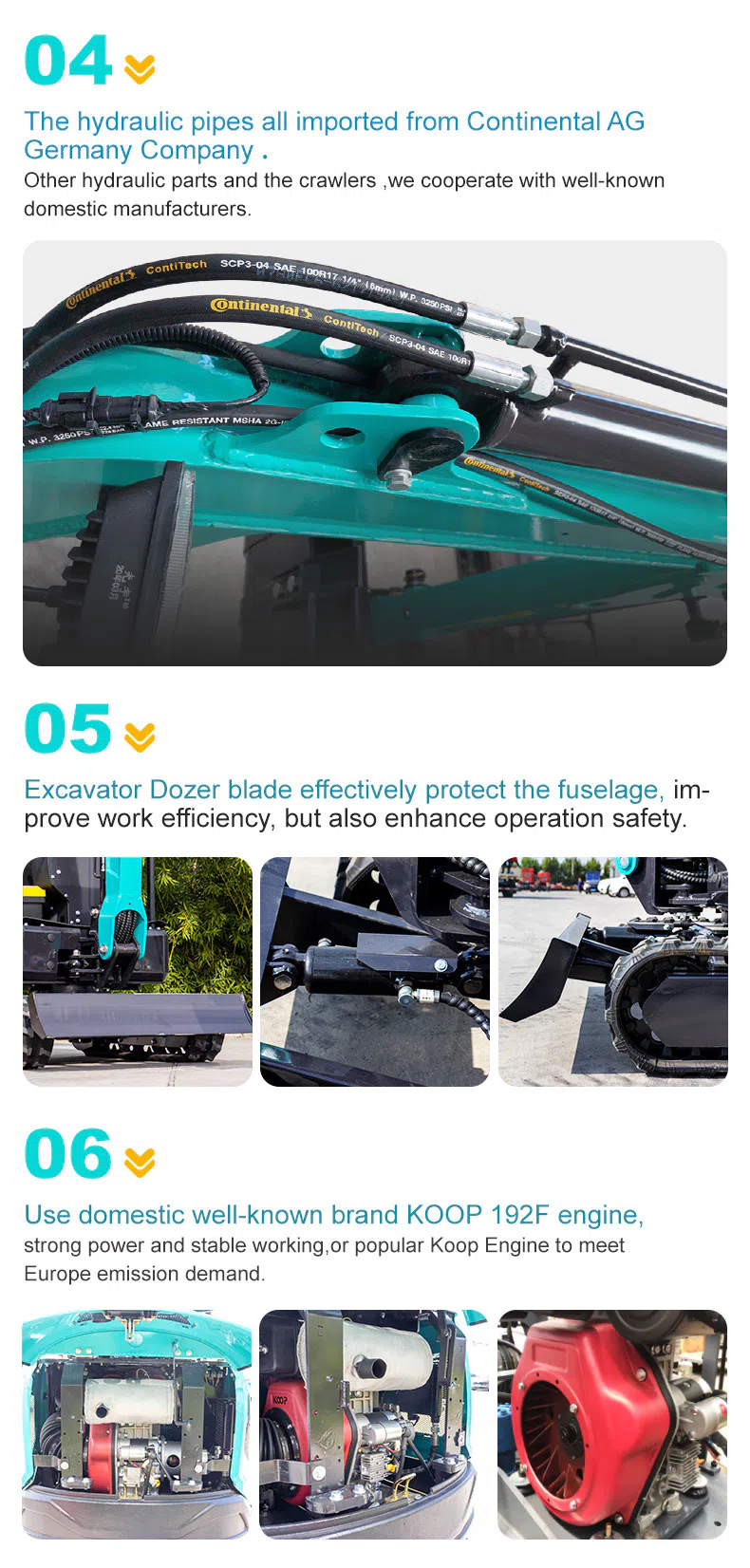

The hydraulic pipes all imported from Continental AG Germany Company. Other hydraulic parts and the crawlers ,we cooperate with well-known domestic manufacturers.
Excavator Dozer blade effectively protect the fuselage, im-prove work efficiency, but also enhance operation safety.
Use domestic well-known brand KOOP 192F engine,strong power and stable working,or popular Koop Engine to meetEurope emission demand.
HIGHTOP EXCAVATOREXPORTED TO THE WORLD Hightop brand product have been exported tomore than 177 counties and regions
Mini Excavator 1.2 Ton With Zero Tail Swing HT12 Applications
The HT12 mini excavator is widely used in small construction and maintenance projects where compact equipment is required.
It is suitable for residential foundation digging, landscaping projects, agricultural land improvement, drainage and pipeline installation, cable trenching, municipal maintenance, farm construction, and small-scale earthmoving operations.
Because of its compact size and flexible working ability, the HT12 1.2 ton excavator can effectively complete tasks in gardens, farms, narrow construction areas, and locations with limited access.
For complete construction solutions, HIGHTOP also supplies related equipment including skid steer loaders, compact loaders, and road construction machinery to support different customer requirements.
HIGHTOP Service Support
HIGHTOP provides professional support throughout the purchasing and operating process of the HT12 mini excavator.
Before purchase, our technical team can help customers select the right excavator model based on working environment, digging requirements, transportation conditions, and attachment needs. We provide detailed product information, technical consultation, equipment recommendations, and customized solutions for different markets.
For international distributors, contractors, and equipment rental companies, HIGHTOP supports OEM/ODM cooperation, bulk orders, spare parts supply, and long-term cooperation programs. Our service team provides operation guidance, maintenance suggestions, and after-sales support to help customers keep their equipment working efficiently.
With professional manufacturing experience and global export capability, HIGHTOP is committed to providing reliable compact construction machinery solutions for customers worldwide.
Mini Excavator 1.2 Ton With Zero Tail Swing HT12 Frequently Asked Questions
1. What is the HT12 mini excavator mainly used for?
The HT12 1.2 ton mini excavator is mainly used for small construction projects, landscaping, agriculture, trenching, pipeline installation, and narrow-space excavation work.
2. What makes HT12 different from larger excavators?
The HT12 focuses on compact operation and flexibility. Its small size and zero tail swing structure make it suitable for working areas with limited space.
3. Can the HT12 use different attachments?
Yes. The HT12 can be equipped with optional attachments such as buckets, breakers, and augers to meet different working requirements.
4. Is the HT12 suitable for farm and landscaping applications?
Yes. Due to its compact size and flexible operation, the HT12 is widely suitable for agricultural maintenance, landscaping, and property improvement projects.
