Hightop Mini Excavator 1 Ton With Retractable Tracks HT10H Introduction
The HIGHTOP HT10H 1 Ton Mini Excavator is a compact hydraulic excavator designed for small construction projects, landscaping work, agricultural applications, and narrow-space excavation tasks. With a 1000kg operating weight, compact body structure, and flexible track design, HT10H provides a practical solution for users who need reliable digging performance in limited working areas.
Different from standard compact excavators, the HT10H features a retractable track system, allowing the chassis width to be adjusted for easier access through narrow gates, passages, and restricted job sites. When expanded, the wider track position improves stability and traction during excavation operations. This design makes the machine suitable for both transportation convenience and stable field performance.
Powered by a KOOP 192F engine with optional engine choices including Rato, Yoop, Changchai, and Briggs & Stratton, the HT10H 1 ton mini excavator delivers reliable power for daily excavation tasks. The matched hydraulic system provides smooth operation for digging, lifting, and attachment applications.
With a maximum digging depth of 1750mm, compact dimensions of 2900×930×2180mm, and a narrow chassis structure, HT10H can efficiently operate in gardens, farms, greenhouses, residential areas, and other locations where larger excavators cannot easily access.
For customers searching for a 1 ton mini excavator for sale, HT10H offers a balance between compact size, working flexibility, and maintenance convenience. HIGHTOP also provides different types of mini excavators and compact construction equipment to meet various project requirements.
The HT10H is suitable for contractors, farmers, landscaping companies, rental businesses, and individual users who need a small excavator with flexible access capability and dependable performance.
Mini Excavator 1 Ton With Retractable Tracks HT10H Parameters
| Parameter | Value |
|---|---|
| Weight | 1000 kg |
| Digging Bucket Capacity | 0.025 cbm / 120 kg |
| Bucket Width | 380 mm |
| Engine | KOOP 192F |
| Optional Engine | Rato, Yoop, Koop, Changchai, Briggs & Stratton |
| Bore Stroke | Single Cylinder, Fan Cool |
| Rated Power | 7 kW / 3000 r/min |
| Displacement | 6.8 ml/r |
| Travel Speed | 1.5 km/h |
| Overall Dimension (L×W×H) | 2900 × 930 × 2180 mm |
| Wheelbase | 910 mm |
| Total Length of Track | 1230 mm |
| Max. Digging Depth of Bulldozer Blade | 255 mm |
| Platform Ground Clearance | 380 mm |
| Platform Back Turning Radius | 784 mm |
| Chassis Width | 896 mm |
| Track Width | 180 mm |
| Chassis Ground Clearance | 132 mm |
| Track Height | 320 mm |
| Max. Digging Depth | 1750 mm |
| Max. Vertical Digging Depth | 1550 mm |
| Max. Digging Height | 2610 mm |
| Max. Dumping Height | 1850 mm |
| Max. Digging Radius on Ground | 3050 mm |
| Min. Rotation Radius | 1330 mm |
| Max. Upgrade Height of Bulldozer Blade | 345 mm |

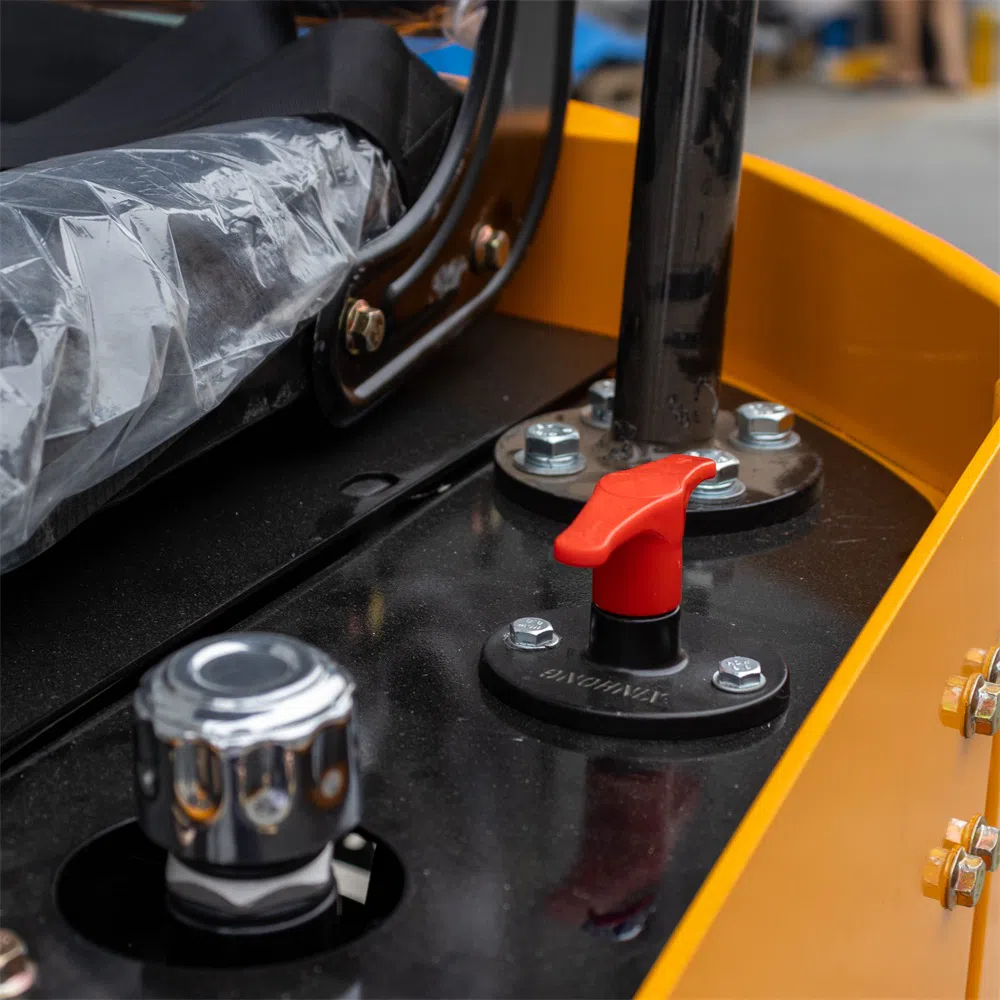

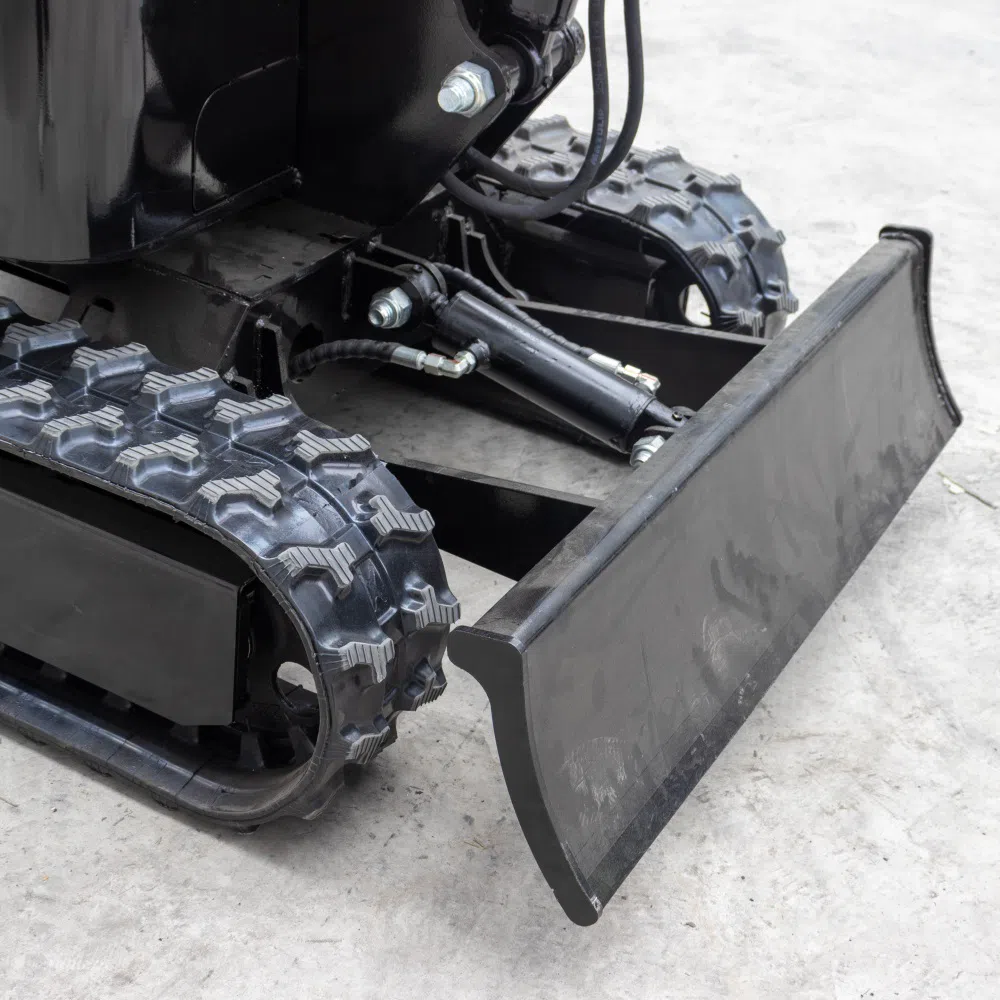

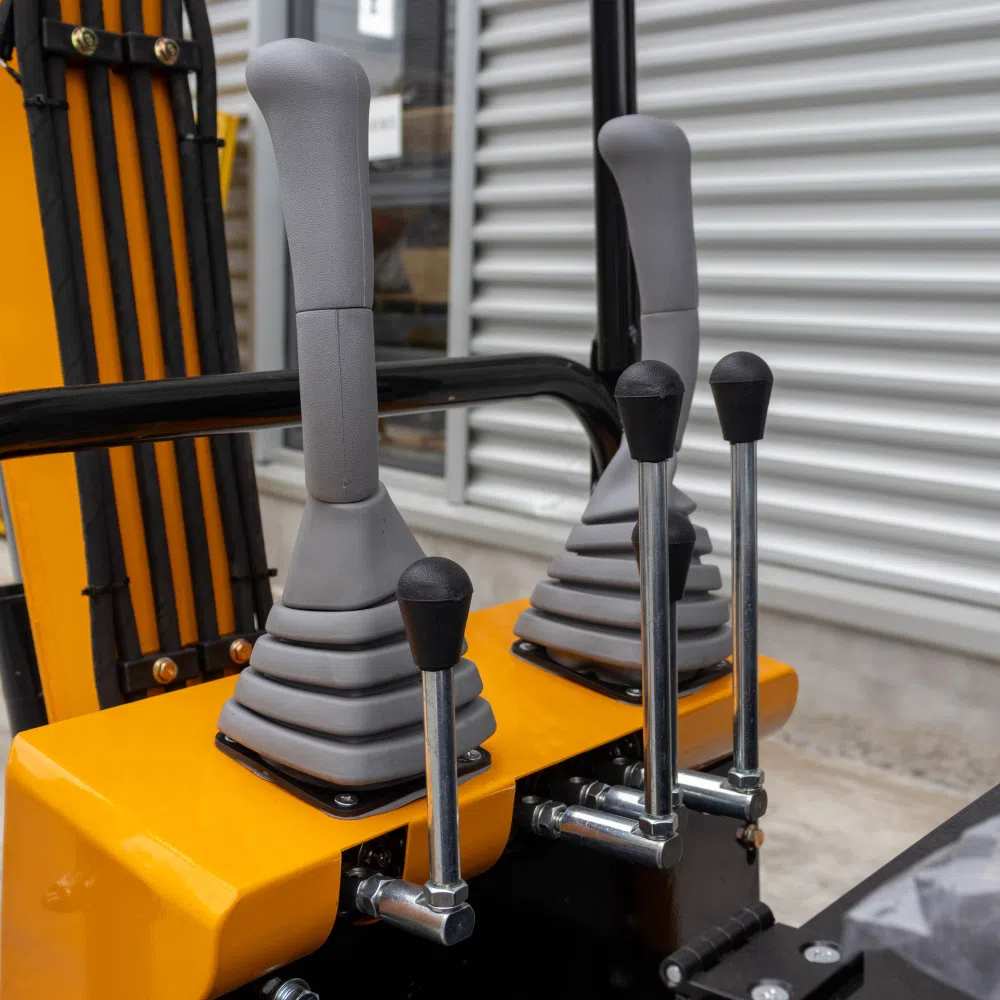

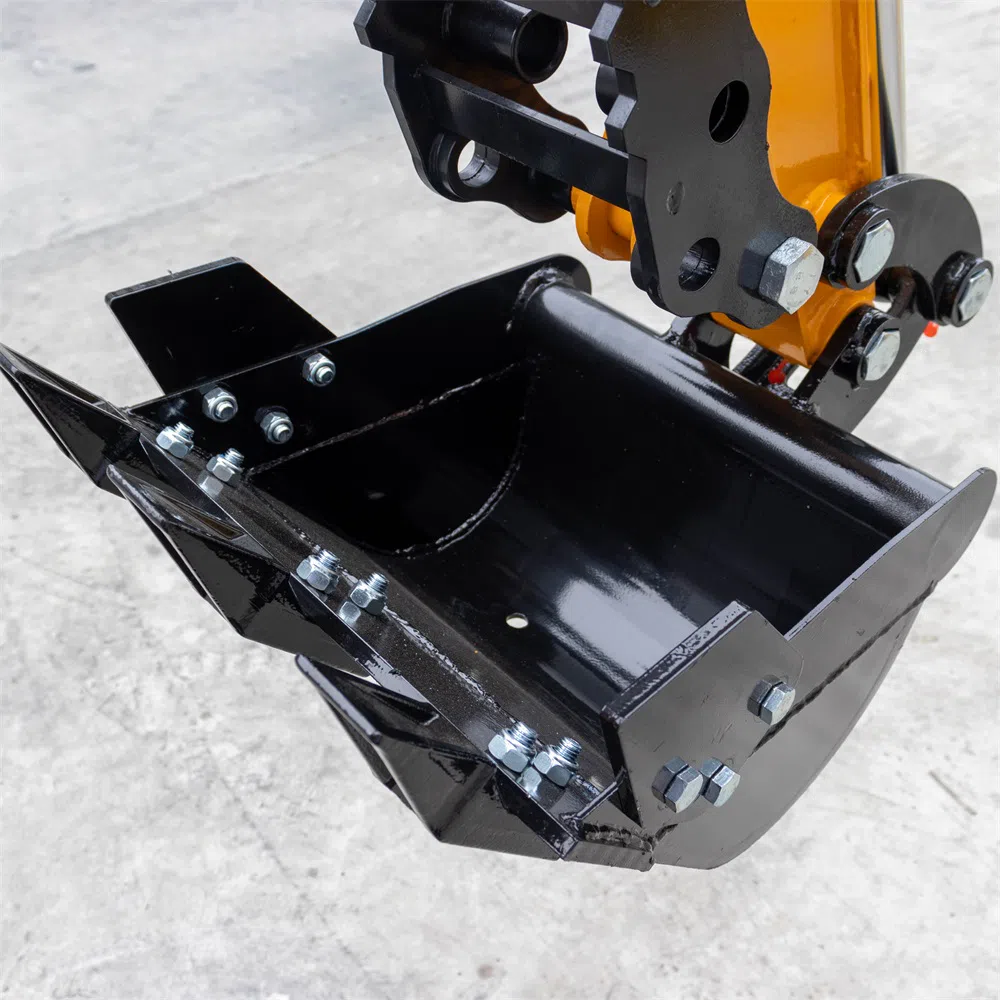

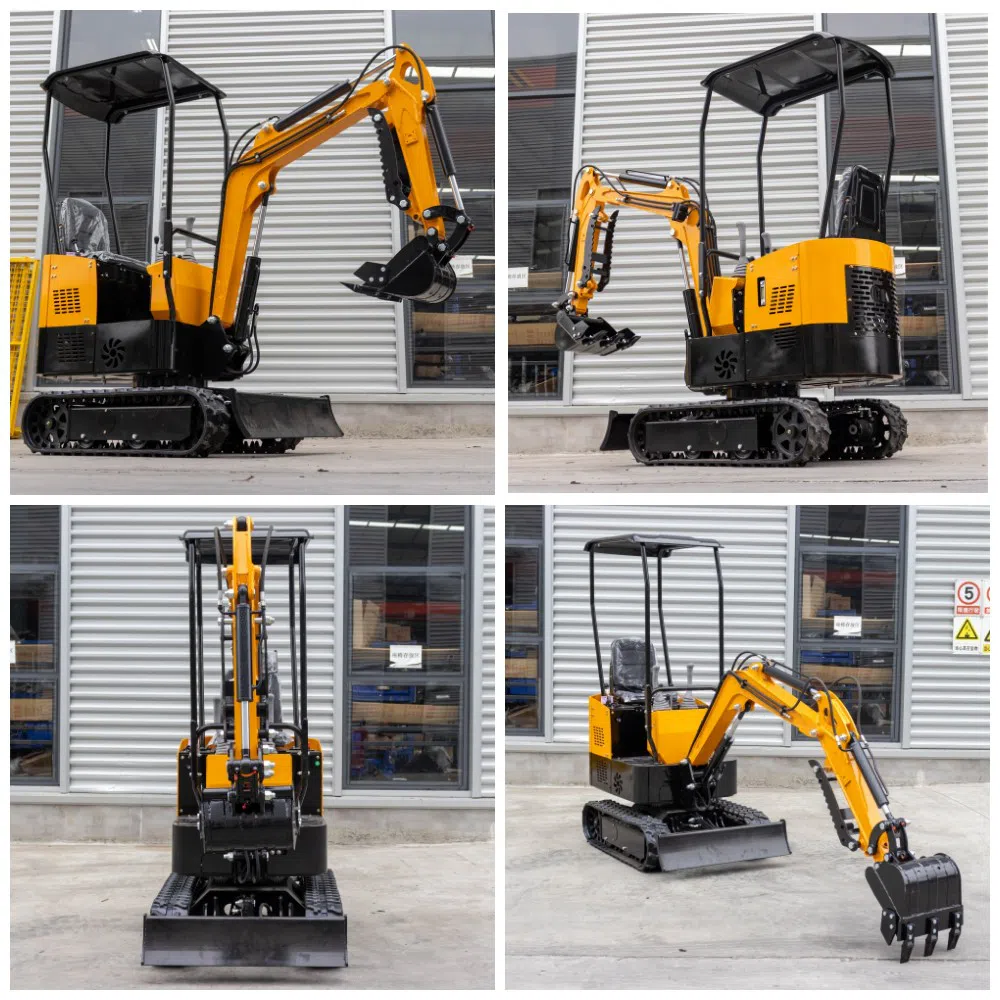

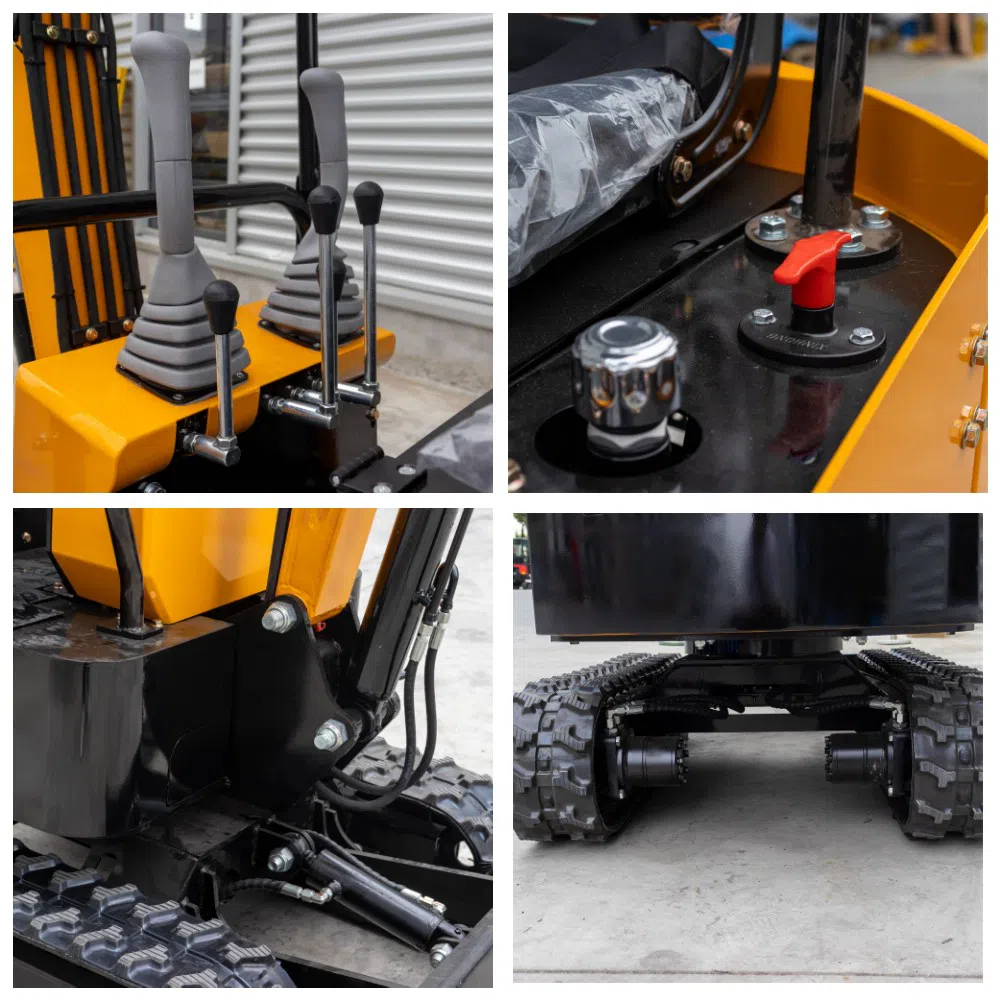

Mini Excavator 1 Ton With Retractable Tracks HT10H Detail Images
Mini Excavator 1 Ton With Retractable Tracks HT10H Applications
The HT10H 1 ton mini excavator is designed for small-scale excavation and construction applications where flexibility and accessibility are important.
In landscaping projects, HT10H can be used for digging planting areas, removing soil, preparing gardens, and maintaining outdoor spaces.
For agricultural applications, the compact excavator is suitable for orchard maintenance, greenhouse construction, irrigation trenching, and farmland improvement.
In residential and municipal projects, HT10H can complete cable trenching, pipeline installation, drainage work, and small foundation excavation.
The retractable track structure makes HT10H especially suitable for narrow working environments, including backyards, small roads, alleys, and restricted construction areas.
HIGHTOP Service Support
HIGHTOP provides complete support for customers purchasing HT10H 1 ton mini excavators, from equipment selection to after-sales service.
Before purchase, our professional team helps customers choose suitable configurations based on working conditions, application requirements, engine preference, and attachment needs. We provide detailed technical information and product recommendations to ensure customers select the right machine.
For international distributors, contractors, and equipment rental companies, HIGHTOP supports OEM/ODM cooperation, customized colors, logos, configurations, and bulk purchasing solutions.
After delivery, HIGHTOP provides technical guidance, operation instructions, spare parts support, and maintenance assistance. Our service team helps customers solve equipment operation problems and maintain stable machine performance throughout the product lifecycle.
With professional manufacturing experience and global export capability, HIGHTOP continues to provide reliable compact construction machinery solutions for customers worldwide.
Mini Excavator 1 Ton With Retractable Tracks HT10H Frequently Asked Questions
1. What makes HT10H different from other 1 ton mini excavators?
HT10H features a retractable track chassis, allowing the machine to adjust its width for narrow access and better stability during operation.
2. What is the maximum digging depth of HT10H?
The HT10H 1 ton mini excavator provides a maximum digging depth of 1750mm, suitable for many small excavation projects.
3. Can HT10H work in narrow spaces?
Yes. Its compact structure and adjustable track width make it suitable for narrow passages, gardens, greenhouses, and small construction sites.
4. What attachments can be used with HT10H?
HT10H supports various attachments such as hydraulic hammers, augers, grapples, thumb clamps, and rippers.
5. What engine options are available?
The standard engine is KOOP 192F. Optional engines include Rato, Yoop, Changchai, and Briggs & Stratton.
