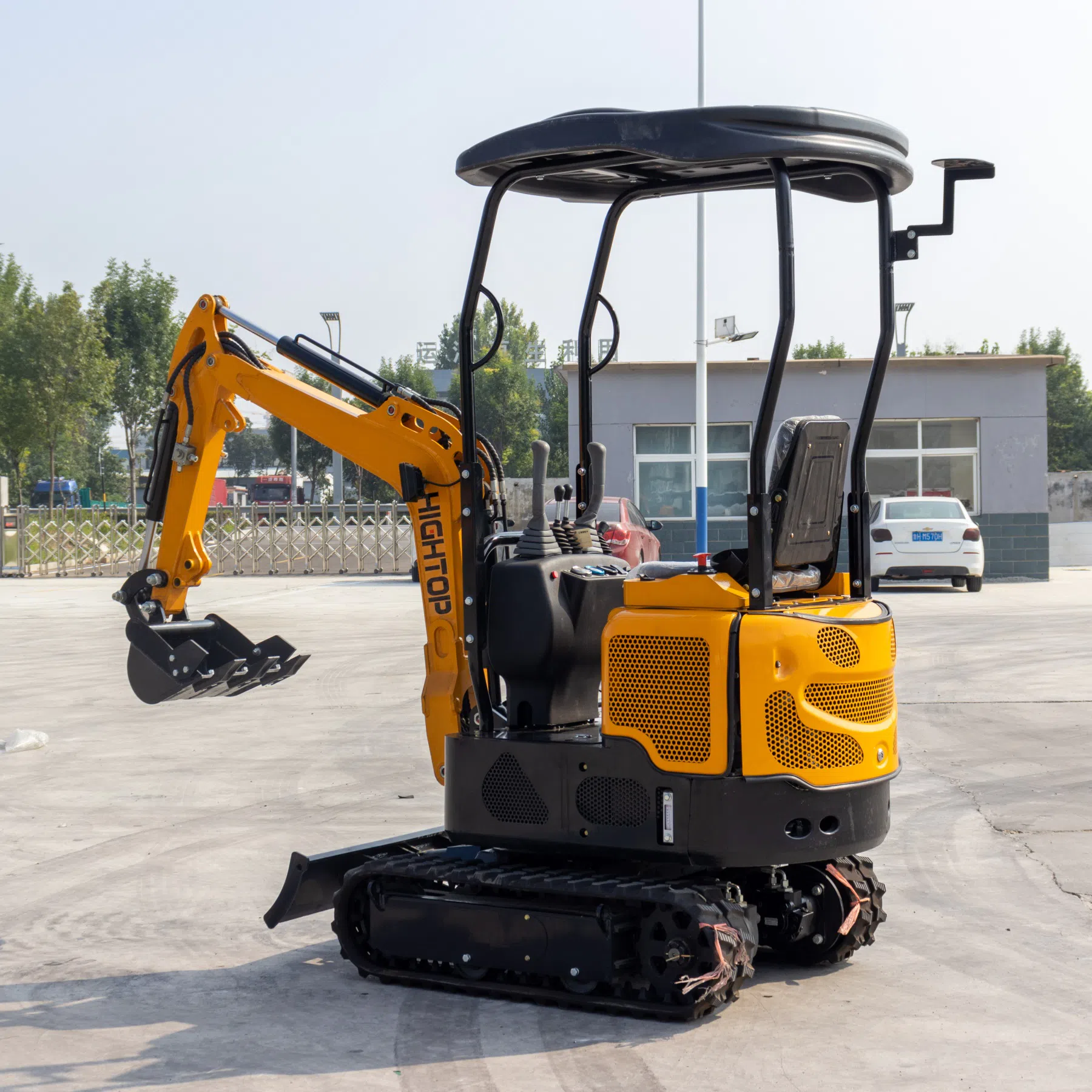

Hightop Mini Digger 1 Ton With Zero Tail Swing HT10G Introduction
The HIGHTOP HT10G 1 Ton Mini Excavator is a compact crawler excavator designed for small construction projects, landscaping, agricultural work, and confined-space excavation. With a 1000kg operating weight, 940mm compact body width, and zero tail swing structure, HT10G provides excellent flexibility when working in areas where traditional excavators cannot easily access.
Unlike conventional mini excavators with large rear overhangs, the HT10G features a zero tail swing design, allowing the rear of the machine to stay within the track width during rotation. This structure reduces the risk of collision with surrounding obstacles and makes the excavator more suitable for narrow passages, residential construction areas, gardens, greenhouses, and municipal repair projects.

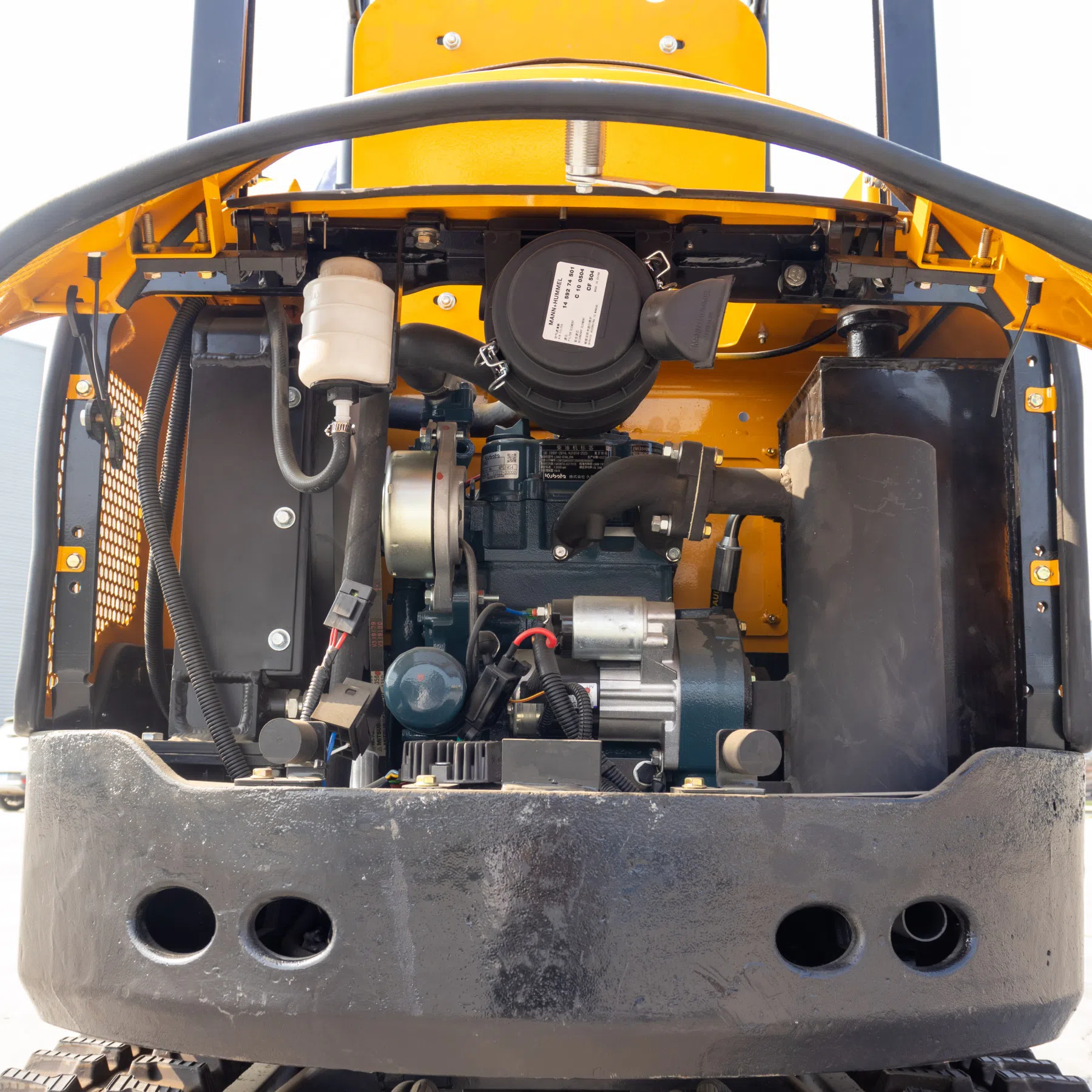

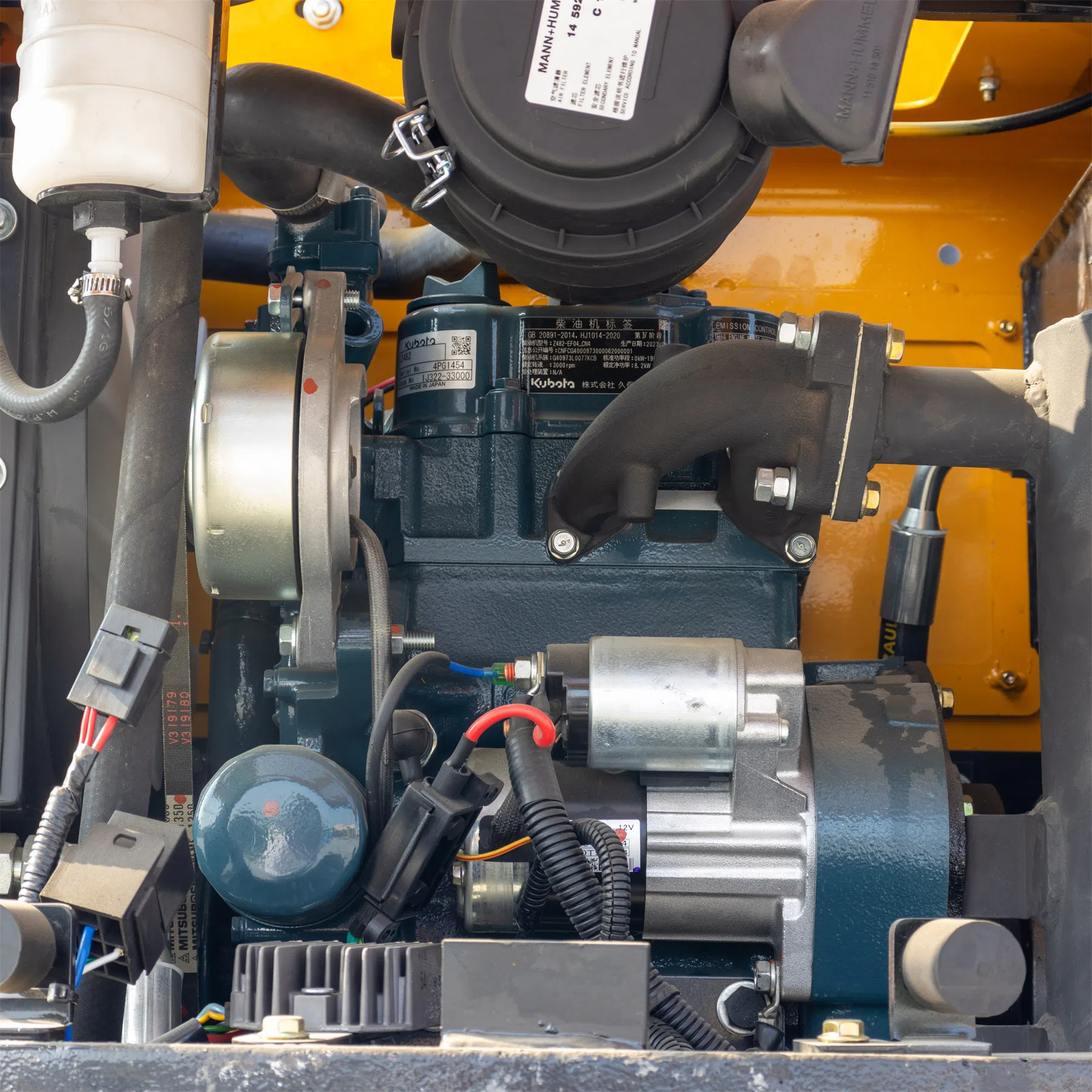

Powered by a reliable KOOP 192 engine with optional Briggs & Stratton engine configuration, the HT10G 1 ton mini excavator delivers stable power for daily digging operations. The machine is equipped with high-quality hydraulic components, including imported hydraulic pipelines and optimized hydraulic control systems, helping ensure smooth operation and reliable working performance.
The HT10G provides a maximum digging depth of 1855mm, maximum digging height of 2455mm, and maximum digging radius of 3130mm. Its compact crawler structure and practical working range make it suitable for trenching, soil excavation, landscaping preparation, farm maintenance, and small-scale construction tasks.
For customers looking for a 1 ton mini excavator for sale, the HT10G offers a balanced solution combining compact dimensions, stable hydraulic performance, and flexible operation. Compared with other small excavators, HT10G focuses on accessibility and working efficiency in limited spaces.
HIGHTOP also provides different models of mini excavators and compact construction equipment for various applications, helping customers choose suitable machines according to project requirements.
Mini Excavator 1 Ton With Zero Tail Swing HT10G Parameters
| Parameter | Value |
|---|---|
| Model | HT10G |
| Operating Weight | 1000 kg |
| Digging Bucket Capacity | 0.025 cbm / 120 kg |
| Swing Rotation Speed | 12 RPM |
| Gradeability | 30° |
| Engine Brand | KOOP 192 / Briggs & Stratton |
| Main Control Valve | Beifang |
| Rated Power | 7 kW |
| Overall Length / Transport Length | 4000 mm / 2380 mm |
| Overall Width | 940 mm |
| Overall Height (Cab Top) | 2268 mm |
| Total Track Width | 930 mm |
| Standard Track Shoe Width | 180 mm |
| Track Gauge | 750 mm |
| Wheelbase | 884 mm |
| Track Ground Contact Length | 962 mm |
| Total Track Length | 1204 mm |
| Minimum Ground Clearance | 100 mm |
| Tail Swing Radius | 810 mm |
| Max Digging Height | 2455 mm |
| Max Dumping Height | 1650 mm |
| Max Digging Depth | 1855 mm |
| Max Horizontal Digging Radius | 3050 mm |
| Max Digging Radius | 3130 mm |

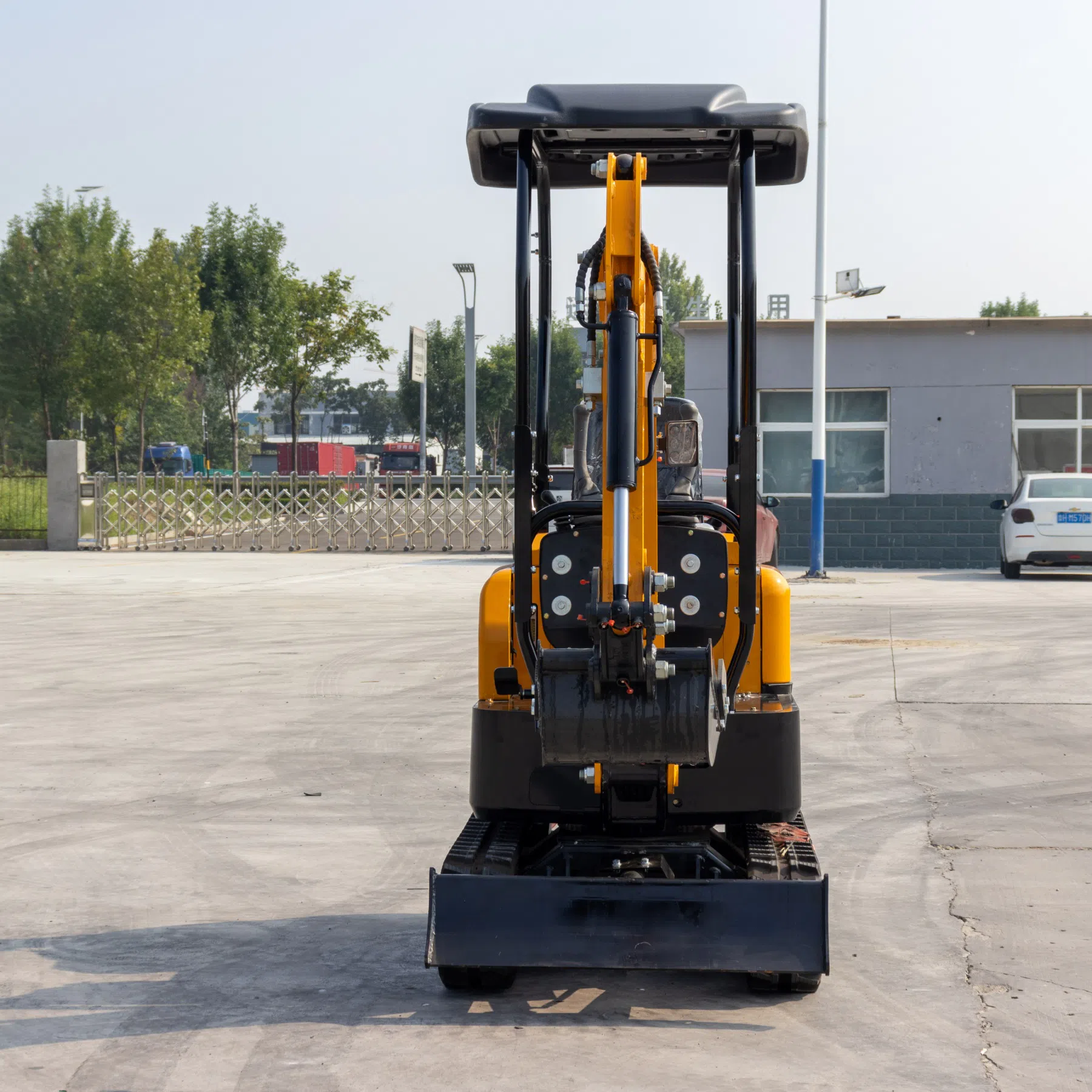

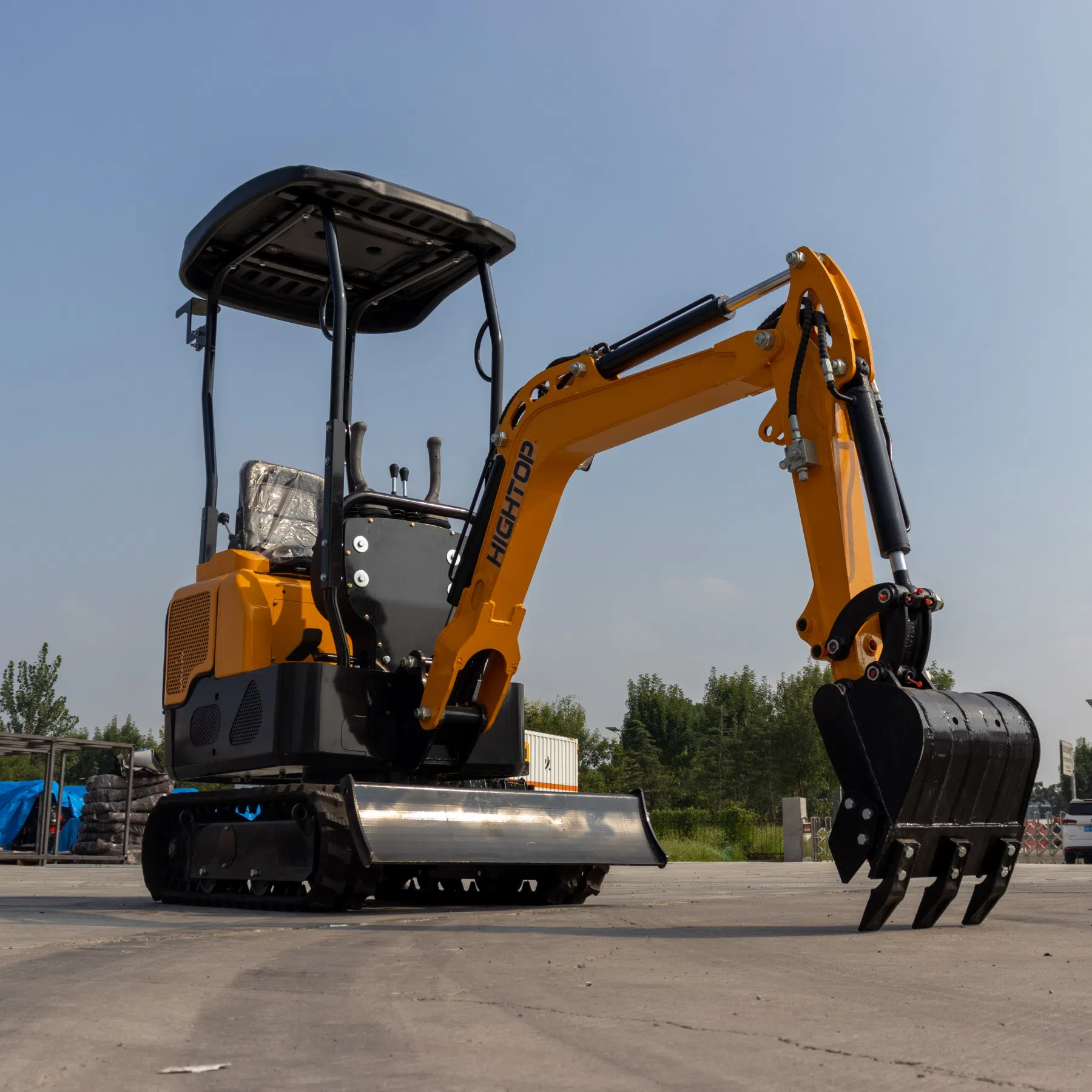

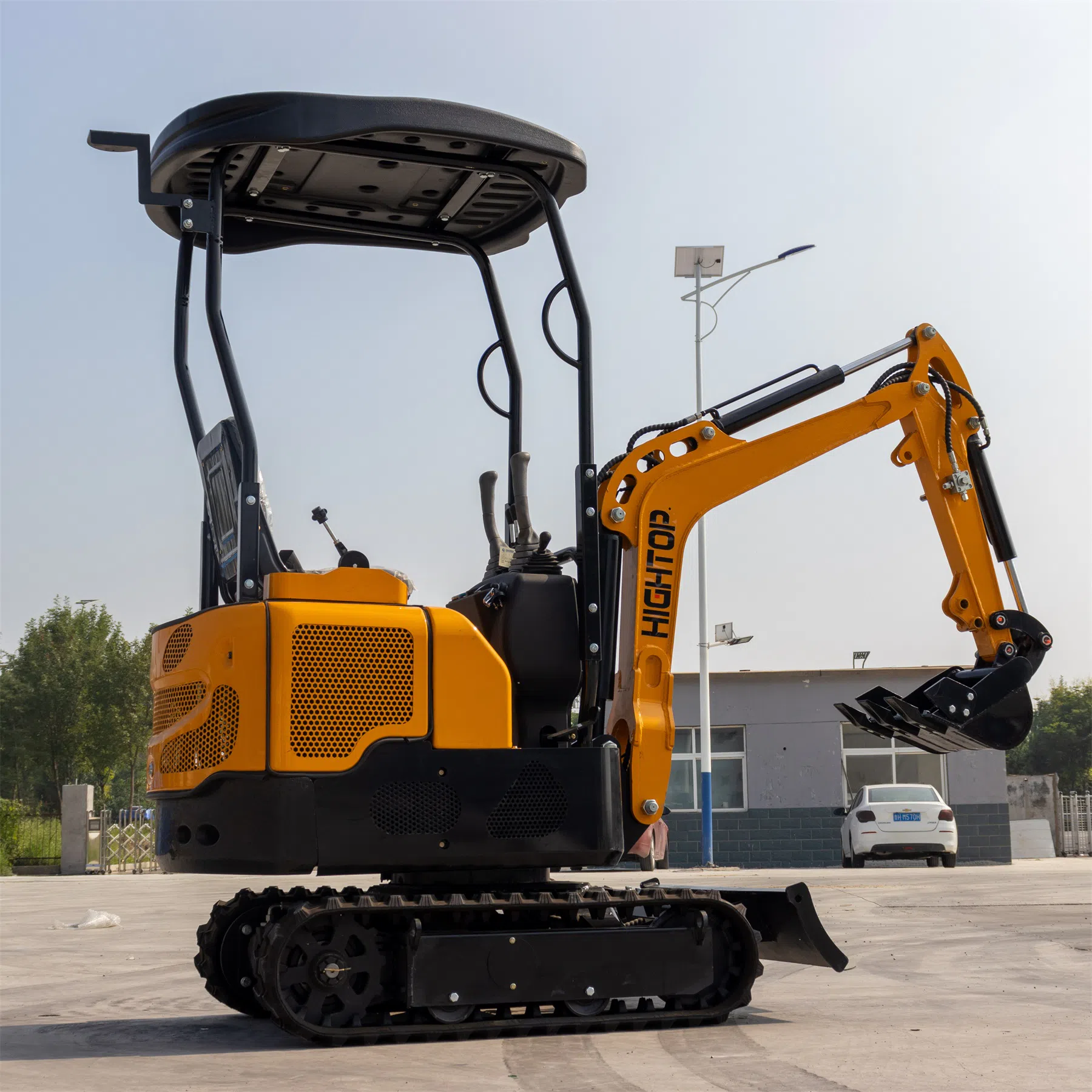

Mini Excavator 1 Ton With Zero Tail Swing HT10G Detail Images
Mini Excavator 1 Ton With Zero Tail Swing HT10G Applications
The HT10G 1 ton mini excavator is designed for users who need compact equipment with reliable digging capability.
In landscaping projects, the machine can be used for garden renovation, tree planting preparation, soil movement, and outdoor maintenance.
For agricultural applications, HT10G is suitable for orchard maintenance, irrigation trenching, greenhouse construction, and farmland improvement.
In residential and municipal projects, the compact crawler excavator can complete cable trenching, drainage installation, pipeline excavation, and small foundation work.
The zero tail swing design makes HT10G particularly suitable for narrow construction environments, including alleys, small yards, residential areas, and restricted-access job sites.
HIGHTOP Service Support
HIGHTOP provides complete service support for HT10G 1 ton mini excavators, covering product selection, customization, delivery, and after-sales assistance.
Before purchase, our professional team helps customers select suitable configurations according to working conditions, engine requirements, attachments, and application environments. We provide technical suggestions to help customers choose the right compact excavator solution.
For distributors, contractors, and equipment rental companies, HIGHTOP supports OEM and ODM cooperation, including customized colors, logos, configurations, and bulk purchasing solutions.
After delivery, HIGHTOP provides operation guidance, spare parts support, maintenance recommendations, and technical assistance to help customers maintain stable equipment performance.
With professional manufacturing experience and global export capability, HIGHTOP continues to provide reliable mini excavators and compact construction machinery solutions worldwide.
Mini Excavator 1 Ton With Zero Tail Swing HT10G Frequently Asked Questions
1. What is the main advantage of HT10G mini excavator?
The main advantage of HT10G is its zero tail swing design, which improves flexibility and safety when operating in narrow spaces.
2. What is the digging depth of HT10G?
The HT10G 1 ton mini excavator provides a maximum digging depth of 1855mm.
3. Can HT10G work in narrow areas?
Yes. With a compact 940mm body width and zero tail swing structure, HT10G is suitable for confined construction areas, gardens, and residential projects.
4. What engine does HT10G use?
HT10G uses KOOP 192 engine as the standard configuration and supports Briggs & Stratton optional engine solutions.
5. Can attachments be installed on HT10G?
Yes. HT10G supports multiple attachments such as hydraulic breakers, augers, grapples, and different buckets.
