The HT10 1 Ton Mini Excavator with Cabin is a compact and versatile excavating machine designed for small-scale construction, landscaping, agriculture, and municipal projects. Featuring a lightweight structure, simple operation, and easy maintenance, it delivers reliable digging performance in narrow spaces such as gardens, farmland, greenhouses, and trenching sites. Equipped with a durable engine, optional retractable tracks, and customizable configurations, the HT10 provides excellent flexibility and efficiency for various working conditions.

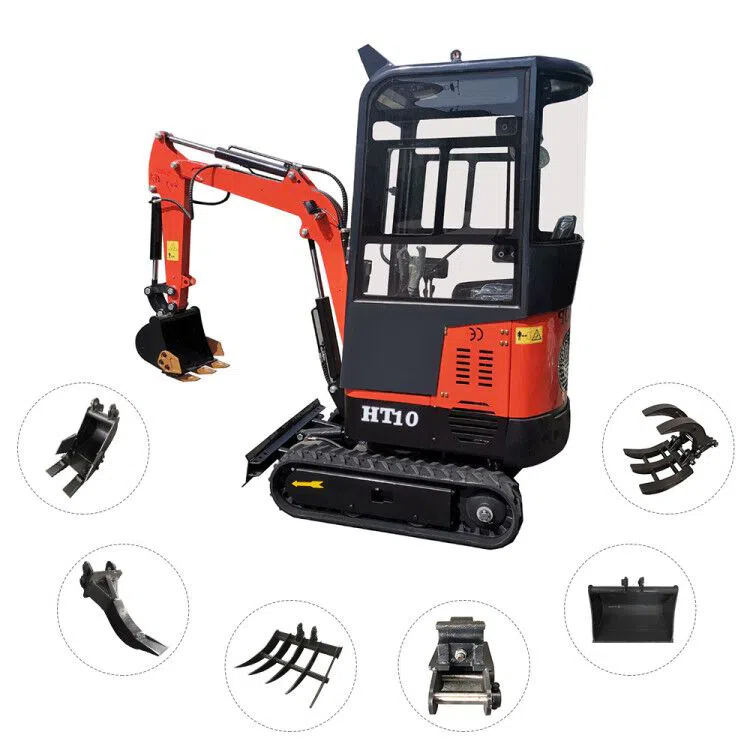

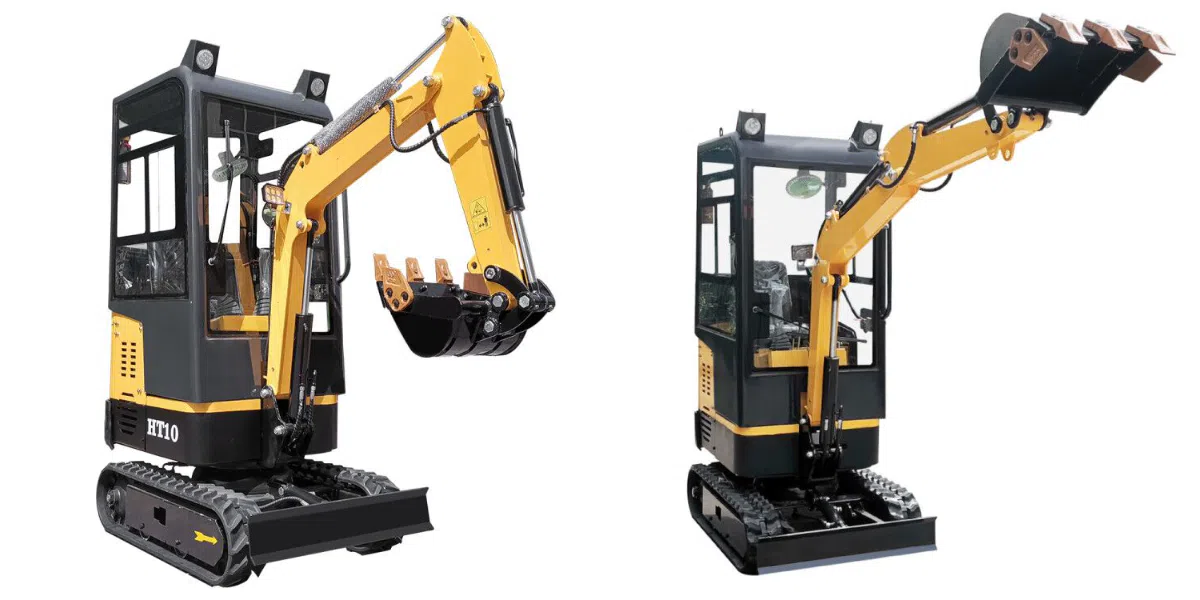

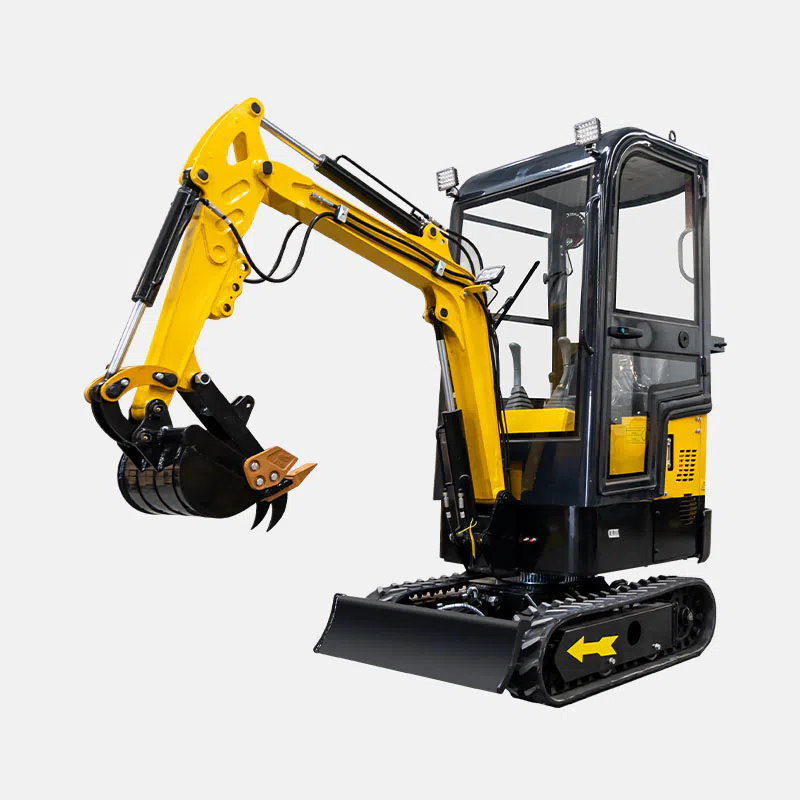

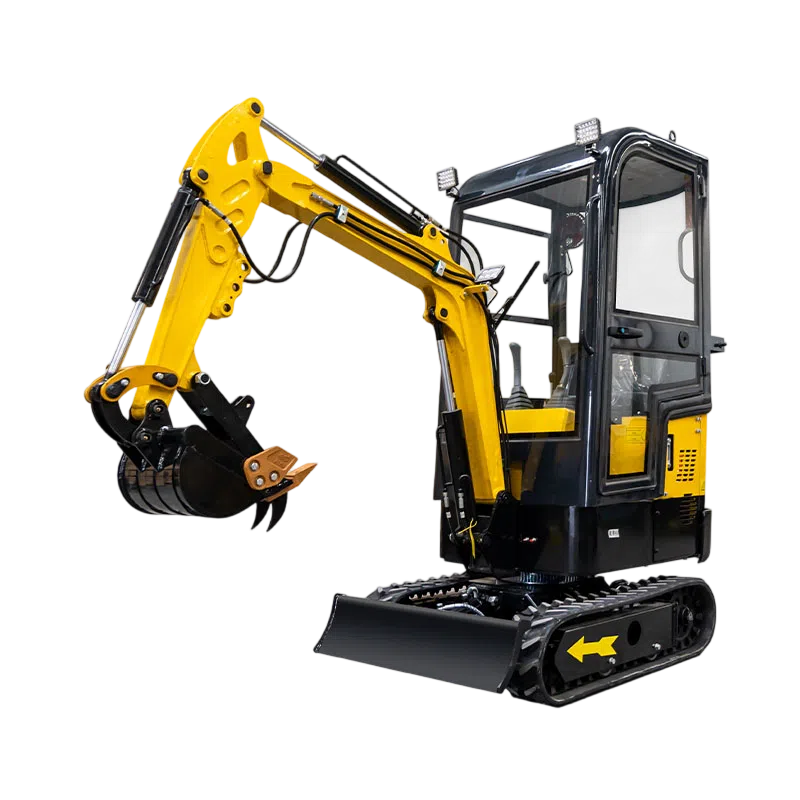

HT10 1ton mini excavator with Cabin Introduction
EPA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized。
This one is Customer customized Colour and with retractable tracks
This Mini Excavator is designed for small works, small projects, in Garden, farmland ,Municipal works, vagetable greenhouse, digging trench. It is with small engine, simple design, easy to maintain.
HT10 1ton mini excavator with Cabin Parameter
Model | HT-10 |
Weight | 1000kg |
Digging bucket capacilty | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | CHANGCHAI (192FAM) |
Optional Engine | Briggs & Stratton Engine,Yanmar Engine, Koop Engine, Yanmar Engine |
Bore stroke | Single cylinder, fan cool |
Rated power | 8.2 kw/3600r/min |
Main pump | G5-6 |
Displacement | 6.8ml/r |
Swing motor | SANYANG (BMRS -250) |
Traveling motor | SANYANG (BMT-245) |
Travel speed | 1.5kmv/h |
Main Demensions | |
Overall dimension( LxWWxH) | 2775 x 930 x 2219 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platiorm ground dearance | 380 mm |
Platform back tuming radius | 784mm |
Chassis widh | 896mm |
Track width | 180 mm |
Chassis ground clearance | 132mm |
Track height | 320 mm |
Operating Range | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of blldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
