HT06 Mini Excavator Instruction

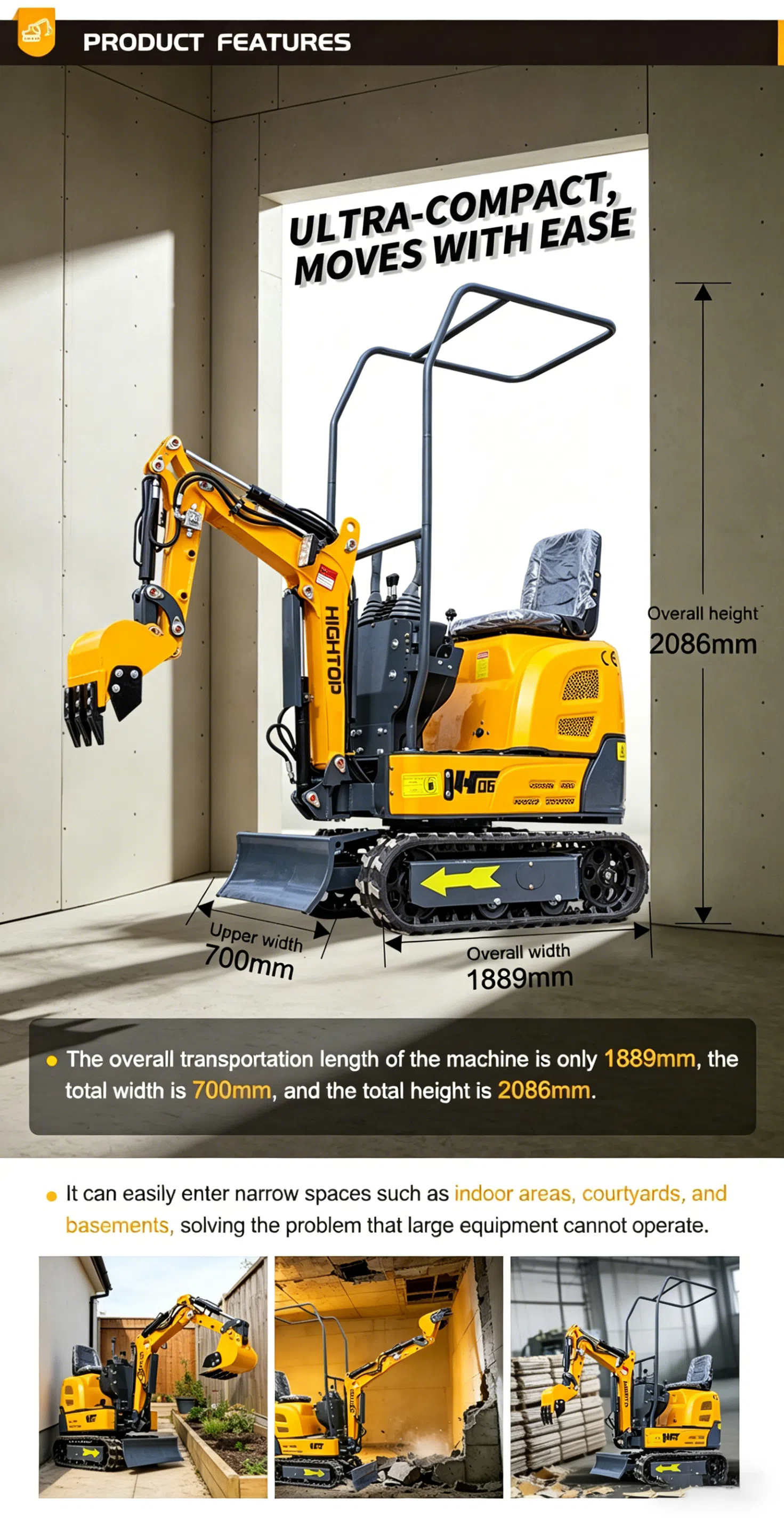

1. Ultra-compact Design for Effortless Maneuverability
•Overall transport length: 1,889 mm; total width: 700 mm; total height: 2,086 mm
•Easily accesses narrow spaces such as indoor areas, yards, and basements, addressing the challenge of operating large equipment
• Rear turning radius of just 650 mm, eliminating concerns about collisions with surrounding objects during operation and ensuring peace of mind for precision work

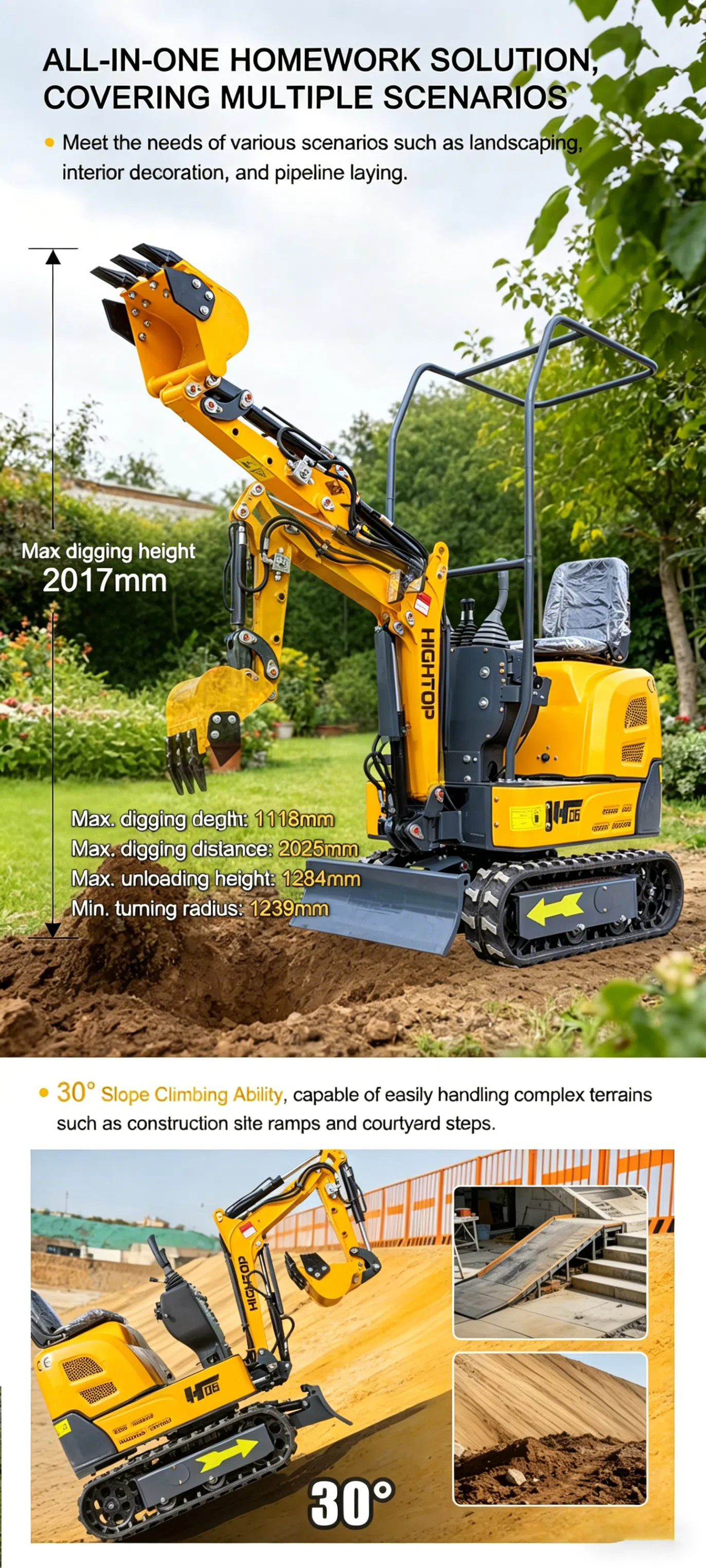

2. Versatile Performance, Suitable for Multiple Scenarios
• Maximum digging height: 2017 mm; maximum digging depth: 1118 mm; maximum digging reach: 2025 mm
• Maximum dumping height of 1284mm and minimum swing radius of 1239mm, meeting the needs of various scenarios such as landscaping, interior renovation, and pipeline installation
• 30° gradeability, easily handling complex terrain such as construction site ramps and garden steps
3. Lightweight and Portable, Hassle-Free Site Transfers
• Total operating weight of just 600 kg; no need for a large trailer—can be transported by a standard pickup truck
• Significantly reduces transportation costs and relocation difficulties, ideal for frequent operations across multiple sites and projects
• 0.01 m³ bucket capacity allows for precise control of material volume, preventing waste

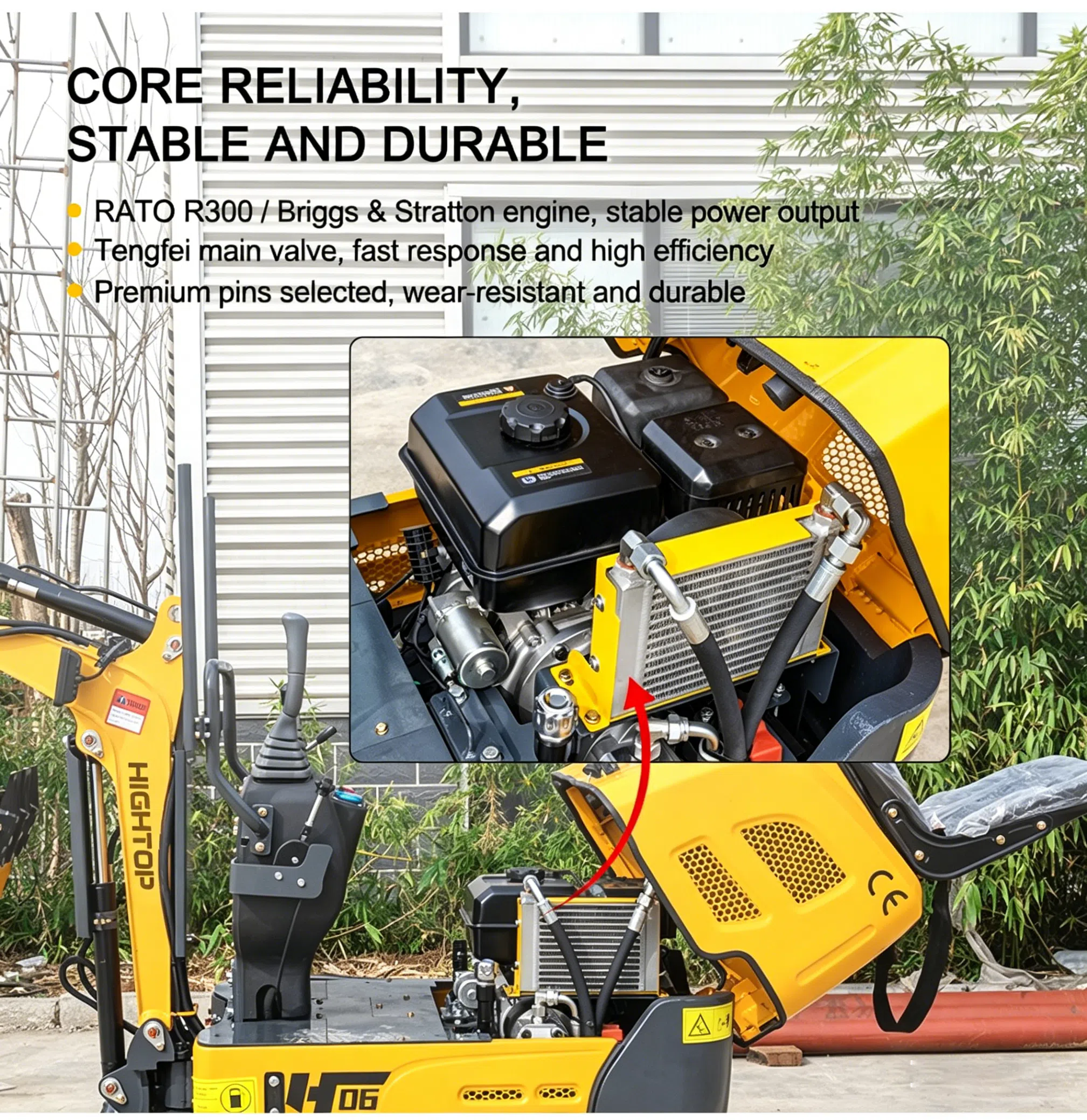

4. Reliable Core, Stable and Durable
• Equipped with Runtong R300 or Briggs & Stratton engines, delivering stable power output and excellent fuel economy
• Tengfei main valve precisely controls hydraulic movements, ensuring fast response and high efficiency
• Features high-quality pins that are wear-resistant and durable, effectively extending the machine’s service life and reducing maintenance costs
5. Thoughtful Details, Hassle-Free Operation
• Dozer blade ground clearance: 92 mm; digging depth: 93 mm, enabling rapid site leveling and dredging operations
• Standard track plate width: 150 mm, with low ground pressure to prevent damage to lawns, pavers, and other surfaces
• Track contact length: 782 mm; total track length: 1126 mm, ensuring stable travel and reduced risk of tipping

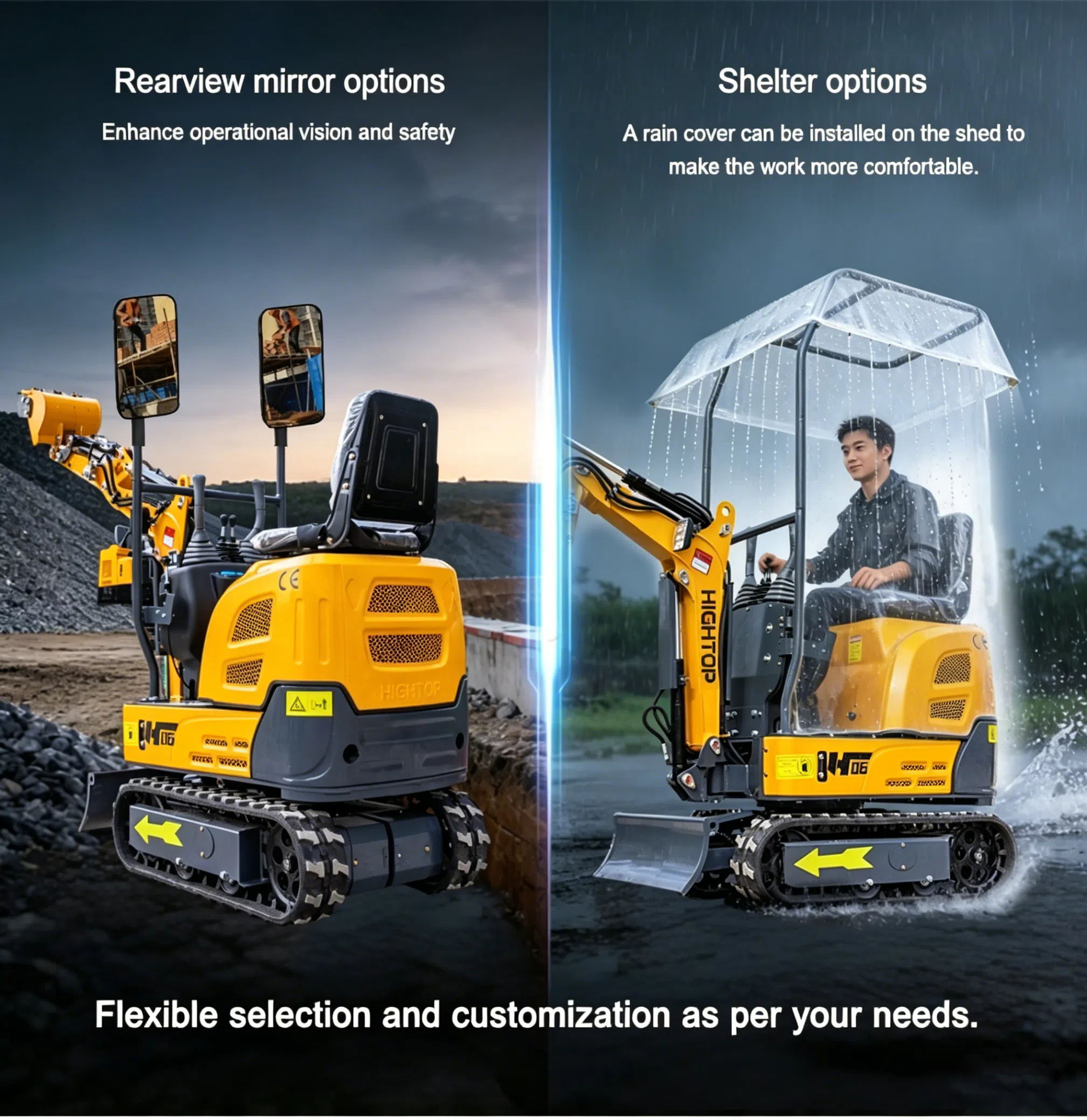

6. Flexible Options, Customized to Your Needs
• Rearview Mirror Option: Choose based on your work environment. Simplify the configuration to reduce costs when working in open areas, or add a rearview mirror to improve visibility and safety on complex terrain.
• Canopy options: Remove the canopy for indoor precision work to accommodate low ceilings; install it for outdoor operations to increase stability. A rain cover can also be added to the canopy for greater comfort.
• Balances practicality with cost control to meet the personalized needs of different users

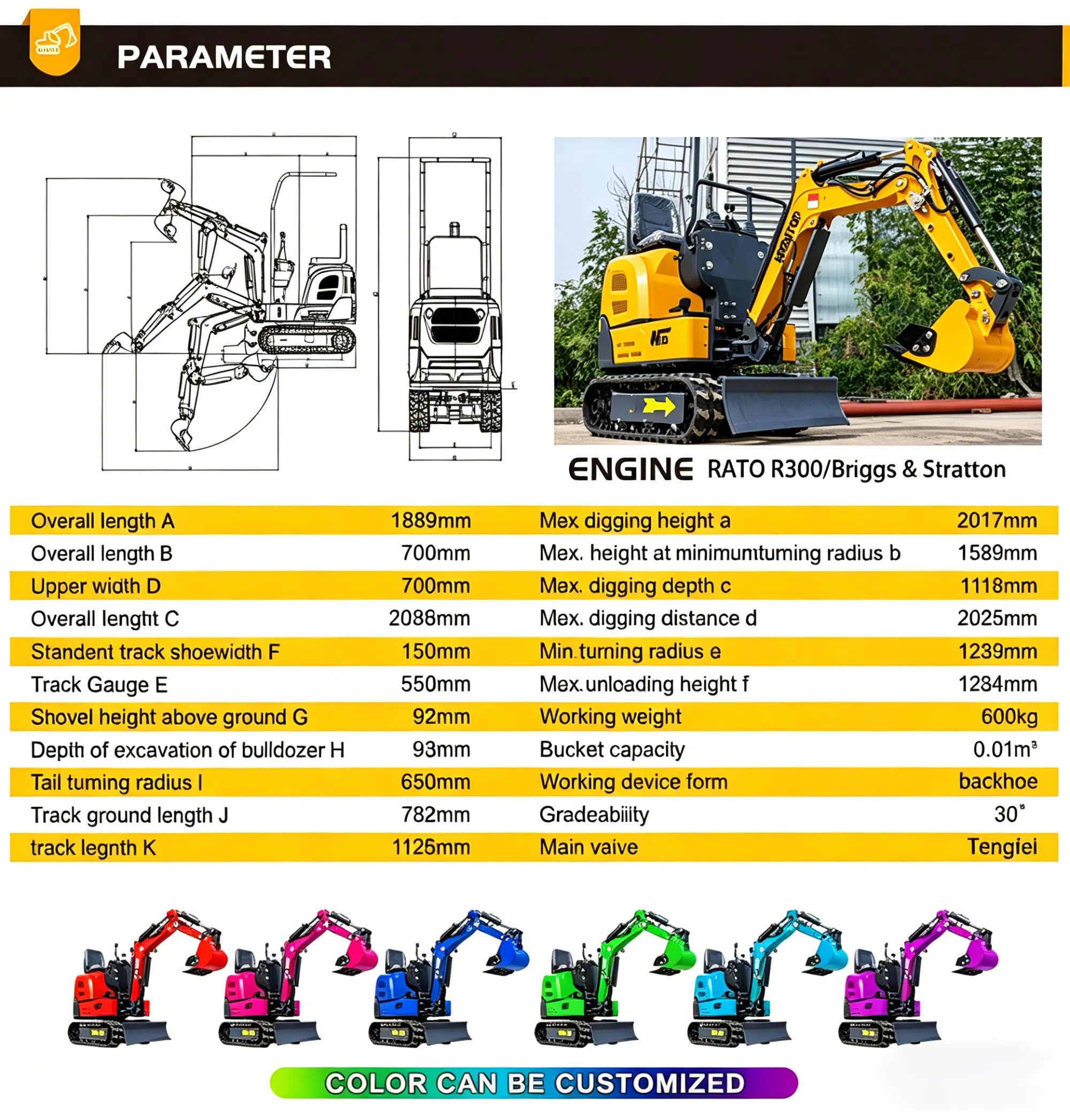

HT06 Mini Excavator Parameter
| Overal legnth A | 1889mm | Max digging height a | 2017mm |
| Overall width B | 700mm | Max. height at minimumturning radius b | 1589mm |
| Upper width D | 700mm | Max. digging depth c | 1118mm |
| Overall height C | 2086mm | Max. digging distance d | 2025mm |
| Standard track shoewidth F | 150mm | Min.turning radius e | 1239mm |
| Track Gauge E | 550mm | Max.unloading height f | 1284mm |
| Shovel height above ground G | 92mm | Working weight | 600kg |
| Depth of excavation of bulldozer H | 93mm | Bucket capacity | 0.01m3 |
| Tail turning radius I | 650mm | Working device form | backhoe |
| Track ground length J | 782mm | Gradeability | 30° |
| track legnth K | 1126mm | Main valve | Tengfei |
Main Title and Header: The top of the image features the title HT-06 MINI EXCAVATOR alongside the tagline "Compact and powerful, all-purpose operation".
Key Features Displayed: Three checkmark bullet points on the upper-left side state High quality material, Save time and effort, and Quality assurance.
Machine Appearance & Setting: The image showcases a yellow HT-06 mini excavator actively operating on a construction site with workers in safety gear and orange fencing in the background.
Design & Structure:
The excavator is equipped with a black seat, control levers, an overhead canopy frame structure, a front dozer blade, and rubber tracks marked with a directional arrow.
It features a backhoe working device form with a bucket digging into the ground.
Core Specifications Highlighted by Context: The machine has an ultra-compact design with an overall length of 1,889 mm, a total width of 700 mm, a working weight of 600 kg, and a bucket capacity of 0.01 m³.
Why Choose Us
Four Main Advantages:
Support customization: We can customize it one-on-one according to your needs.
Free technical support: We offer professional pre-sale and after-sale services. Please feel free to purchase.
Quality assurance: Carefully select materials, strictly control each process, and ensure product quality.
Professional team: Our company is a technology enterprise integrating development, production and processing, operation and sales.
Core Production Highlights:
01: Specialized production processes provide you with better services.
02: Factory direct sales, supporting odm/oem processing.
03: The quality of the products is inspected upon their departure to keep a close watch on them at all times.
