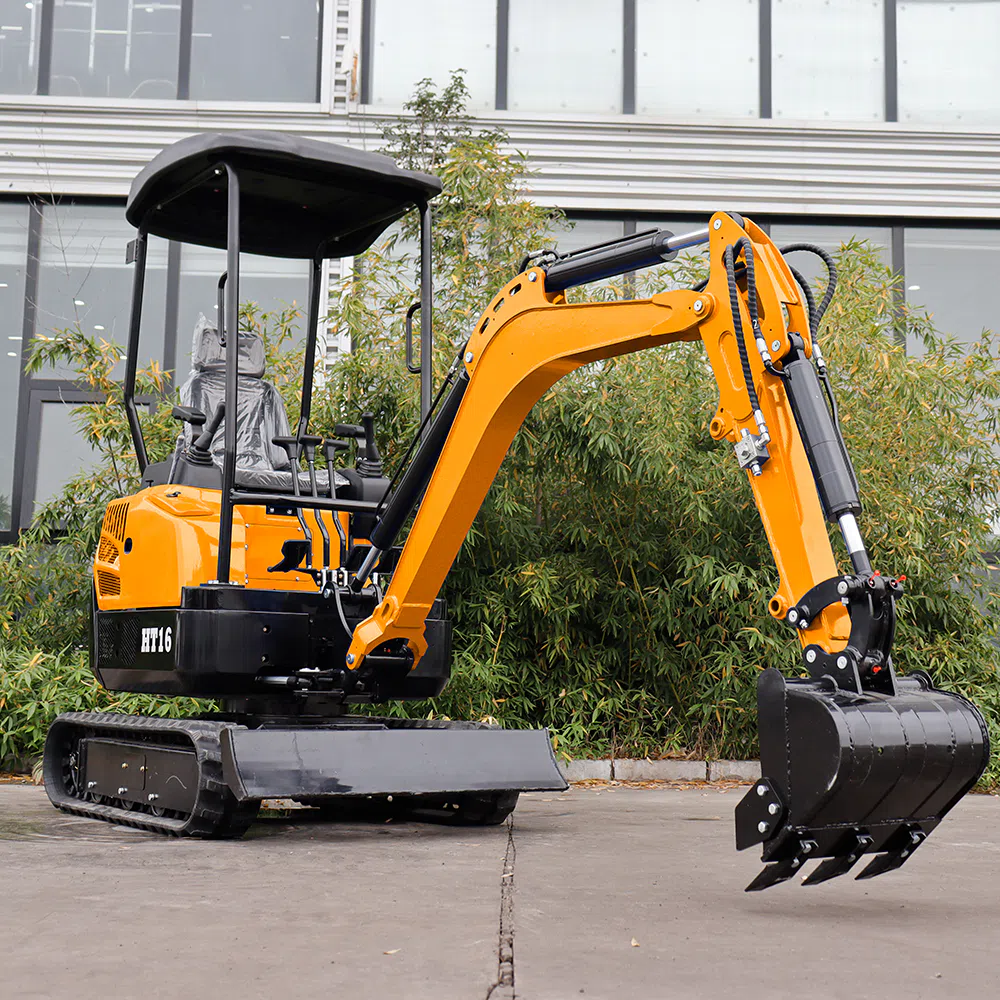

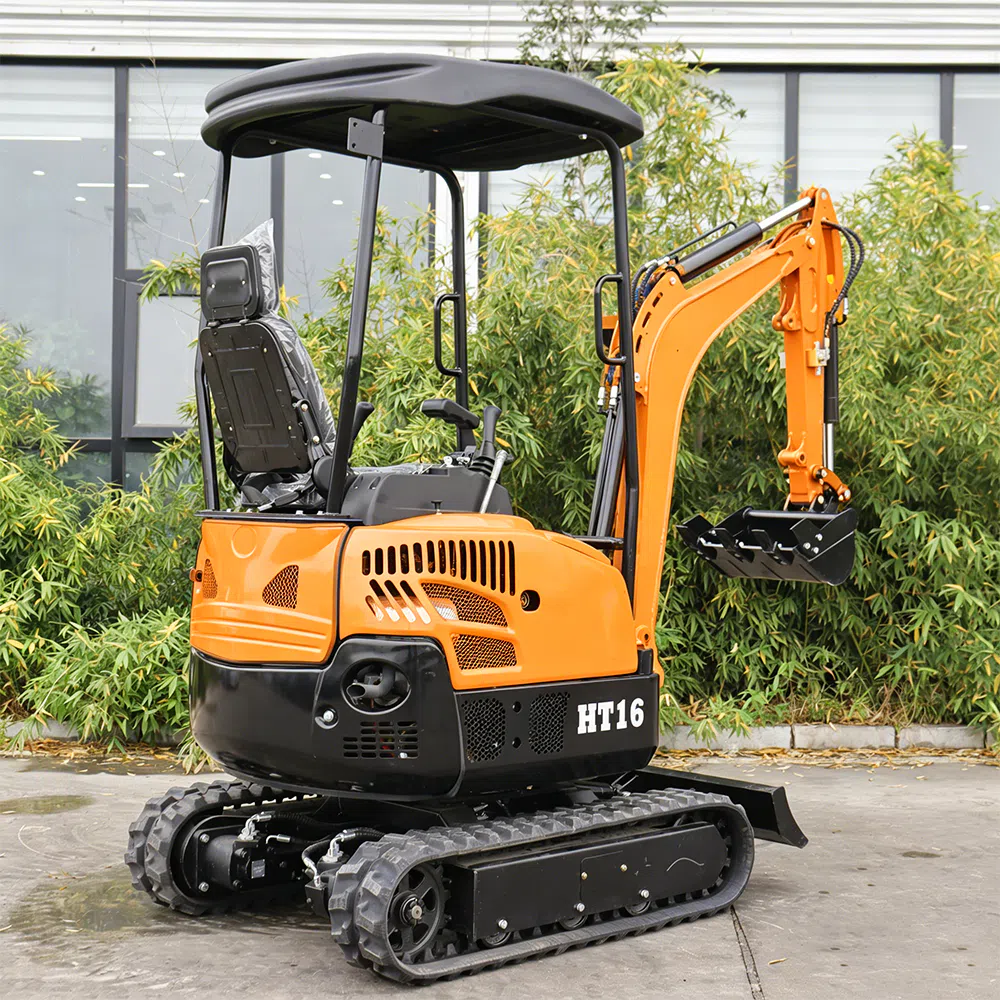

Hightop Mini Excavator 1.6 Ton With Deep Digging HT16

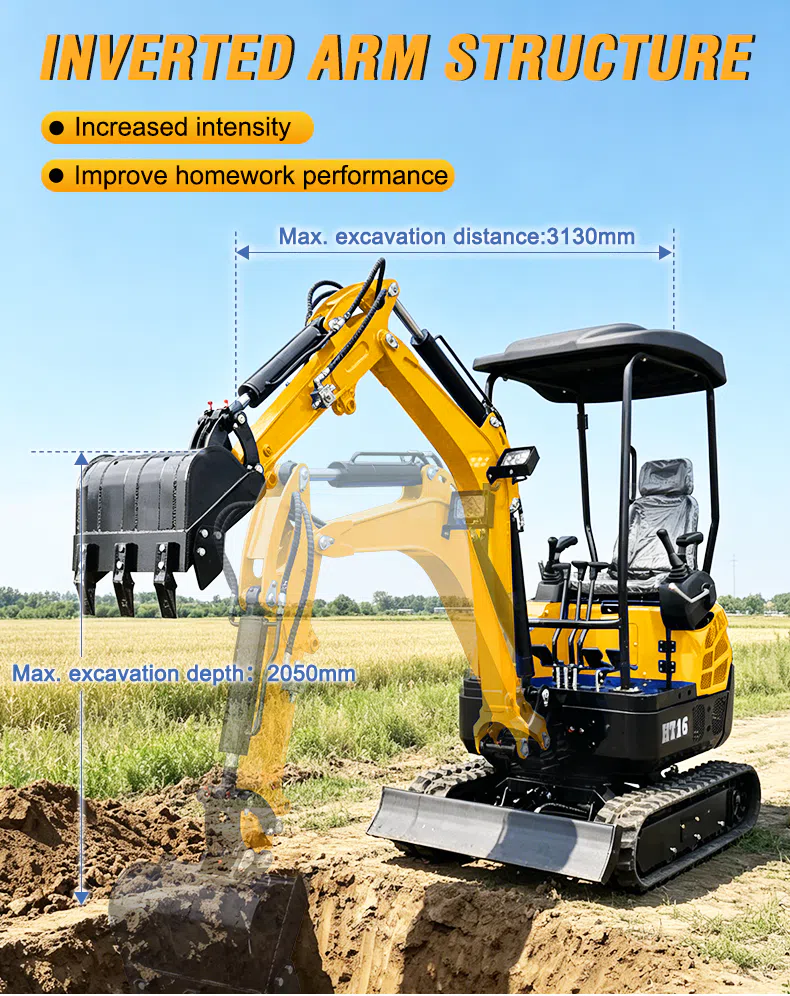

1. 2050mm Deep Digging Capability：The HT-16 mini excavator provides a maximum digging depth of 2050mm, allowing operators to complete deeper trenching, foundation preparation, drainage installation, and soil excavation tasks.
2. Compact 1.6 Ton Structure：With a working weight of 1600kg, HT-16 offers easy transportation and flexible operation while maintaining professional excavation performance.
3. 3130mm Maximum Digging Radius：The extended working range with a maximum digging radius of 3130mm improves efficiency in excavation and material handling operations.
4. Narrow Width for Restricted Areas：The compact width of 1100mm enables HT-16 to operate in narrow spaces that are difficult for standard excavators to access.
5. Multiple Attachment Options：HT-16 supports different attachments to expand application possibilities and improve machine utilization.

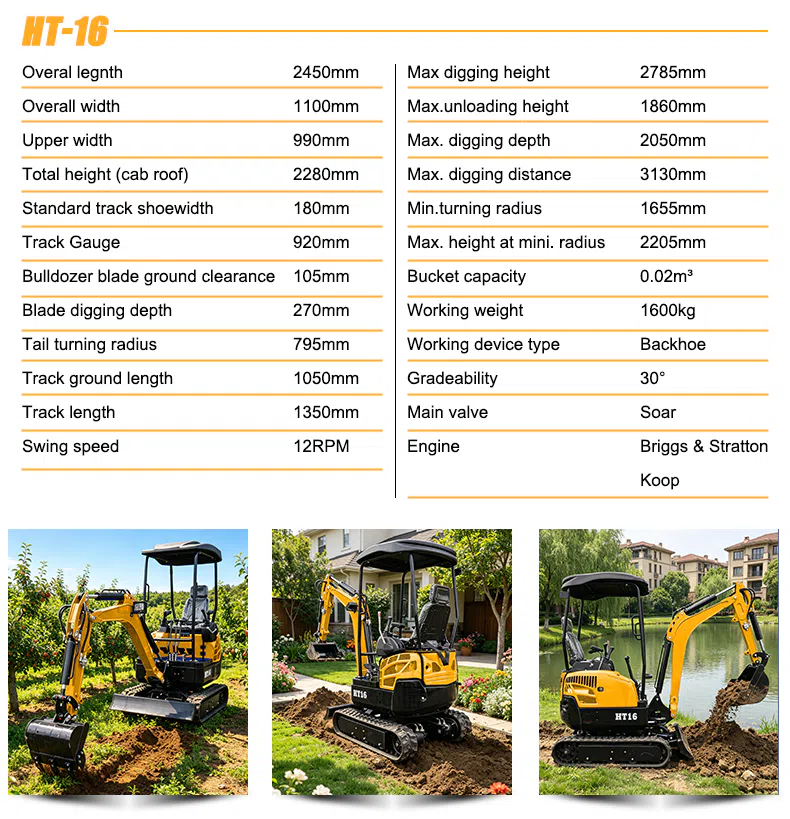

Mini Excavator HT16 1.6 Ton, with Deep Digging Capability Parameters
| Parameter | Value |
|---|---|
| Overall Length | 2450 mm |
| Overall Width | 1100 mm |
| Upper Width | 990 mm |
| Total Height (Cab Roof) | 2280 mm |
| Standard Track Shoe Width | 180 mm |
| Track Gauge | 920 mm |
| Bulldozer Blade Ground Clearance | 105 mm |
| Blade Digging Depth | 270 mm |

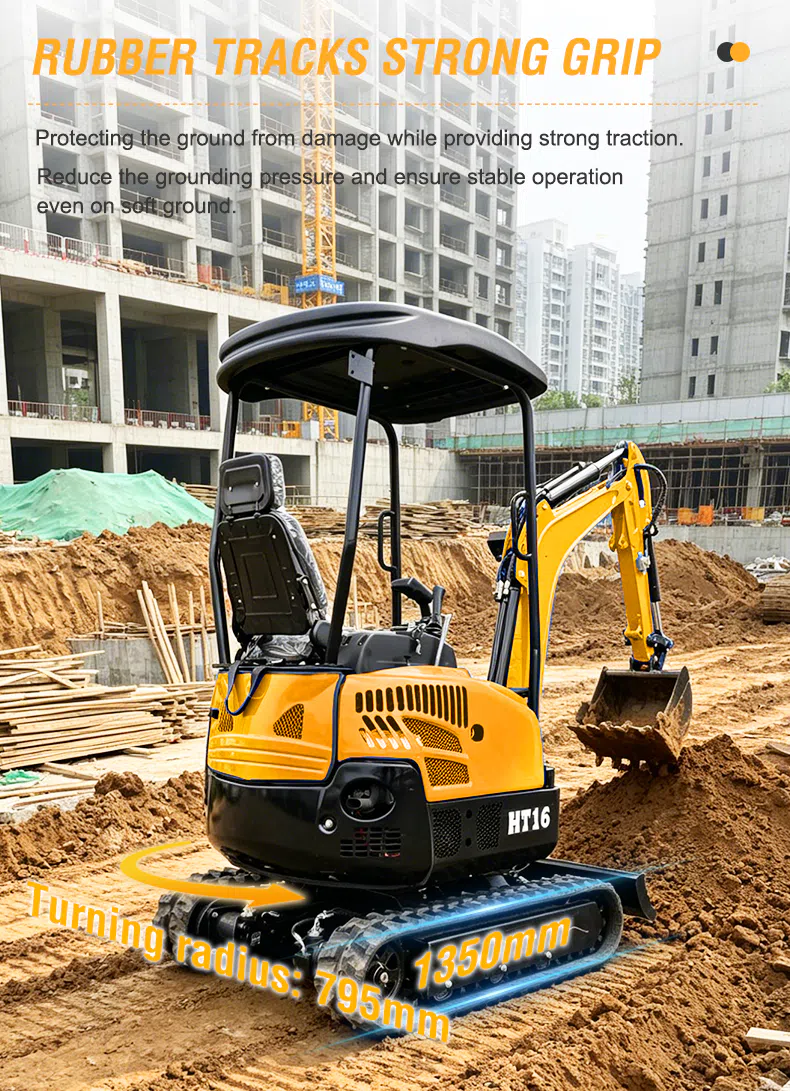

| Tail Turning Radius | 795 mm |
| Track Ground Length | 1050 mm |
| Track Length | 1350 mm |
| Swing Speed | 12 RPM |
| Max Digging Height | 2785 mm |
| Max Unloading Height | 1860 mm |
| Max Digging Depth | 2050 mm |
| Max Digging Distance | 3130 mm |
| Min Turning Radius | 1655 mm |
| Max Height at Min Radius | 2205 mm |
| Bucket Capacity | 0.02 m³ |
| Working Weight | 1600 kg |
| Working Device Type | Backhoe |
| Gradeability | 30° |
| Main Valve | Soar |
| Engine | Briggs & Stratton / Koop |

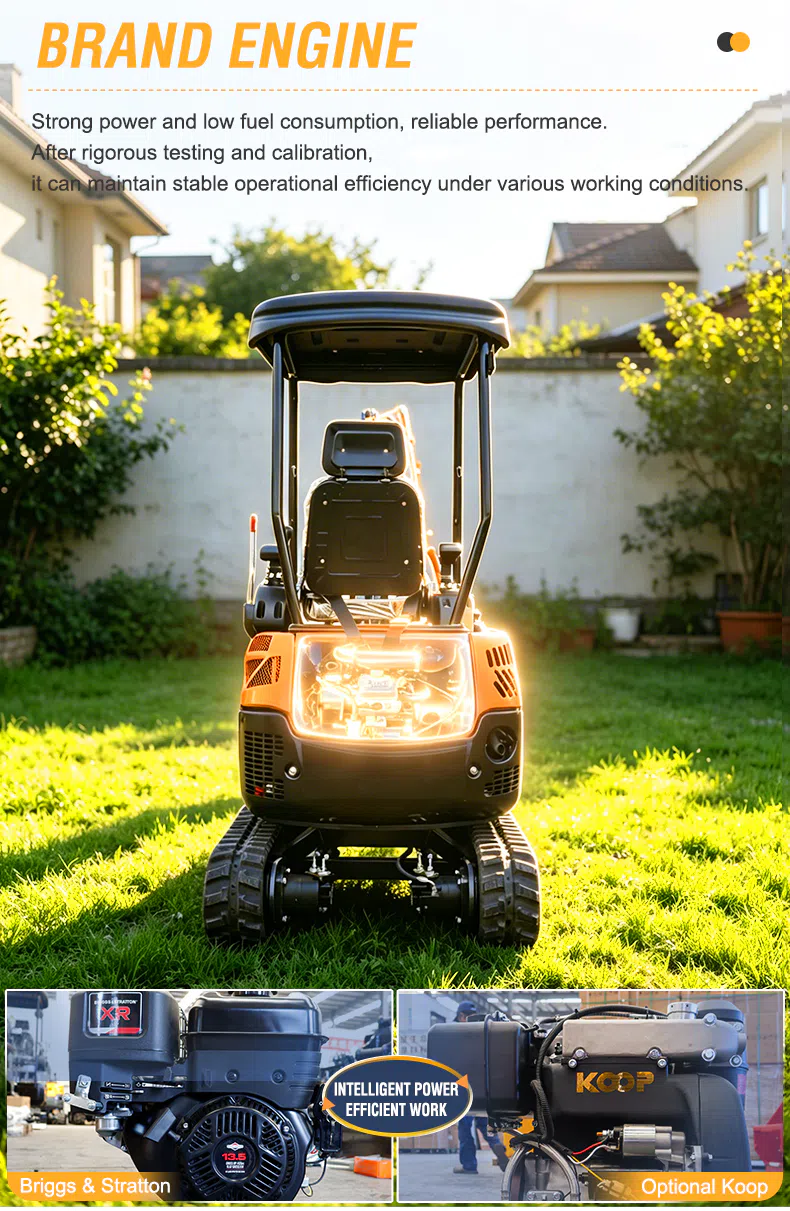

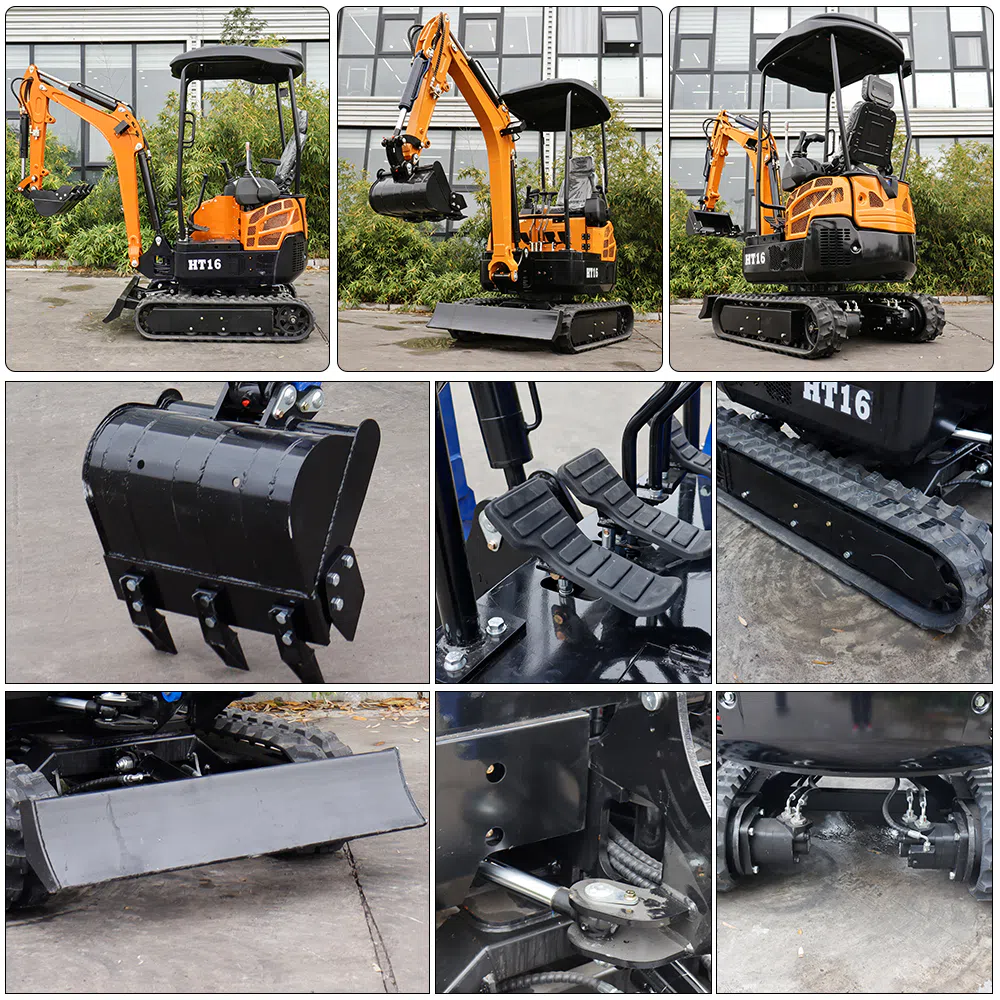

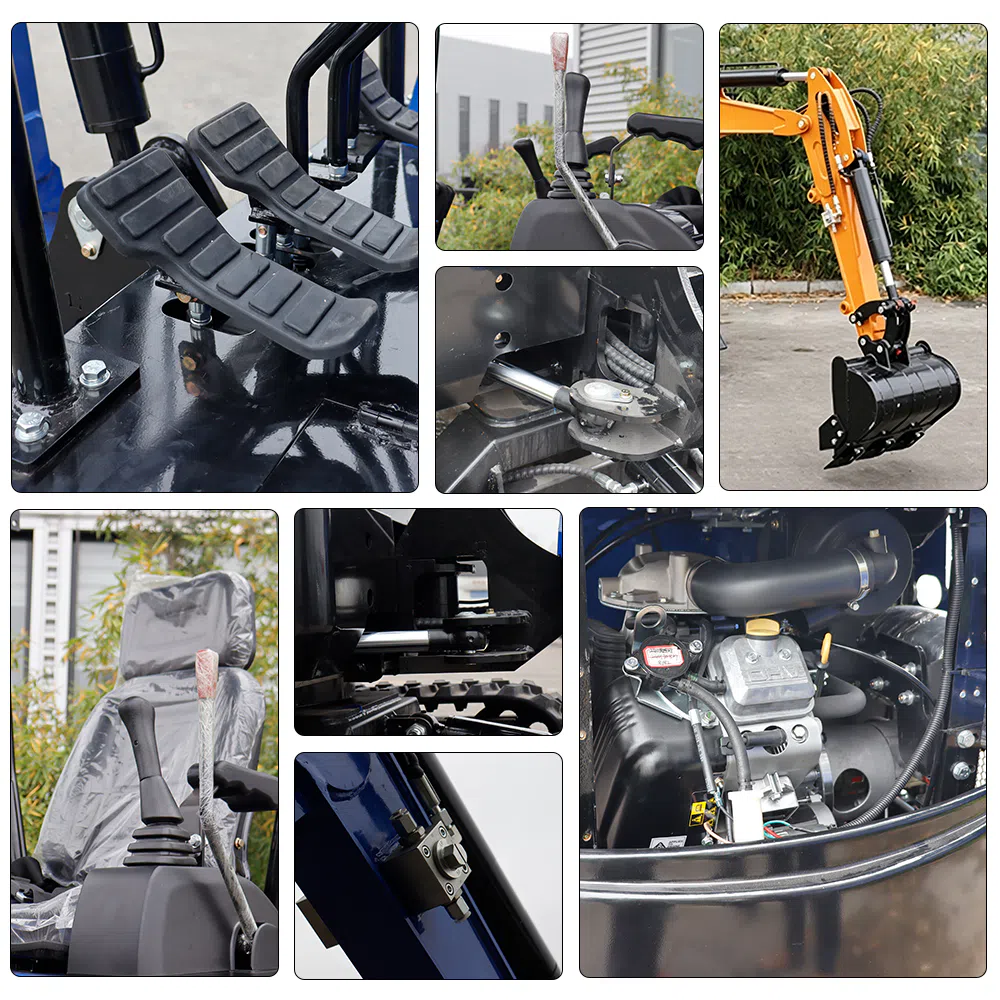

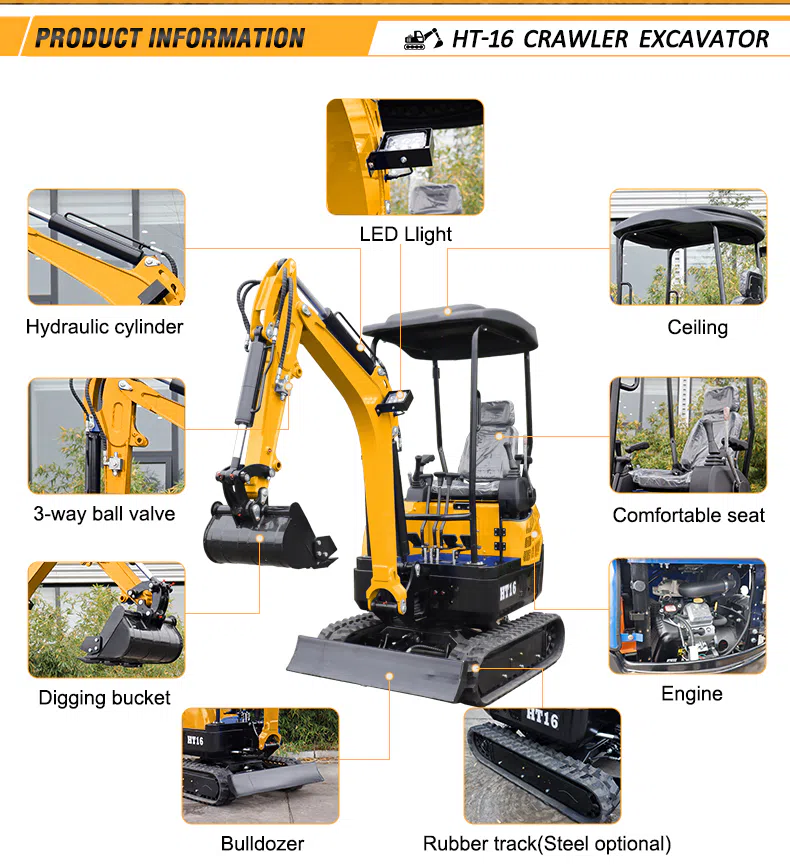

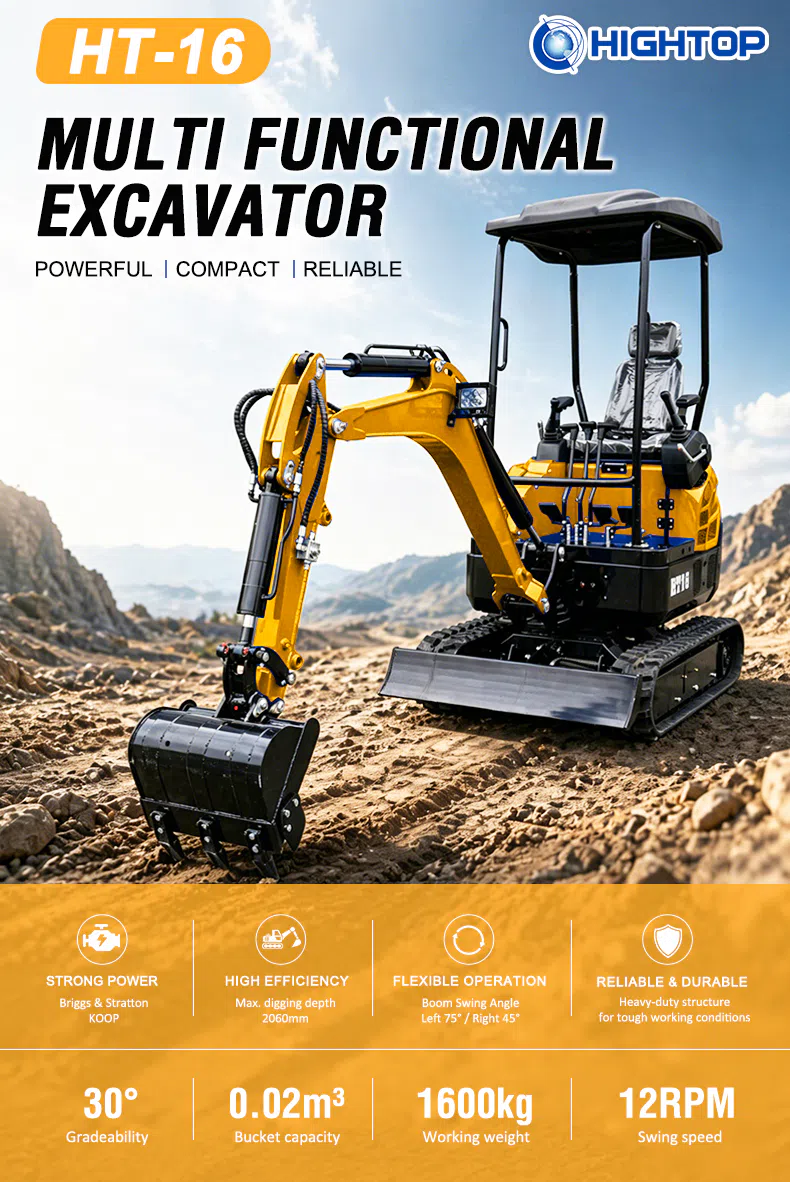

Mini Excavator HT16 1.6 Ton With Deep Digging Picture
HT-16 MULTI FUNCTIONALEXCAVATOR
POWERFUL I COMPACT I RELIABLE

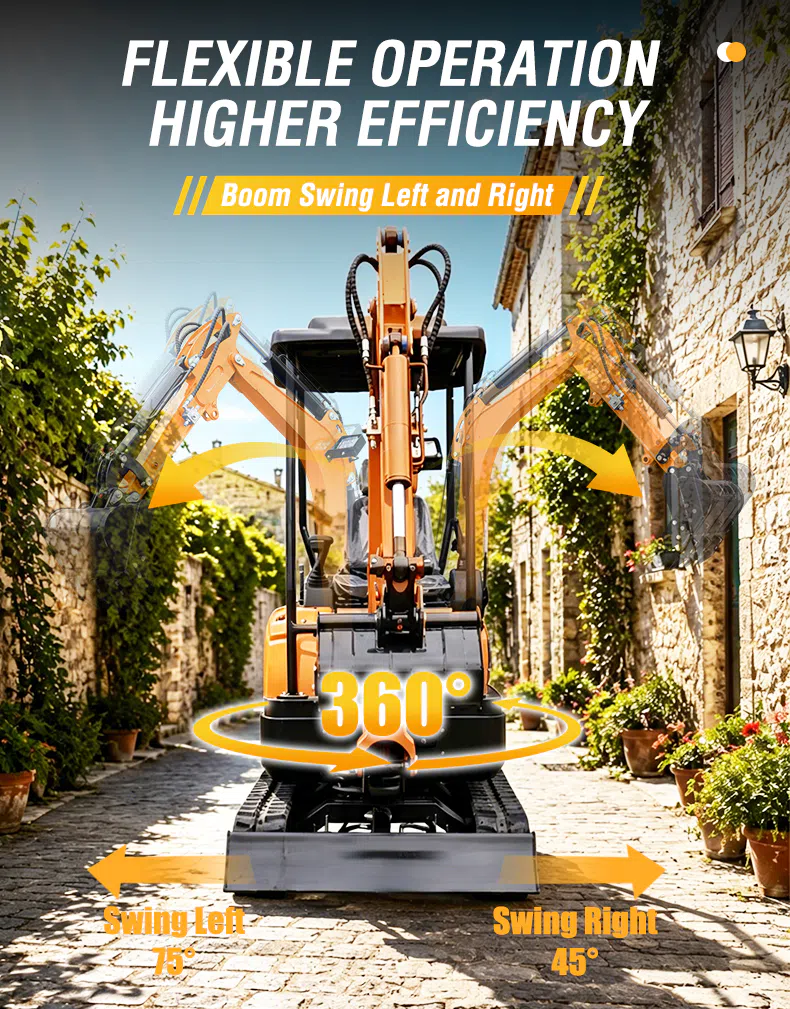

360-degree rotation

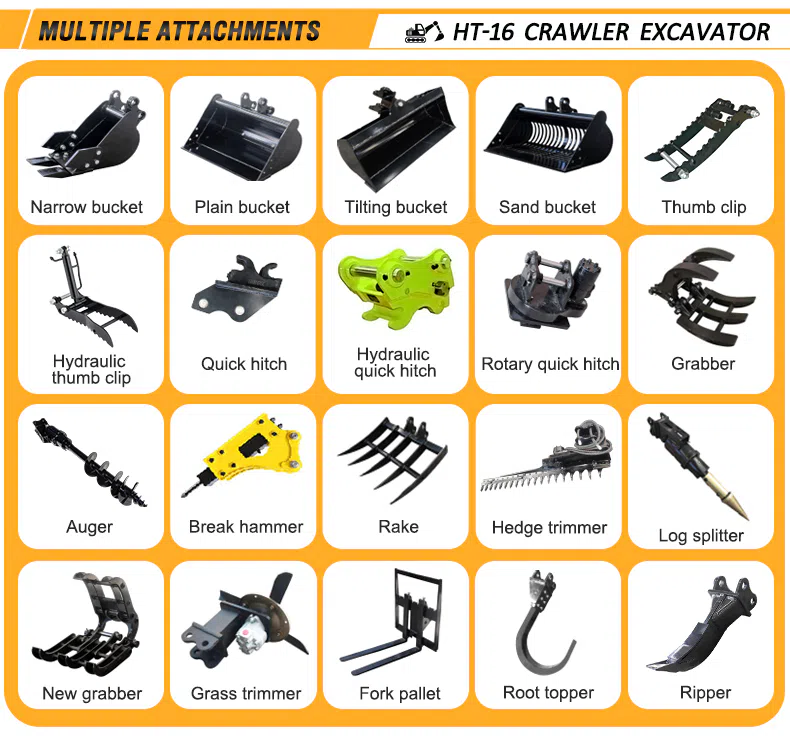

Can be paired with various accessories

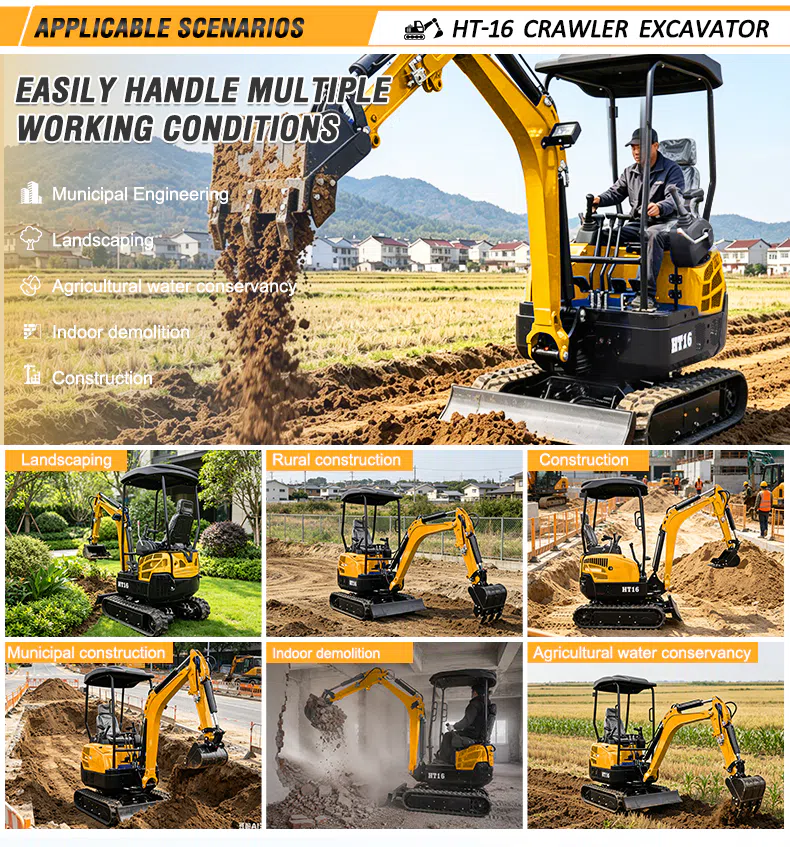

HT16 Mini Excavator 1.6 Ton With Deep Digging Applications
1.HT-16 is widely used for garden renovation, tree planting, landscape preparation, and small-scale earthmoving projects. Its compact size allows operators to work safely around existing plants and structures.
2.The 1.6 ton mini excavator is suitable for farms, orchards, and agricultural land improvement, including drainage ditch digging, soil preparation, and land leveling.
3.HT-16 can be used for small construction projects, pipeline installation, road maintenance, and foundation preparation where space is limited.
4.Thanks to its narrow body and flexible operation, HT-16 can work in basements, narrow yards, and restricted construction areas.
HIGHTOP Service Support
As a professional mini excavator manufacturer, HIGHTOP provides complete support from equipment selection to after-sales service.
We offer:
- Customized machine configurations according to working requirements
- Different engine and attachment options
- Technical support before and after purchase
- Spare parts supply and maintenance guidance
- OEM branding and customized solutions for distributors
- Export service with professional packaging and shipping support
HIGHTOP mini excavators have been exported to many countries and regions, helping customers improve working efficiency in construction, agriculture, and landscaping industries.
Mini Excavator 1.6 Ton With Deep Digging Frequently Asked Questions
Q1: What is the working weight of HT-16 mini excavator?
The HT-16 mini excavator has a working weight of 1600kg, making it suitable for small construction and landscaping applications.
Q2: What engine options are available for HT-16?
HT-16 supports Briggs & Stratton and Koop engine options according to customer requirements.
Q3: Can HT-16 work in narrow spaces?
Yes. With a compact width and small turning radius, HT-16 is designed for narrow working environments.
Q4: Can attachments be changed on HT-16?
Yes. Different attachments can be installed to expand application possibilities.
Q5: Does HIGHTOP provide customization service?
Yes. HIGHTOP provides customized solutions including machine configuration, attachments, colors, and OEM cooperation.
