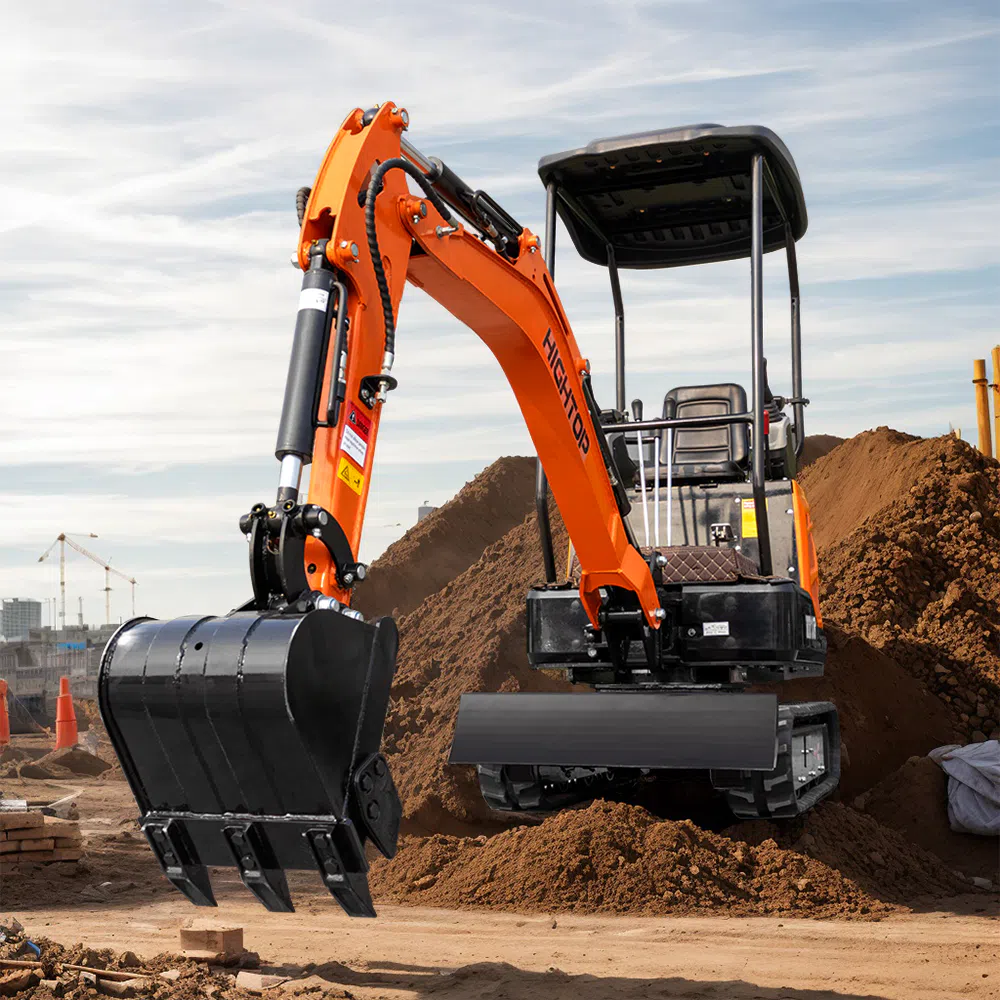

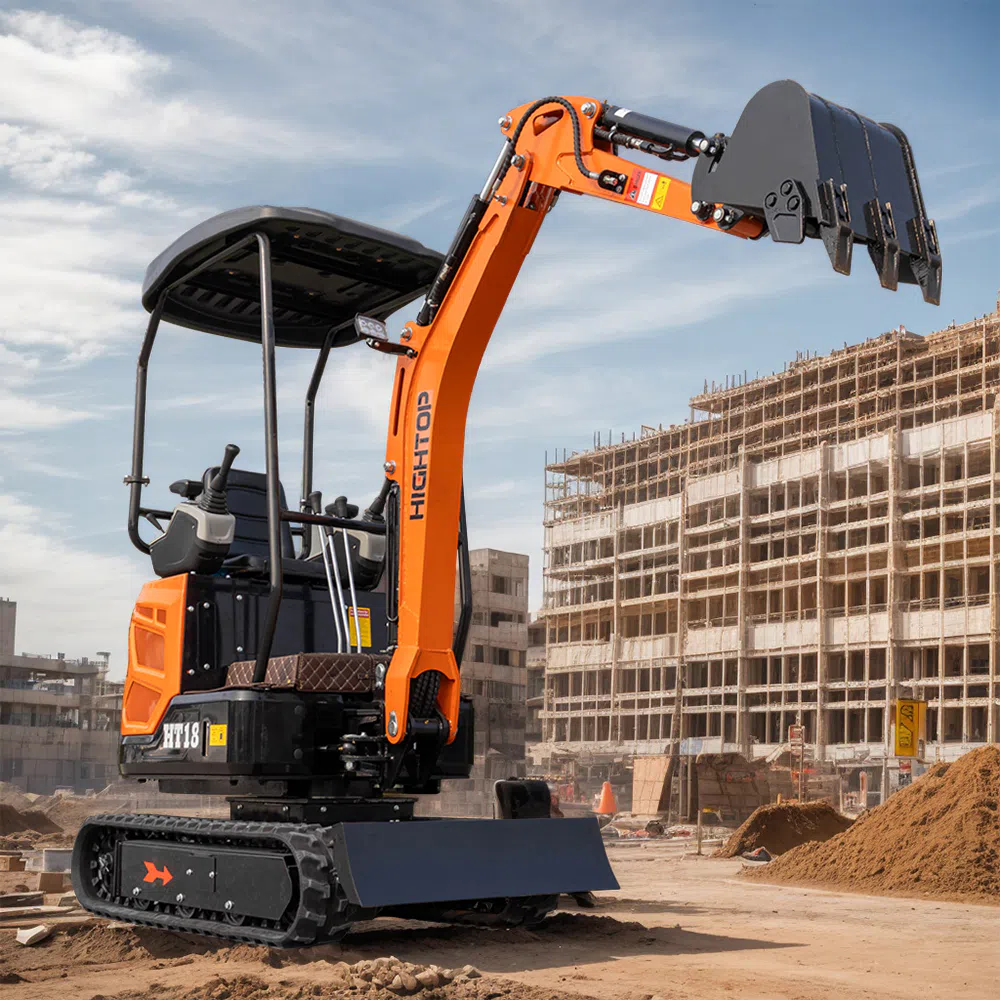

Hightop Mini Excavator HTY18 1.8 Ton With Powerful Digging Description
The HIGHTOP HTY18 Mini Excavator 1.8 Ton Powerful Digging is a compact crawler excavator designed for customers who need reliable digging performance in construction, agriculture, landscaping and municipal projects.
With a machine weight of 1800 kg, HTY18 combines strong excavation capability with flexible operation in limited working areas. Powered by a 14 kW diesel engine, the excavator provides stable power output and efficient hydraulic performance. The maximum digging depth reaches 1910 mm, the maximum digging radius reaches 3470 mm, and the maximum digging height reaches 3225 mm, allowing it to complete various earthmoving tasks effectively.

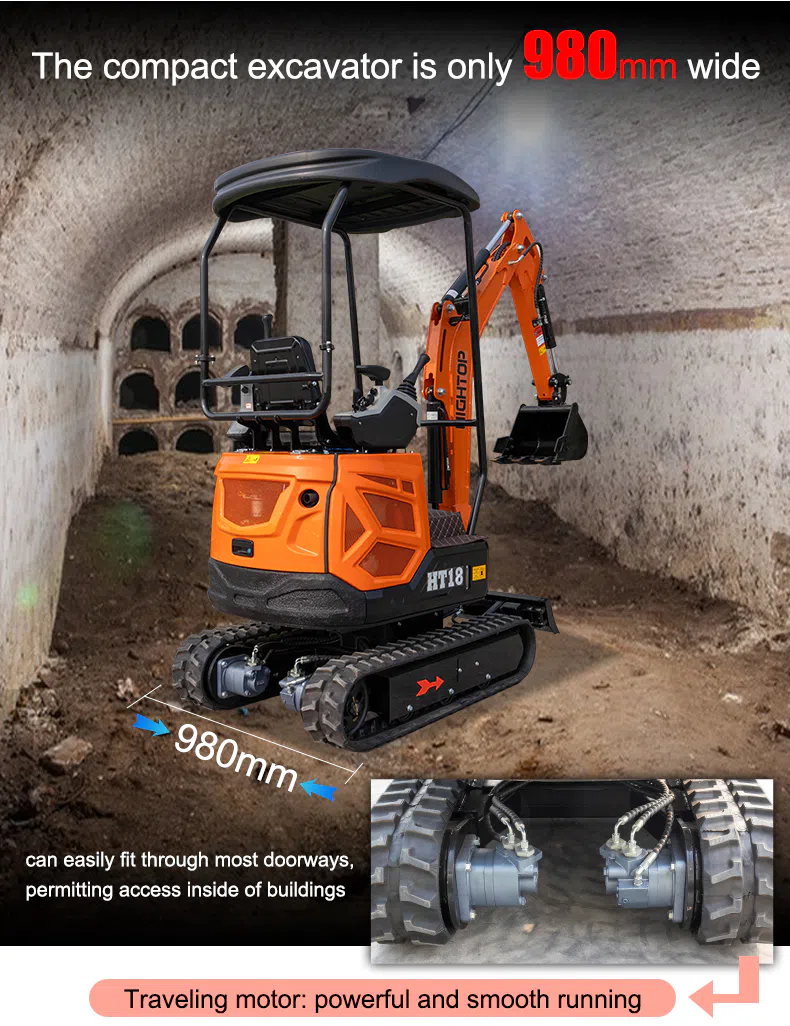

The HTY18 small crawler excavator adopts a durable rubber track system, providing excellent traction and stability on different terrains such as soil, gravel, farmland and uneven ground. The compact 980 mm body width allows the machine to access narrow construction areas, gardens, residential projects and other spaces where larger excavators cannot operate.

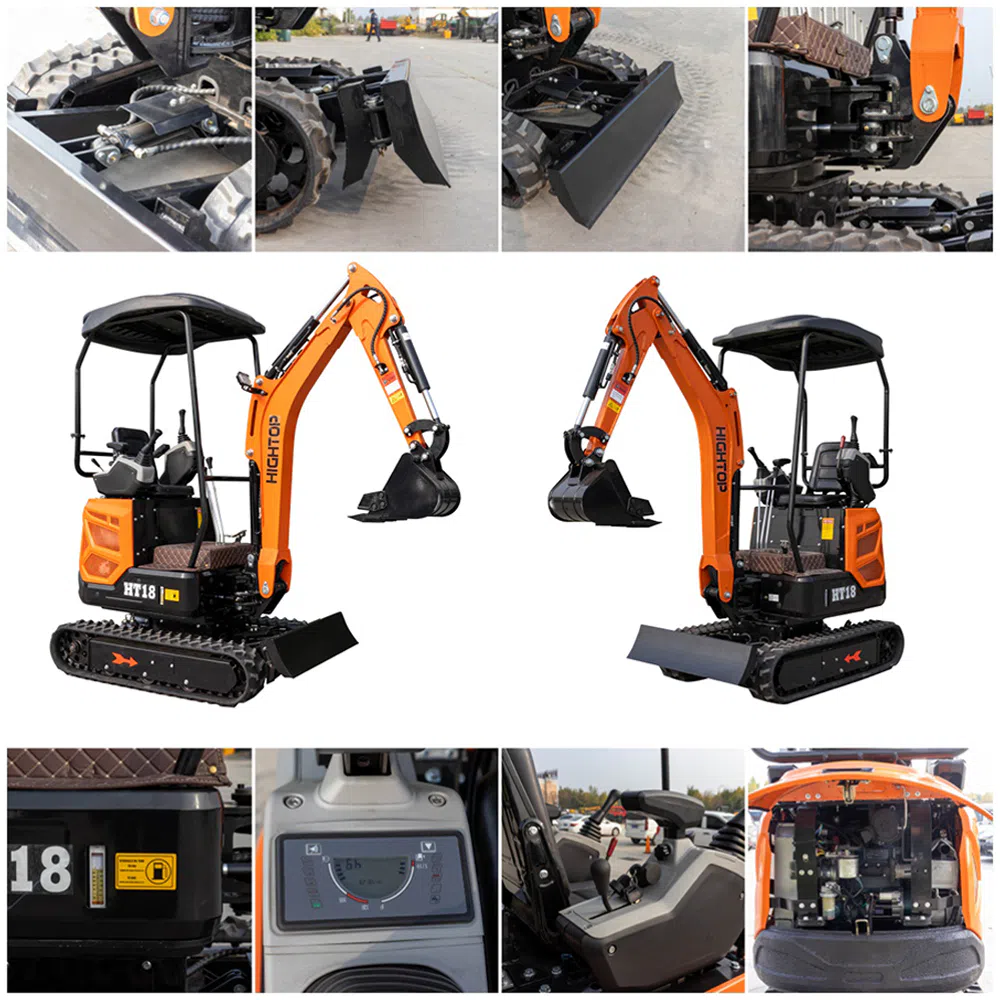

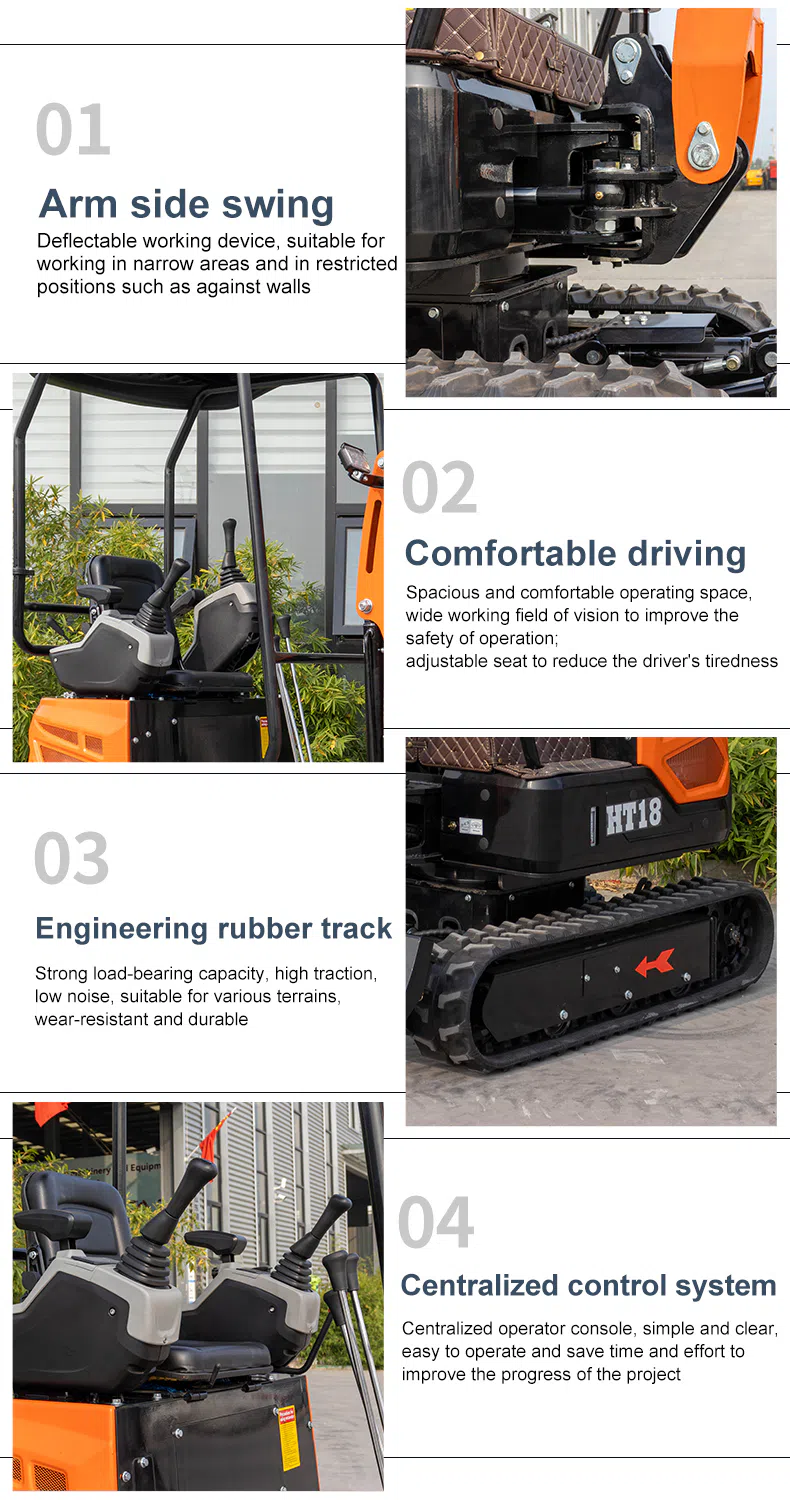

Designed for practical working conditions, HTY18 features a side swing boom structure, which allows operators to perform excavation close to walls and obstacles. This design improves flexibility in narrow spaces and makes the machine suitable for trenching, foundation excavation and landscaping work.
To meet different market requirements, HIGHTOP offers flexible configuration options. Customers can choose between the standard canopy version and the optional cab version, depending on climate conditions and operator protection requirements. The machine can also be equipped with different attachments, including buckets, hydraulic breakers, augers, rakes and grapples, expanding its application range.
For customers looking for other models, HIGHTOP provides a complete range of mini excavators from compact models to larger construction machines.

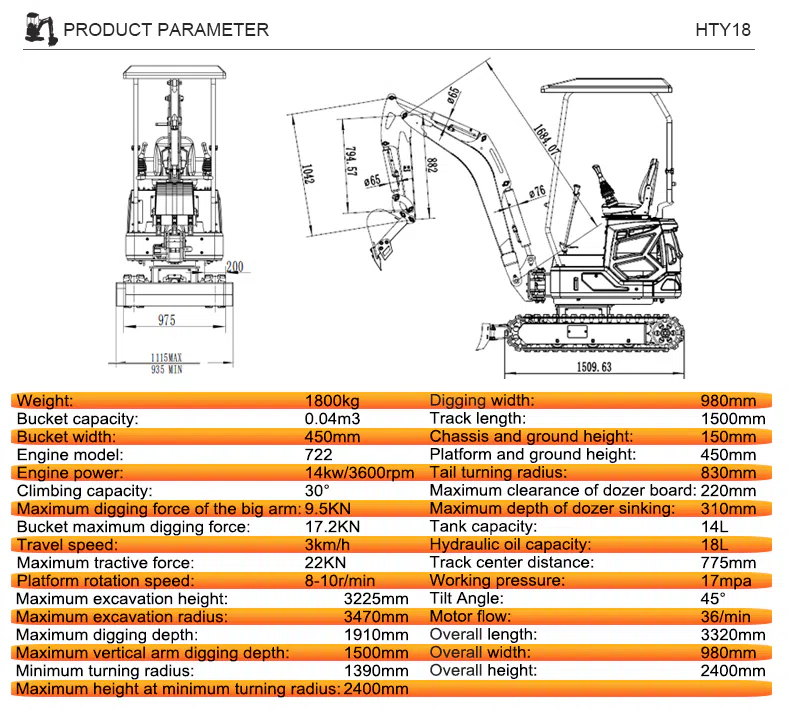

Mini Hightop Excavator HTY18 1.8 Ton With Powerful Digging Specifications
| Parameter | Value |
|---|---|
| Weight | 1800 kg |
| Bucket capacity | 0.04 m³ |
| Bucket width | 450 mm |

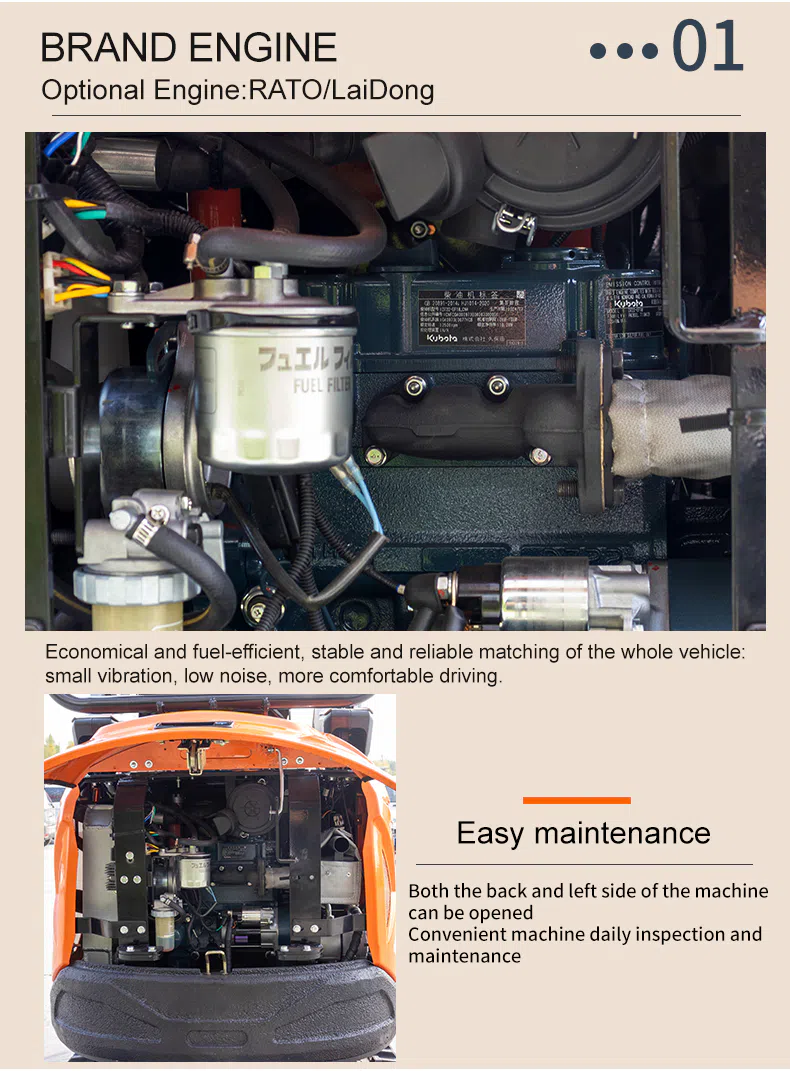

| Engine model | 722 |
| Engine power | 14 kW / 3600 rpm |
| Climbing capacity | 30° |
| Maximum digging force of the big arm | 9.5 KN |
| Bucket maximum digging force | 17.2 KN |
| Travel speed | 3 km/h |
| Maximum tractive force | 22 KN |
| Platform rotation speed | 8‑10 r/min |
| Maximum excavation height | 3225 mm |
| Maximum excavation radius | 3470 mm |
| Maximum digging depth | 1910 mm |
| Maximum vertical arm digging depth | 1500 mm |
| Minimum turning radius | 1390 mm |
| Maximum height at minimum turning radius | 2400 mm |
| Digging width | 980 mm |
| Track length | 1500 mm |
| Chassis and ground height | 150 mm |
| Platform and ground height | 450 mm |
| Tail turning radius | 830 mm |
| Maximum clearance of dozer board | 220 mm |
| Maximum depth of dozer sinking | 310 mm |
| Tank capacity | 14 L |
| Hydraulic oil capacity | 18 L |
| Track center distance | 775 mm |
| Working pressure | 17 MPa |
| Tilt angle | 45° |
| Motor flow | 36 L/min |
| Overall length | 3320 mm |
| Overall width | 980 mm |
| Overall height | 2400 mm |
Hightop HTY18 Mini Excavator, 1.8 Ton, with Powerful Digging Capabilities Application Scenarios
1.Construction Excavation
HTY18 is suitable for residential construction, foundation digging, pipeline installation and small-scale civil engineering projects. Its compact structure allows operation in areas with limited access.
2.Agricultural Work
The mini crawler excavator can be used for farmland improvement, orchard trenching, irrigation construction and agricultural infrastructure projects.
3.Landscaping Projects
With flexible operation and attachment compatibility, HTY18 is suitable for tree planting, garden renovation, pond digging and landscape construction.
4.Municipal Engineering
The excavator can perform drainage construction, road maintenance and underground utility installation.
Hightop Service Support
As an experienced mini excavator manufacturer, HIGHTOP provides professional support for global customers.
Our services include:
- Customized machine configuration
- Optional cab and attachment solutions
- OEM logo and color customization
- Technical support before and after purchase
- Spare parts supply
- Export and logistics support
Hightop Group focuses on providing reliable small excavator solutions for dealers, contractors and end users worldwide.
Mini Excavator 1.8 Ton With Powerful Digging Frequently Asked Questions
Q1: What is the weight of HTY18 mini excavator?
HTY18 has an operating weight of 1800 kg, making it suitable for small construction and agricultural projects.
Q2: Does HTY18 have a cab version?
Yes. HTY18 supports optional cab configuration according to customer requirements.
Q3: What attachments can HTY18 use?
HTY18 supports buckets, breakers, augers, rakes, grapples and other excavator attachments.
Q4: Is HTY18 suitable for narrow working areas?
Yes. With a width of 980 mm, HTY18 can operate in many restricted spaces.

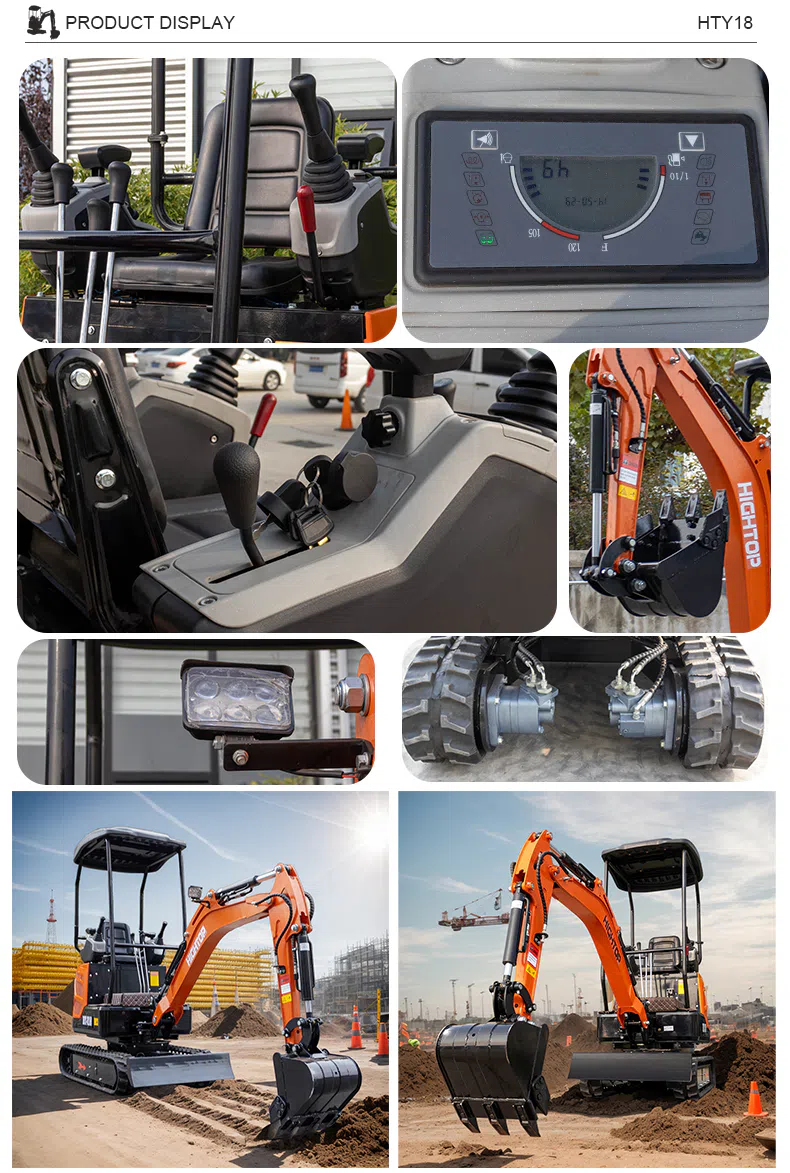

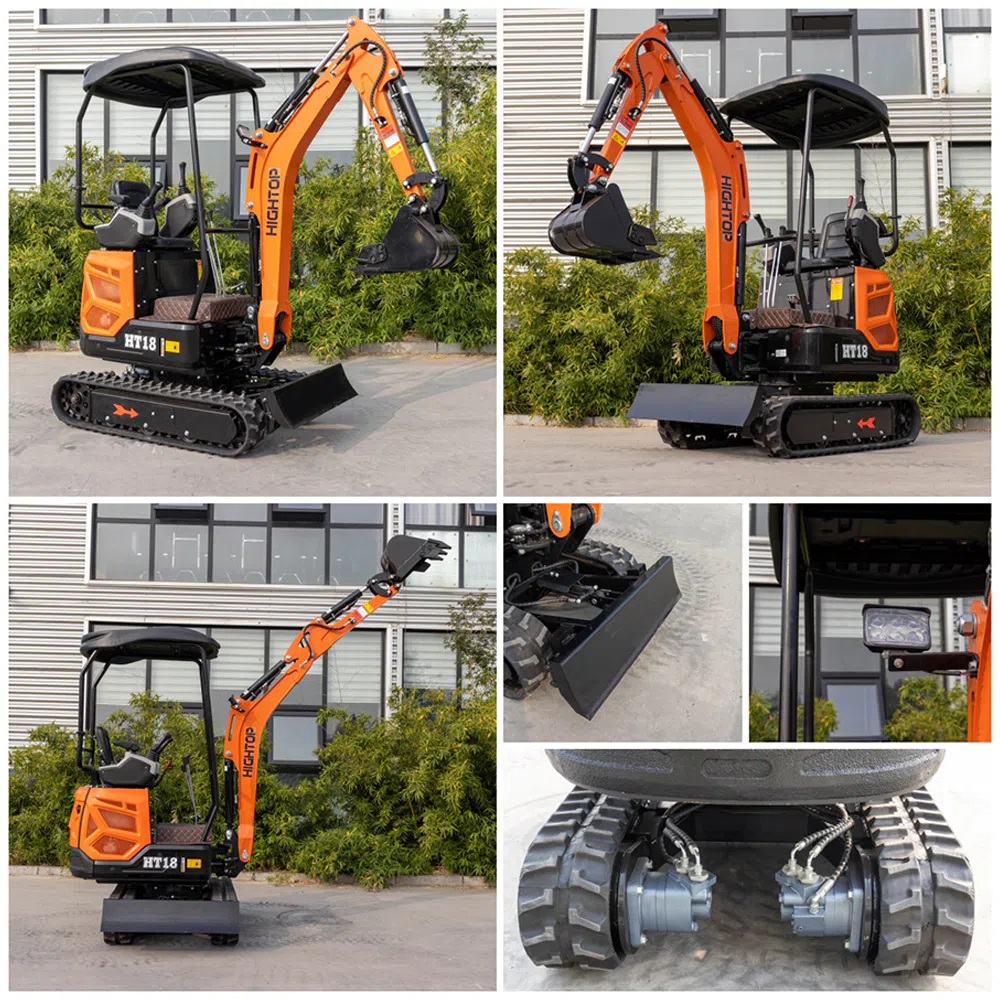

Mini Excavator 1.8 Ton With Powerful Digging Images

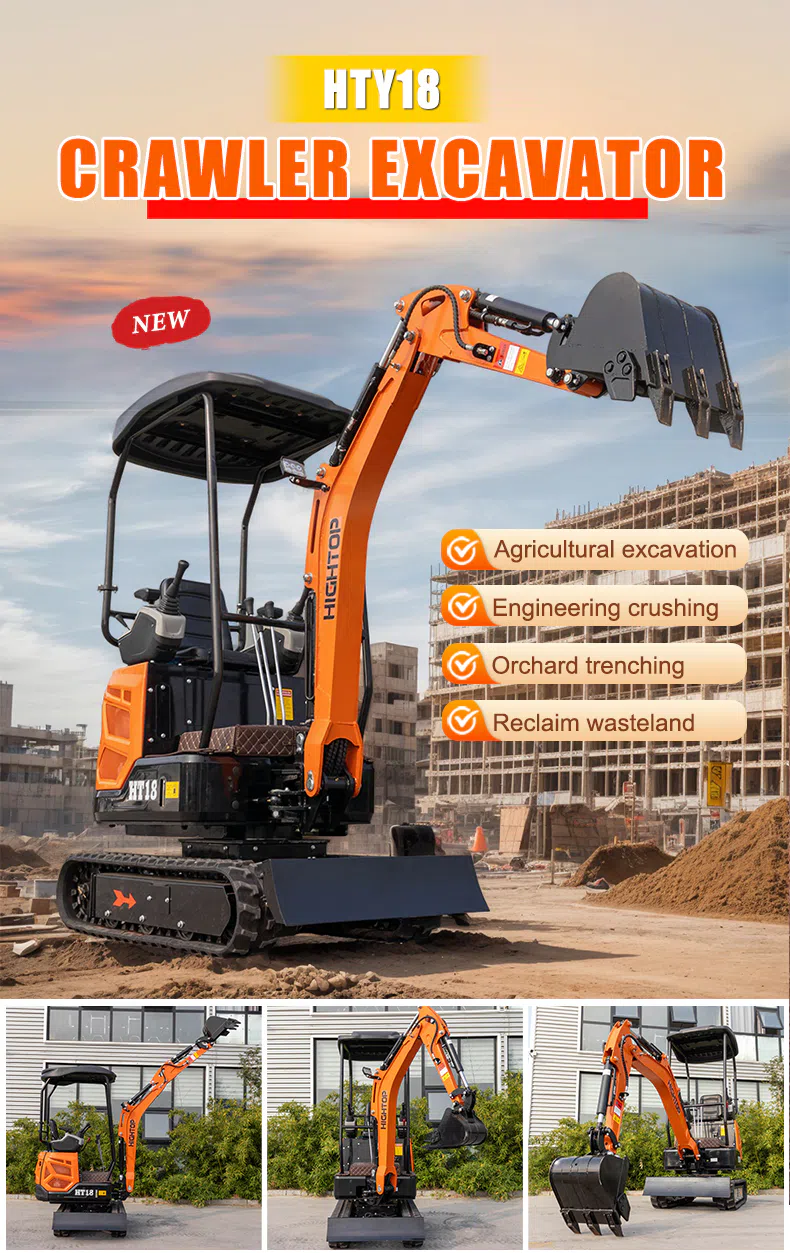

Mini crawler excavator HTY18 suitable for agricultural excavation、engineering fragmentation、orchard ditch digging、reclamation of wasteland
HTY18 NEW UPGRADE
Experience better and more comfortable
Easy operation to meet different working conditions

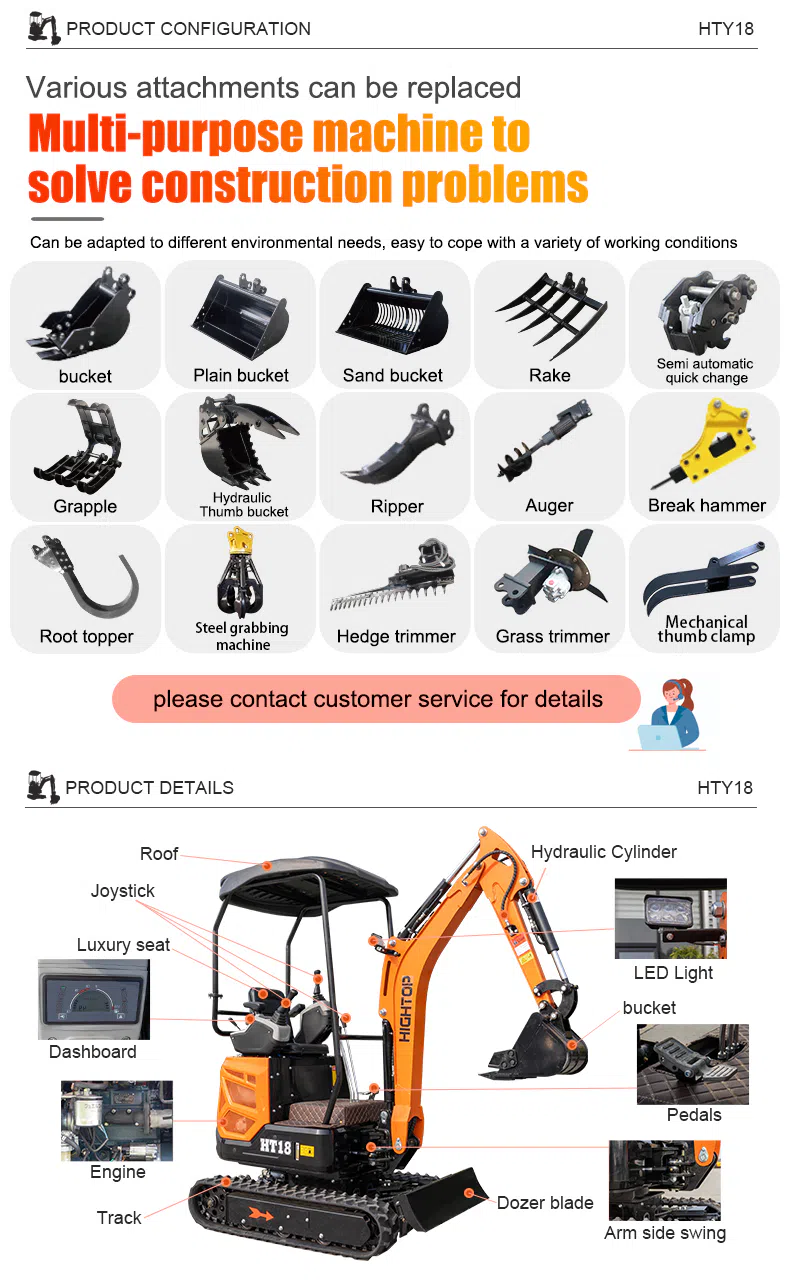

Can be paired with various accessories
