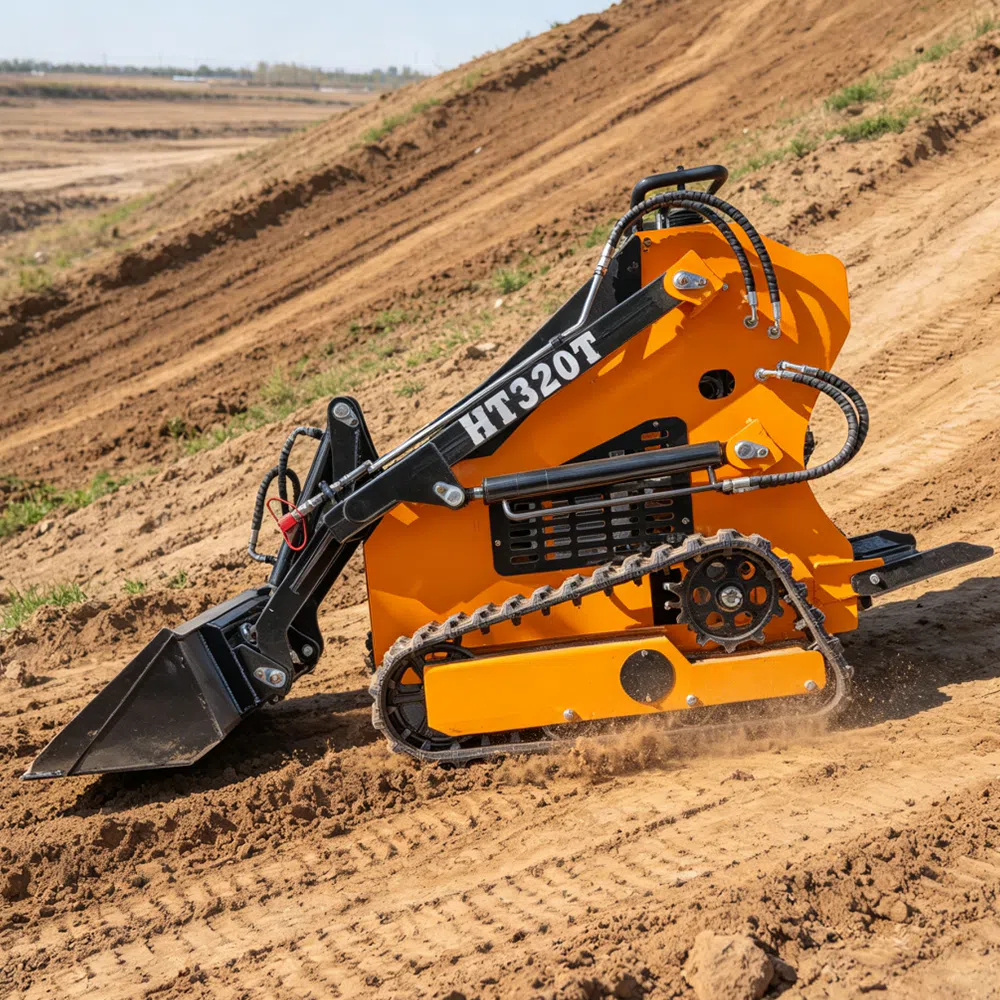

Tracked Skid Steer Loader With Strong Track Traction HT320T Introduction
The HIGHTOP HT320T tracked skid steer loader is a compact crawler loader designed for construction, agriculture, landscaping, and material handling applications. Equipped with a stable tracked undercarriage, powerful hydraulic system, and flexible attachment compatibility, the HT320T provides reliable performance in various working environments.
The main advantage of the HT320T tracked skid steer loader is its strong track traction and stability. The crawler track system provides better ground contact compared with traditional wheeled machines, helping the loader operate smoothly on uneven surfaces, soft soil, muddy areas, and challenging outdoor terrains. This makes the HT320T suitable for projects where machine stability and terrain adaptability are important.
The HT320T compact tracked loader is powered by a reliable working system that supports loading, digging, lifting, pushing, and material transportation tasks. Its hydraulic system provides stable power output for different operations, while the compact structure allows the machine to work efficiently in areas with limited space.
With multiple attachment options, the HT320T crawler skid steer loader can be adapted for different applications. Buckets, forks, augers, sweepers, and other attachments can expand the machine’s working range, allowing users to complete more tasks with one compact machine.

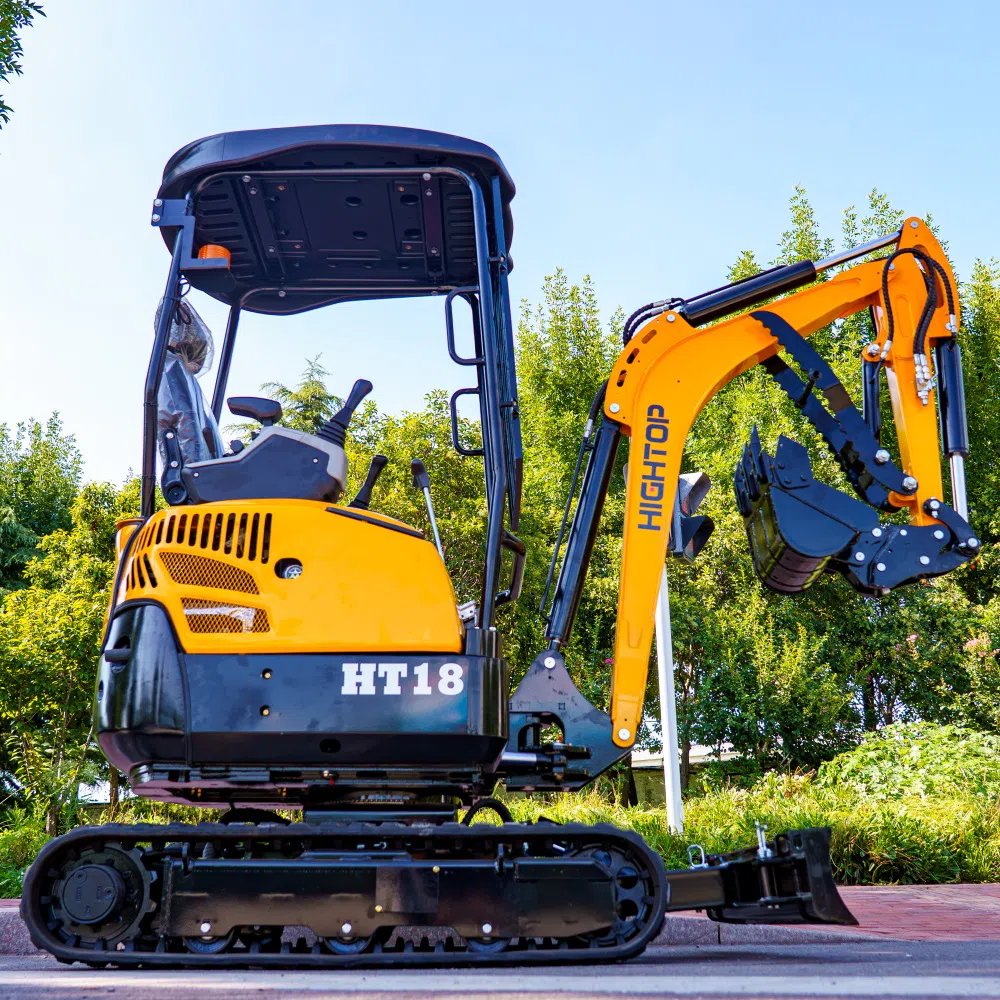

For customers looking for compact construction equipment solutions, HIGHTOP also provides various mini excavators and small construction machinery to meet different project requirements. As a professional tracked skid steer loader manufacturer, HIGHTOP focuses on practical design, reliable performance, and long-term customer support.

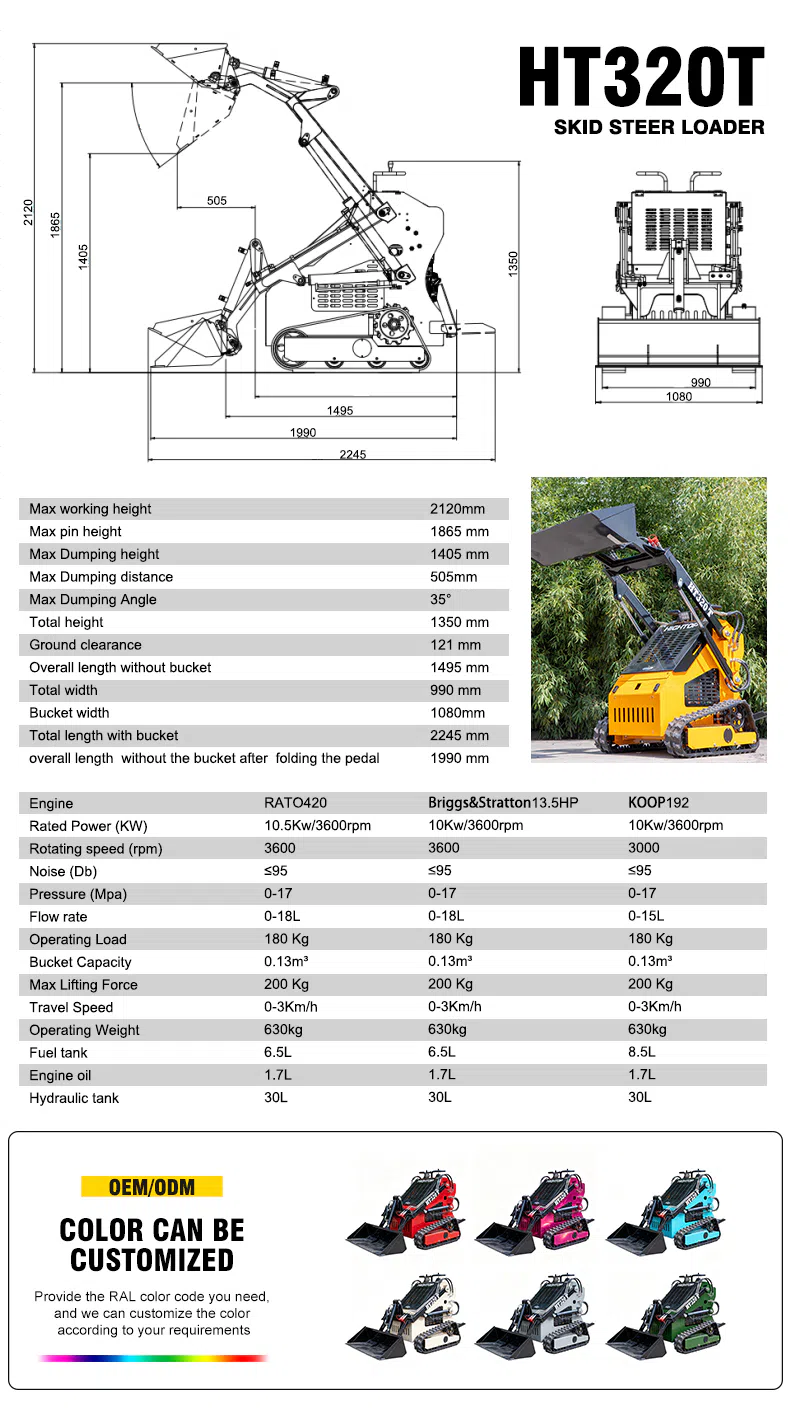

HT320T Tracked Skid Steer Loader With Strong Track Traction Parameters
| Parameter | Value |
|---|---|
| Model | HT320T |
| Max working height | 2120 mm |
| Max pin height | 1865 mm |
| Max Dumping height | 1405 mm |
| Max Dumping distance | 505 mm |
| Max Dumping Angle | 35° |
| Total height | 1350 mm |
| Ground clearance | 121 mm |
| Overall length without bucket | 1495 mm |
| Total width | 990 mm |
| Bucket width | 1080 mm |
| Total length with bucket | 2245 mm |
| Overall length without bucket after folding the pedal | 1990 mm |
| Engine Options | RATO420 / Briggs&Stratton 13.5HP / KOOP192 |
| Rated Power | 10.5Kw/3600rpm / 10Kw/3600rpm / 10Kw/3600rpm |
| Rotating speed | 3600rpm / 3600rpm / 3000rpm |
| Noise | ≤95 Db |
| System Pressure | 0‑17 Mpa |
| Flow rate | 0‑18L / 0‑18L / 0‑15L |
| Operating Load | 180 Kg |
| Bucket Capacity | 0.13 m³ |
| Max Lifting Force | 200 Kg |
| Travel Speed | 0‑3Km/h |
| Operating Weight | 630kg |
| Fuel tank | 6.5L / 6.5L / 8.5L |
| Engine oil | 1.7L |
| Hydraulic tank | 30L |

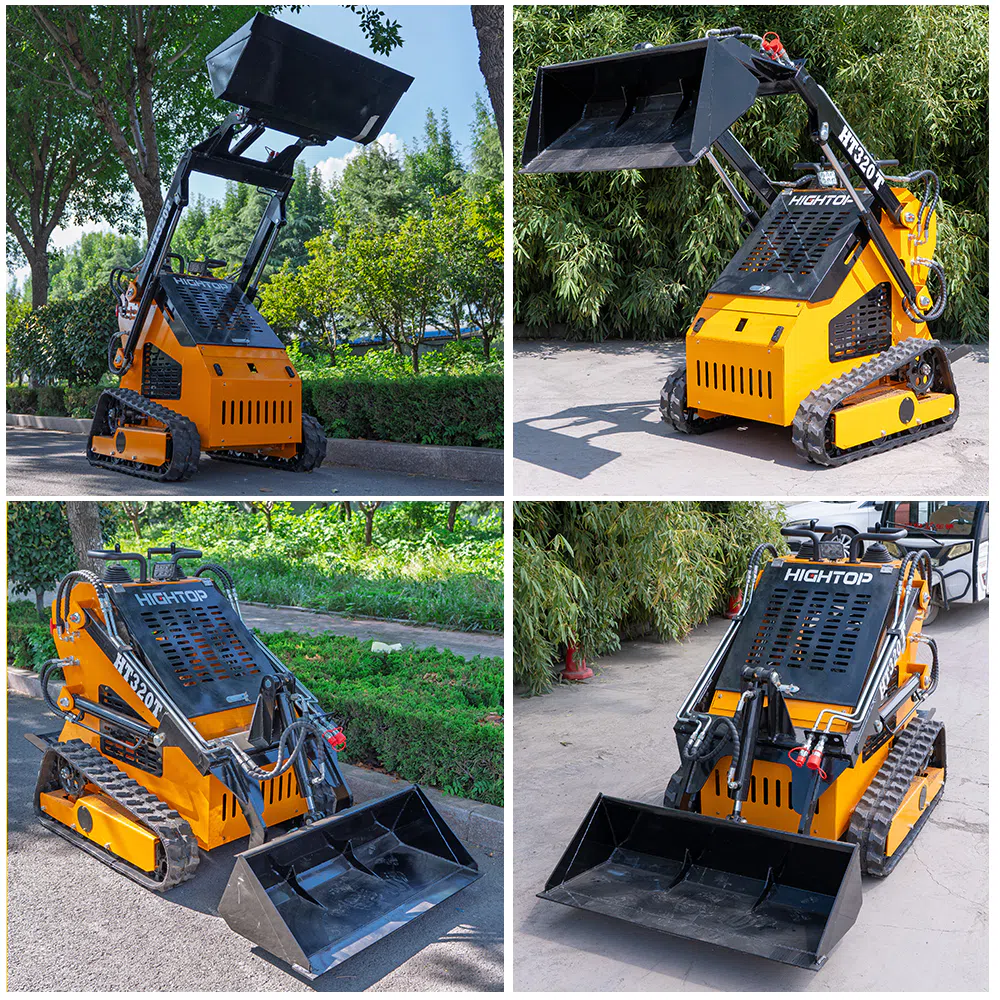

Tracked Skid Steer Loader With Strong Track Traction HT320T Images
The HT320T Compact Loader delivers outstanding power and versatility within a compact footprint.
It is ideal for construction, landscaping, agriculture and many other applications.
STRONG POWER.BUILT TO PERFORM
COMPACT SIZEEXCELLENT AGILITY
Hightop Tracked Skid Steer Loader With Strong Track Traction HT320T Application
The HT320T tracked skid steer loader is suitable for a wide range of applications including construction sites, farms, landscaping projects, and material handling operations.
In construction applications, the machine can be used for moving soil, gravel, and building materials, as well as assisting with site preparation and maintenance work. The strong track traction allows the loader to operate more confidently on uneven construction areas.
For agriculture and landscaping, the HT320T compact crawler loader can handle tasks such as land maintenance, material transportation, and vegetation management. Its stable crawler system makes it suitable for outdoor environments with changing ground conditions.
With compatible attachments, the HT320T can provide flexible solutions for contractors, farmers, rental companies, and small businesses requiring compact and versatile equipment.
HIGHTOP Service Support
HIGHTOP provides complete support for HT320T tracked skid steer loader customers, including product selection, configuration recommendations, technical assistance, and after-sales service.
According to different working environments, HIGHTOP can help customers select suitable attachments and machine configurations to improve working efficiency. As an experienced construction machinery manufacturer, HIGHTOP supports OEM and ODM cooperation, including customized colors, logos, and product solutions.
Before delivery, each HT320T crawler skid steer loader is inspected to ensure reliable quality and stable performance. HIGHTOP also provides spare parts support, operation guidance, and long-term technical assistance to help customers maintain equipment performance.
