2.5 Ton Mini Excavator With Quanchai V13-016 Engine Product Features

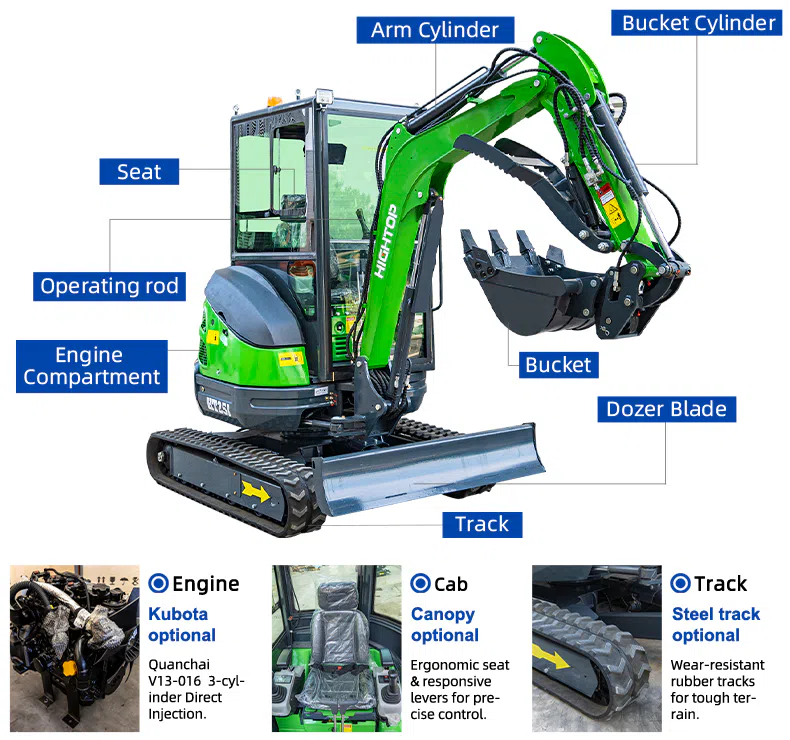

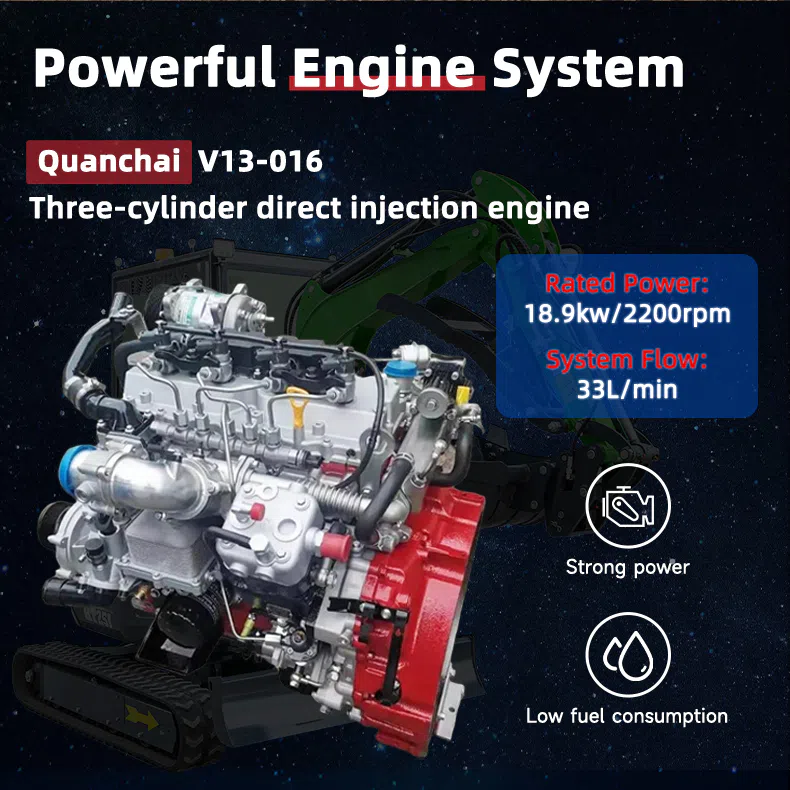

1.Quanchai V13-016 — Proven Volume-Market Diesel
The V13-016 is not an exotic import that leaves you stranded when parts are needed. It's a volume-production three-cylinder diesel from Quanchai, one of China's largest engine builders, with distribution and service networks that follow the machine into most export markets. Cold-start reliability, low fuel consumption and low-cost rebuilds make it the rational choice for fleets and owner-operators who measure value in cost per hour, not brand badges.
2.Gear Pump Hydraulics — Fewer Parts, Fewer Failures
This machine deliberately uses a gear pump (12+3) system instead of a variable-displacement piston pump. The trade-off is deliberate: gear pumps are simpler, cheaper to rebuild, and far more tolerant of contaminated oil — the leading cause of hydraulic failure in the field. At 16MPa system pressure, it delivers plenty of force for a machine this size, while keeping service within the reach of any local hydraulic shop.
3. 4+5 Flow-Sharing Valve + Eaton Travel Motor
A 4+5 flow-sharing main control valve proportions hydraulic flow precisely across circuits, so boom, arm and bucket actions stay smooth and predictable even under partial load — no jerky compound movements when you're working beside finished paving. The Eaton travel motor (390cc) adds durability and fine low-speed control, letting the operator creep the machine into position at a steady, controllable 2.1 km/h.
4.Light 1850kg — Trailer-Movable, Floor-Friendly
At 1850kg operating weight, the machine moves between sites on a light trailer behind a pickup — no lowbed, no permits. On site, the compact undercarriage spreads that weight over a wide track footprint to keep ground pressure low, so it works on soft lawns, finished driveways and greenhouse floors without rutting the surface.

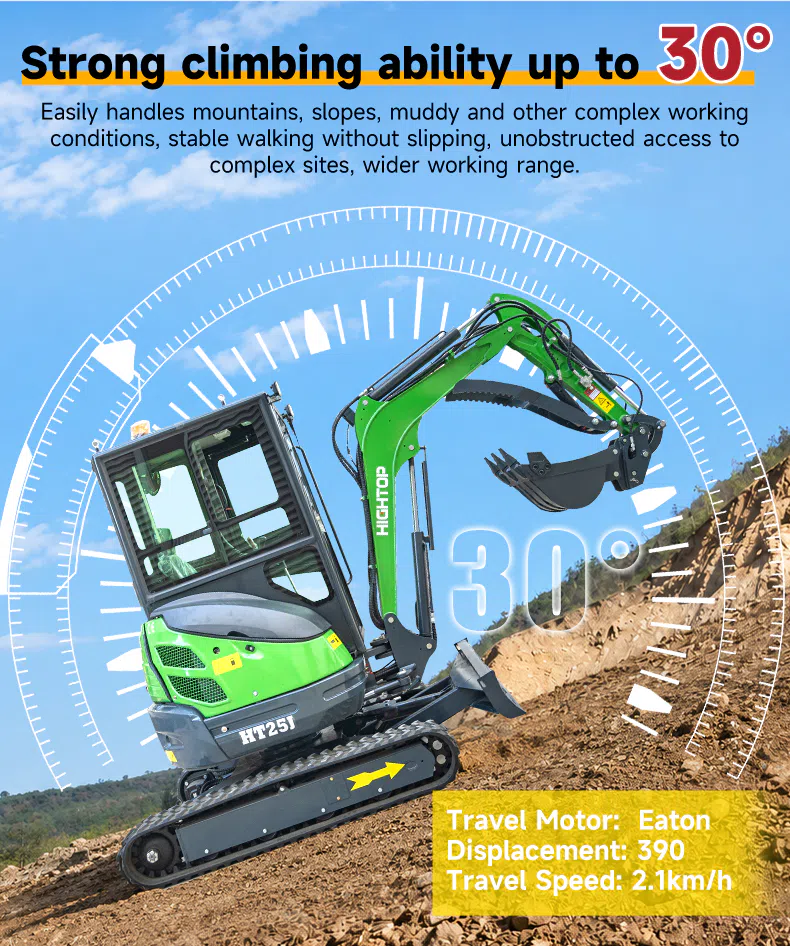

5.30° Climbing & Quiet Operation — 30° 爬坡能力与低噪作业
The machine climbs 30° gradients for typical slope and landscaping work, while the small-displacement diesel and low operating weight keep noise and vibration noticeably lower than bigger siblings. That makes it welcome in residential neighborhoods and indoor sites where noise, vibration and surface damage are deal-breakers for larger equipment.
2.5 Ton Mini Excavator With Quanchai V13-016 Engine Product Specifications
| Parameter | Value |
|---|---|
| Operating weight | 1850 kg |
| Engine | Quanchai V13-016, 3-cylinder direct-injection diesel |
| Engine power | 19.8 kW gross / 18.9 kW net |
| Hydraulic pump | Gear pump (12+3) |
| Main control valve | Flow-sharing (4+5) |
| System pressure | 16 MPa |
| Travel motor | Eaton, 390cc |
| Tail swing radius | 709 mm |
| Max digging depth | 2245 mm |
| Travel speed | 2.1 km/h |
| Max climbing ability | 30° |

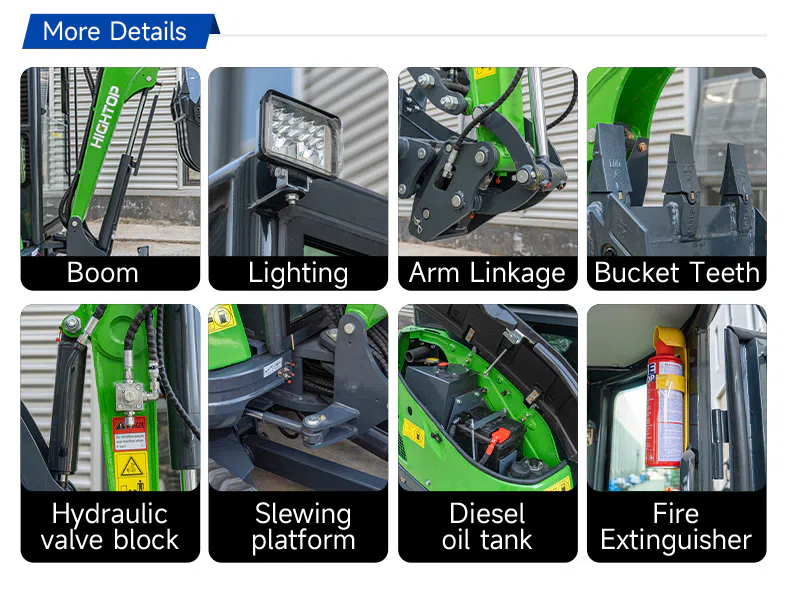

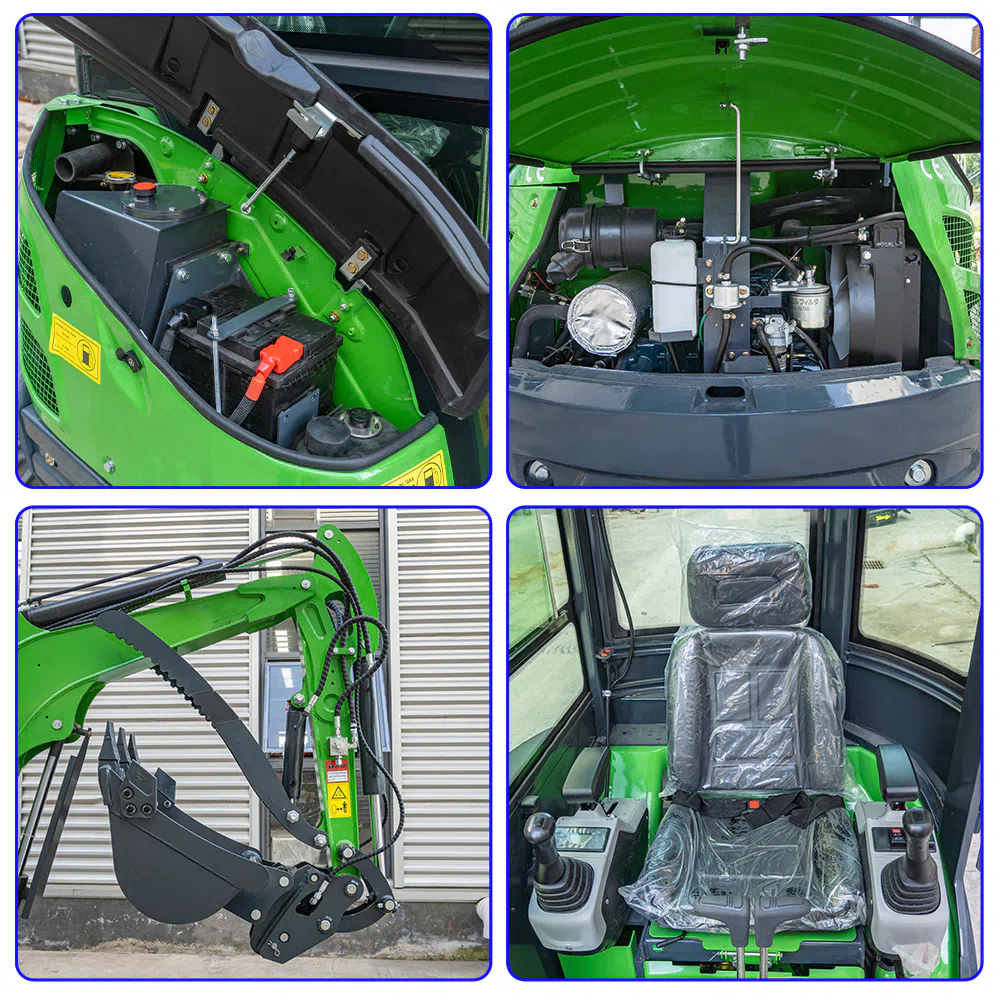

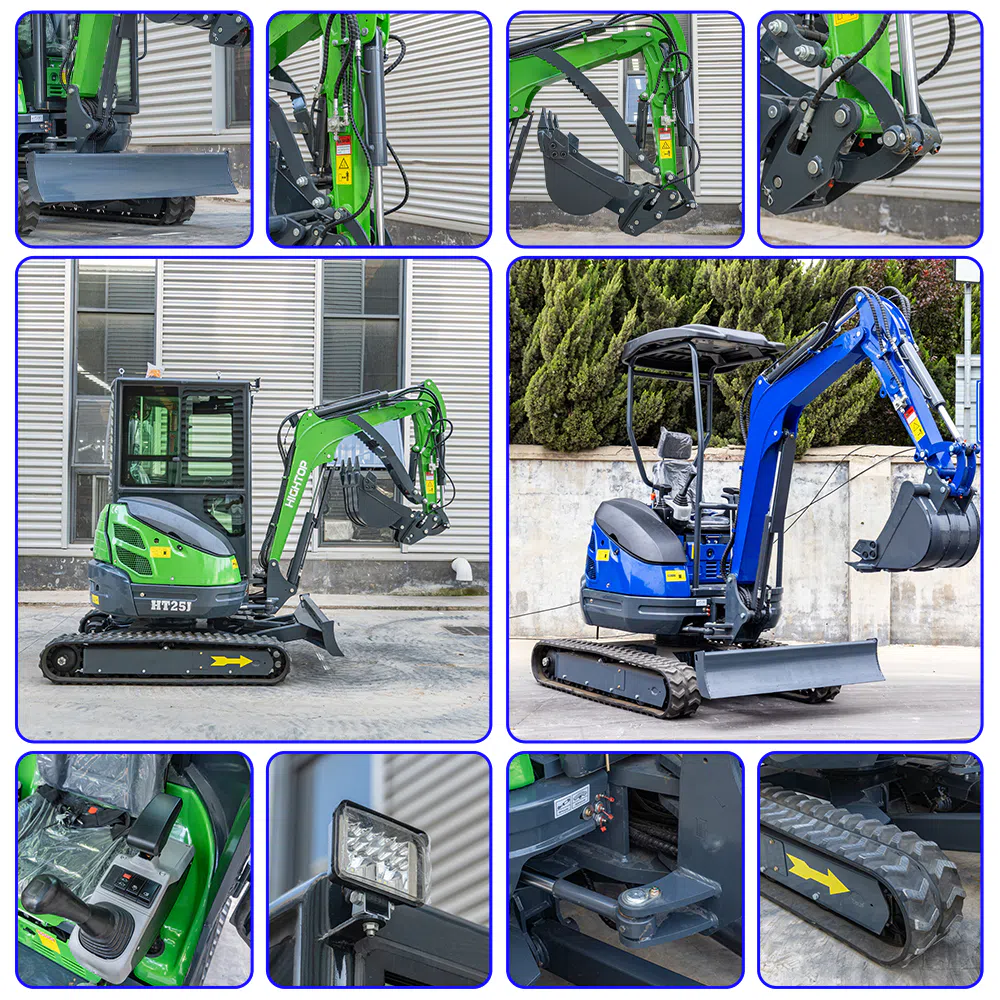

2.5 Ton Mini Excavator With Quanchai Engine Product Images
2.5 Ton Mini Excavator With Quanchai Engine Application Scenarios
1.Residential landscaping — Retaining walls, tree pits, pathway grading and small foundation pads where access is measured in centimeters. The 709mm tail swing lets the machine work flush against house walls and existing fences without damaging finished features.
2.Utility & drainage trenching — Narrow trenches along building lines for water, drainage and cable installation in existing neighborhoods. Low ground pressure means less collateral damage to lawns and driveways during restoration.
3.Indoor & basement work — Entry through standard doors, minimal floor damage, and gentle operation near finished surfaces. Combined with quiet running, it's one of the few excavators a site manager will actually allow inside.
4.Greenhouse & light farm work — Gentle on compacted soil and narrow enough to work between crop rows. The trailer-movable weight means one machine can serve multiple sites in a season.
5.Small rental fleets — A low-cost, easy-to-transport machine with steady demand across homeowner and contractor segments. Simple gear-pump hydraulics keep rental downtime and service bills low.
Hightop Group Support Services
Every HT25J leaves the factory backed by Hightop Group's export experience — verified parameters, honest tonnage ratings, complete spare parts supply and responsive after-sales service. Here is what that support looks like in practice, from the moment you place the order to the day the machine starts working on your site.
1.Logistics & Delivery
All machines are prepared for export with rust-proof treatment and heavy-duty export packing — reinforced wooden crates or steel-framed cases designed to withstand sea shipping and port handling. We handle container loading (FCL or LCL) with professional lashing and bracing, and provide complete shipping documentation including packing list, commercial invoice and certificate of origin. We work with your freight forwarder, or arrange delivery on agreed Incoterms such as FOB, CIF or DDP. Typical production lead time is 15–30 days depending on configuration and destination, and we keep you updated with photos and tracking at every stage.
2.Spare Parts Support
Because the Quanchai V13-016 engine and the hydraulic components — gear pump, Eaton travel motor, control valve — are all volume-production parts, the spares you need (filters, seals, hoses, buckets, undercarriage parts) are sourced quickly and can ship together with the machine or in follow-up orders. We maintain a spare parts catalog for each model and offer a first-service spare parts kit with your initial order, so the machine can run through its first operating season without waiting on parts.
3. After-Sales & Technical Support
Every machine ships with an English operator's manual, maintenance schedule and parts diagram. Our technical team provides remote support by email, WhatsApp or video call for commissioning guidance, operation questions and troubleshooting. For warranty matters, we work with you to diagnose the issue, supply replacement parts and agree on the fastest route to get the machine back to work — minimizing downtime wherever the machine is located.
4.Certification & Compliance
Machines can be configured and documented to meet your market's requirements — CE marking, EPA emission compliance and country-specific certifications. Tell us your target market and we will complete the applicable documentation and configuration before shipment, so the machine clears customs and enters service without compliance surprises.
5.Customization & Options

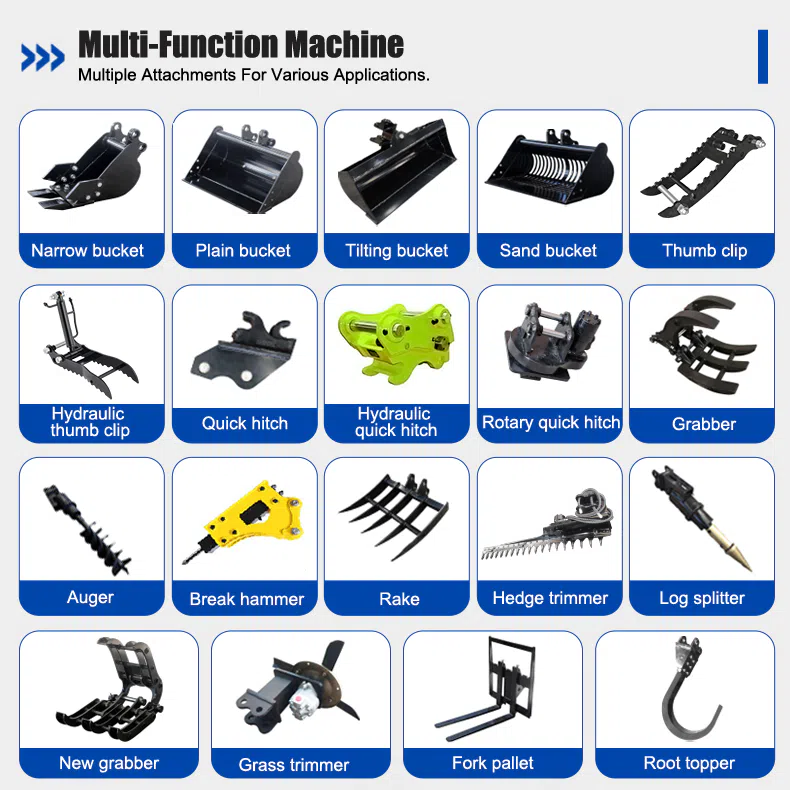

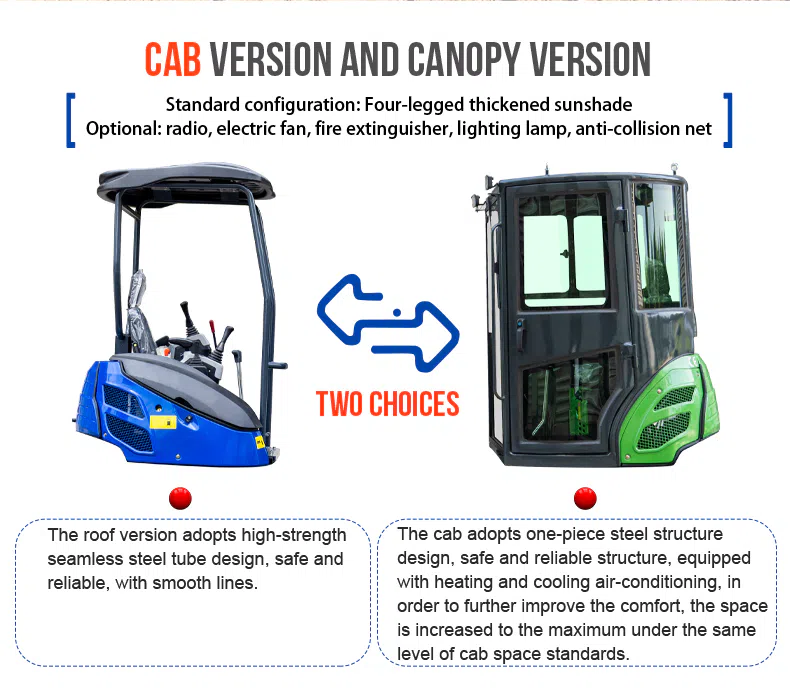

Beyond logistics, Hightop supports optional configurations to match your application: enclosed cabs, quick-coupler buckets, a full attachment line (grapples, rippers, augers and more), and color or branding options for fleet owners. With machines from 0.6 to 7.5 tons plus a complete attachment line, Hightop is a single source for compact equipment — contact our team for pricing, lead time and specification confirmation, and we will respond within one business day.
Common Problems of 2.5-ton Small Excavator with Full Diesel Engine
Q: Is a 2.5 ton mini excavator powerful enough for daily contractor work?
A: Yes. With a 2245mm digging depth and 1850kg working weight, it covers most residential, landscaping and utility jobs — the workload where 2.5-ton machines actually earn their keep. The combination of reach, weight and stability puts it above smaller units without the transport burden of 3-ton-plus machines.
Q: Why choose the Quanchai V13-016 over other engines?
A: The V13-016 is a volume-production three-cylinder diesel from one of China's largest engine manufacturers. Practical benefits: reliable cold starts, low fuel consumption, cheap rebuilds, and parts availability in most markets through Quanchai's distribution network — so you're never dependent on a single dealer.

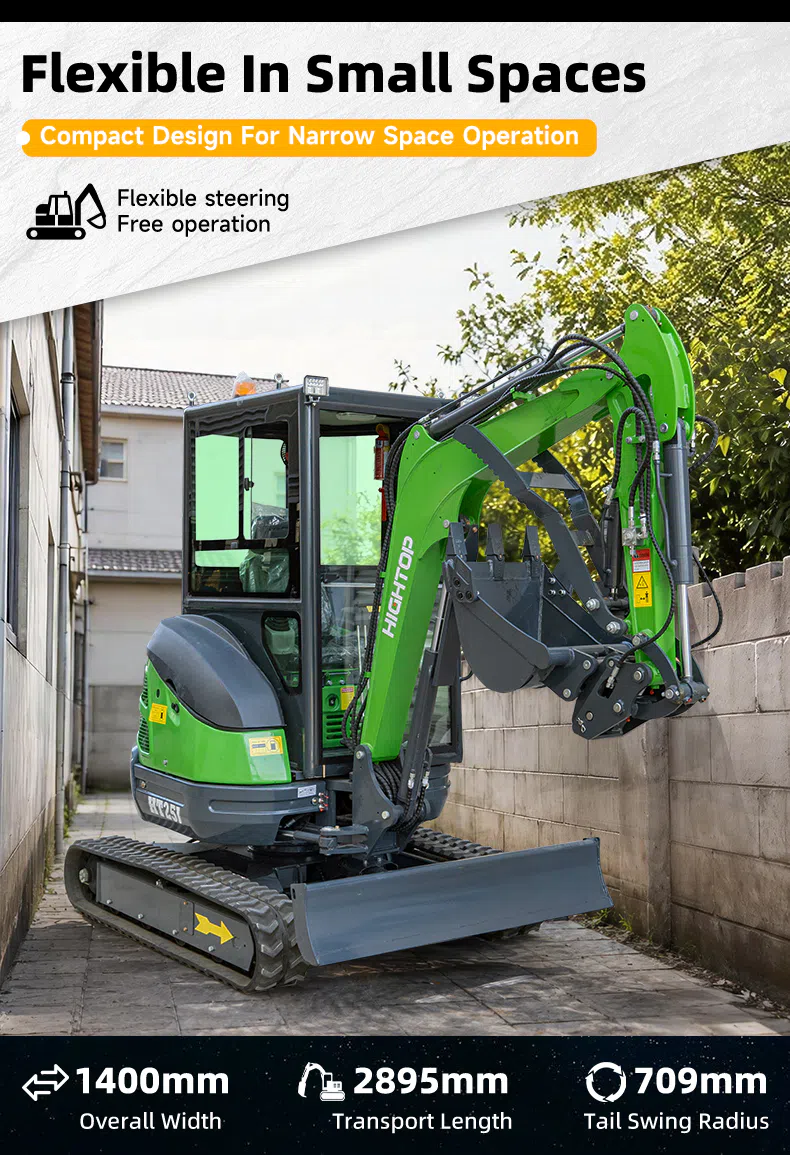

Q: What exactly does a 709mm tail swing mean on site?
A: It means the counterweight stays inside the track envelope during rotation. The machine can work flush against walls, foundations and fences, and can turn in alleyways where a conventional-swing unit of the same class physically cannot rotate. If your jobs are defined by tight access, this spec decides whether you can do them at all.
Q: Is a gear pump system a downgrade compared to piston pumps?
A: For this machine size, it's a deliberate reliability choice. Gear pumps have fewer parts, tolerate contaminated oil far better, and cost a fraction of a variable-displacement piston pump to rebuild. You trade a little peak efficiency for dramatically lower maintenance cost and downtime — the right trade for a working machine.
Q: Can the machine be customized or certified for my market?
A: Yes. Hightop Group supports optional configurations — cabs, quick-coupler buckets and attachments — and certifications such as CE and EPA to match local compliance requirements. Send us your market's needs and we'll configure the machine before shipment.
