Key Features Of 2.5 Ton Compact Excavator
1. Compact Size Design：The compact structure makes transportation easier and improves working flexibility in different environments.

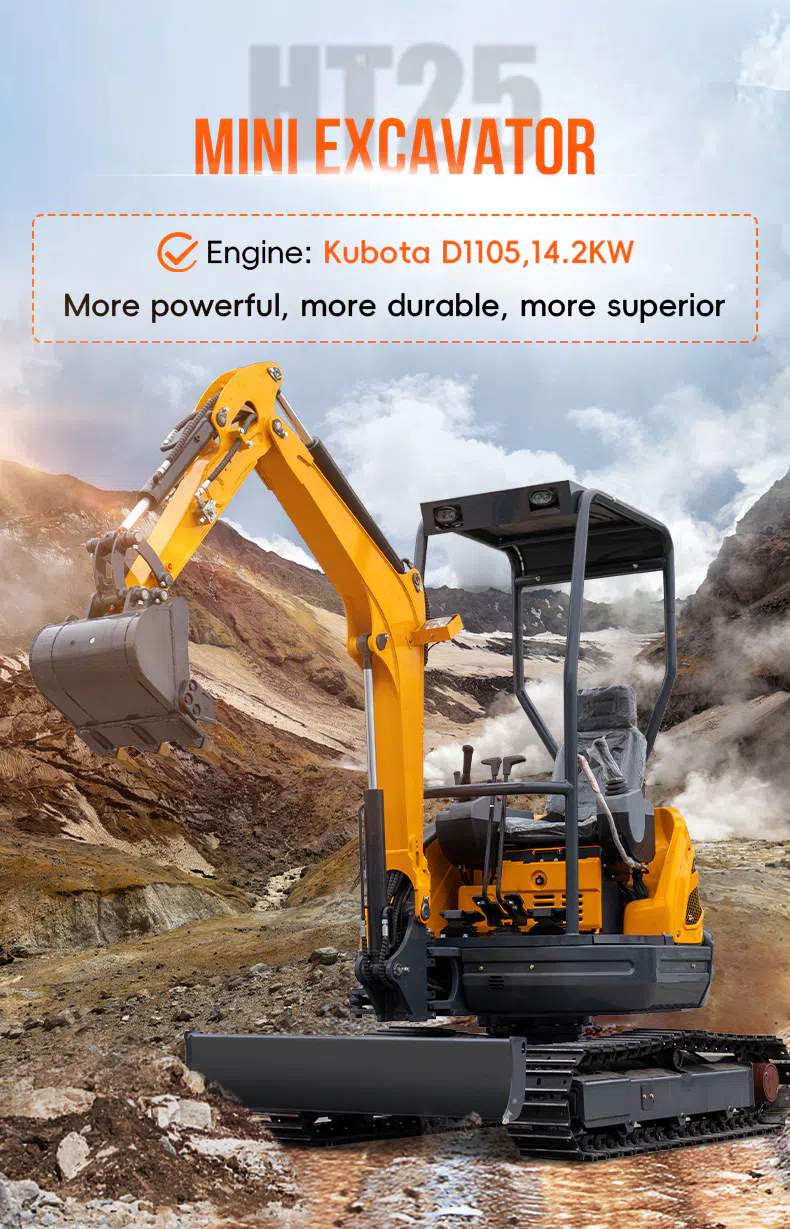

2. Kubota D1105 Engine Reliability：Equipped with Kubota D1105 diesel engine, the machine provides stable power, low fuel consumption and long service life.
3. Narrow Access Operation：The 1400mm width allows operation in narrow areas where standard equipment cannot enter.
4. Efficient Hydraulic Performance：Advanced hydraulic components provide smooth control and efficient working cycles.
5. Strong Stability：Crawler undercarriage improves stability on uneven terrain and soft ground.

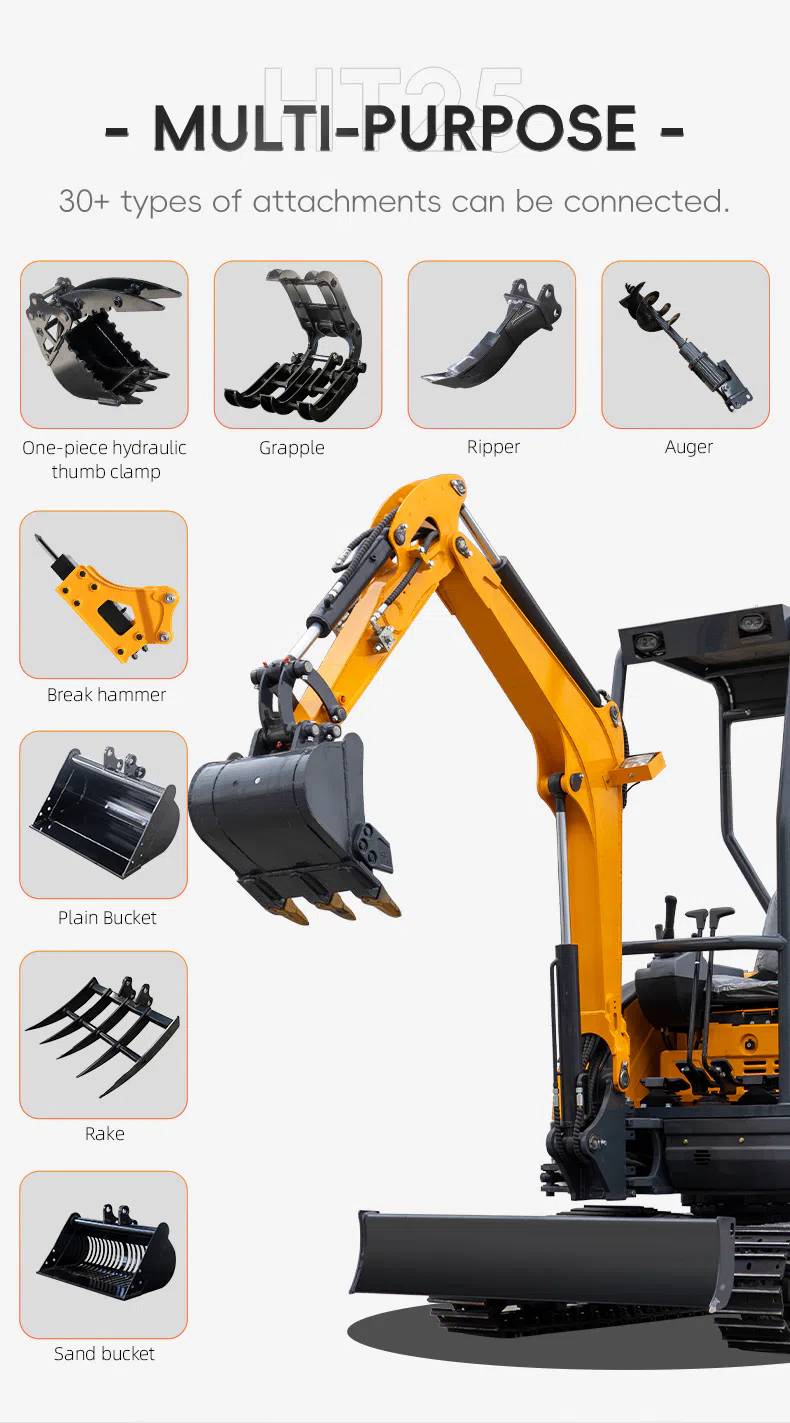

6. Multiple Attachment Compatibility：The excavator supports various attachments according to different working requirements.
Compatible attachments:
- Standard bucket
- Narrow bucket
- Hydraulic breaker
- Auger
- Rake
HT25 2.5ton compact excavator operation video
2.5 Ton Mini Excavator For Landscaping, Construction, Agriculture And Municipal Projects
1.Landscaping Applications
The 2.5 ton mini excavator is an ideal choice for landscaping contractors who require flexible and precise equipment for outdoor projects. Its compact crawler structure and narrow body design allow it to operate efficiently in gardens, residential areas and landscaped spaces where working areas are often limited.
The machine can be used for garden renovation, tree planting preparation, small-scale earthmoving, landscape construction and ground preparation. The precise hydraulic control system enables operators to complete detailed tasks while minimizing impact on surrounding areas such as lawns, plants and existing structures.
2.Construction Applications
For small and medium construction projects, the 2.5 ton mini excavator provides an efficient alternative to larger equipment. Its compact dimensions allow it to access narrow construction areas, residential building sites and urban projects where traditional excavators may have limited mobility.
The excavator is suitable for foundation excavation, pipeline installation, cable trenching, site preparation and general earthmoving operations. With reliable Kubota D1105 engine power and efficient hydraulic performance, it provides stable productivity for contractors working on various construction tasks.
3.Municipal Engineering Applications
The compact design and flexible operation capability make this mini excavator suitable for various municipal maintenance projects. In urban environments where working space is limited, the machine can complete excavation tasks without requiring large operating areas.
It is commonly used for underground pipeline maintenance, roadside construction, public facility repair and other small excavation projects. The low ground pressure crawler system helps protect existing surfaces while maintaining stable working performance.
4.Agricultural Applications
In agricultural environments, the HIGHTOP 2.5 ton mini excavator provides practical solutions for farmland maintenance and land improvement projects. The crawler undercarriage offers good stability on soil surfaces and uneven terrain, making it suitable for outdoor agricultural operations.
It can assist with irrigation channel construction, drainage improvement, farm road maintenance, land leveling and other small-scale agricultural engineering tasks. The compact size also makes transportation between different working areas more convenient for farm owners and agricultural contractors.
2.5 Ton Mini Excavator Technical Specifications
| Parameter | Value |
|---|---|
| Overall Dimensions (mm) | |
| Overall Length / Transport Length A | 2900 mm |
| Overall Width B | 1400 mm |
| Upper Width D | 1310 mm |
| Overall Height (Cab Top) C | 2480 mm |
| Standard Track Shoe Width F | 250 mm |
| Track Gauge G | 1150 mm |
| Minimum Ground Clearance H | 145 mm |
| Rear Tail Swing Radius I | 709 mm |
| Track Length on Ground J | 1480 mm |
| Overall Track Length K | 1858 mm |
| Dozer Blade Ground Clearance R | 285 mm |
| Dozer Blade Digging Depth T | 250 mm |
| Performance Parameters | |
| Operating Weight | 2150 kg |
| Bucket Capacity | 0.036 m³ |
| Rated Power | 14 kW / 2200 rpm |
| Swing Speed | 9.5 r/min |
| Gradeability | 30° |
| Working Range (mm) | |
| Max Digging Height a | 3365 mm |
| Max Dumping Height b | 2610 mm |
| Max Digging Depth c | 2045 mm |
| Max Digging Reach d | 3430 mm |
| Min Swing Radius e | 1975 mm |
| Max Height at Min Swing Radius f | 2745 mm |
| Main Components | |
| Engine | Kubota D1105, three-cylinder, direct injection; rated power 14.2 kW / 2200 rpm (oil capacity 5.1 L); system flow 61.6 L/min |
| Flow-Sharing Main Valve | TRM10-BX-09-JNJT20-01, pressure 22 MPa |
| Swashplate Axial Piston Variable Pump | TFA10VO28/53R, displacement 28 ml; max speed 3000 r/min |
| Travel Motor | Axial variable piston motor, displacement 6 / 12.5 ml; travel speed 2.2 / 4.3 km/h |
| Fuel Tank | Capacity 30 L |
| Cooling System | Capacity 5.05 L |
| Hydraulic Oil Tank | Capacity 29 L |

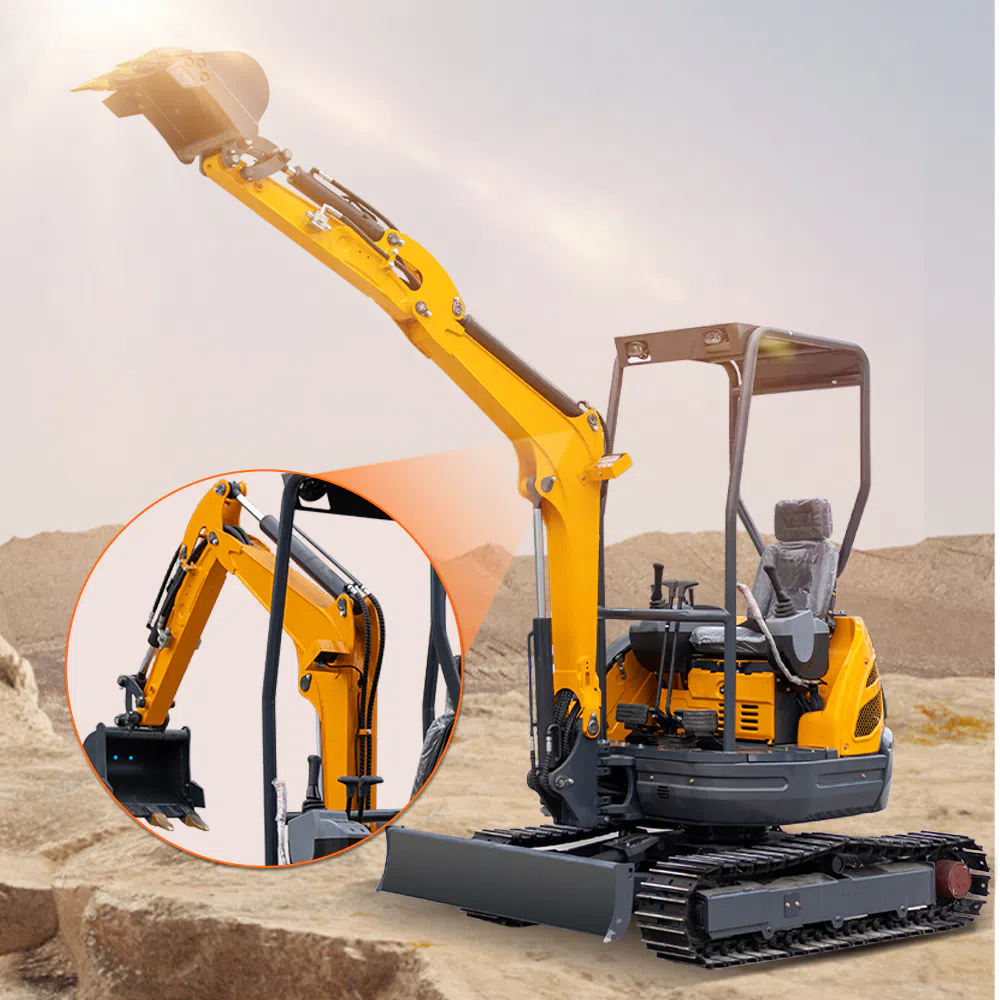

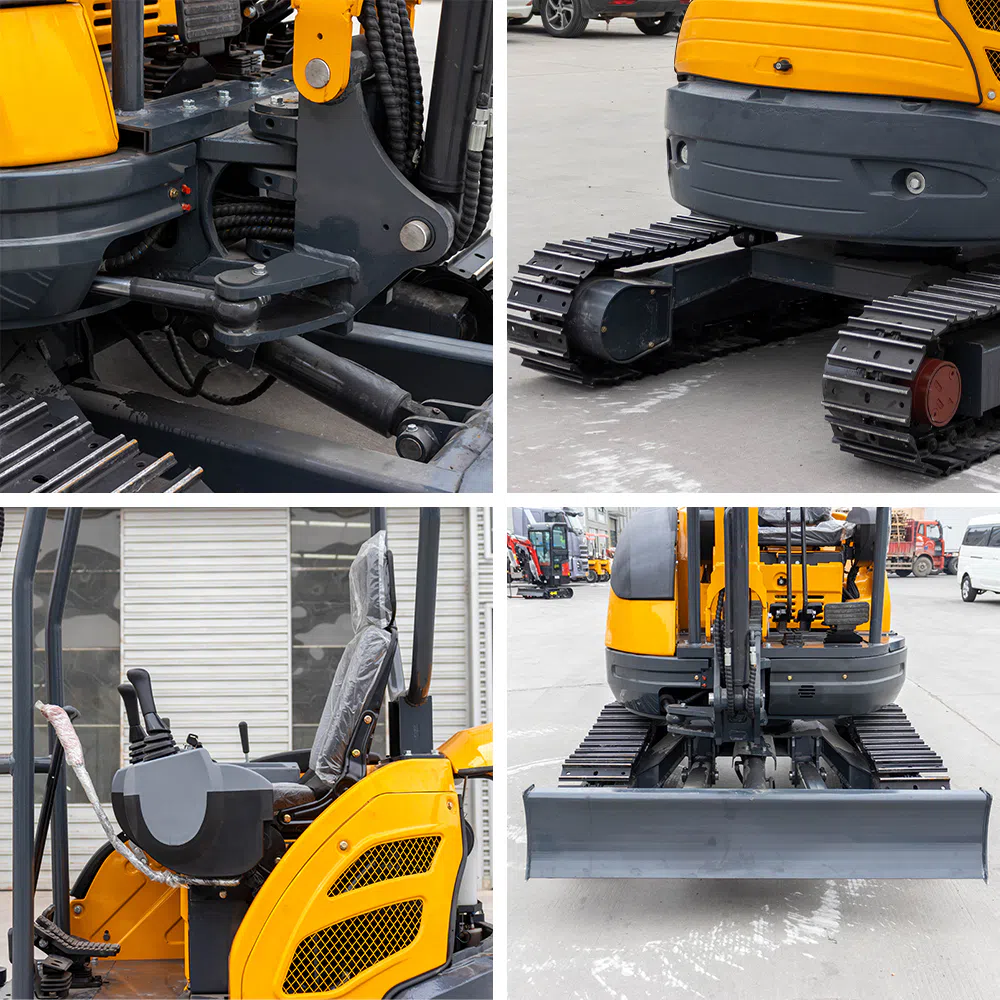

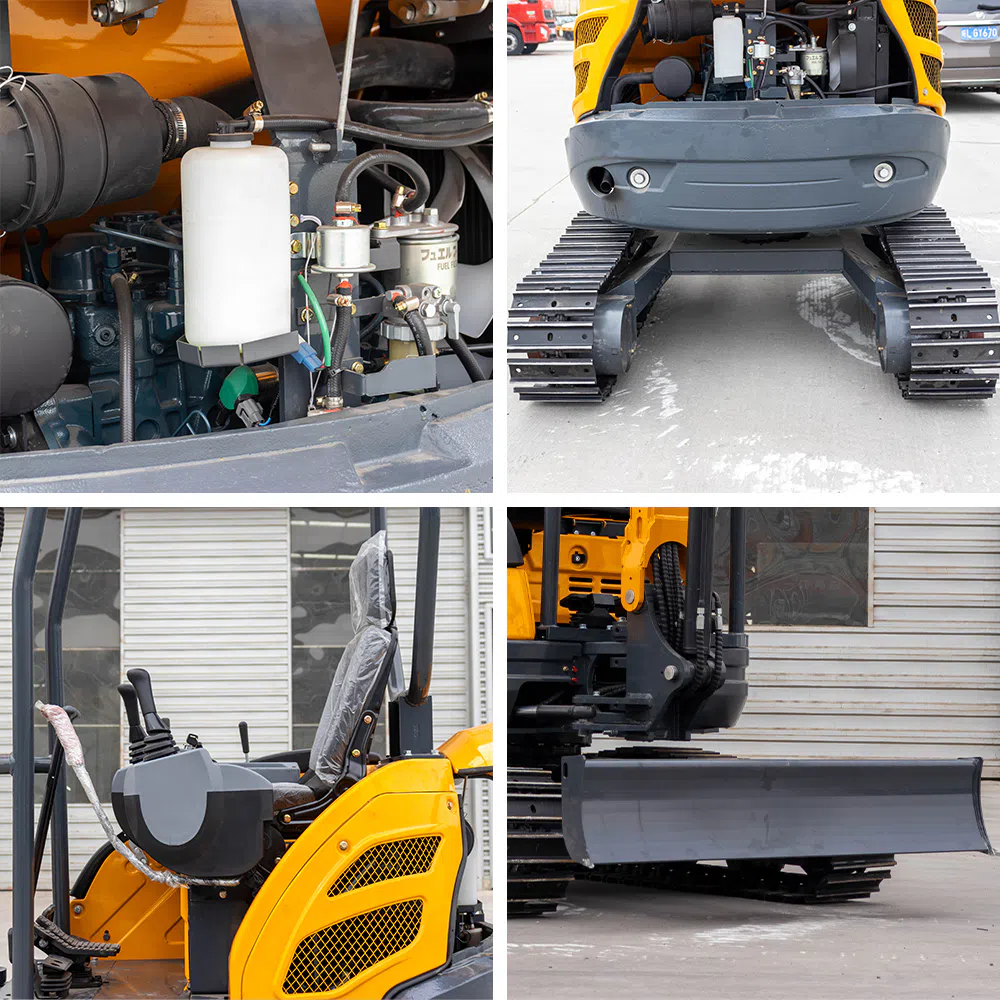

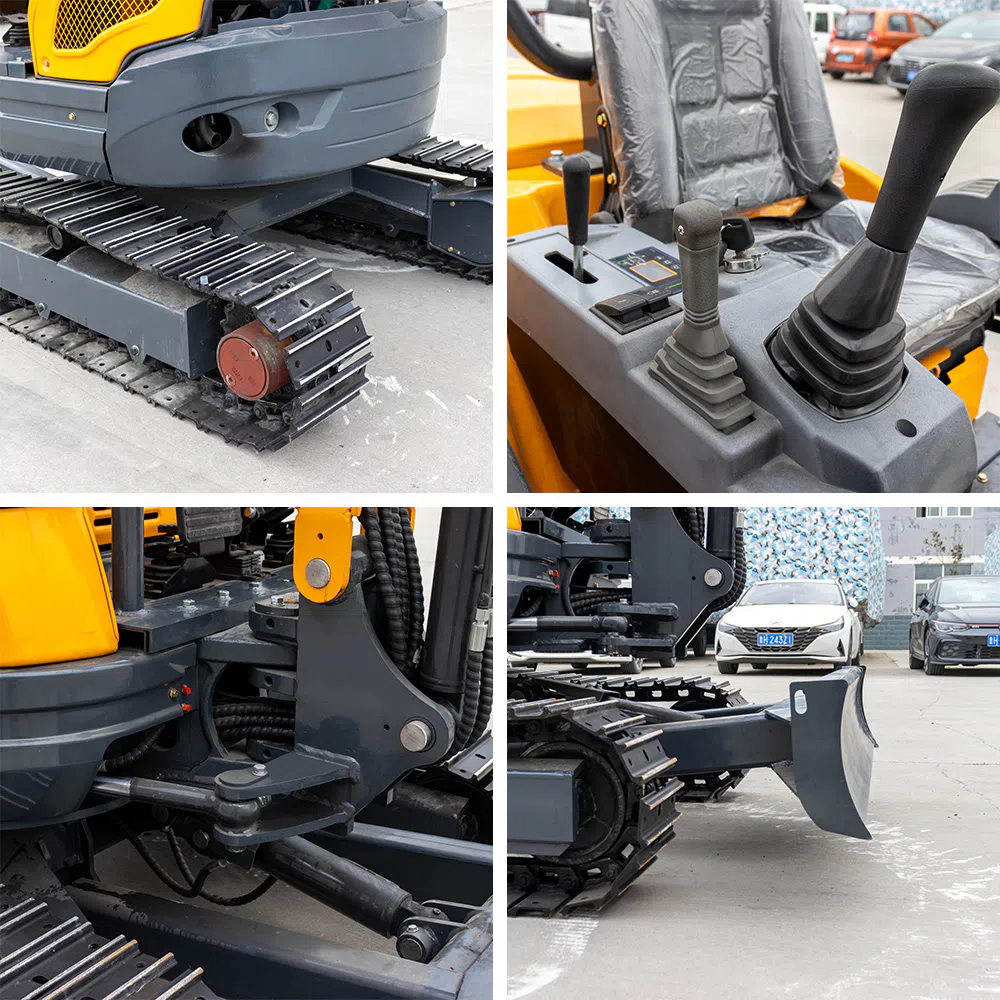

Crawler Mini Excavator Product Images
HIGHTOP Provides Complete Mini Excavator Solutions And Global Support
HIGHTOP focuses on providing reliable compact construction equipment solutions for global customers.
Our services include:
- OEM customization support
- Flexible configuration options
- Professional technical assistance
- Spare parts supply
- Export experience and logistics support
We help customers select suitable machines according to different applications and provide long-term cooperation support.
Frequently Asked Questions About 2.5 Ton Mini Excavator HT25
Q1: What engine does the 2.5 ton mini excavator use?
The machine uses Kubota D1105 three-cylinder diesel engine.
Q2: Is this excavator suitable for narrow spaces?
Yes. The compact width and small tail swing radius make it suitable for restricted working areas.工。
Q3: What industries can use this mini excavator?
It is widely used in landscaping, construction, agriculture and municipal engineering.
Q4: Can attachments be installed on this excavator?
Yes. Different attachments can be installed according to customer requirements.
