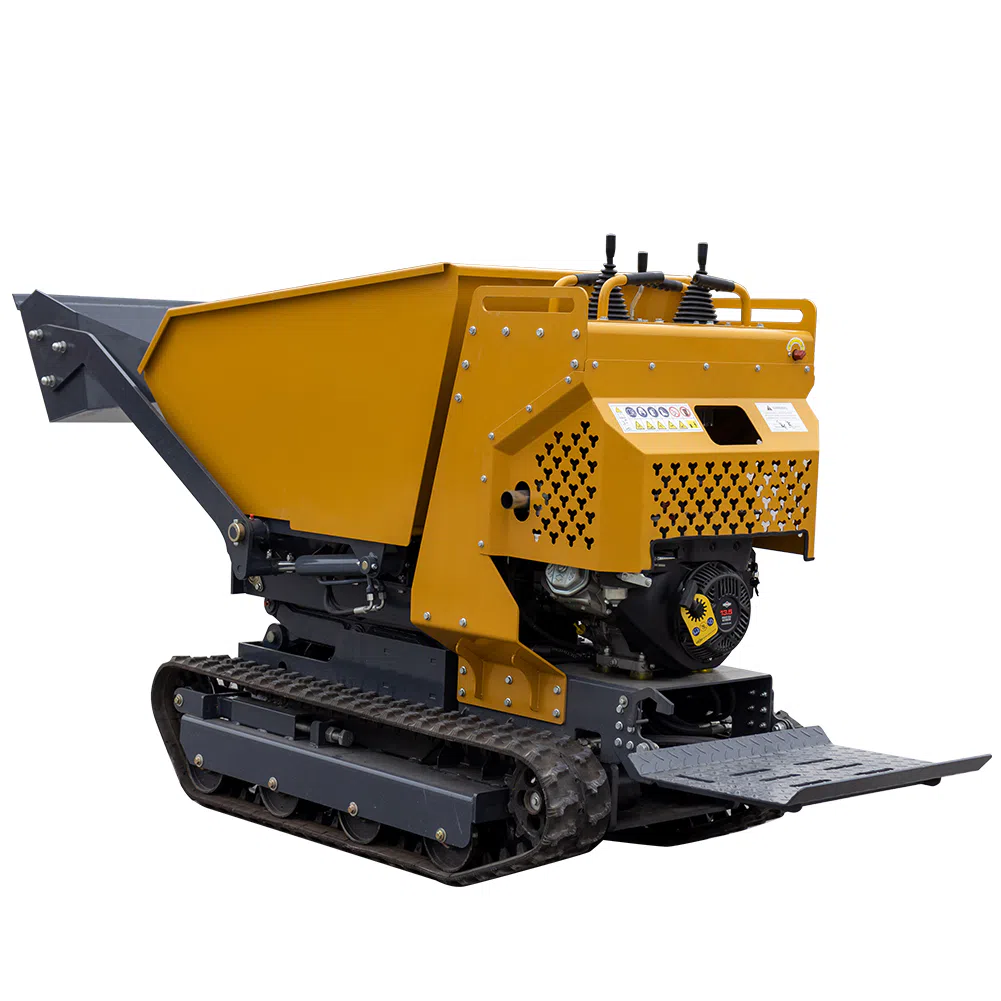

Hydraulic Lifting Dumper with High Dumping Height HT500Y-5 Introduction
The HIGHTOP HT500Y-5 Lifting Dumper is a compact crawler transport machine designed for efficient material handling in construction, landscaping, agriculture, and small engineering projects. As an upgraded lifting-type mini dumper, the HT500Y-5 combines a hydraulic lifting hopper system with a crawler undercarriage, allowing operators to transport and unload materials at higher positions while maintaining excellent mobility in limited working areas.

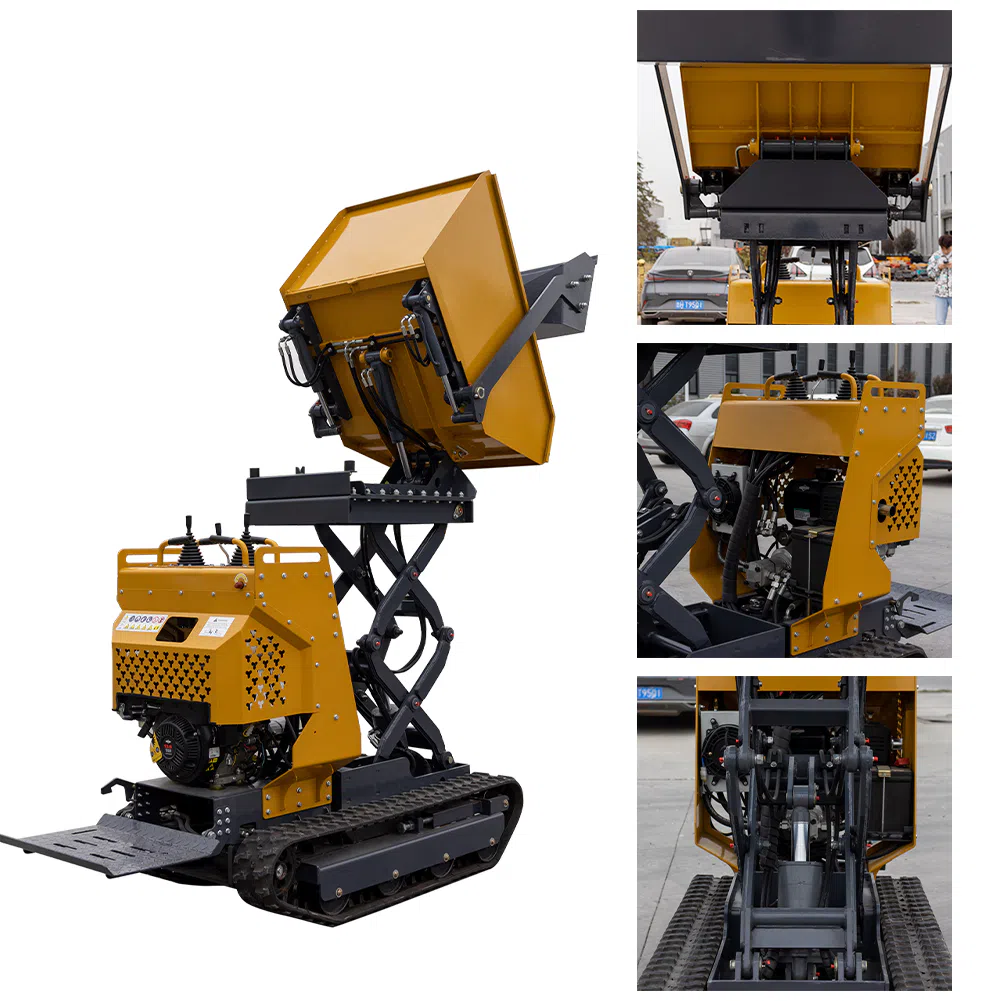

Different from standard mini dumpers, the HT500Y-5 features a lifting hopper structure that can raise the unloading height to approximately 1500mm, making it easier to discharge materials into trucks, containers, or elevated working platforms. This design reduces repeated manual handling and improves productivity during material transportation operations.
With a 550kg loading capacity, compact dimensions, and crawler track drive, the HT500Y-5 hydraulic mini dumper is suitable for moving soil, sand, gravel, construction waste, fertilizer, and other materials. The crawler system provides stable operation on muddy ground, uneven terrain, slopes, and outdoor working environments where traditional wheeled transport equipment may have limitations.
For customers searching for reliable compact material transport solutions, HIGHTOP also provides different types of mini dumpers and construction equipment to meet various job requirements.

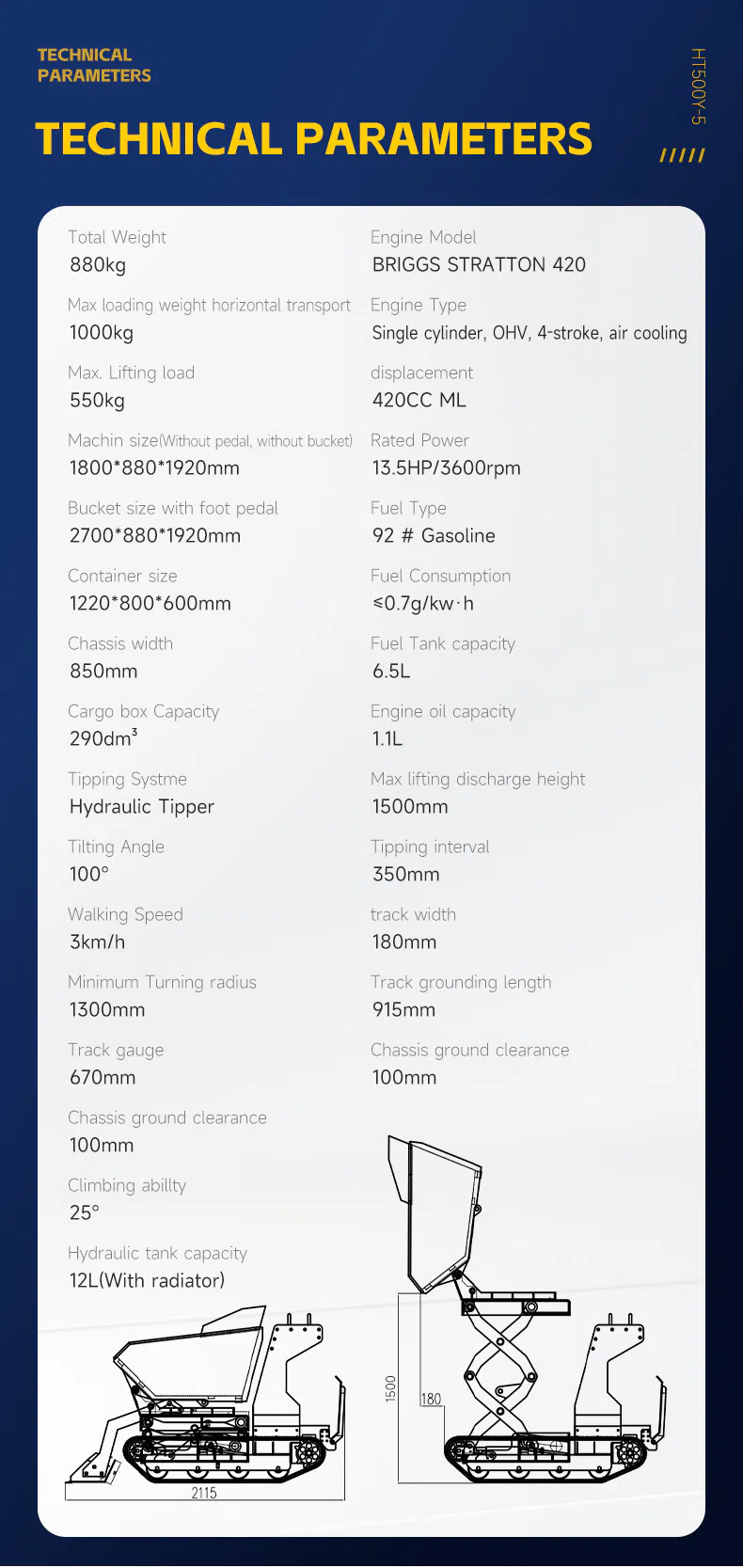

HT500Y-5 Hydraulic Lifting Dumper with High Dumping Height Specifications
| Parameter | Value |
|---|---|
| Total Weight | 880 kg |
| Max Loading Weight (Horizontal Transport) | 1000 kg |
| Max Lifting Load | 550 kg |
| Machine Size (Without Pedal, Without Bucket) | 1800×880×1920 mm |
| Bucket Size with Foot Pedal | 2700×880×1920 mm |
| Container Size | 1220×800×600 mm |
| Chassis Width | 850 mm |
| Cargo Box Capacity | 290 dm³ |
| Tipping System | Hydraulic Tipper |
| Tilting Angle | 100° |
| Walking Speed | 3 km/h |
| Minimum Turning Radius | 1300 mm |
| Track Gauge | 670 mm |
| Climbing Ability | 25° |
| Hydraulic Tank Capacity | 12 L (With radiator) |
| Engine Model | Briggs & Stratton 420 |
| Engine Type | Single cylinder, OHV, 4‑stroke, air cooling |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Consumption | ≤0.7 g/kw·h |
| Fuel Tank Capacity | 6.5 L |
| Engine Oil Capacity | 1.1 L |

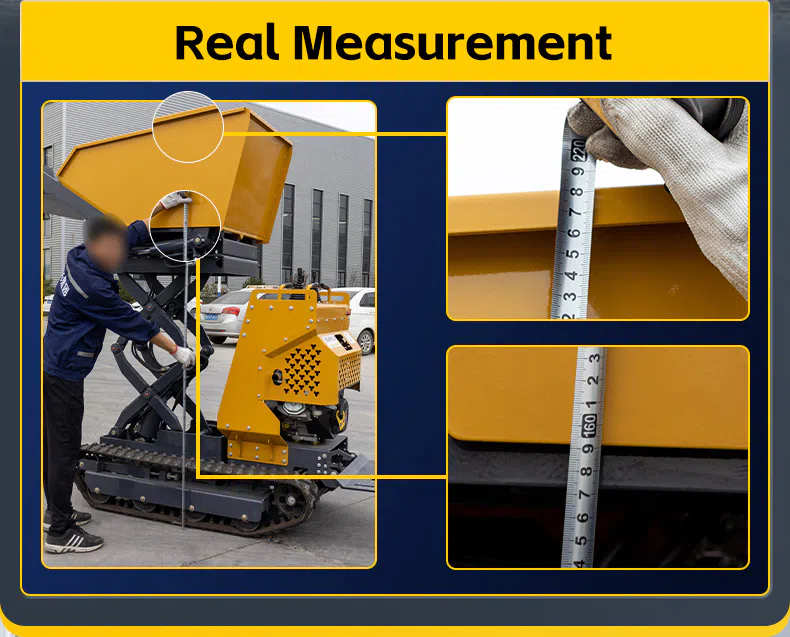

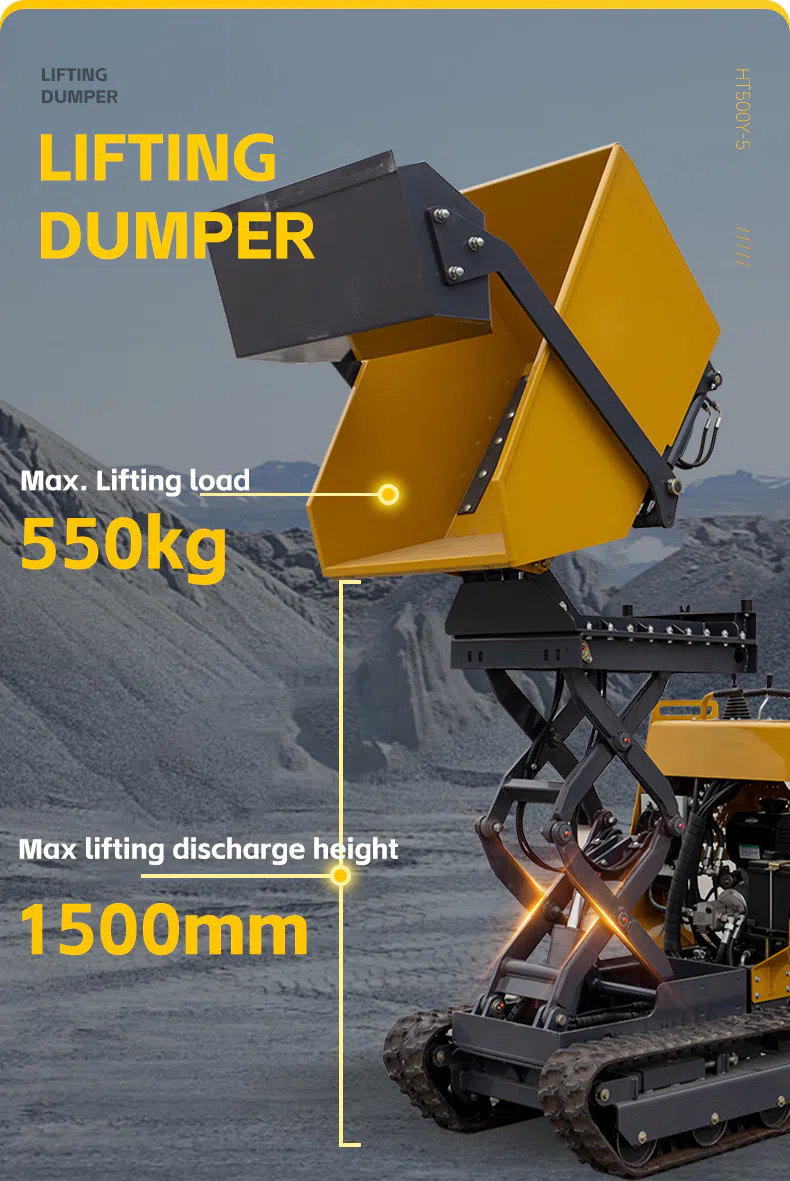

| Max Lifting Discharge Height | 1500 mm |
| Tipping Interval | 350 mm |
| Track Width | 180 mm |
| Track Grounding Length | 915 mm |
| Chassis Ground Clearance | 100 mm |

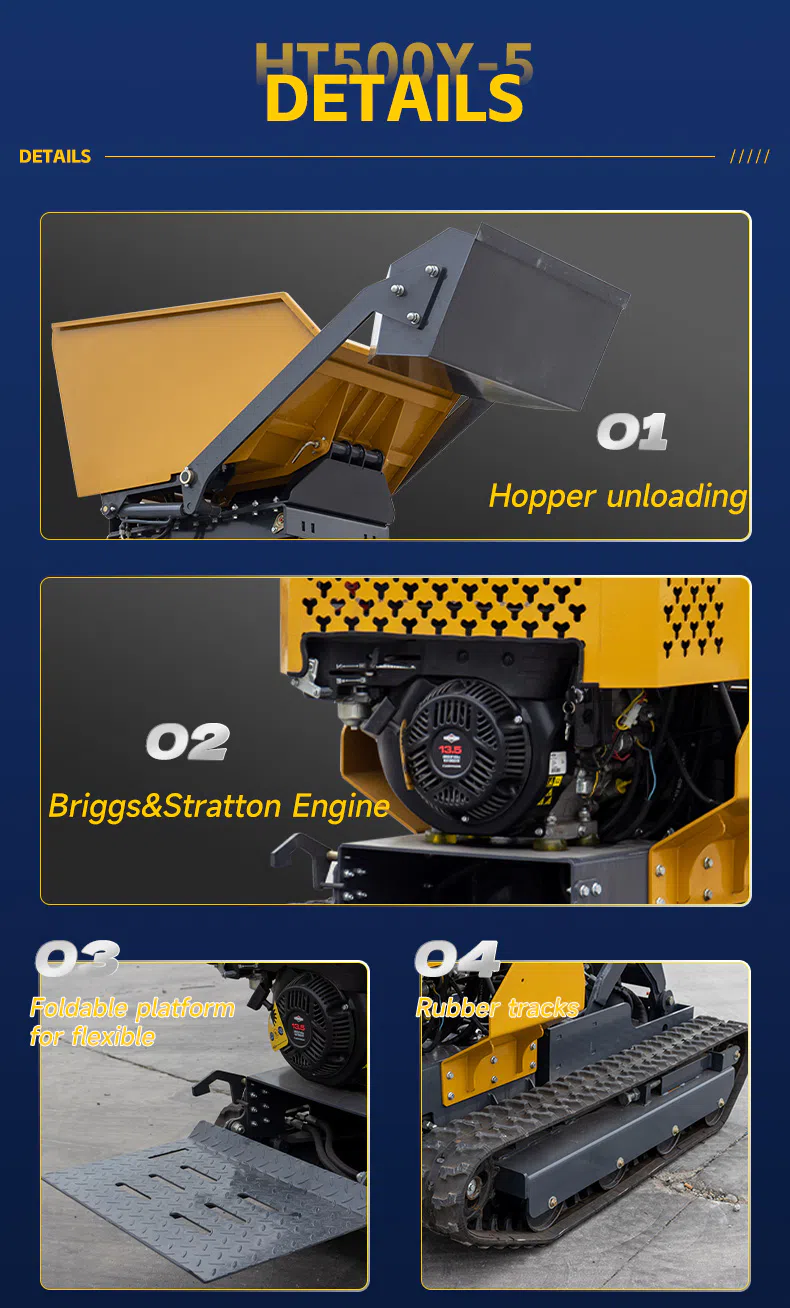

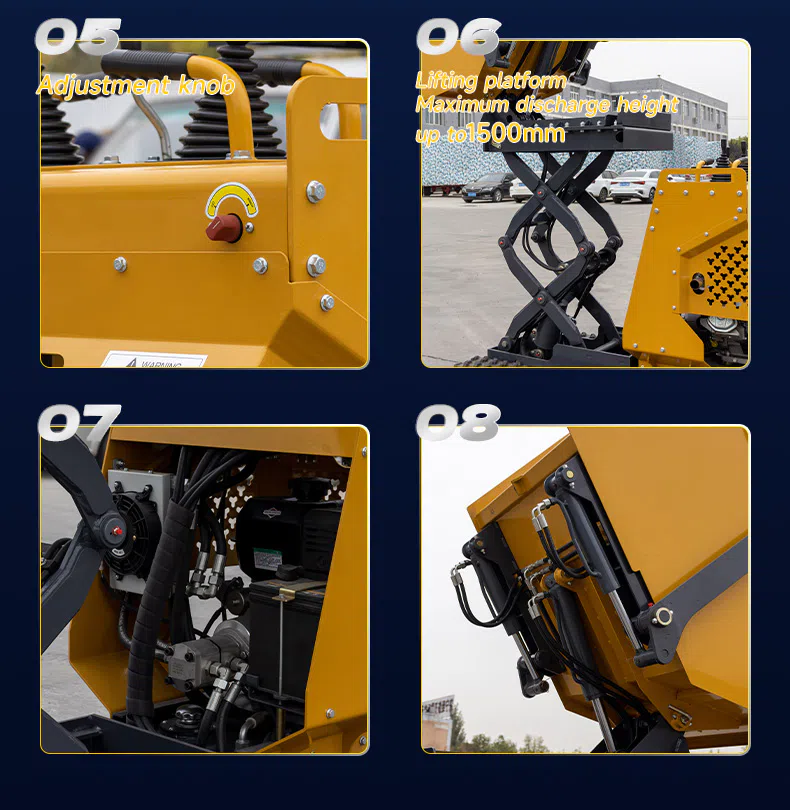

HT500Y-5 Hydraulic Lifting Dumper with High Dumping Height Picture

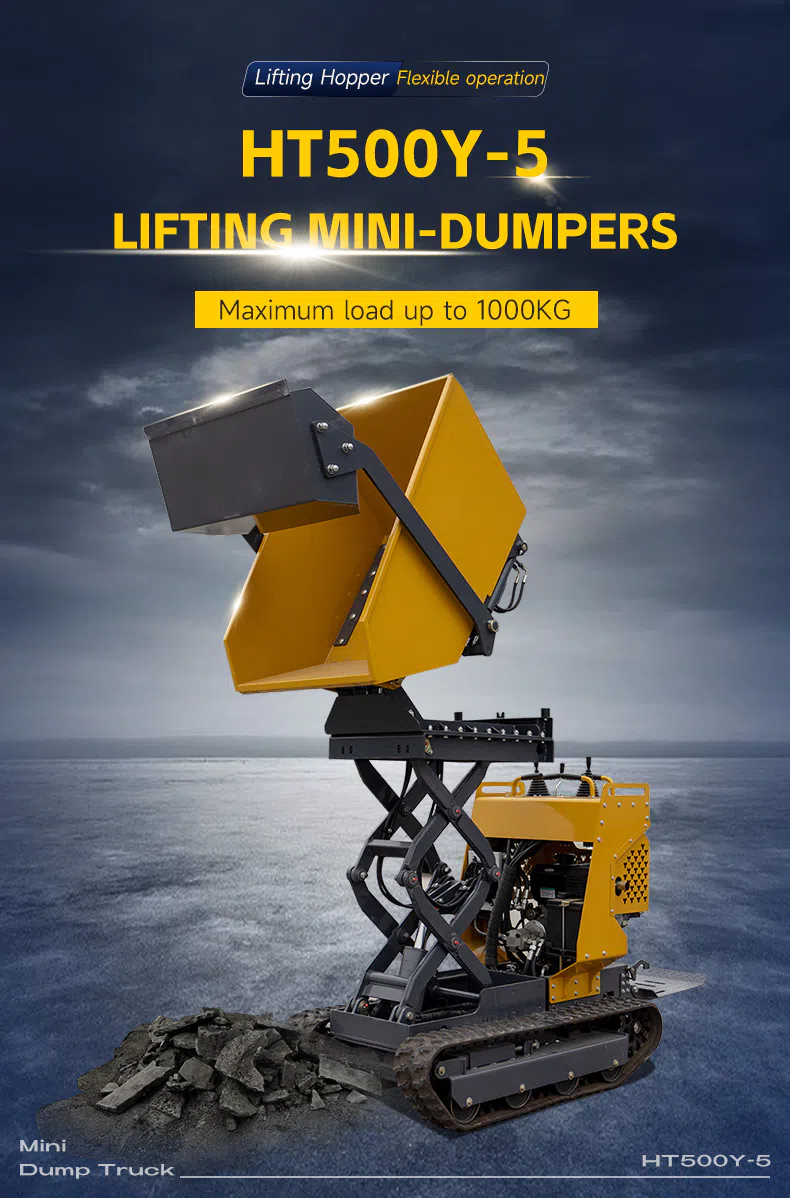

HT500Y-5
LIFTING MINI-DUMPERS
Maximum load up to 1000KG

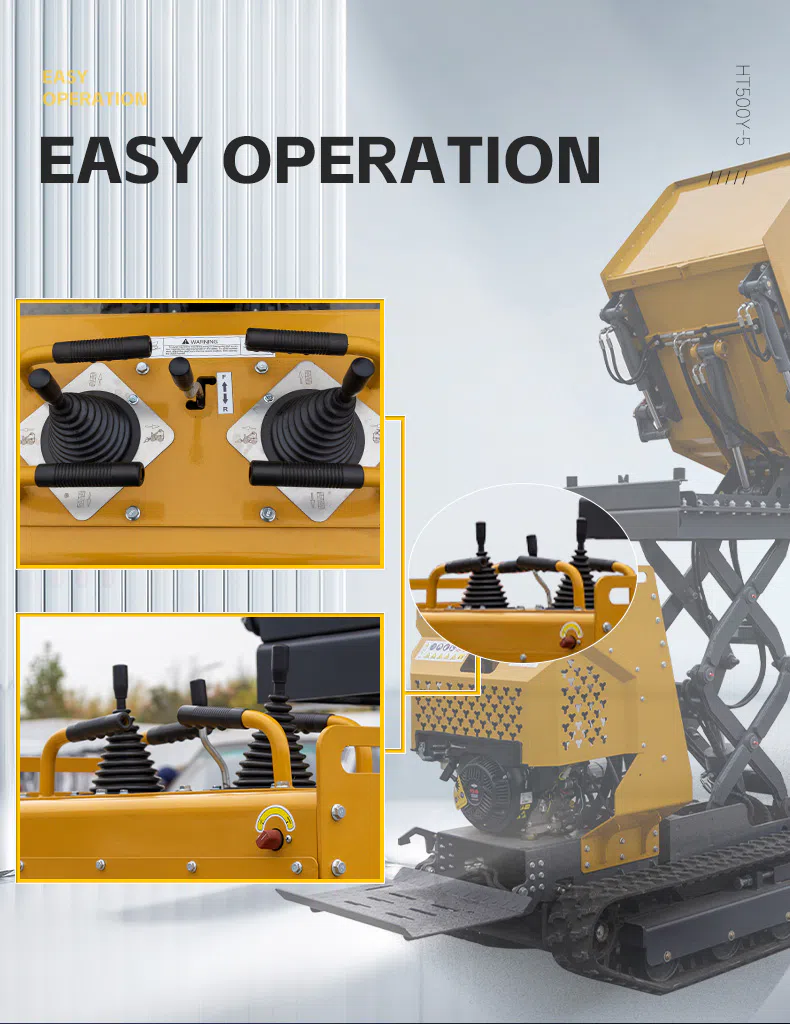

EASY OPERATION
HYDRAULICALLY DRIVEN POWERFUL

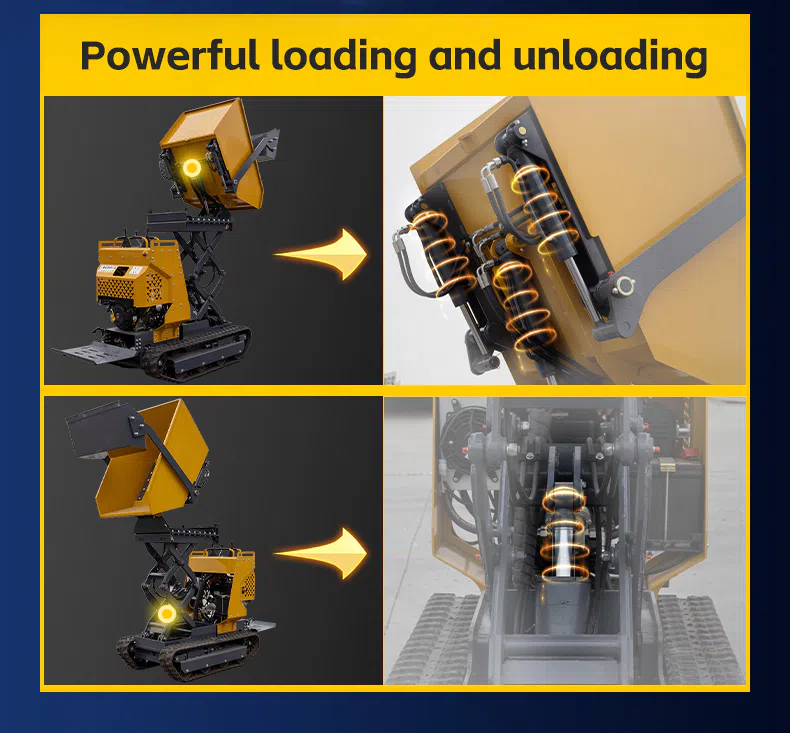

Powerful loading and unloading
Hydraulic Lifting Dumper with High Dumping Height HT500Y-5 Applications
The HT500Y-5 crawler lifting dumper is designed for a wide range of material transportation applications.
In construction projects, the machine can transport sand, gravel, concrete materials, bricks, and excavation soil. The hydraulic lifting hopper makes it suitable for jobs where materials need to be discharged into higher locations.
For landscaping and gardening operations, the compact mini dumper can move soil, plants, fertilizer, and green waste through narrow paths and outdoor areas.
In agricultural environments, the HT500Y-5 can be used for transporting feed, crops, farming materials, and supplies between fields, greenhouses, and storage areas.
The machine is also suitable for municipal maintenance, property management, small engineering projects, and rental equipment applications where compact size, strong mobility, and efficient transportation are required.
HIGHTOP Service Support
HIGHTOP provides complete support for global customers, including product selection assistance, technical consultation, spare parts supply, operation guidance, and after-sales service.
Before purchasing, our professional team can recommend suitable configurations according to customers’ working environments, transportation requirements, material types, and application conditions. We help customers choose the right mini dumper solution for different industries.
For overseas customers, HIGHTOP provides technical documents, remote support, spare parts assistance, and professional communication throughout the cooperation process. We also support OEM/ODM cooperation, customized requirements, and bulk orders according to customer needs.
With years of experience in compact construction machinery manufacturing, HIGHTOP focuses on providing reliable and practical equipment solutions for global markets.
