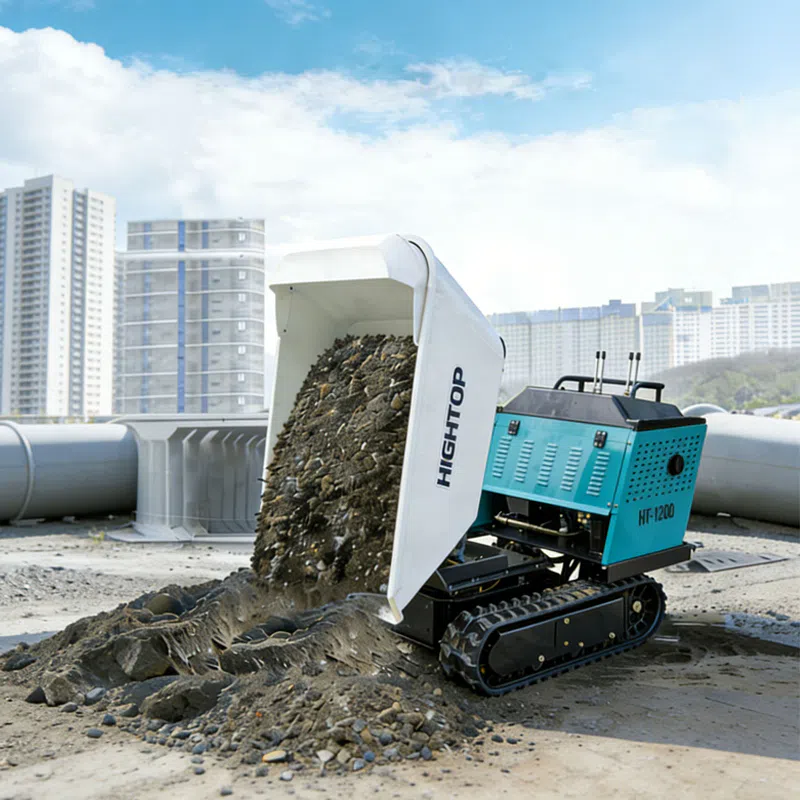

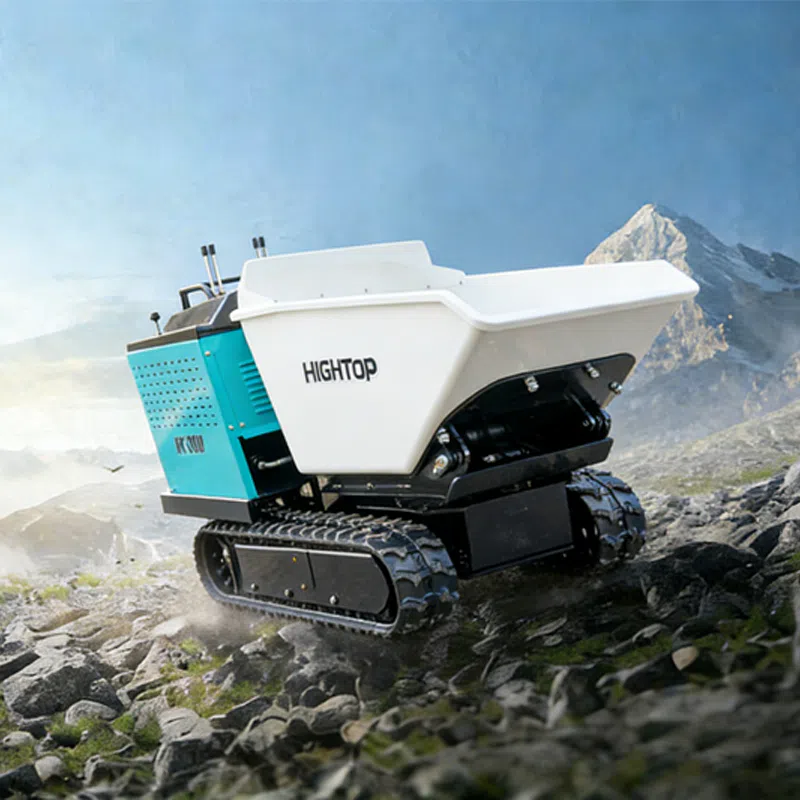

Hihgtop Crawler Dump Truck With High Stability Track System HT1200 Introduction
The HT1200 Crawler Dump Truck is a compact tracked transport machine designed for material handling in construction sites, farms, landscaping projects, and difficult working environments. Equipped with a crawler track system, this mini crawler dumper provides improved ground contact and stability compared with traditional wheeled transport equipment, making it suitable for muddy roads, uneven terrain, slopes, and narrow working areas.
With its durable tracked chassis and practical dumping structure, the HT1200 crawler dump truck can efficiently transport soil, gravel, sand, construction materials, agricultural products, and other bulk materials. The tracked undercarriage helps reduce ground pressure while maintaining traction, allowing the machine to work reliably on soft ground and challenging surfaces.
The HT1200 features a compact body design that allows easy operation in limited spaces. The crawler system provides stable movement, while the hydraulic dumping function improves loading and unloading efficiency. For customers looking for a smaller material transport solution, HIGHTOP also provides different types of mini dump trucks and tracked transport equipment to meet various application requirements.
The HT1200 crawler dumper combines mobility, stability, and practical loading capacity, making it an ideal choice for contractors, farmers, rental companies, and small construction projects that require a reliable tracked carrier.

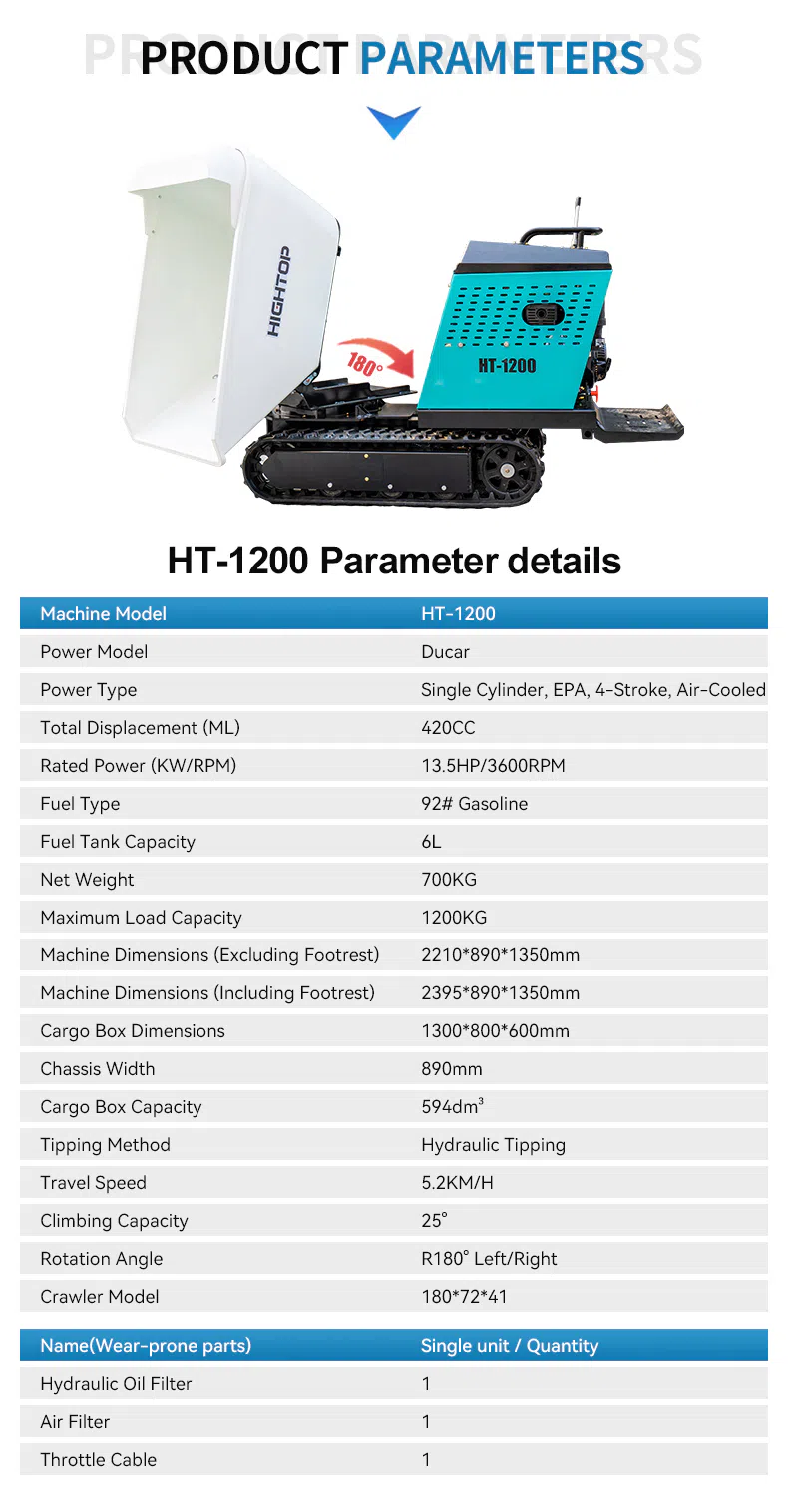

HT1200 Crawler Dump Truck With High Stability Track System Parameters
| Parameter | Value |
|---|---|
| Machine Model | HT‑1200 |
| Power Model | Ducar |
| Power Type | Single Cylinder, EPA, 4‑Stroke, Air‑Cooled |
| Total Displacement | 420 cc |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6 L |
| Net Weight | 700 kg |
| Maximum Load Capacity | 1200 kg |
| Machine Dimensions (Excluding Footrest) | 2210×890×1350 mm |
| Machine Dimensions (Including Footrest) | 2395×890×1350 mm |
| Cargo Box Dimensions | 1300×800×600 mm |
| Chassis Width | 890 mm |
| Cargo Box Capacity | 594 dm³ |
| Tipping Method | Hydraulic Tipping |
| Travel Speed | 5.2 km/h |
| Climbing Capacity | 25° |
| Rotation Angle | 180° Left / Right |
| Crawler Model | 1807241 |
| Wear‑Prone Parts | |
| Hydraulic Oil Filter | 1 |
| Air Filter | 1 |
| Throttle Cable | 1 |

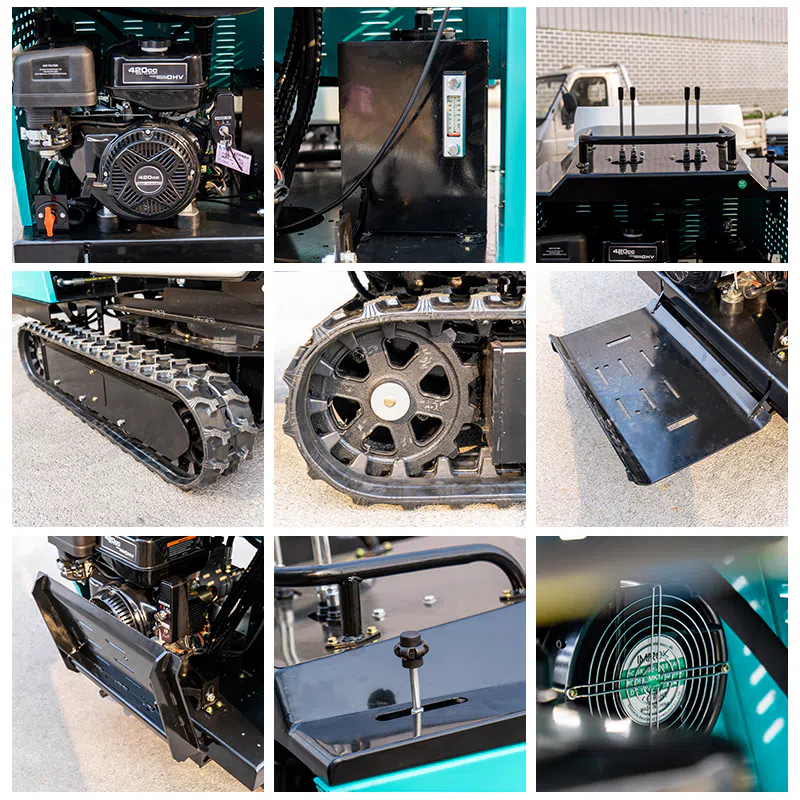

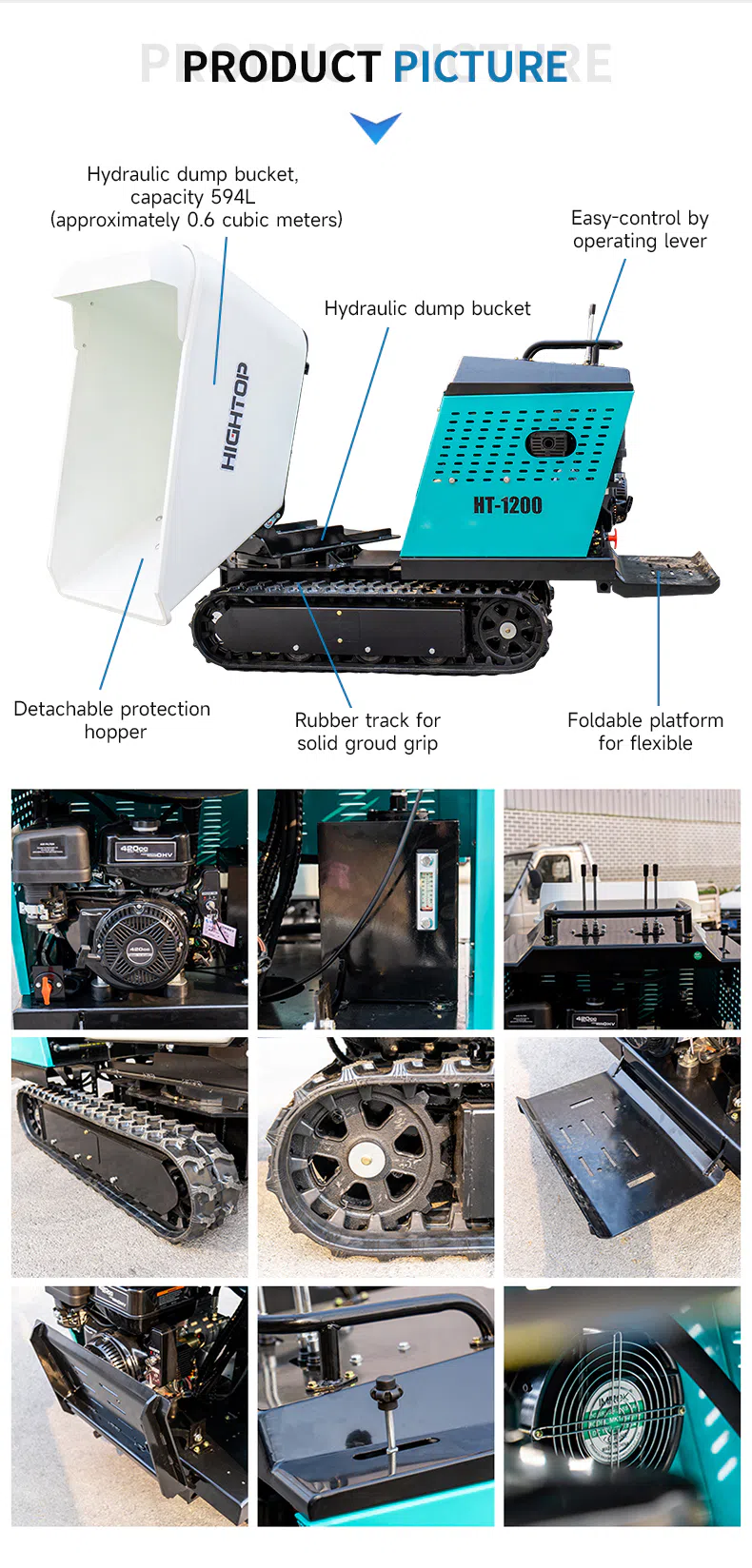

Crawler Dump Truck HT1200 With High Stability Track System Images
HT1200 CRAWLERROTARY DUMP TRUCK
VARIOUS SCENARIOS EASY TO HANDLE
Multi-functional device
Suitable for a wide range of terrains
STRONG POWER PERFORMANCE:13.5HP Ducar engine,1200KG super heavy load capacity, Power model: Ducar single-cylinder four-stroke engine
AND UNLOADING FLEXIBLE AND EFFICIENT LOADING :Hydraulic dump + Left and right 180°rotation + Optional mixing tank hopper
ALL-TERRAIN ADAPTABILITY:Rubber tracks + 25° climbing ability,unafraid of complex road conditions

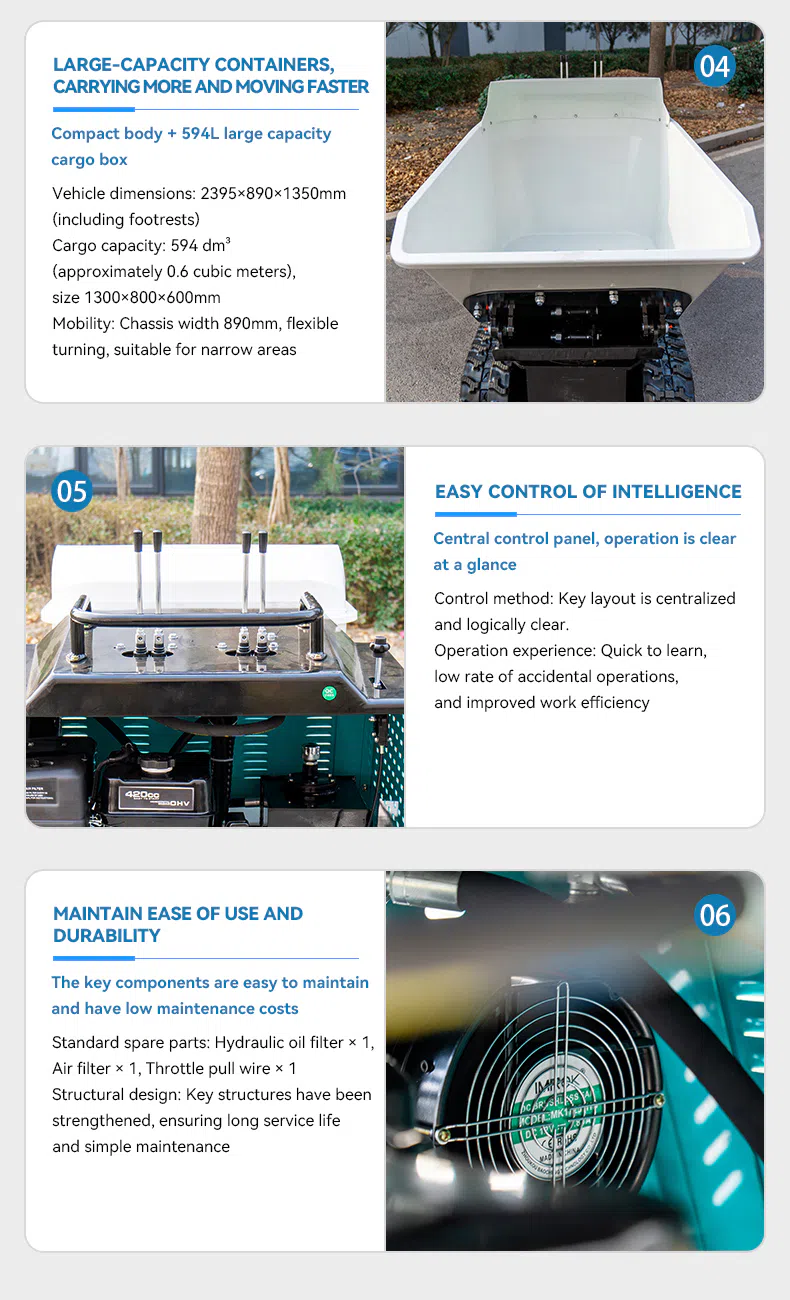

LARGE-CAPACITY CONTAINERS,CARRYING MORE AND MOVING FASTER:Compact body + 594L large capacity cargo box
EASY CONTROL OF INTELLIGENCE:Central control panel, operation is clear at a glance
DURABILITY MAINTAIN EASE OF USE :The key components are easy to maintain and have low maintenance costs
Crawler Dump Truck With High Stability Track System HT1200 Application Scenarios
The HT1200 crawler dump truck is widely used in construction, agriculture, landscaping, and infrastructure maintenance. It is suitable for transporting soil during excavation projects, moving gravel and stones on construction sites, delivering fertilizer and crops in agricultural fields, and handling materials in gardens and forestry areas.
Its crawler structure makes it especially suitable for locations where traditional vehicles have difficulty operating, such as muddy farmland, mountain roads, slopes, and soft ground areas.
HIGHTOP Service Support
HIGHTOP provides complete support for HT1200 crawler dump truck customers, including professional product consultation, customized equipment solutions, spare parts supply, operation guidance, and after-sales technical support.
Before purchase, our team can help customers select suitable models according to working conditions and transportation requirements. During cooperation, HIGHTOP provides detailed machine information, operation instructions, and shipping support to ensure smooth delivery.
For distributors and dealers, HIGHTOP offers OEM/ODM cooperation, customized appearance solutions, bulk order support, and reliable production capacity. With years of experience in manufacturing construction machinery, HIGHTOP is committed to providing long-term cooperation and dependable service.
Crawler Dump Truck Frequently Asked Questions
Q1: What is the HT1200 crawler dump truck used for?
The HT1200 is mainly used for transporting soil, sand, gravel, construction materials, agricultural products, and other bulk materials in difficult working environments.
Q2: Why choose a crawler dump truck instead of a wheeled dumper?
Crawler dump trucks provide better stability and traction on soft ground, muddy roads, and uneven terrain compared with traditional wheeled machines.
Q3: Can HT1200 work on slopes?
Yes. The tracked design provides improved stability when operating on slopes and uneven surfaces.
Q4: Does HIGHTOP provide spare parts and technical support?
Yes. HIGHTOP supplies spare parts and provides technical support for international customers.
