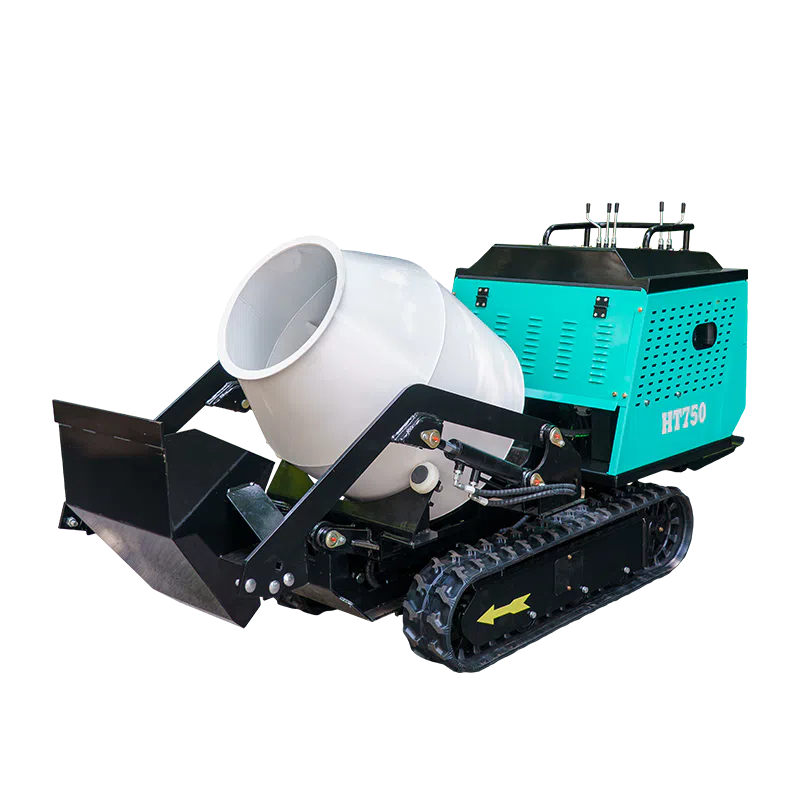

Hightop Tracked Concrete Mixer With Hydraulic Unloading HT750 Introduction
The HT750 Tracked Concrete Mixer is a compact crawler-based concrete mixing and transport machine designed for construction projects that require flexible concrete delivery in complex environments. Combining mixing, transportation, and unloading functions into one machine, HT750 helps improve work efficiency in areas where traditional concrete mixer trucks cannot easily access.
Equipped with a tracked chassis, the crawler concrete mixer provides excellent ground contact and stability on muddy roads, slopes, gravel surfaces, and uneven construction sites. Compared with traditional wheeled concrete mixers, the tracked structure reduces ground pressure and improves mobility in narrow or challenging working conditions.
The HT750 features an automatic hydraulic unloading system, allowing operators to control the discharge process more efficiently. The mixing tank is designed for continuous material handling, helping transport freshly mixed concrete, mortar, and other construction materials directly to the working area. This reduces manual transportation requirements and improves productivity on small and medium construction projects.
With its compact dimensions and strong off-road capability, the HT750 tracked concrete mixer is suitable for construction sites, rural infrastructure projects, landscaping work, foundation projects, and areas with limited access. For customers requiring complete construction solutions, HIGHTOP also provides a range of mini dump trucks, crawler carriers, and compact construction equipment for different material handling needs.
The HT750 crawler concrete mixer combines transportation flexibility, stable operation, and hydraulic unloading performance, making it a practical choice for contractors, builders, and rental companies looking for efficient concrete delivery equipment.

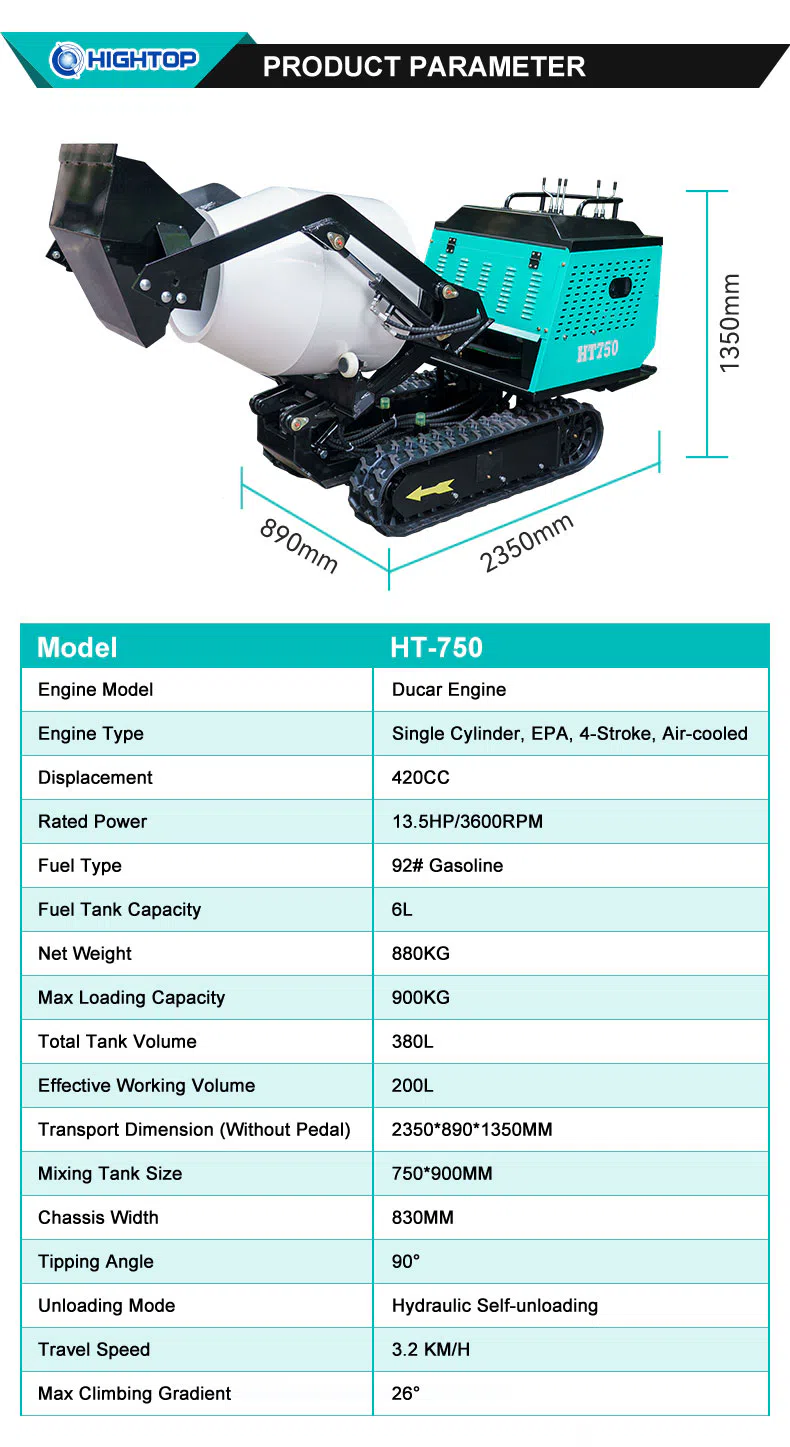

Tracked Concrete Mixer With Hydraulic Unloading HT750 Parameters
| Parameter | Value |
|---|---|
| Model | HT‑750 |
| Engine Model | Ducar Engine |
| Engine Type | Single Cylinder, EPA, 4‑Stroke, Air‑cooled |
| Displacement | 420 cc |
| Rated Power | 13.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6 L |
| Net Weight | 880 kg |
| Max Loading Capacity | 900 kg |
| Total Tank Volume | 380 L |
| Effective Working Volume | 200 L |
| Transport Dimension (Without Pedal) | 2350×890×1350 mm |
| Moving Tank Size | 750×900 mm |
| Chassis Width | 830 mm |
| Tipping Angle | 90° |
| Unloading Mode | Hydraulic Self‑unloading |
| Travel Speed | 3.2 km/h |
| Max Climbing Gradient | 26° |

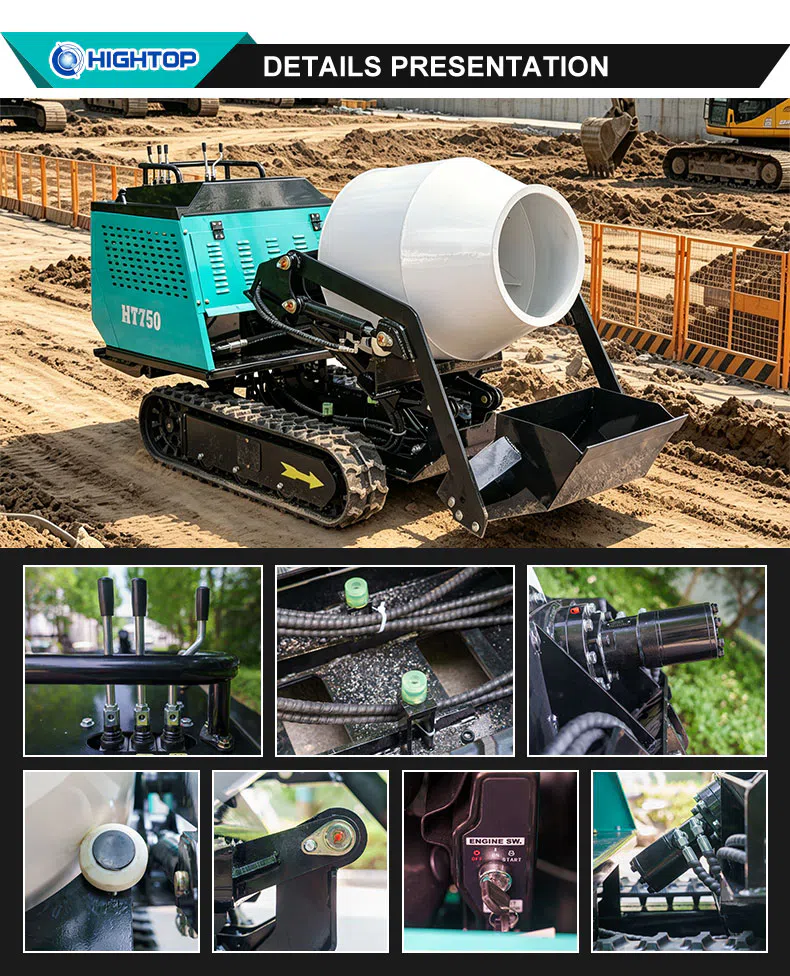

Tracked Concrete Mixer With Hydraulic Unloading HT750 Images
HT-750 TRACKED CONCRETEMIXER TRANSPORT TANK

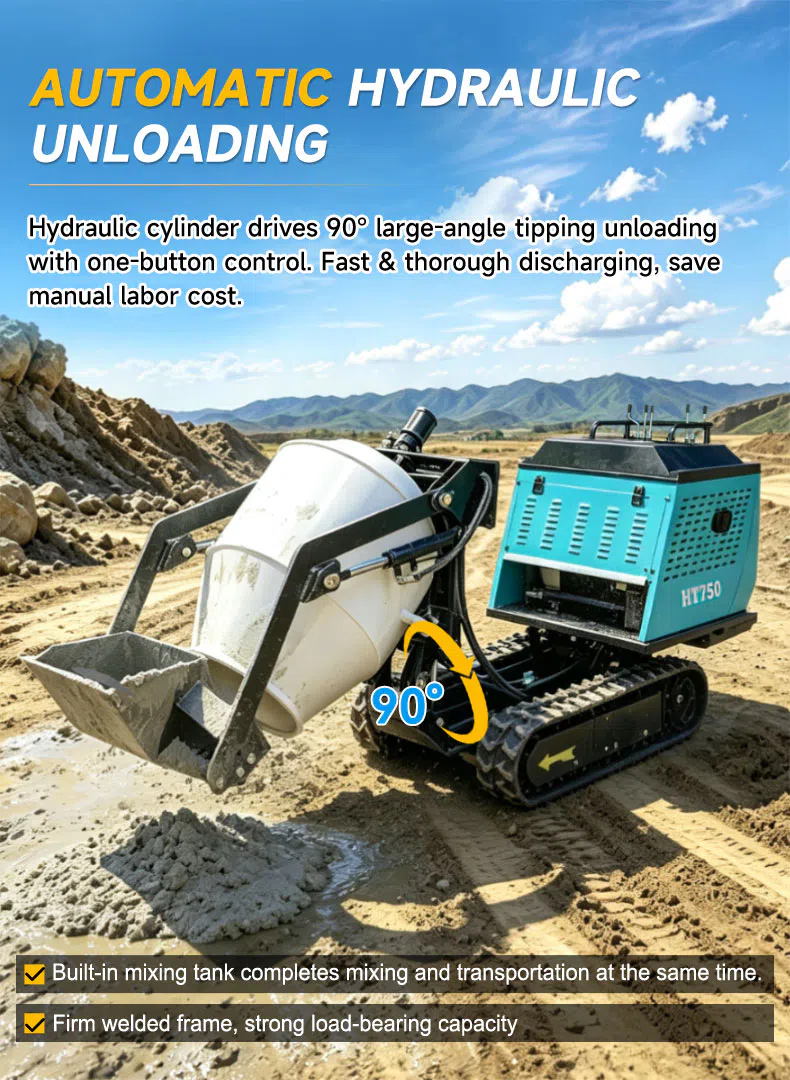

AUTOMATIC HYDRAULIC UNLOADING:Hydraulic cylinder drives 90° large-angle tipping unloadingwith one-button control. Fast & thorough discharging, savemanual labor cost.

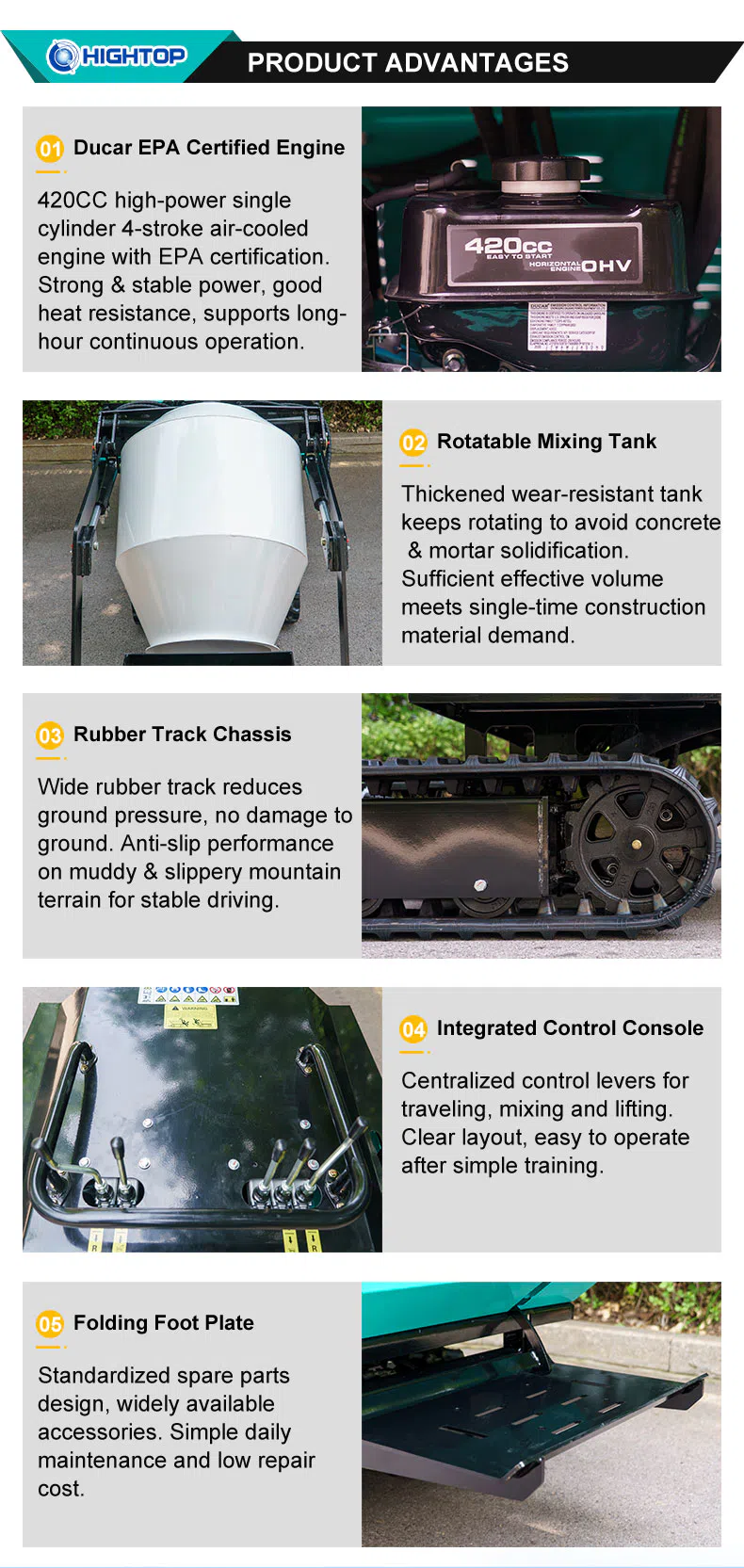

Ducar EPA Certified Engine:420CC high-power singlecylinder 4-stroke air-cooledengine with EPA certification.Strong & stable power, goodheat resistance, supports long-hour continuous operation.
Rotatable Mixing Tank :Thickened wear-resistant tank keeps rotating to avoid concrete & mortar solidification.Sufficient effective volume meets single-time construction material demand.
Rubber Track Chassis:Wide rubber track reducesground pressure, no damage toground. Anti-slip performanceon muddy & slippery mountainterrain for stable driving.
Integrated Control Console:Centralized control levers for traveling, mixing and lifting.Clear layout, easy to operate after simple training.
Folding Foot Plate:Standardized spare partsdesign, widely availableaccessories. Simple dailymaintenance and low repair cost.

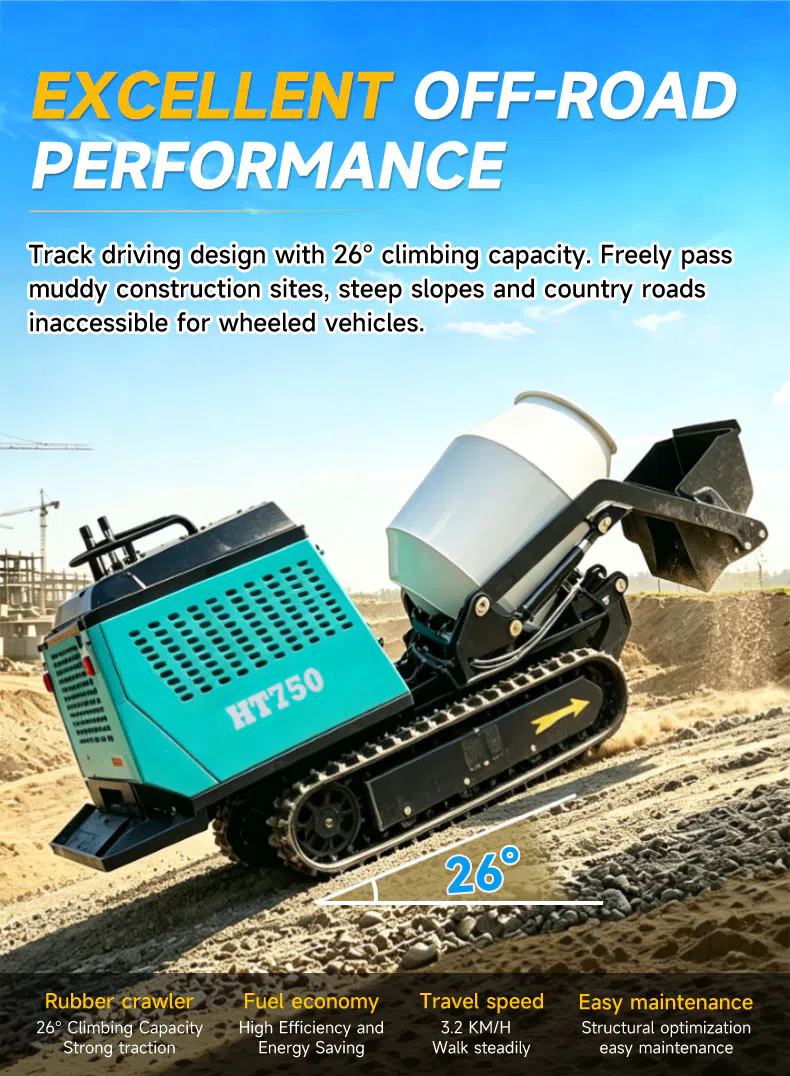

EXCELLENT OFF-ROADPERFORMANCE:Track driving design with 26° climbing capacity. Freely passmuddy construction sites, steep slopes and country roadsinaccessible for wheeled vehicles.

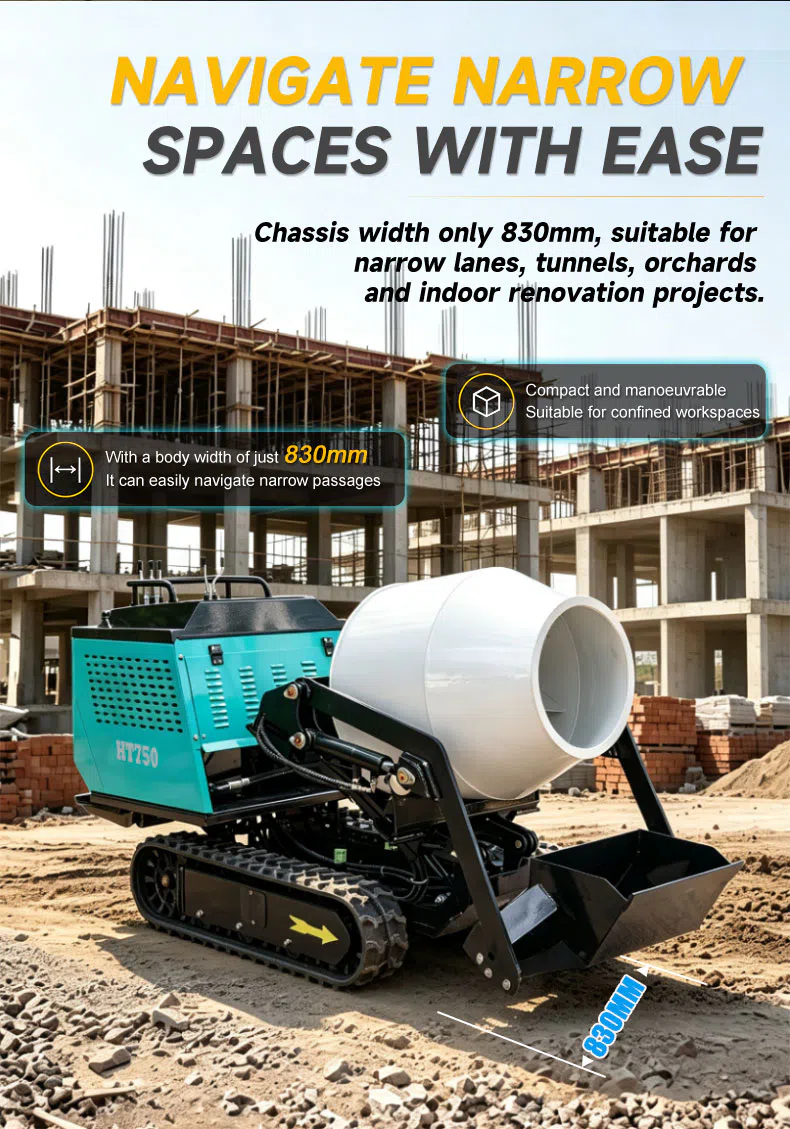

Chassis width only 830mm, suitable fornarrow lanes, tunnels, orchardsand indoor renovation projects.
HT750 Tracked Concrete Mixer With Hydraulic Unloading Product Applications
The HT750 tracked concrete mixer is widely used in construction, infrastructure maintenance, agriculture, landscaping, and small-scale engineering projects.
It is suitable for transporting and mixing concrete in locations such as:
- Building foundation construction
- Rural road and infrastructure projects
- Mountain and slope construction areas
- Landscaping and garden projects
- Small construction sites
- Concrete repair and maintenance work
The crawler design makes HT750 especially suitable for muddy terrain, uneven ground, narrow passages, and areas where traditional concrete mixer trucks cannot operate efficiently.
HIGHTOP Service Support
HIGHTOP provides complete support for HT750 tracked concrete mixer customers, including product consultation, technical guidance, spare parts supply, and after-sales service.
Before purchasing, our professional team can recommend suitable equipment solutions according to different working conditions, construction requirements, and transportation needs. During cooperation, HIGHTOP provides detailed product information, operation instructions, and shipping assistance to ensure smooth delivery.
For distributors and international partners, HIGHTOP supports OEM/ODM cooperation, customized solutions, bulk orders, and long-term supply services. With professional manufacturing experience in compact construction machinery, HIGHTOP is committed to providing reliable equipment and continuous customer support.
Tracked Concrete Mixer Frequently Asked Questions
1. What is the HT750 tracked concrete mixer used for?
HT750 is mainly used for mixing and transporting concrete, mortar, and construction materials in areas where traditional concrete mixer trucks cannot easily operate.
2. What are the advantages of a crawler concrete mixer?
The crawler chassis provides better stability, traction, and ground adaptability on muddy roads, slopes, and uneven terrain.
3. Does HT750 have a hydraulic unloading function?
Yes. HT750 is equipped with a hydraulic unloading system that helps operators discharge concrete more efficiently.
4. Can HT750 work in narrow areas?
Yes. The compact crawler structure allows the machine to work in narrow construction areas and limited-access environments.
