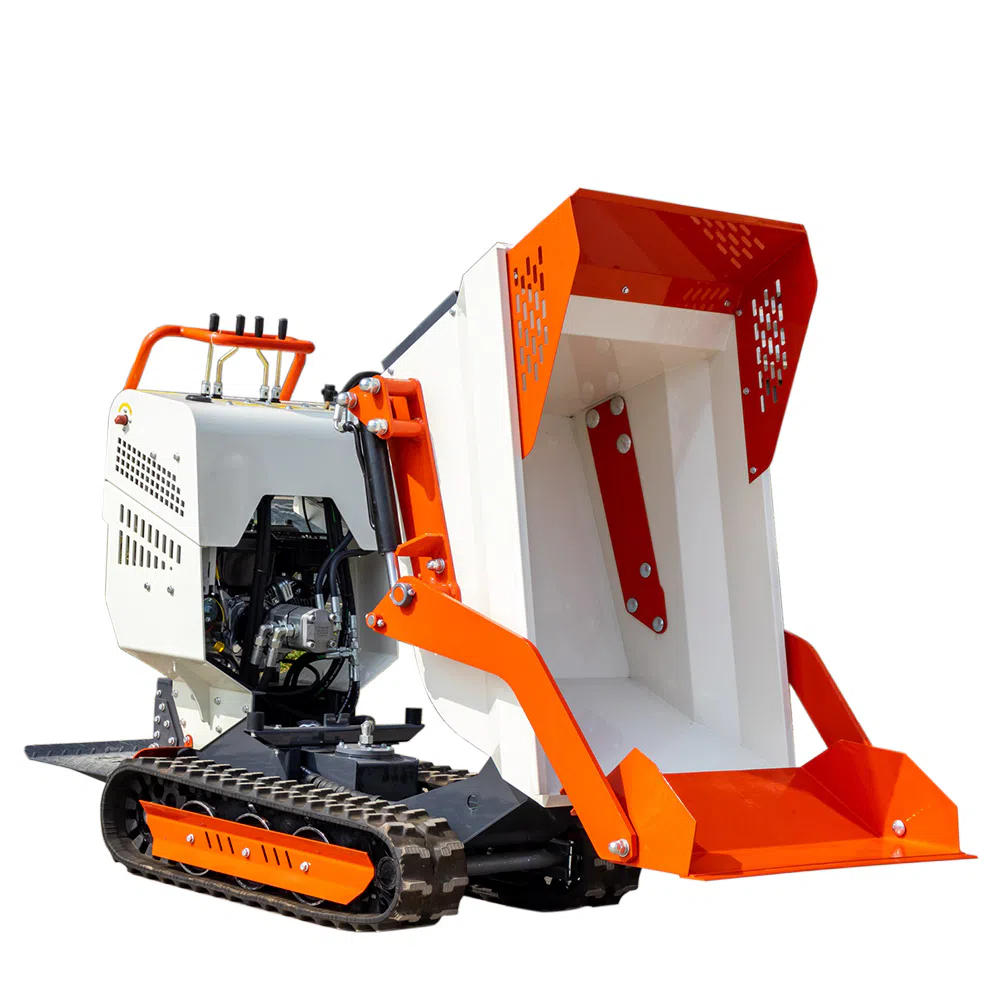

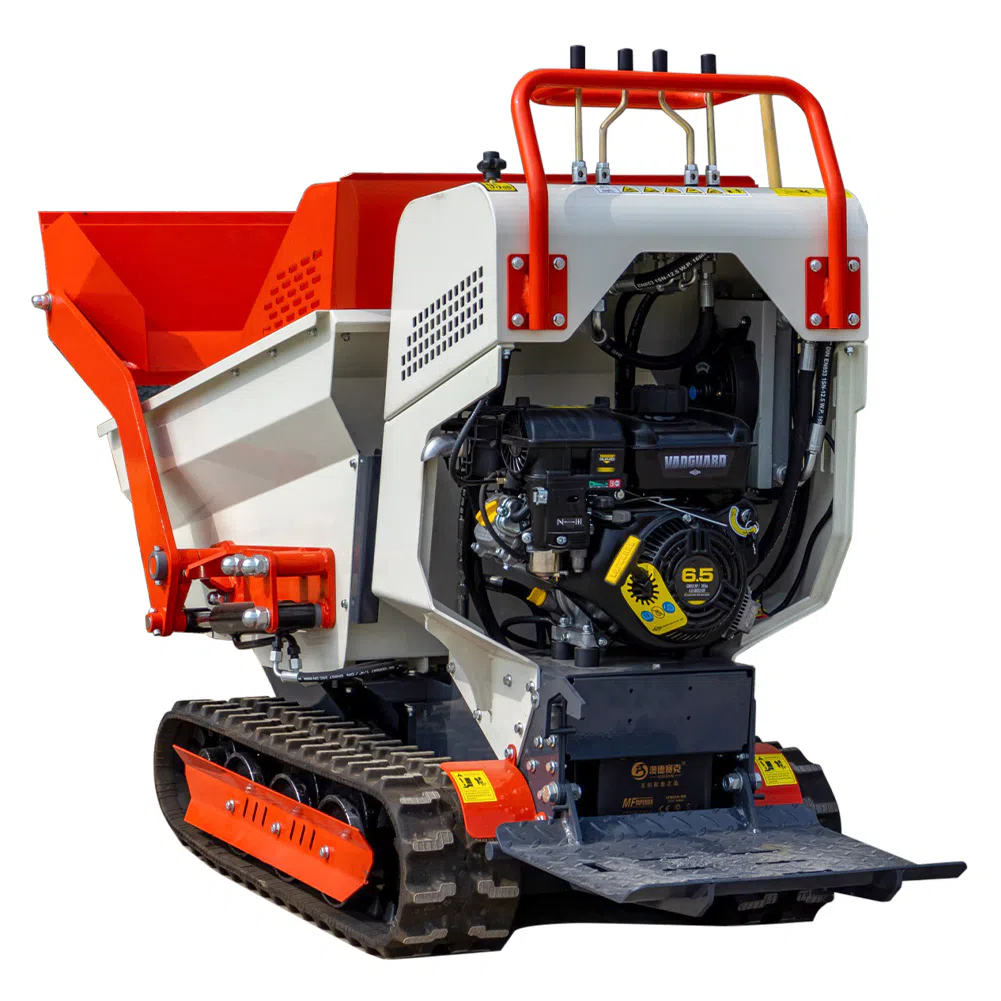

Hightop Mini Dumper with Foldable Platform HT500
The HIGHTOP HT500 Mini Dumper with Foldable Platform is a compact tracked material transport machine designed for construction, landscaping, agriculture, and narrow-space handling applications. With its crawler undercarriage, hydraulic dumping system, and practical foldable platform design, the HT500 provides a reliable solution for moving soil, gravel, sand, concrete, crops, and other materials in areas where traditional transport equipment cannot operate efficiently.
Compared with standard mini dumpers, the HT500 focuses on flexible operation and convenient transportation. The foldable platform structure helps reduce the machine size during storage and transportation, making it easier to load into vehicles or move between different working sites. The tracked chassis provides stable ground contact and improves mobility on uneven terrain, muddy roads, slopes, and soft ground conditions.

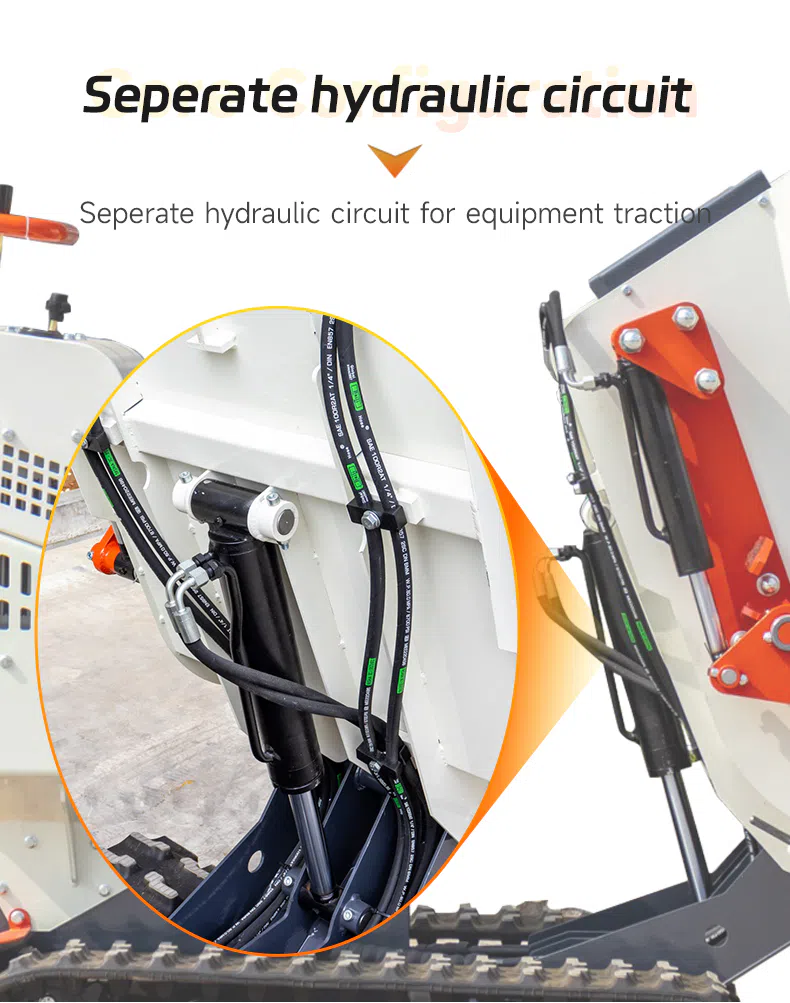

The HT500 mini tracked dumper is equipped with an independent hydraulic circuit design, which helps improve the stability of the dumping operation and supports continuous working performance. The hydraulic tipping hopper allows operators to unload materials quickly, while the adjustable dumping angle improves efficiency in different working environments.
For customers looking for compact material handling equipment, HIGHTOP also provides various solutions including mini dumpers, tracked transport machines, and construction equipment designed for different job requirements.

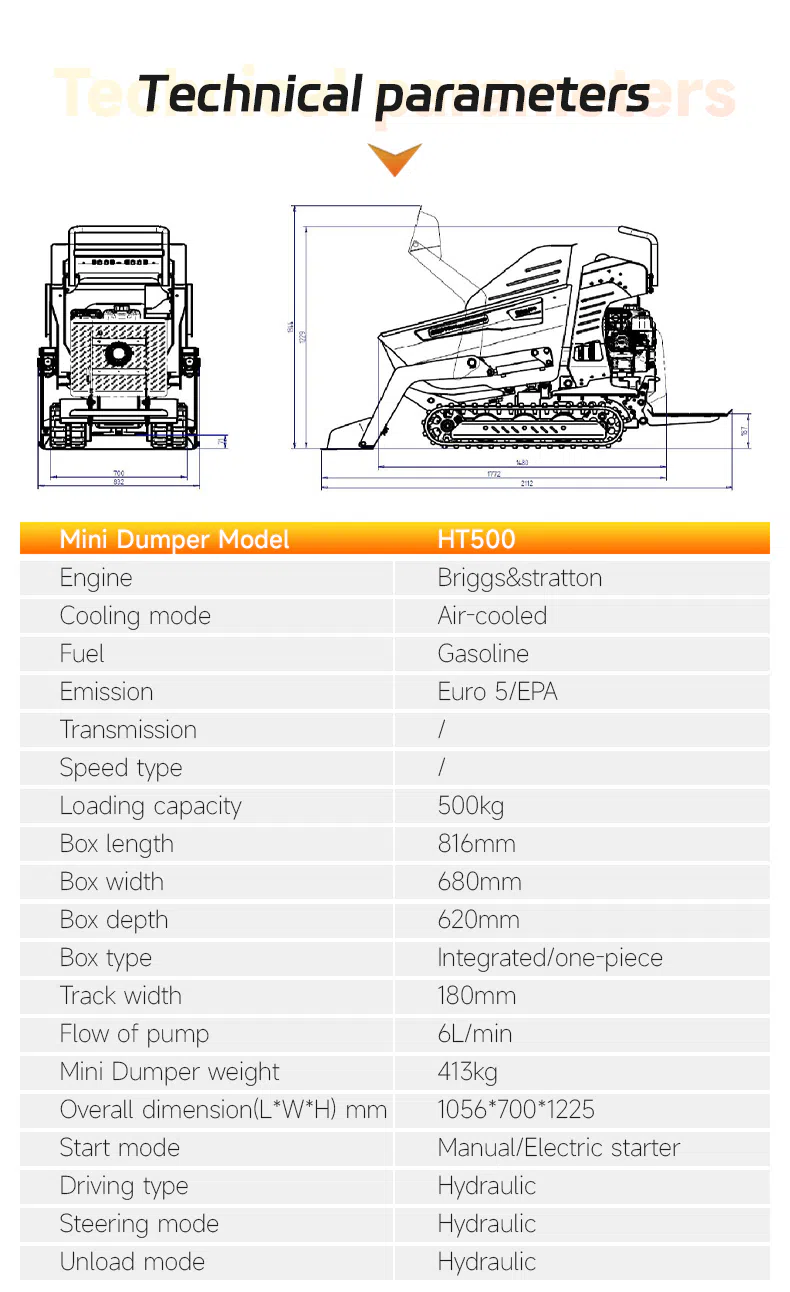

Mini Dumper with Foldable Platform HT500 Parameters
| Parameter | Value |
|---|---|
| Mini Dumper Model | HT500 |
| Engine | Briggs & Stratton |
| Cooling Mode | Air‑cooled |
| Fuel | Gasoline |
| Emission | Euro 5 / EPA |
| Transmission | / |
| Speed Type | / |
| Loading Capacity | 500 kg |
| Box Length | 816 mm |
| Box Width | 680 mm |
| Box Depth | 620 mm |
| Box Type | Integrated / one‑piece |
| Track Width | 180 mm |
| Flow of Pump | 6 L/min |
| Mini Dumper Weight | 413 kg |
| Overall Dimension (L×W×H) | 1056 × 700 × 1225 mm |

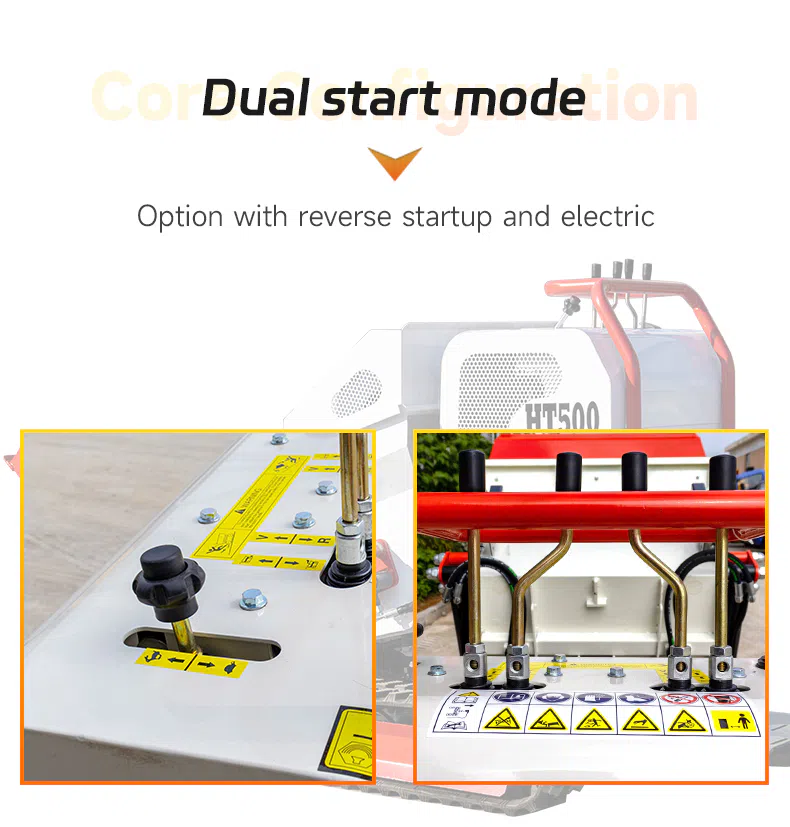

| Start Mode | Manual / Electric starter |
| Driving Type | Hydraulic |
| Steering Mode | Hydraulic |
| Unload Mode | Hydraulic |

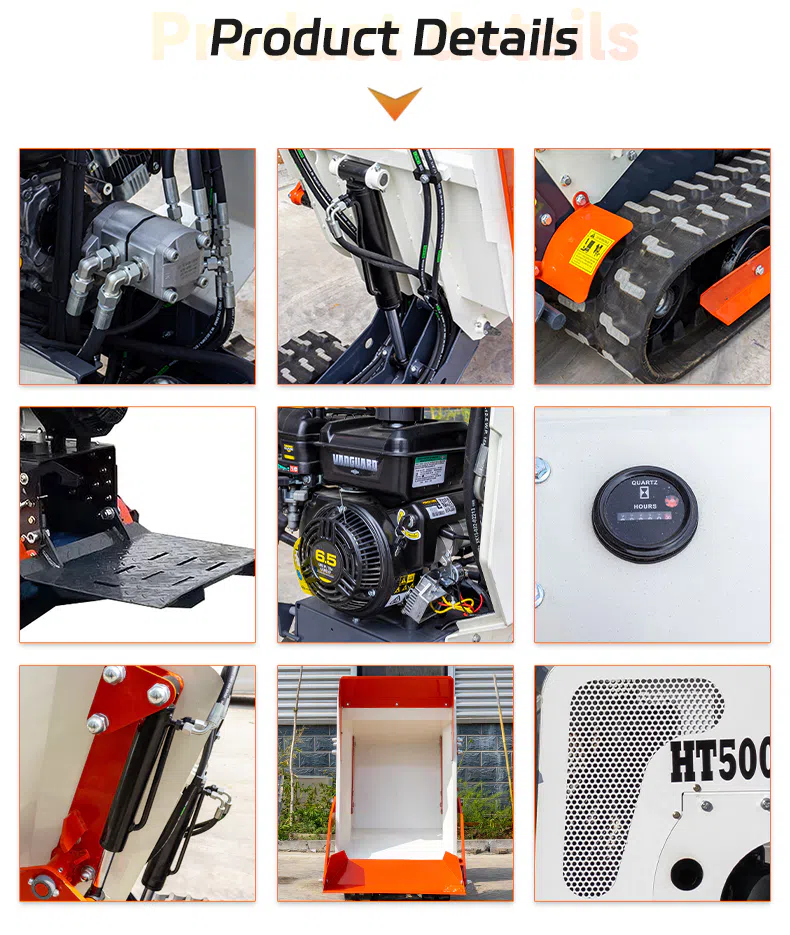

HT500 Mini Dumper with Foldable Platform Images

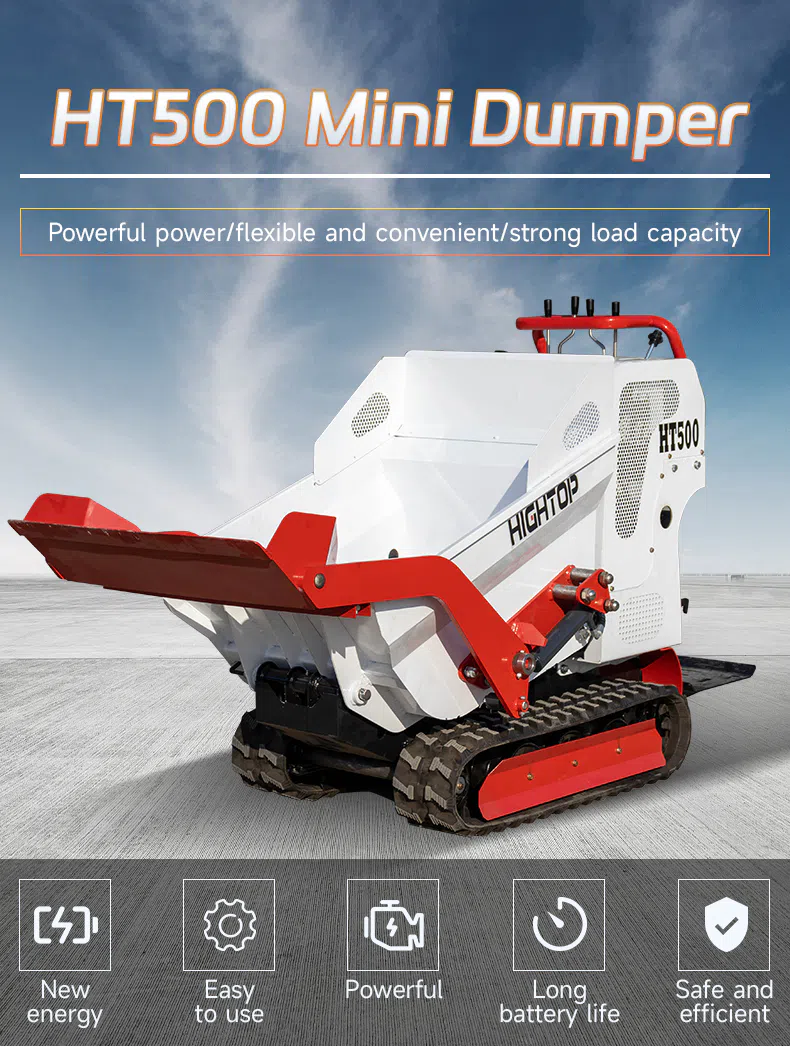

Powerful power/flexible and convenient/strongload capacity

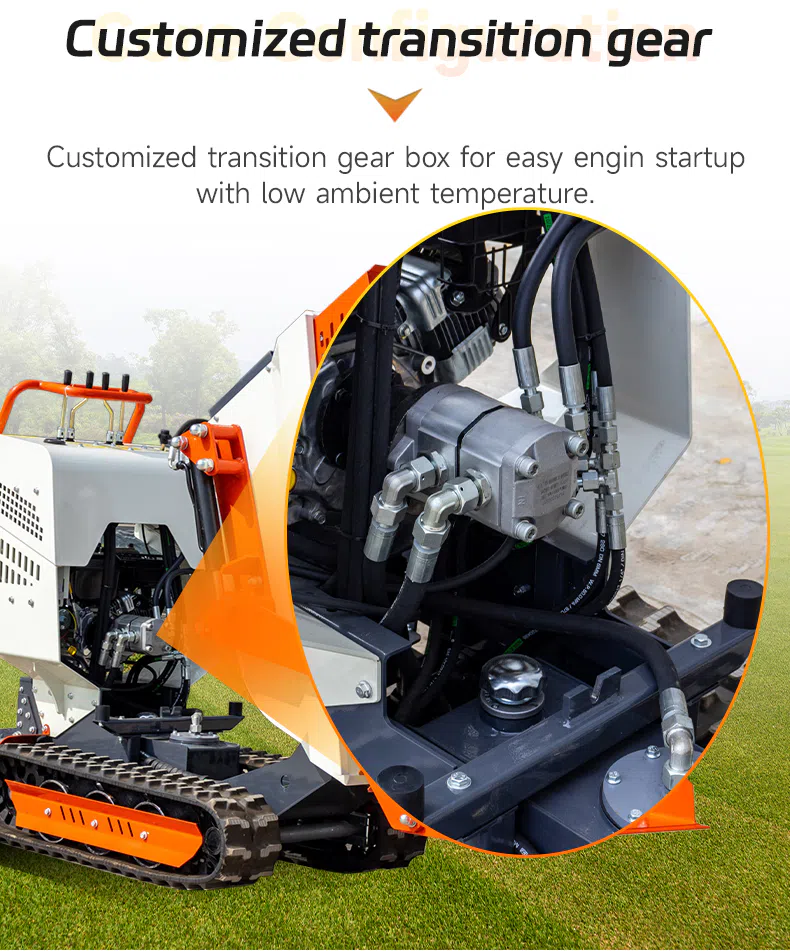

Customized transition gear box for easy engin startup

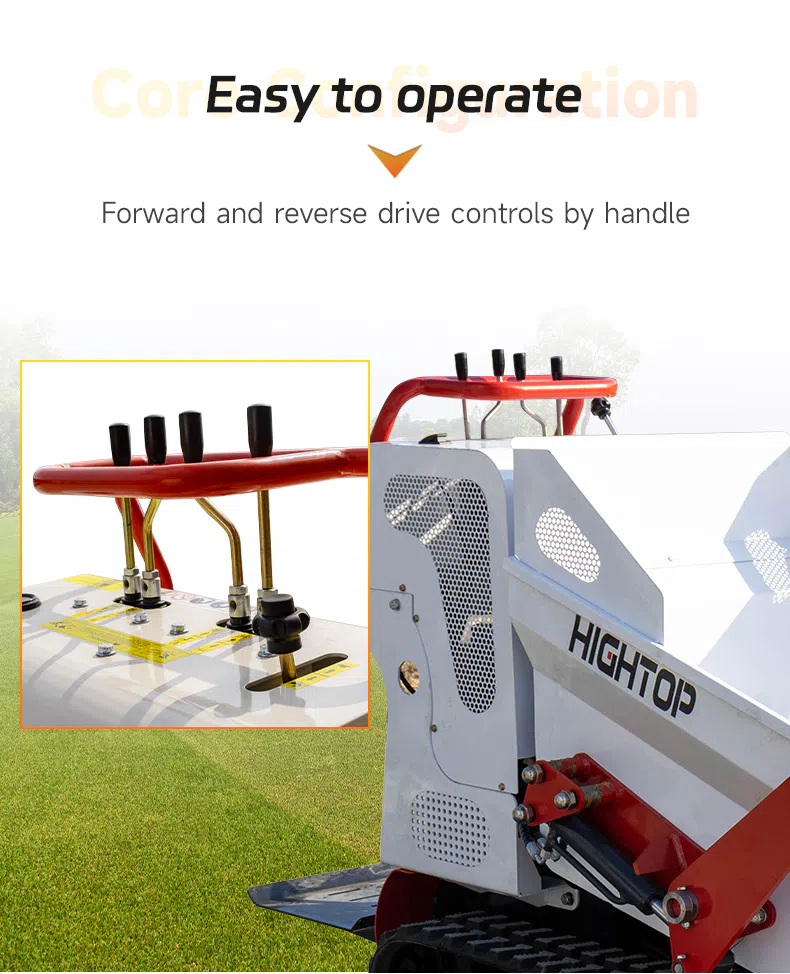

Forward and reverse drive controls by handle

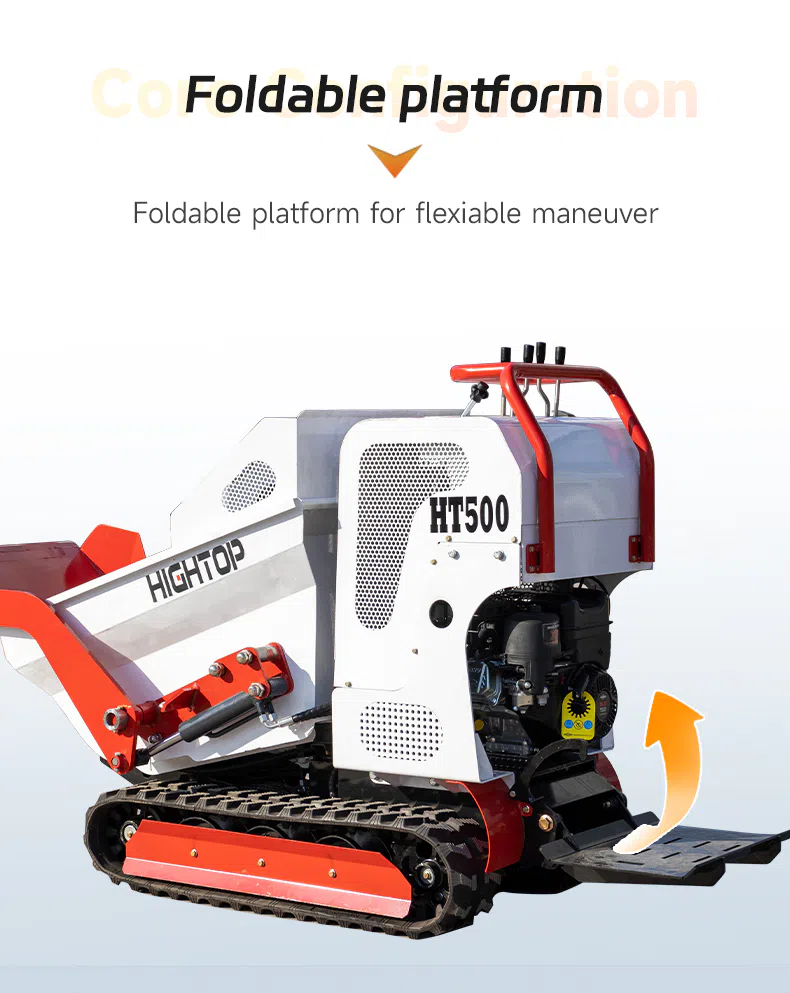

Foldable platform for flexiable maneuver

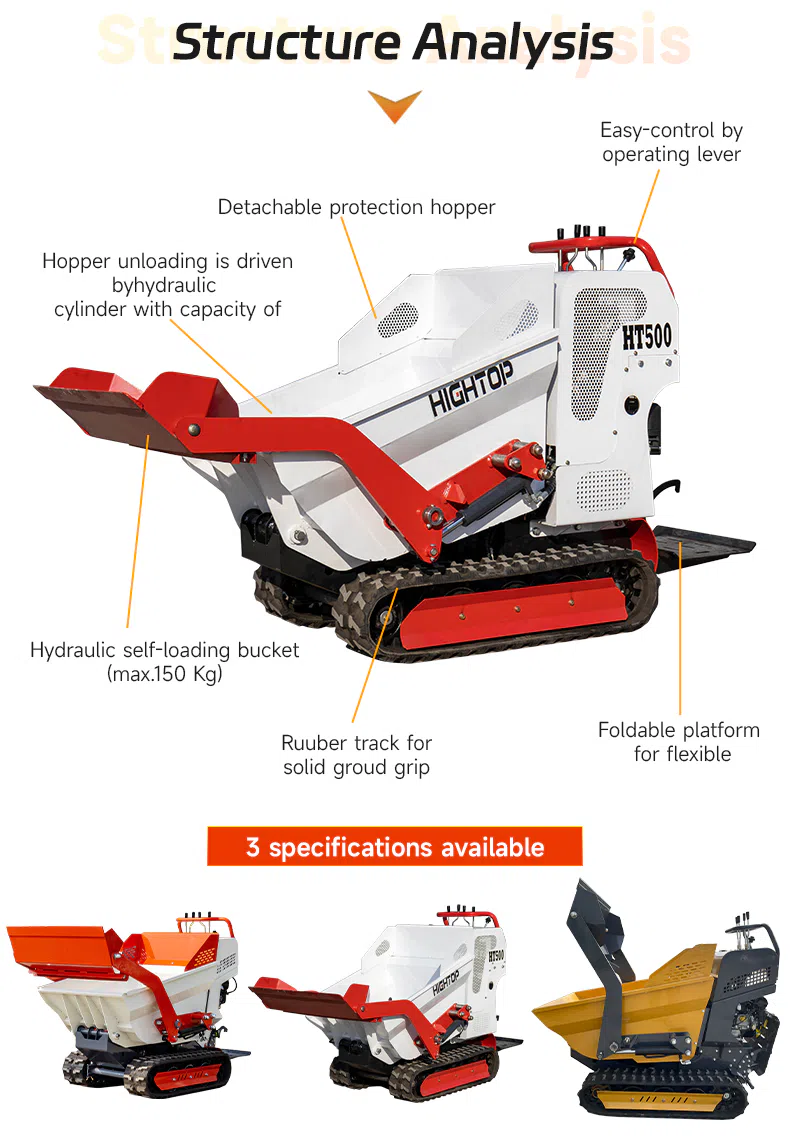

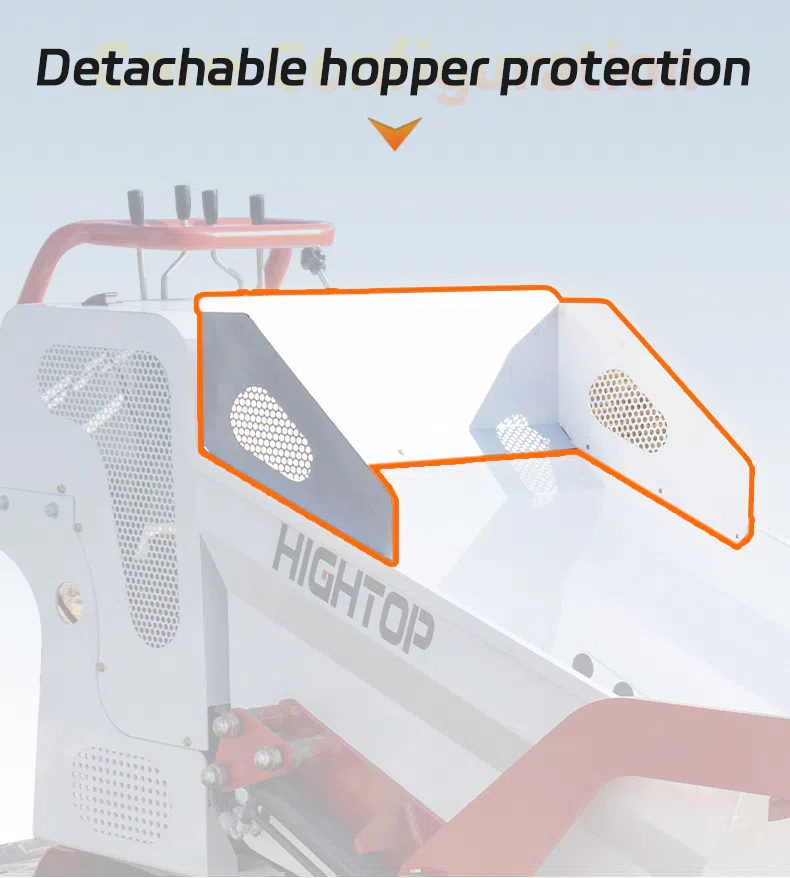

Detachable hopper protection
The HT500 mini tracked dumper is suitable for a wide range of material transportation tasks. In construction projects, it can be used for moving sand, gravel, cement, bricks, and excavation materials around job sites. Its crawler design makes it especially suitable for areas with soft ground or uneven surfaces.
In landscaping and gardening projects, the compact tracked dumper helps transport soil, fertilizer, plants, and green waste through narrow pathways where larger machines cannot access. For agricultural applications, it can assist with transporting feed, crops, and farm materials between fields, greenhouses, and storage areas.
The HT500 is also commonly used in municipal maintenance, property renovation, pipeline projects, and small-scale engineering operations where compact size and strong mobility are important.
HIGHTOP Service Support
HIGHTOP provides complete support for global customers from product selection to after-sales service. Before purchase, our professional team can recommend suitable mini dumper models according to working conditions, transportation requirements, and application environments.
For international customers, HIGHTOP offers technical documents, operation guidance, spare parts support, and remote assistance to help ensure smooth machine operation. We provide customized solutions according to customer requirements, including machine configuration, color options, attachment solutions, and OEM/ODM cooperation.
During daily use, customers can receive maintenance guidance and technical support from HIGHTOP engineers. With professional manufacturing experience and strict quality control, HIGHTOP is committed to providing reliable compact construction equipment solutions for global markets.
Mini Dumper with Foldable Platform HT500 Frequently Asked Questions
1. What materials can the HT500 mini dumper transport?
The HT500 can transport various materials including soil, gravel, sand, concrete, construction waste, agricultural materials, and landscaping supplies.
2. Is the HT500 suitable for muddy or uneven terrain?
Yes. The crawler track system provides better traction compared with wheeled transport equipment, making it suitable for muddy ground, slopes, gravel roads, and uneven working conditions.
3. Does the HT500 have a hydraulic dumping function?
Yes. The HT500 uses a hydraulic tipping system that allows operators to unload materials quickly and conveniently.
4. Can the HT500 mini tracked dumper be customized?
Yes. HIGHTOP supports customized solutions including machine configuration, appearance, and OEM/ODM cooperation according to customer requirements.
5. What industries use mini tracked dumpers?
Mini tracked dumpers are widely used in construction, agriculture, landscaping, gardening, municipal maintenance, and small engineering projects.
