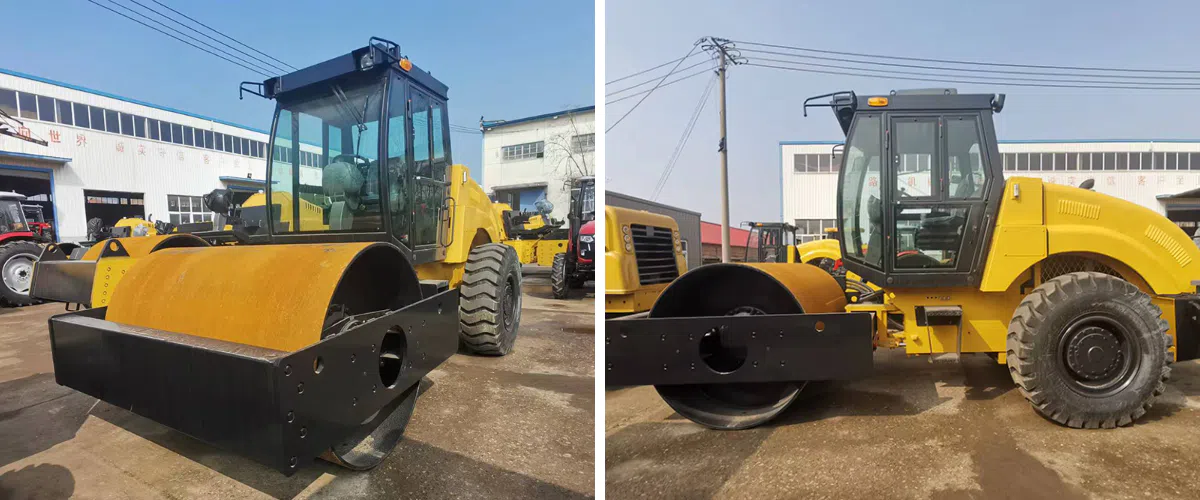

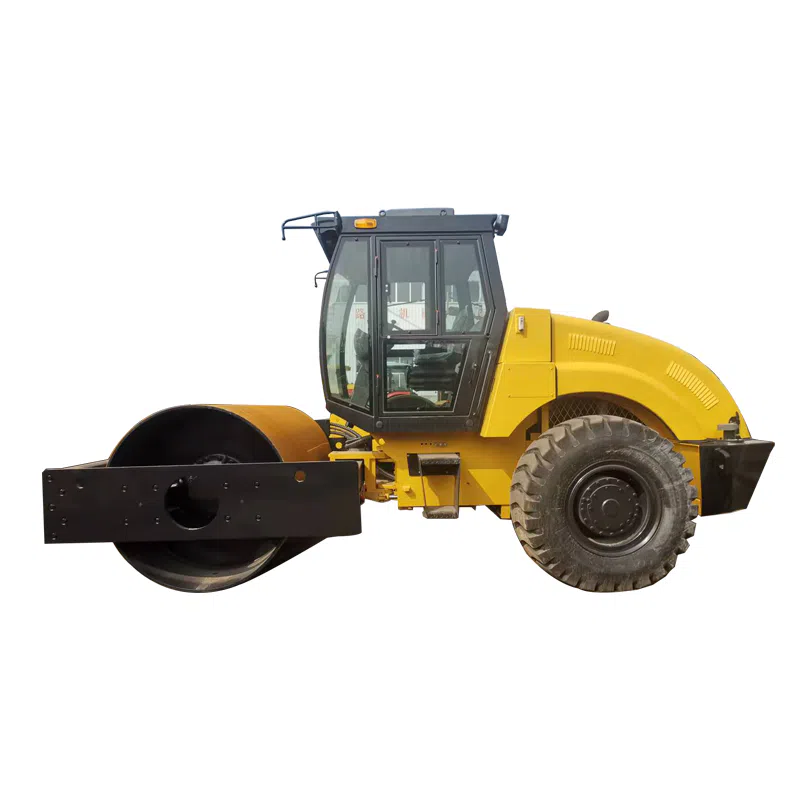

HT210 Heavy Duty Vibratory Road Rollers Instruction
HT210 heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, they are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
HT210 Heavy Duty Vibratory Road Rollers Main Feature
▲Mechanical walking, hydraulic vibration, double amplitude, hydraulic steering, with reliable performance and the best function/price ratio;
▲The engine adopts reliable Cummins series diesel engine, which is very convenient to use and maintain;
▲Two sets of braking devices, hand brake and foot brake, ensure the safety and reliability of the machine;
▲The cab is spacious and comfortable, and adopts high-quality rubber components to reduce vibration;
▲The hydraulic vibration technology adopts international advanced technology, with high reliability, simple maintenance, convenience and low cost.
HT210 Heavy Duty Vibratory Road Rollers Parameter
| MODEL | HT210 | |
| Operating mass | Kg | |
| 10000 | ||
| Static linear load | N/cm | 280 |
| Vibrating frequency | Hz | 30 |
| Vibrating amplitude | mm | 1.6/0.8 |
| Centrifugal force | KN | 260/160 |
| Travel speed | Km/h | |
| 1st gear | 2.0 | |
| 2nd gear | 4.0 | |
| 3rd gear | 10.5 | |
| Grade ability | % | 30 |
| Steering angle | 。 | 35 |
| Ground clearance | mm | 360 |
| Electrical voltage | V | 24 |
| Tuming radius | mm | 7000 |
| Vertical oascillation | 。 | 8 |
| Tyre size | 17.5-25 | |
| Overall length | mm | 5650 |
| Overall width | mm | 2280 |
| Overall height | mm | 3050 |
| Drum width | mm | 2100 |
| Drum diameter | mm | 1400 |
| Drum rim thickness | mm | 24 |
| Wheelbase | mm | 3060 |
| Diesel model | 6BT5.9 | |
| Diesel power | Kw | 97 |
| Diesel speed | r/min | 2200 |
| Fuel tank capacity | L | 220 |
| Hydraulic tank capacity | L | 190 |
