HTDL06 Wheel Loader Introduction
The HTDL06 Wheel Loader is a compact and powerful loading machine designed for various construction, agricultural, and engineering applications. Equipped with a reliable Kubota D1105 diesel engine, a 600kg rated loading capacity, and versatile attachment options, it delivers excellent performance in material handling, loading, unloading, and light excavation tasks. Its compact structure, strong hydraulic system, and durable off-road tires ensure stable operation even in challenging working environments.

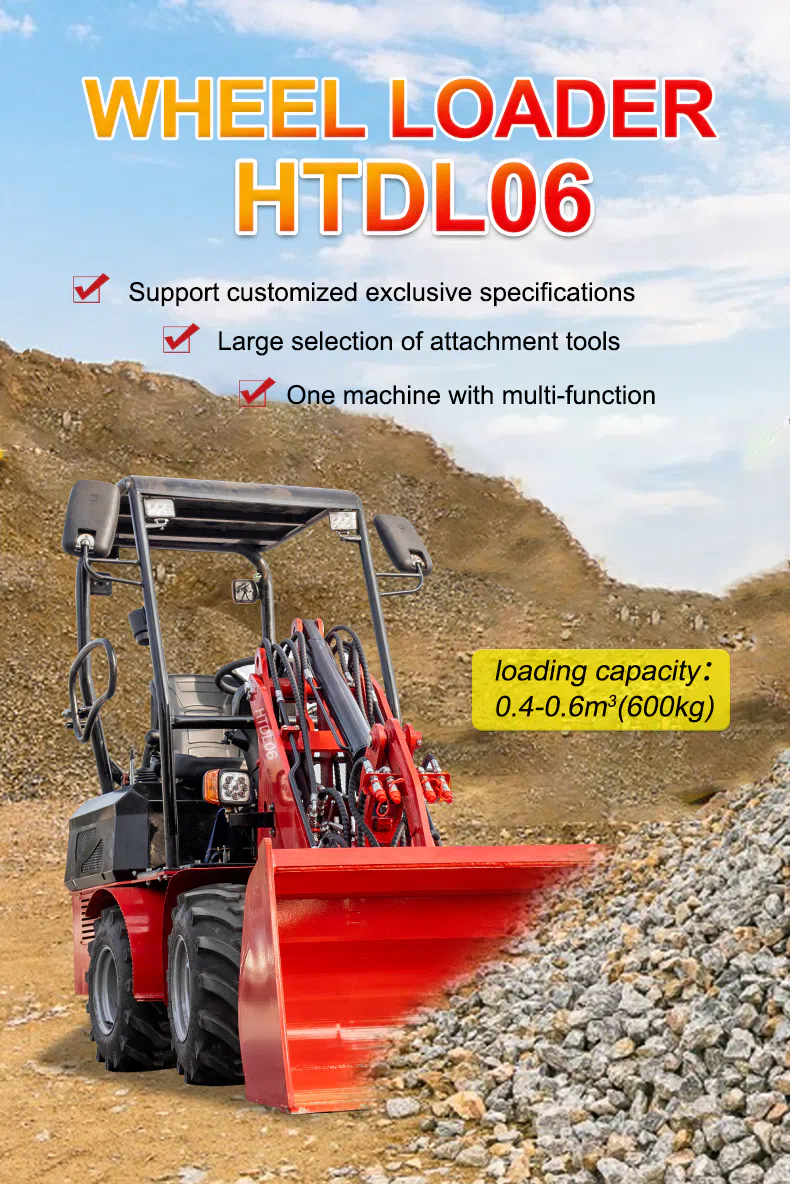

HTDL06 Wheel Loader Instruction
Support customized exclusive specifications
Large selection of attachment tools
One machine with multi-function
loading capacity：0.4-0.6m(600kg)
Large bearing capacity
Easy loading and unloading without effort
materials such as soil and stone, and can also carry out light excavation work.
Standard with bucket
Large capacity
Thickening material
Wear resistant and durable
Hydraulic oil pipe
Explosion-proof steel wire
Multiple protection
Practical and safer

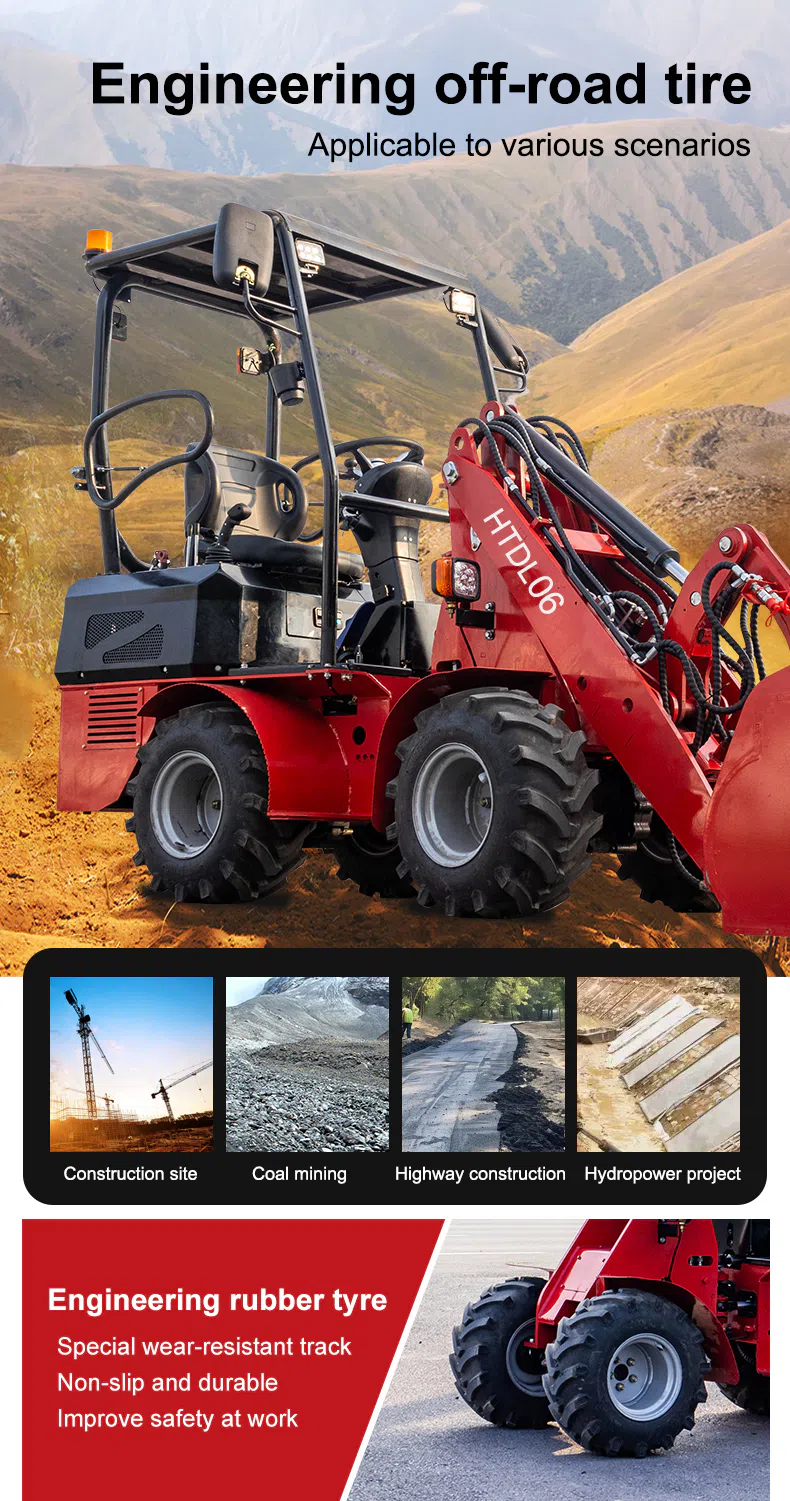

Engineering off-road tire
Applicable to various scenarios
Construction site
Coal mining
Highway construction
Hydropower project
Engineering rubber tyre
Special wear-resistant track
Non-slip and durable
Improve safety at work

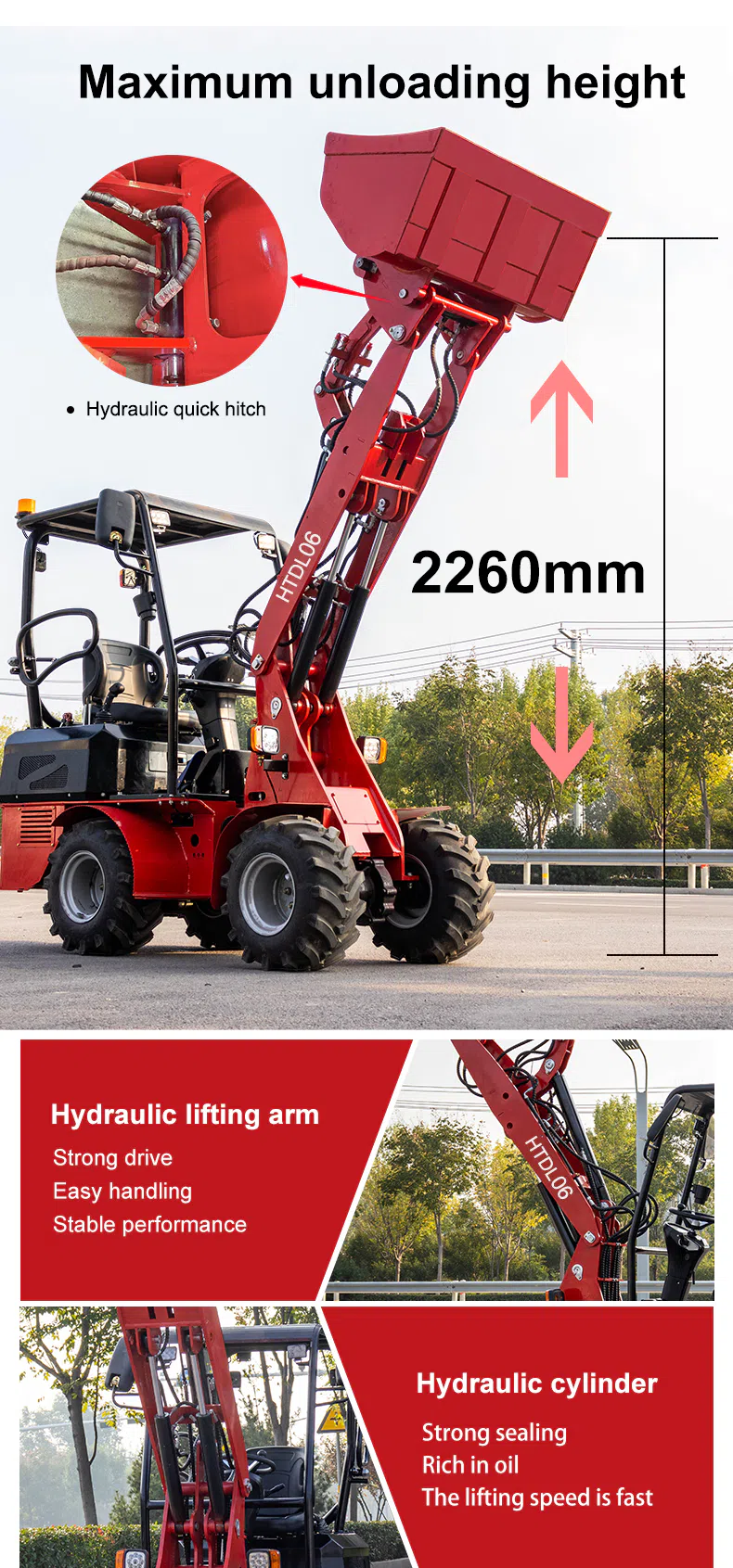

Maximum unloading height
Hydraulic quick hitch
Hydraulic lifting arm
Strong drive
Easy handling
Stable performance
Hydraulic cylinder
Strong sealing
Rich in oil
The lifting speed is fast

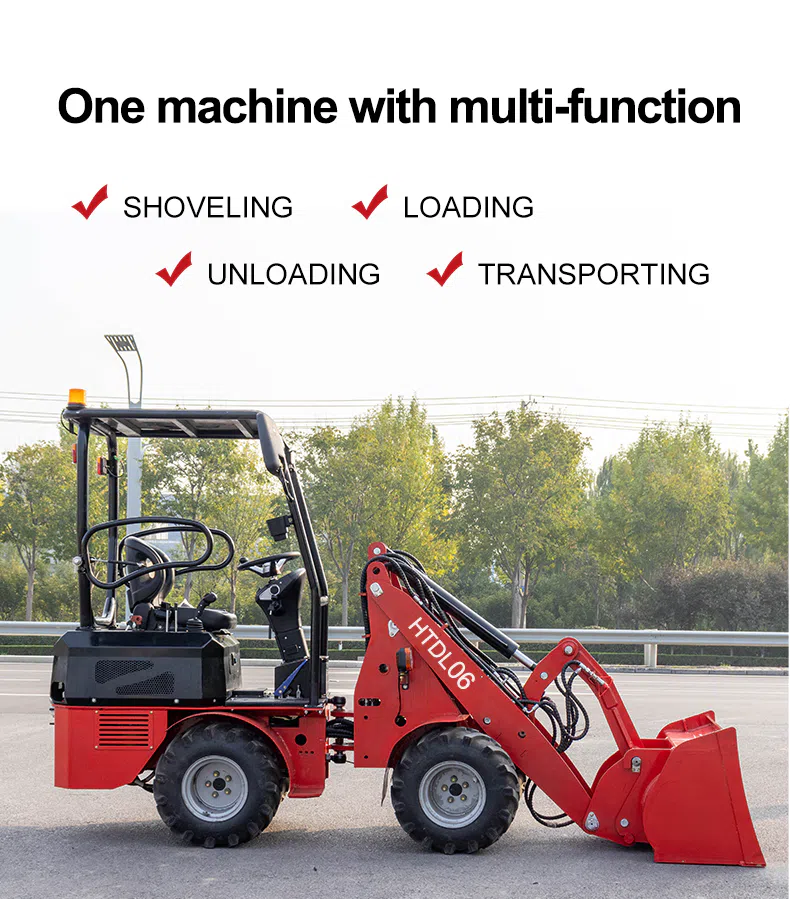

One machine with multi-function
SHOVELING
UNLOADING
LOADING
TRANSPORTING

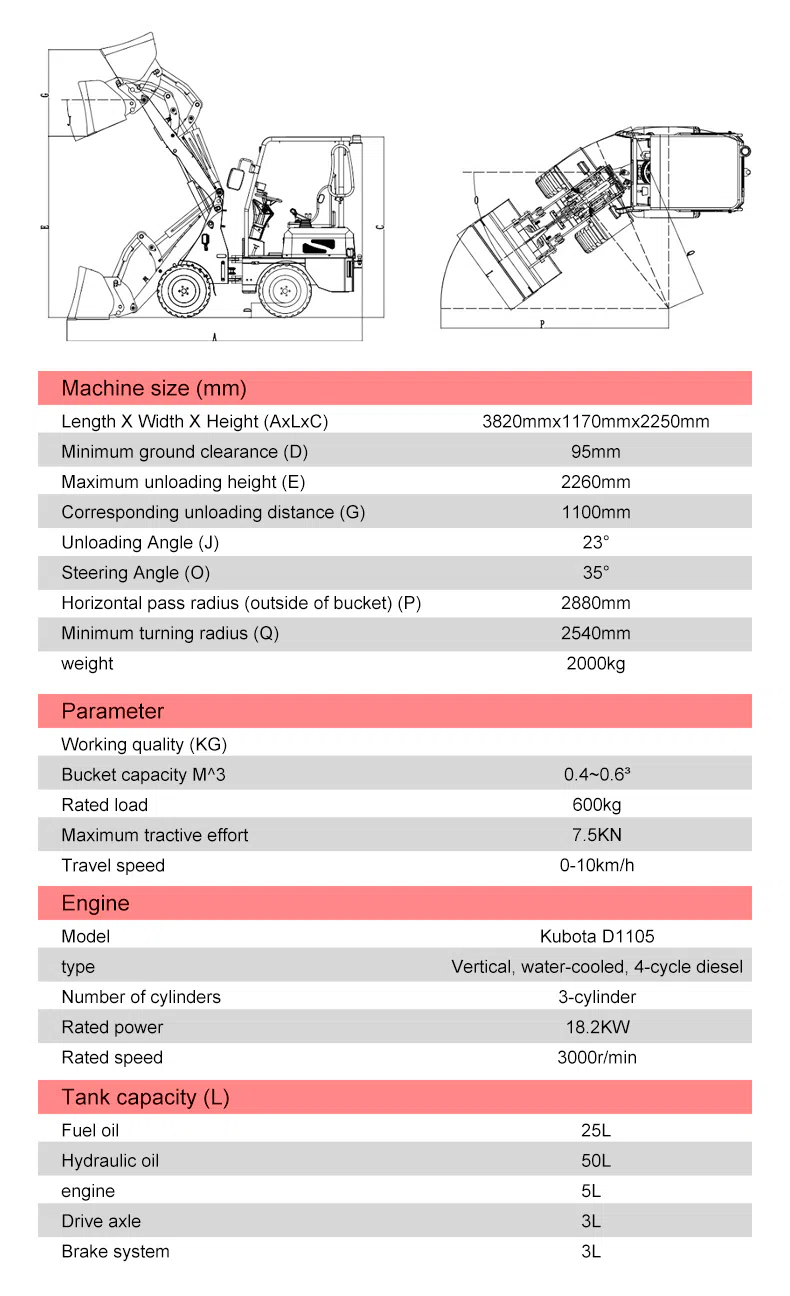

HTDL06 Wheel Loader Parameter
| Machine size(mm) | |
| Length X Width x Height (AxLxC) | 3820mmx1170mmx2250mm |
| Minimum ground clearance (D) | 95mm |
| Maximum unloading height (E) | 2260mm |
| Corresponding unloading distance(G) | 1100mm |
| Unloading Angle (J) | 23° |
| Steering Angle (O) | 35° |
| Horizontal pass radius (outside of bucket)(P) | 2880mm |
| Minimum turning radius(Q) | 2540mm |
| weight | 2000kg |
| Parameter | |
| Working quality(kG) | |
| Bucket capacity M^3 | 0.4~0.6³ |
| Rated load | 600kg |
| Maximum tractive effort | 7.5KN |
| Travel speed | 0-10km/h |
| Engine | |
| Model | Kubota D1105 Engine |
| type | Vertical, water-cooled, 4-cycle diesel |
| Number of cylinders | 3-cylinder |
| Rated power | 18.2KW |
| Rated speed | 3000r/min |
| Tank capacity(L) | |
| Fuel oil | 25L |
| Hydraulic oil | 50L |
| engine | 5L |
| Drive axle | 3L |
| Brake system | 3L |

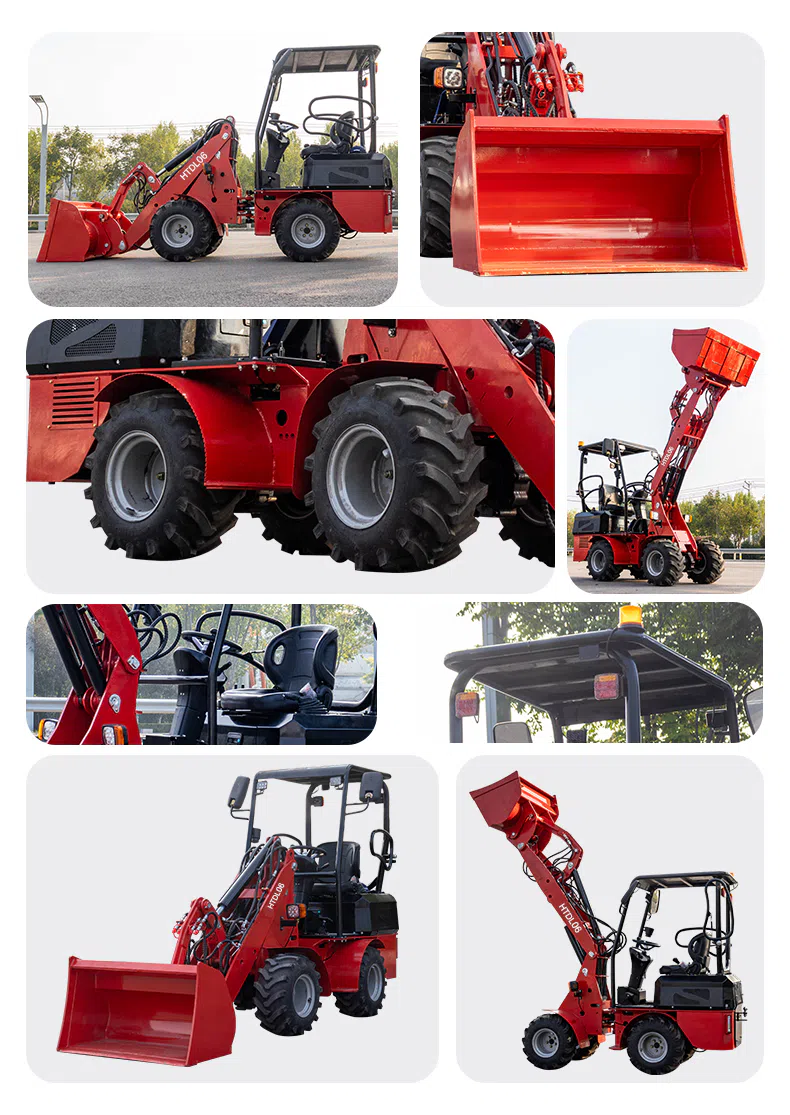

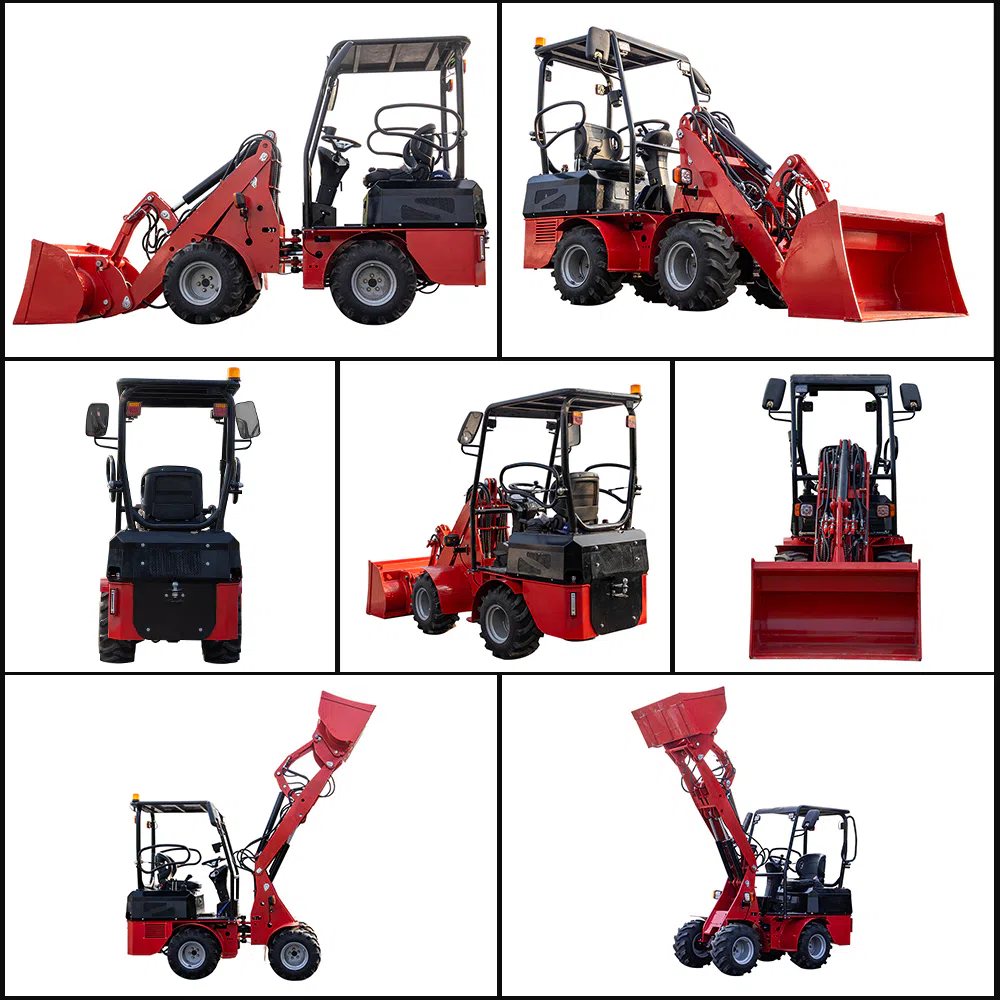

HTDL06 Wheel Loader Images

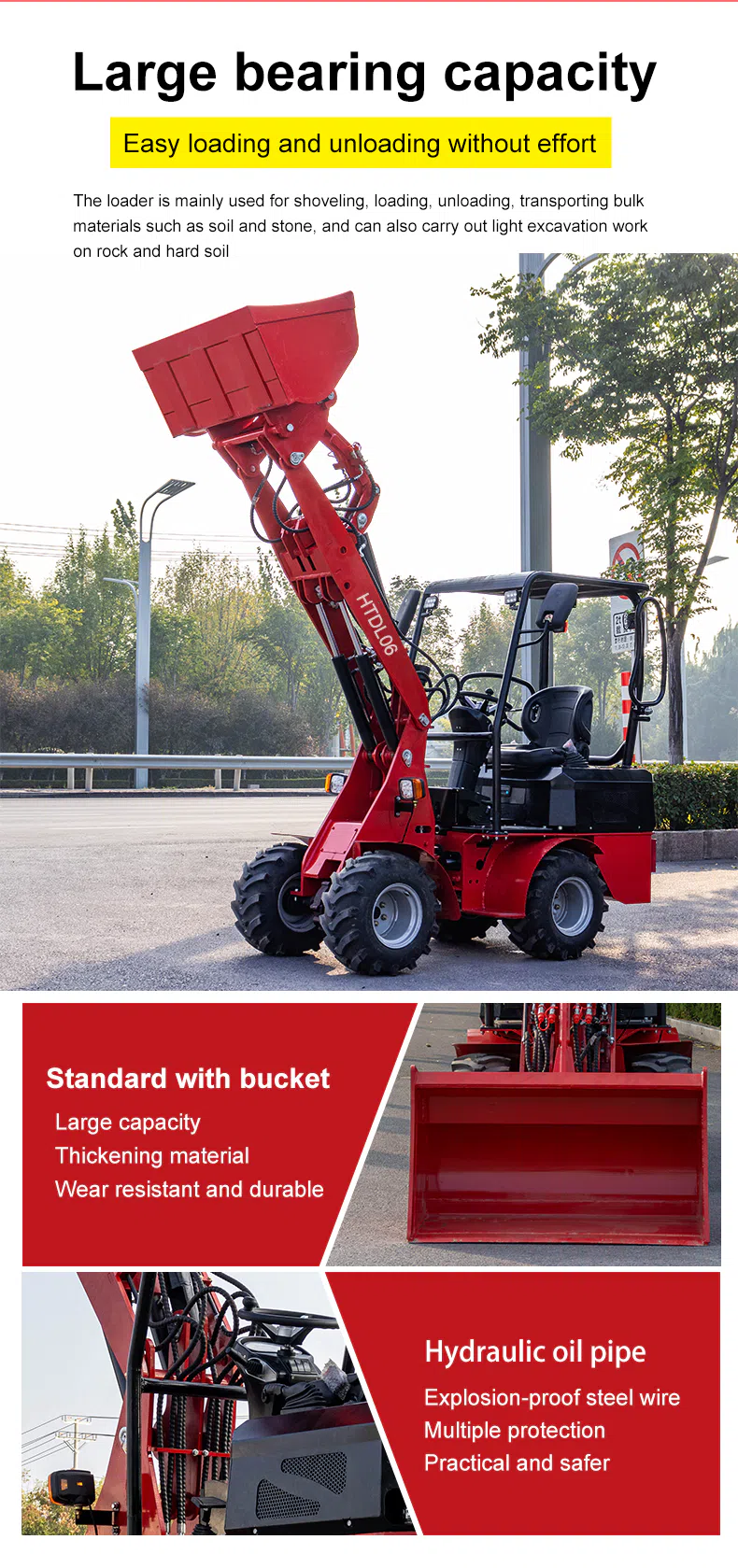

Large bearing capacity, easy loading and unloading without effort. The loader (HTDL06) is mainly used for shoveling, loading, unloading, transporting bulk materials such as soil and stone, and can also carry out light excavation work on rock and hard soil. It features a standard bucket with a large capacity, thickening material, and is wear resistant and durable. Additionally, it is equipped with a hydraulic oil pipe featuring explosion-proof steel wire, multiple protection, making it practical and safer.
Product Details

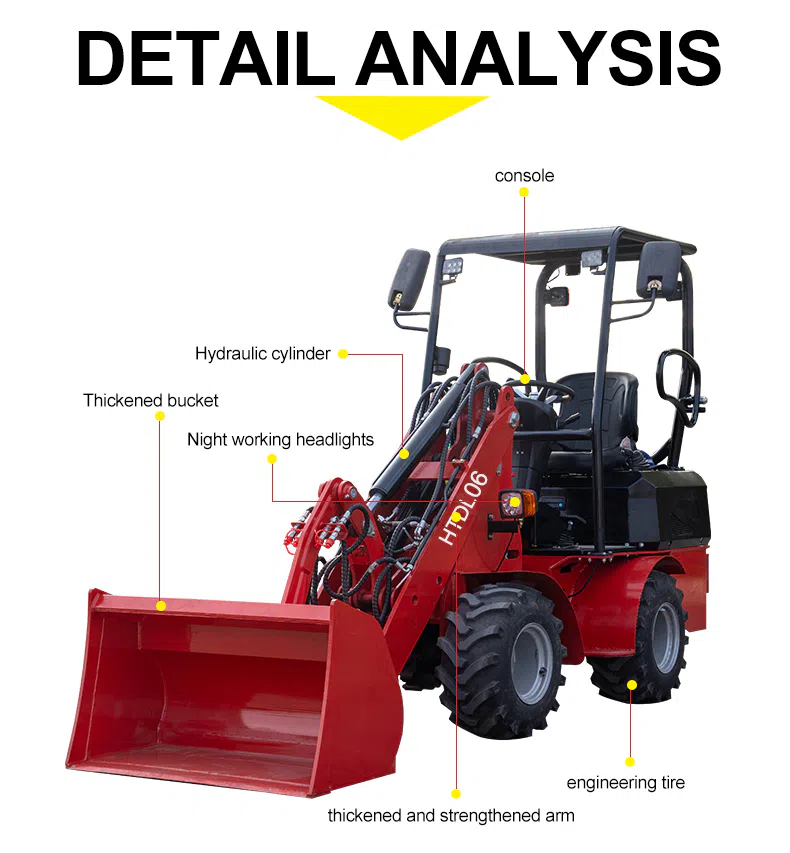

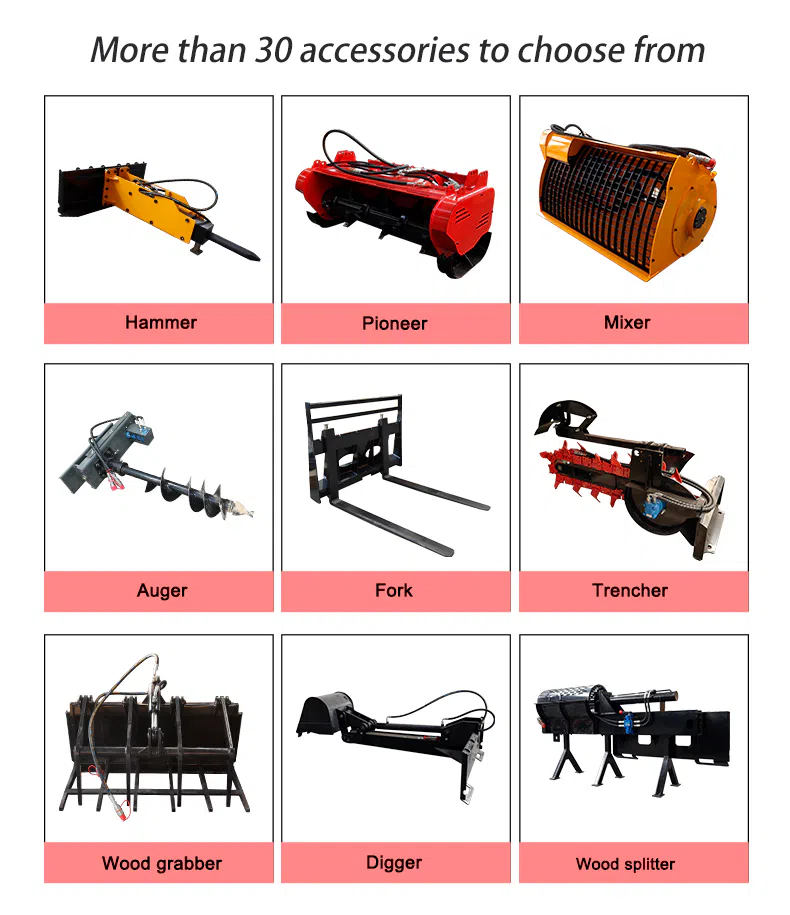

This loader (HTDL.06) features detailed analysis of its components, including a console, Hydraulic cylinder, Thickened bucket, Night working headlights, thickened and strengthened arm, and engineering tire. Additionally, there are more than 30 accessories to choose from, such as a Hammer, Pioneer, Mixer, Auger, Fork, Trencher, Wood grabber, Digger, and Wood splitter.
