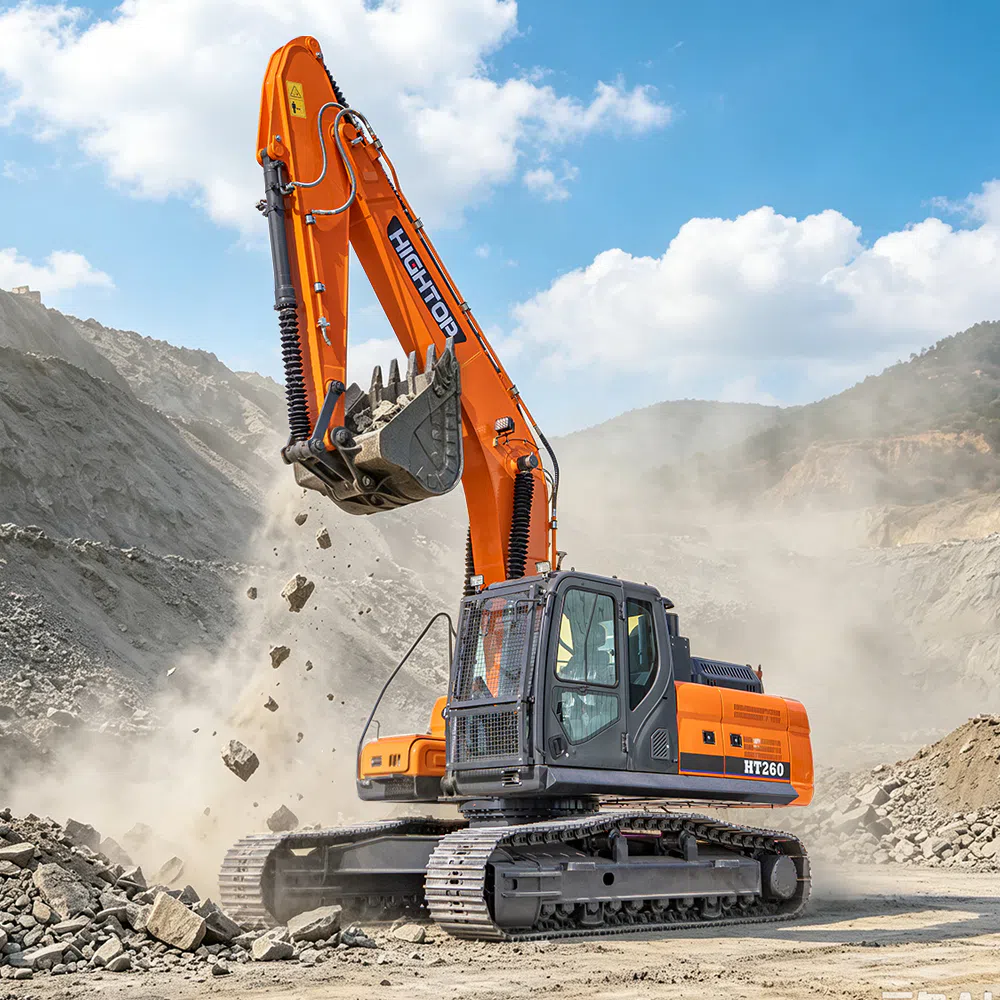

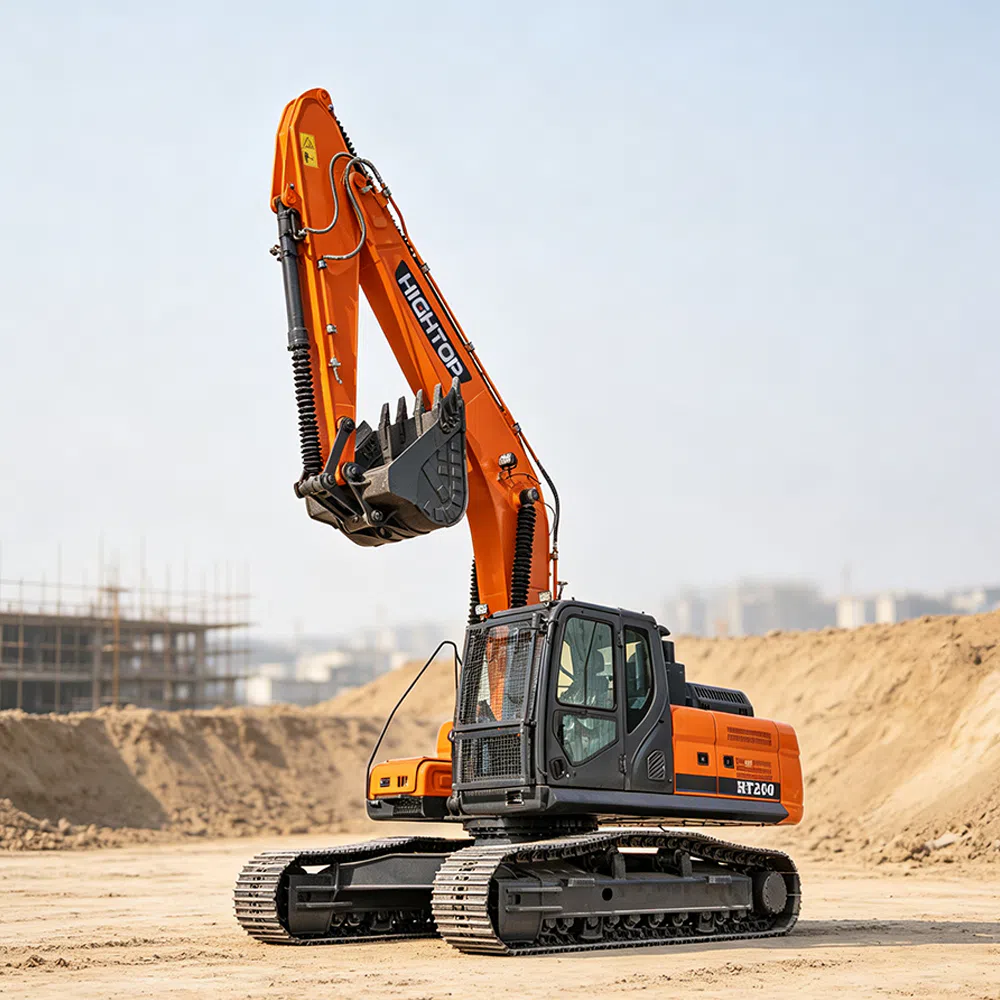

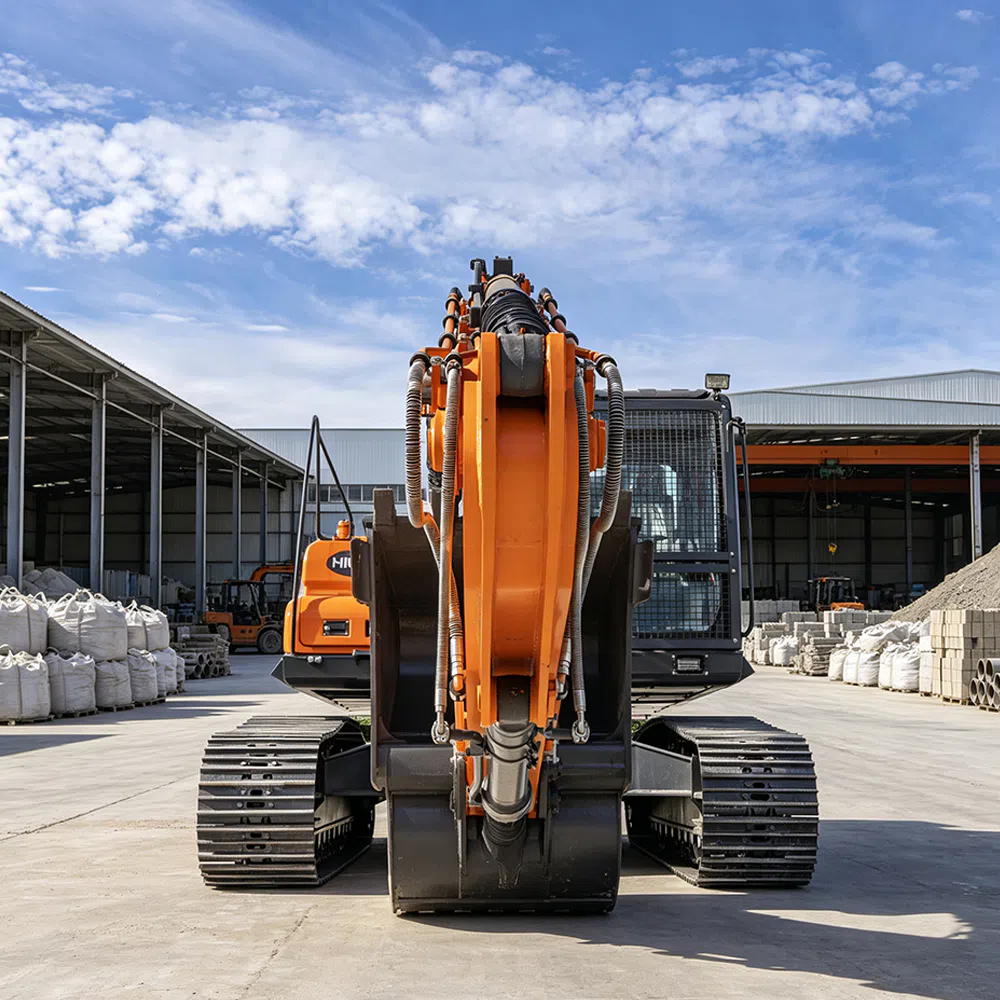

Crawler Hydraulic Excavator 26 Ton with Kawasaki Hydraulics HT260 Description
The HIGHTOP 26 ton crawler hydraulic excavator is a heavy-duty construction machine developed for large-scale excavation, infrastructure development and earthmoving operations. With a working weight of 26,000 kg and a standard bucket capacity of 1.4m³, this hydraulic crawler excavator provides the strength and working range required for demanding construction projects.
Powered by the Cummins 6BTA5.9 diesel engine, the excavator delivers 152 kW rated power at 2200 rpm and a maximum torque of 655 Nm at 1500 rpm. The six-cylinder, turbocharged and water-cooled engine design provides stable power output for continuous excavation and loading operations.
The machine features a Kawasaki K7V125 hydraulic pump, Kawasaki swing motor and Kawasaki control valve. With a maximum hydraulic flow of 240×2 L/min, the hydraulic system improves working response and provides coordinated control of the boom, arm and bucket during excavation operations.
The 26 ton crawler hydraulic excavator offers a maximum digging depth of 6838mm, maximum digging height of 9673mm and maximum digging distance of 10202mm. These working capabilities make it suitable for foundation excavation, road construction, municipal projects and large-scale earthmoving applications.
For customers looking for complete construction equipment solutions, HIGHTOP also provides different types of excavators, including mini excavators and crawler excavators, to meet various project requirements.
Hightop HT260 Crawler Hydraulic Excavator 26 Ton with Kawasaki Hydraulics Parameters
| Parameter | Specification |
|---|---|
| Operating Weight | 25400 kg |
| Bucket Capacity | 1.4 m³ |
| Engine Model | Cummins 6BTA5.9 (China Stage II) |
| Engine Type | 6-Cylinder, In-Line, 4-Stroke, Water-Cooled, Direct Injection, Turbocharged with Air-to-Air Intercooling |
| Rated Power | 152/2200 kW/rpm |
| Max Torque | 655/1500 Nm/rpm |
| Displacement | 5.89 L |
| Fuel Tank Capacity | 420 L |
| Main Pump | Kawasaki K7V125 |
| Main Pump Max Flow Rate | 240×2 L/min |
| Swing Motor | Kawasaki |
| Control Valve | Kawasaki |
| Main Valve Max Flow Rate | 240×2 L/min |
| Travel Motor | Doosan |
| Max Digging Reach | 10202 mm |
| Max Digging Depth | 6838 mm |
| Max Digging Height | 9673 mm |
| Max Dumping Height | 6996 mm |
| Bucket Digging Force | 169 kN |
| Arm Digging Force | 127 kN |
| Dozer Blade Dimensions | — |
| Travel Speed | 6.1/3.6 km/h |
| Swing Speed | 11.1 r/min |
| Max Traction Force | 217 kN |
| Gradeability | 16.7° |
| Track Shoe Count (Each Side) | 51 |
| Ground Pressure | 52 kPa |
| Overall Length (Transport) | 10082 mm |
| Overall Height (Transport) | 3235 mm |
| Overall Width | 3200 mm |
| Track Length | 4630 mm |
| Cab Height (to Top of Cab) | 2995 mm |
| Tail Swing Radius | 3040 mm |
| Track Shoe Width | 600 mm |
| Track Ground Contact Length | 3815 mm |

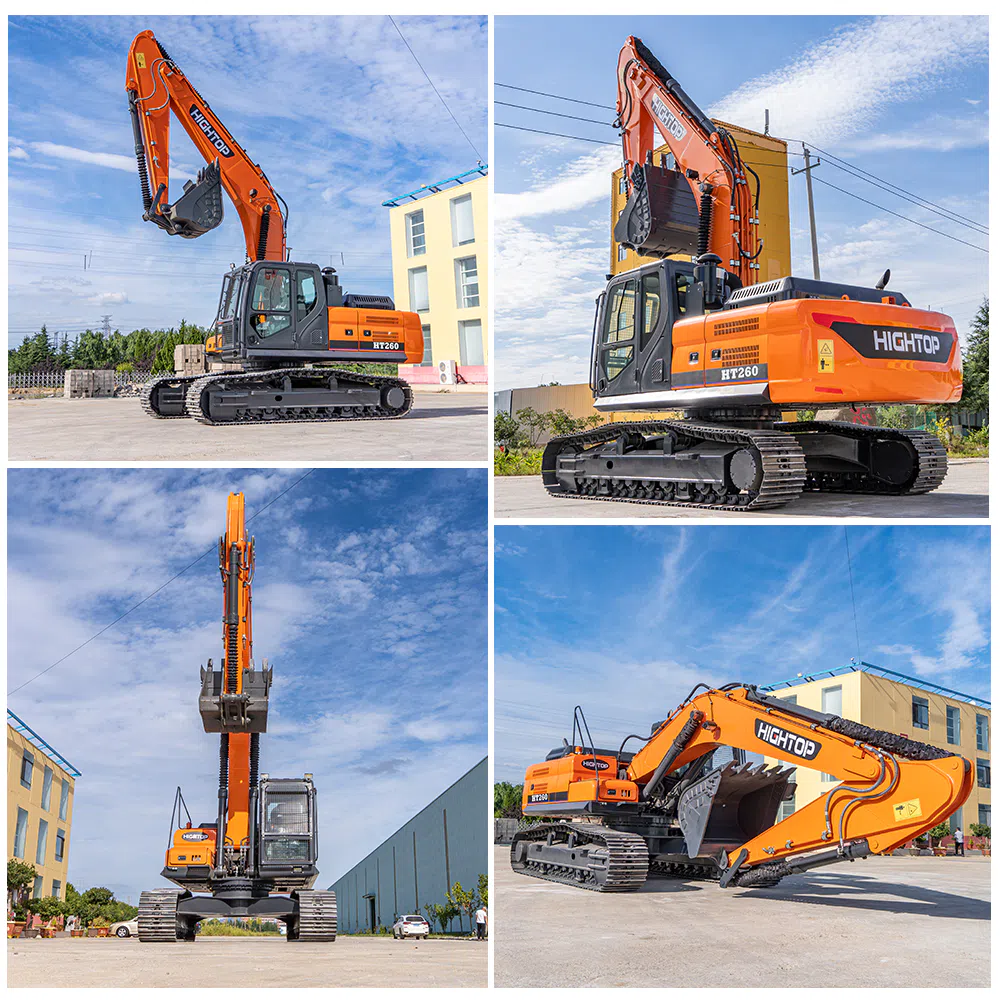

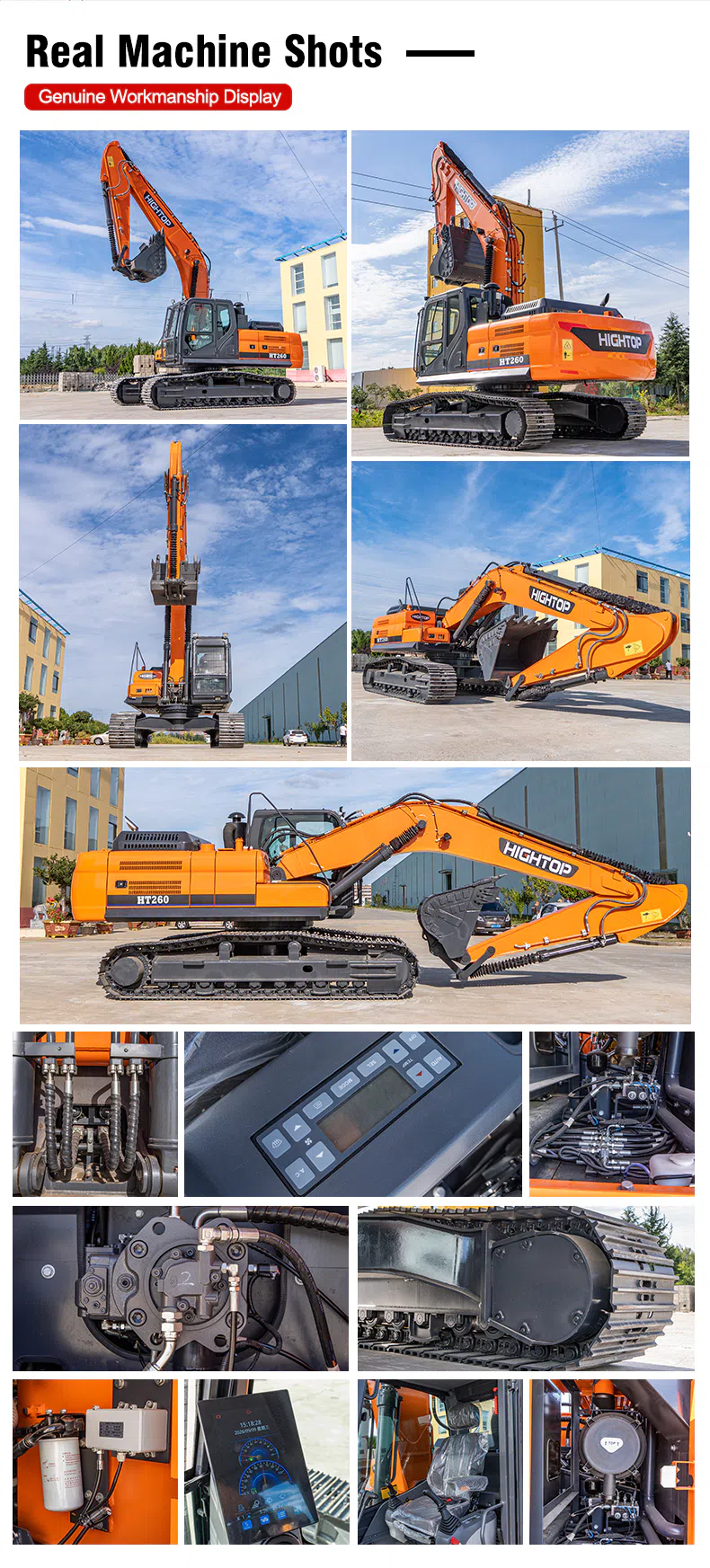

26 Ton Crawler Hydraulic Excavator HT260 Picture

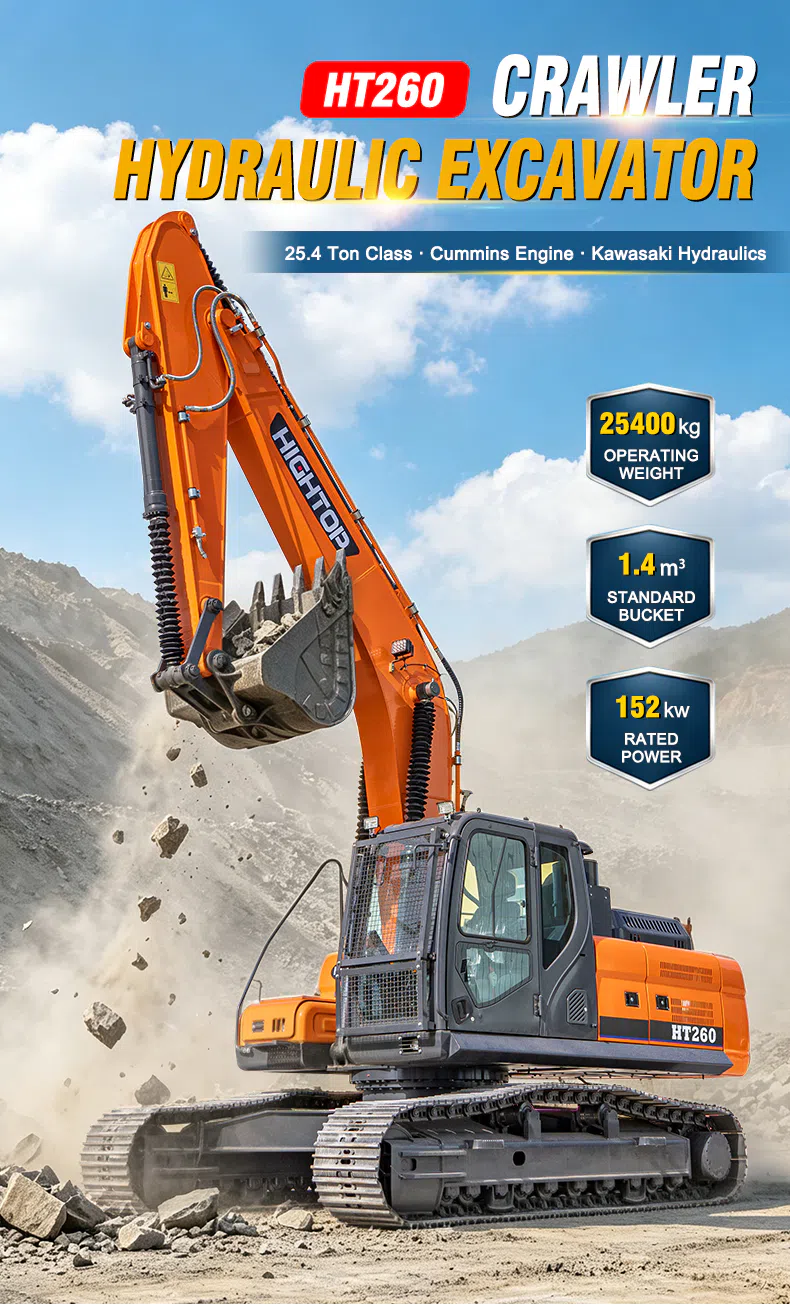

25.4 Ton Class ·Cummins Engine · Kawasaki Hydraulics

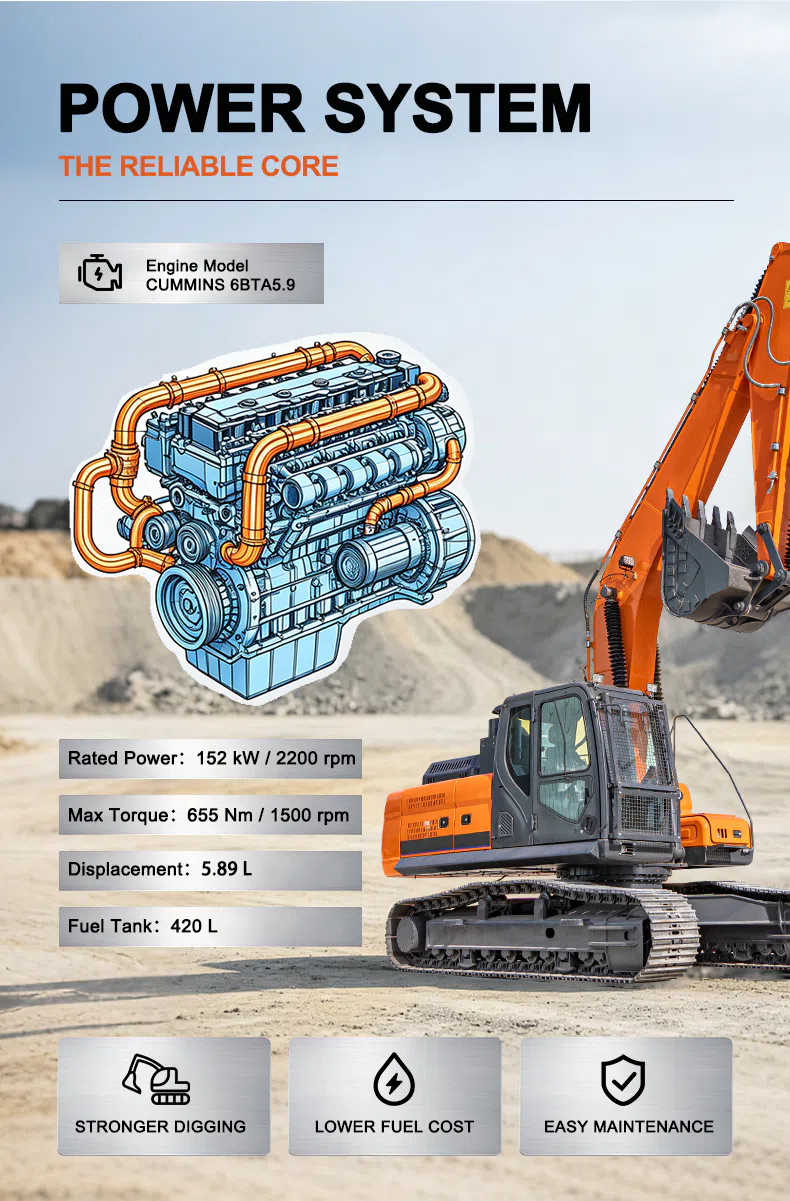

POWER SYSTEM
THE RELIABLE CORE：STRONGER DIGGING，LOWER FUEL COST，EASY MAINTENANCE

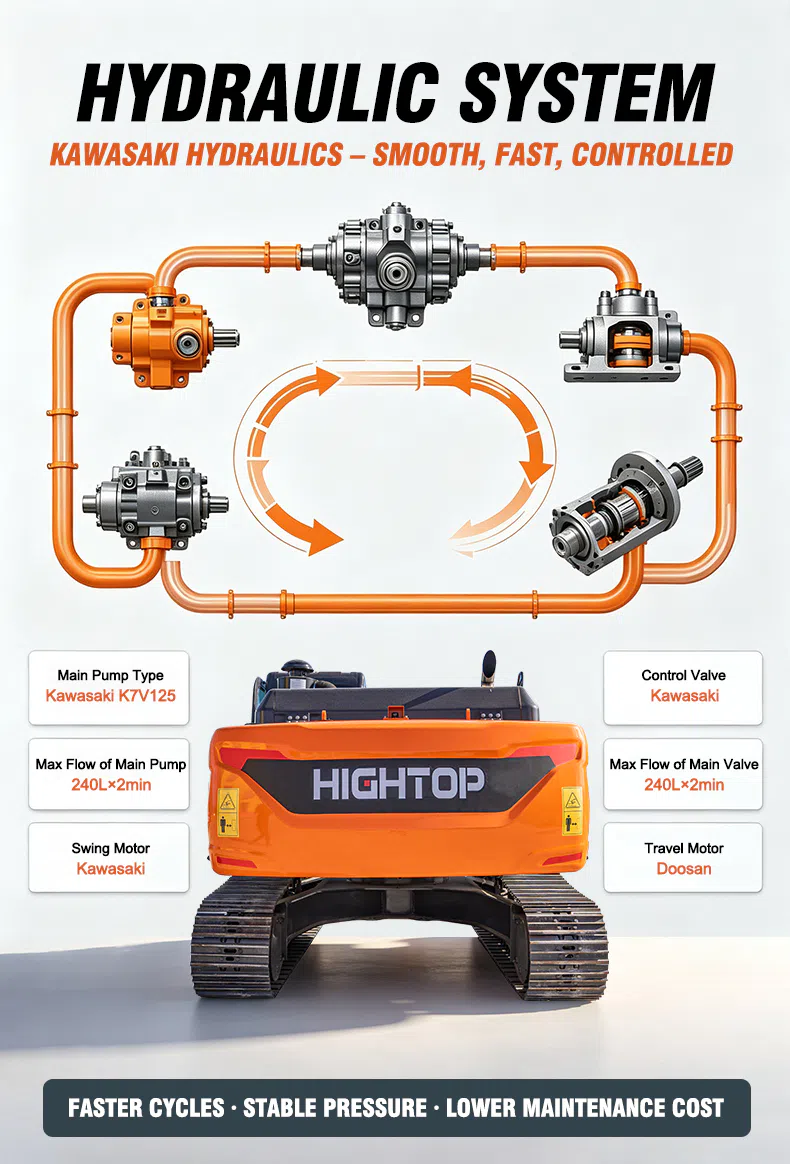

HYDRAULIC SYSTEM
KAWASAKI HYDRAULICS-SMOOTH,FAST, CONTROLLED
FASTER CYCLES ·STABLE PRESSURE ·LOWER MAINTENANCE COST

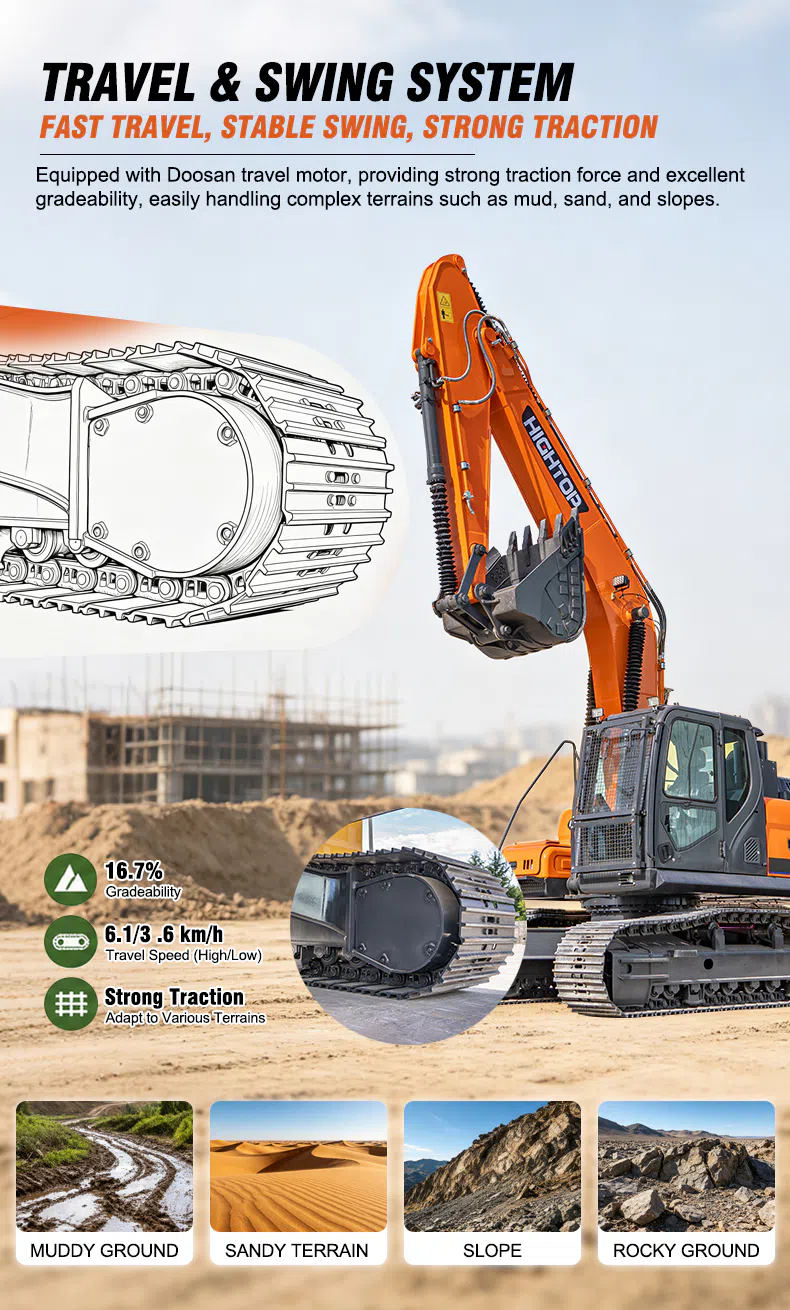

TRAVEL & SWING SYSTEM
FAST TRAVEL,STABLESWING,STRONG TRACTION
Equipped with Doosan travel motor, providing strong traction force and excellent
gradeability, easily handling complex terrains such as mud, sand, and slopes.

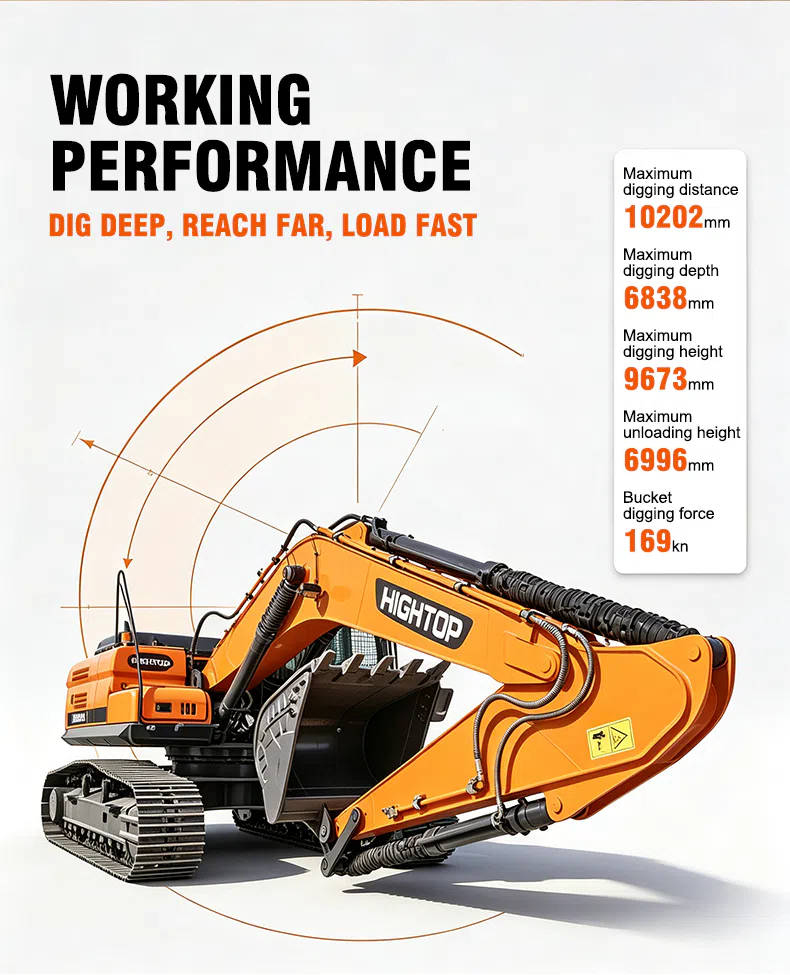

WORKING
PERFORMANCE
DIGDEEP,REACHFAR,LOAD FAST

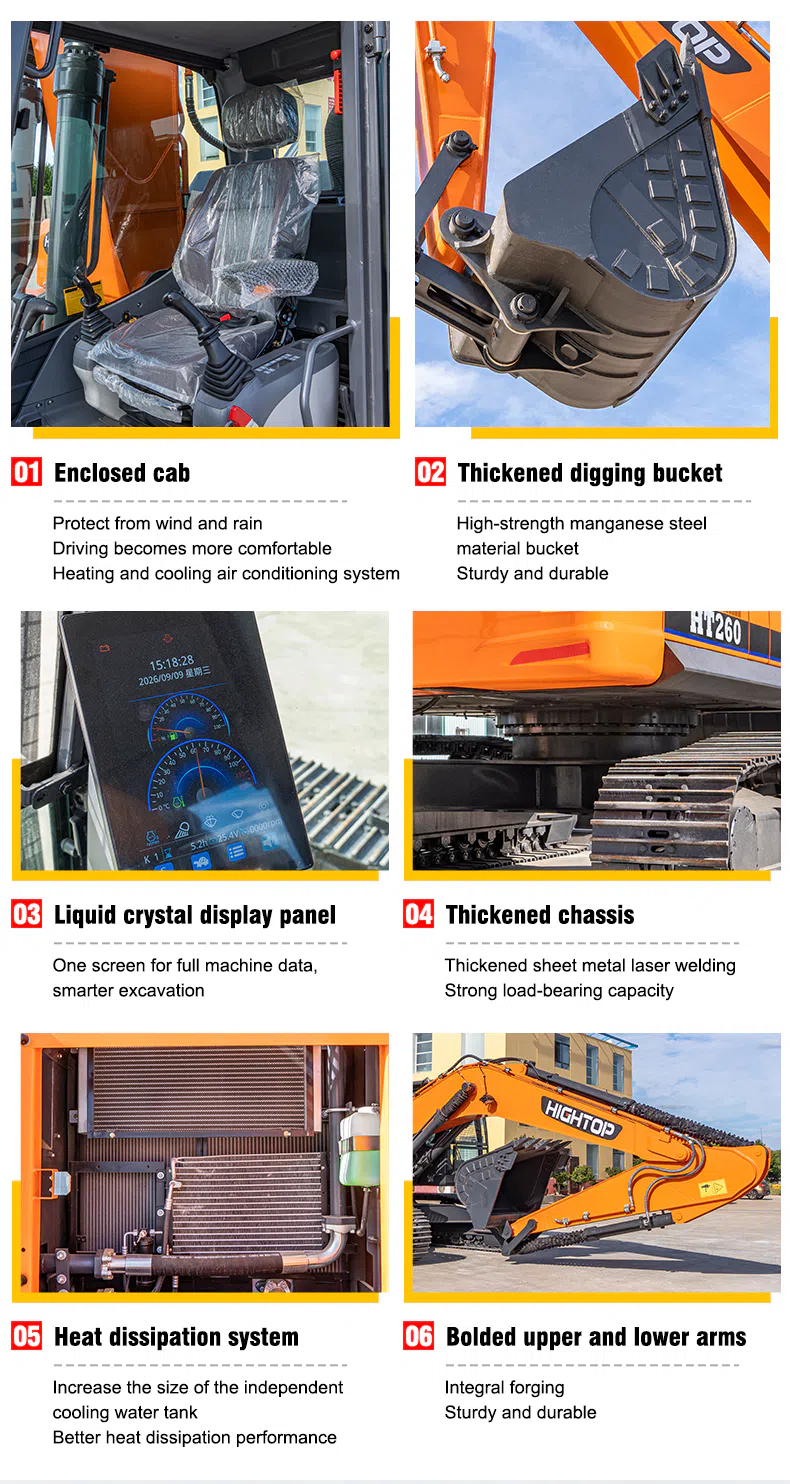

01.Enclosed cab：Protect from wind and rain，Driving becomes more comfortable，Heating and cooling air conditioning system
02.Thickened digging bucket:High-strength manganese steel,material bucket,Sturdy and durable
03.Liquid crystal display panel:One screen for full machine data,smarter excavation
04.Thickened chassis:Thickened sheet metal laser welding,Strong load-bearing capacity
05.Heat dissipation system:Increase the size of the independent,cooling water tank,Better heat dissipation performance
06.Bolded upper and lower arms:Integral forging,Sturdy and durable

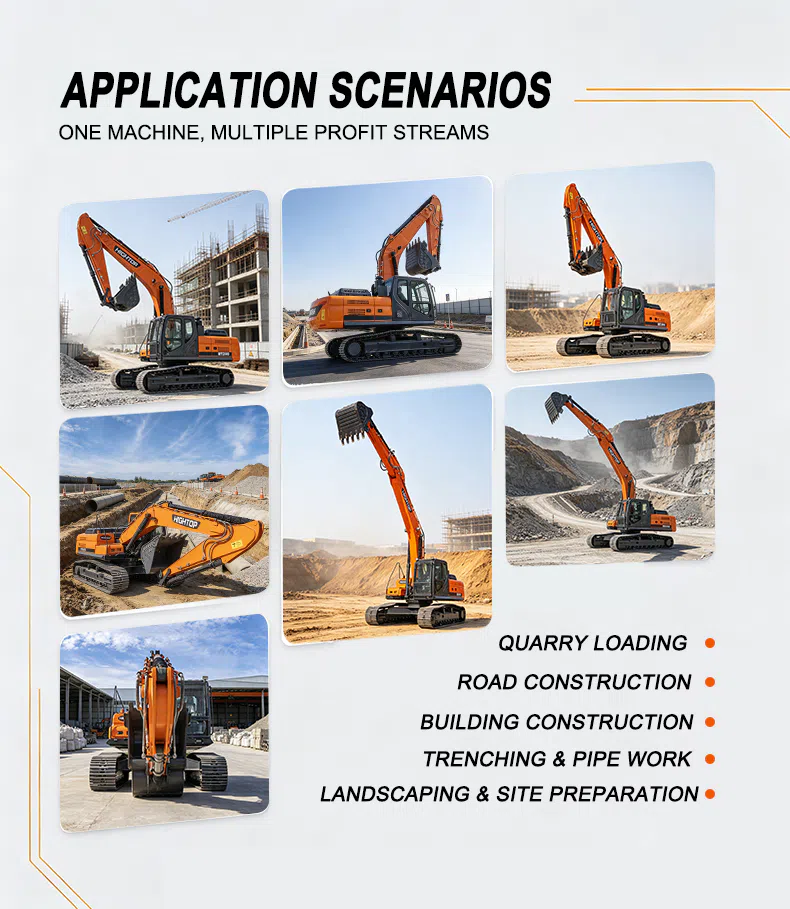

APPLICATION SCENARIOS
ONE MACHINE,MULTIPLE PROFIT STREAMS
QUARRY LOADINGROAD CONSTRUCTIONBUILDING CONSTRUCTIONTRENCHING & PIPE WORK
LANDSCAPING & SITE PREPARATION
Crawler Hydraulic Excavator 26 Ton HT260 Application Scenarios
Large Construction Projects
The 26 ton crawler hydraulic excavator is suitable for large construction sites, foundation excavation and infrastructure development.
Road Construction
With strong digging force and reliable hydraulic performance, it can support road building, drainage projects and site preparation.
Municipal Engineering
The machine can be used for pipeline excavation, urban construction and other municipal projects.
Earthmoving Operations
The large bucket capacity and extended working range make it suitable for soil excavation and material handling.
HIGHTOP Service Support
HIGHTOP provides professional support for global construction equipment customers, including machine selection assistance, technical documentation, spare parts support and after-sales service.
Before purchase, our team helps customers select suitable configurations according to project requirements, working environment and application conditions.
After delivery, HIGHTOP provides operation guidance, maintenance information and spare parts assistance to help customers maintain long-term equipment performance.
Crawler Hydraulic Excavator Frequently Asked Questions
1. What is the working weight of this excavator?
The working weight of this crawler hydraulic excavator is 26000kg.
2. What engine does the excavator use?
It uses a Cummins 6BTA5.9 diesel engine with 152kW rated power.
3. What is the bucket capacity?
The standard bucket capacity is 1.4m³.
4. What is the maximum digging depth?
The maximum digging depth is 6838mm.
5. Is this a suitable excavator for heavy construction?
Yes. The machine is designed for heavy construction, earthmoving and infrastructure projects.
