Full Hydraulic Road Roller With Dual Drive HT-1000 Description
The HT-1000 Full Hydraulic Road Roller is a compact 1-ton hydraulic compaction machine designed for asphalt, soil, gravel, and foundation preparation projects. Equipped with a full hydraulic drive system, dual drum structure, and reliable engine options, this machine provides stable compaction performance for small and medium construction applications.
Unlike traditional mechanical transmission rollers, the HT-1000 adopts a full hydraulic control system with hydraulic drive, hydraulic steering, and stepless speed adjustment. This design allows operators to control the machine more smoothly during operation, improving working efficiency and reducing unnecessary mechanical wear.
The HT-1000 hydraulic road roller is equipped with front and rear steel drums, providing consistent compaction pressure on different surfaces. With a 700mm drum width, 75Hz vibration frequency, and 30KN excitation force, the machine effectively improves material density and surface stability during asphalt paving, soil compaction, and gravel foundation construction.
Powered by Honda GX390 or Changchai CF186FAE engine options, the HT-1000 1 ton road roller provides reliable power output for continuous construction work. The hydraulic dual-wheel drive system ensures stable movement and strong adaptability on different job sites, including road repair areas, municipal projects, landscaping works, and small infrastructure construction.
The compact design of the HT-1000 makes it easier to transport and operate compared with larger road rollers, while maintaining professional compaction capability. For customers requiring complete compact construction solutions, HIGHTOP also provides related equipment including mini excavators, skid steer loaders, and other road construction machinery to support different project requirements.
With its full hydraulic system, dual drum vibration design, and reliable components, the HT-1000 is a practical choice for contractors, rental companies, and construction professionals looking for a durable hydraulic road roller for sale.

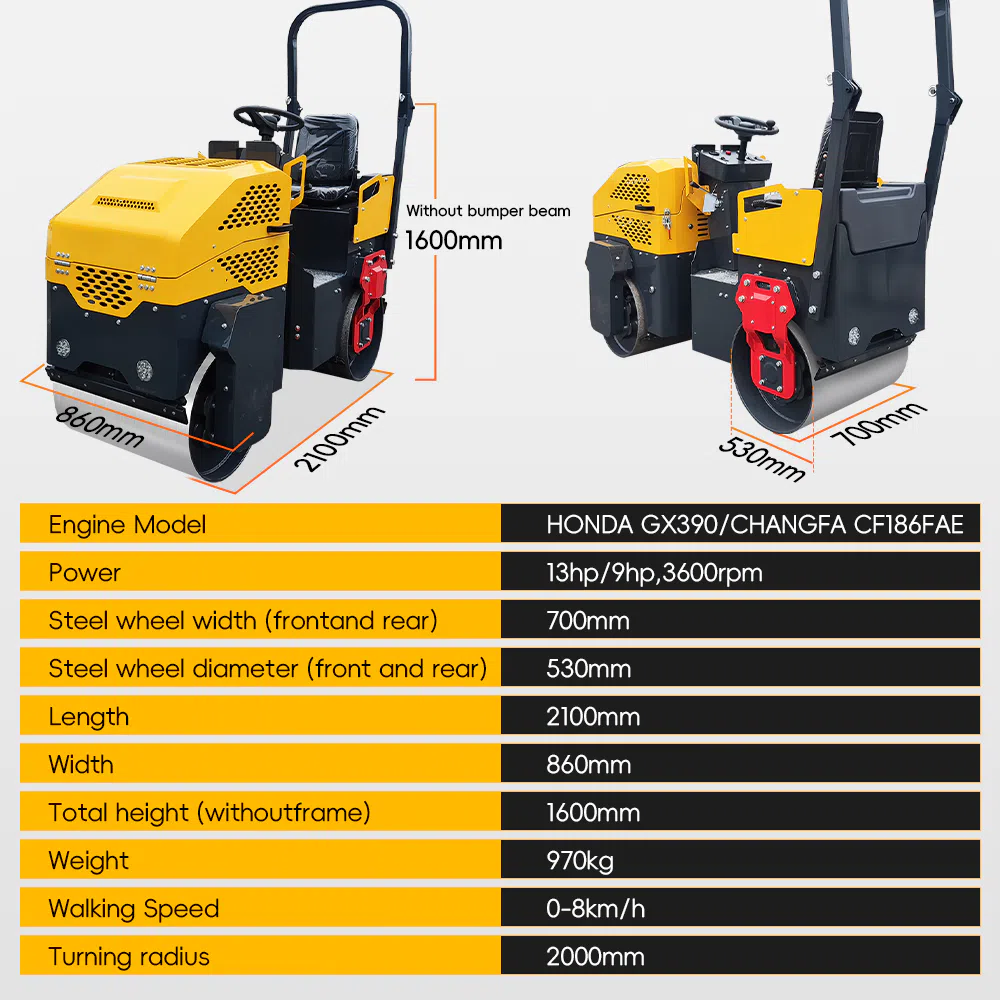

Full Hydraulic Road Roller With Dual Drive HT-1000 Parameters
| Parameter | Value |
|---|---|
| Walk | |
| Velocity | 0‑8 km/h |
| Turning Radius | 2000 mm |
| Climbing Ability | 30% |
| Compaction | |
| Static Line Load (Front / Rear) | 77 / 56 N/cm |
| Nominal Amplitude | 0.5 mm |
| Vibration Frequency | 75 Hz |
| Excitation Force | 30 kN |
| Job | |
| Drive | Hydraulically Actuated, Dual Wheel Drive (Front and Rear Wheels) |
| Vibration | One‑key Vibration – Electromagnetic Clutch |
| Veer | Hydraulic Steering |
| Sprinkler Method | Electronically Controlled Pressure Water Spray |
| Motor | |
| Model | Honda GX390 / Changfa CF186FAE |
| Type | Gasoline / Diesel, Air‑cooled Four‑Stroke |
| Power | 13 hp / 9 hp / 3600 rpm |
| Fuel Tank Capacity | 5.5 L |
| Fuel Consumption | 300 g/kW·h |
| Size Specifications | |
| Drum Width (Front, Rear) | 700 mm |
| Drum Diameter (Front, Rear) | 530 mm |
| Overall Length | 2100 mm |
| Total Width | 860 mm |
| Total Height (Excluding Impact Beam) | 1600 mm |
| Export Packaging Size | 2200 × 950 × 1650 mm |
| Weight | |
| Working Weight | 1100 kg |

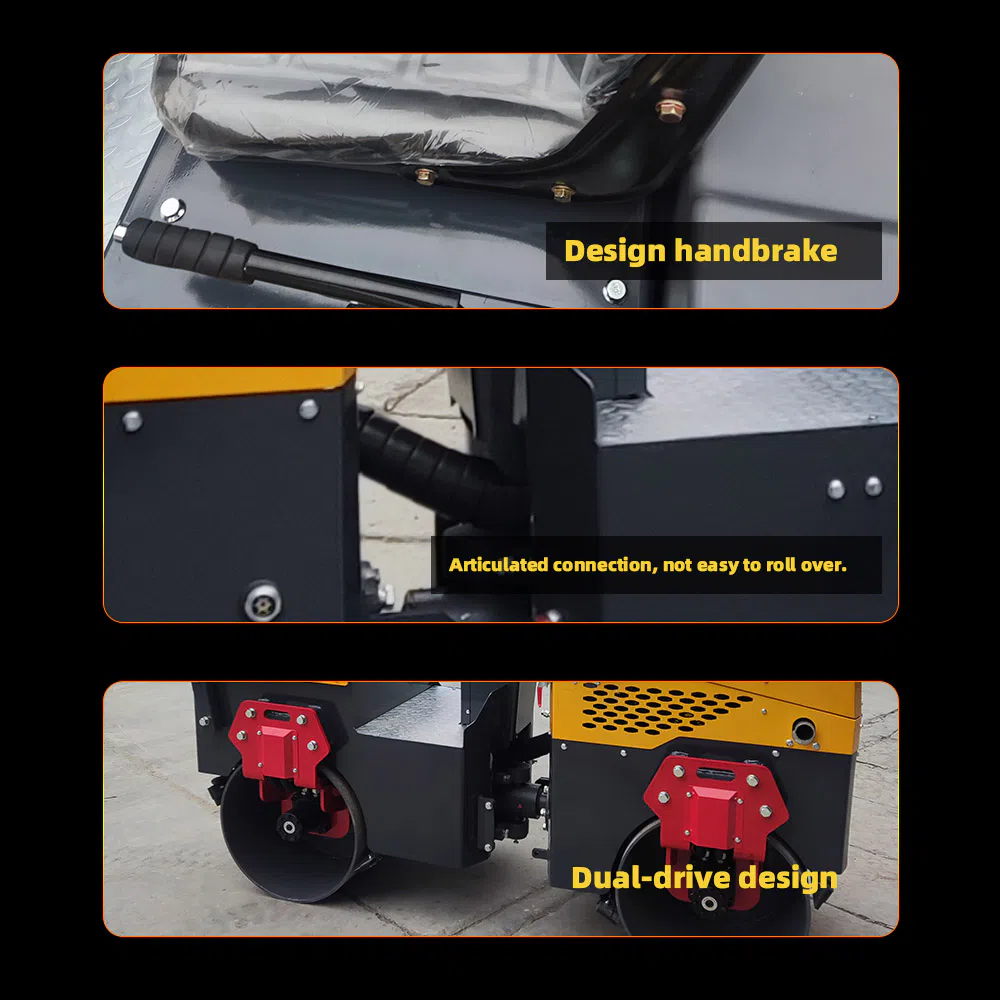

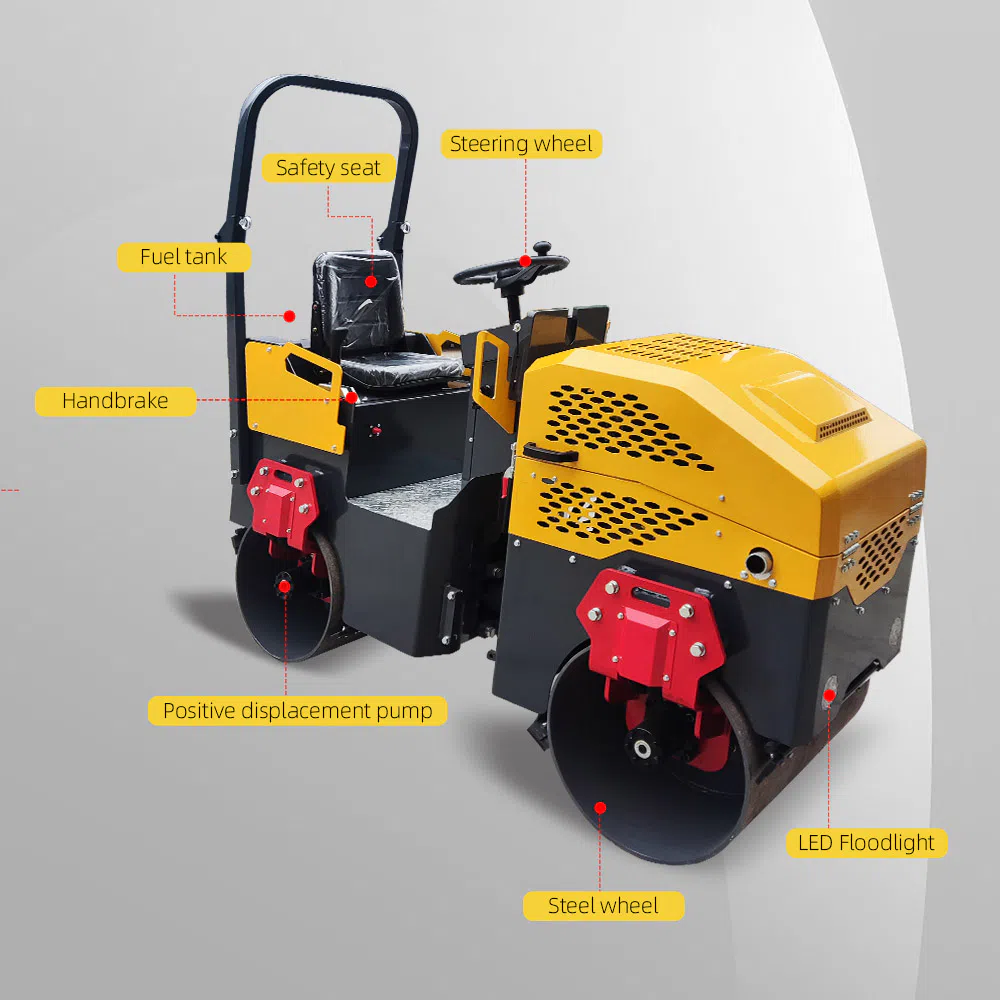

Full Hydraulic Road Roller With Dual Drive HT-1000 Images

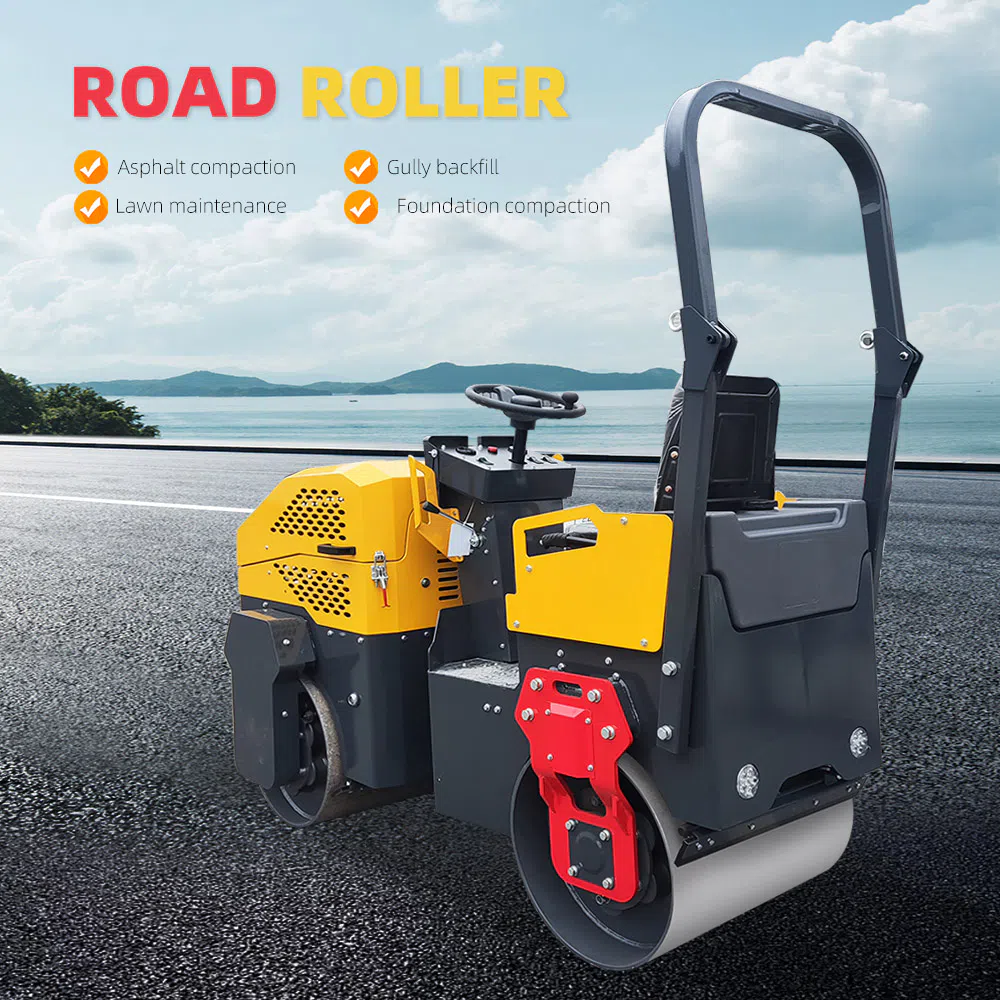

ROAD ROLLER:Asphalt compaction,Lawn maintenance,Gully backfill,Foundation compaction
Full Hydraulic Road Roller With Dual Drive HT-1000 Applications
The HT-1000 full hydraulic road roller is designed for various compaction applications where reliable performance and flexible operation are required.
It is widely used for:
Road maintenance projects, asphalt surface compaction, gravel road construction, soil foundation preparation, trench backfilling, parking lot construction, landscaping projects, and municipal engineering works.
Because of its compact size and hydraulic operation system, the HT-1000 is suitable for construction sites where larger rollers are difficult to access. It provides an efficient solution for contractors requiring a small hydraulic road roller for professional compaction tasks.
HIGHTOP Service Support
HIGHTOP provides complete support for HT-1000 hydraulic road roller customers, including product consultation, technical assistance, spare parts supply, and after-sales support.
Before purchasing, our professional team helps customers choose suitable compaction equipment according to project requirements, working materials, and construction environments. We provide detailed specifications, operation guidance, transportation solutions, and technical communication to ensure customers can use the machine efficiently.
For international distributors, contractors, and rental companies, HIGHTOP supports OEM/ODM cooperation, customized requirements, bulk purchasing, and long-term partnership programs. With professional manufacturing experience in compact construction machinery, HIGHTOP provides reliable equipment solutions and continuous service support for global customers.
Full Hydraulic Road Roller With Dual Drive HT-1000 Frequently Asked Questions
1. What is the HT-1000 road roller used for?
The HT-1000 is mainly used for compacting asphalt, soil, gravel, and foundation materials in road construction, maintenance, and small engineering projects.
2. What makes HT-1000 different from hand type road rollers?
The HT-1000 uses a full hydraulic drive system and dual steel drums, providing smoother operation and stronger compaction performance compared with traditional hand type rollers.
3. What engine options are available for HT-1000?
The HT-1000 can be equipped with Honda GX390 gasoline engine or Changchai CF186FAE diesel engine options.
4. Is HT-1000 suitable for small construction sites?
Yes. The compact structure and flexible hydraulic control make it suitable for urban construction, road repair, landscaping, and other limited working areas.
