Roadway Roller With Ride-On Design HT-1500 Introduction
The HT-1500 Roadway Roller With Ride-On Design is a 1.5 ton hydraulic double drum roller developed for asphalt, soil, gravel, and foundation compaction applications. Featuring a ride-on operating structure, hydraulic drive system, and dual steel drums, this machine provides stable compaction performance while improving operator comfort and working efficiency.
Different from walk-behind road rollers, the HT-1500 allows operators to work from a seated driving position, reducing fatigue during longer construction tasks. The ride-on design improves operation efficiency, especially for road maintenance, municipal construction, parking lot projects, and larger compaction areas where continuous operation is required.
The machine adopts a hydraulic drive system with hydraulic steering and hydraulic vibration control, providing smooth movement and flexible operation. The front and rear steel drum structure ensures balanced compaction force, while the 800mm drum width and 30KN excitation force help achieve effective compaction results on asphalt surfaces, soil layers, and gravel foundations.
Powered by the Changfa 192FA diesel engine, the HT-1500 ride-on road roller delivers reliable power for continuous construction work. The hydraulic double drum drive system provides stable forward and reverse movement, while the electronic pressure water spraying system helps reduce asphalt sticking during operation.
With its compact structure, comfortable ride-on operation, and professional compaction capability, the HT-1500 is a practical choice for contractors, construction companies, and equipment rental businesses looking for a small ride-on road roller for sale.
For complete construction solutions, HIGHTOP also provides related equipment including mini excavators, skid steer loaders, and other road construction machinery to meet different project requirements.

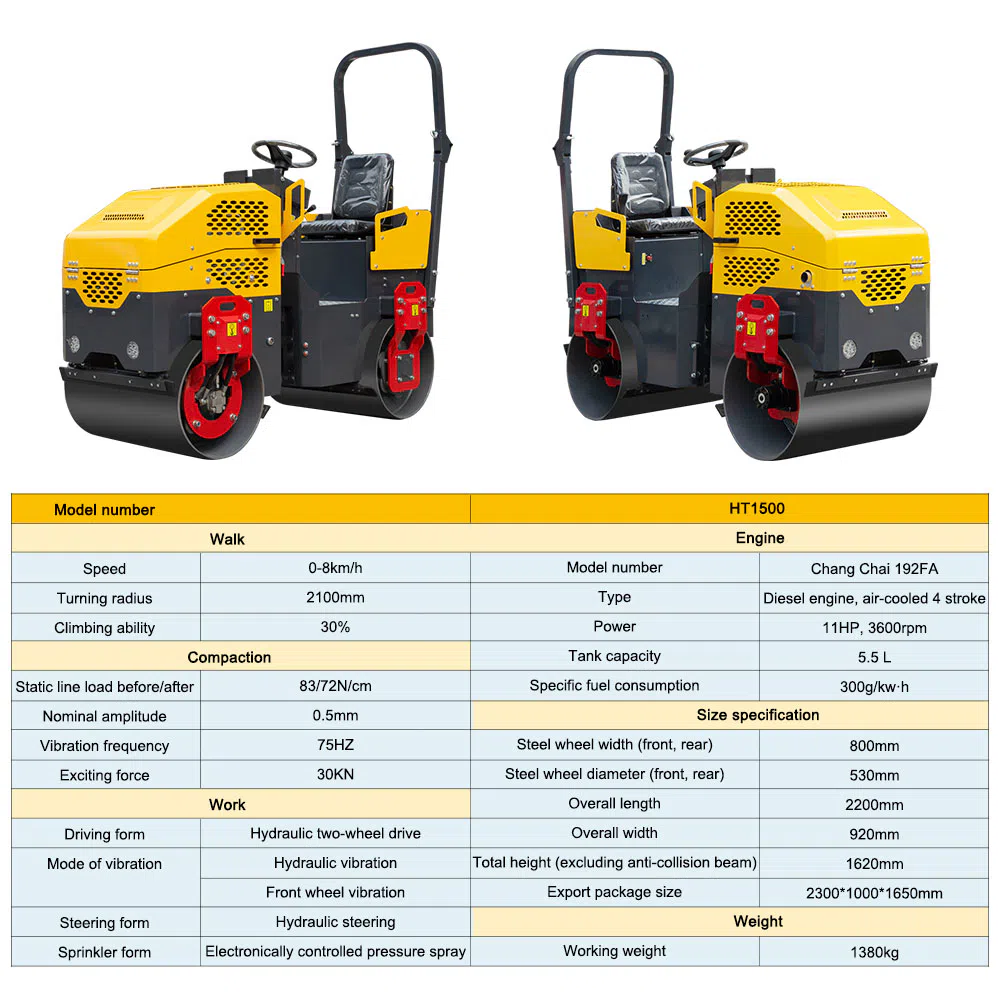

Roadway Roller With Ride-On Design HT-1500 Parameters
| Parameter | Value |
|---|---|
| Model | HT‑1500 |
| Velocity | 0‑8 km/h |
| Turning Radius | 2100 mm |
| Climbing Ability | 30% |
| Static Line Load (Front / Rear) | 83 / 72 N/cm |
| Nominal Amplitude | 0.5 mm |
| Vibration Frequency | 75 Hz |
| Excitation Force | 30 kN |
| Driving Form | Hydraulic Two‑wheel Drive |
| Mode of Vibration | Hydraulic Vibration, Front Wheel Vibration (One‑key Vibration – Electromagnetic Clutch) |
| Steering Form | Hydraulic Steering |
| Sprinkler Form | Electronically Controlled Pressure Water Spray |
| Engine Model | Chang Chai 192FA |
| Type | Diesel Engine, Air‑cooled 4‑Stroke |
| Power | 11 HP / 3600 rpm |
| Fuel Tank Capacity | 5.5 L |
| Fuel Consumption | 300 g/kW·h |
| Steel Wheel Width (Front, Rear) | 800 mm |
| Steel Wheel Diameter (Front, Rear) | 530 mm |
| Overall Length | 2200 mm |
| Overall Width | 920 mm |
| Total Height (Excluding Anti‑collision Beam) | 1620 mm |
| Export Package Size | 2300 × 1000 × 1650 mm |
| Working Weight | 1380 kg |

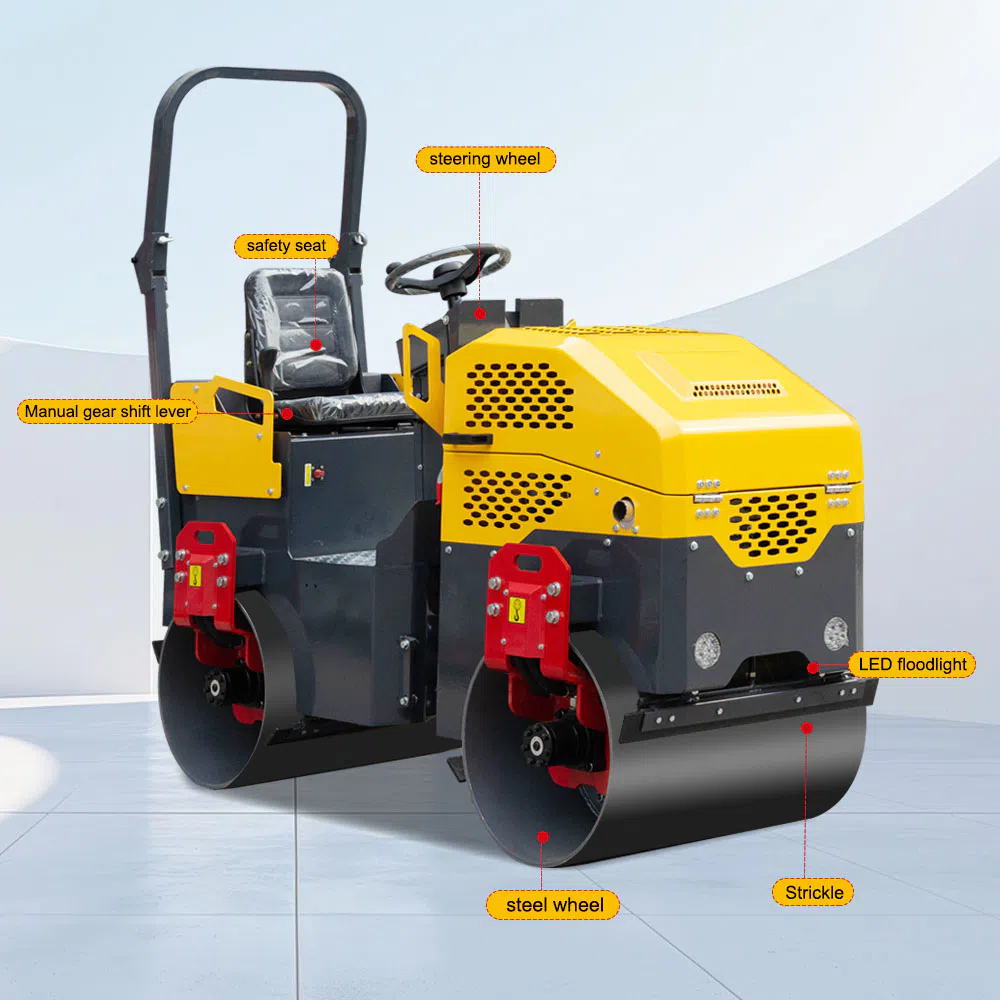

Roadway Roller With Ride-On Design HT-1500 Images

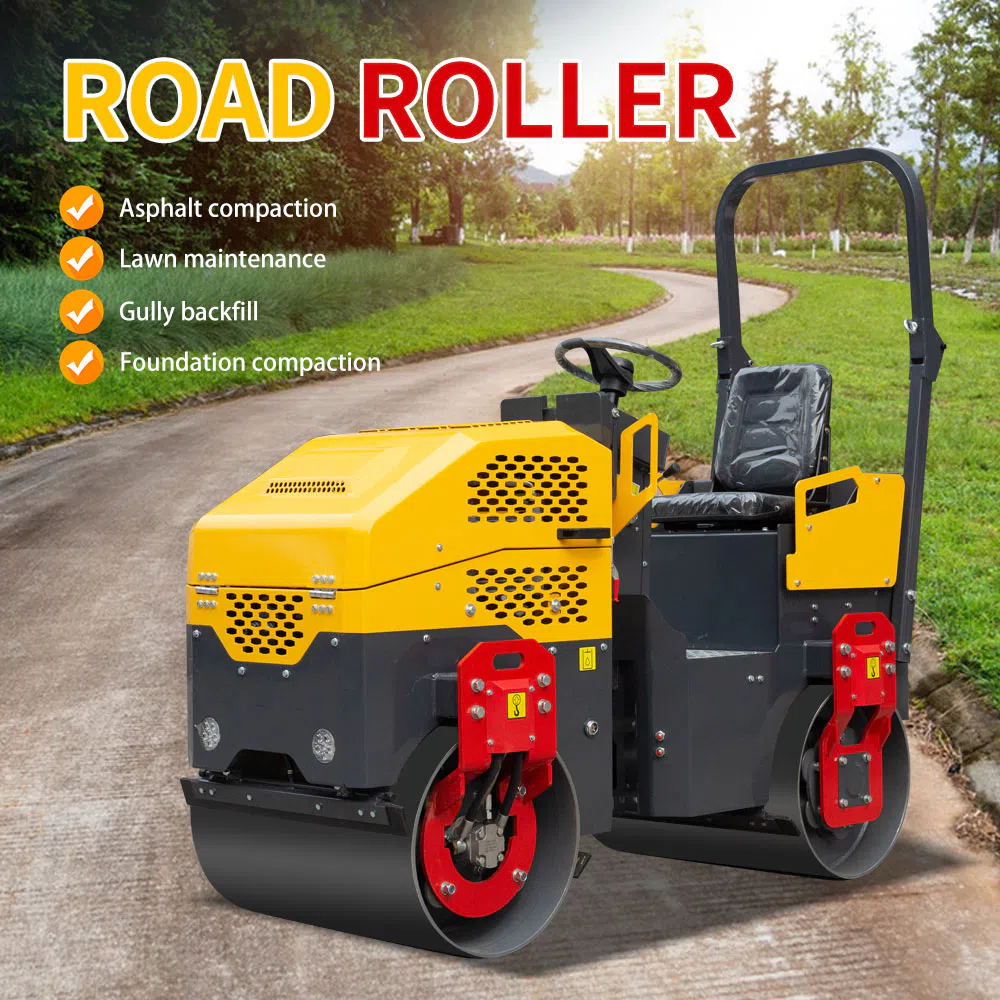

ROADROLLER:Asphalt compaction,Lawn maintenance,Gully backfill,Foundation compaction
Roadway Roller With Ride-On Design HT-1500 Applications
The HT-1500 ride-on roadway roller is suitable for projects requiring comfortable operation and continuous compaction performance.
It is widely used in:
- Asphalt road construction
- Road maintenance projects
- Municipal engineering
- Parking lot construction
- Gravel road compaction
- Soil foundation preparation
Its ride-on structure makes it especially suitable for projects requiring longer working periods compared with traditional walk-behind rollers.
HIGHTOP Service Support
HIGHTOP provides complete support for HT-1500 roadway roller customers, including product consultation, technical guidance, spare parts supply, and after-sales service.
Before purchasing, our professional team helps customers select suitable compaction equipment according to project requirements, working materials, and construction environments. We provide detailed specifications, operation instructions, transportation solutions, and technical communication to help customers quickly start using their equipment.
For overseas distributors, construction companies, and equipment rental businesses, HIGHTOP supports OEM/ODM cooperation, customized requirements, bulk orders, and long-term partnerships. With professional manufacturing experience in compact construction machinery, HIGHTOP provides reliable equipment solutions and continuous support for global customers.
Roadway Roller With Ride-On Design HT-1500 Frequently Asked Questions
1. What is the HT-1500 roadway roller used for?
The HT-1500 is mainly used for asphalt, soil, gravel, and foundation compaction in road construction and maintenance projects.
2. What is the difference between HT-1500 and HT-1000 road rollers?
The HT-1500 provides a higher working weight and larger steel drum width, making it suitable for projects requiring stronger compaction capability and longer working periods.
3. Does HT-1500 use hydraulic drive?
Yes. The HT-1500 adopts a hydraulic double wheel drive system, hydraulic steering, and hydraulic vibration control for smoother operation.
4. What engine does HT-1500 use?
The HT-1500 is equipped with a Changfa 192FA diesel engine, providing stable power for continuous construction operations.
