Hightop Ride On Road Roller With Diesel Engine HT-JS700C Description
The HT-JS700C Ride On Road Roller is a compact diesel-powered single drum roller designed for efficient ground compaction in small and medium construction projects. Featuring a water-cooled diesel engine, hydraulic drive system, and 700mm wide vibrating steel drum, this machine provides stable compaction performance while improving operator comfort and working efficiency.
Compared with hand operated road rollers, the HT-JS700C adopts a ride-on operating design, allowing operators to work with better visibility and easier control during longer compaction tasks. The compact structure makes it suitable for construction areas where large road rollers cannot easily access, while the diesel power system provides reliable performance for continuous operation.
Equipped with a Changchai R180 water-cooled diesel engine, the HT-JS700C delivers stable power output and strong working capability. The hydraulic drive system supports smooth forward and reverse movement, flexible steering, and convenient operation. With a 75Hz vibration frequency and 20KN excitation force, the machine effectively improves the density and stability of soil, gravel, and asphalt surfaces.
The HT-JS700C small driving road roller features a 700mm wide vibrating wheel and approximately 720kg working weight, providing a balance between compaction performance and transportation convenience. The compact dimensions allow it to operate efficiently in road repair, municipal construction, landscaping, and foundation preparation projects.
For customers looking for reliable compact construction equipment, HIGHTOP also provides a complete range of road rollers, mini excavators, skid steer loaders, and mini dumpers to support different engineering applications. The HT-JS700C is a practical choice for contractors, rental companies, and maintenance teams requiring a durable diesel road roller with easy operation and stable compaction results.
Ride On Road Roller With Diesel Engine HT-JS700C Parameter
| Parameter | Value |
|---|---|
| Model | HT‑JS700C |
| Speed | 0‑6 km/h |
| Turning Radius | 1800 mm |
| Climbing Ability | 30% |
| Static Line Load (Before / After) | 32 / 22 N/cm |
| Nominal Amplitude | 0.5 mm |
| Vibration Frequency | 75 Hz |
| Excitation Force | 20 kN |
| Driving Form | Hydraulic Drive |
| Mode of Vibration | One‑touch Vibration – Electromagnetic Clutch, Front Wheel Vibration |
| Steering Form | Rear Wheel Vibration |
| Engine | Chang Chai R180 |
| Type | Diesel Engine, Vertical Three‑cylinder Water Cooling |
| Power | 8 HP / 2300 rpm |
| Fuel Tank Capacity | 3.5 L |
| Specific Fuel Consumption | 280 / 395 / 313 g/kW·h |
| Vibrating Wheel Width | 700 mm |
| Vibrating Wheel Diameter | 530 mm |
| Total Length | 1750 mm |
| Overall Width | 860 mm |
| Overall Height | 1250 mm |
| Package Size | 1900 × 1000 × 1420 mm |
| Working Weight | 720 kg |

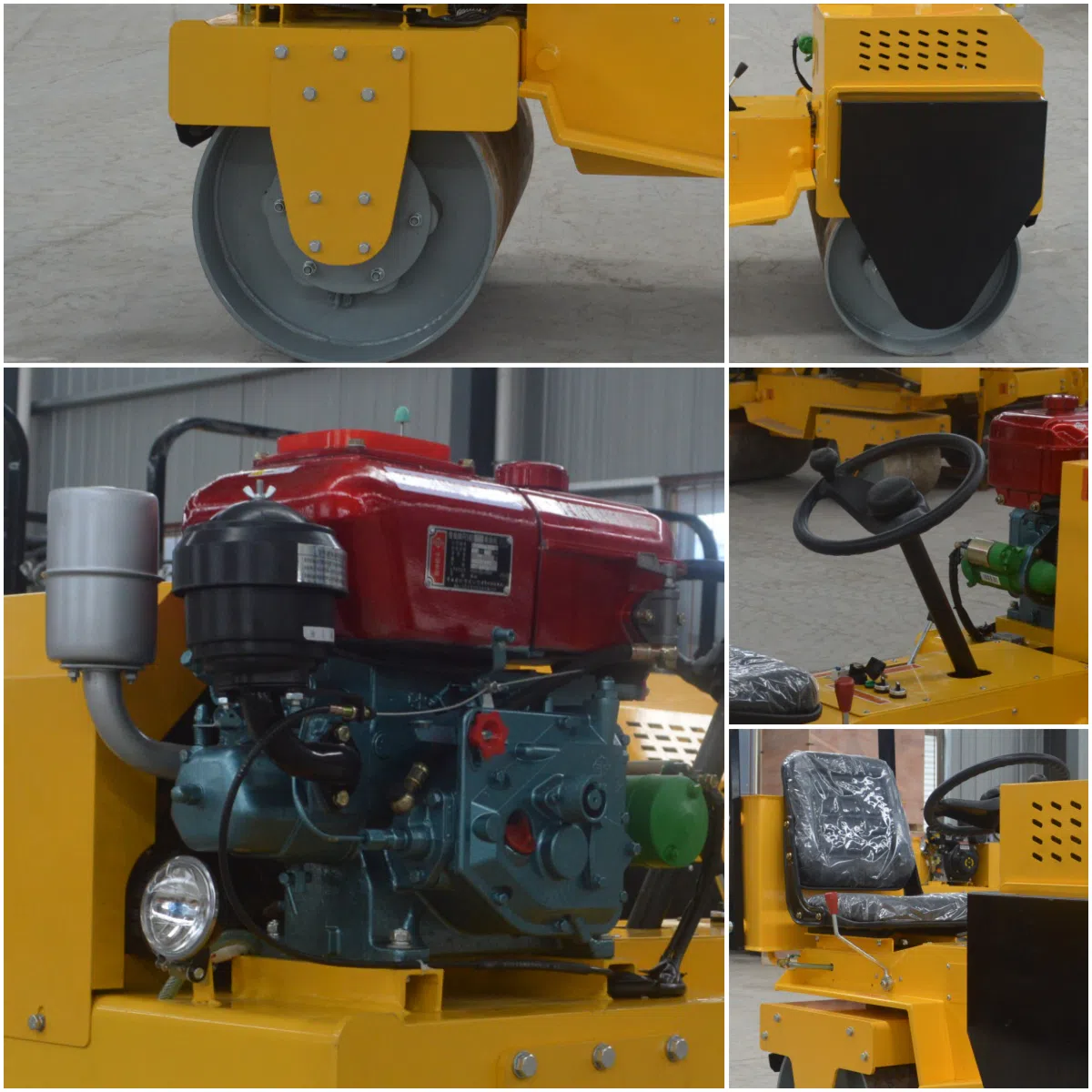

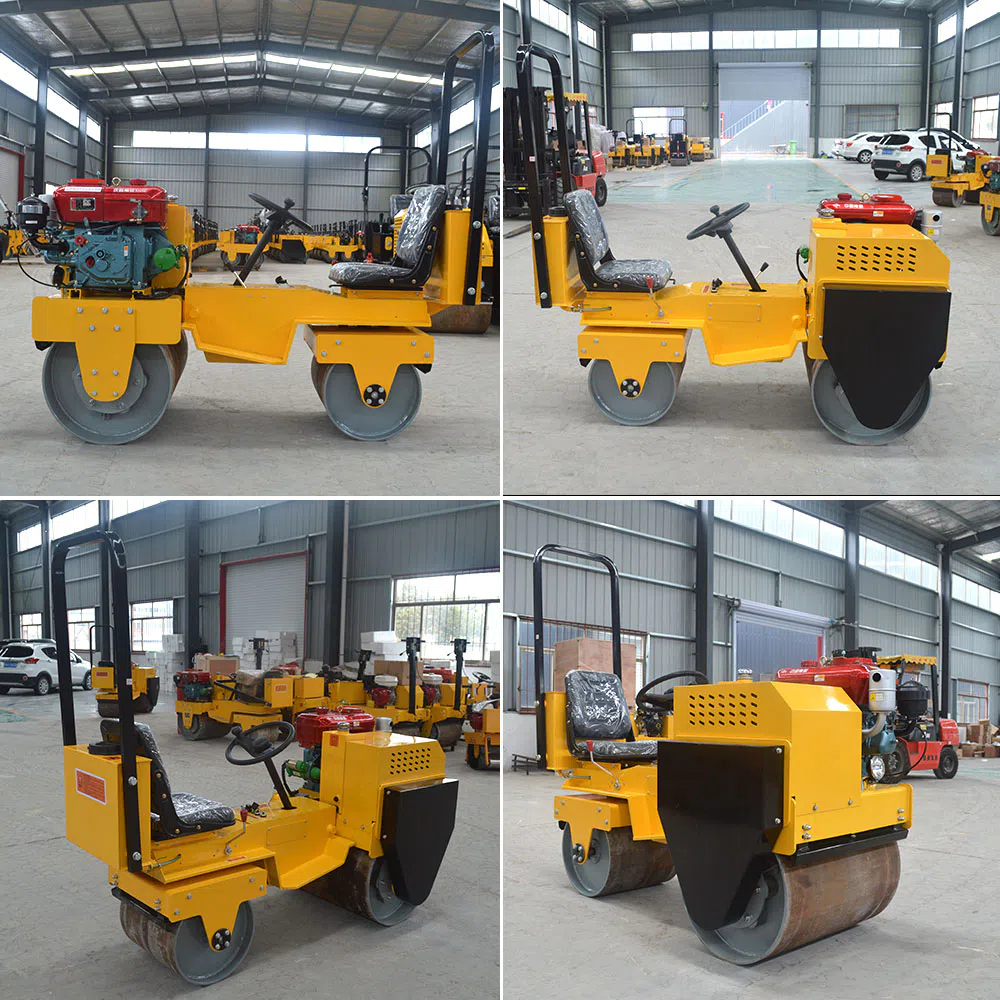

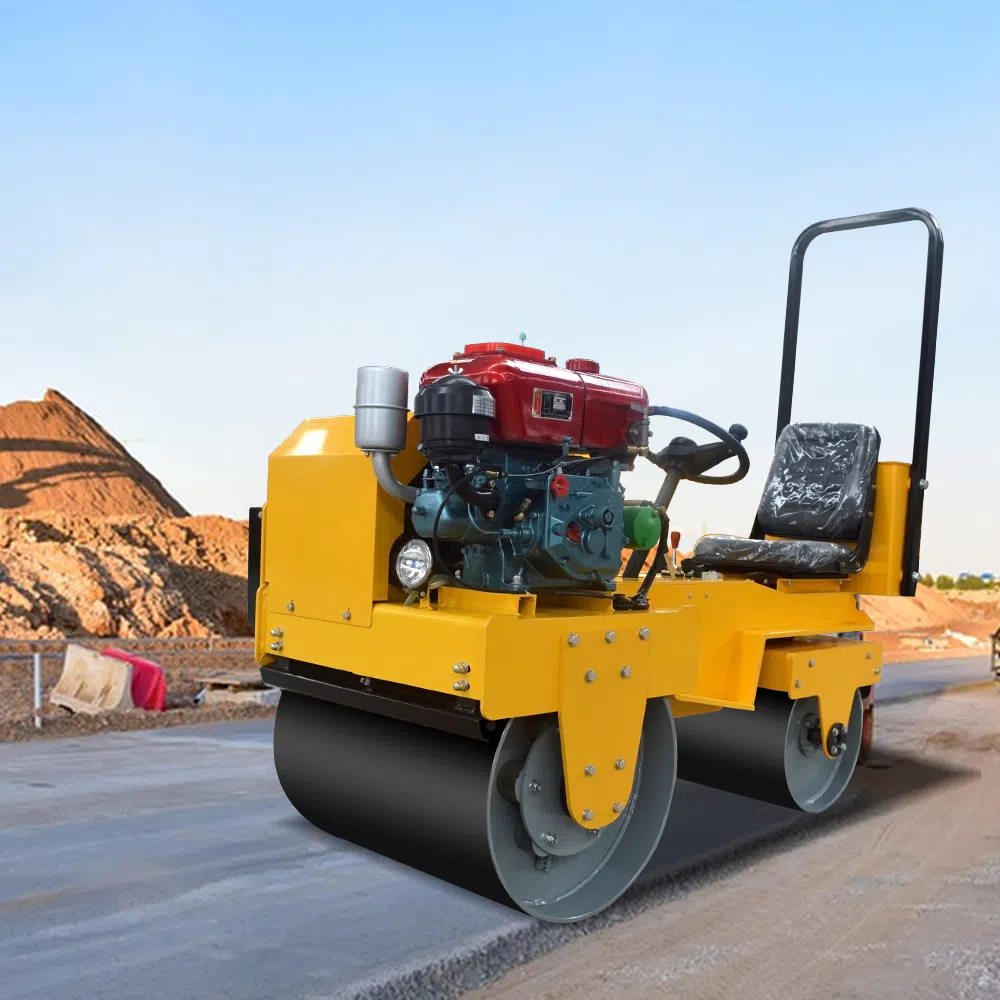

Ride On Road Roller With Diesel Engine HT-JS700C Picture
Ride On Road Roller With Diesel Engine HT-JS700C Applications
The HT-JS700C diesel ride-on road roller is widely used for different compaction applications where flexibility and stable performance are required.
It is suitable for:
Road maintenance projects, asphalt surface compaction, gravel road construction, soil foundation preparation, municipal engineering, landscaping projects, parking area construction, and small infrastructure works.
The compact size and hydraulic operation system make the HT-JS700C especially suitable for contractors who need a small driving road roller for construction areas with limited access.
HIGHTOP Service Support
HIGHTOP provides professional support for HT-JS700C road roller customers, including machine consultation, technical assistance, spare parts supply, and after-sales service.
Before purchasing, our team helps customers select suitable equipment according to their project requirements, working materials, and operating environment. We provide detailed machine specifications, operation guidance, transportation solutions, and professional communication support to ensure customers can use the equipment efficiently.
For overseas distributors, construction companies, and rental businesses, HIGHTOP supports OEM/ODM cooperation, customized requirements, bulk orders, and long-term partnerships. With experience in manufacturing compact construction machinery, HIGHTOP provides reliable equipment solutions and continuous technical support for global customers.
Ride On Road Roller HT-JS700C Frequently Asked Questions
1. What is the HT-JS700C road roller used for?
The HT-JS700C is mainly used for compacting soil, gravel, asphalt, and other foundation materials in road construction and maintenance projects.
2. What is the difference between HT-JS700C and hand type road rollers?
The HT-JS700C is a ride-on road roller with a diesel engine, offering better operator comfort and suitability for longer working periods. Hand type rollers are more compact and suitable for smaller areas.
3. What engine does HT-JS700C use?
The HT-JS700C uses a Changchai R180 water-cooled diesel engine, providing stable power and reliable operation.
4. Can HT-JS700C work in narrow construction areas?
Yes. The compact structure and flexible hydraulic steering allow it to operate effectively in small roads, municipal projects, and restricted construction areas.
