1.8 Ton Compact Crawler Track Excavator HT18-3 Introduction
The HIGHTOP compact excavator is a tracked excavation machine built around a narrow 1120 mm overall width, making its layout suitable for projects where machine footprint is an important consideration. With an operating weight of 1,425 kg, a 795 mm tail swing radius, and a 200 mm standard track shoe width, the machine combines a compact working profile with practical excavation capability. Its backhoe working device delivers a 2,050 mm maximum digging depth and 3,130 mm maximum digging reach, allowing it to handle trenching, foundation preparation, soil excavation, and other small-to-medium excavation tasks.
The machine is also designed around a balanced working range rather than size alone. It reaches a 2,785 mm maximum digging height and 1,860 mm maximum dumping height, giving operators useful clearance for common loading and excavation operations. The 30° gradeability and tracked undercarriage further support operation across varied job-site surfaces. For buyers comparing a compact excavator, small tracked excavator, or compact excavation machine, this configuration offers a practical combination of narrow dimensions, working range, and terrain adaptability.
The main hydraulic control valve is supplied by BEIFANG, while the engine is specified as Kubota, providing a clearly defined component configuration for professional buyers evaluating a Kubota excavator or small hydraulic excavator. For customers reviewing different compact equipment options, the machine can be positioned alongside other mini excavator solutions and tracked construction equipment according to required digging depth, machine width, and operating environment.
1.8 Ton Compact Crawler Track Excavator Technical Parameters
| Parameter | Specification |
|---|---|
| Transport Length | 2450 mm |
| Total Width | 1120 mm |
| Upper Structure Width | 990 mm |
| Total Height | 2280 mm |
| Standard Track Shoe Width | 200 mm |
| Track Gauge | 920 mm |
| Track Ground Contact Length | 1050 mm |
| Track Length | 1350 mm |
| Dozer Blade Ground Clearance | 105 mm |
| Dozer Blade Digging Depth | 270 mm |
| Tail Swing Radius | 795 mm |
| Maximum Digging Height | 2785 mm |
| Maximum Dumping Height | 1860 mm |
| Maximum Digging Depth | 2050 mm |
| Maximum Digging Reach | 3130 mm |
| Minimum Swing Radius | 1655 mm |
| Maximum Height At Minimum Swing Radius | 2205 mm |
| Operating Weight | 1425 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device Type | Backhoe |
| Gradeability | 30° |
| Engine | Kubota |
| Main Control Valve | BEIFANG |

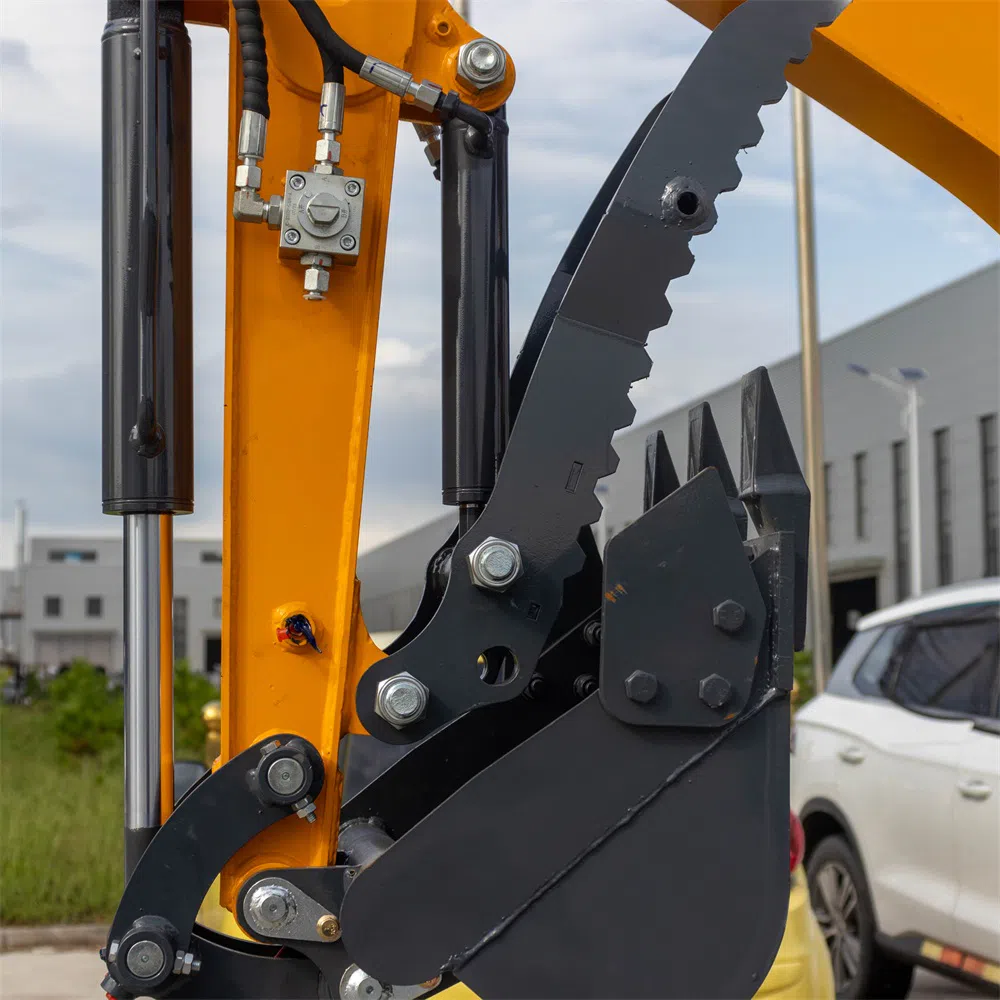

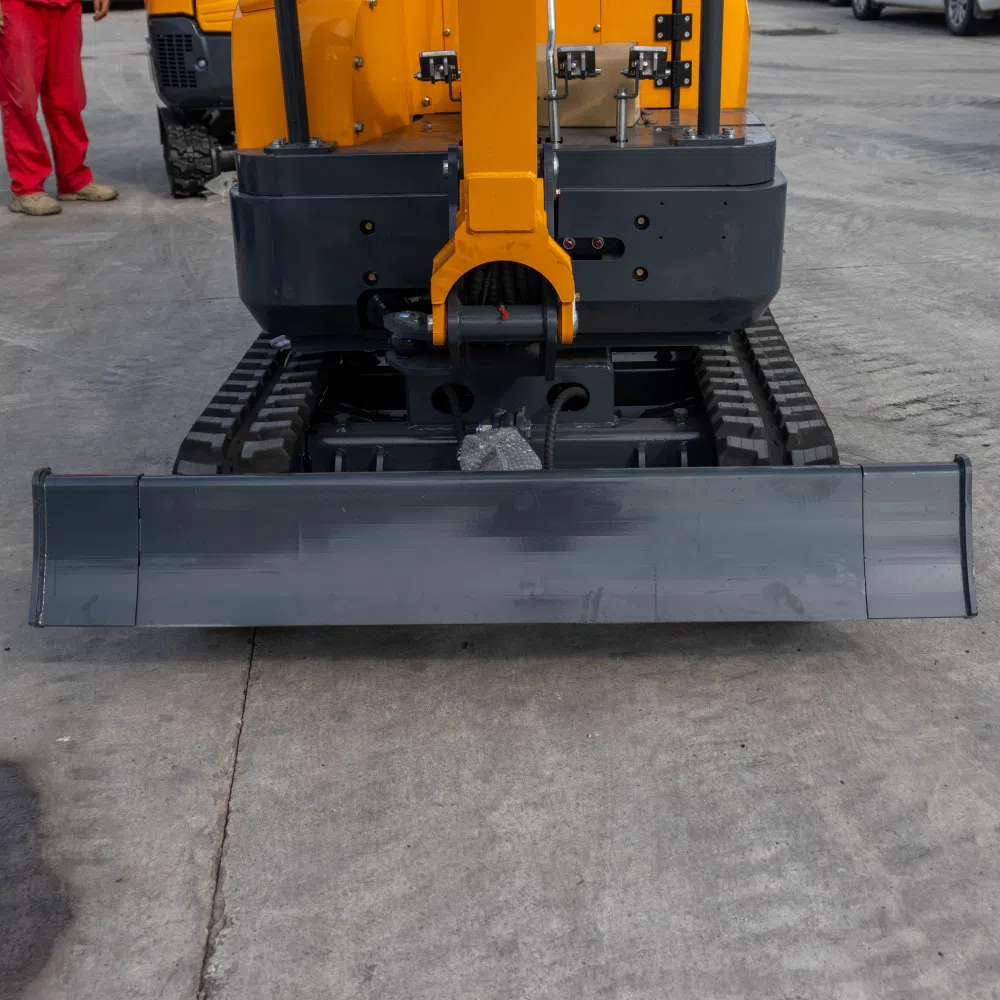

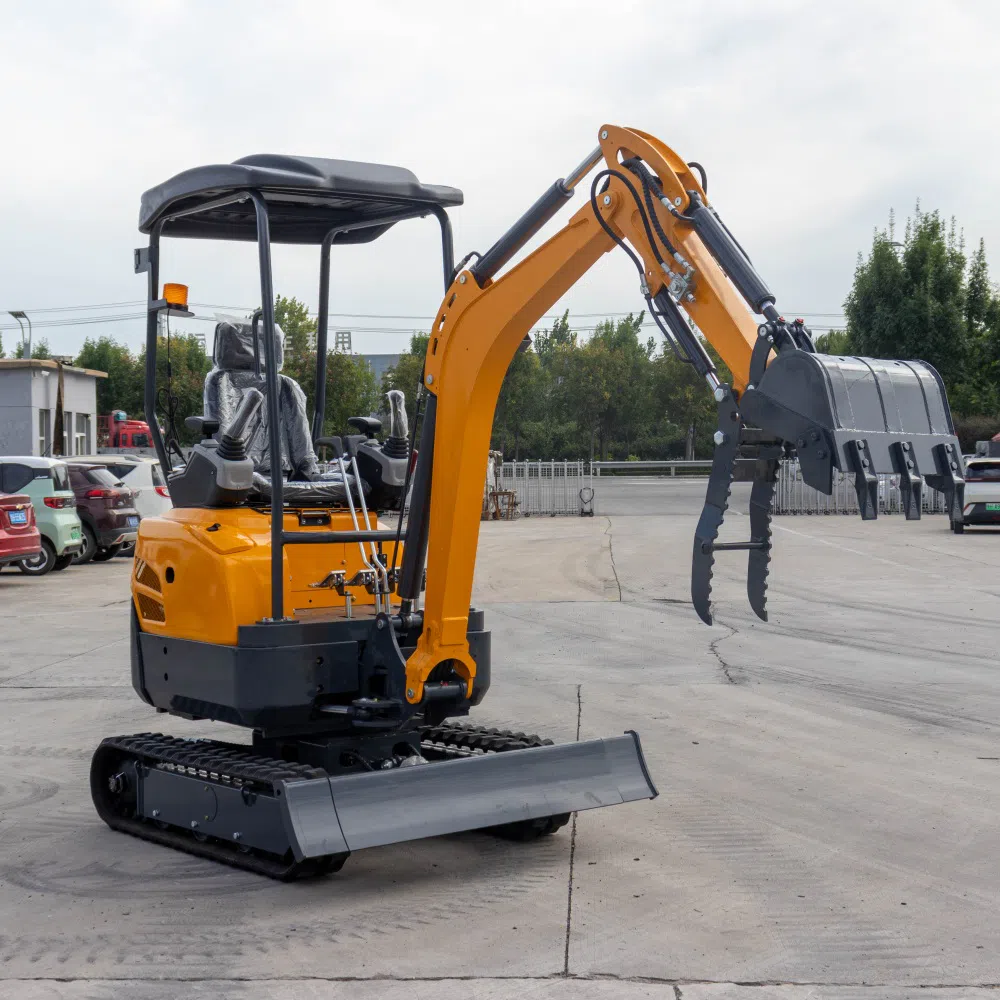

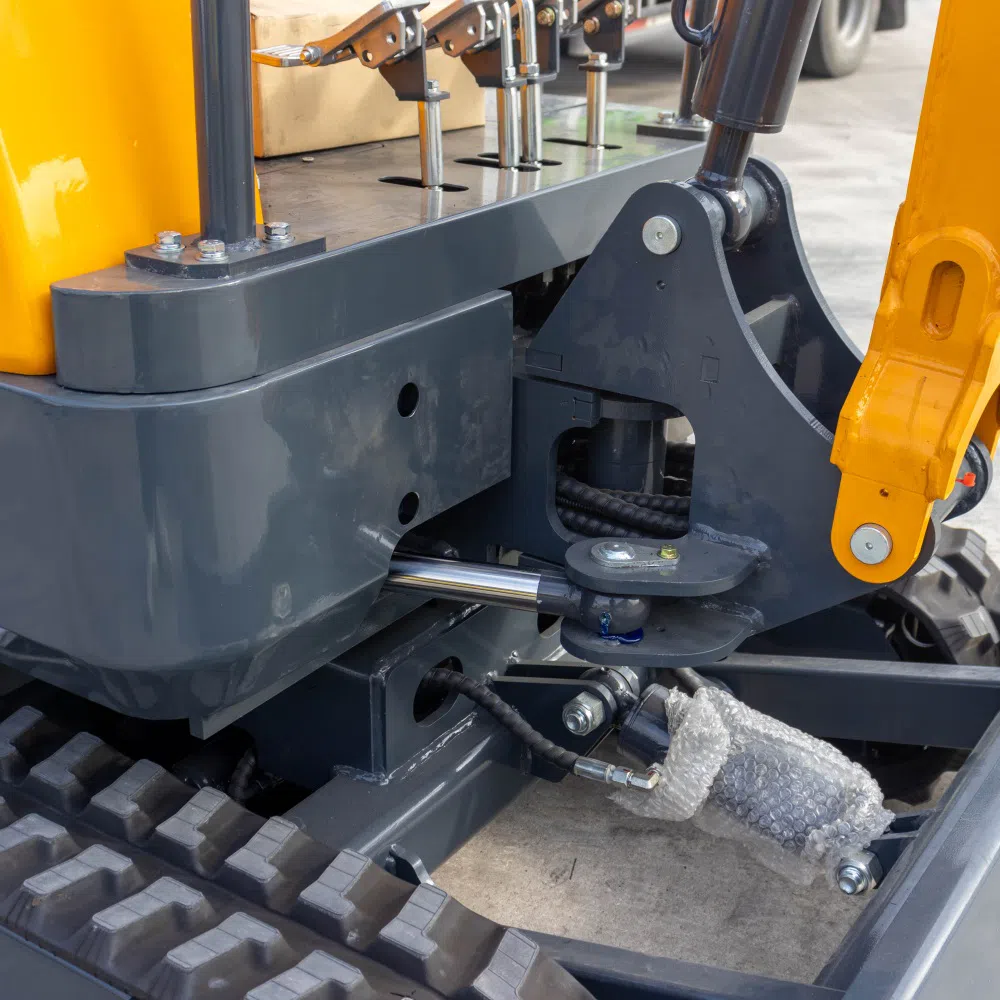

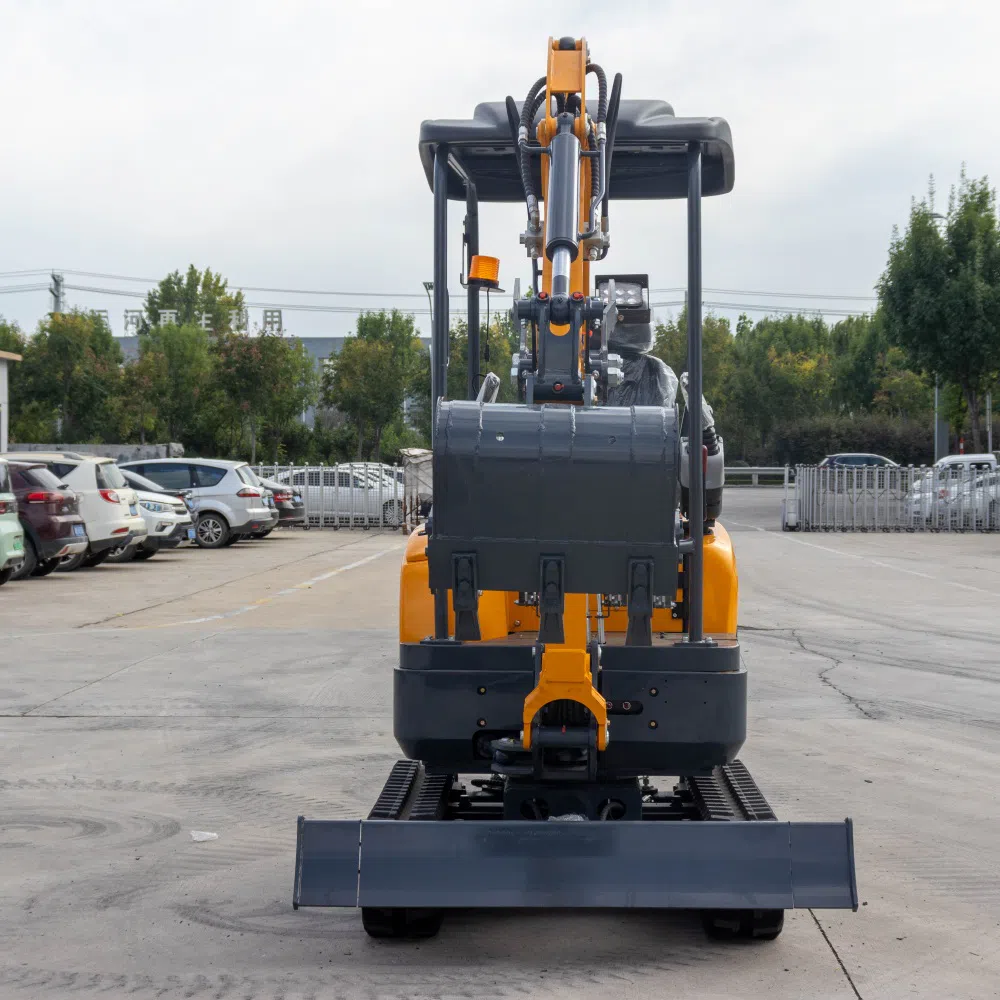

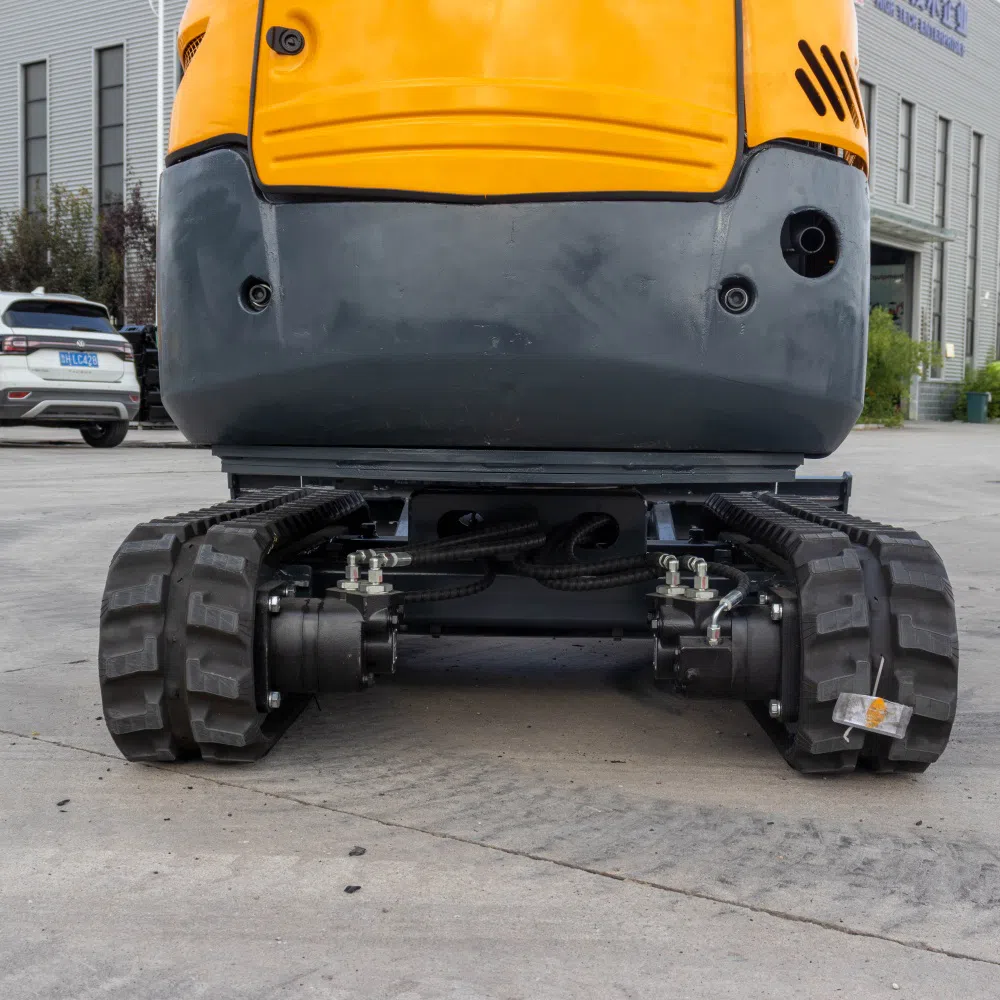

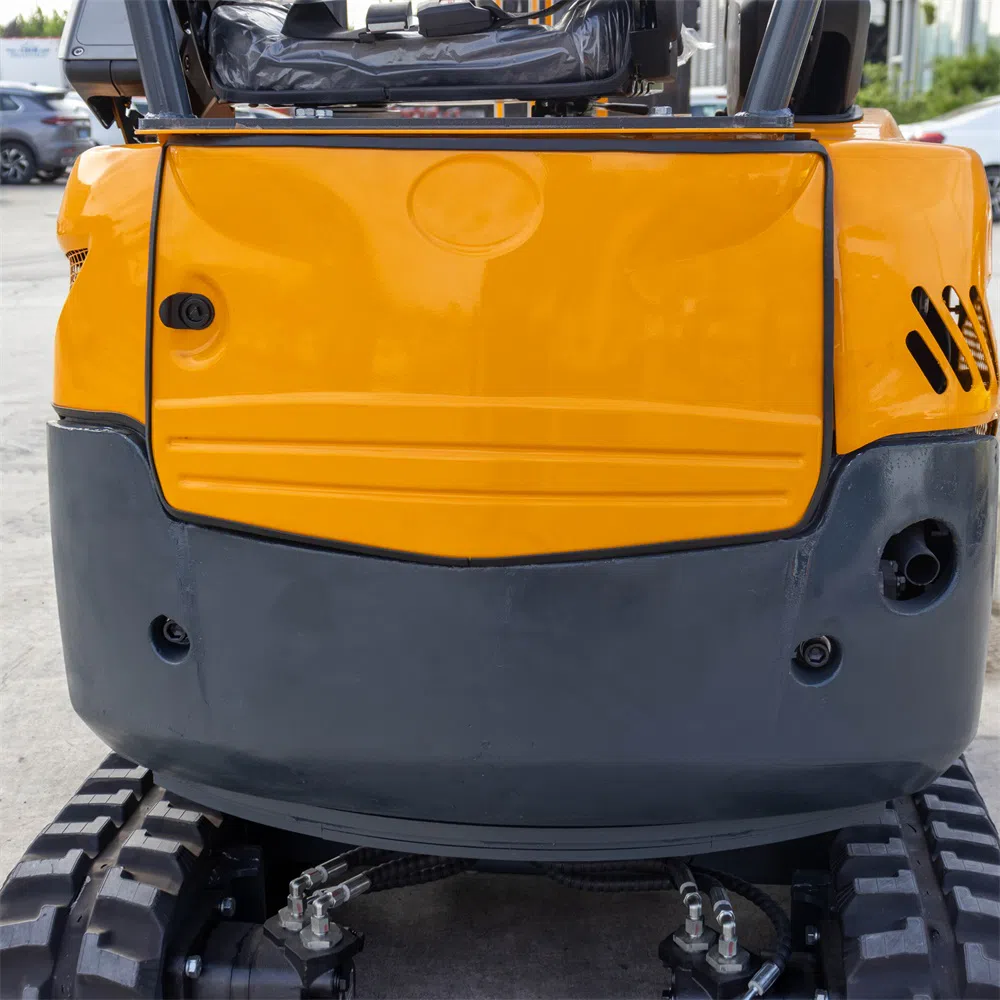

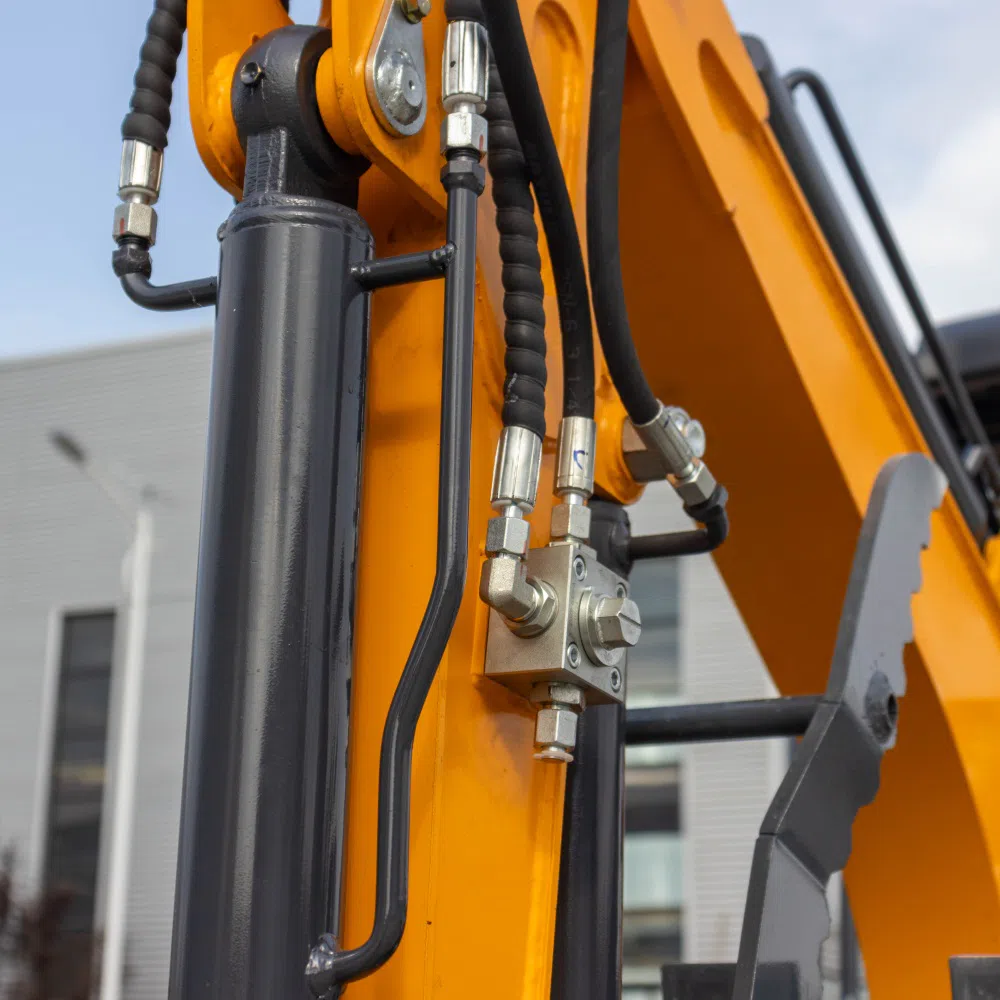

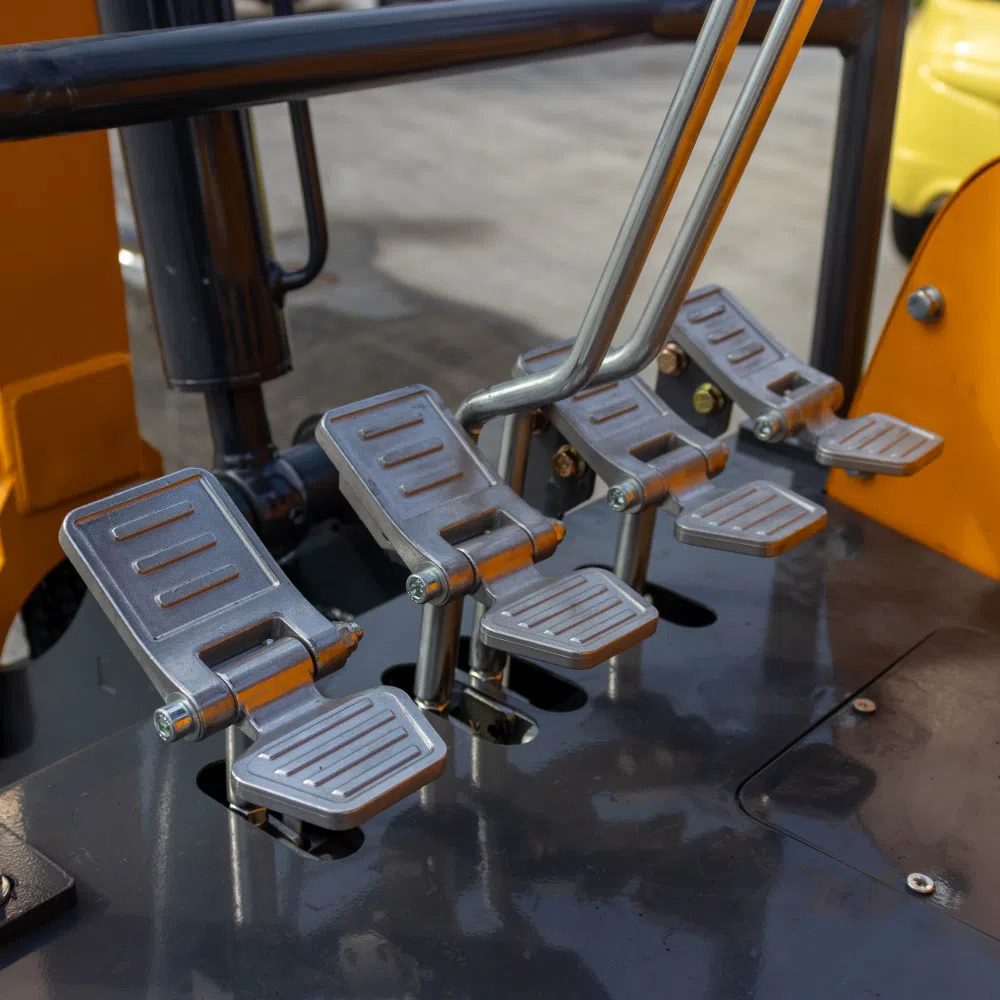

1.8 Ton Compact Crawler Track Excavator Images
1.8 Ton Compact Crawler Track Excavator Applications
The compact excavator is suitable for projects where controlled machine dimensions and practical digging performance are both important. In construction, it can be used for trench excavation, foundation preparation, drainage work, and general site earthmoving. In landscaping, its compact width and tracked configuration make it suitable for soil preparation, garden construction, and ground shaping. For agricultural applications, the machine can support irrigation trenching, land preparation, and farm maintenance work. It can also be used for small infrastructure and property maintenance projects where a small tracked excavator is more practical than larger construction equipment.
HIGHTOP Service Support
HIGHTOP provides support throughout the purchasing and equipment supply process, including product consultation, configuration confirmation, spare parts support, transportation coordination, and technical assistance.
For customers comparing a compact excavator for sale, HIGHTOP can provide product information according to required machine dimensions, digging range, engine configuration, and working conditions. For distributors, contractors, and equipment buyers, HIGHTOP also supports bulk purchasing and customized requirements where applicable.
After delivery, HIGHTOP can provide operating guidance, maintenance information, spare parts assistance, and technical support to help customers maintain the machine for long-term use.
