Hightop Mini Excavator 1.8 Ton Customizable Configuration Key Features

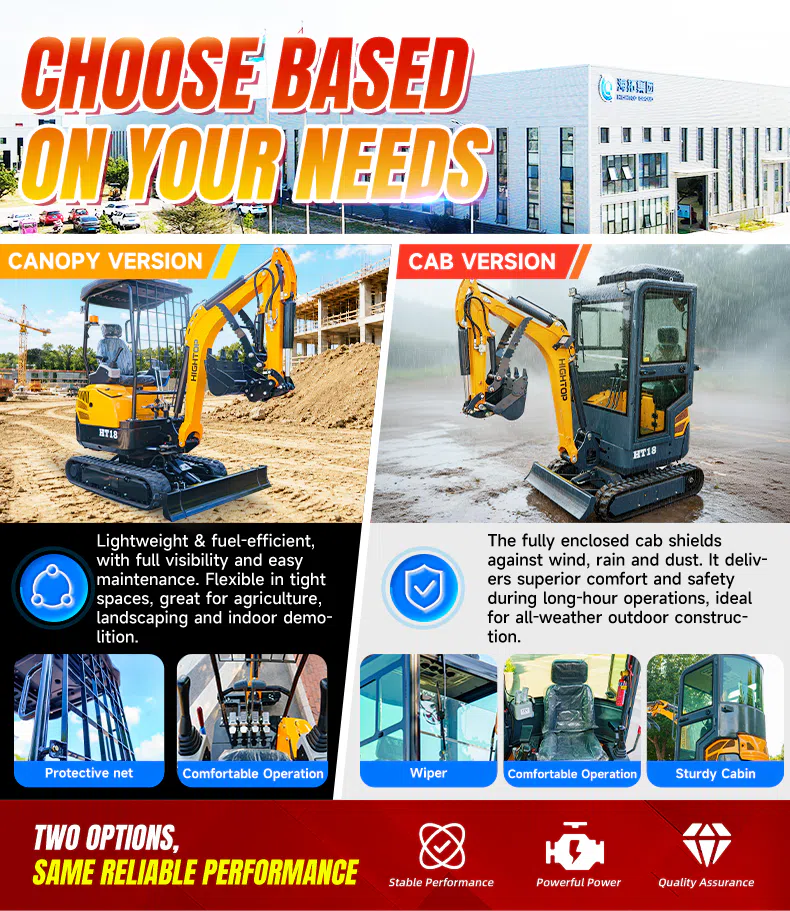

The main advantage of this 1.8 ton mini excavator is its flexible configuration. Hightop can discuss available equipment options according to different working conditions, application requirements and project specifications. This makes the machine suitable for customers who need more than a standard fixed configuration.
For contractors, distributors and project-based buyers, a custom mini excavator can be configured around the actual job instead of choosing equipment solely by machine size. Customers can communicate their intended application with Hightop before production and confirm the available configuration according to the project.

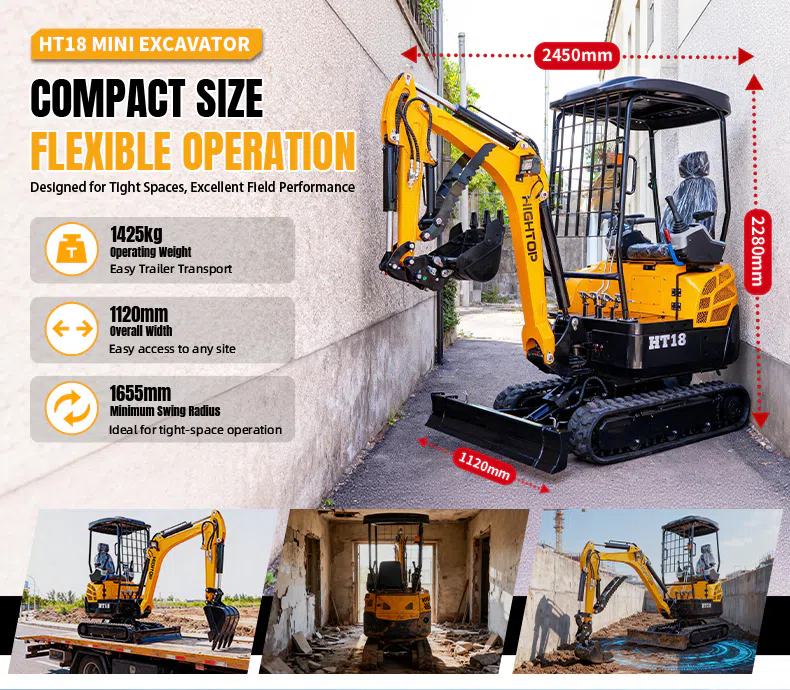

Compact Crawler Design for Restricted Work Areas
The compact crawler configuration allows this small excavator to work in areas where larger construction machinery may be less practical. Its crawler undercarriage is suitable for construction sites, landscaping projects, farms and other working areas with uneven ground or limited access.
The compact layout also makes the machine easier to use around buildings, gardens and other developed areas where working space needs to be carefully managed.
Side-Swing Boom for More Flexible Excavation
The side-swing boom adds flexibility when excavation needs to be performed close to walls, along narrow passages or in offset working positions. This feature is useful when the excavator cannot always be positioned directly in front of the digging area.
For contractors looking for a compact excavator for narrow areas, the side-swing structure provides greater freedom when positioning the working equipment.

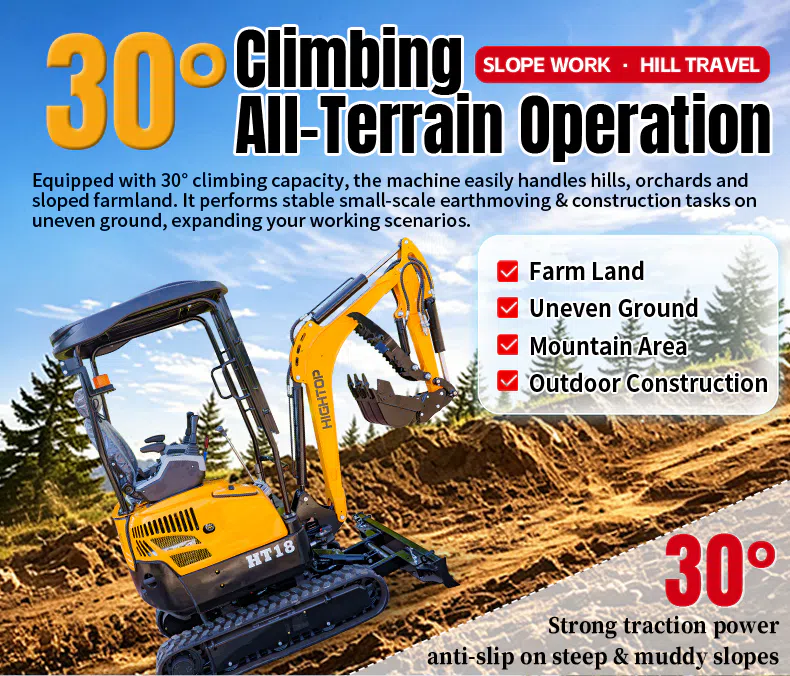

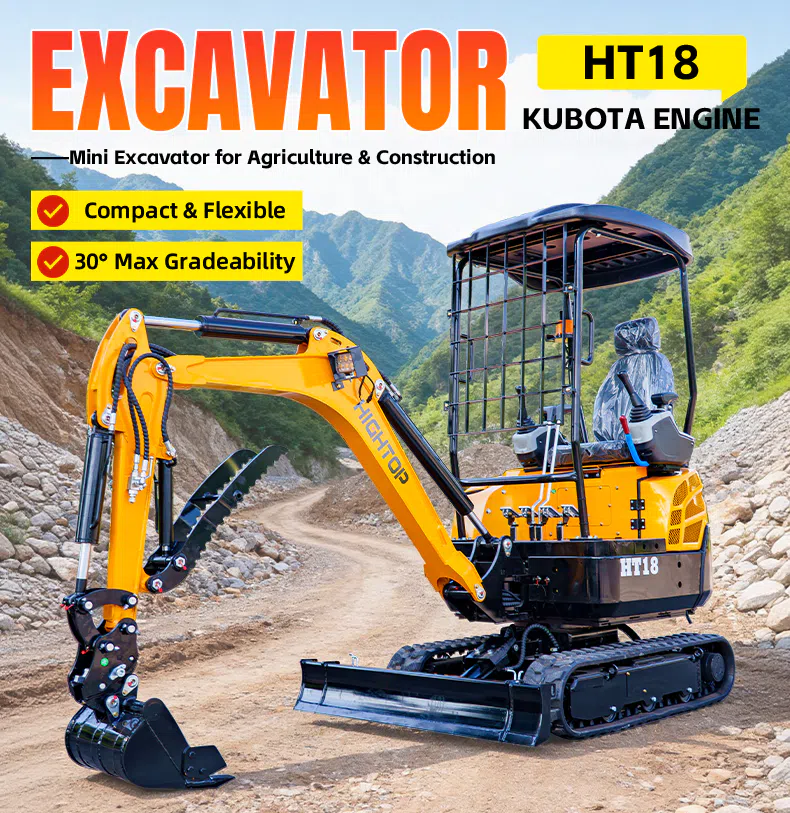

Up to 30° Gradeability for Uneven Ground
The machine has a maximum gradeability of 30°, providing practical mobility for suitable sloped and uneven working areas. The crawler undercarriage helps maintain stable travel when operating on appropriate terrain.
This makes the 1.8t crawler excavator suitable for selected earthmoving and landscaping applications where the working surface is not completely level.
Balanced Size and Working Capability
The 1.8 ton class provides a useful balance between compact machine dimensions and practical excavation capability. It is positioned above very small digging machines while remaining more manageable than larger excavators for many small and medium jobs.
For buyers comparing 1.5 ton, 1.8 ton and 2 ton mini excavators, this class can be considered when both working capability and equipment size are important.

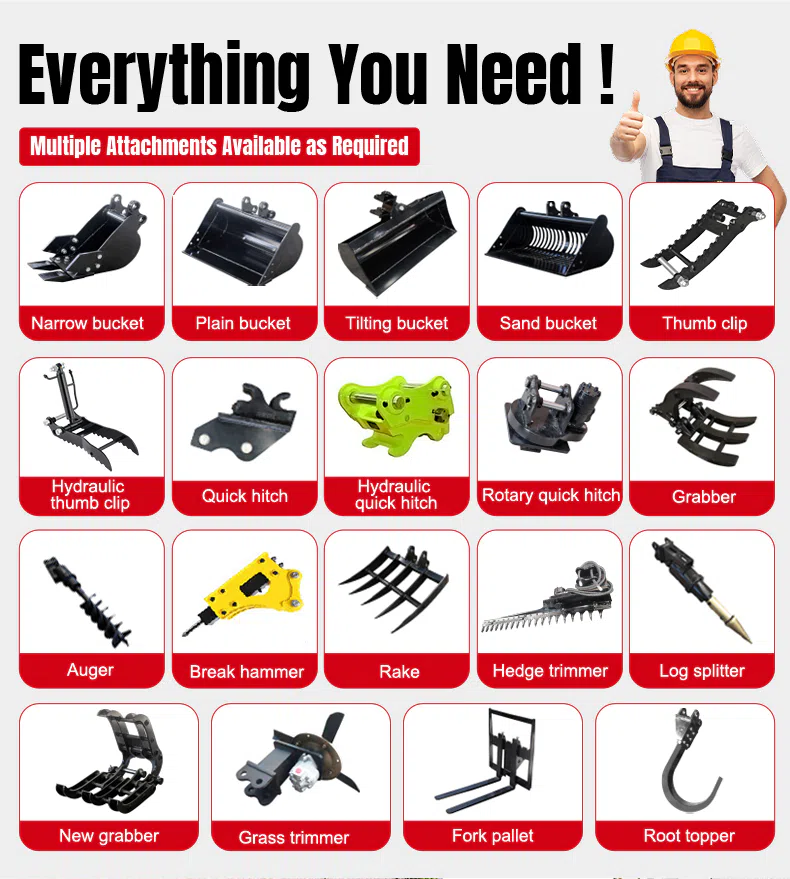

Adaptable for Different Attachments
The excavator can be used with suitable working attachments according to the job requirements. Different tools can help adapt the mini digging machine to excavation, trenching, landscaping and other related operations.
Hightop also provides a range of mini excavator attachments, allowing customers to consider the machine and working tools together when planning a project.

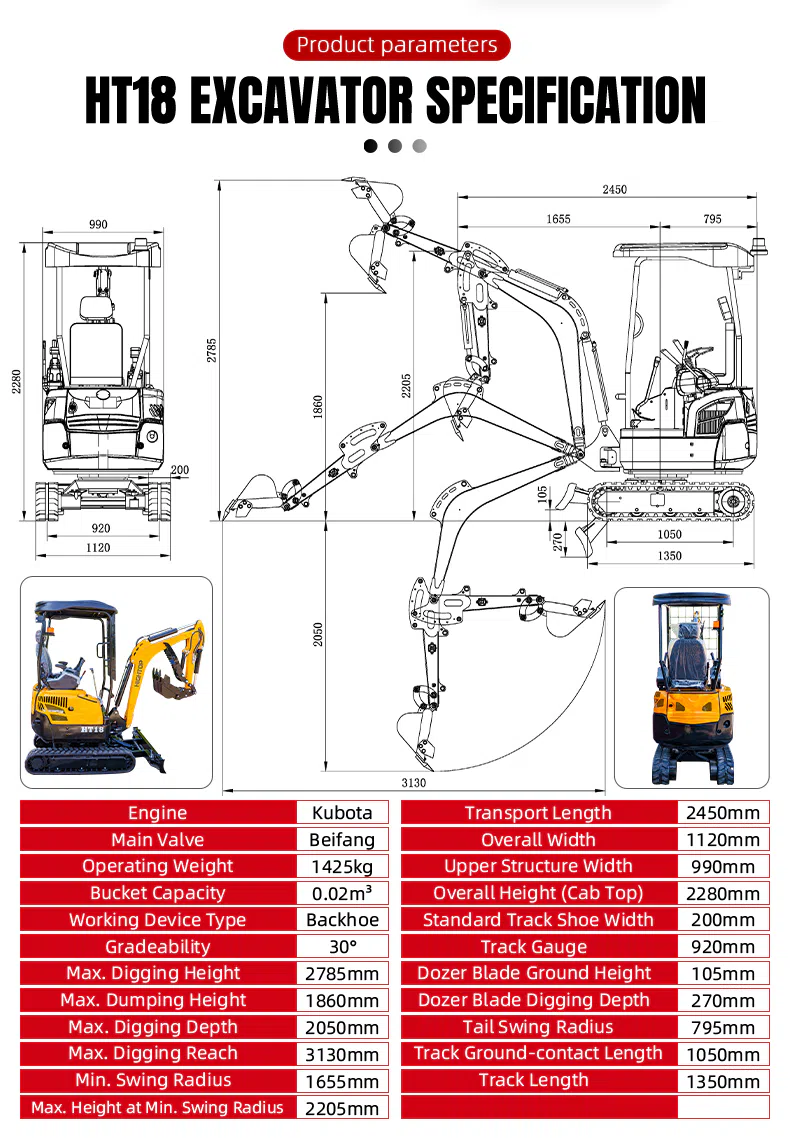

Mini Excavator 1.8 Ton HT18 Customizable Configuration Technical Specifications
| Parameter | Value |
|---|---|
| Engine | Kubota |
| Main Valve | Beifang |
| Operating Weight | 1425 kg |
| Bucket Capacity | 0.02 m³ |
| Working Device Type | Backhoe |
| Gradeability | 30° |

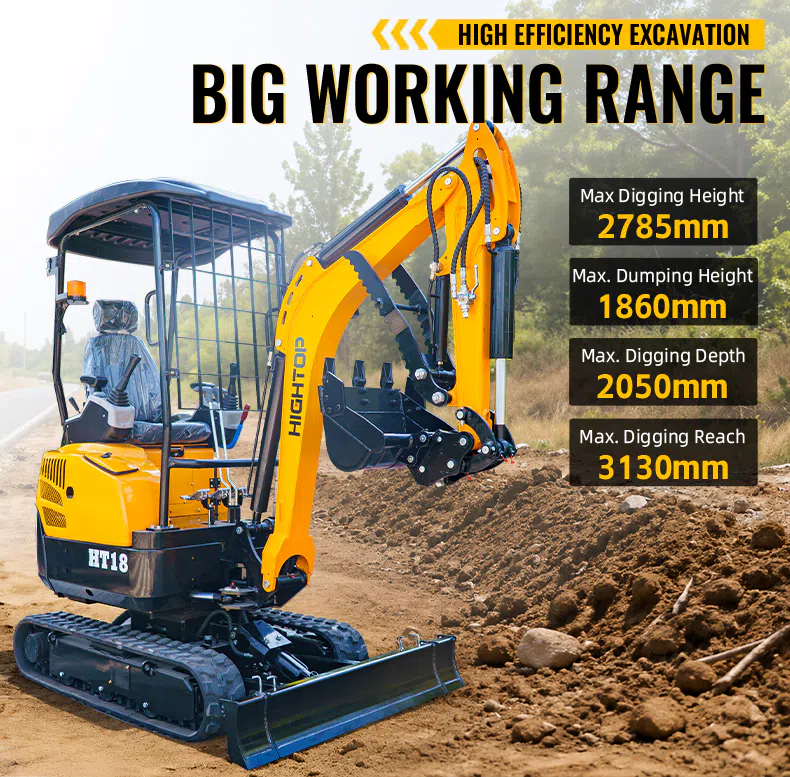

| Max. Digging Height | 2785 mm |
| Max. Dumping Height | 1860 mm |
| Max. Digging Depth | 2050 mm |
| Max. Digging Reach | 3130 mm |
| Min. Swing Radius | 1655 mm |
| Max. Height at Min. Swing Radius | 2205 mm |
| Transport Length | 2450 mm |
| Overall Width | 1120 mm |
| Upper Structure Width | 990 mm |
| Overall Height (Cab Top) | 2280 mm |
| Standard Track Shoe Width | 200 mm |
| Track Gauge | 920 mm |
| Dozer Blade Ground Height | 105 mm |
| Dozer Blade Digging Depth | 270 mm |
| Tail Swing Radius | 795 mm |
| Track Ground‑Contact Length | 1050 mm |
| Track Length | 1350 mm |

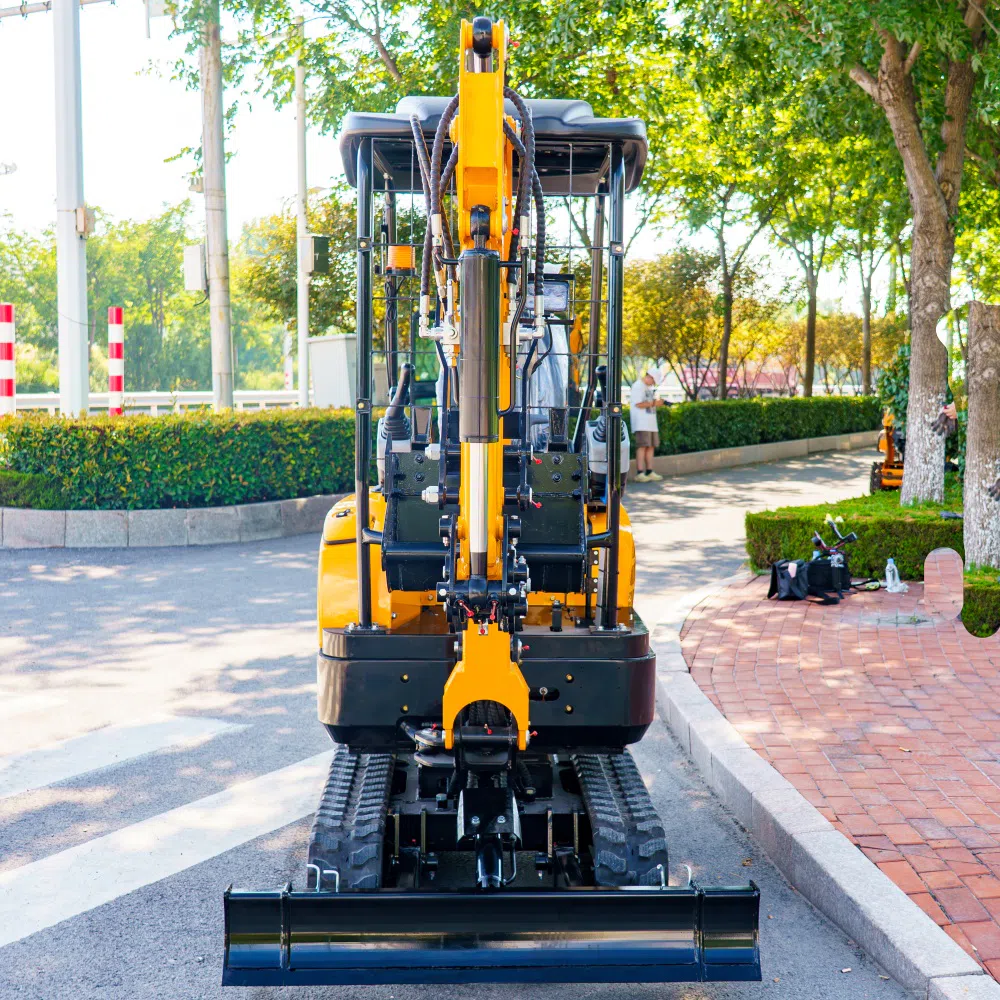

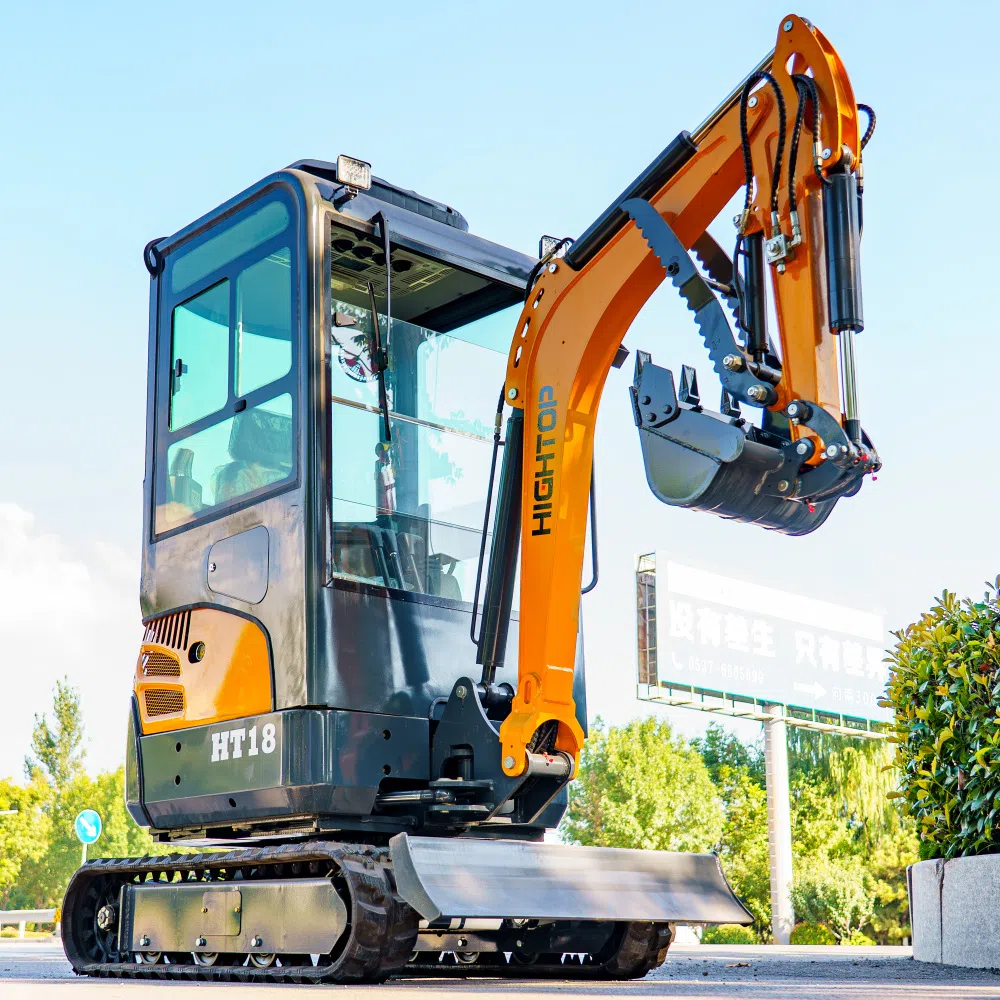

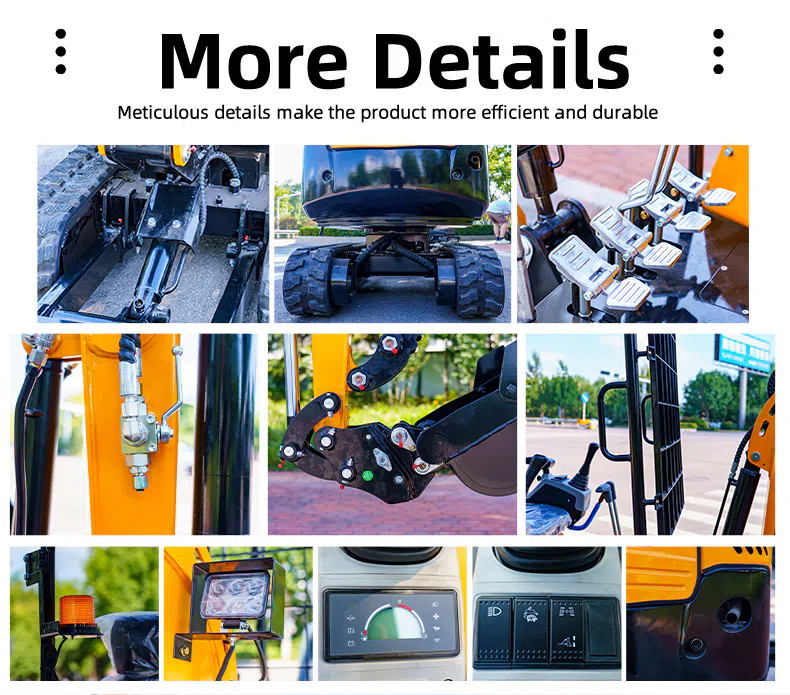

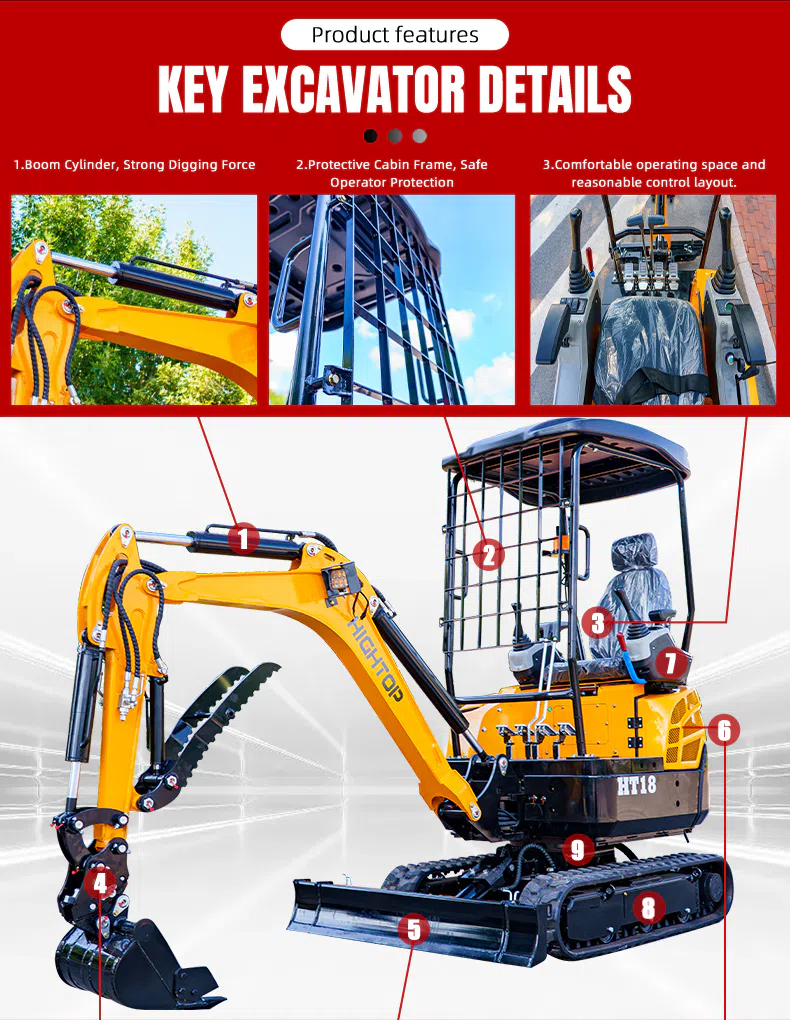

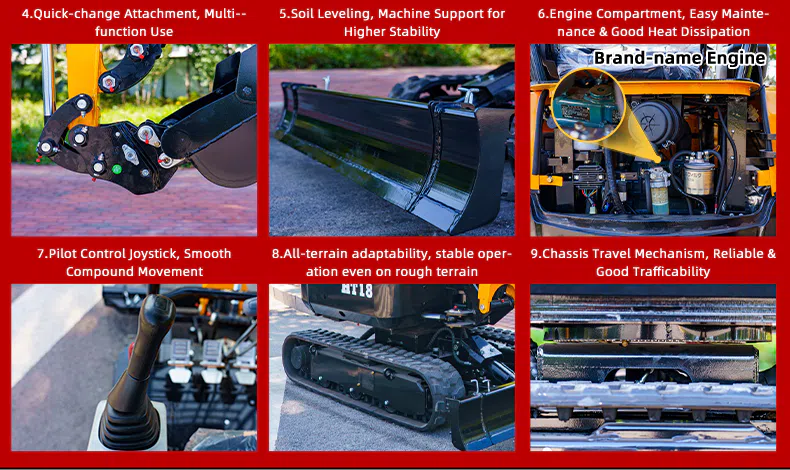

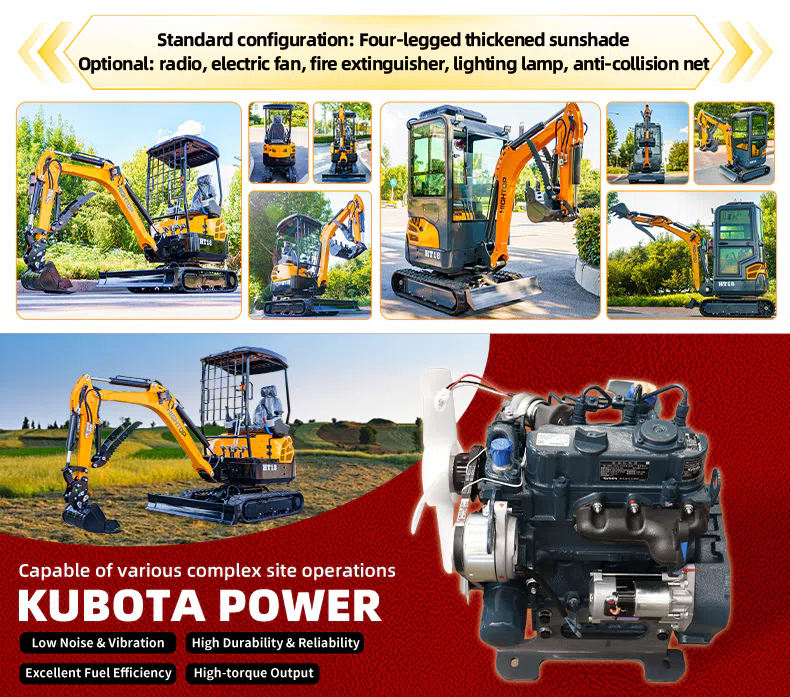

Hightop HT18 Mini Excavator 1.8 Ton Customizable Configuration Images
Mini Excavator HT18C 1.8 Ton Customizable Configuration Product Applications
This 1.8 ton mini excavator is suitable for small construction projects where a compact machine is required for localized excavation. Typical tasks include site preparation, trenching, foundation-related excavation and general earthmoving.
Its smaller working footprint can be useful when several structures, materials or access routes are already present on the site.
Landscaping and Garden Renovation
For landscaping contractors and property maintenance teams, the machine can be used for garden renovation, soil preparation, drainage work and localized excavation.
The compact crawler excavator is particularly suitable for projects where the operator needs to work around existing gardens, walls, paths or other landscape features.
Agricultural and Farm Work
On farms and agricultural properties, the excavator can assist with ditching, drainage, soil preparation and general land maintenance. Its crawler configuration makes it suitable for working on agricultural ground where the surface may not always be level.
For buyers looking for a small excavator for farm work, the 1.8 ton class offers a practical option for localized earthmoving jobs.
Trenching for Utilities and Drainage
The machine can be used for trenching work associated with drainage, utility preparation and other small earthmoving projects. Its compact structure allows the excavator to operate in working areas where access is more restricted.
This makes the 1.8 tonne mini excavator suitable for contractors handling smaller trenching and site preparation jobs.
Slopes and Uneven Ground
With a maximum gradeability of 30°, the excavator can be used on suitable sloped and uneven ground within the operating limits of the machine. This can be useful for landscaping, farm maintenance and selected earthmoving work.
The small crawler excavator provides a practical option where stable crawler travel is required on uneven terrain.
Work Around Buildings and Existing Structures
The machine can also be used for excavation and site preparation around residential buildings, gardens, walls and other existing structures. The compact layout and side-swing boom provide useful flexibility when the available working area is limited.
This type of compact excavator is suitable for localized projects where positioning and access are important considerations.

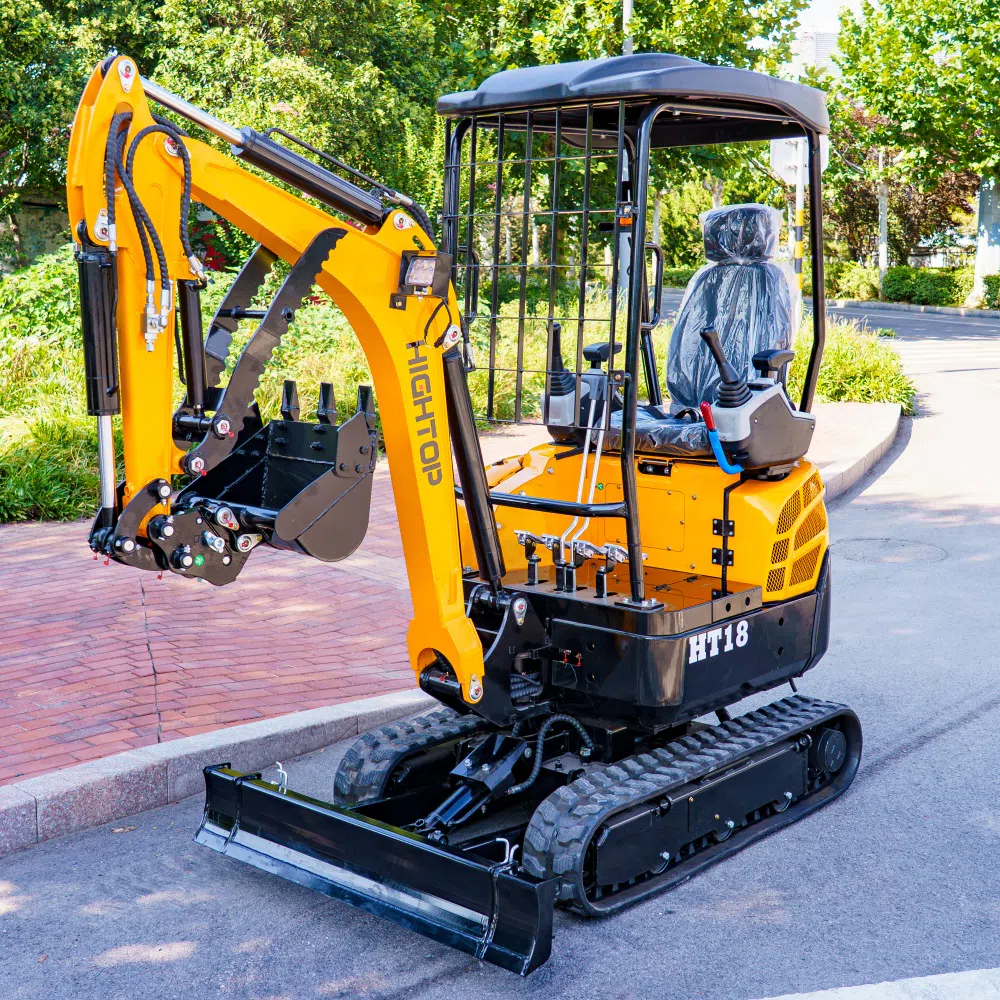

Mini Excavator 1.8 Ton Customizable Configuration
Reliable Support from Manufacturer to Job Site
Hightop is a construction machinery manufacturer based in Jining, Shandong, China, with a product range covering mini excavators and related construction equipment. For export customers, Hightop provides equipment configuration support, spare-parts assistance and technical communication throughout the purchasing process.
Before shipment, machine configuration can be confirmed according to the customer's working requirements, including engine selection and suitable working equipment where applicable. For overseas customers, Hightop also supports export logistics and provides the necessary shipping and machine documentation.
After delivery, customers can communicate with the Hightop technical and service team regarding machine operation, routine maintenance and spare-parts requirements. This manufacturer-direct support helps customers manage the machine throughout its working life.
