Backhoe Loader With Comfortable Operation HT15-10 Introduction
The HIGHTOP HT15-10 Backhoe Loader is a compact multifunctional construction machine designed for small and medium-scale engineering projects that require excavation, loading, and material handling capability in one unit. Combining a front loader bucket with a rear backhoe system, this backhoe loader provides a practical solution for construction, agricultural, municipal, and landscaping applications.
Unlike single-function construction equipment, the HT15-10 allows operators to complete multiple tasks including digging foundations, trench excavation, soil handling, loading materials, and site preparation without frequently changing machines. Its compact structure and four-wheel drive system provide reliable performance for different working environments.
The HT15-10 is equipped with a front mechanical pilot operation system and rear hydraulic pilot control, improving operating accuracy and working efficiency. The adjustable front and rear instrument panel, rotating seat, sliding windows, warm air system, and high-low speed fan create a more comfortable working environment for operators during long working periods.
With a maximum digging depth of approximately 2000mm and a maximum digging radius of 5000mm, the HT15-10 can handle common excavation tasks such as foundation work, pipeline trenches, and land preparation. The four-wheel drive design improves traction and stability, making the machine suitable for outdoor construction sites and uneven working conditions.
For customers searching for a small backhoe loader, compact backhoe loader, or construction backhoe loader, HIGHTOP provides reliable equipment solutions with professional technical support, spare parts supply, and customized service options.
Backhoe Loader With Comfortable Operation HT15-10 Parameters
ITEM | PARAMETER |
Max.Excavating Depth | 2000mm |
Max.Excavating Height | 3600mm |
Max.Excavating Radius | 5000mm |
Bucket Capacity | 0.1m³ |
Max. Hauling Force | 23KN |
Max. Swing Angle of Boom | 180° |
Max.Dumping Height | 2300mm |
Min. Turning Radius | 3500mm |
Max.Dumping Distance | 900mm |
Ground Clearance | 230mm |
Loading Mass | 1000kg |
Drive | 4 Wheel Drive |
Grade ability | 25° |
Lifting Time of Movable Arm | 4.5s |
Falling Time of Movable Arm | 3s |
Summational Time | 10s |
Max. Breakout Force | 20kn |
Engine Brand Model | Yunnei |
Number of Cylinder | 4 Cylinder |
Electric System Voltage | 24V |
Rated Power | 42kw（57HP） |
Tyre Model | 20.5/70-16 |
Rated Revolution | 2400r/min |
Maximum Forward Speed | 30km/ hour |
Working Pressure | 20MPa |
Total Weight | 3990kg |
Distance Between Axles | 1725mm |
Overall Dimension(L×W×H) | 5900×1860×2960mm |

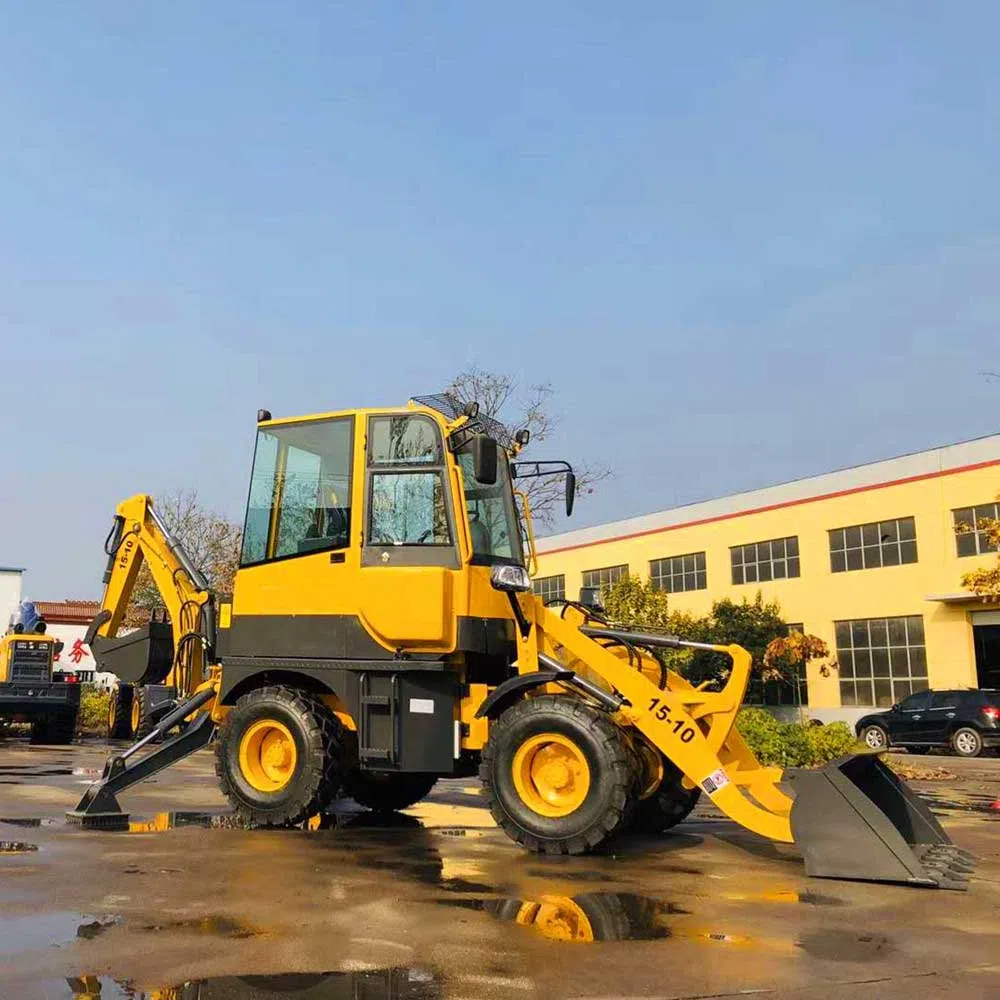

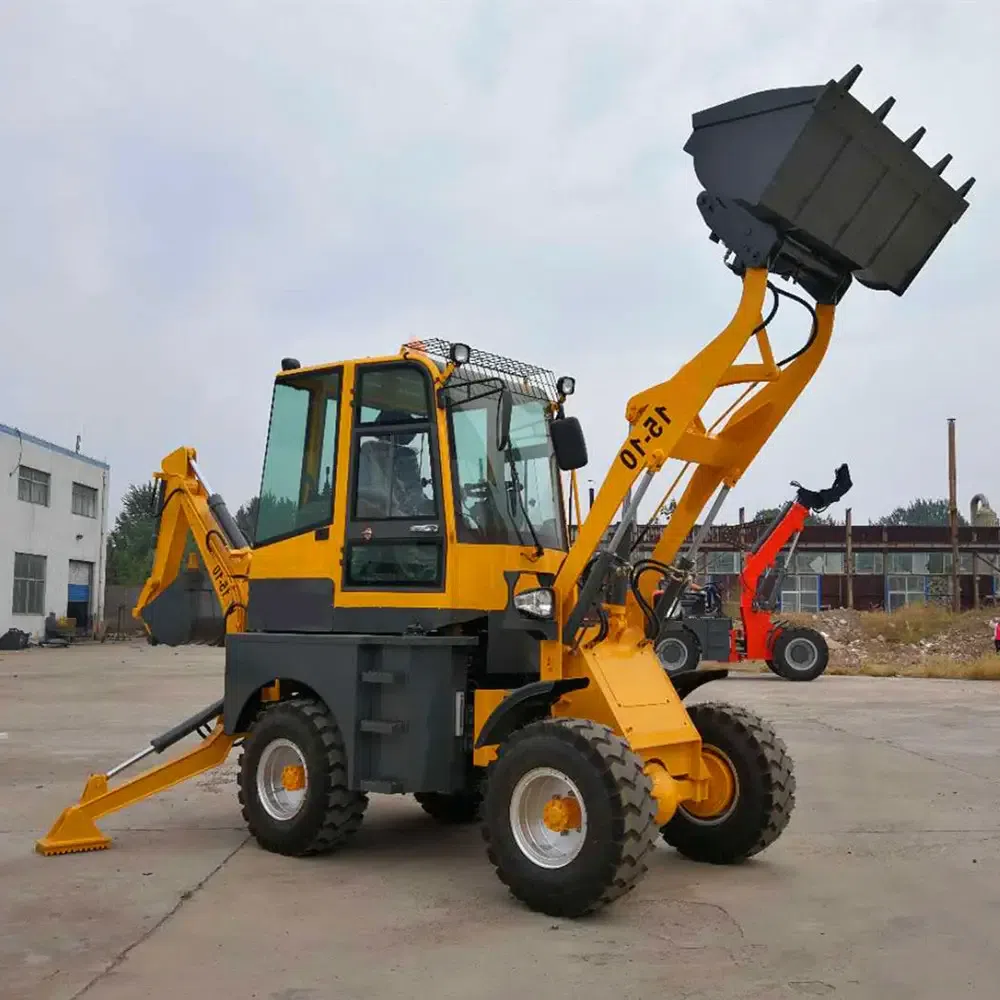

Backhoe Loader With Comfortable Operation HT15-10 Images
Backhoe Loader With Comfortable Operation HT15-10 Introduction Applications
The HT15-10 backhoe loader is suitable for a wide range of small and medium engineering applications. In construction projects, it can be used for foundation excavation, trench digging, site preparation, and construction material loading. For municipal engineering, the machine is suitable for urban road maintenance, pipeline installation, drainage construction, and other maintenance tasks. In agricultural applications, the HT15-10 can support farmland leveling, irrigation channel construction, soil handling, and farm infrastructure improvement. It is also suitable for landscaping projects such as tree planting preparation, flower bed excavation, and earth transportation. With its combination of digging and loading functions, the HT15-10 provides a practical solution for contractors, farmers, and small engineering teams requiring flexible and reliable equipment.
HIGHTOP Service Support
HIGHTOP provides complete support services for HT15-10 backhoe loader customers, including equipment consultation, configuration recommendations, spare parts supply, transportation assistance, and technical support.
Before purchase, our engineering team helps customers select suitable configurations according to project requirements, working environment, and application conditions.
For distributors, contractors, and agricultural users, HIGHTOP supports bulk purchasing, OEM cooperation, and customized solutions to meet different market demands.
After delivery, HIGHTOP provides operation guidance, maintenance recommendations, and technical assistance to help customers maintain stable machine performance and reduce downtime.
Backhoe Loader Frequently Asked Questions
1. What is the HT15-10 backhoe loader used for?
The HT15-10 is mainly used for excavation, loading, trenching, land preparation, and material handling in construction, agriculture, and municipal projects.
2. What are the advantages of the HT15-10 compared with a mini excavator?
The HT15-10 combines excavation and loading functions, allowing users to complete more tasks with one machine instead of using separate excavators and loaders.
3. How deep can the HT15-10 excavate?
The HT15-10 can achieve a maximum digging depth of approximately 2000mm, making it suitable for foundation work, trenching, and general earthmoving projects.
4. Is the HT15-10 suitable for agricultural applications?
Yes. The machine can be used for farmland maintenance, irrigation construction, soil handling, and agricultural infrastructure projects.
5. Does the HT15-10 have four-wheel drive?
Yes. The HT15-10 adopts a four-wheel drive system to improve stability and traction during outdoor operations.
